Updated: October 23, 2015 and November 19, 2015 (Movie: Dec. 15, 2015, Jan. 29, 2016 and Feb. 12, 2016)

HO Scale Desert Layout Project  -  15/22
See 100 photos of the finished layout by WM (plus 26 bonus pictures by Kim Nipkow)
incl. Cajon Pass (Mormon Rocks - Hill 582 - WSI),
City of Percyville (similar to Mojave, CA)
Werner Enterprises Terminal

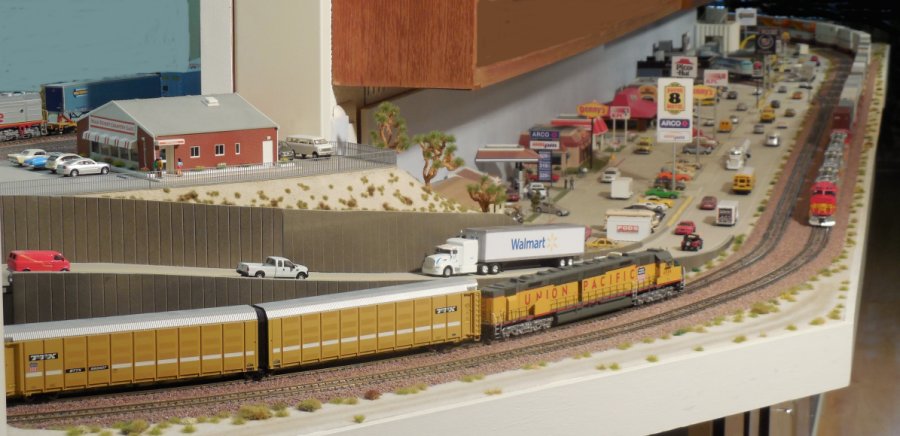

Entering the City of Percyville and looking down main street - 1885
I started with my layout in late December 2007 and it is finally finshed in late September 2015.
Well, I will add some detailing, weathering of the roads, road signs and street railings along main street in Percyville.
Thank you for your interest in my Mojave Desert Layout - Werner Meer (11/19/15)
2/12/16: Trains are rolling:  https://www.youtube.com/watch?v=AqyLRyKma2A&feature=em-upload_owner
1/29/16: Cab Ride 1:  https://www.youtube.com/watch?v=Soaz-cNiU1o&feature=em-upload_owner
1/29/16: Cab Ride 2:  https://www.youtube.com/watch?v=iUdxXdO3b1g&feature=em-upload_owner
12/15/15: Test movie 1 of my layout:  https://www.youtube.com/watch?v=JBp4X3lnvRc&feature=em-upload_owner
Test movie 2: https://www.youtube.com/watch?v=aDCZzK6MhyQ&feature=em-upload_owner
Test Movie 3: https://www.youtube.com/watch?v=UDSBNYdyK3A&feature=em-upload_owner
all movies made by Martin Raemy
Technical Data of my Layout:
Size: 4,5 x 6,5 m (13,5 x 19,5 feet), Era: Modern, Location: Southern California in the Mojave Desert (Cajon Pass), Layout Style: unconventional, in house along the walls, 2 swing up bridges, 1 lift out bridge, double track, min. radius 104 cm (41 inch), max. grade 1,5 %, Track: Atlas flextrack code 100, Turnouts: Peco code 100, Power: conventional DC with electrical feeders every 2 m, Mainline: 32 m (96 feet), Height: 93 cm (36,5 inch)
Overview of layout (each square is 0,5 m)

Photos 1885 - 1988, starting 10/06/15 and ending 10/06/15  (just click on the 4-digit number for bigger size photos)

The City of Percyville
We start our tour at the left side, where the tracks are coming from Office 2. Take a short look at the Mormon Rocks inside Office 2 and continue outside main street of Percyville, pass Werner Enterprises Terminal, Percyville Extension, Tunnels East Portals, inside Office 2 Tunnel area West Portals, West Summit Island, Hill 582, Mormon Rocks, Flyover and along the shelf.

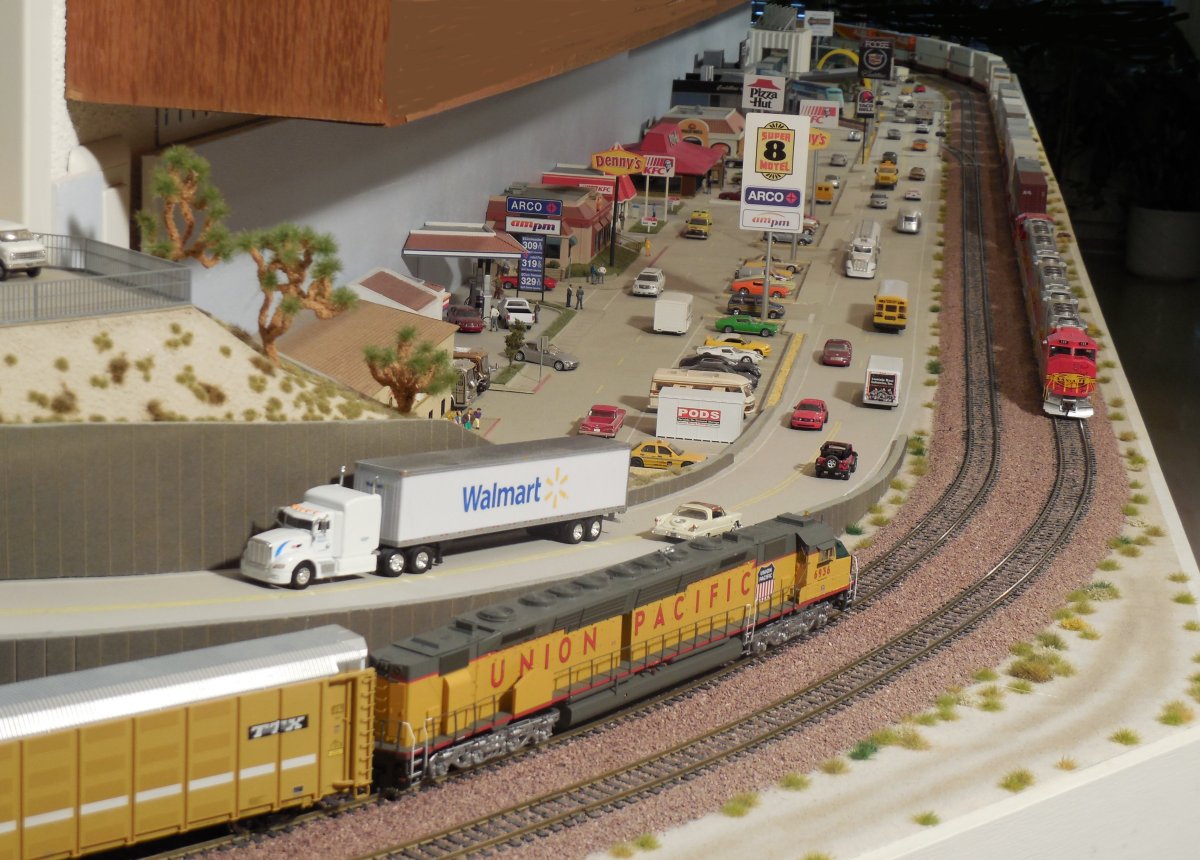

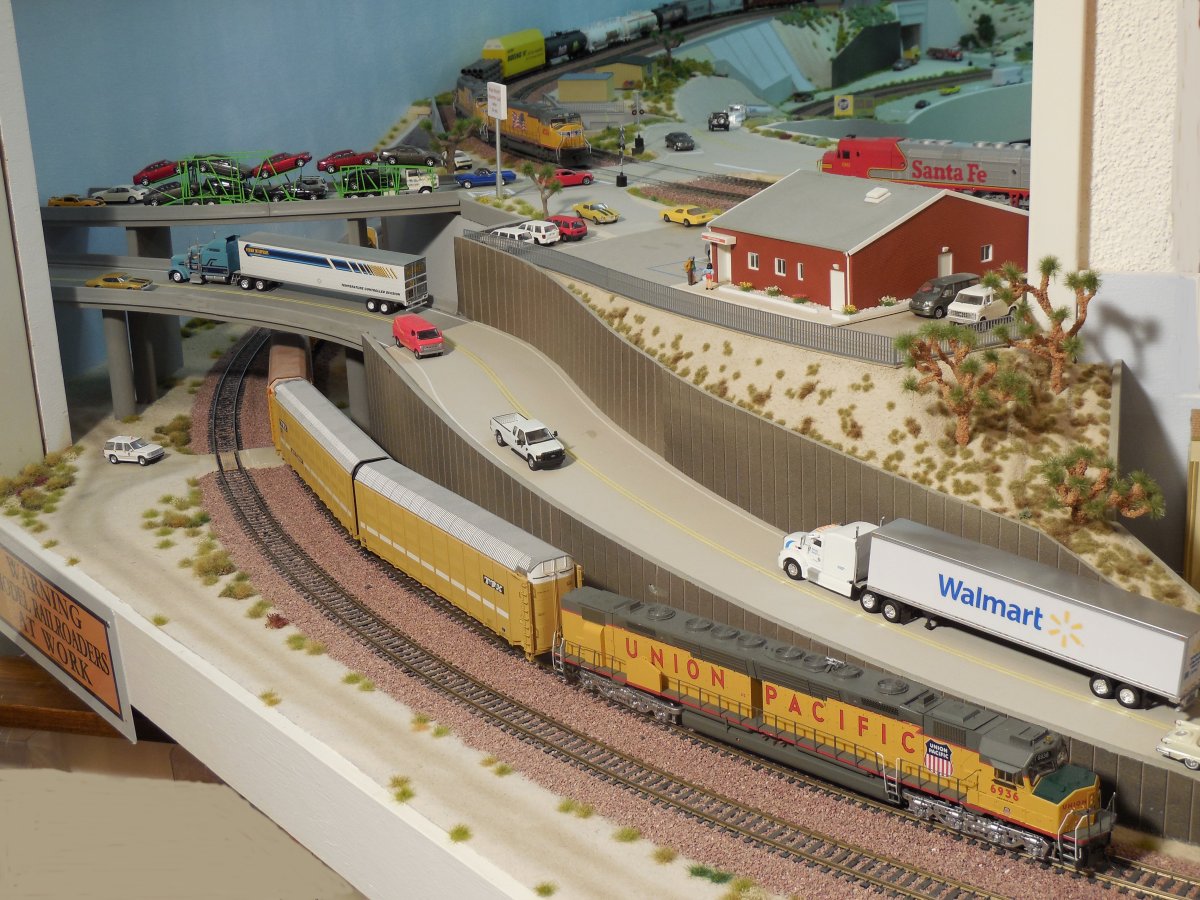

we are standing in the passage and are looking inside office 2 - 1886 we are looking North with the City of Percyville - 1887

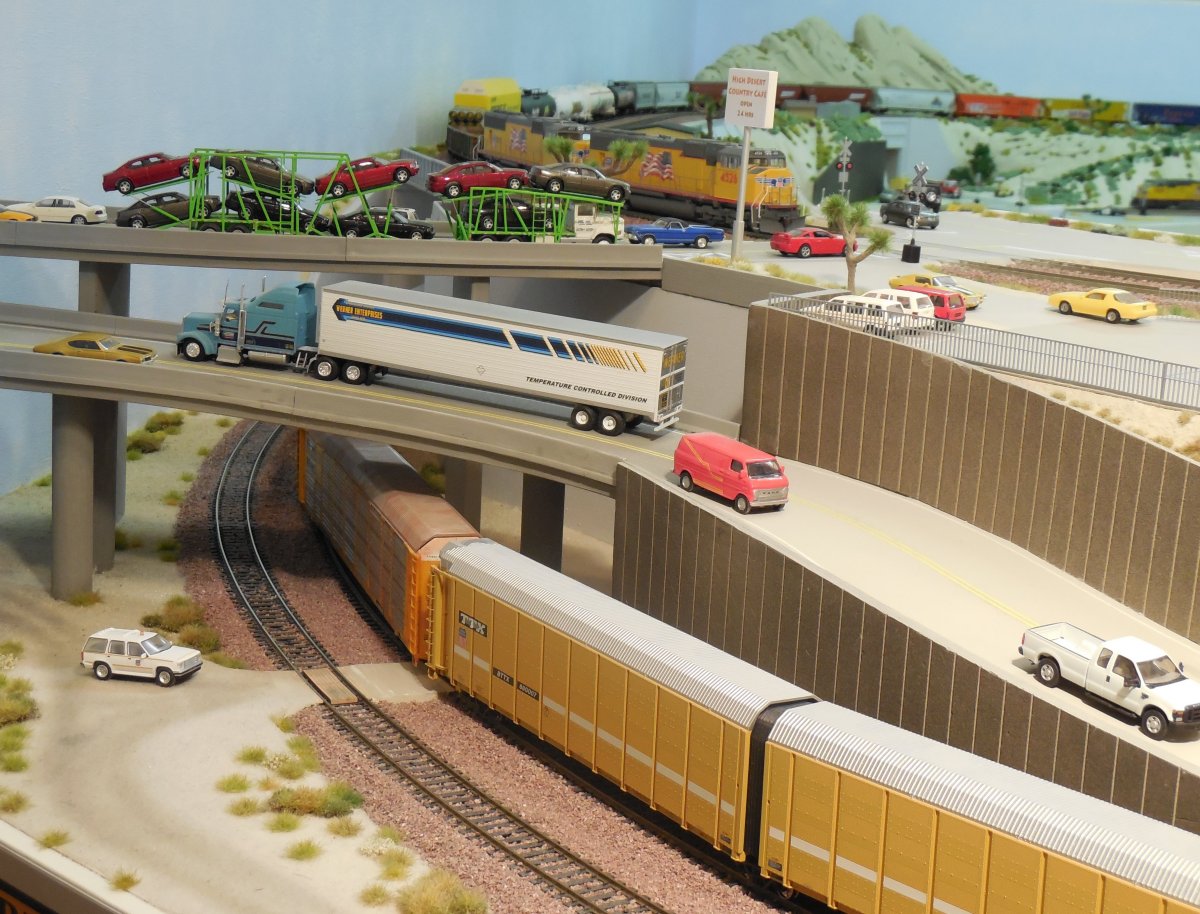

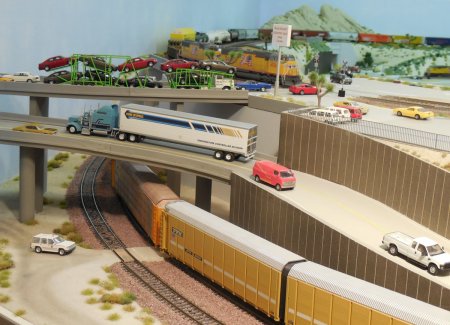

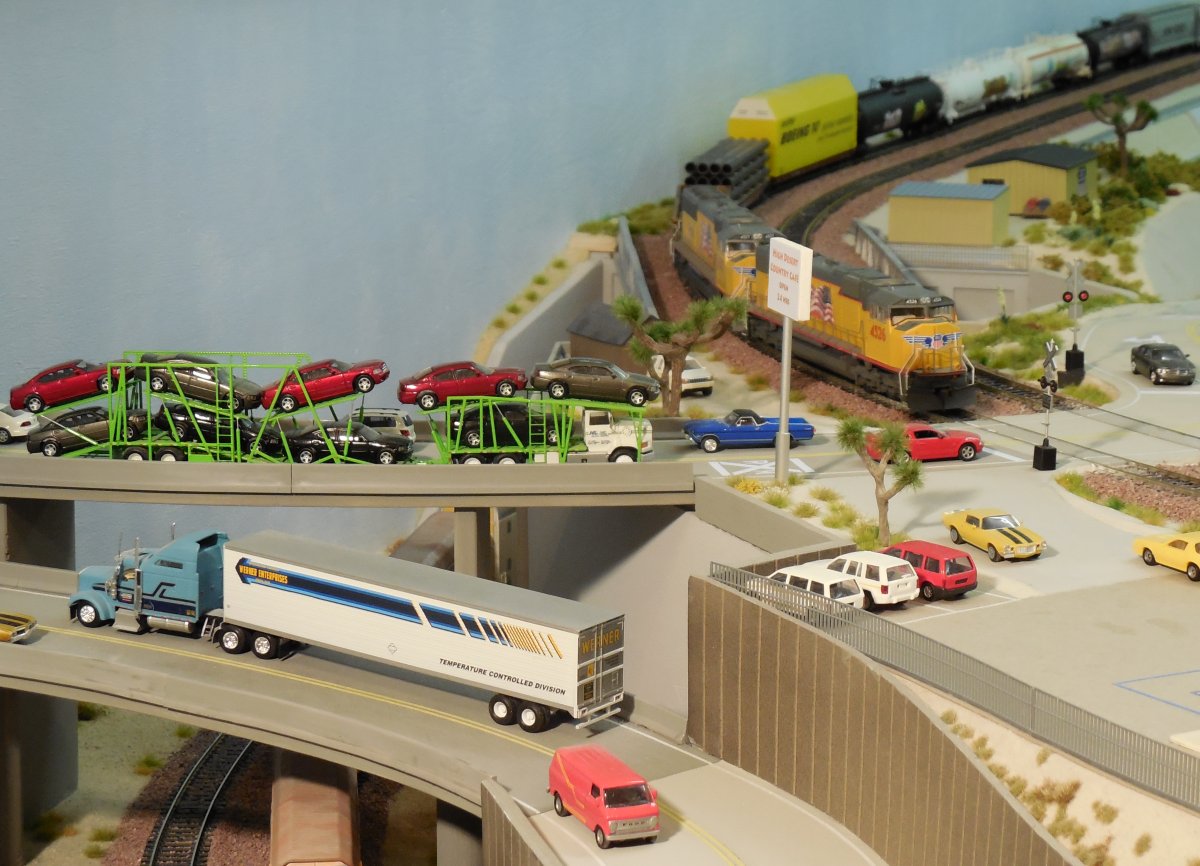

the auto carrier on the bridge is having a load . . - 1888 . . of brand new Dodge Chargers - 1893

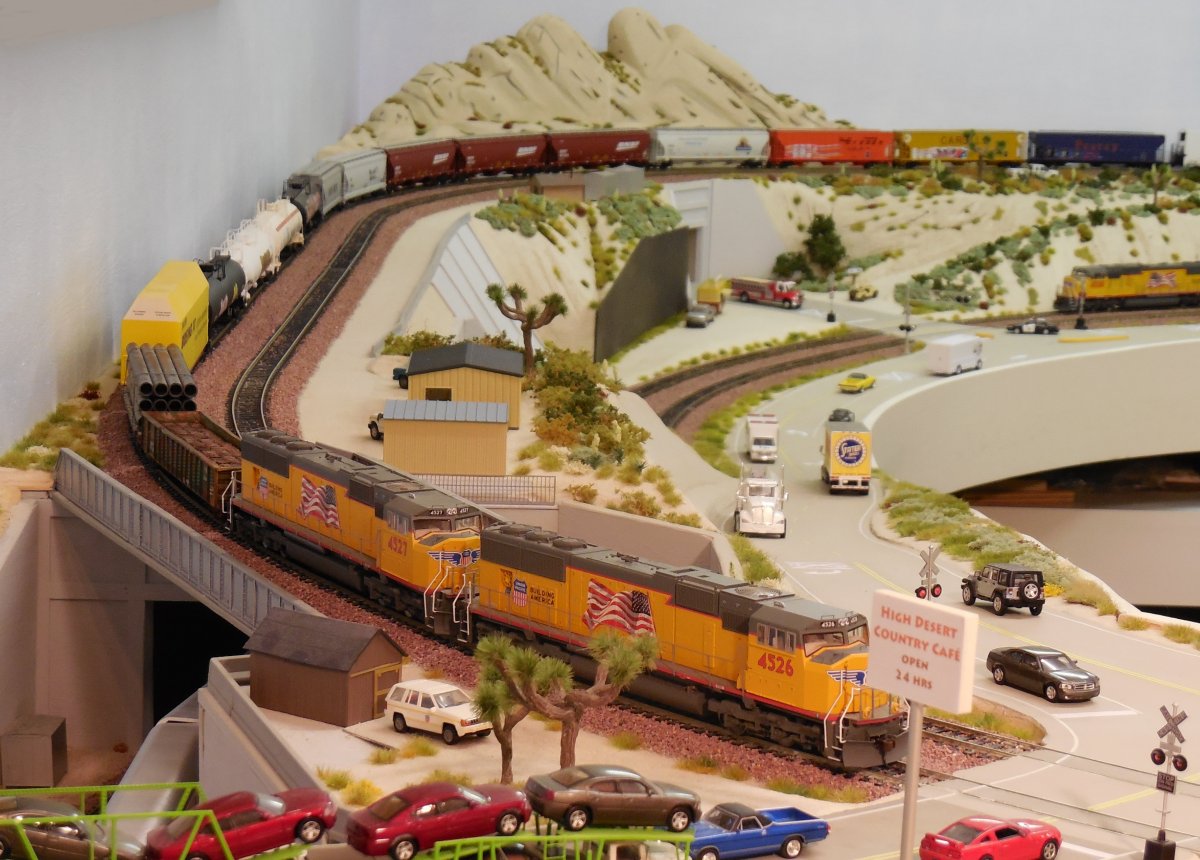

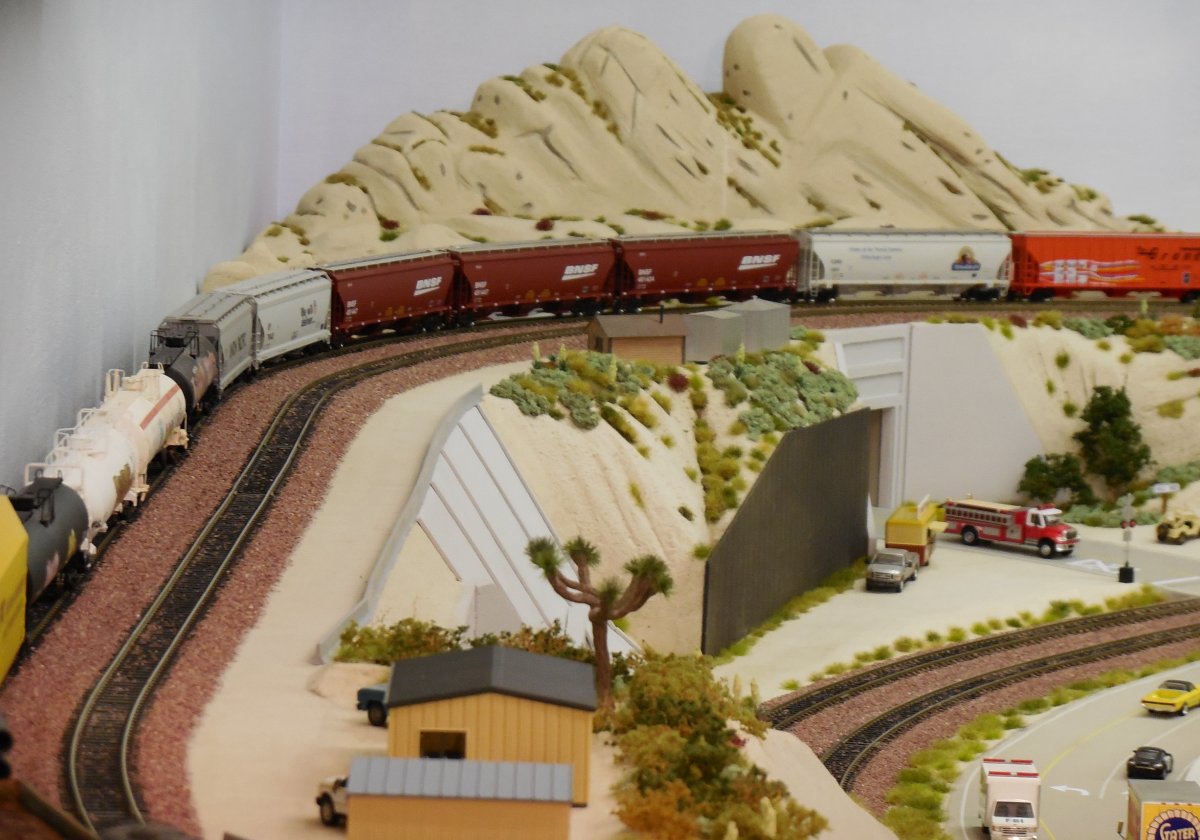

The Mormon Rocks are inside Office 2 - 1894 1895

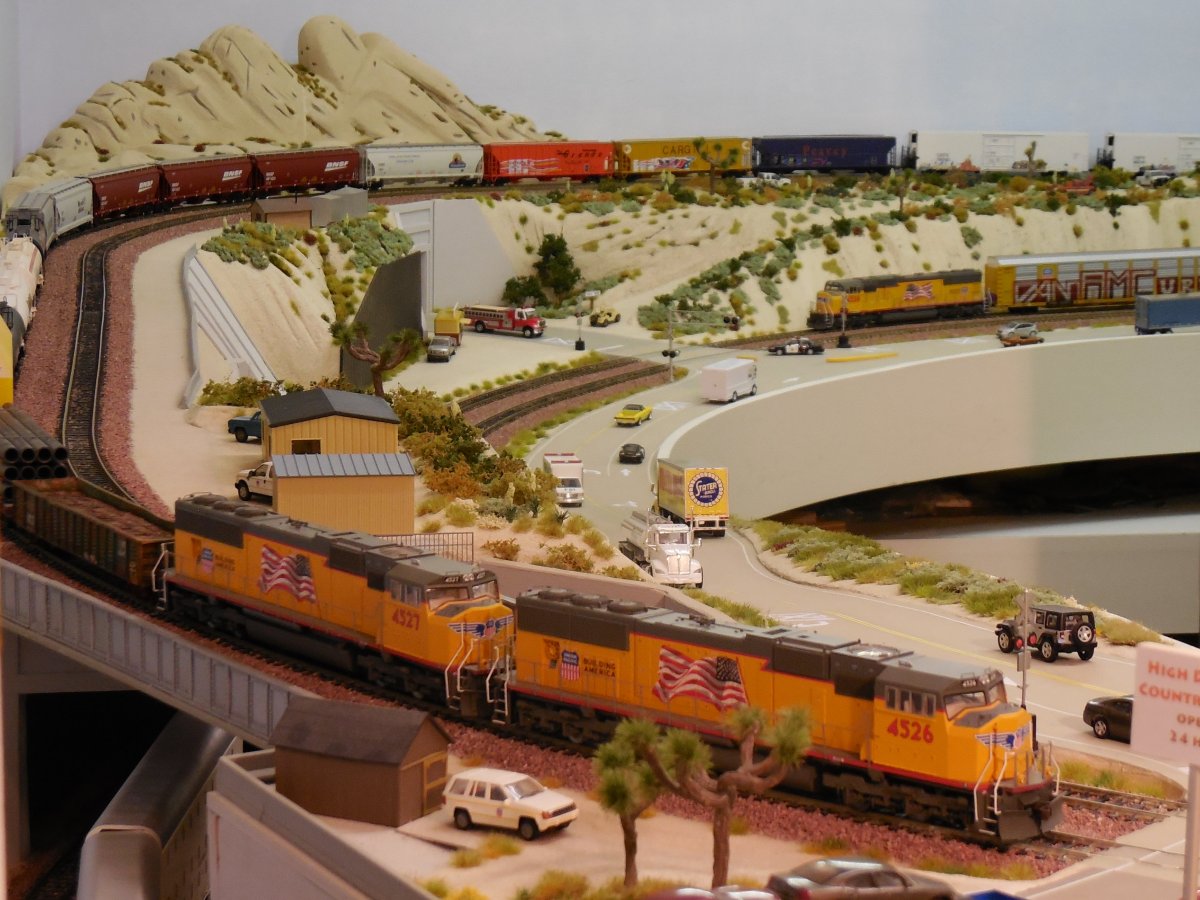

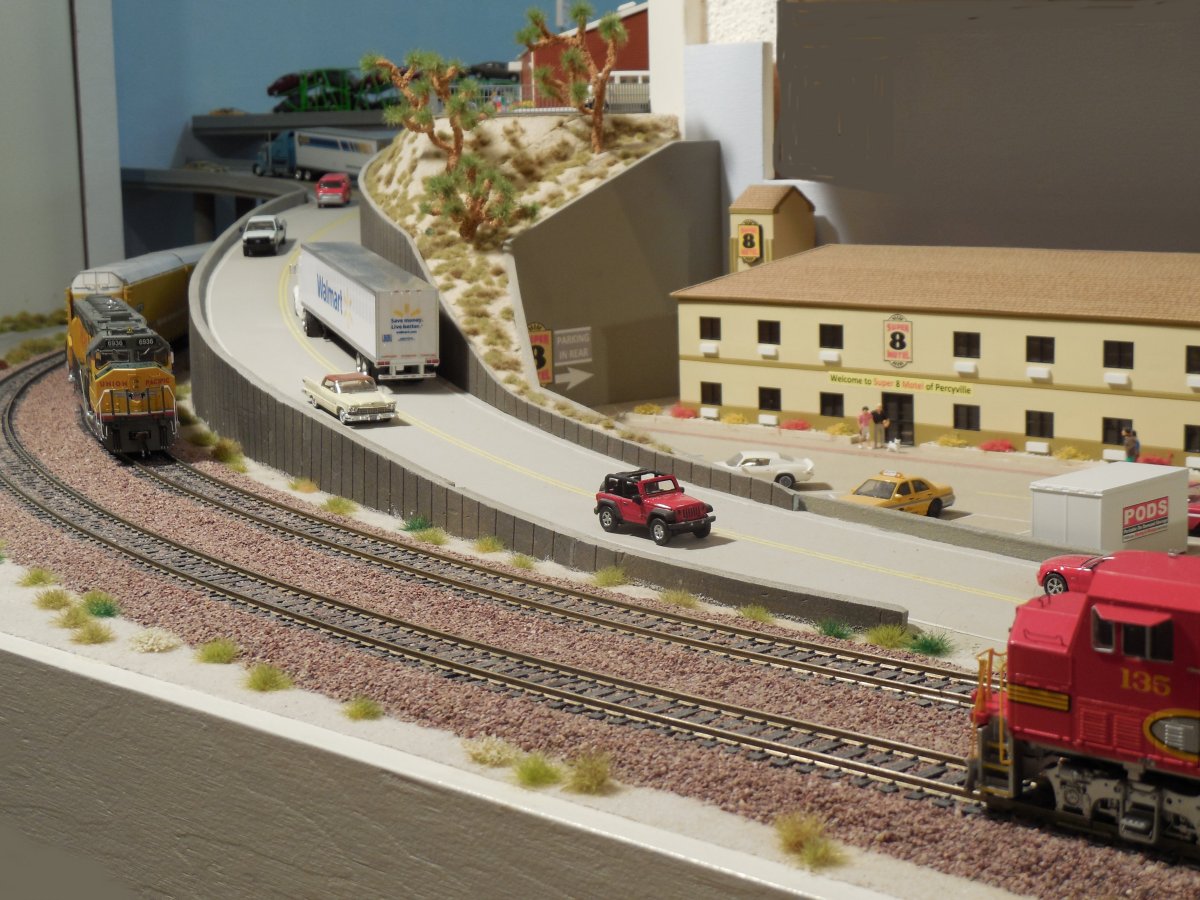

The UP Diesels are on the Flyover - 1899 1900

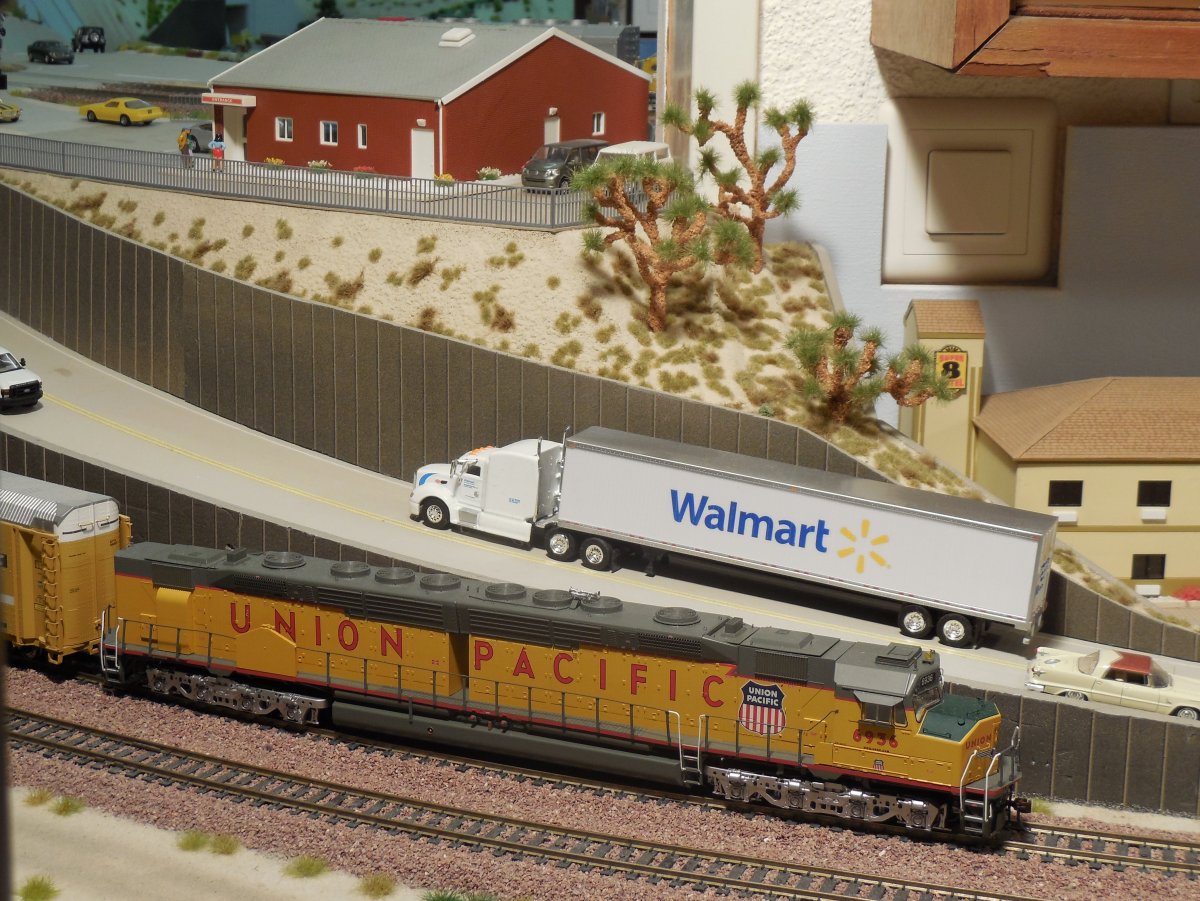

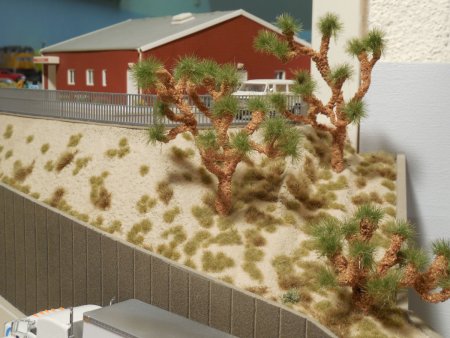

These 3 Joshua Trees were made by Felix Rüedi - 1896 UP DDA40X made by Athearn Genesis - 1897

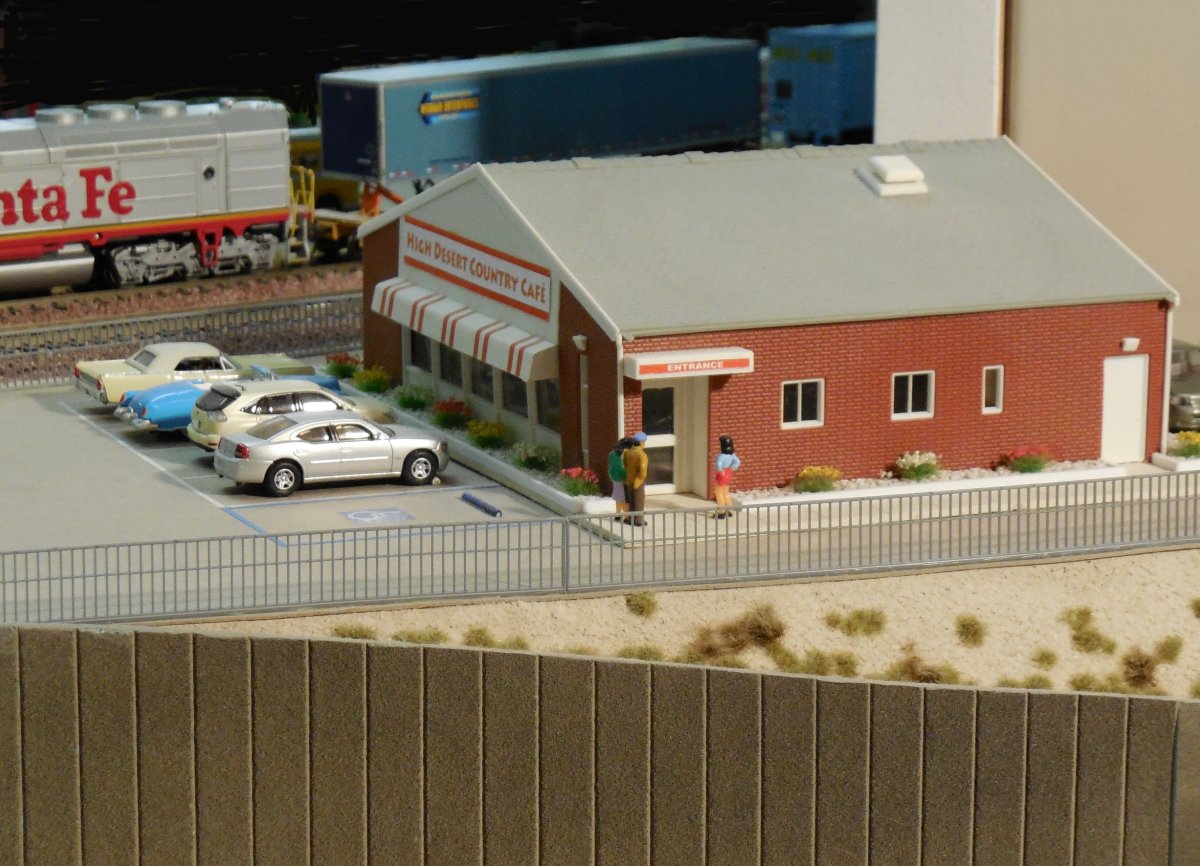

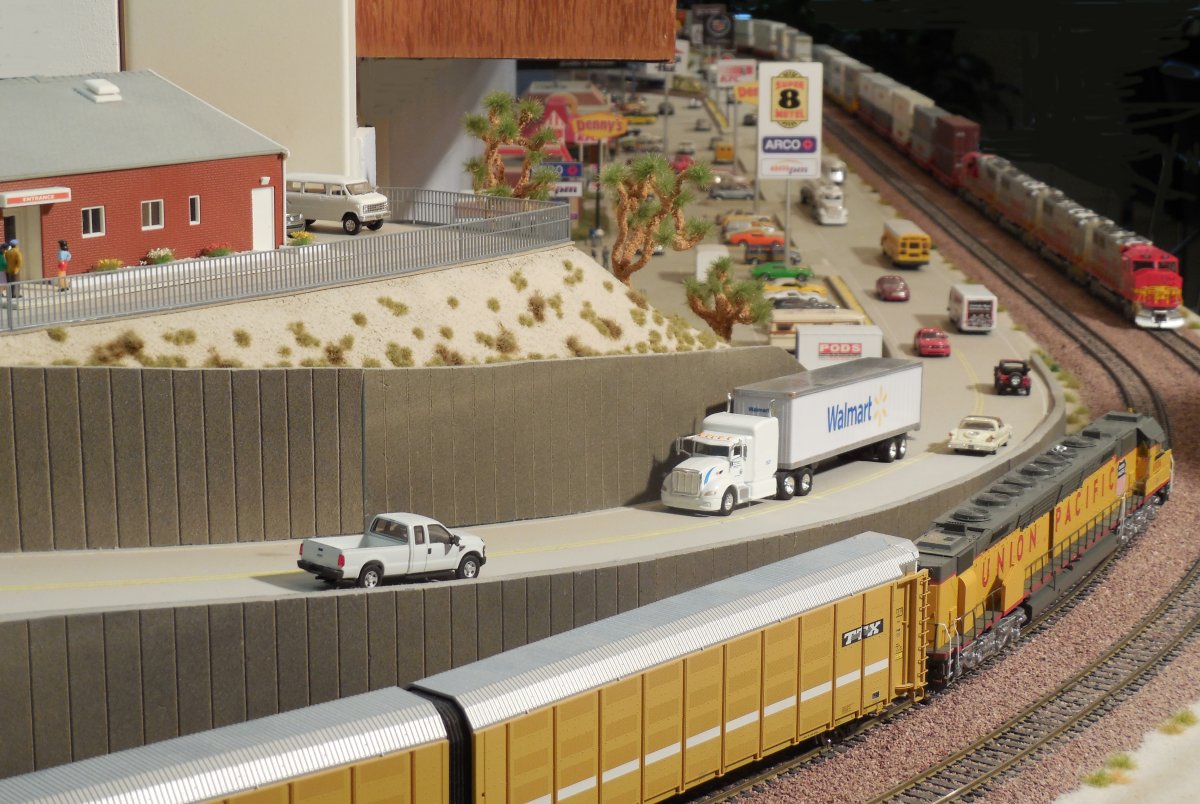

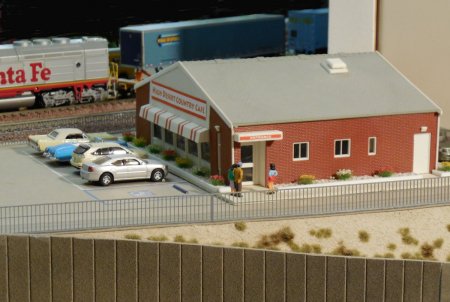

On top is the "High Desert Country Cafe" - 1889 1898

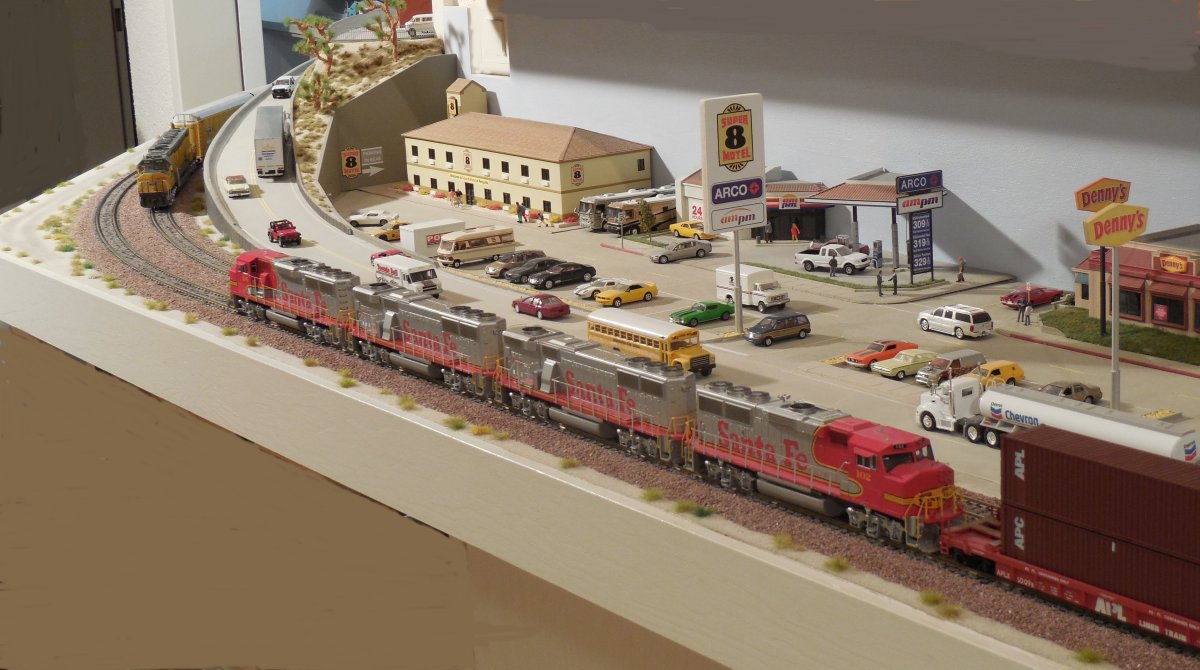

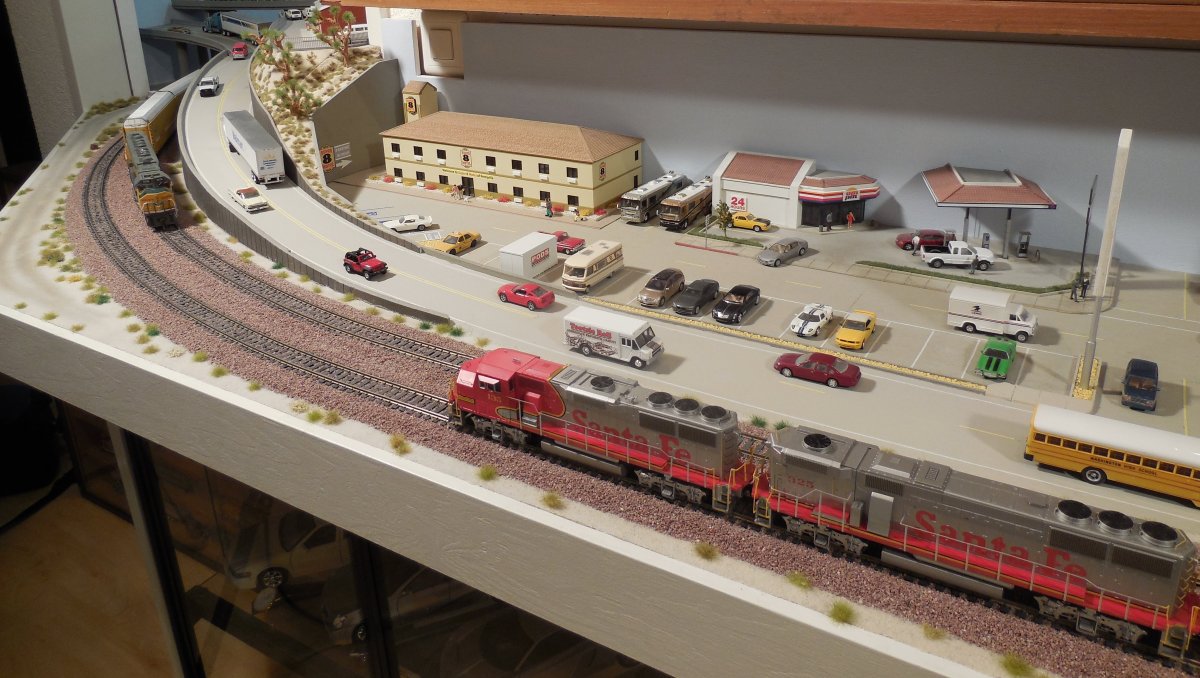

There is a Super 8 Motel at left (made by Summit USA) - 1890 next comes an ARCO Gas Station - 1891

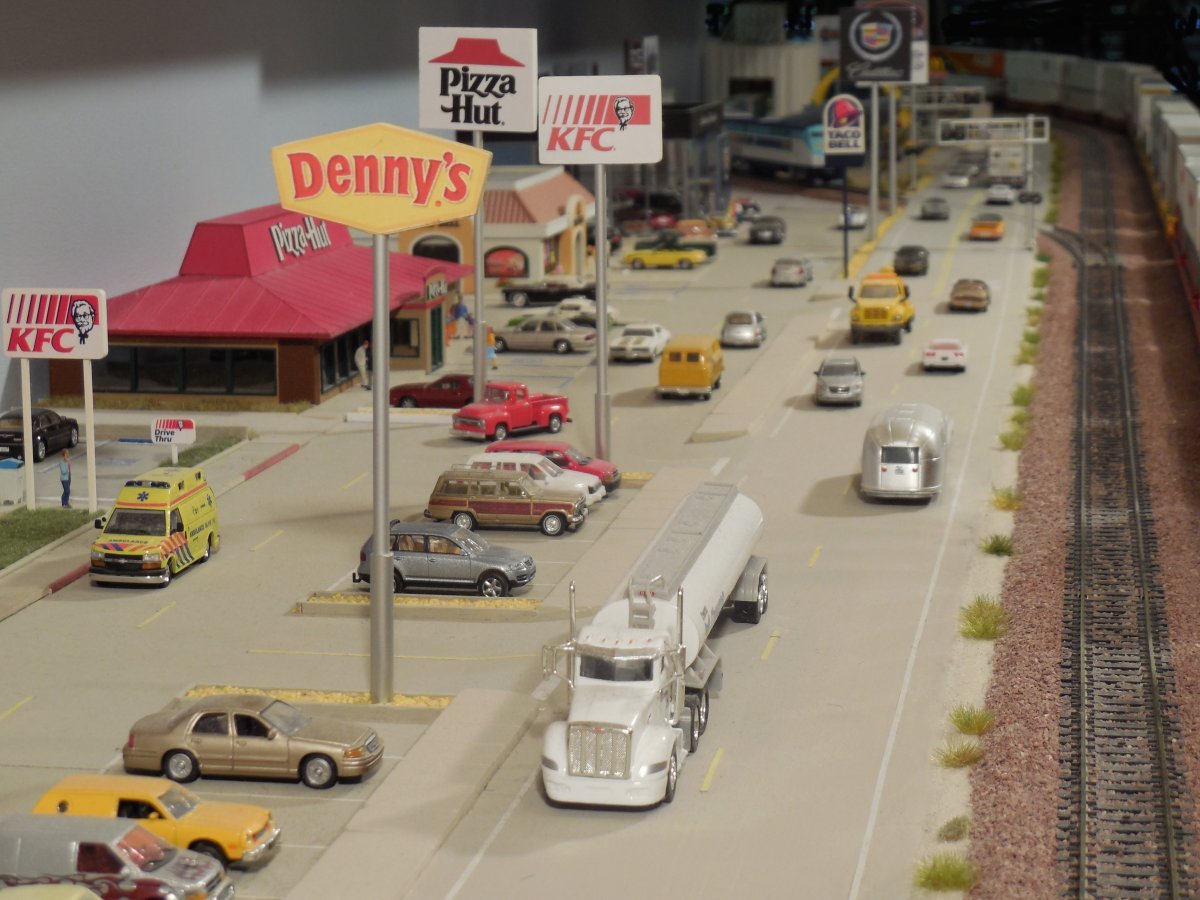

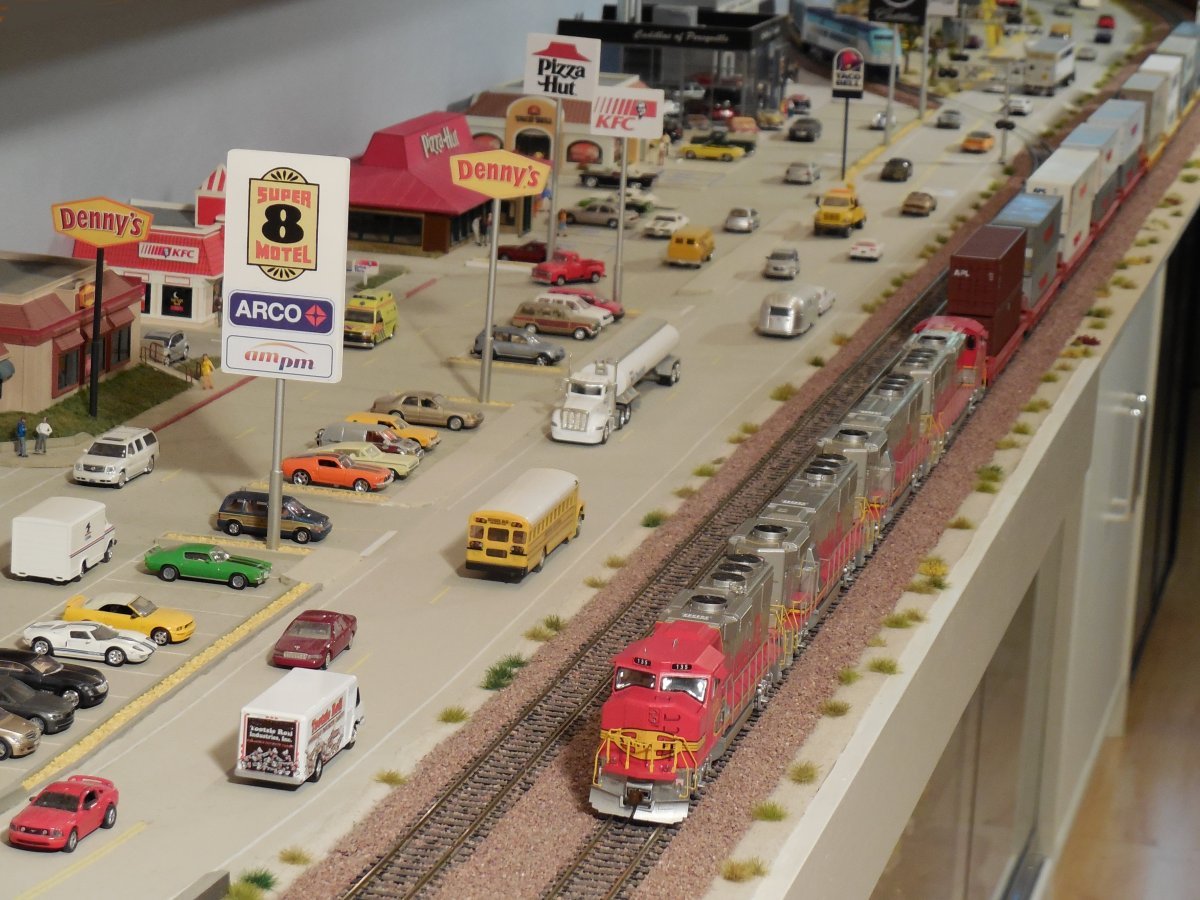

1901 1902

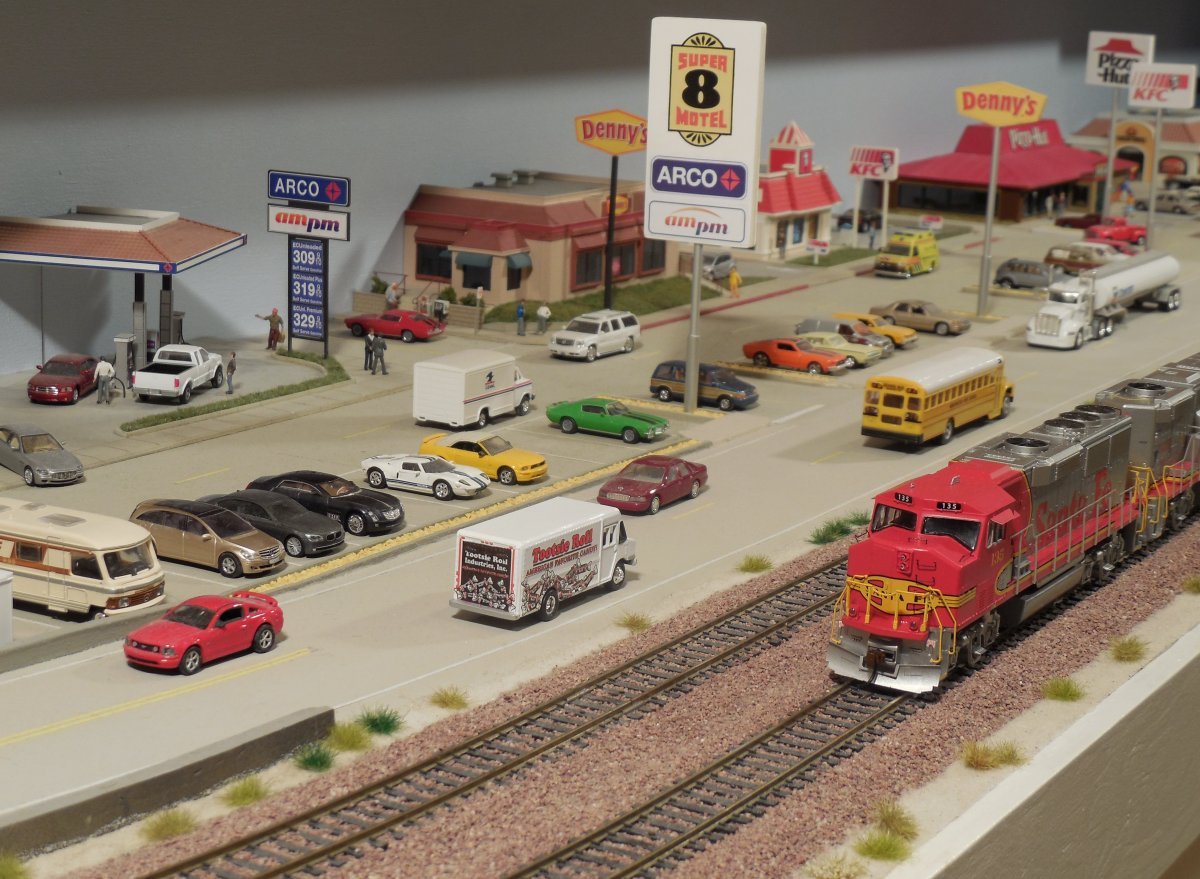

1903 1904

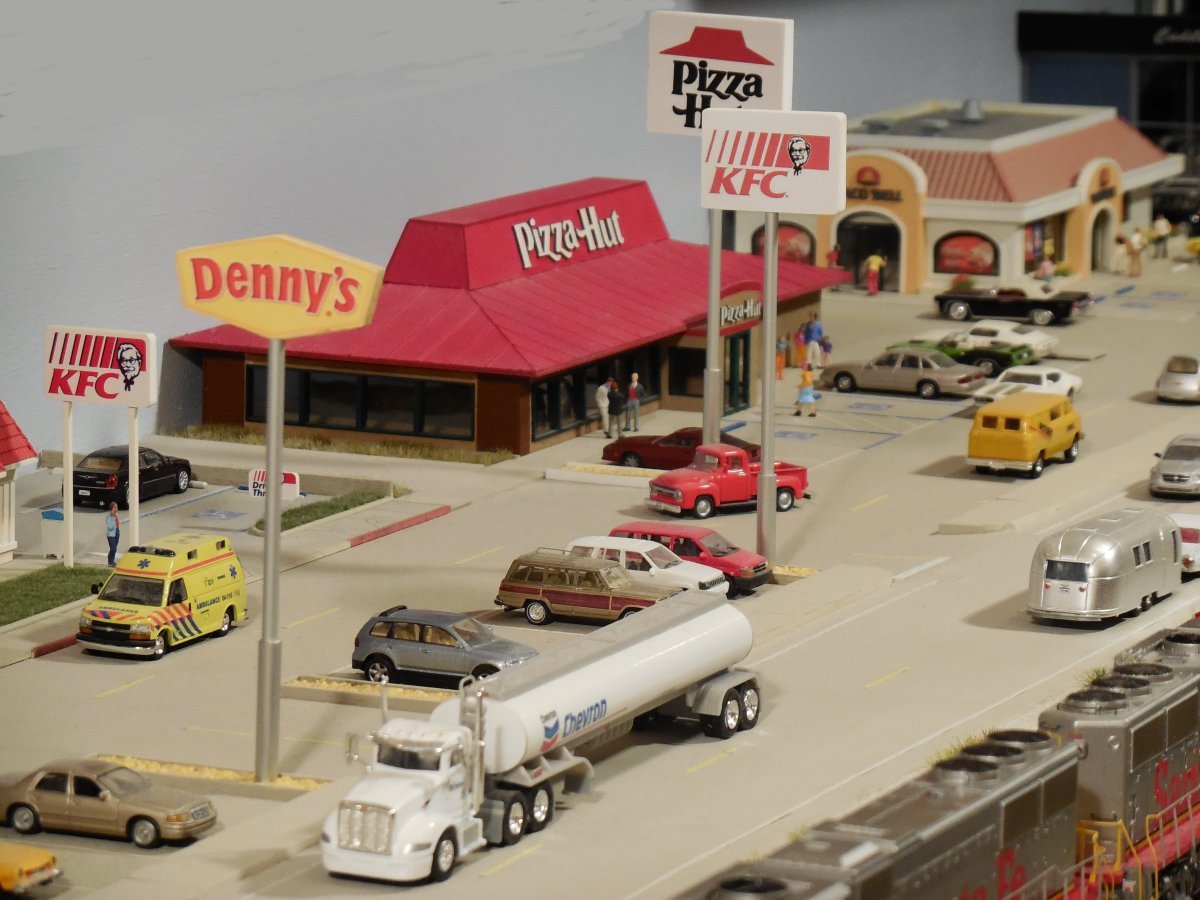

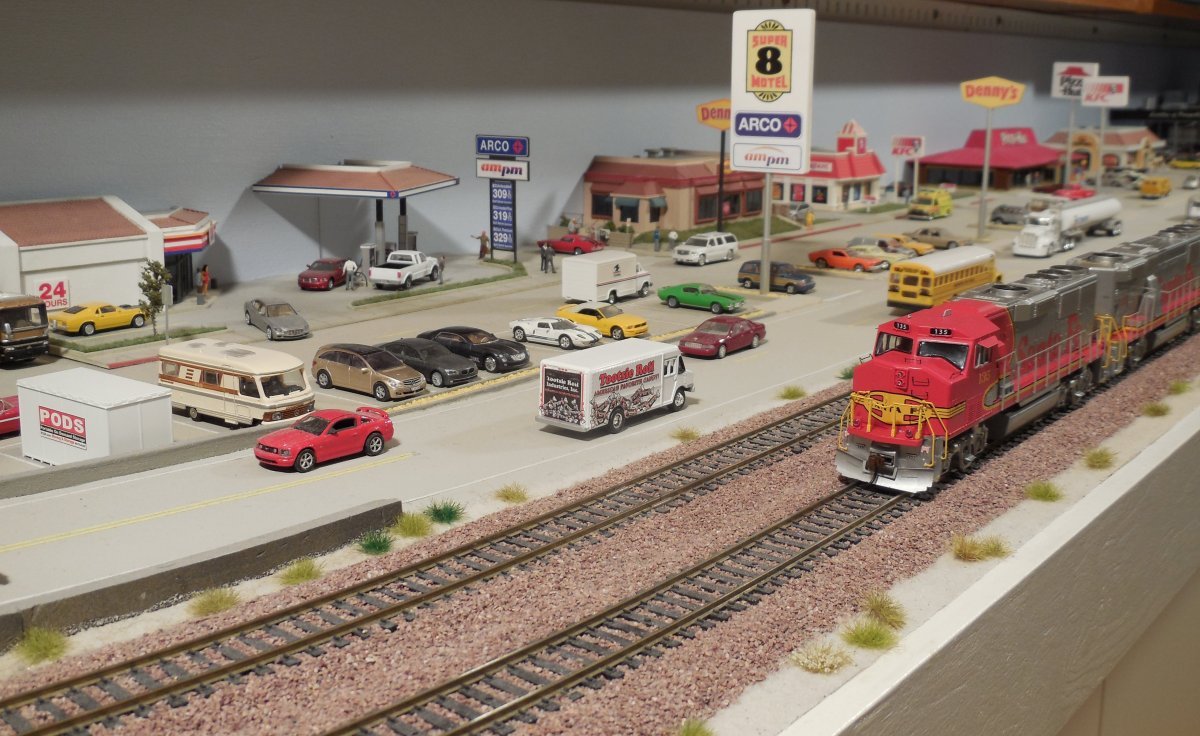

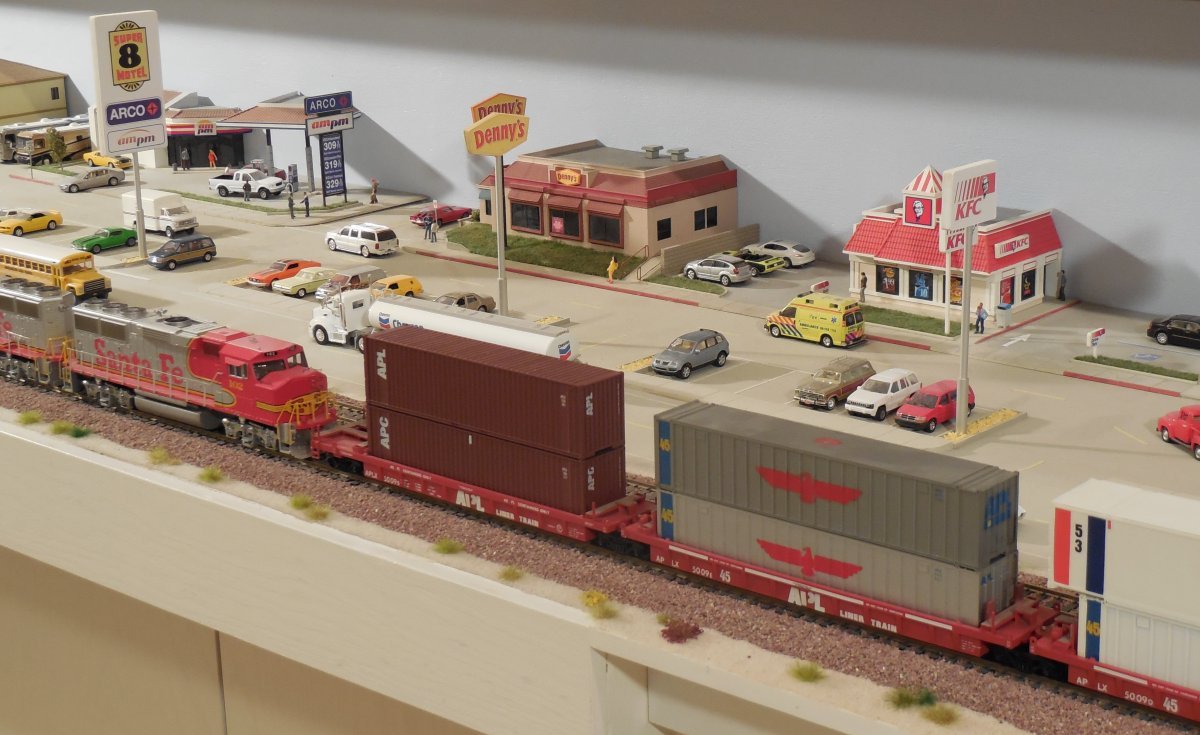

ARCO, Denny's and KFC are from Pelle Soeeborg - 1905 who did ever expect that these 3 buildings found a new home? - 1906

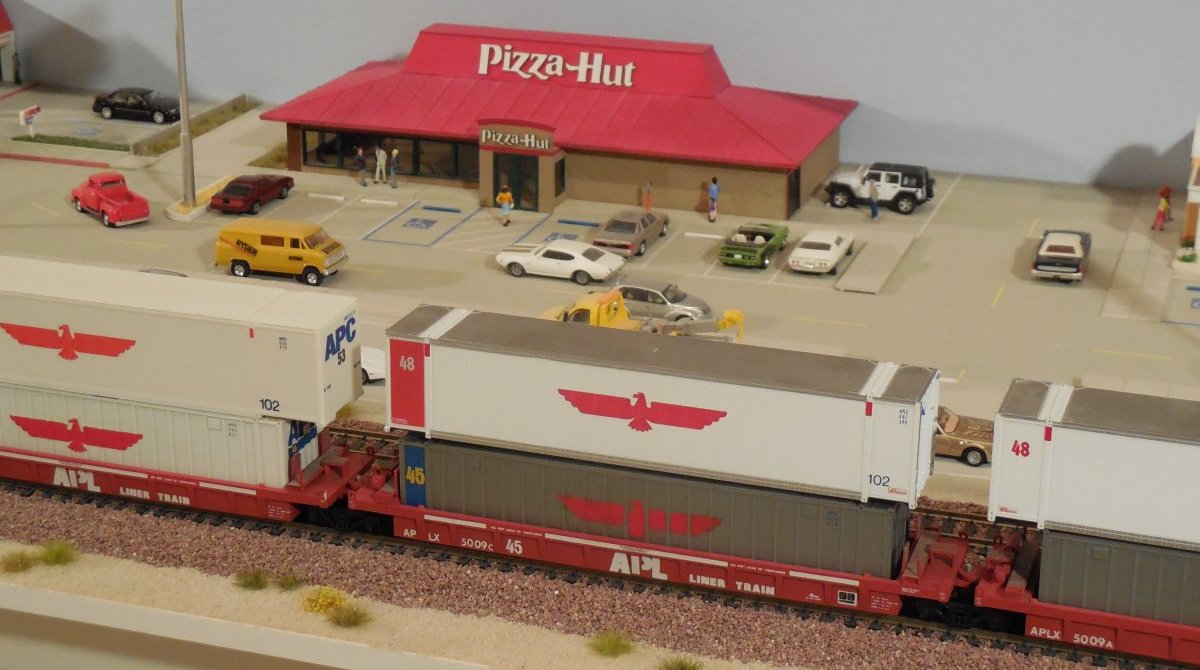

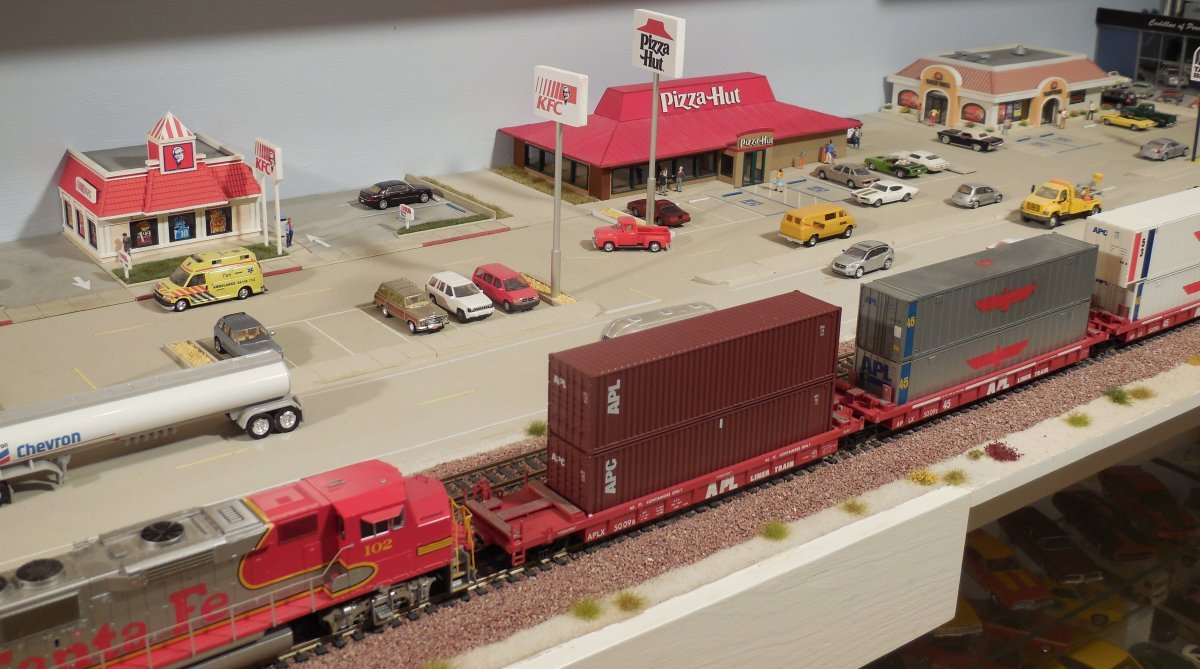

Taco Bell made by Summit USA - 1907 Pizza Hut is made by Modellbahn-Atelier Berlin - 1908

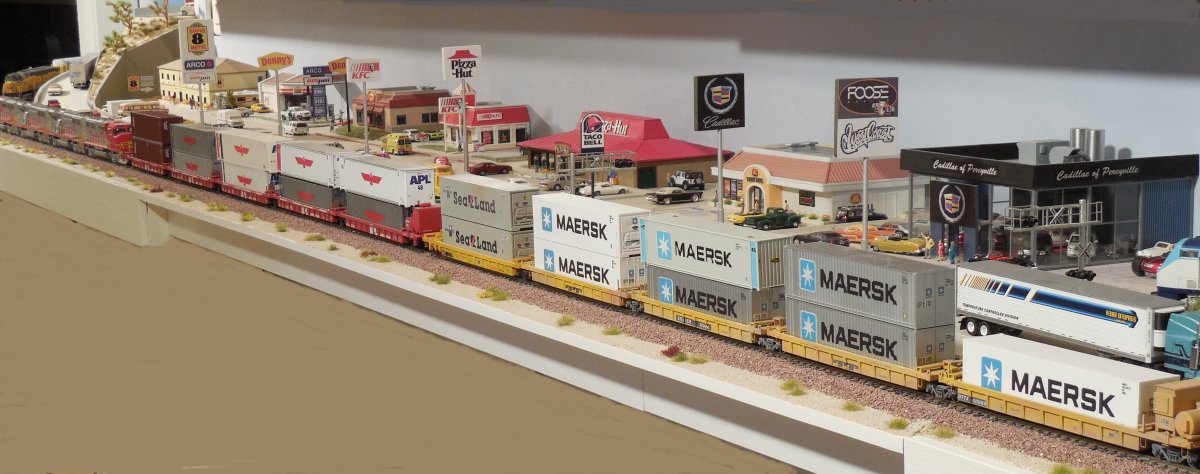

The City of Percyville with main street and different restaurants, motel, Cadillac dealership, Foose Design and West Coast Customs - 1892

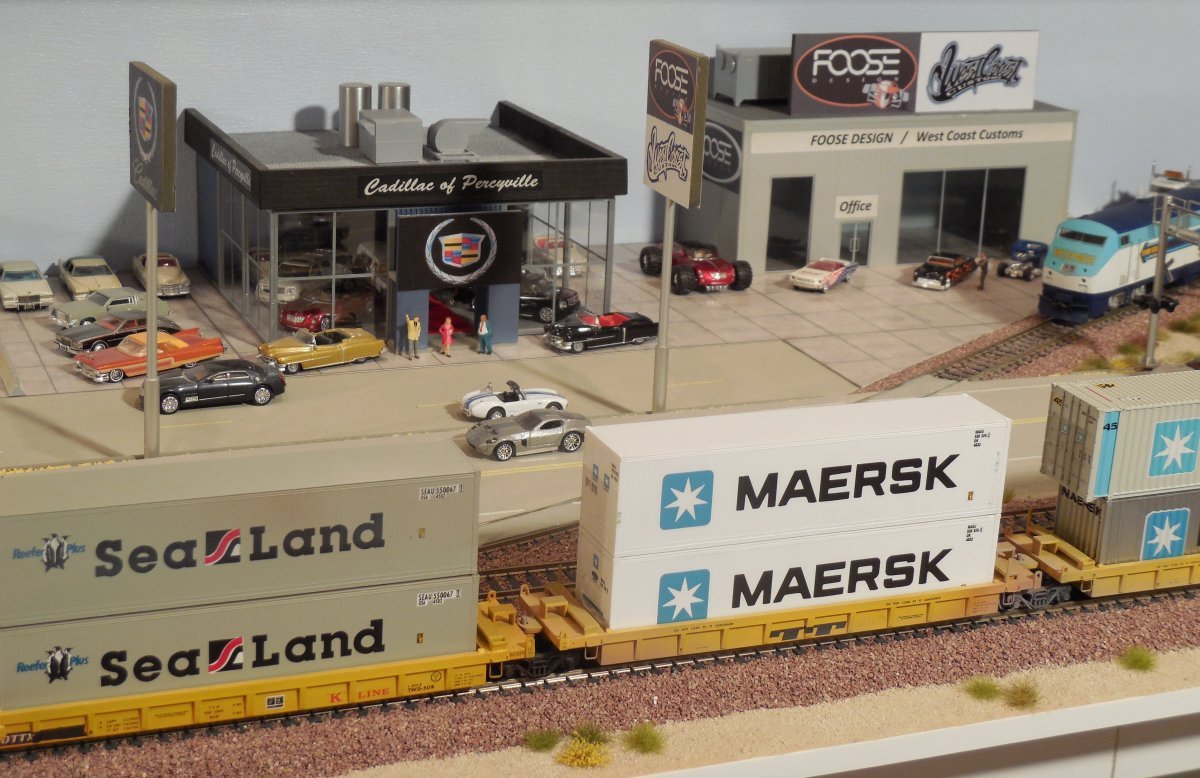

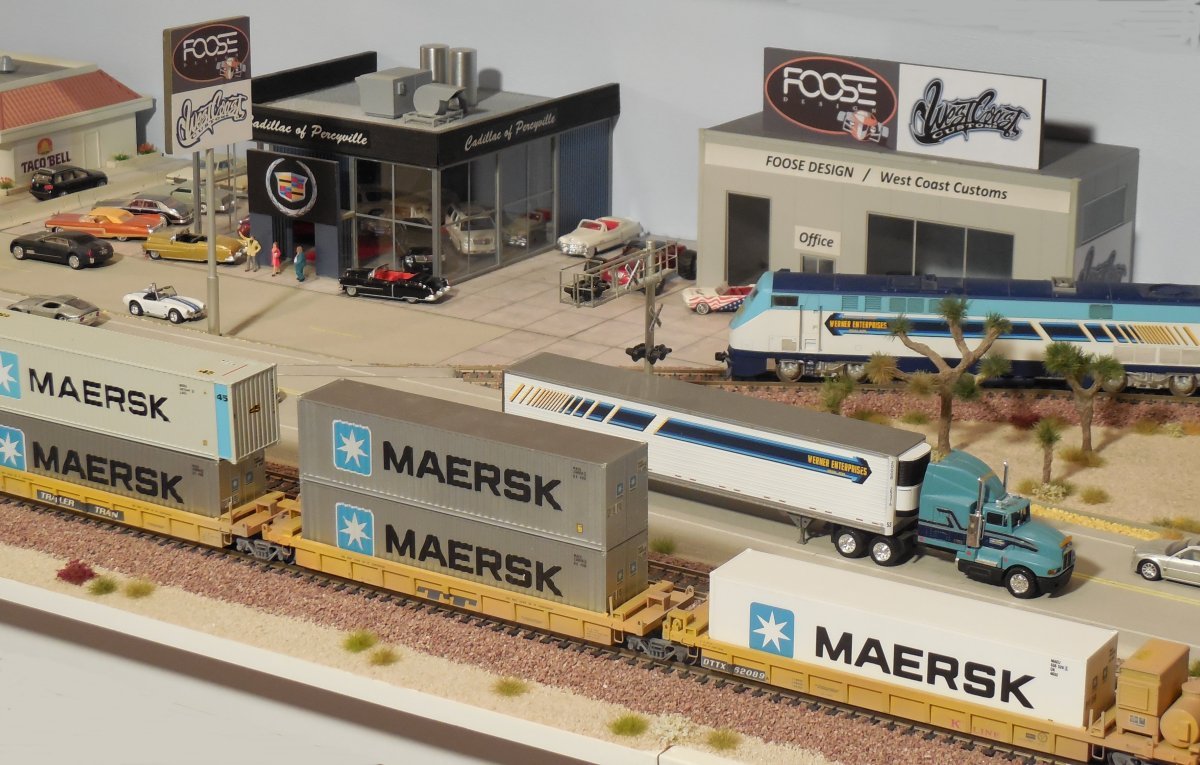

only on my layout: Foose Design and . . - 1909  . . . West Coast Customs are under one roof - 1910

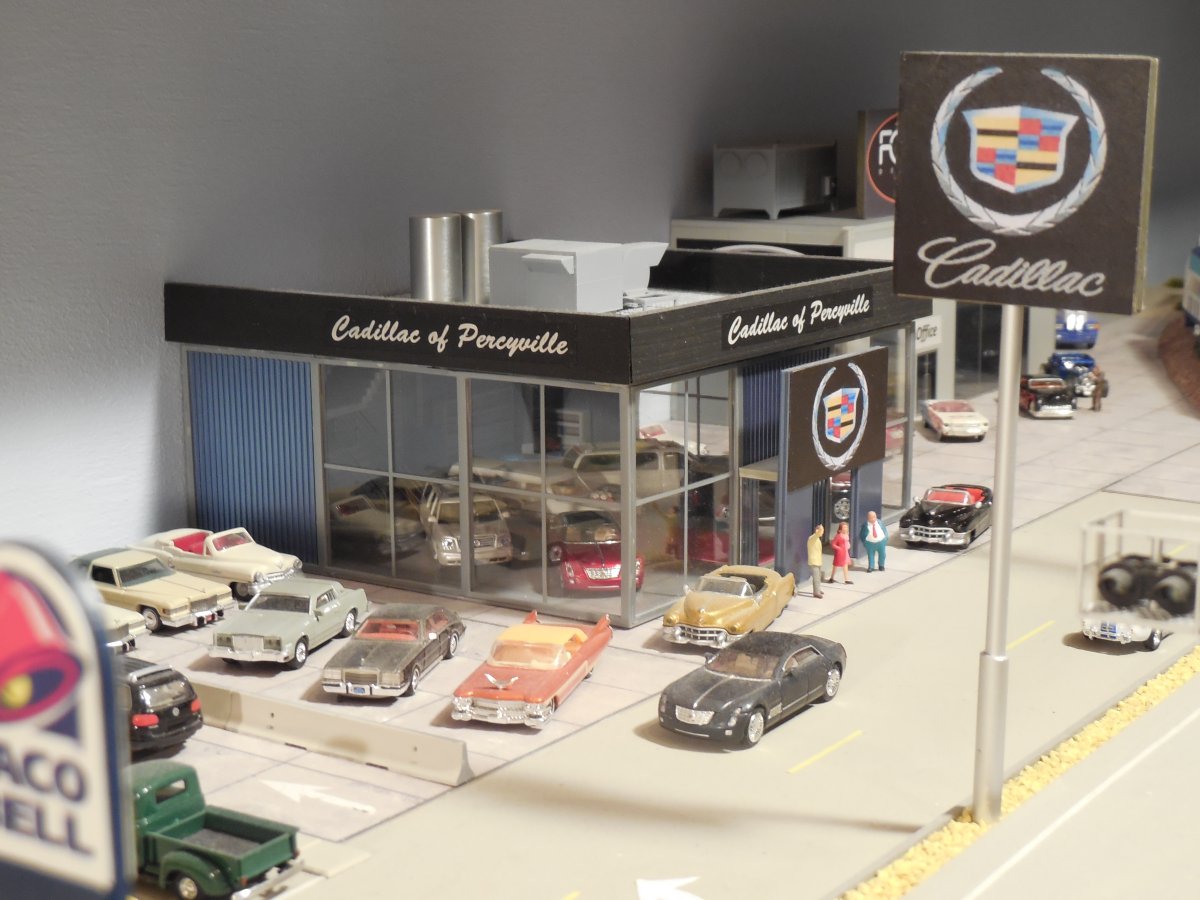

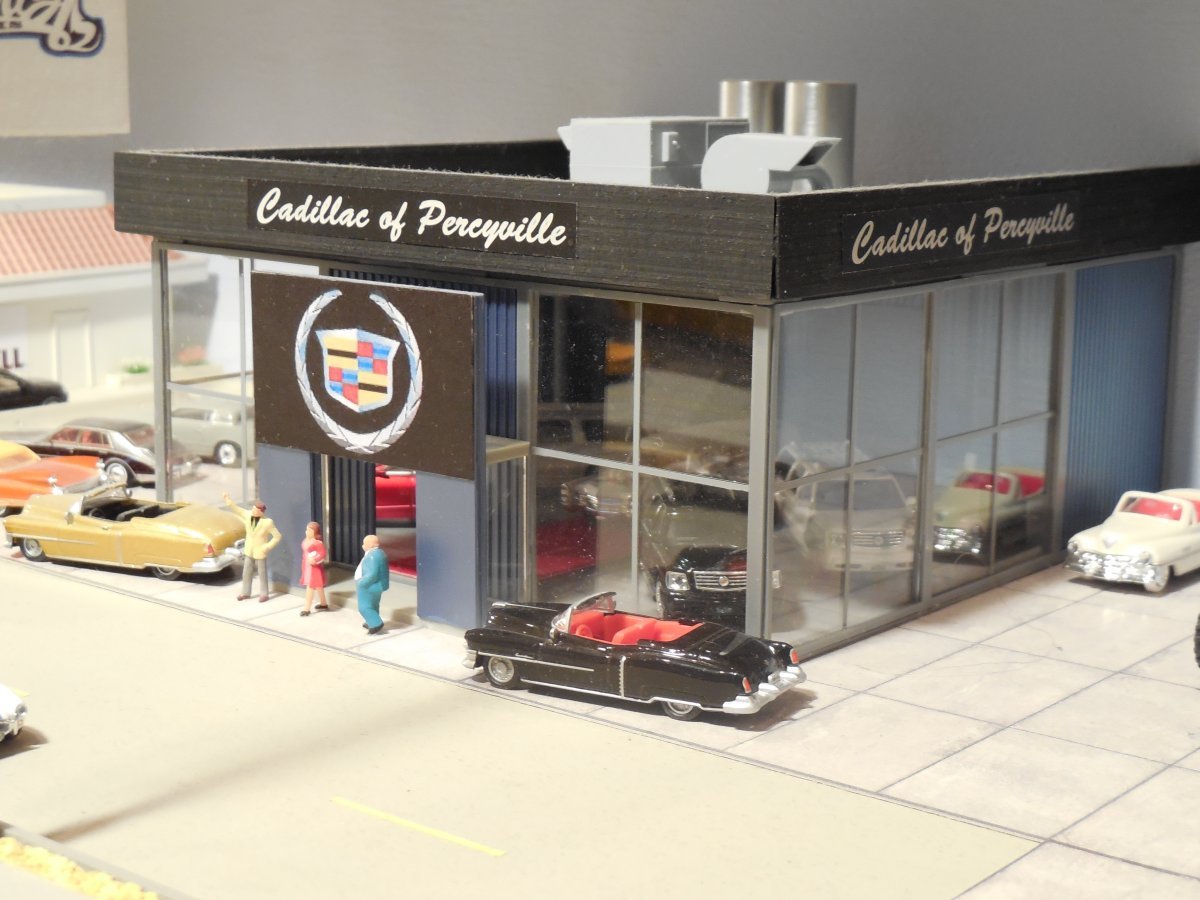

my Cadillac Dealership is custom built - 1911 basic kit is from Faller (Car Center) but modified - 1917
Cadillac of Percyville - 1913 Werner Enterprises has a spur to the main line - 1914
a McDonald's is between the spur and main street - 1915 Werner Enterprises has his own diesel loco - 1916
looks alike: Werner loco and reefer trailer - 1917 1918
1919 these Joshua Trees were made by Mason Clark (USA) - 1920
1921 1922
looking down main street - 1923 1924
1925 "Joes Place" is just across Werner Enterprises - 1926

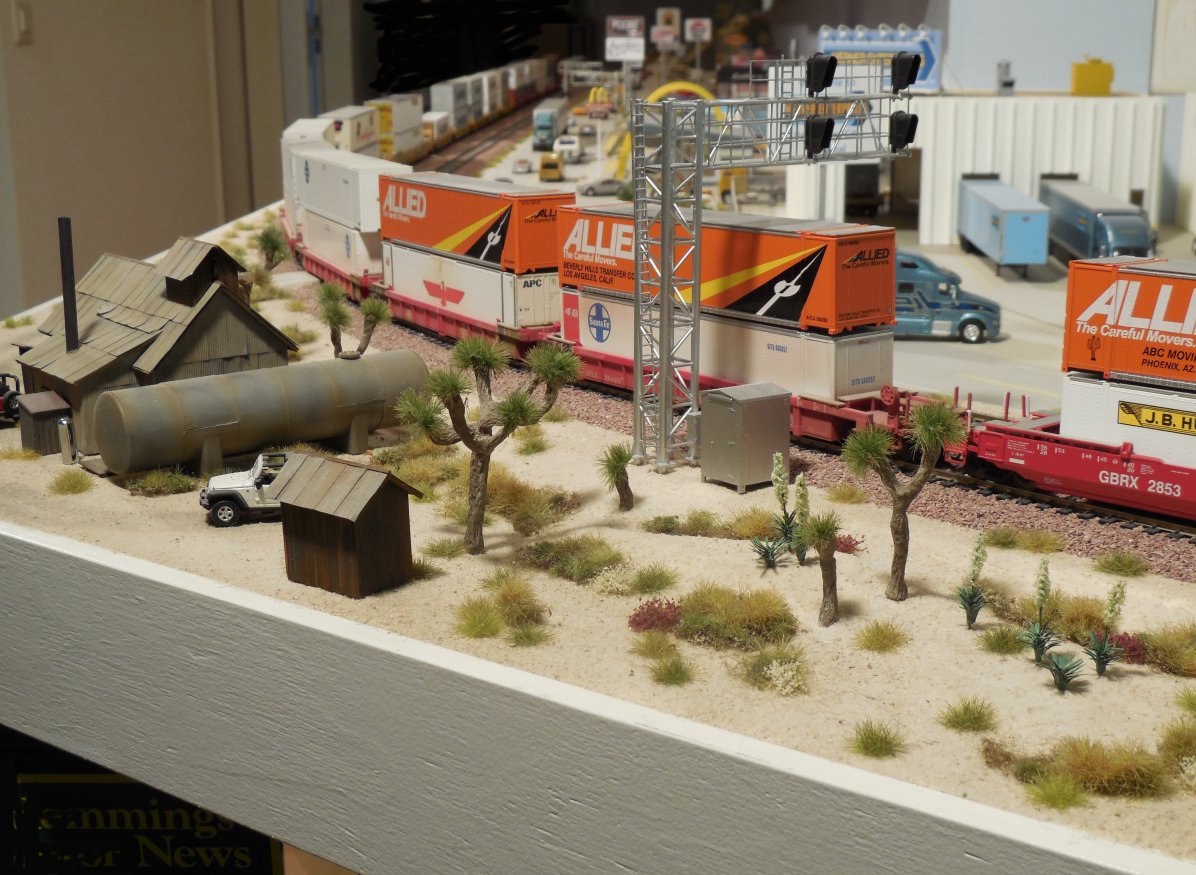

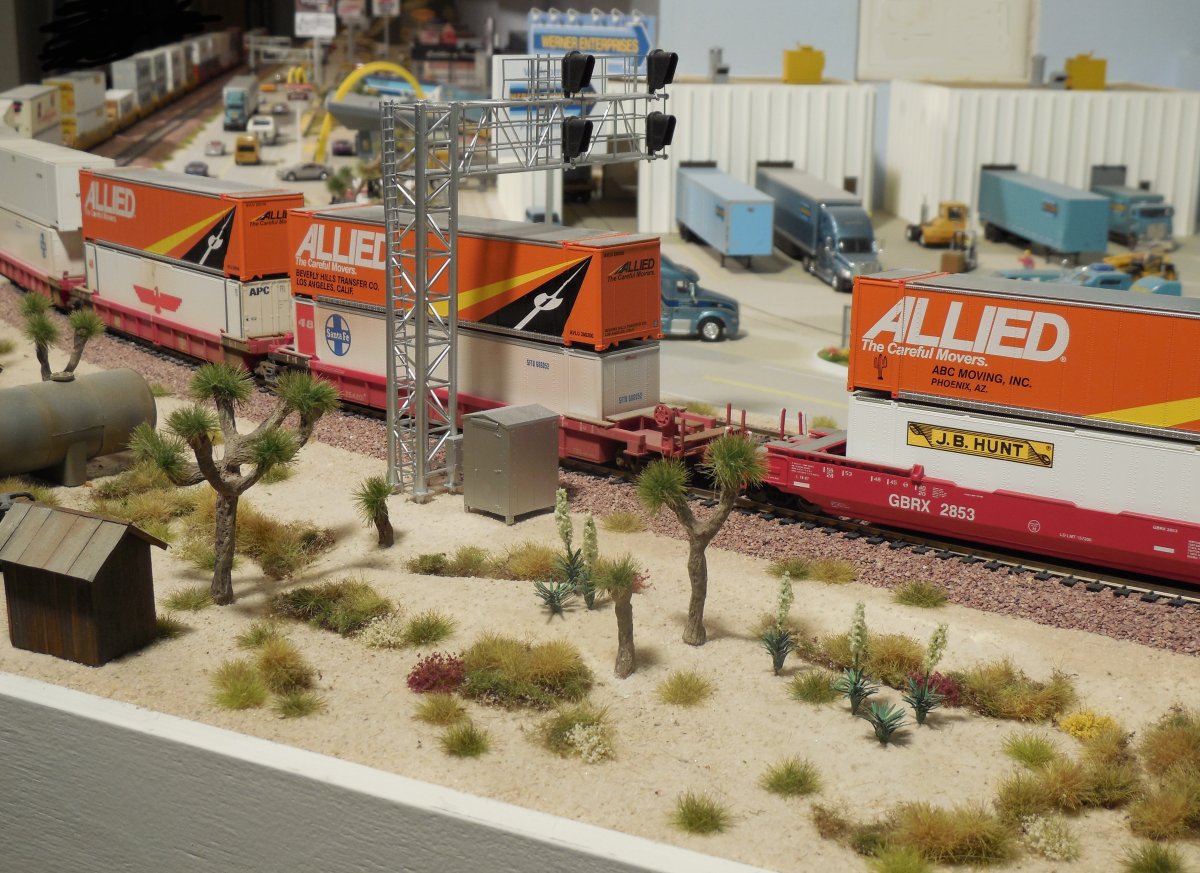

Joshua Tress were made by Mason Clark (USA) - 1927 blooming Yuccas made by JTT - 1928
Welcome to Werner Enterprises Percyville Terminal
Werner Enterprises has rail and road access - 1929 I used "Great West Models" kits to build these 2 structures - 1930
there is an old house "Joes Place" across the WE Terminal - 1931 Headquarters is from Summit USA, built by Pitsch Allneider - 1932
looking the other way around - 1937 several tractors and the van were made by Pitsch Allneider - 1938



The Percyville Extension

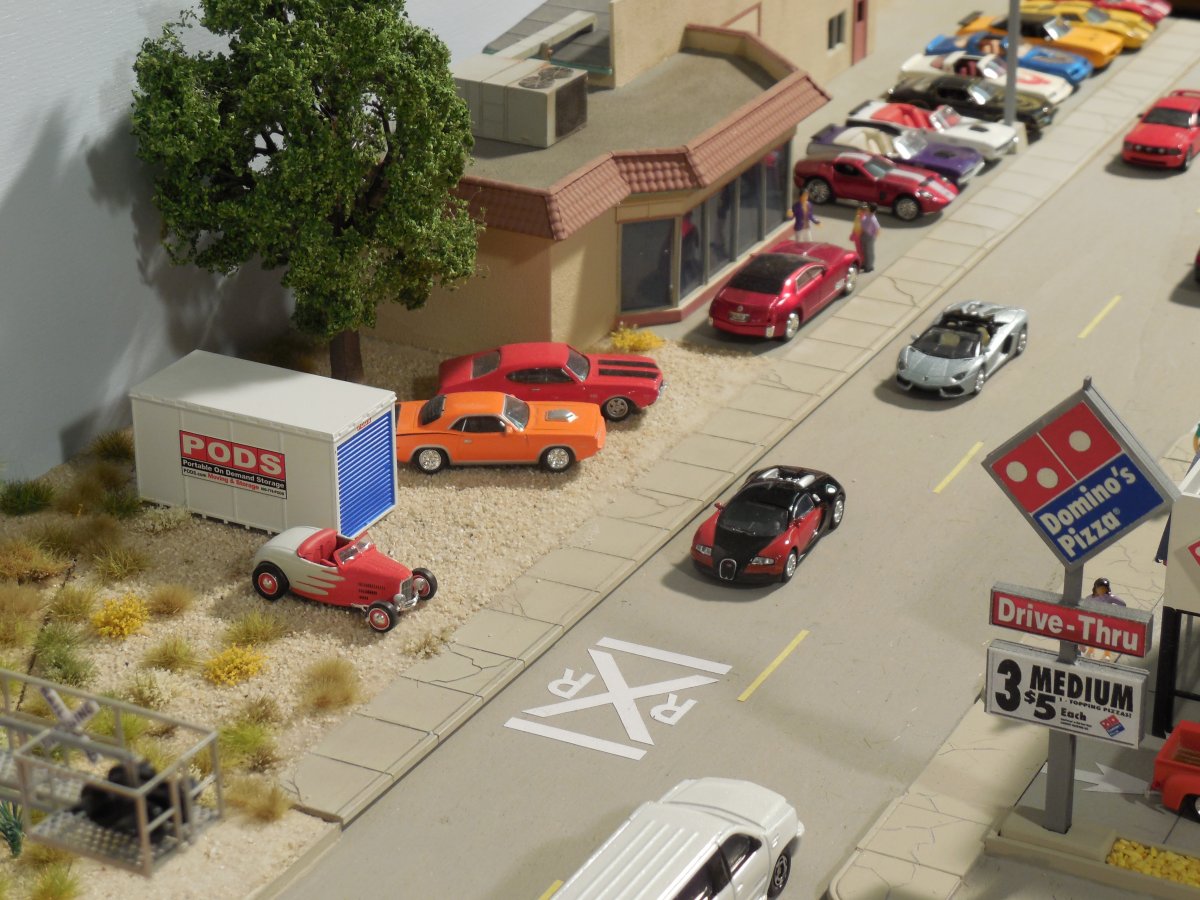

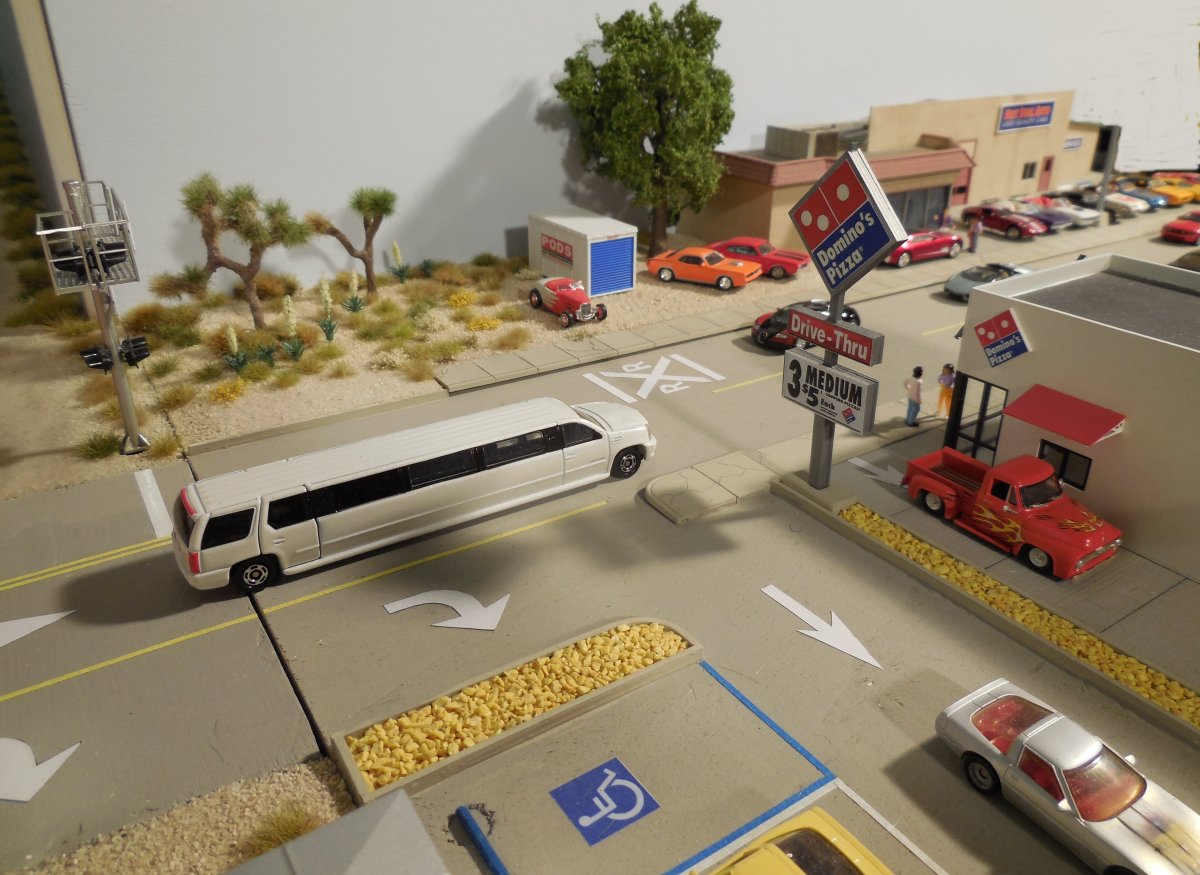

Cadillac Escalade stretch limo - 1933 The Car Dealership was made by Pelle Soeeborg - 1934

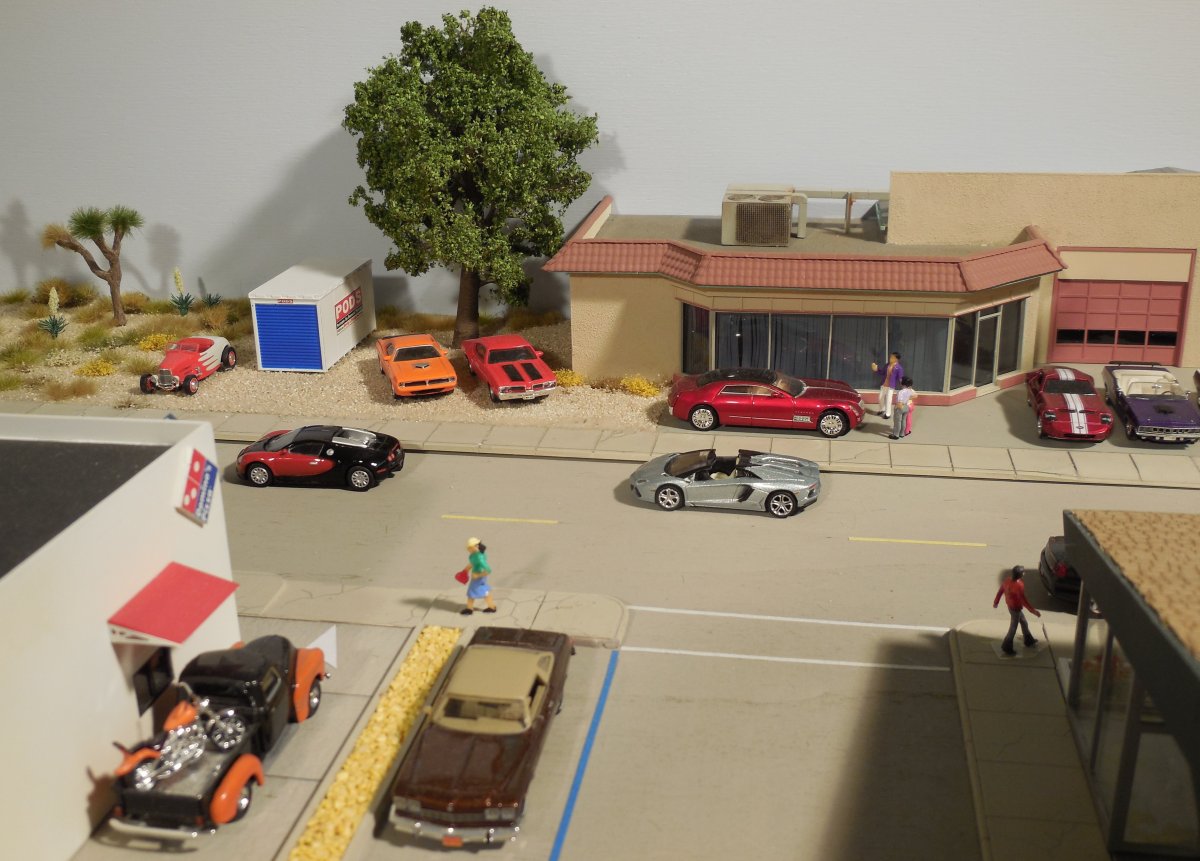

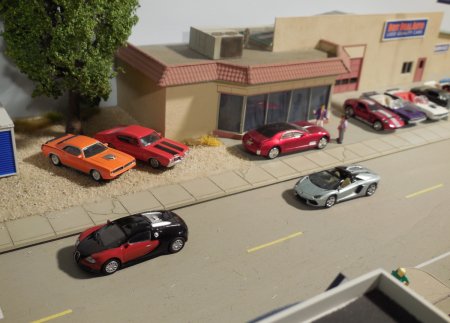

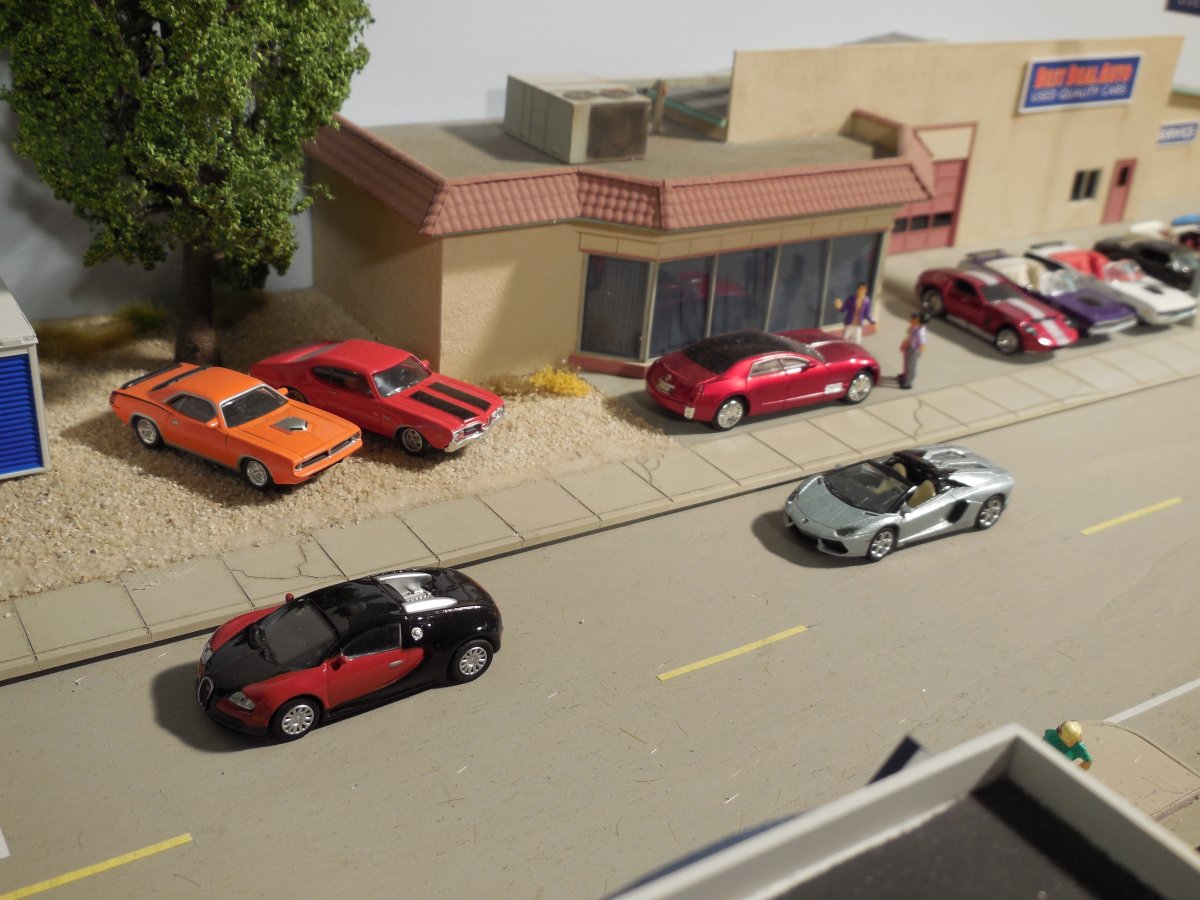

the car dealer has a red Cadillac Sixteen - 1935 Bugatti Veyron and Lamborghini Aventator - 1936

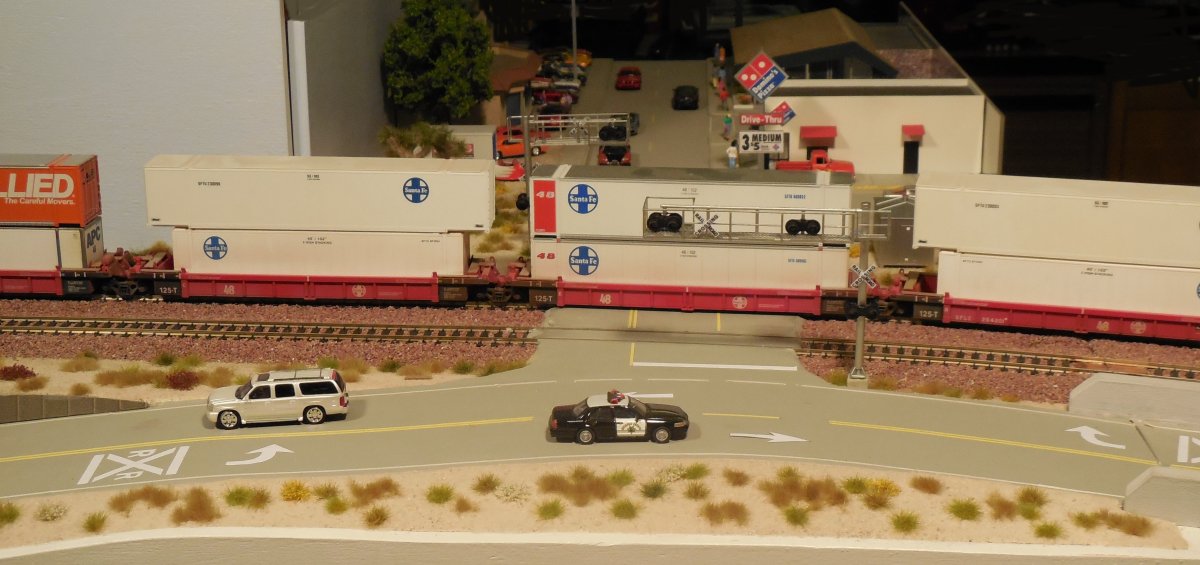

the Percyville Extension is small but very attractive for cars and food - 1939

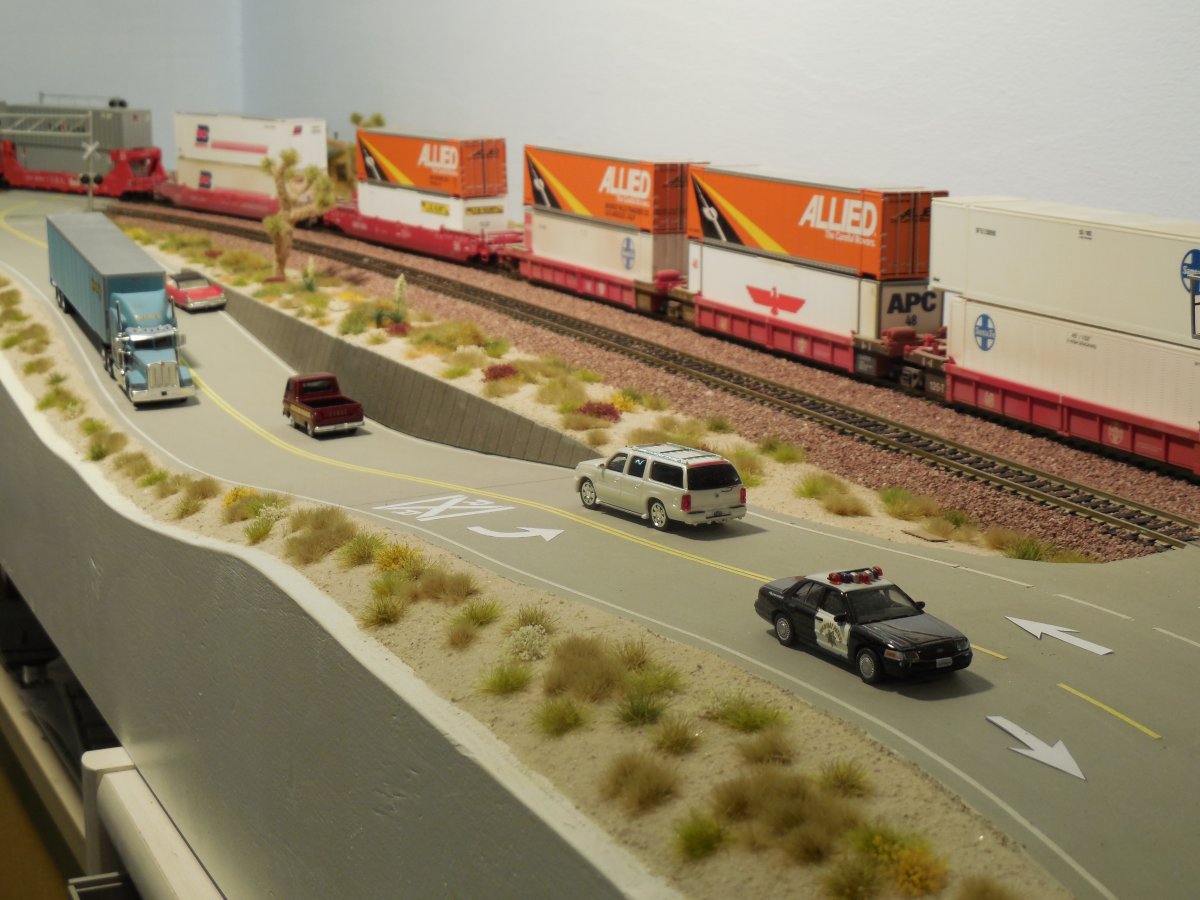

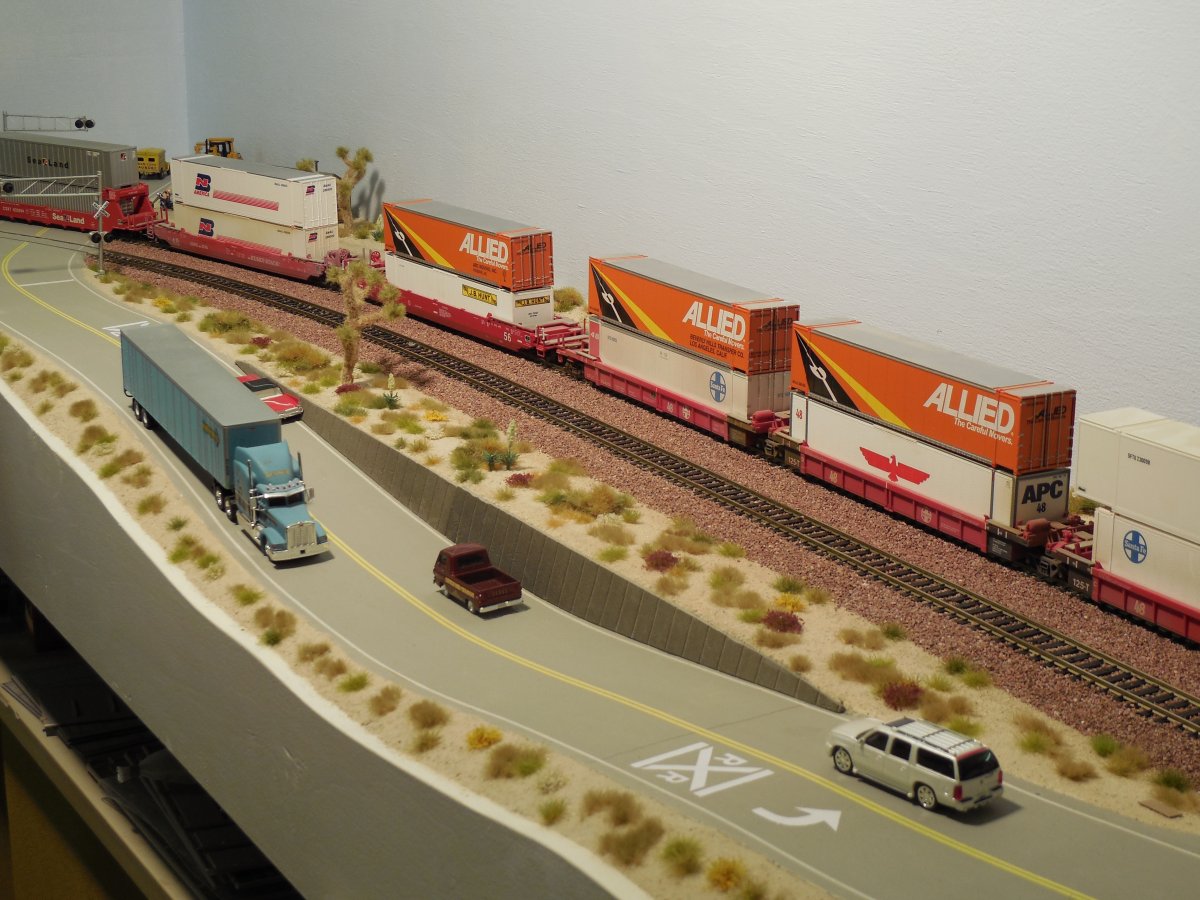

we continue on main street heading North - 1940 the tracks will go over a swing-up bridge to the left - 1941

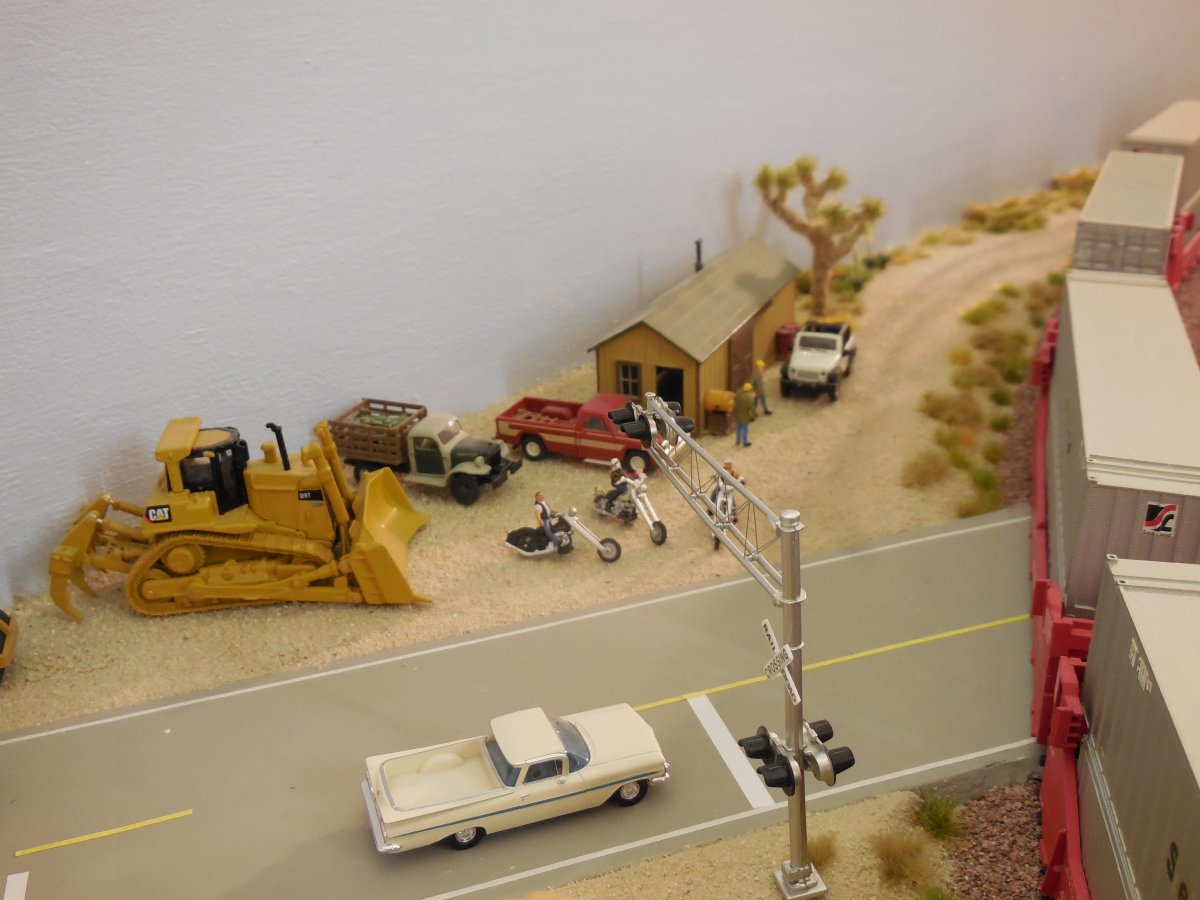

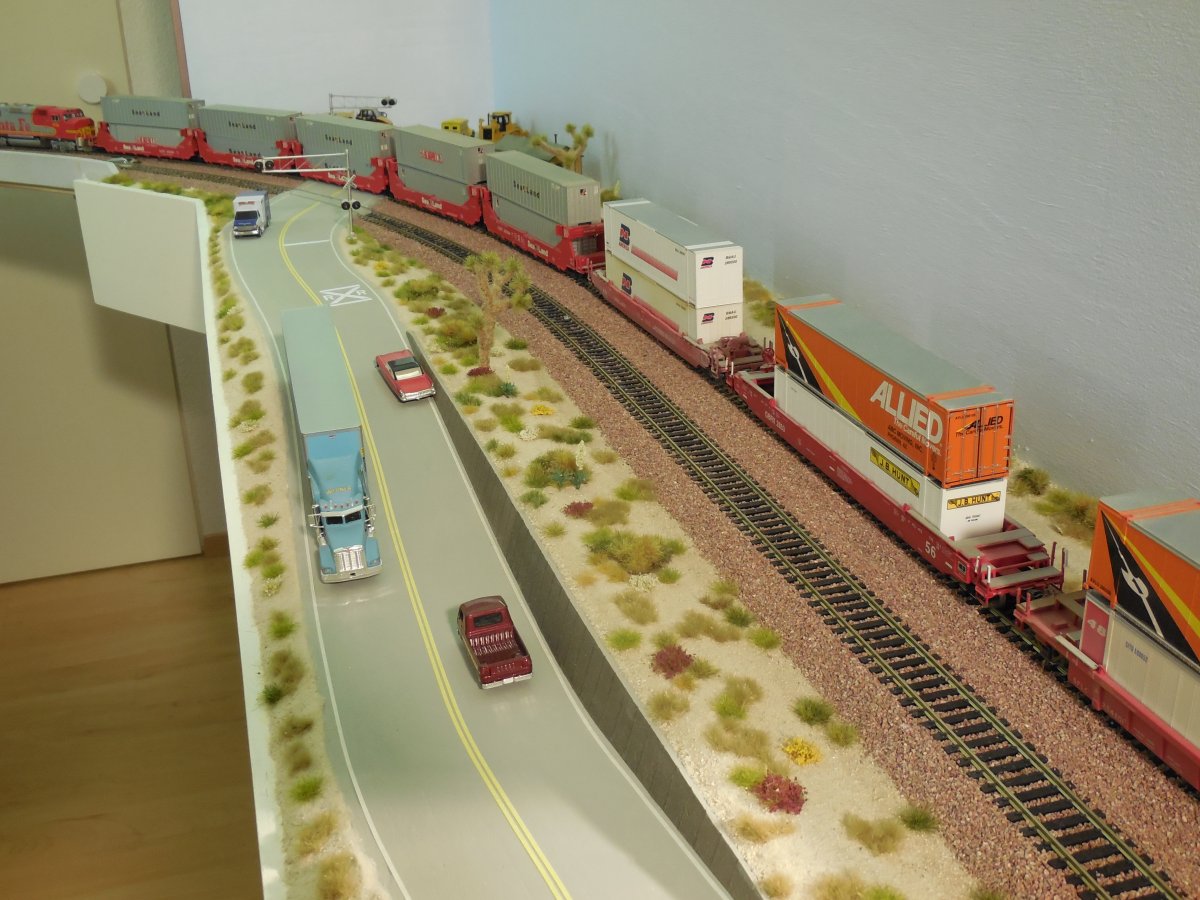

1942 1943

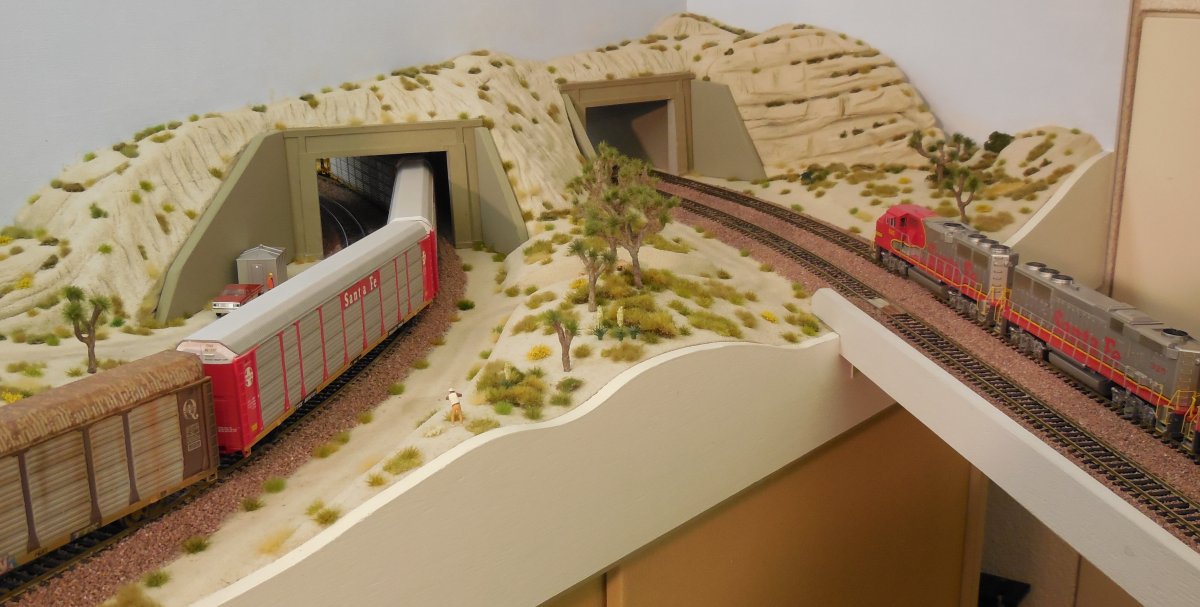

Tunnel East Portals are inside Office 1. A Santa Fe train is rolling over the swing-up bridge toward the tunnels - 1944

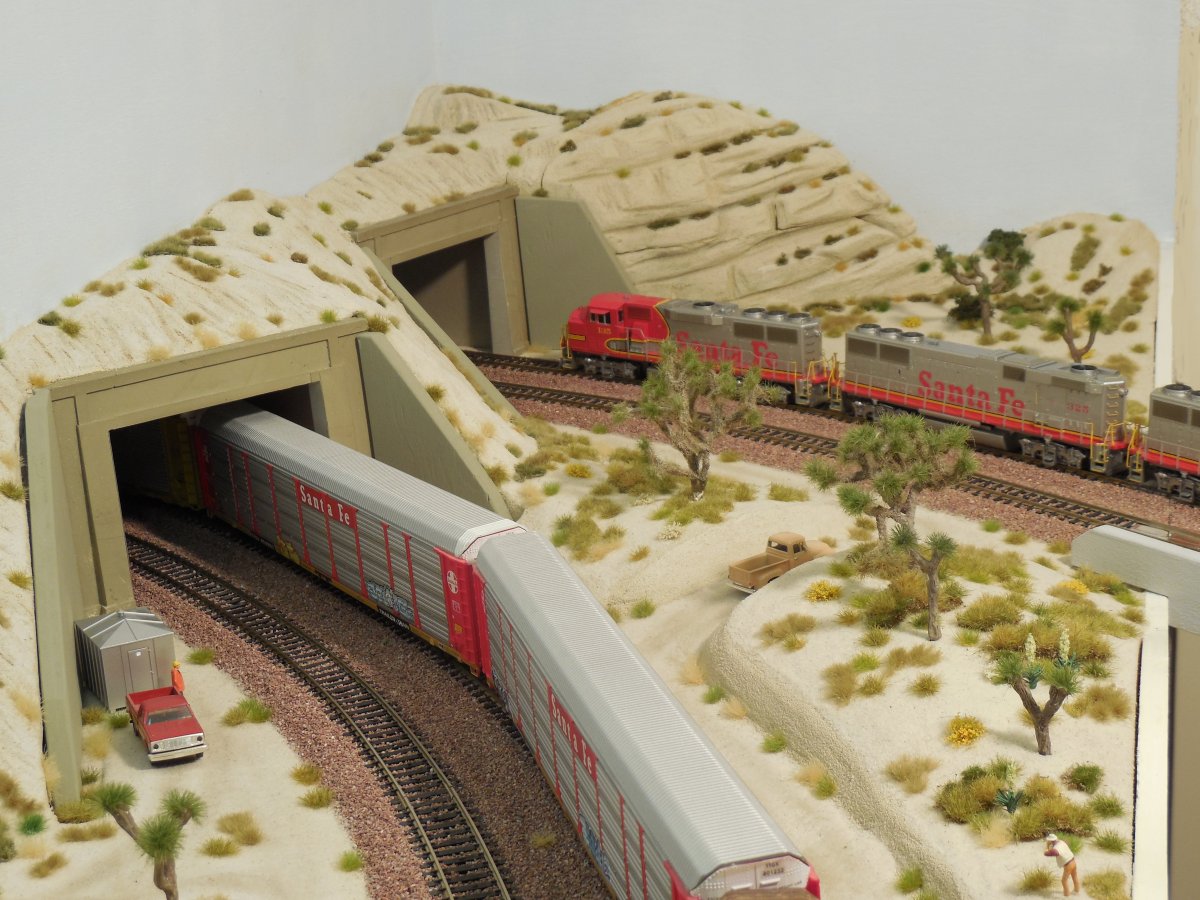

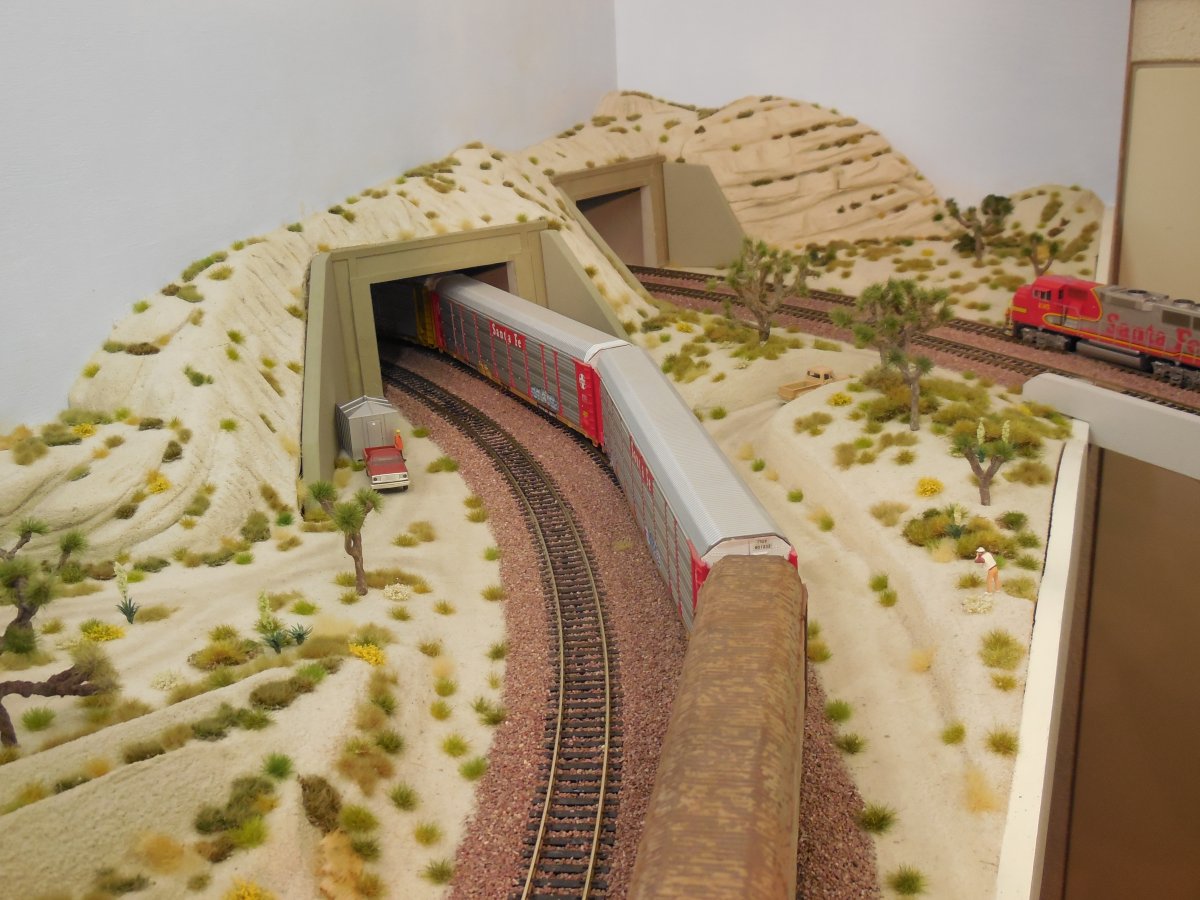

double tracks (left) are going downhill and the others uphill - 1945 these Joshua trees are made by Kim Nipkow - 1946



The Westside of the Tunnels show Cajon Pass

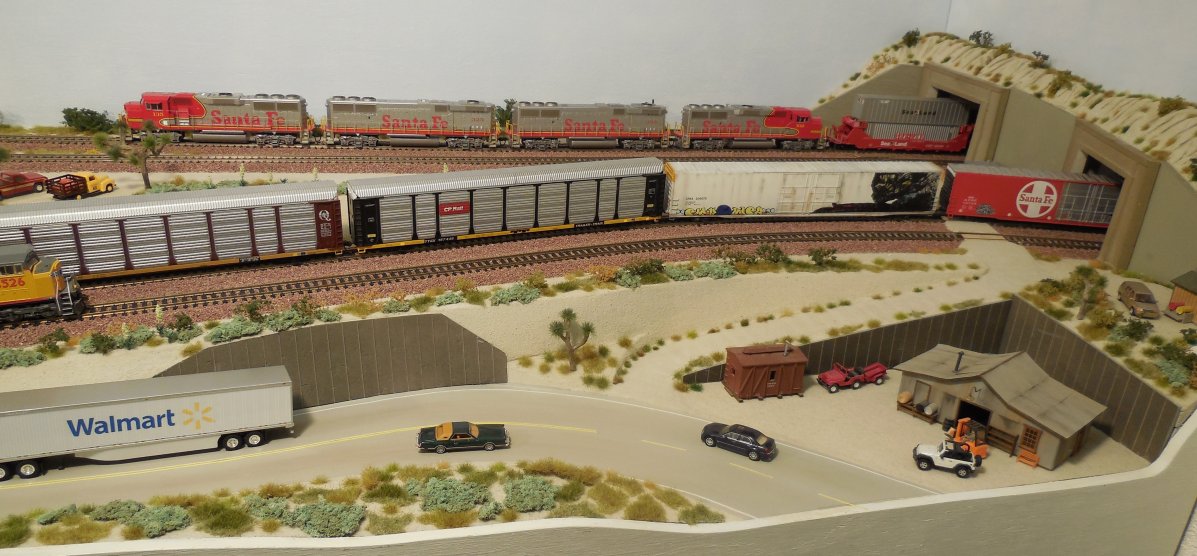

we are inside office 2 on the West side of the tunnels - 1947

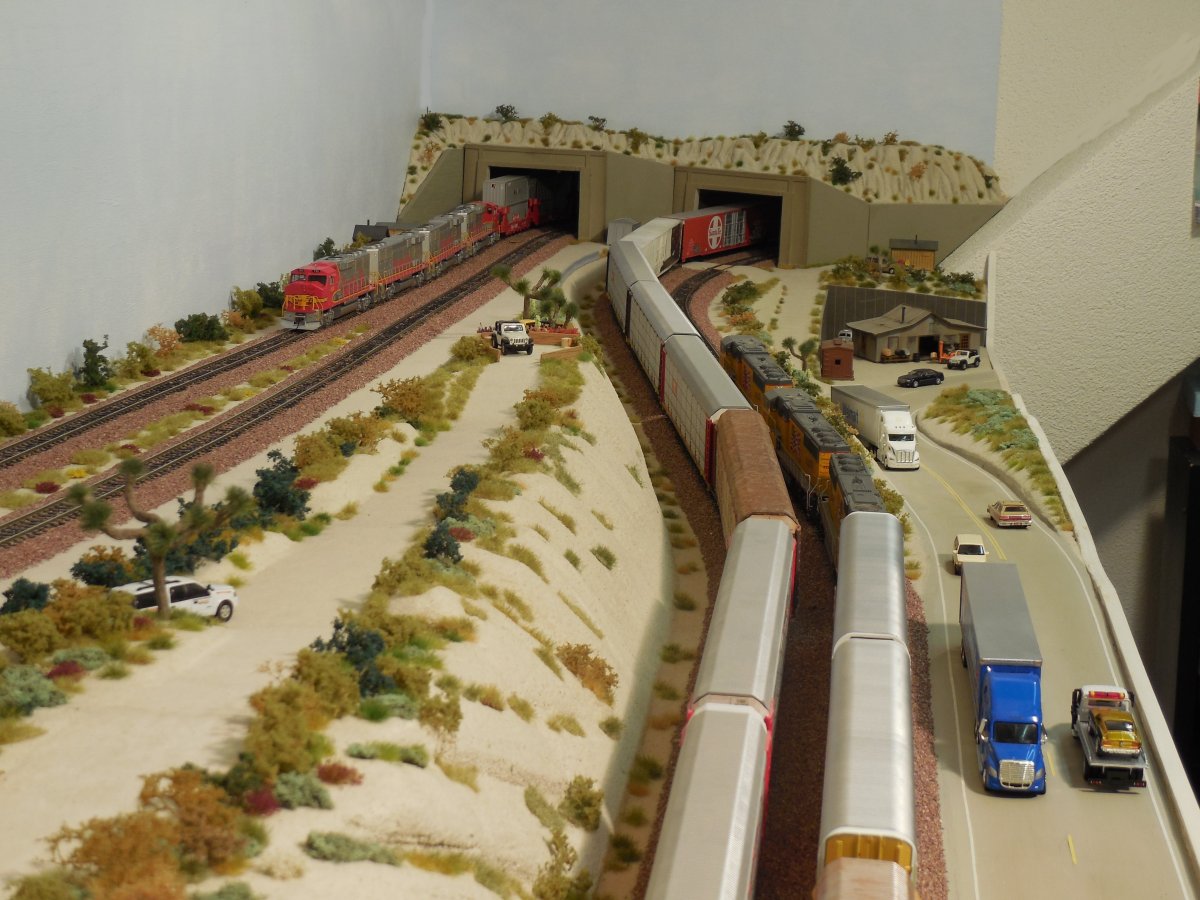

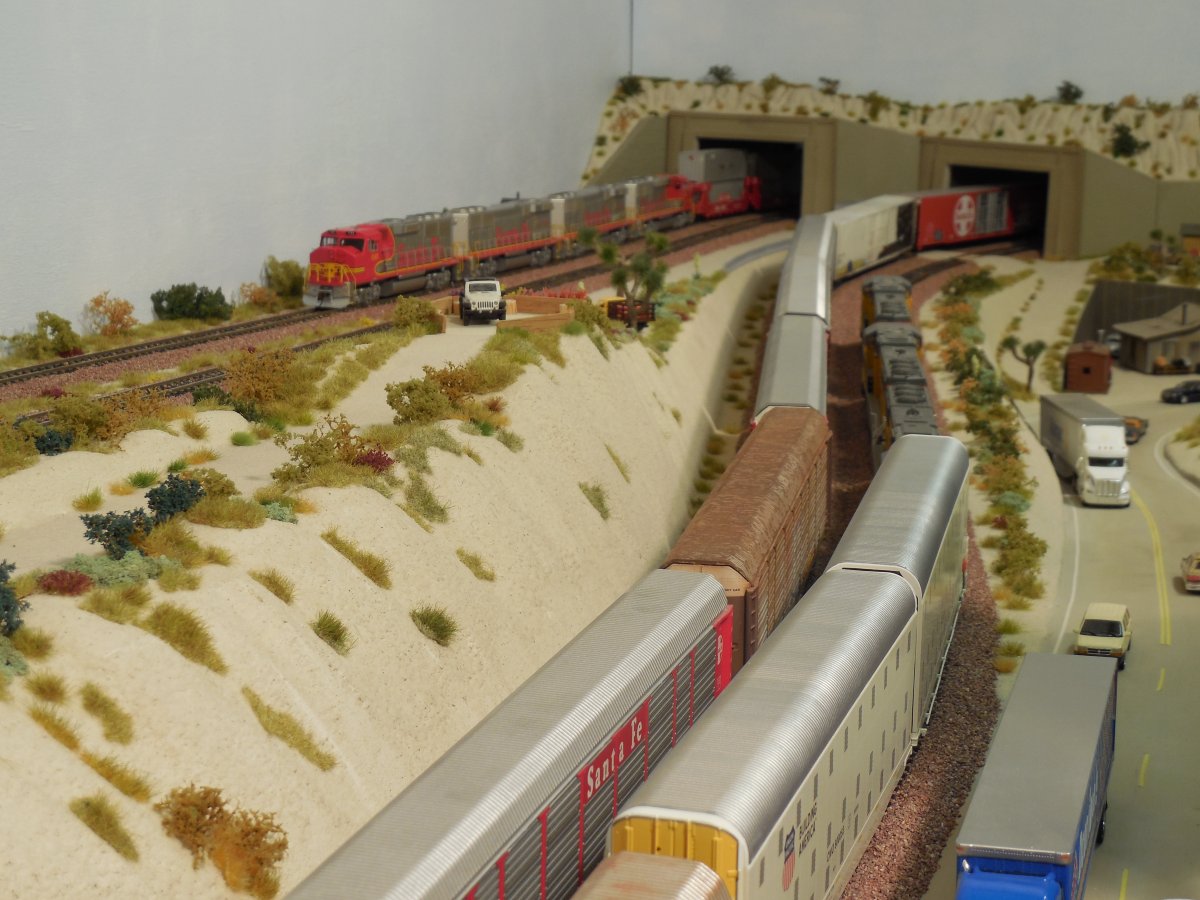

heavy action on all main lines and Route 66 as well - 1948 funny number of this photo as I was born in this year - 1949

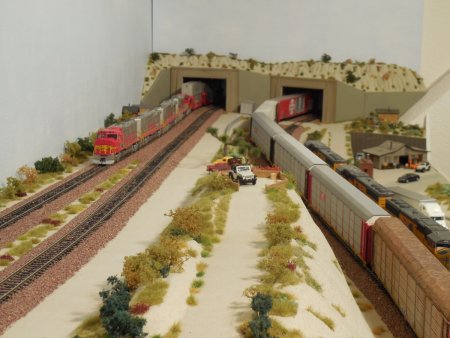

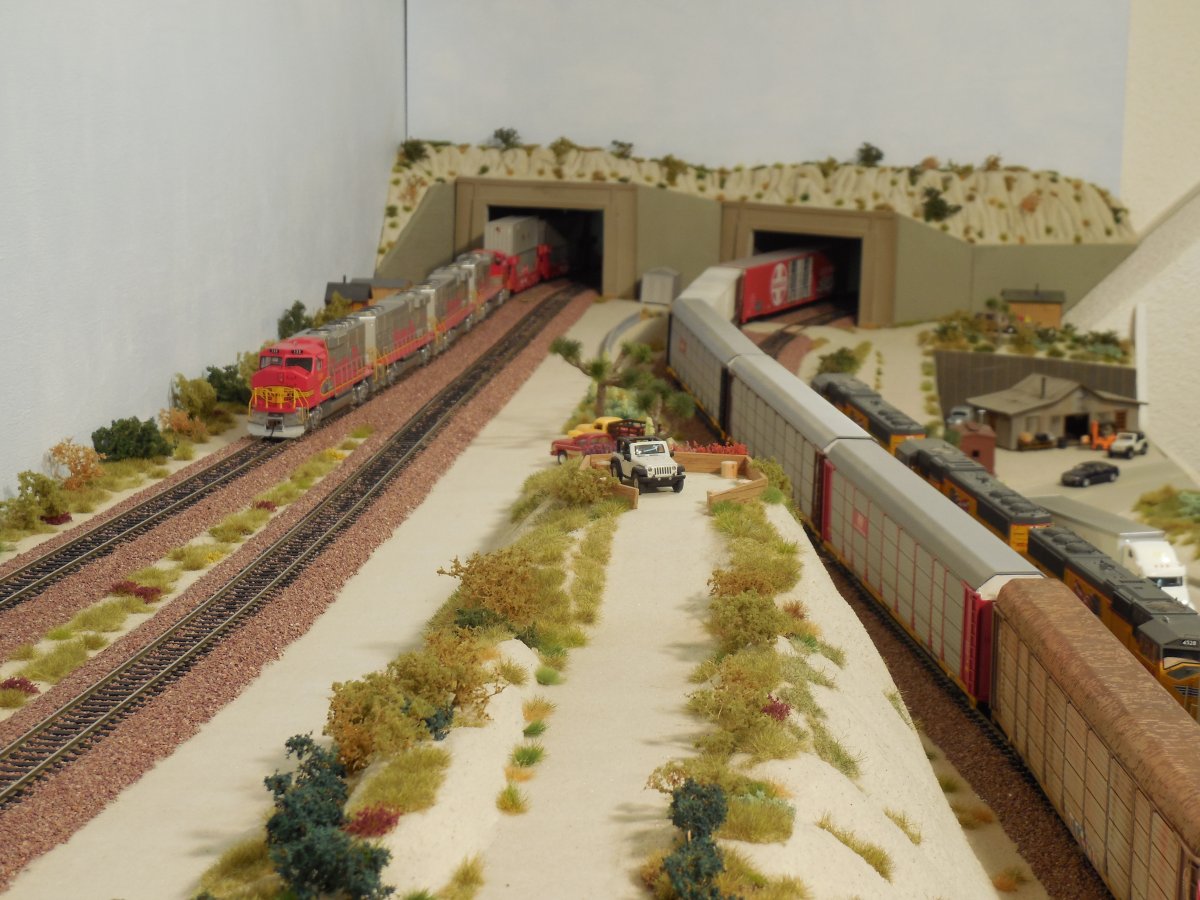

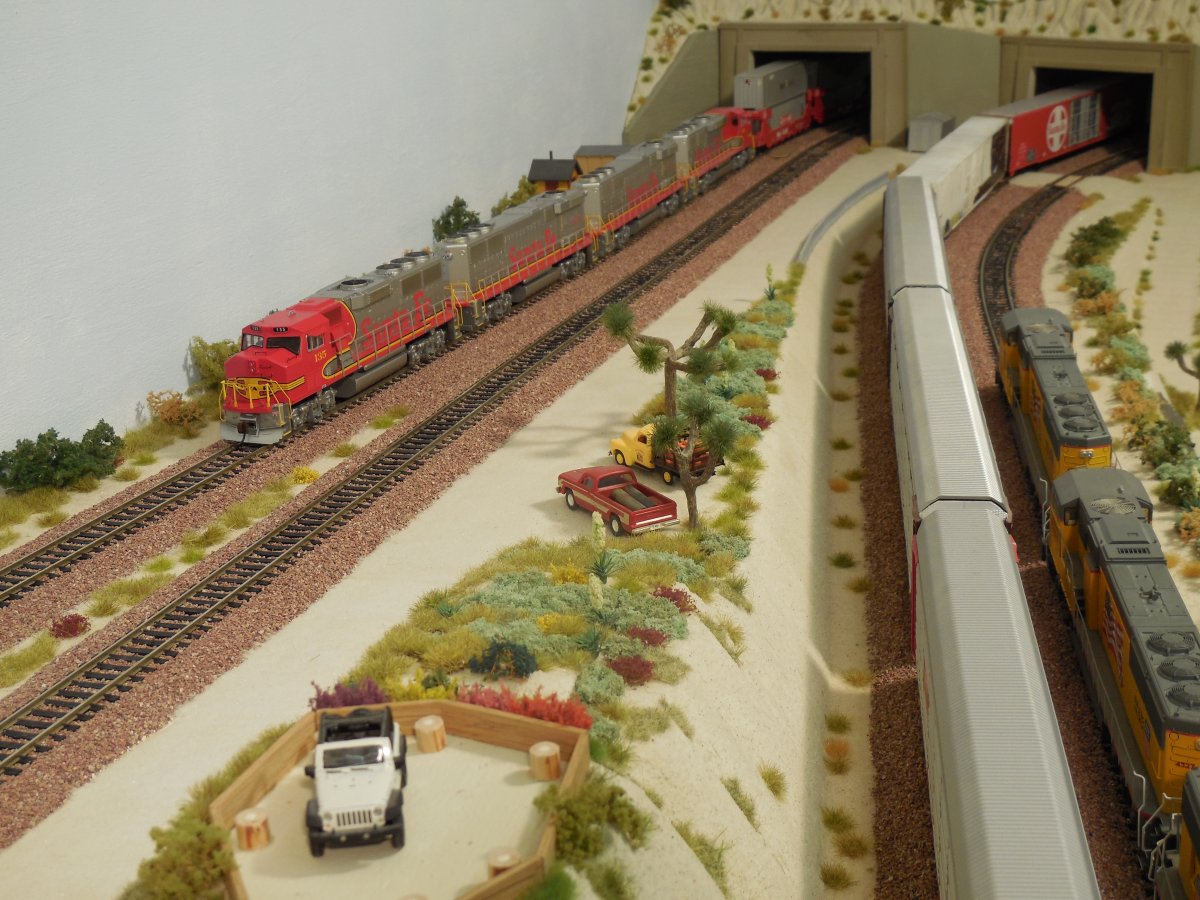

the BNSF service road goes along the upper main tracks - 1950 West Summit Island is a small platform (original by Jerry Shinar) - 1951

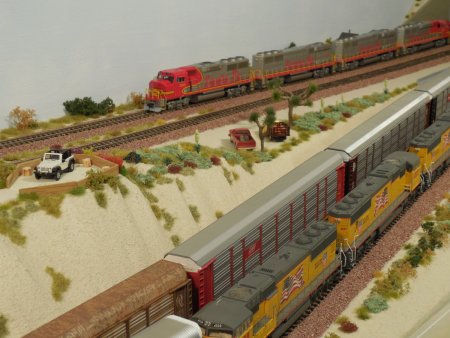

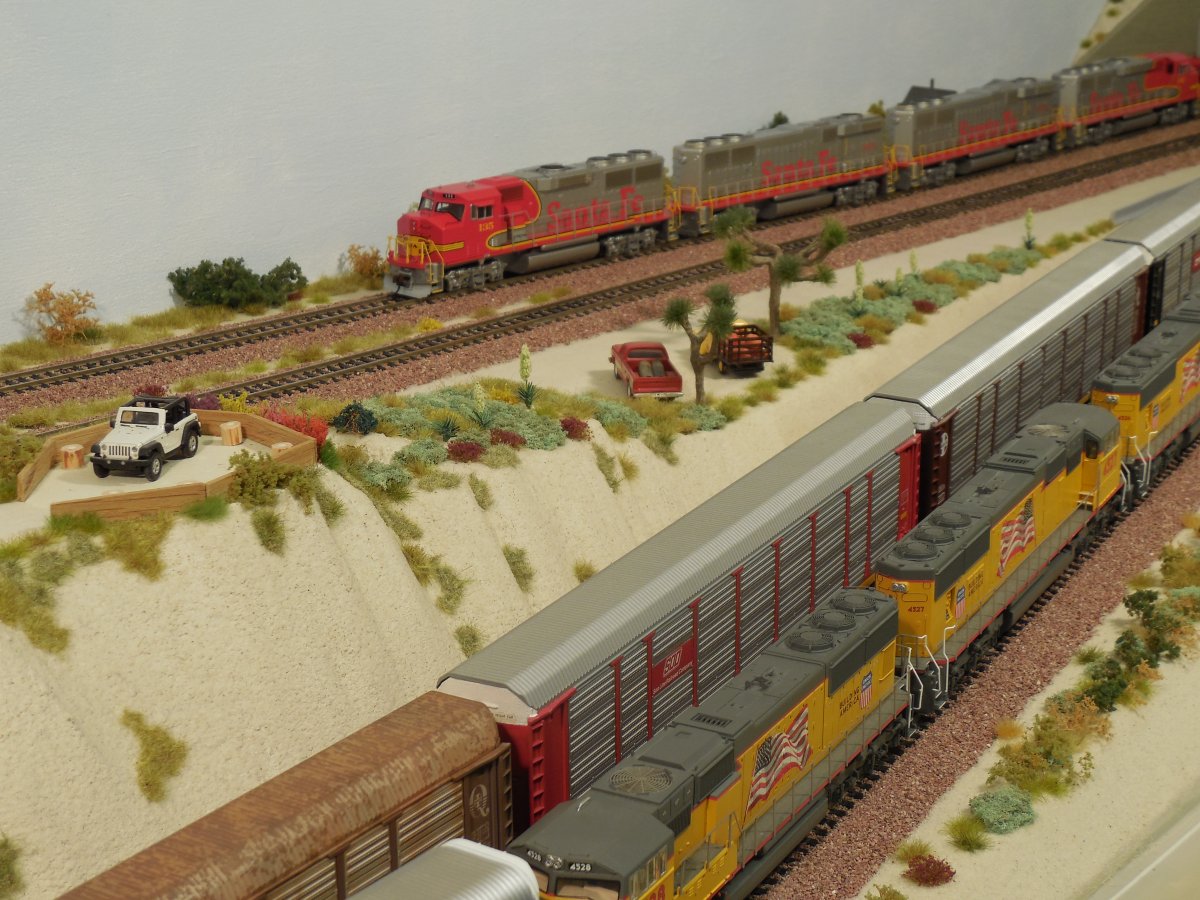

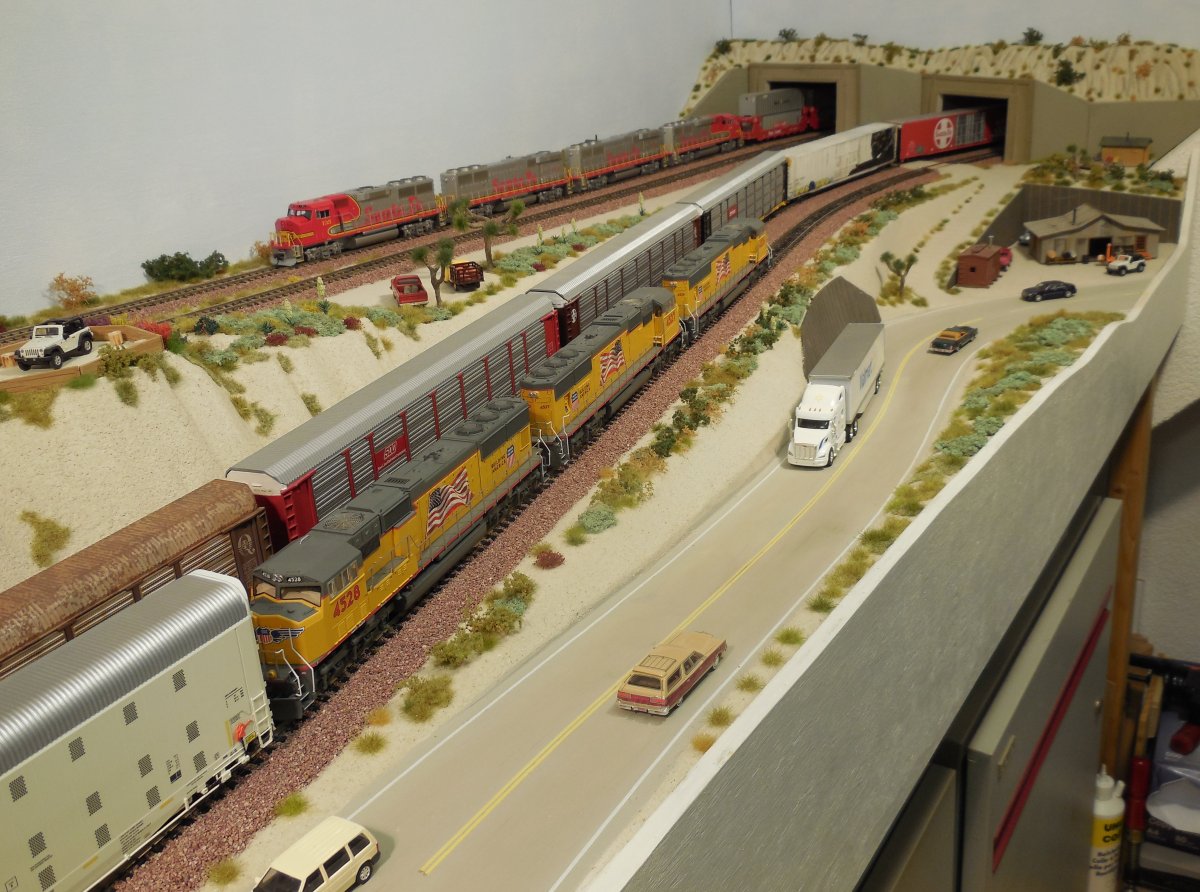

the width of the layout is just 80 cm - 1952 even on a small space you can build a nice scene - 1953



Hill 582 is a Railfans' Paradise. Don Toles is the "Hillkeeper" and taking care of the Hill.
But there are other gentlemen involved: Gary Gray, Marc Fournier, Jerry Shinar and some others as well.

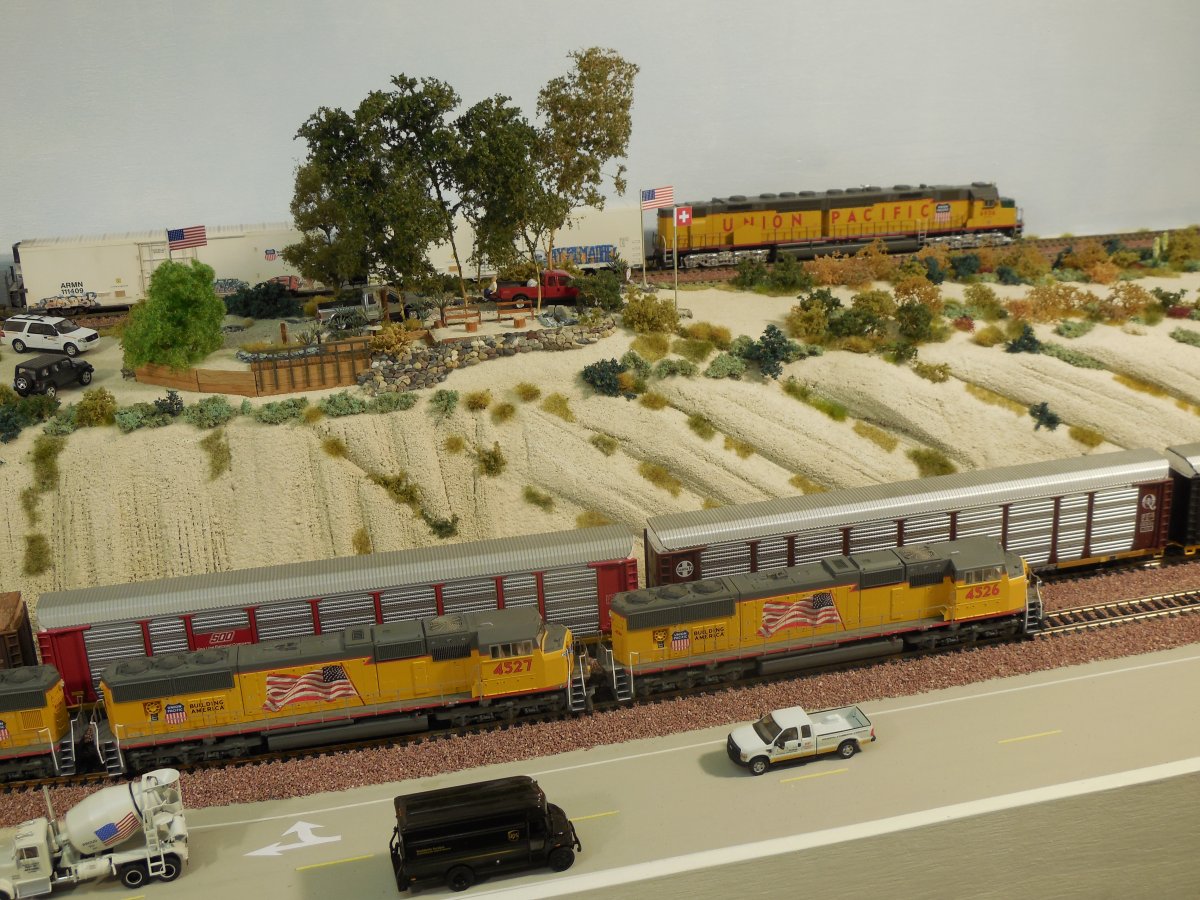

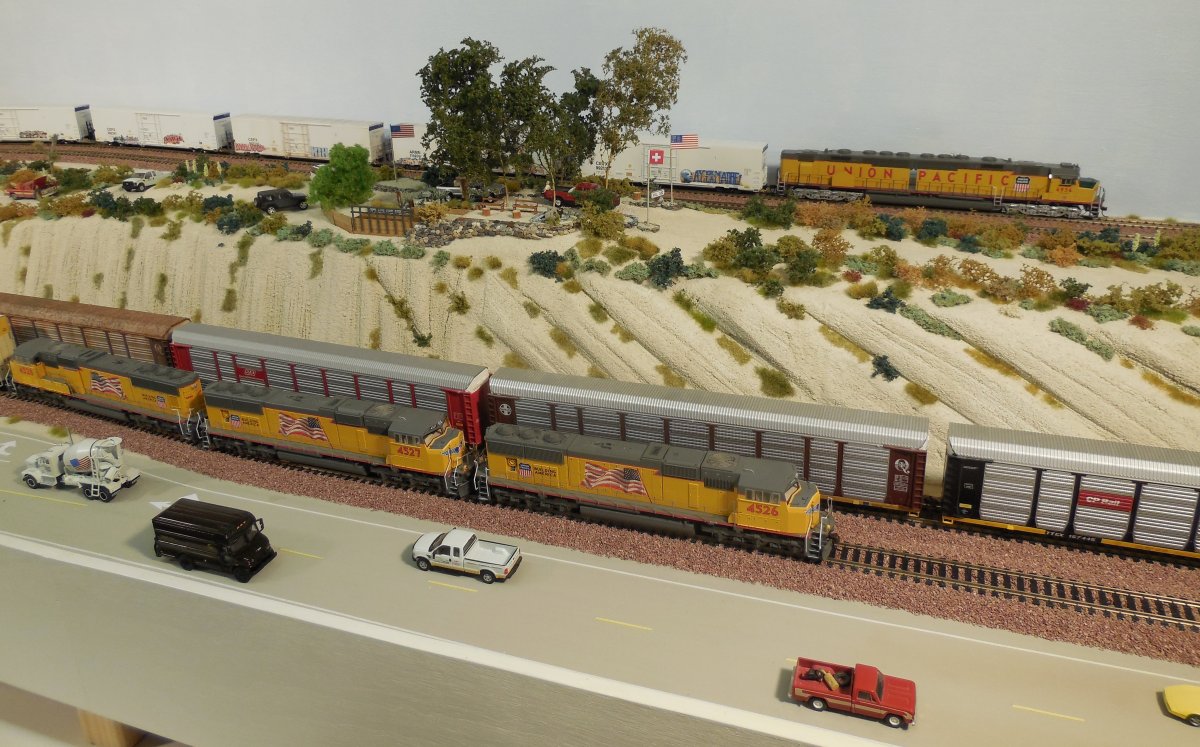

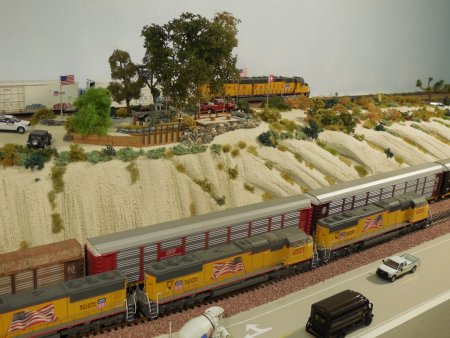

my scale version of Hill 582 is parallel to the tracks - 1954 but in real life, it is actually square to the tracks - 1955

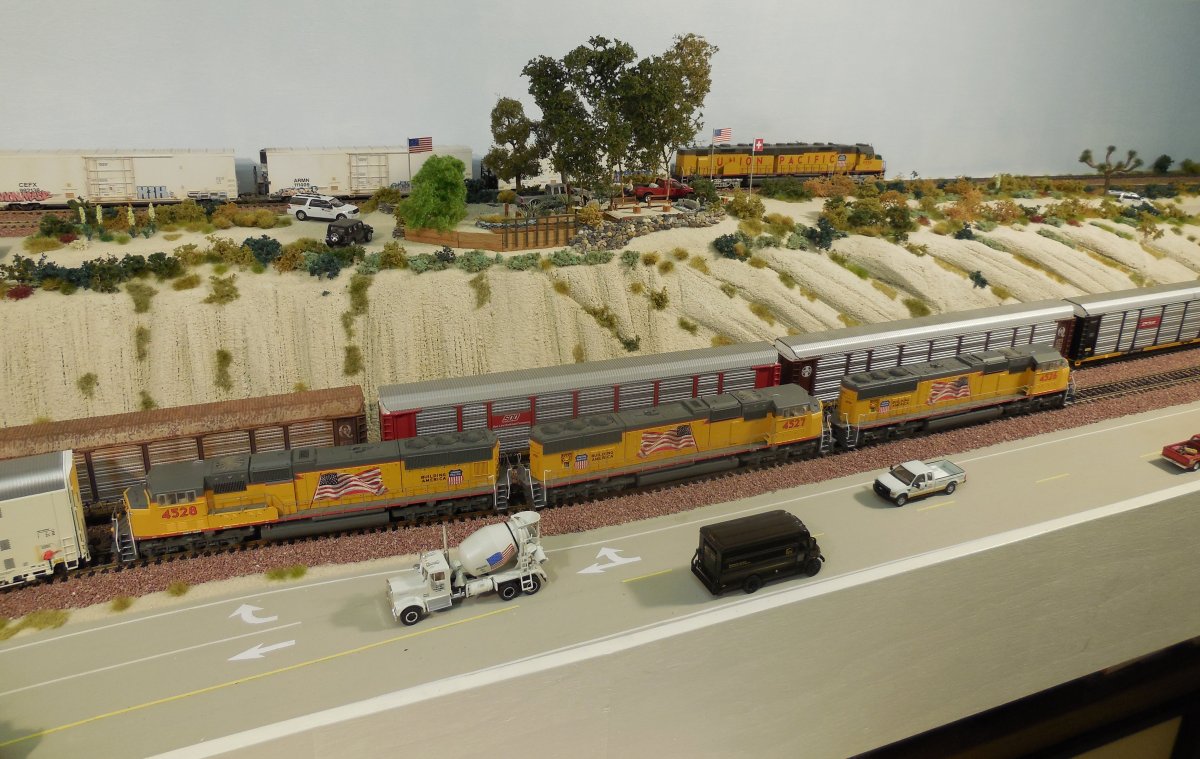

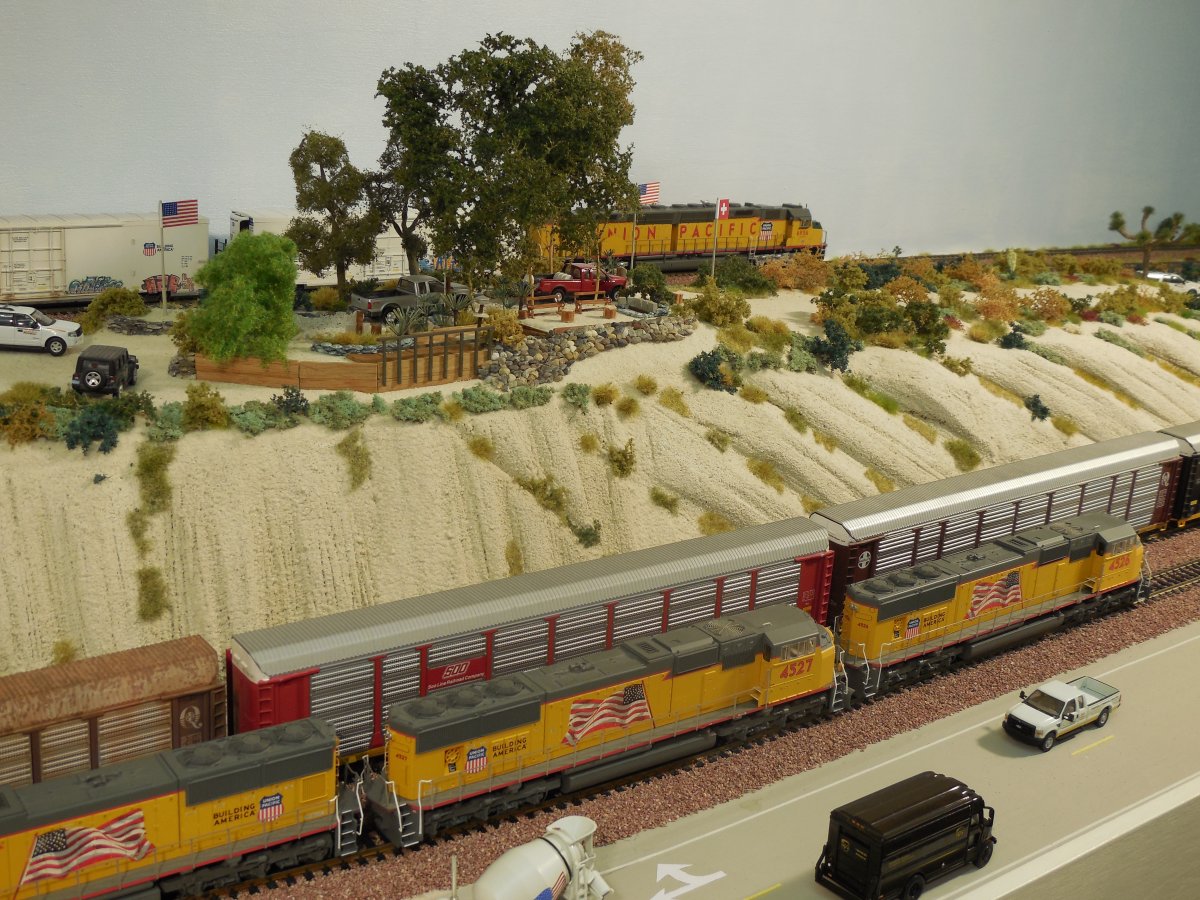

in other words, we have to live with compromises . . - 1956 . . because of space limitations in the model world - 1957

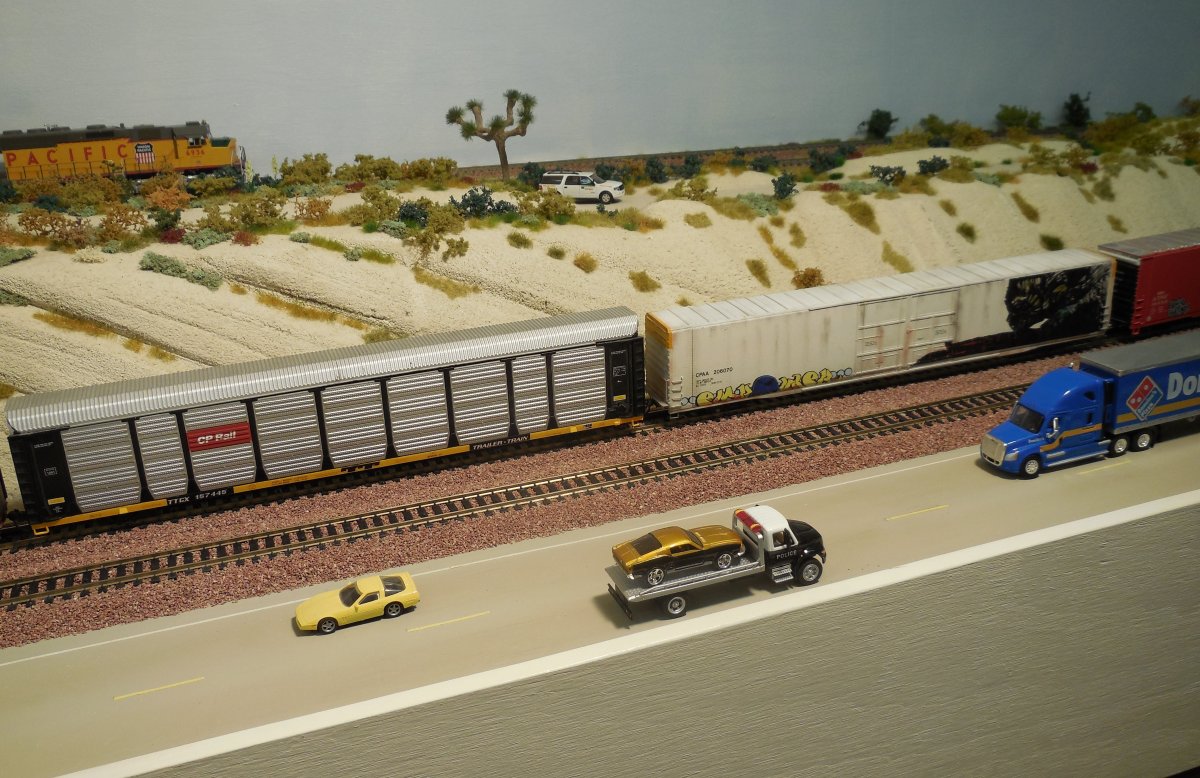

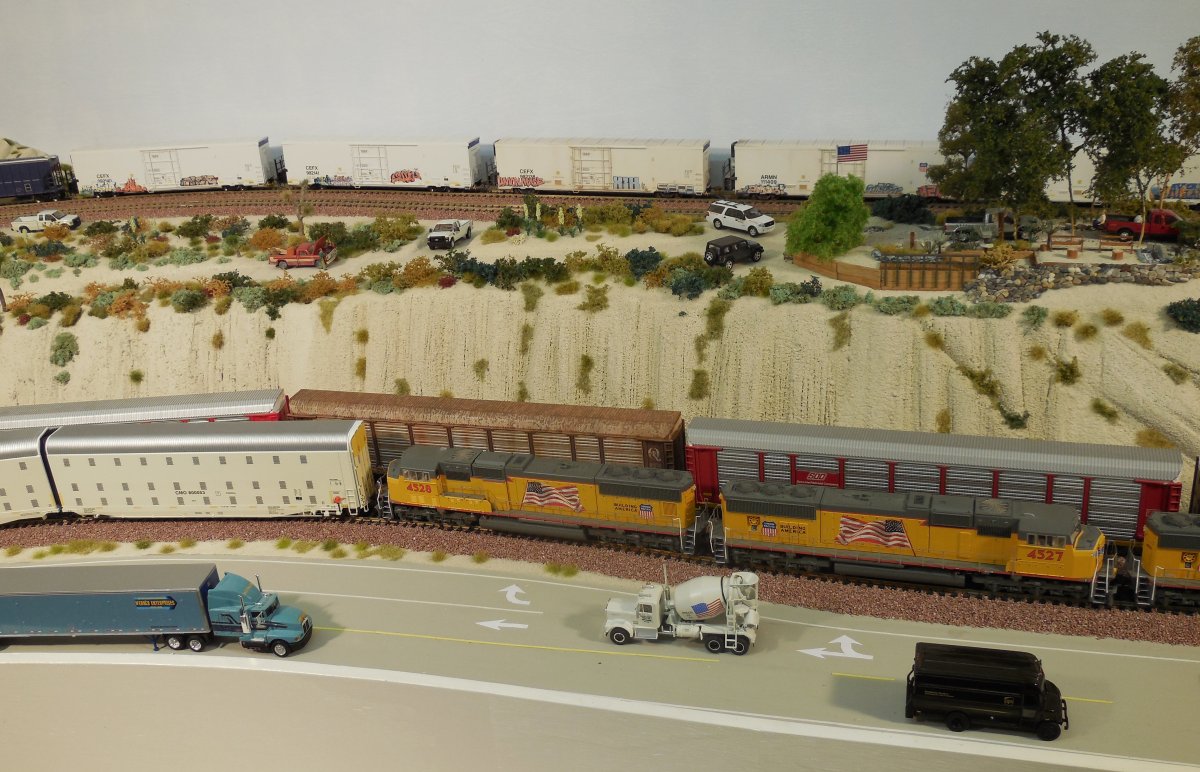

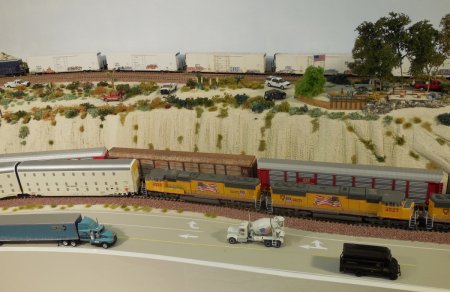

1958 1959

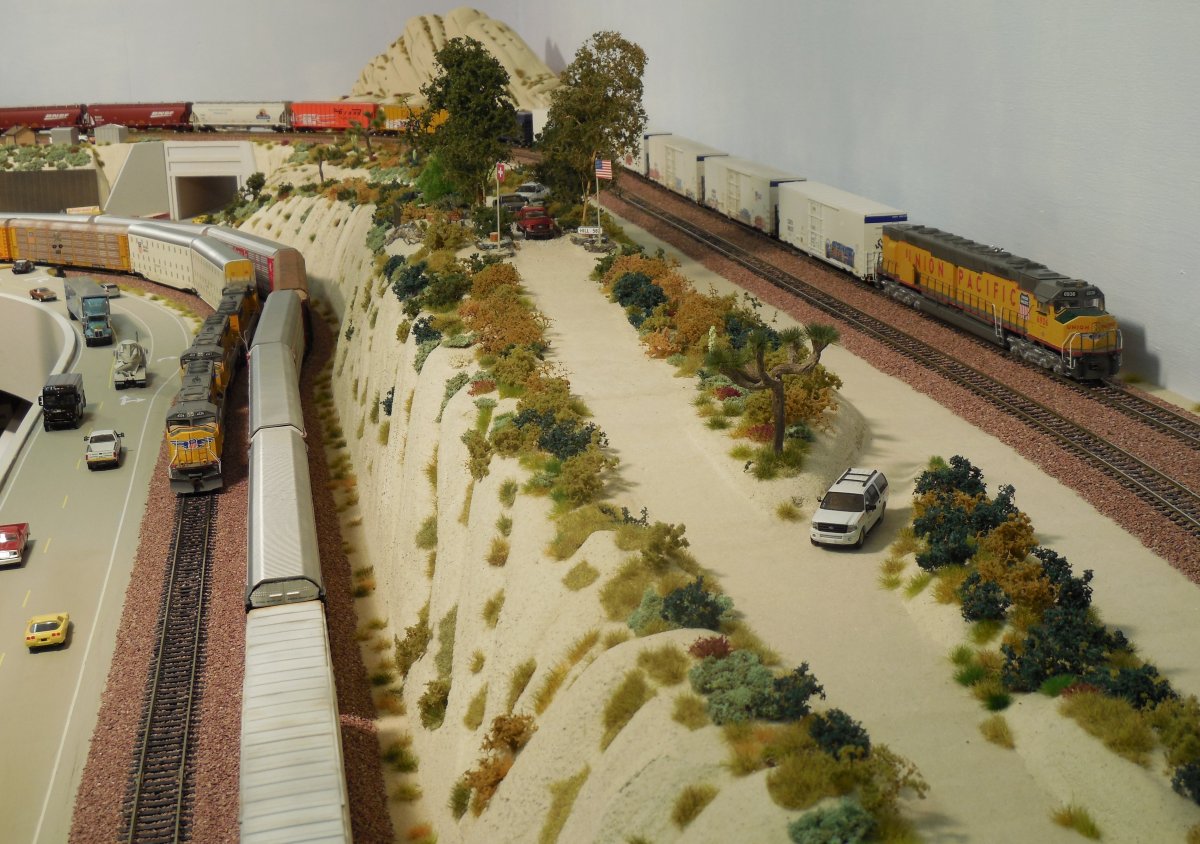

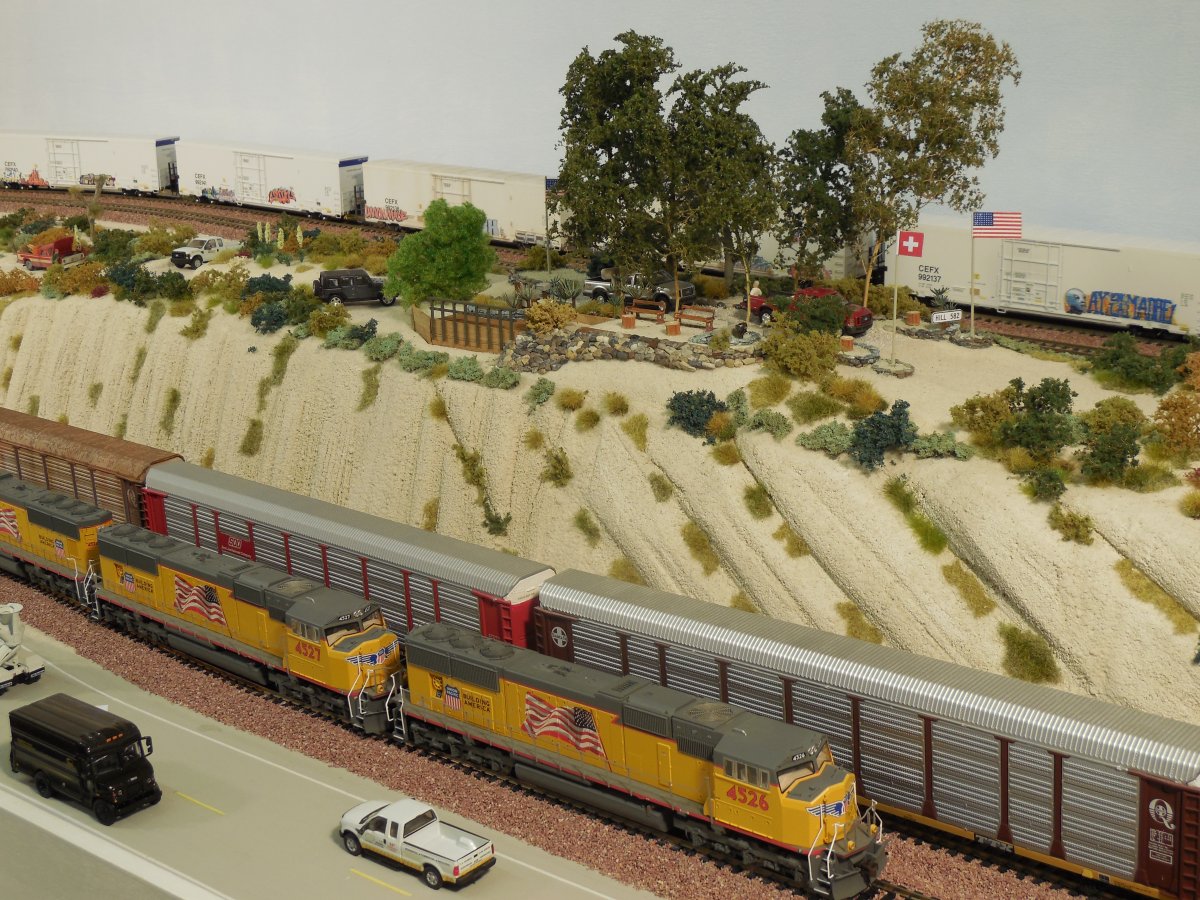

the Swiss flag was a must, because when I visit the real . . - 1960 . . Hill 582, my friends are rising a Swiss flag for me - 1961

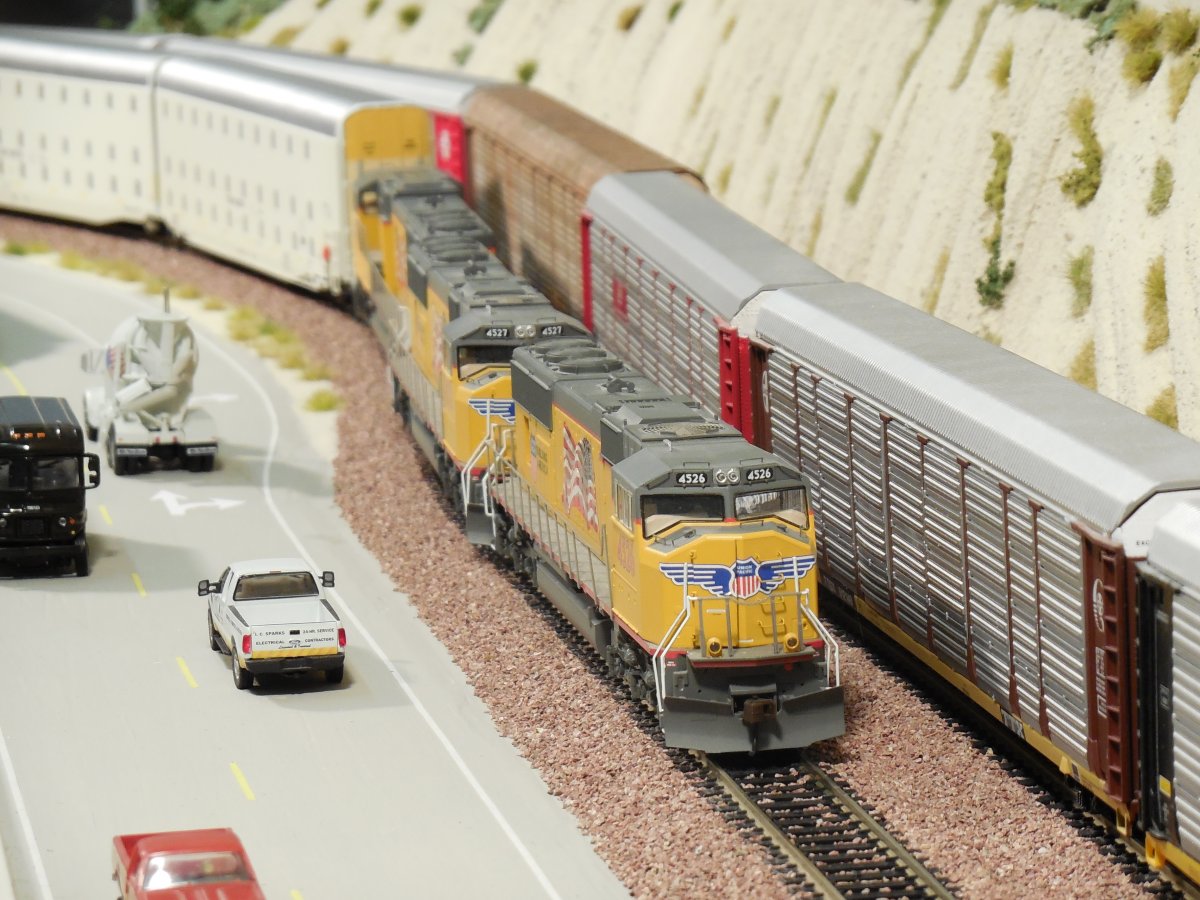

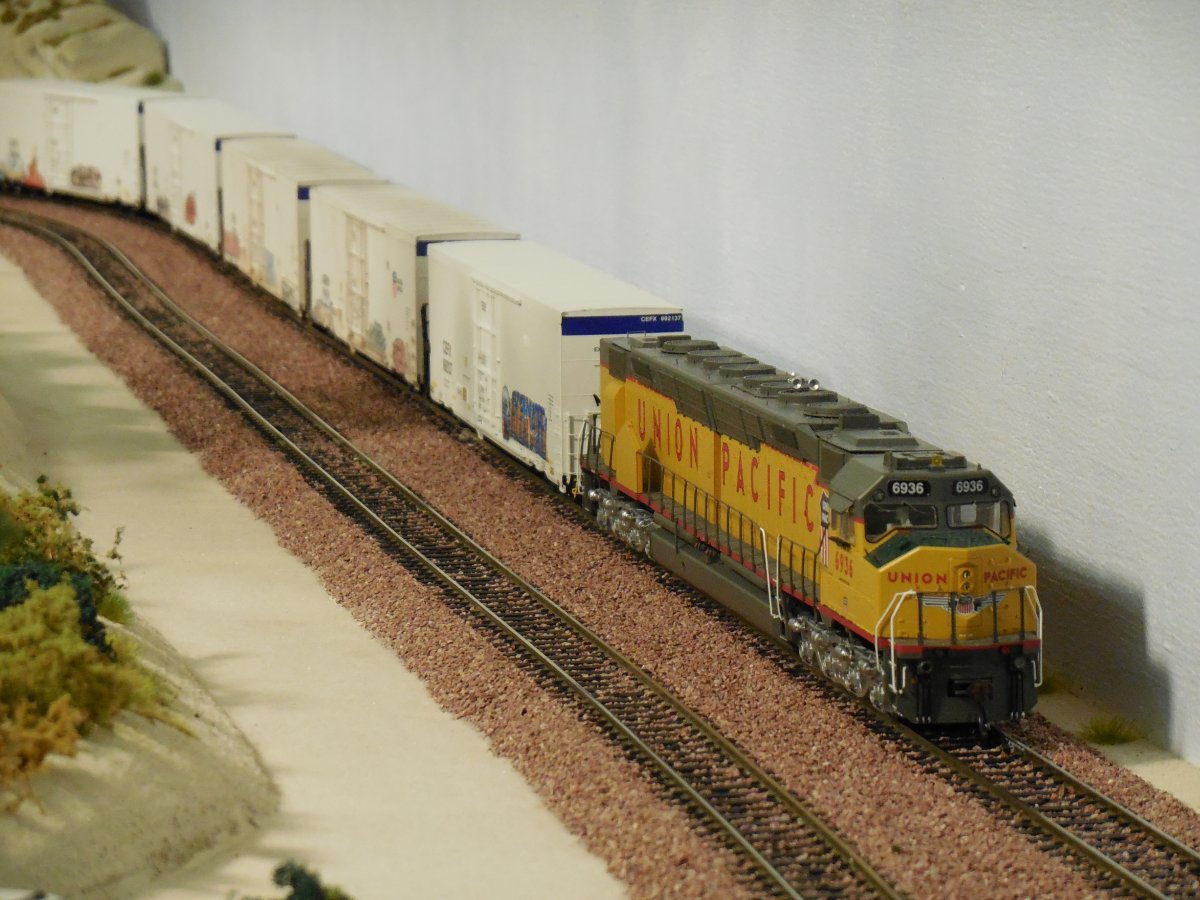

heavy action just below Hill 582 - 1962 a look behind Hill 582 shows the BNSF service road - 1963

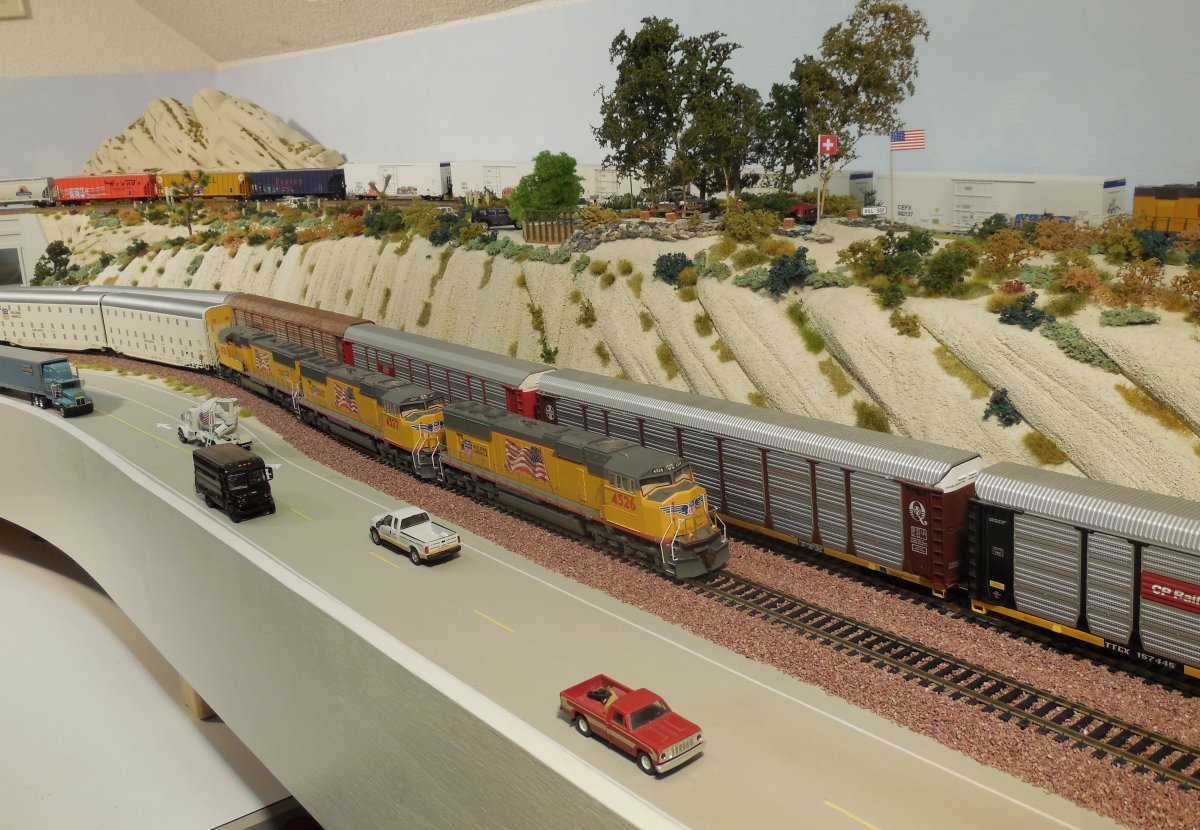

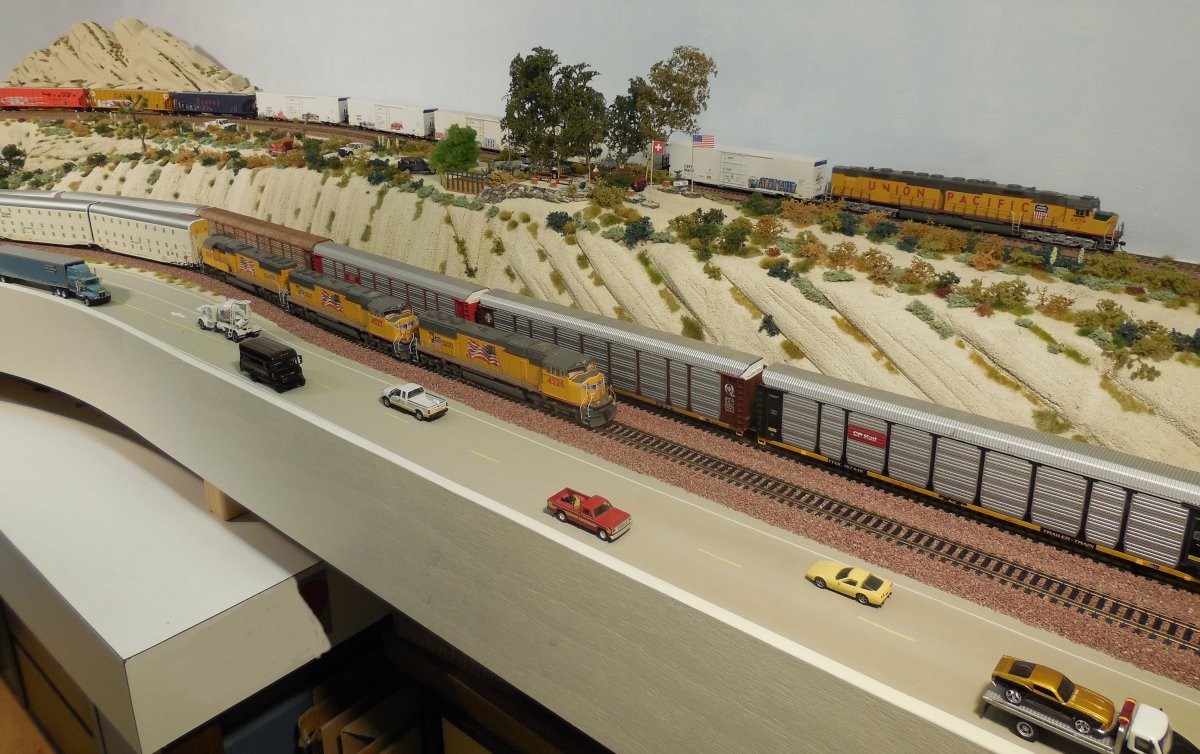

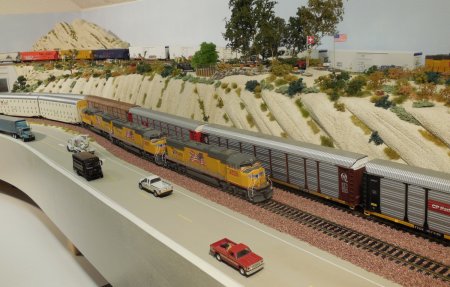

This road is Cajon Blvd. (old Route 66) - 1964 when you build a layout, you have to accept compromises - 1965

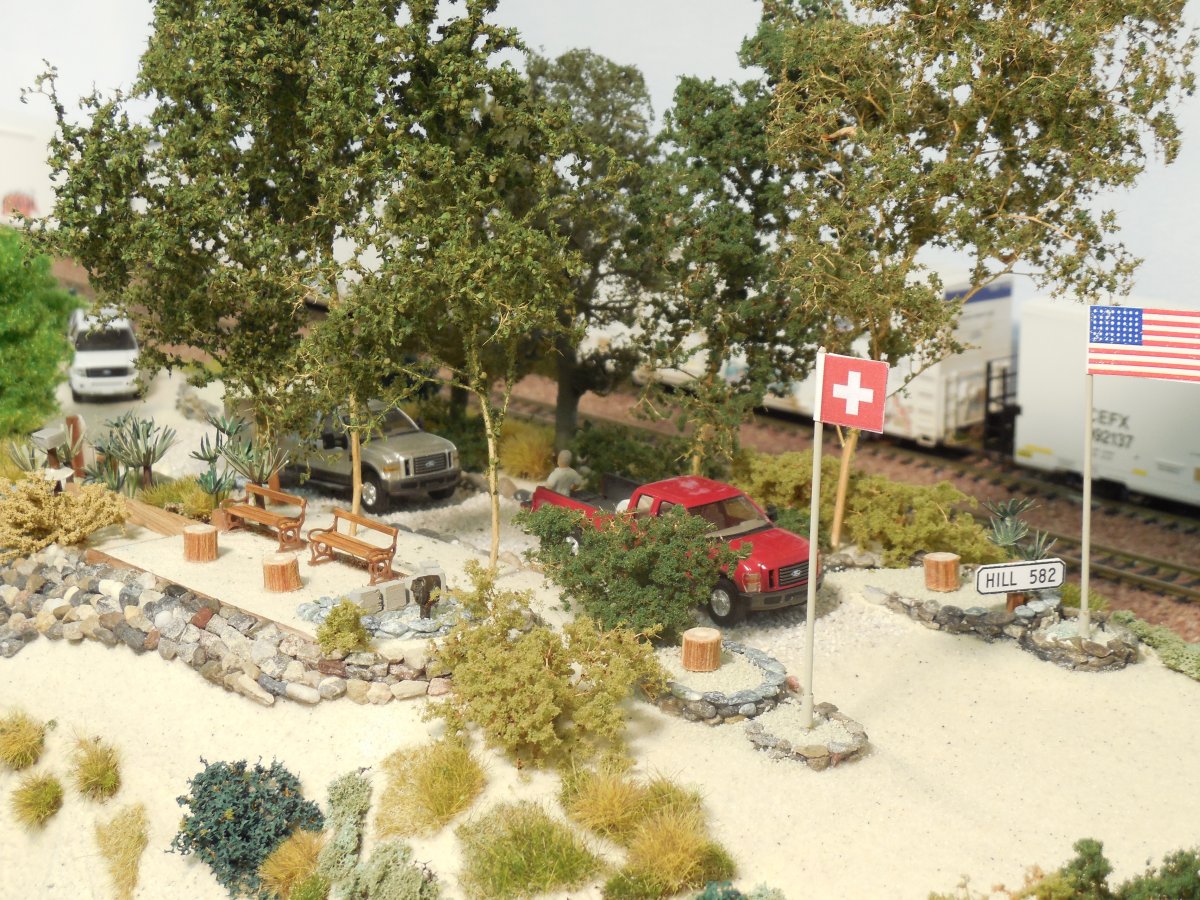

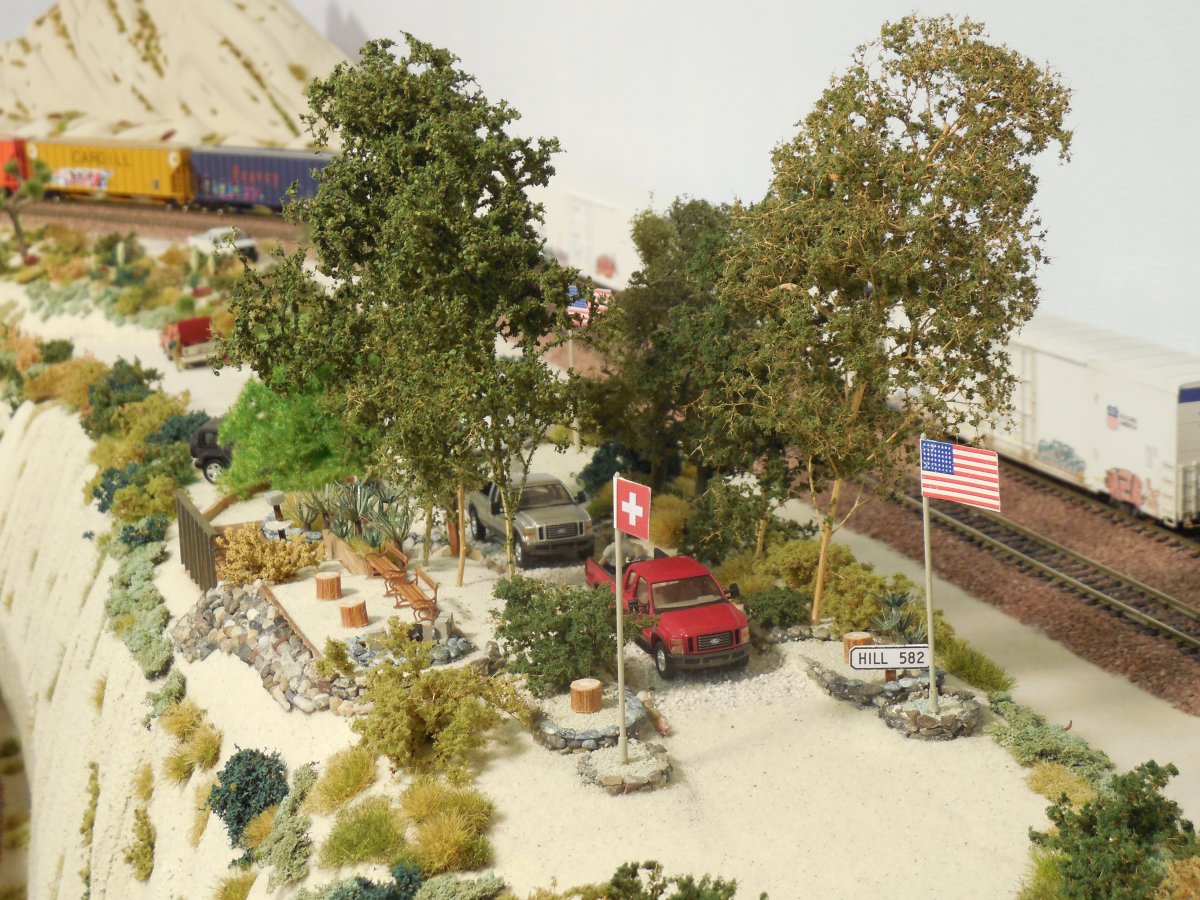

Red Ford Pickup Truck belongs to Don Toles - 1966 Silver Ford Pickup Truck belongs to Gary Gray - 1967

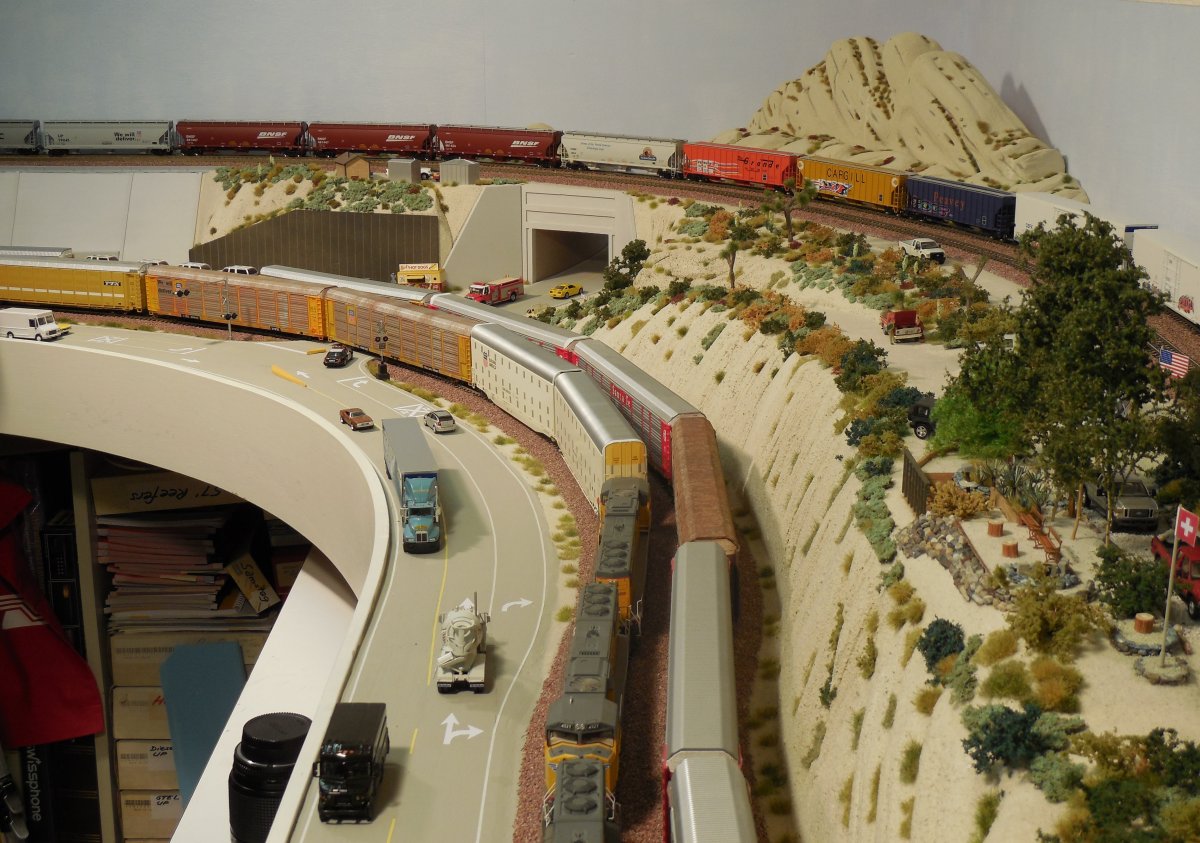

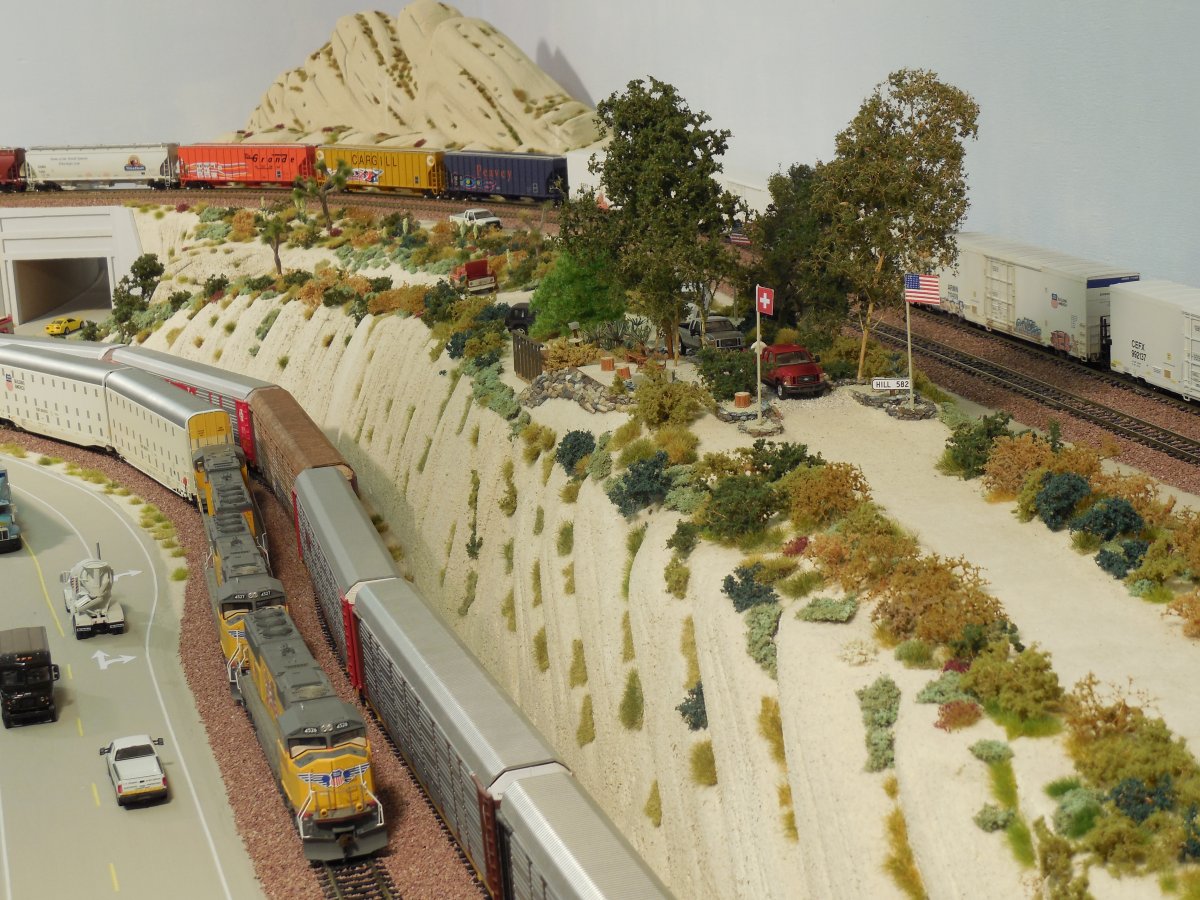

from Route 66, Highway 138 is passing the Mormon Rocks - 1968 in real, the Mormon Rocks are not as close to Hill 582 as here - 1969



The Mormon Rocks were created out of Styrofoam as per this photo which I took some years ago.

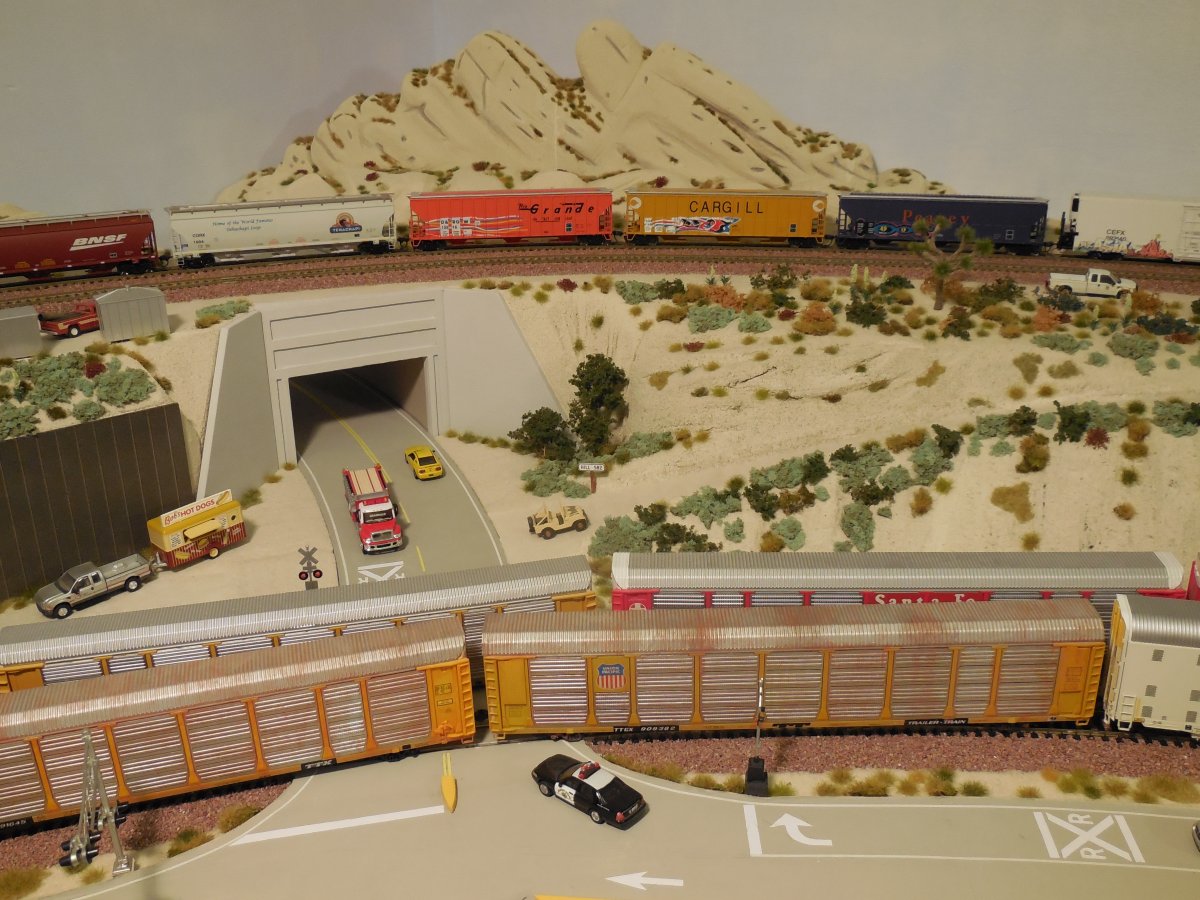

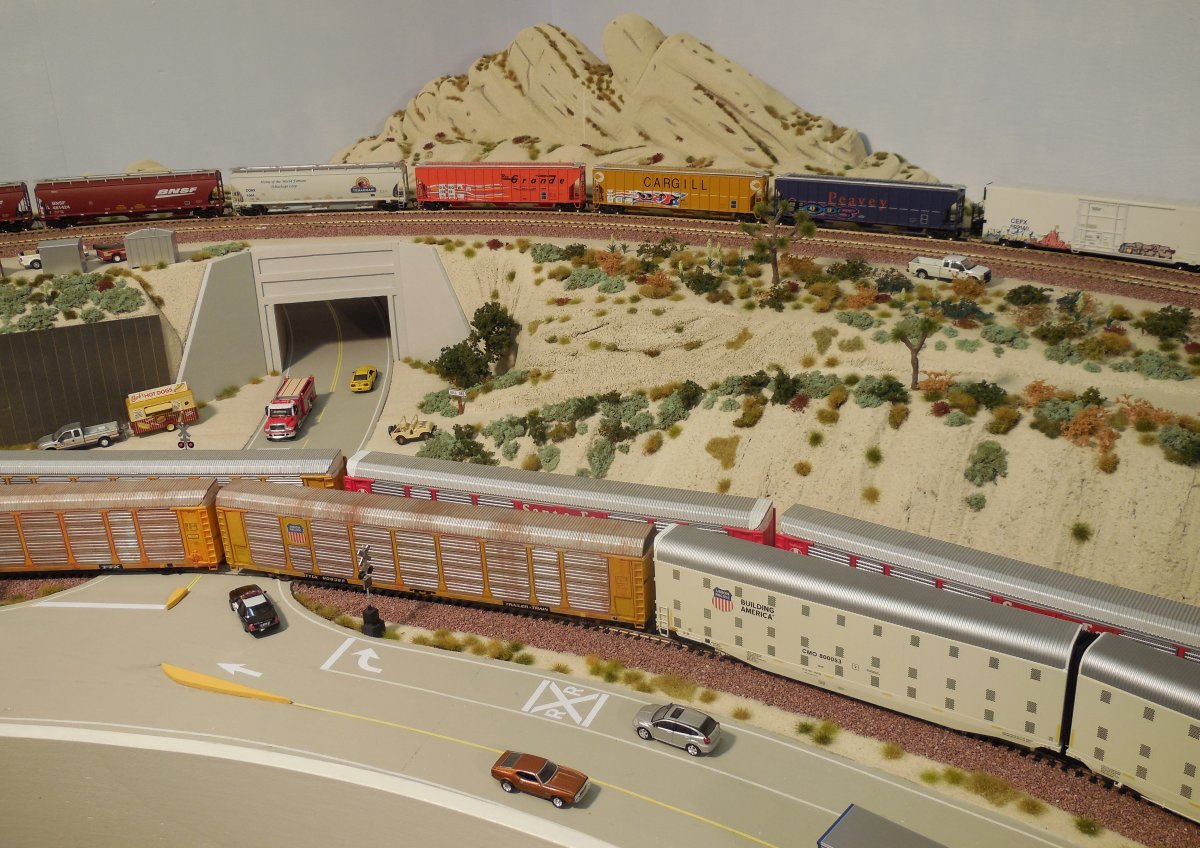

Highway 138 is going under the upper tracks - 1970 1971

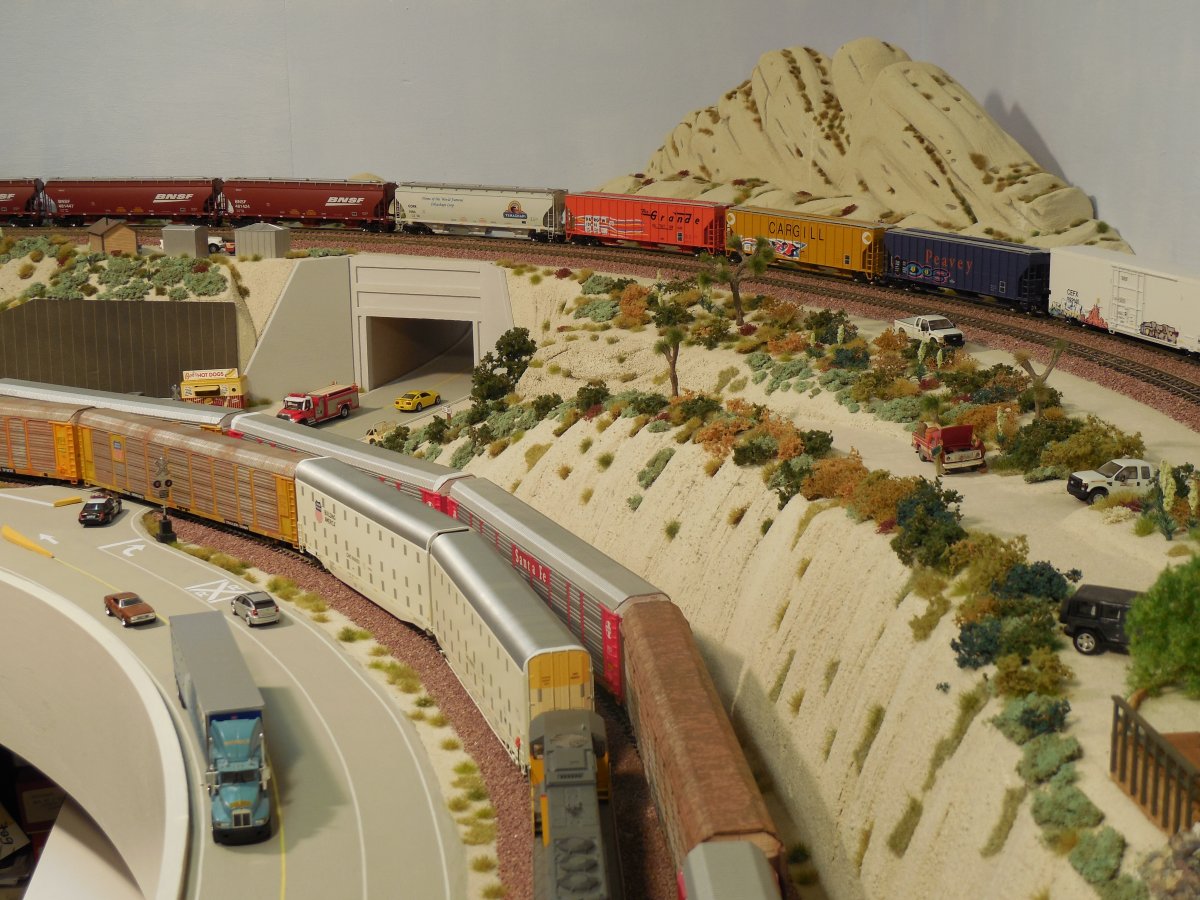

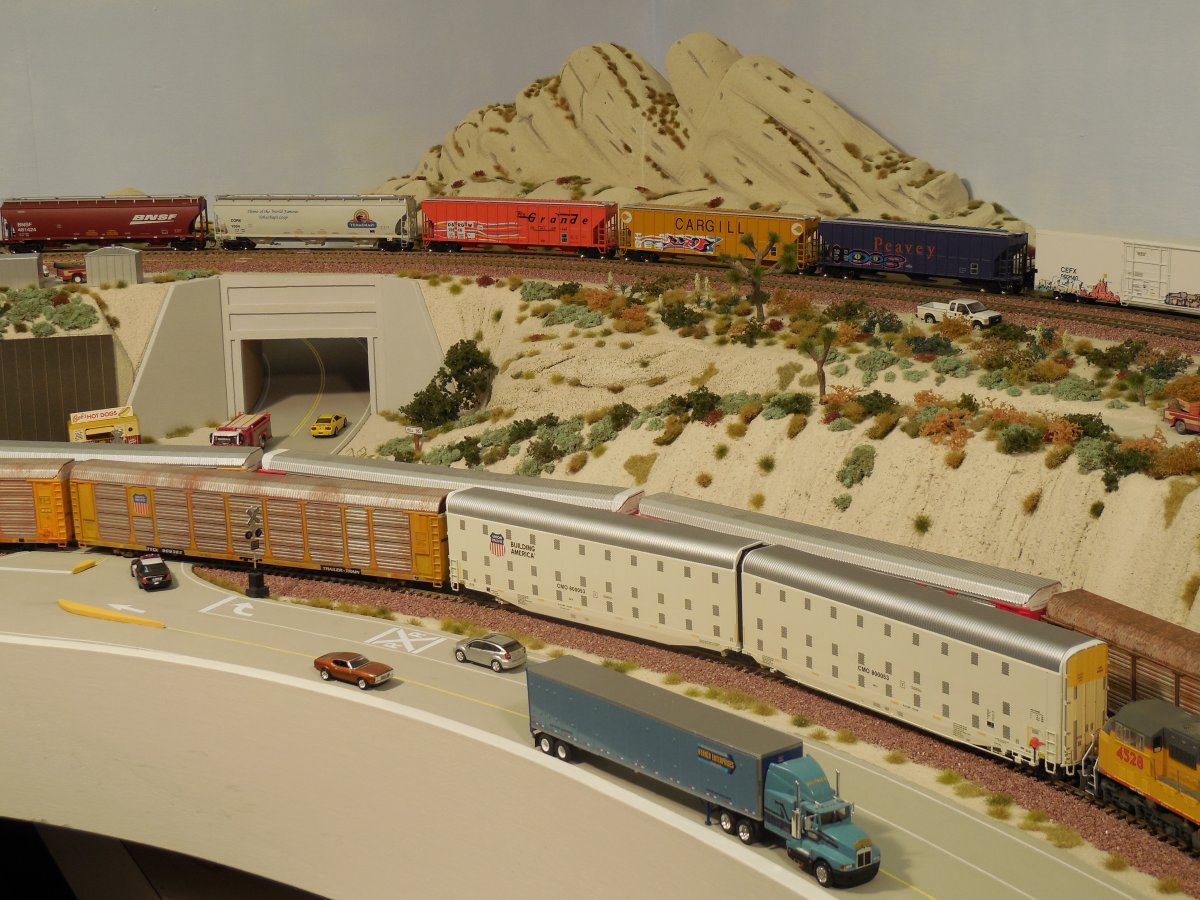

1972 1973

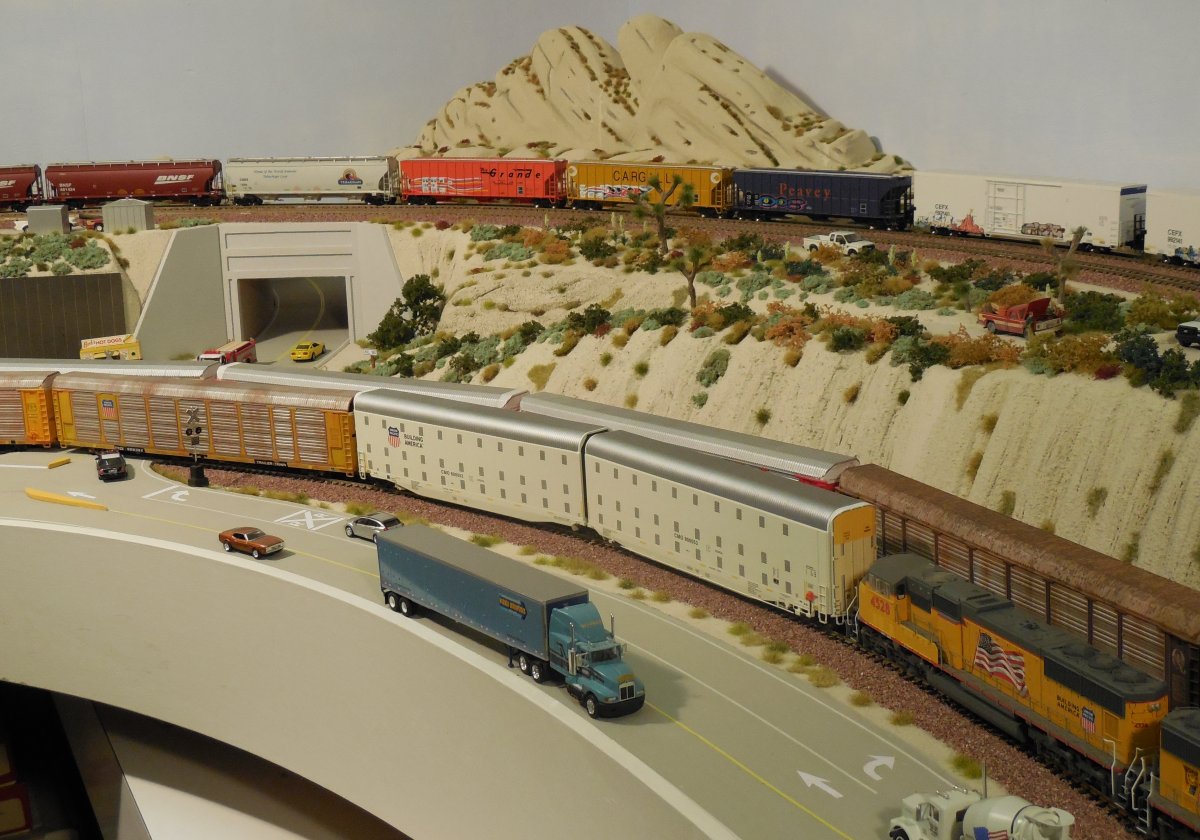

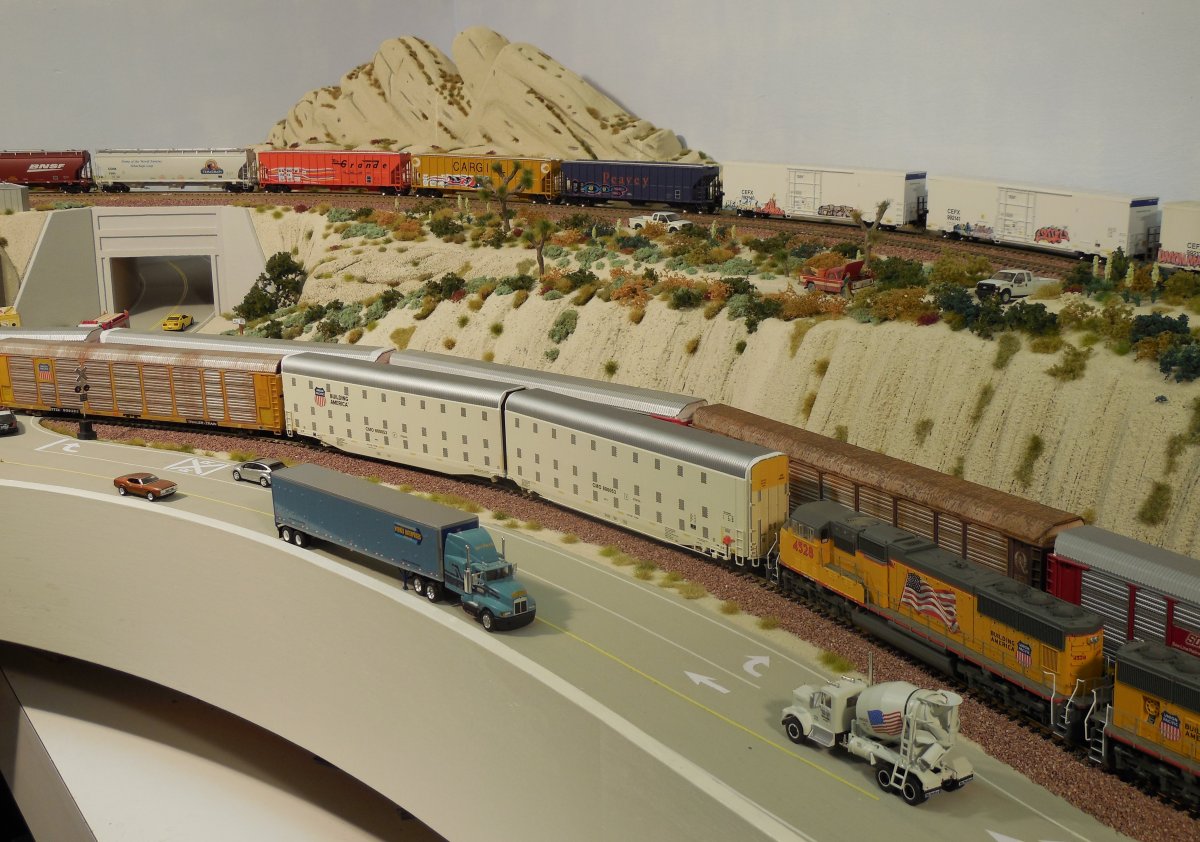

1974 1975

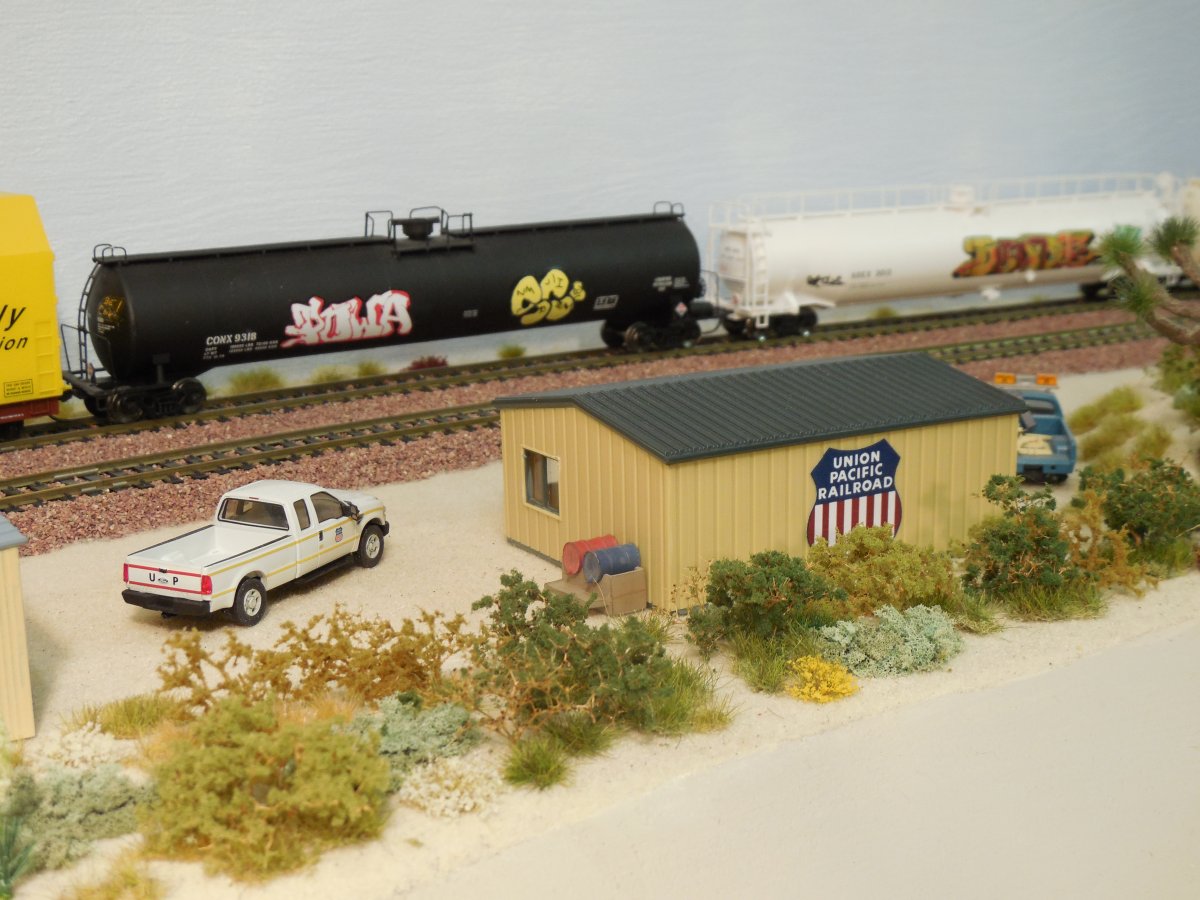

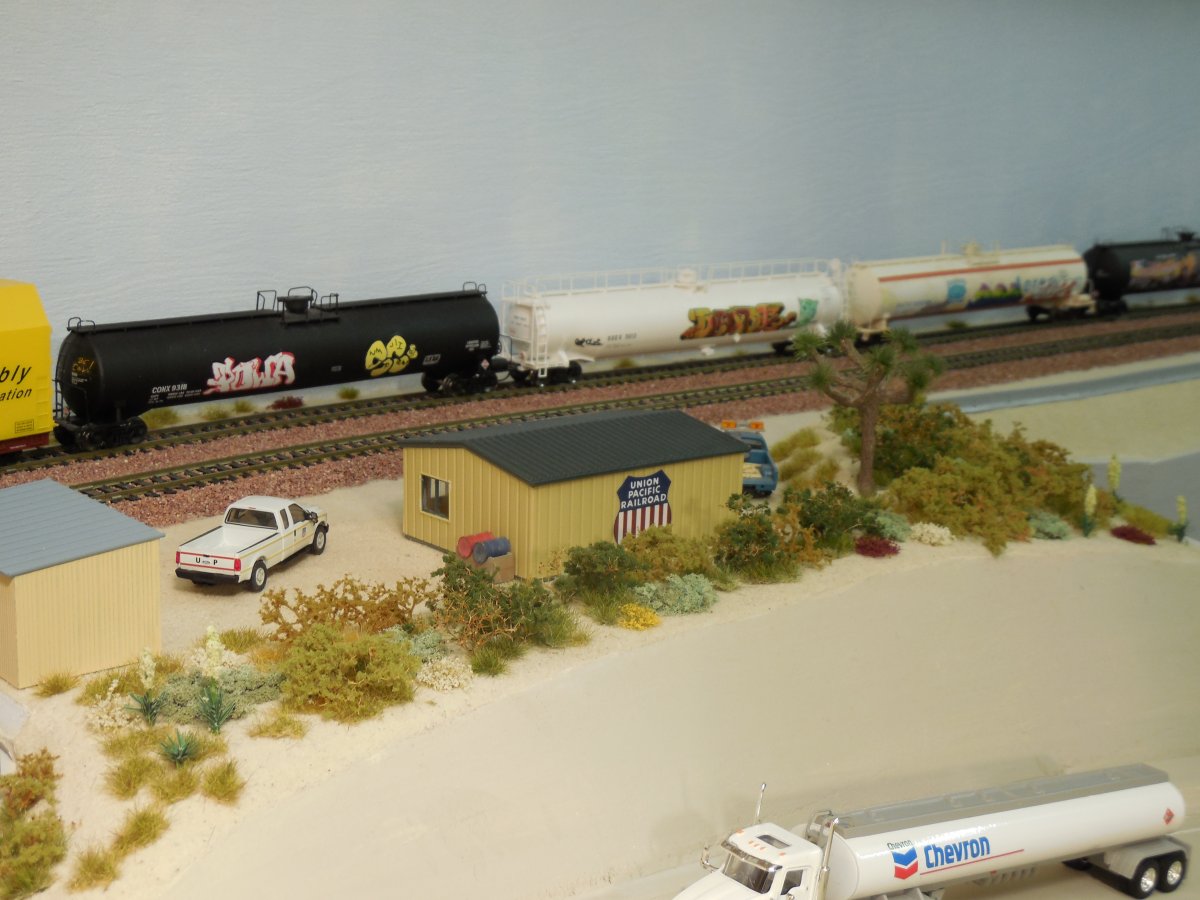

1976 there is a UP MoW office - 1977

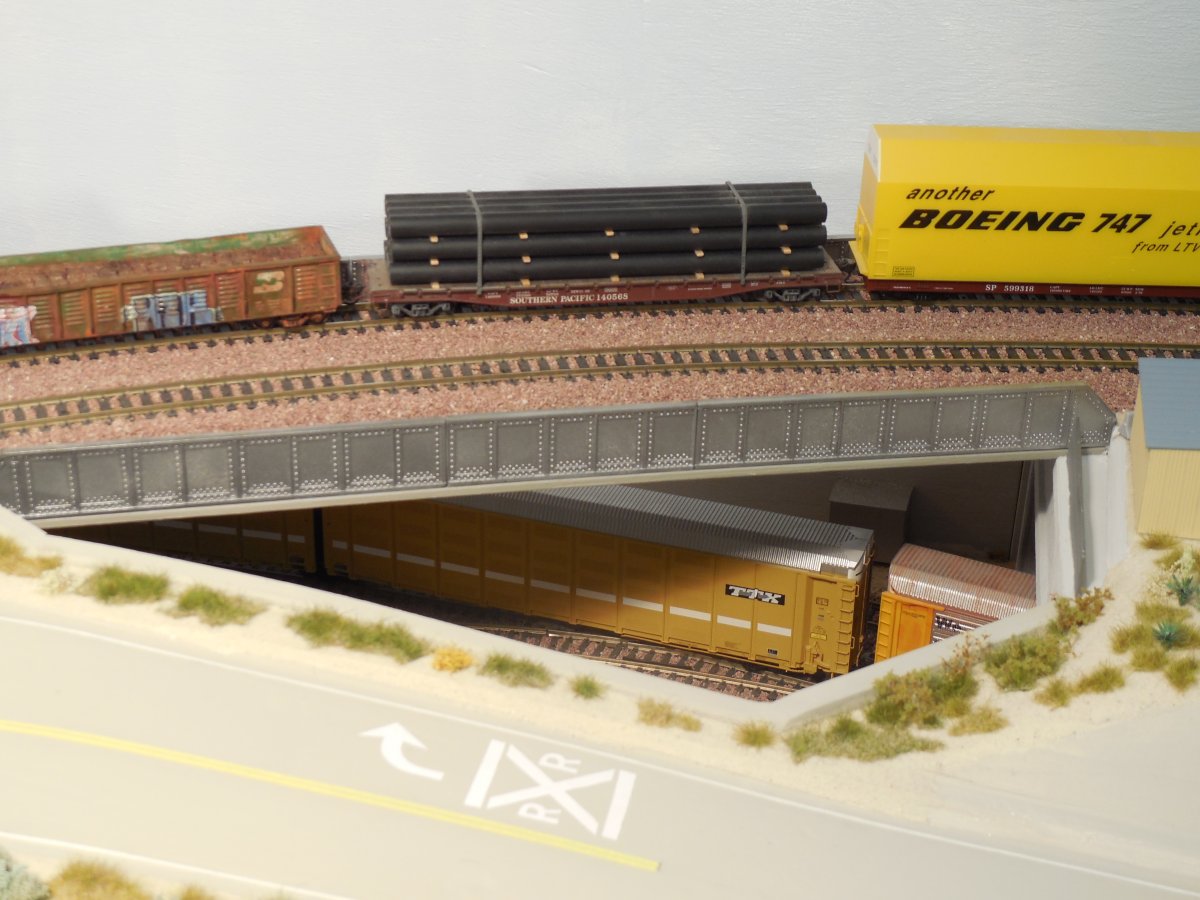

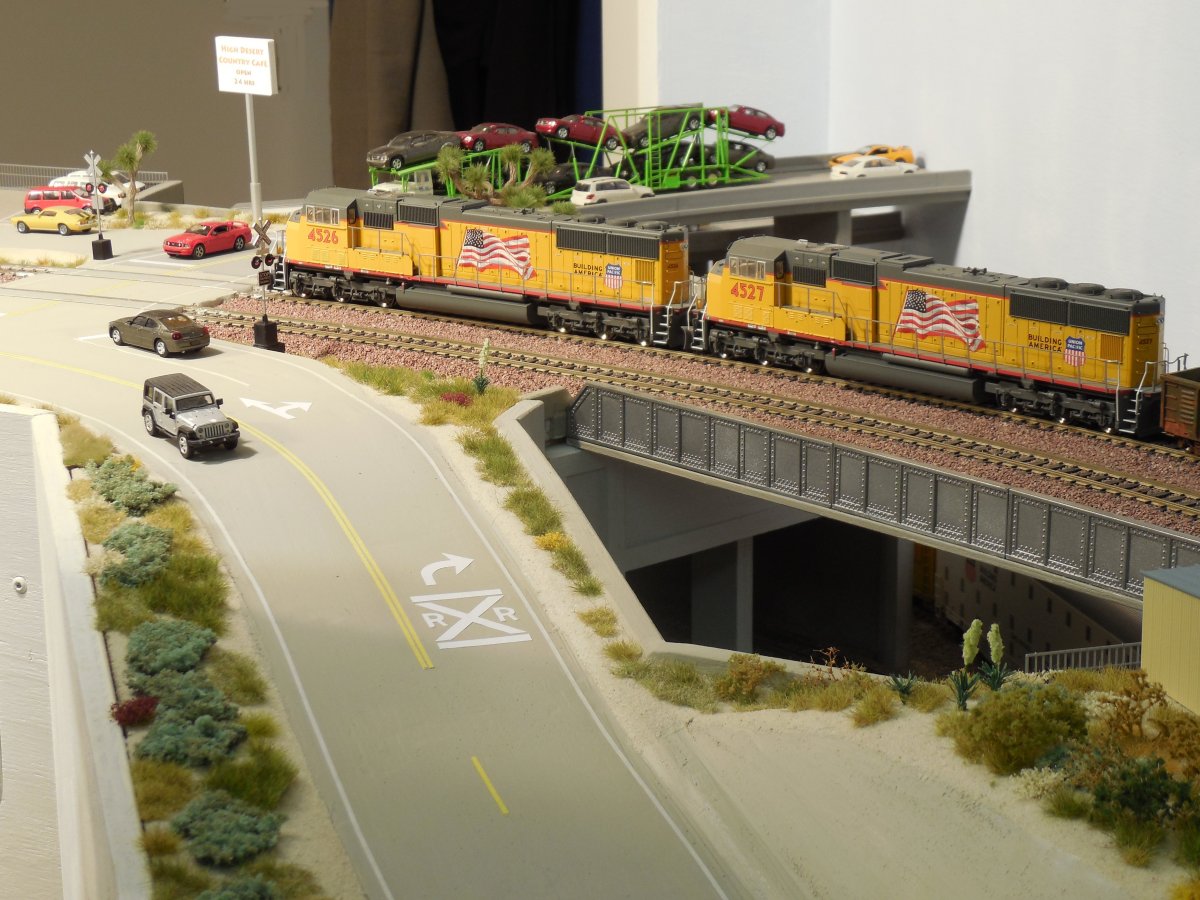

this is the Flyover - 1978 both levels are visible - 1979

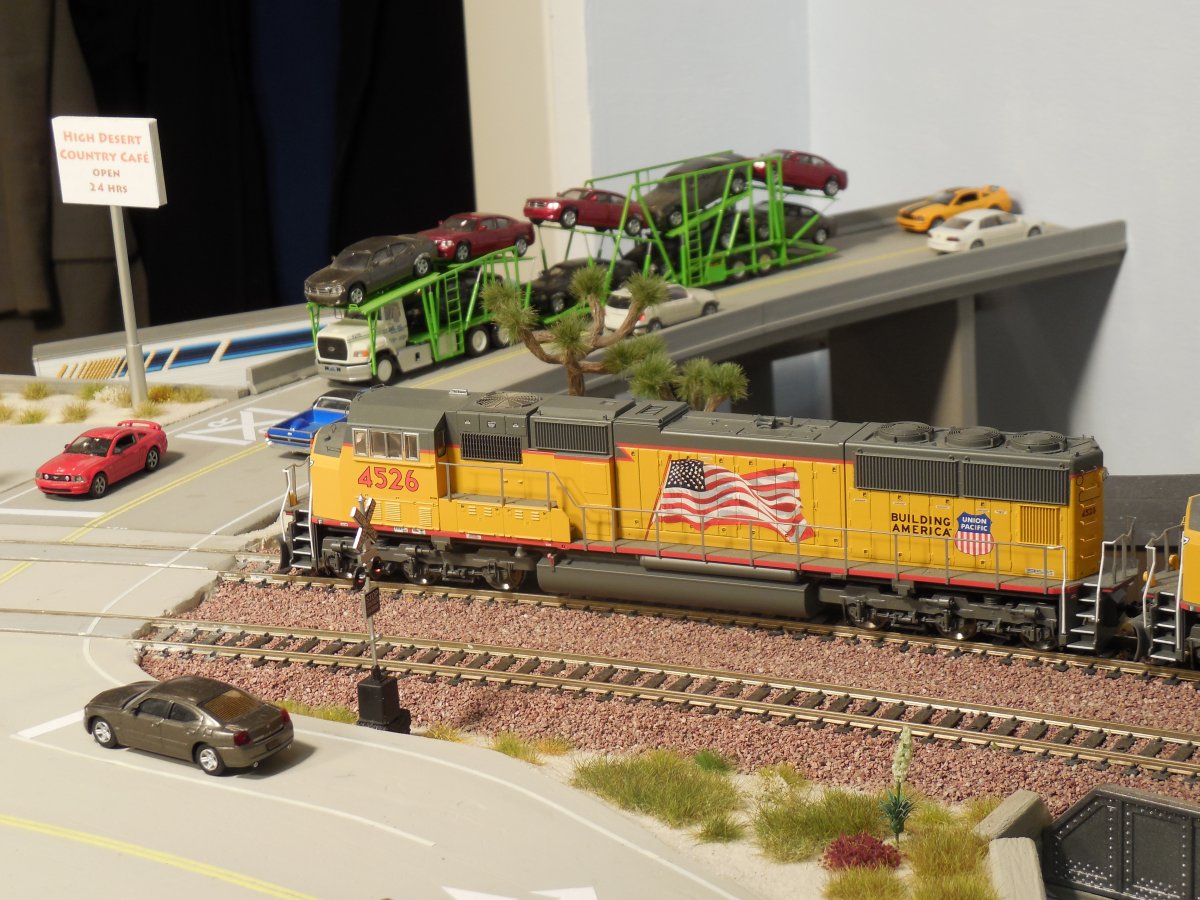

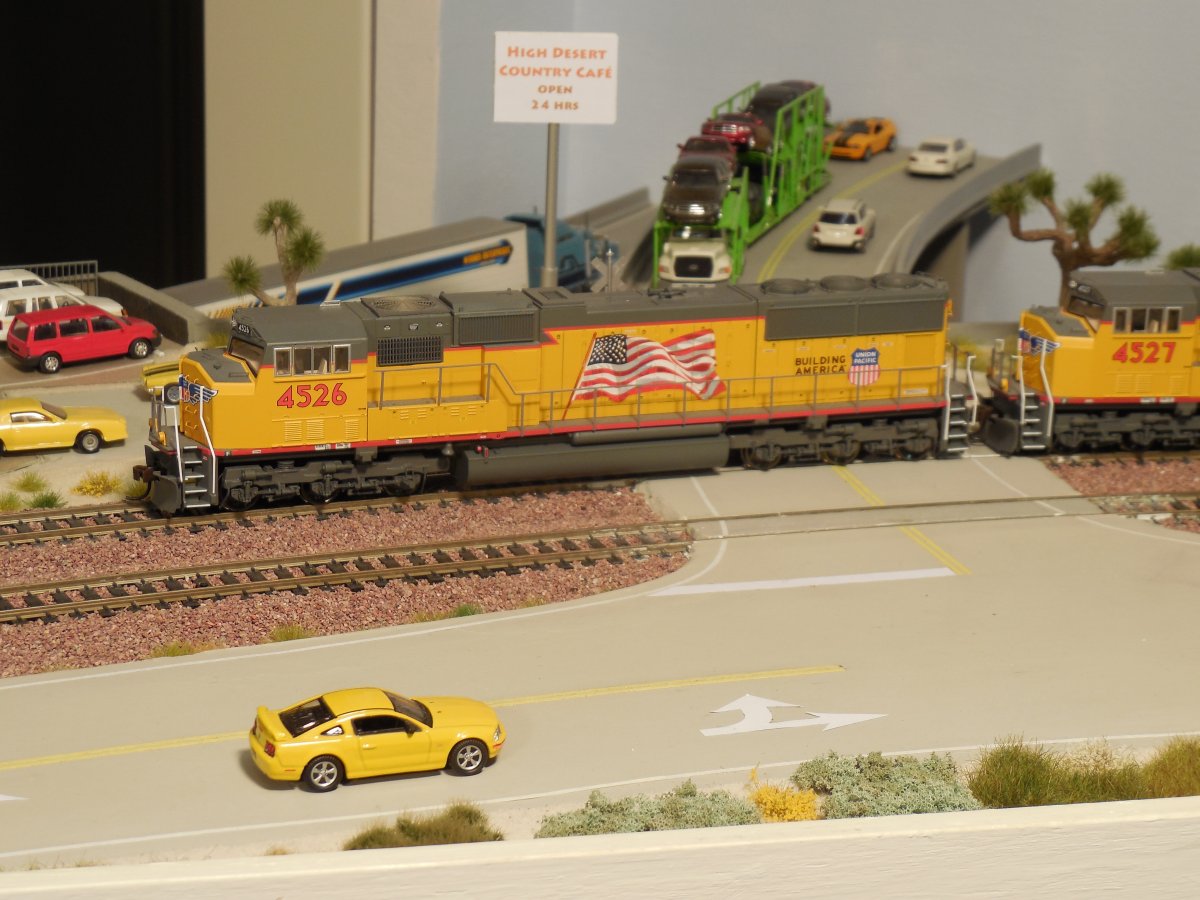

1980 1981

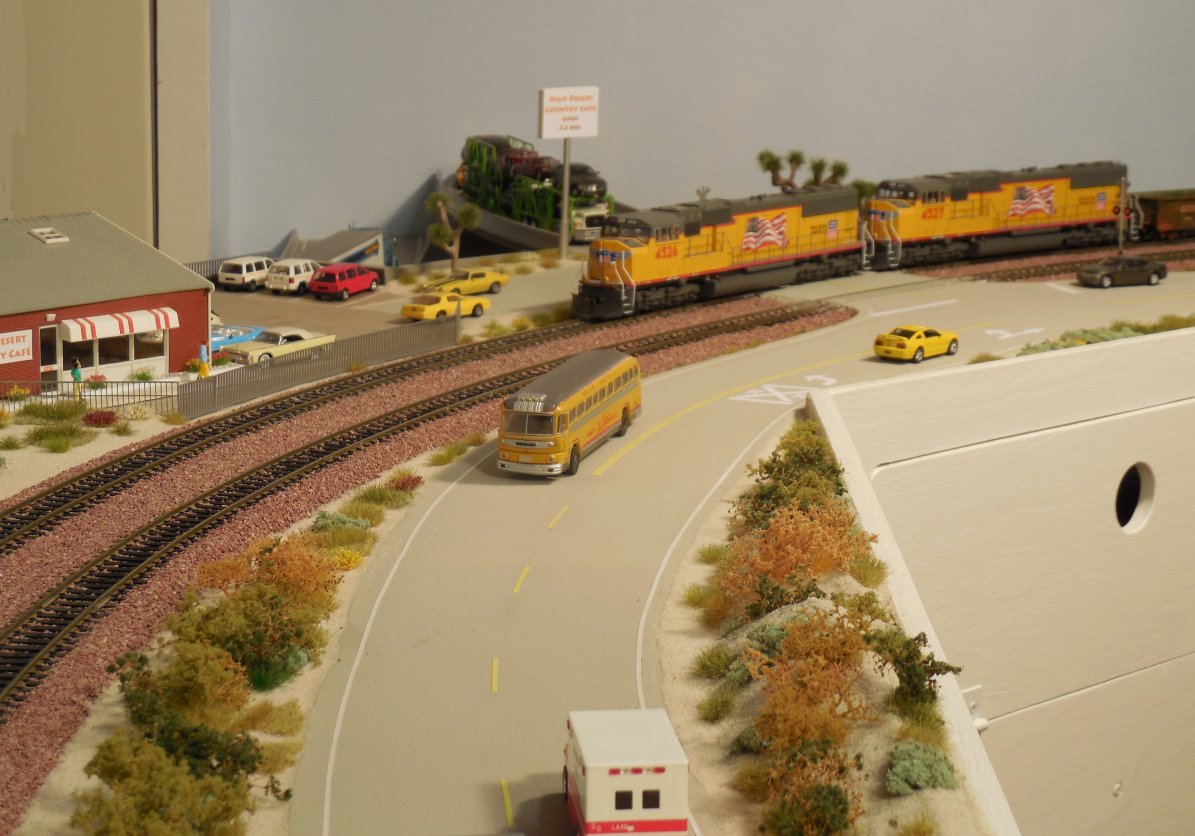

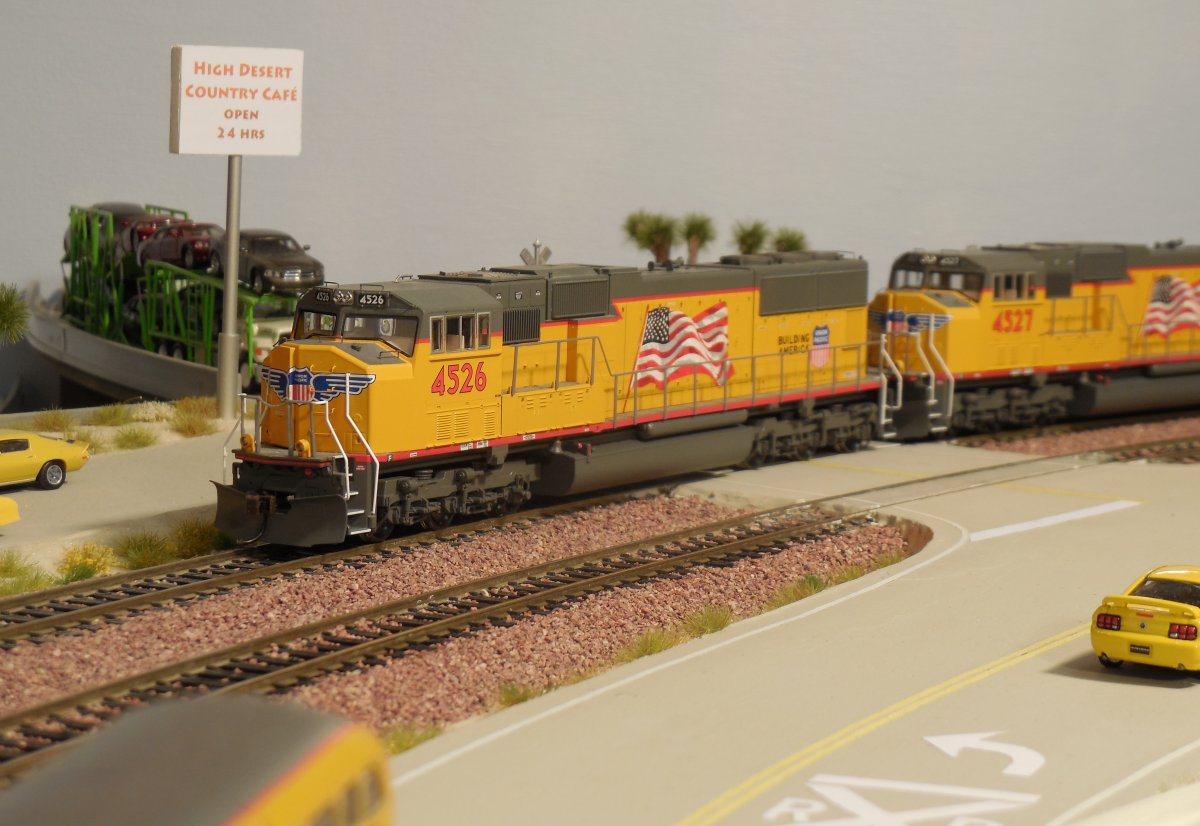

1982 1983



After the Flyover the layout is going along the wall on a shelf. Below is a 6-track staging yard.

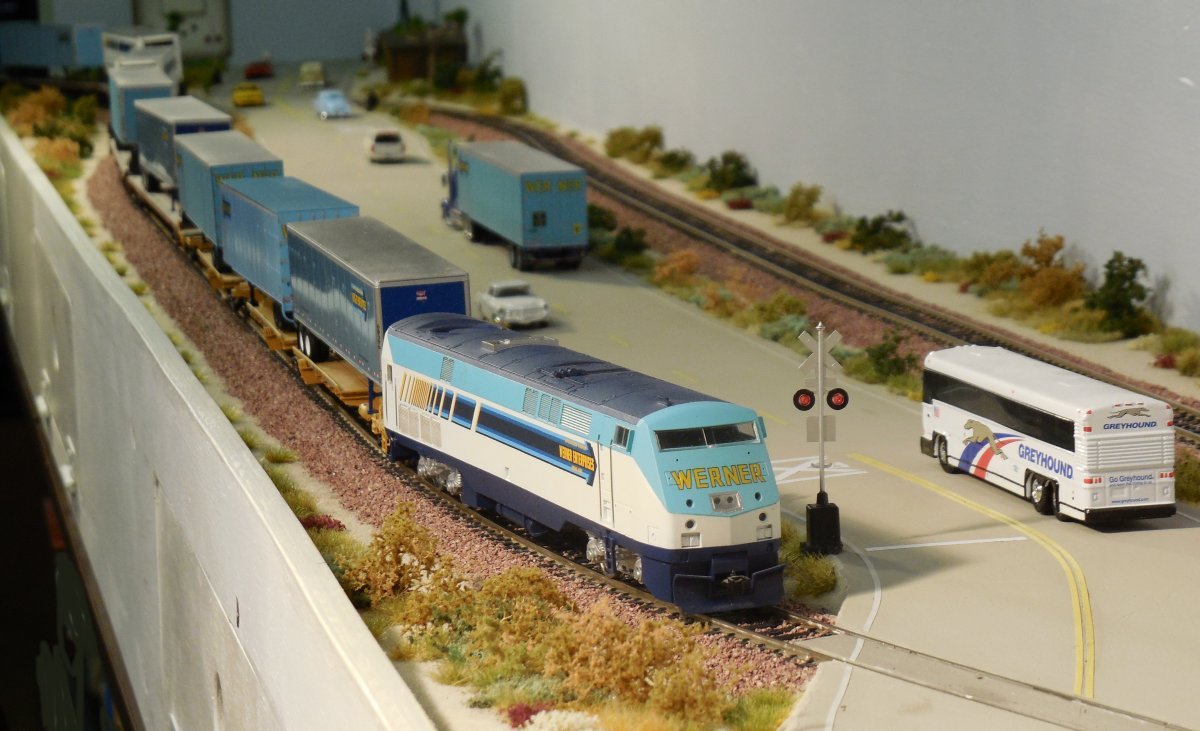

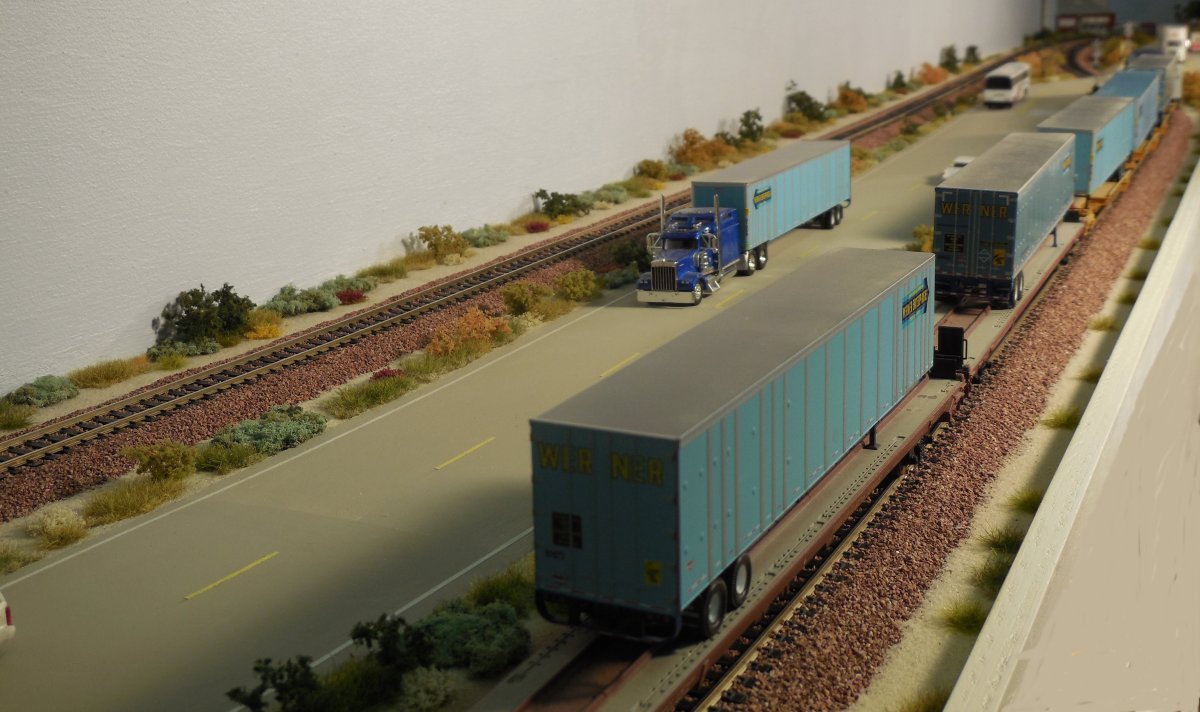

Werner Enterprises train coming uphill - 1984 Werner is active on the road and on the rails - 1985

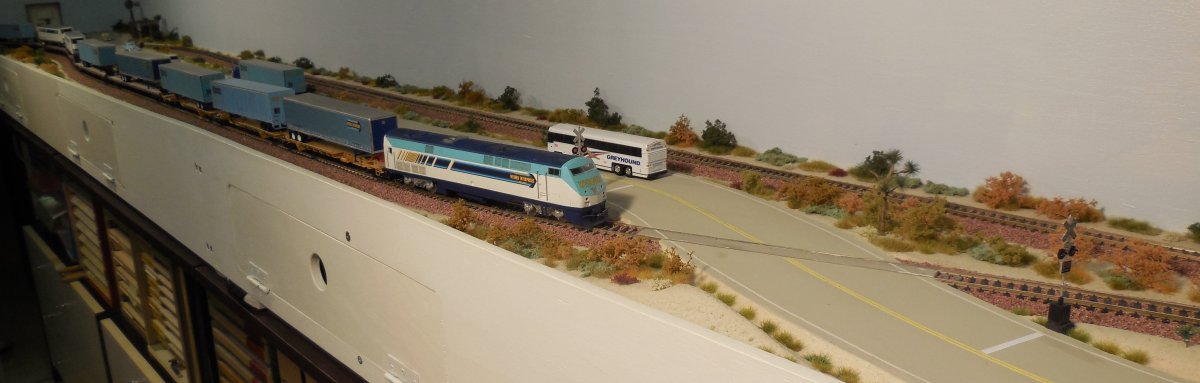

1986

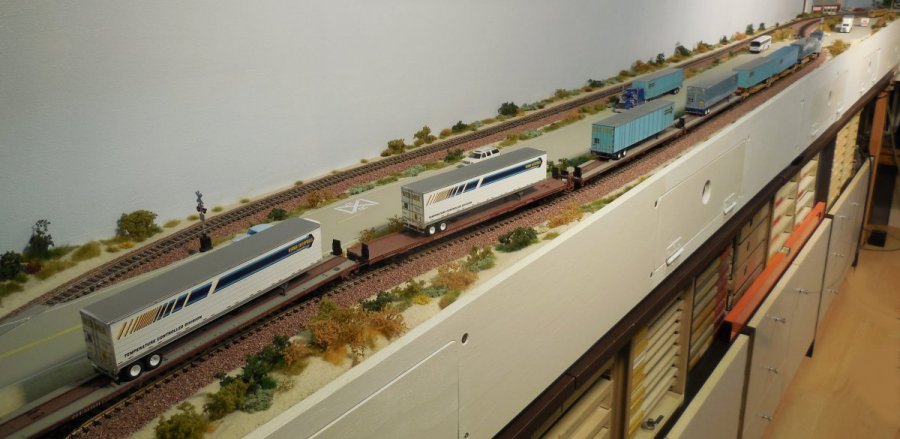

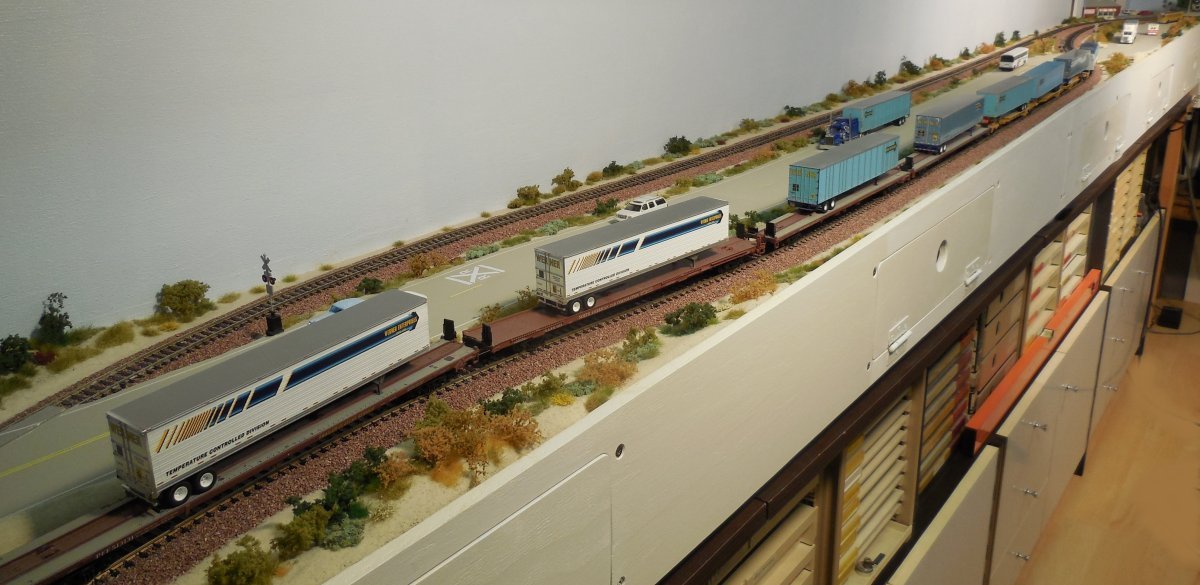

the width is just 40 cm - 1987

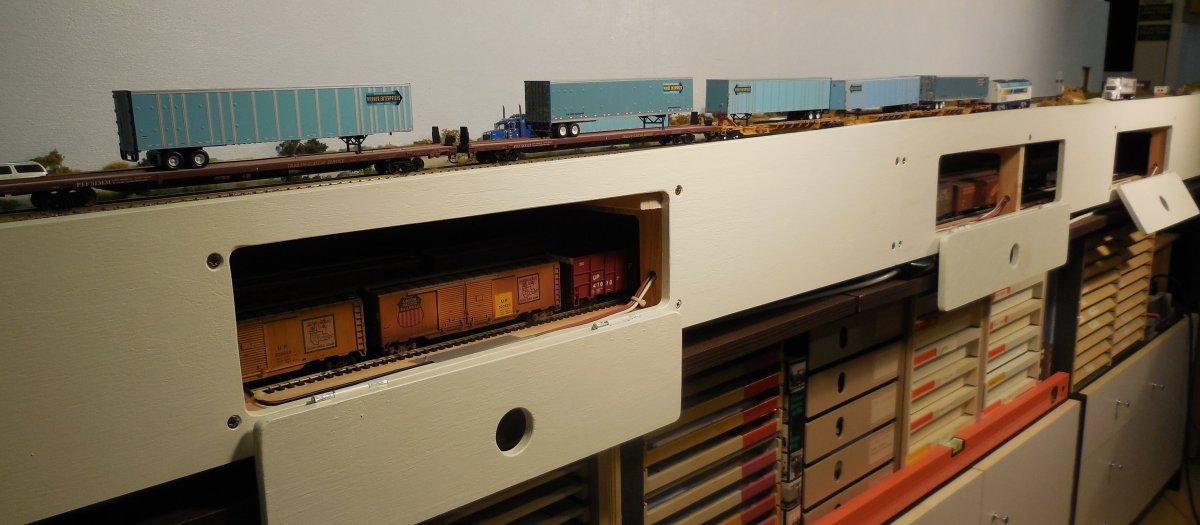

The doors of the staging yard are open. The entrance for the 6 tracks are below the flyover - 1988

 I started with my layout in late December 2007 and it is finally finshed in late September 2015.
Well, I will add some detailing, weathering of the roads, road signs and street railings along main street in Percyville.
Thank you for your interest in my Mojave Desert Layout - Werner Meer (11/19/15)

Below are 26 Bonus Photos by Kim Nipkow

On October 6, 2015, Kim Nipkow made a photo shooting of my layout for a report in Model Railroader Magazine.

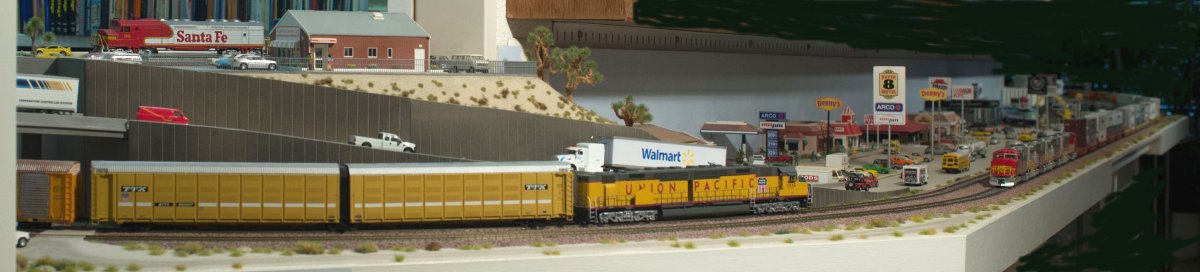

Overview of Percyville - KN-25

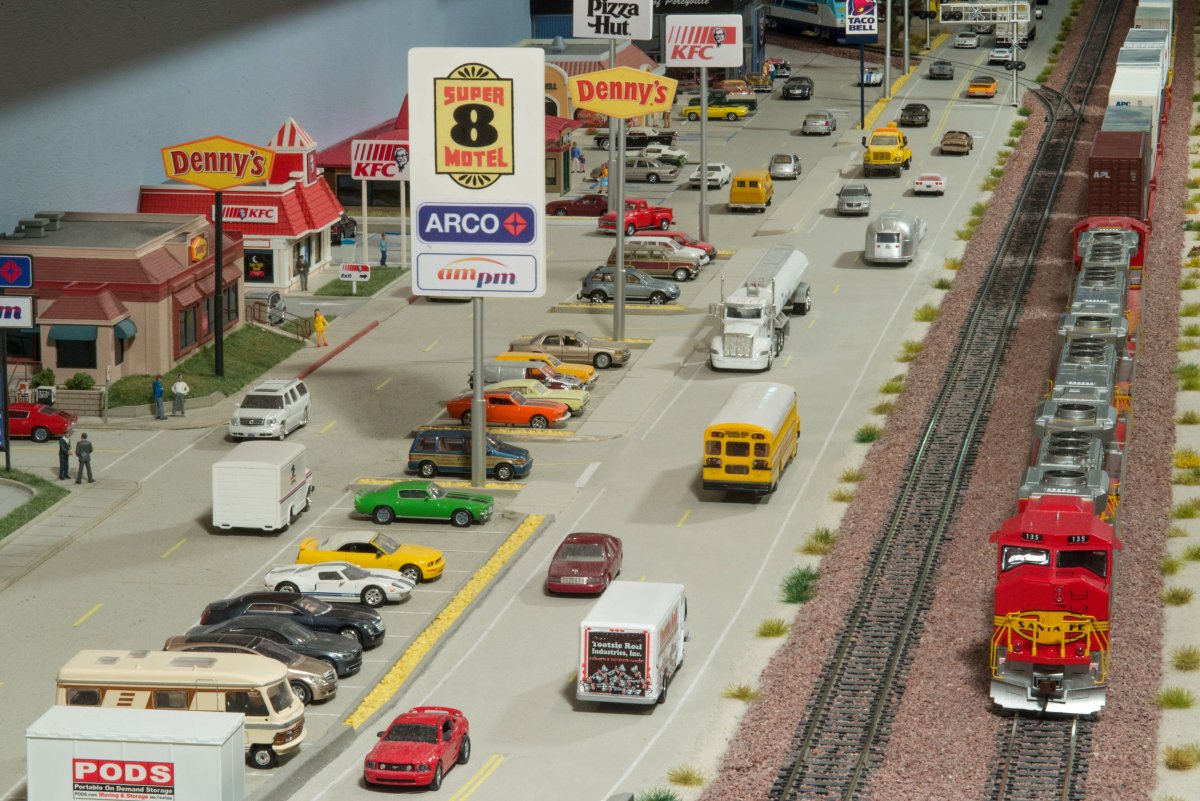

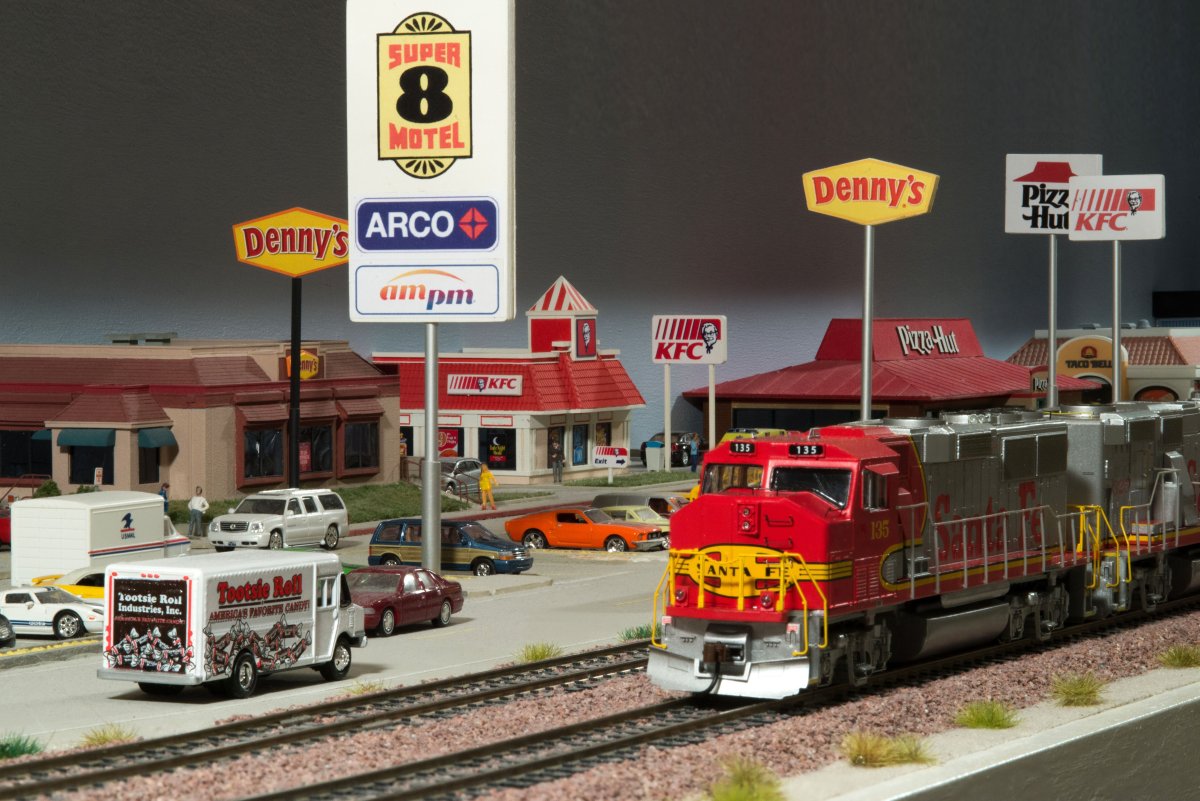

the City of Percyville with main street - KN-04 like in real life, the signs are huge - KN-05

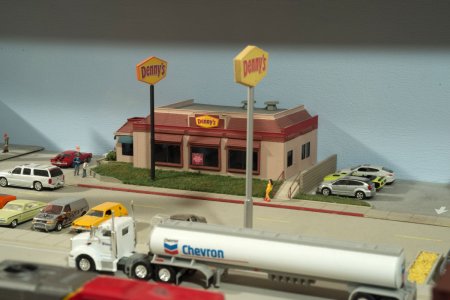

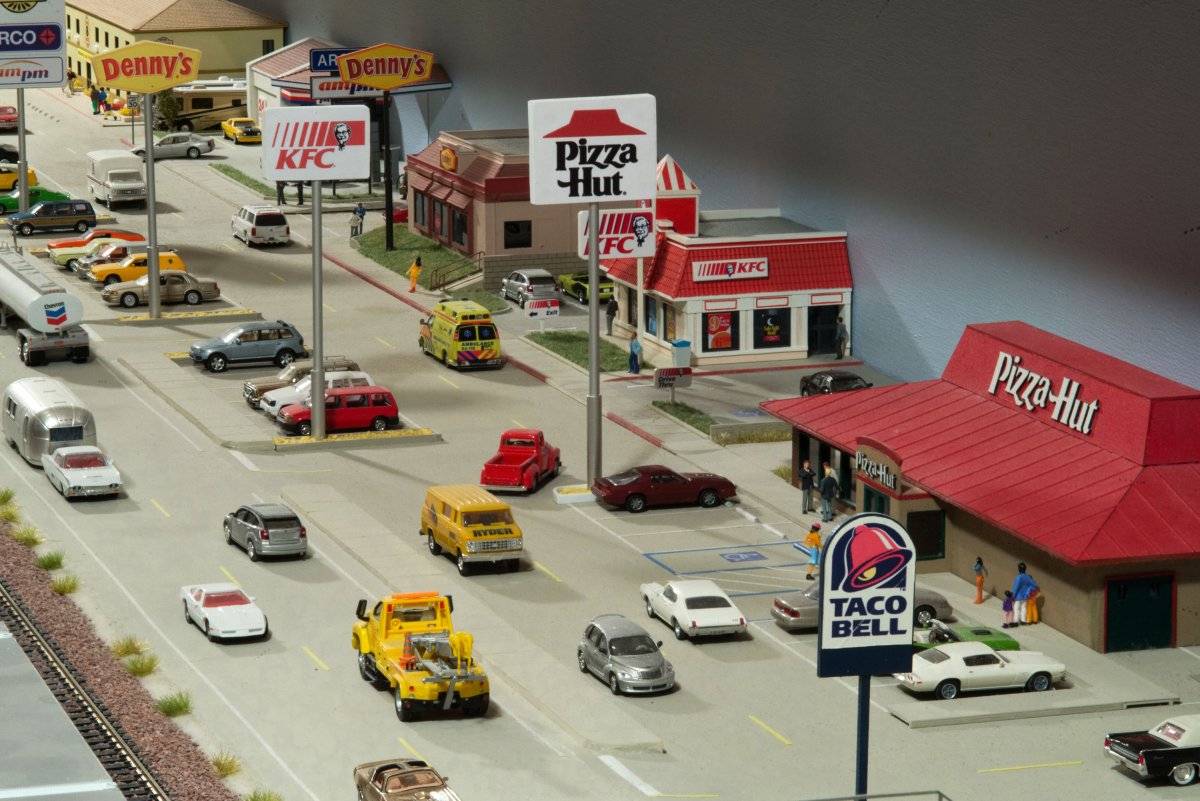

there is a service road for the different businesses - KN-06 the same Denny's exists in Mojave, CA - KN-12

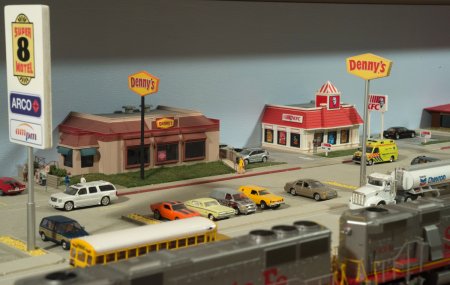

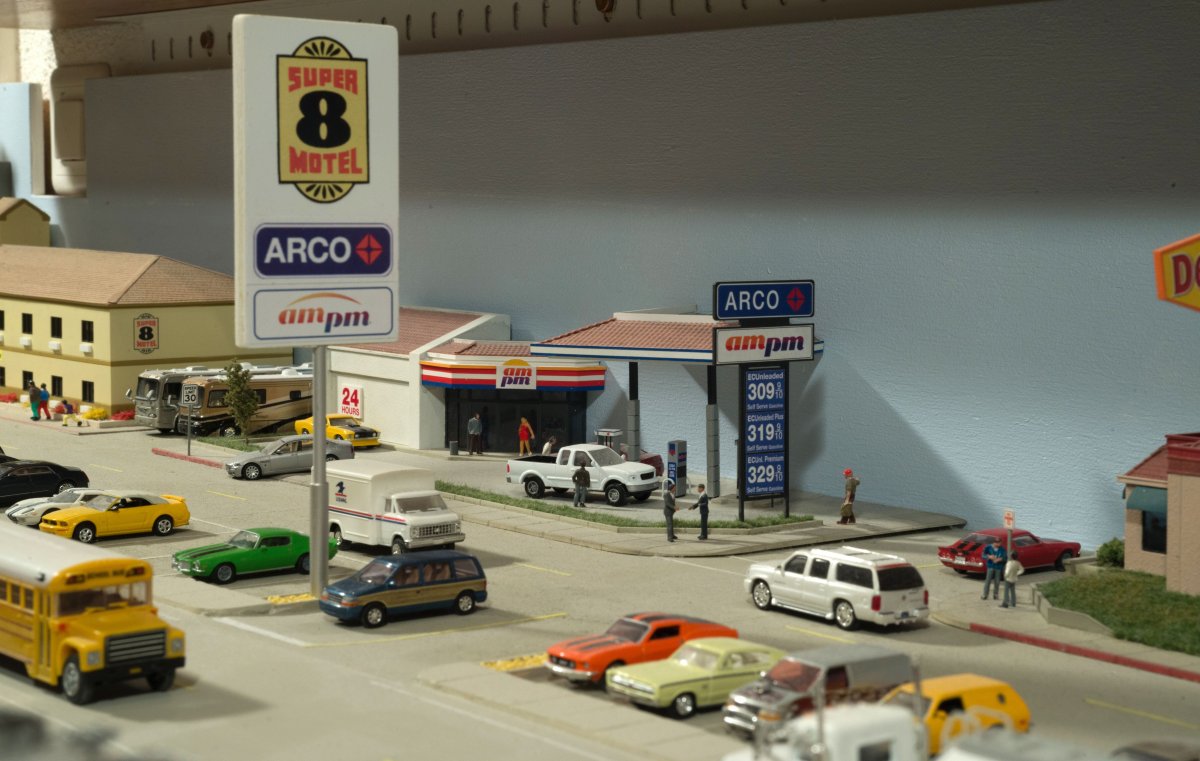

ARCO Gas Station was made by Pelle Soeeborg - KN-09 Denns'y and KFC built by Pelle as well - KN-11

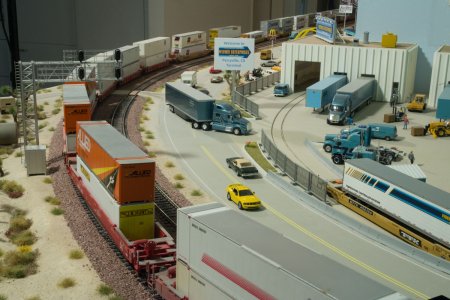

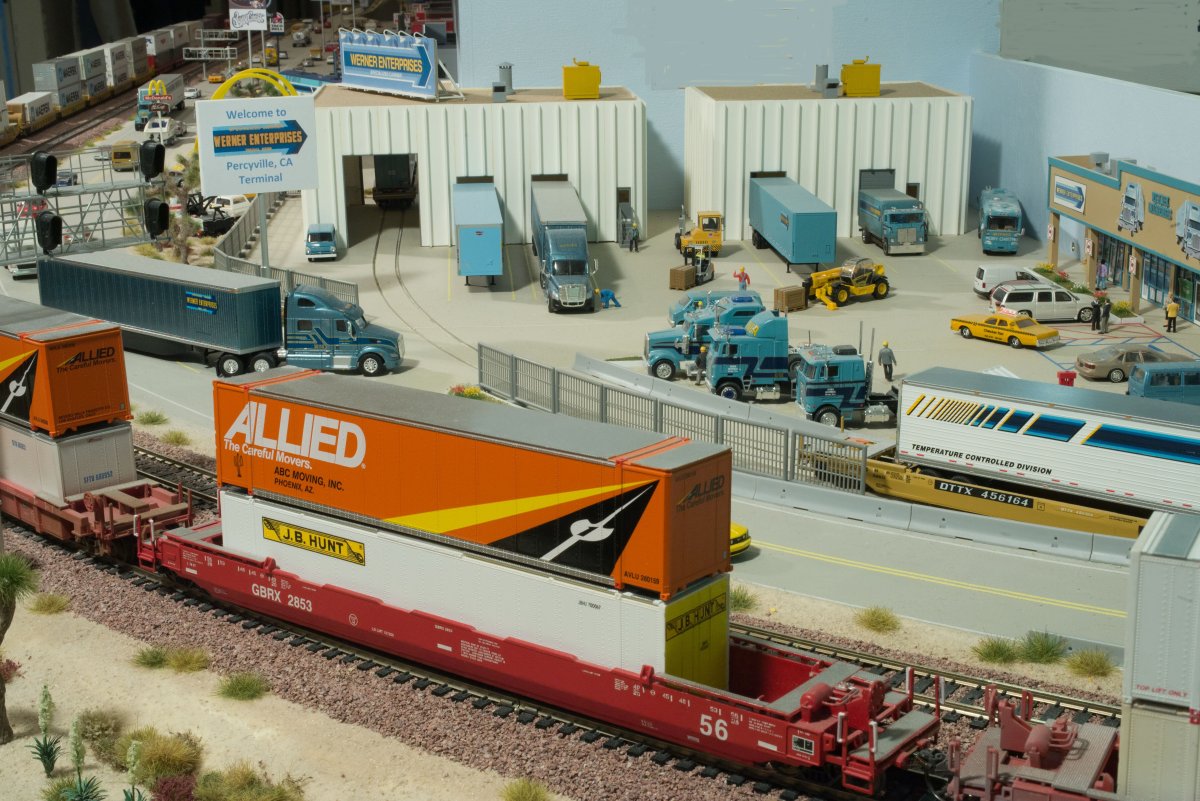

a double stack train is passing the Werner Enterprises . .  - KN-17 . . Percyville Terminal - KN-19

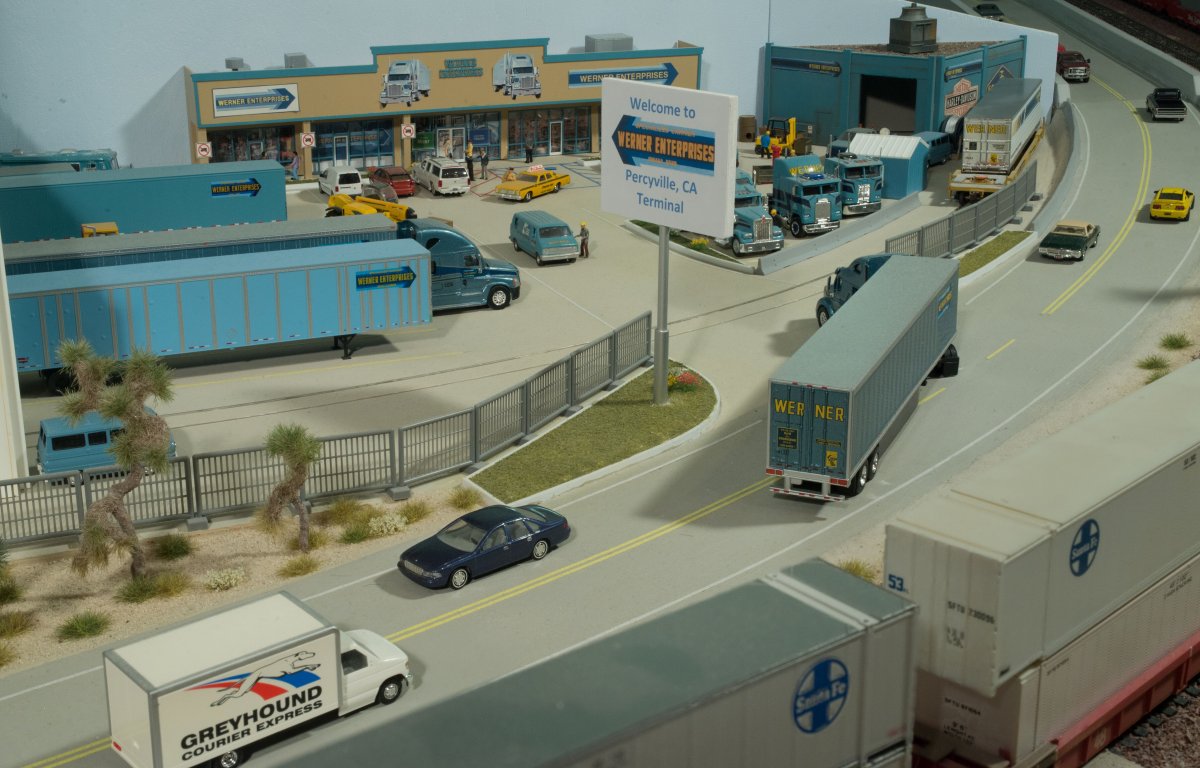

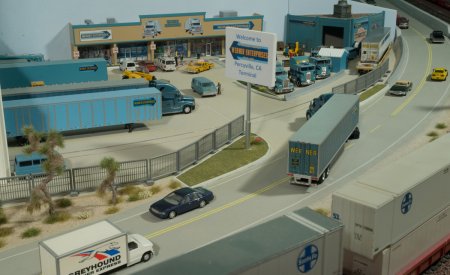

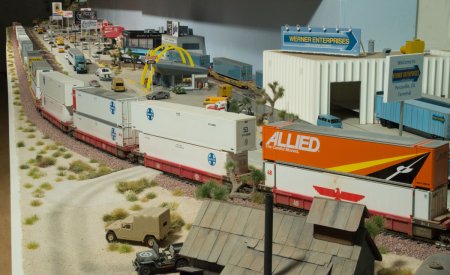

at left is main street of Percyville - KN-13 Werner Enterprises is always busy - KN-18

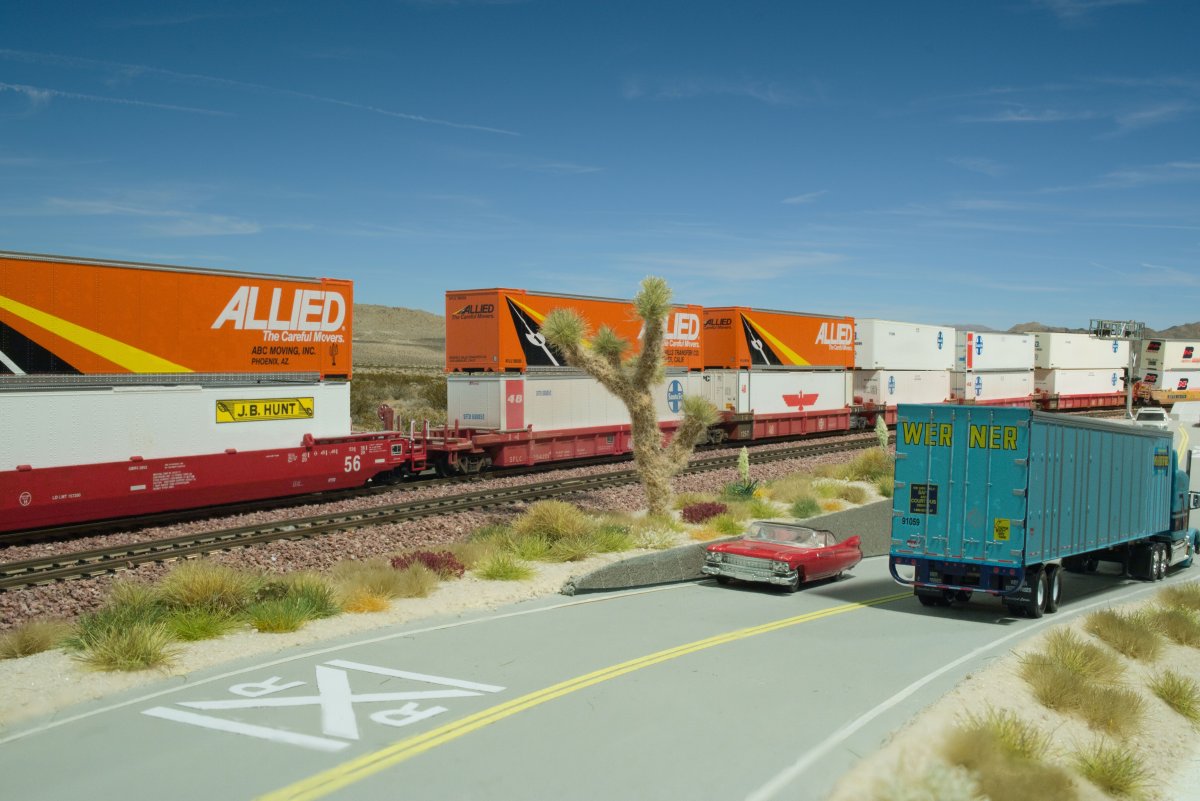

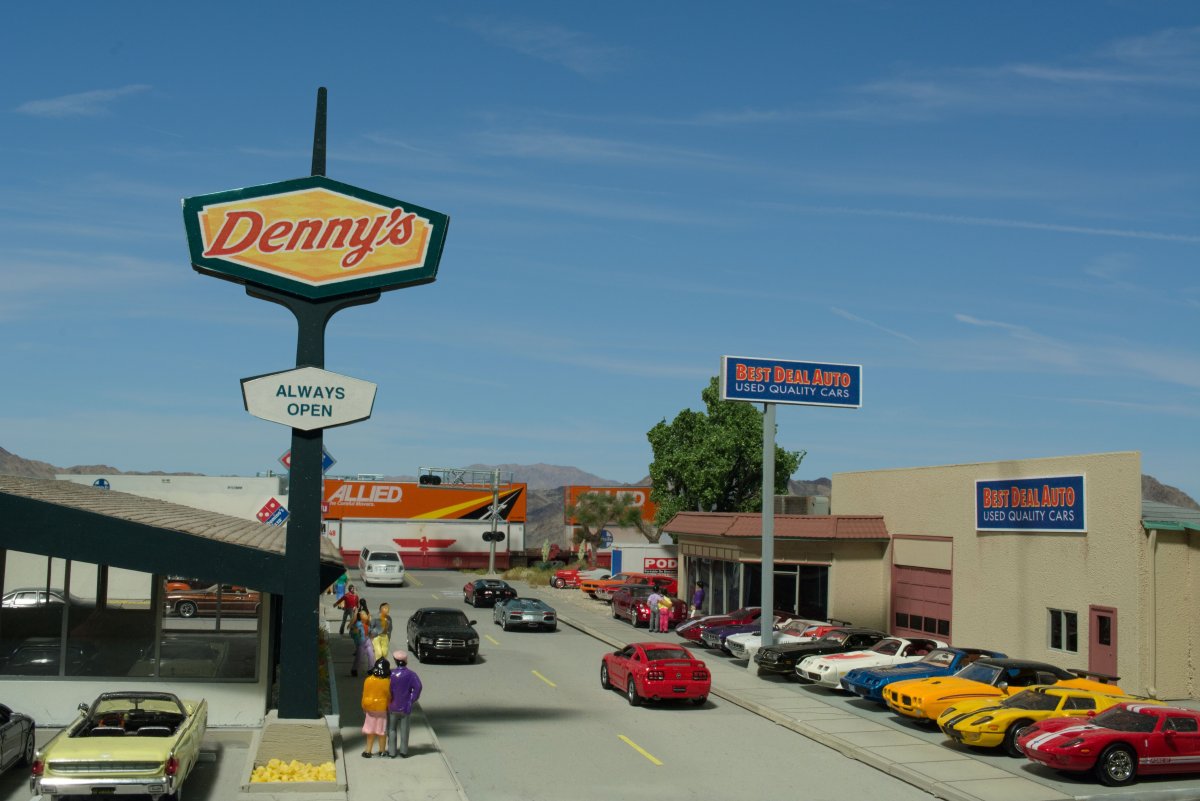

view of Denny's and Best Deal Auto - KN-10 yes, Joshua Trees are common in the Mojave Desert - KN-14

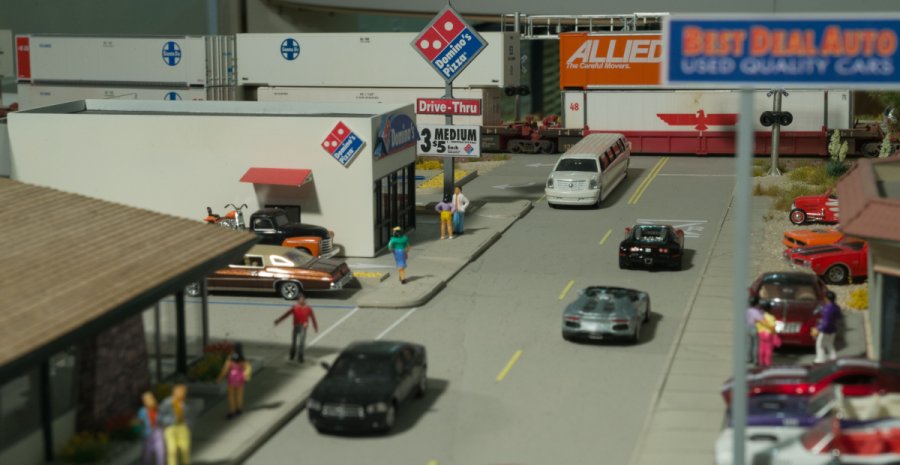

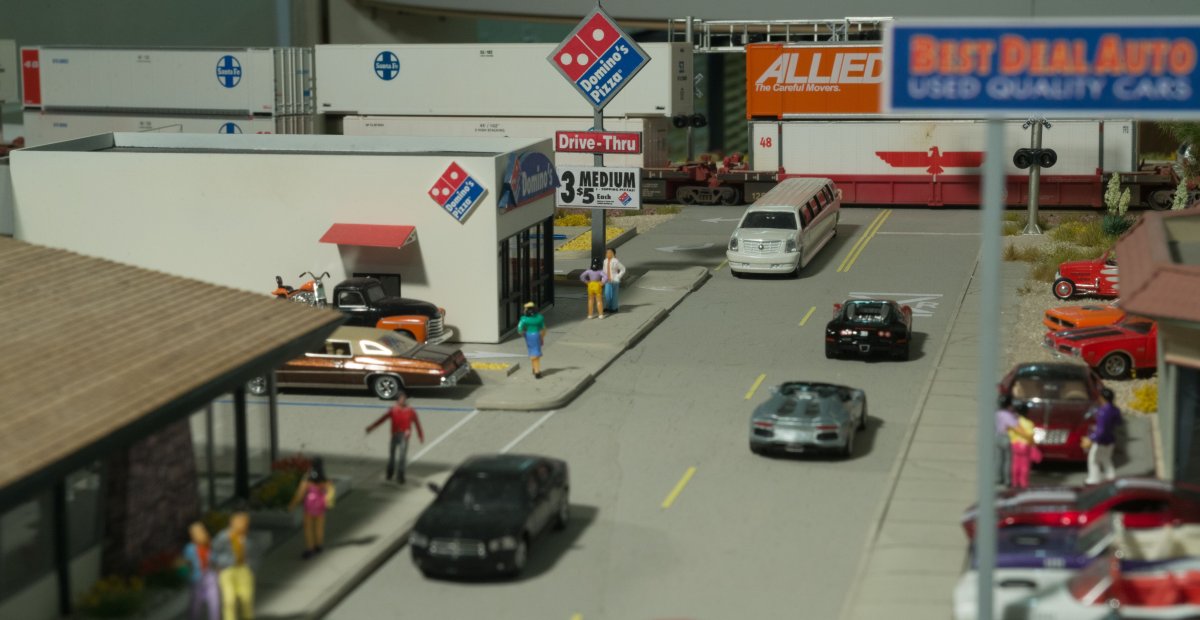

busy Percyville Extension - KN-26

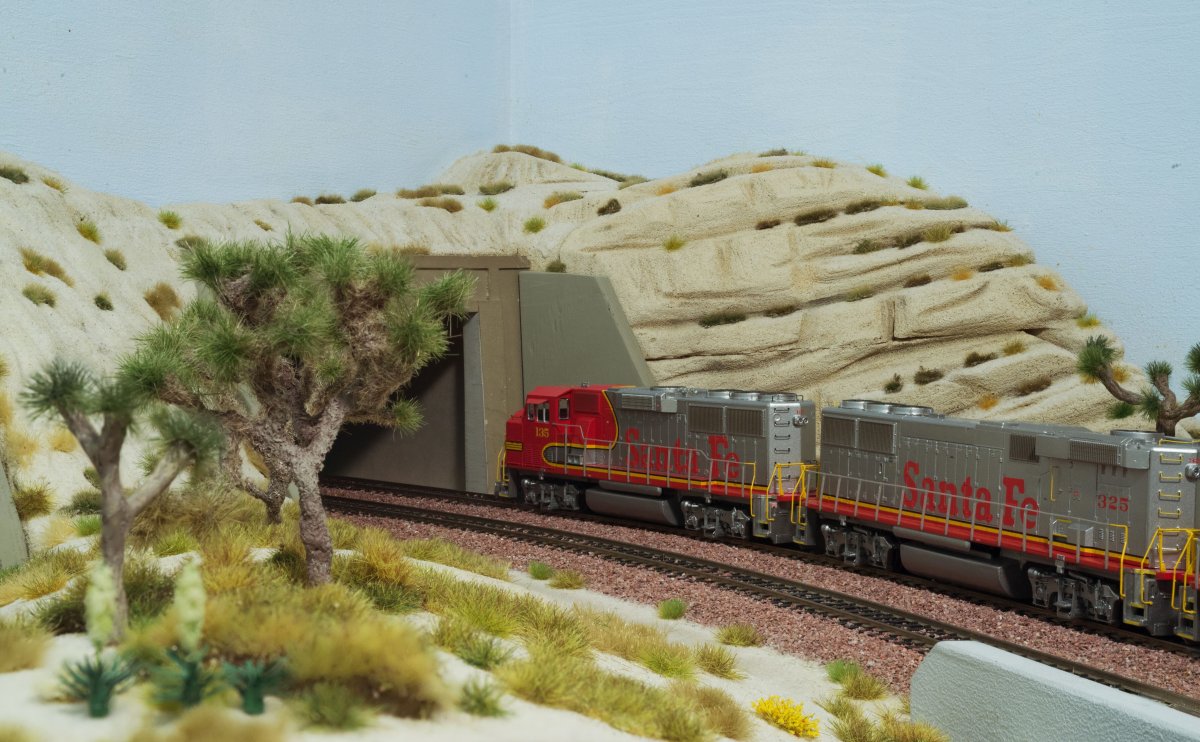

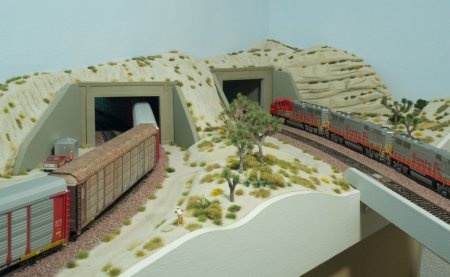

Tunnels outside (East Portals) - KN-16 AT&SF Warbonnet GP60M entering Tunnel 1 - KN-03

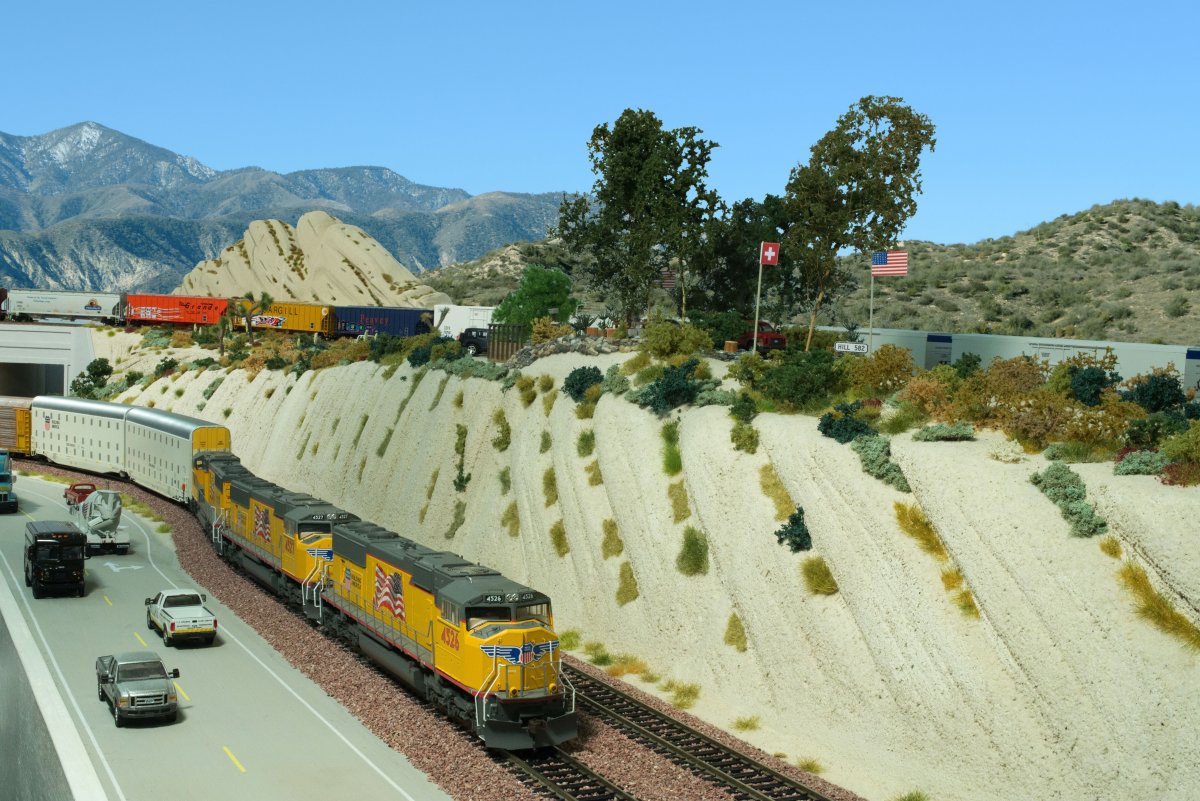

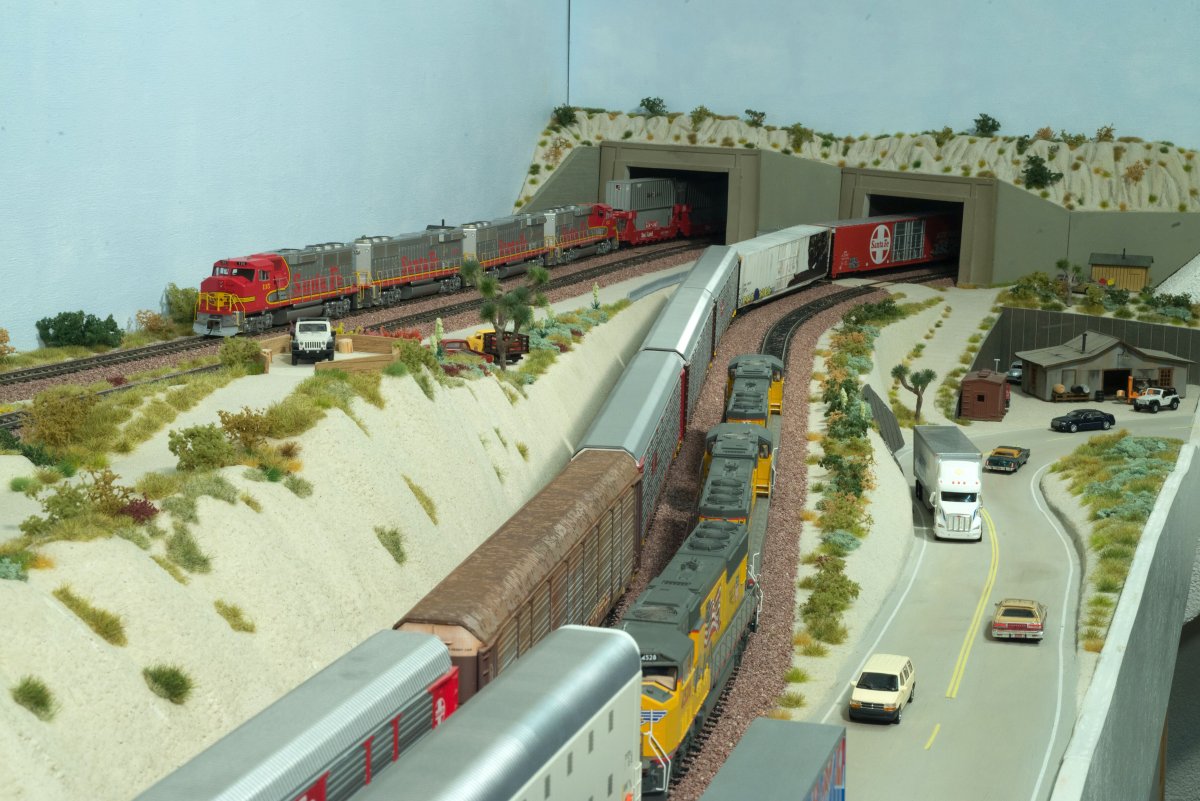

Tunnels inside Office 2 (West Portals) - KN-01 Hill 582 with real background (photoshop help) - KN-02

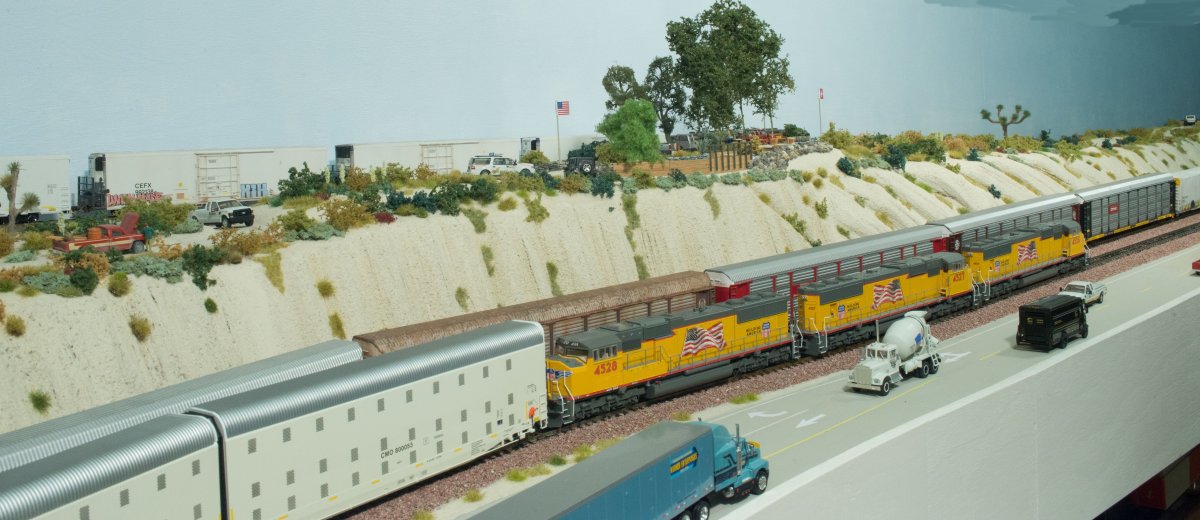

my version of Hill 582 is parallel to the tracks, not square as on real Cajon Pass - KN-21

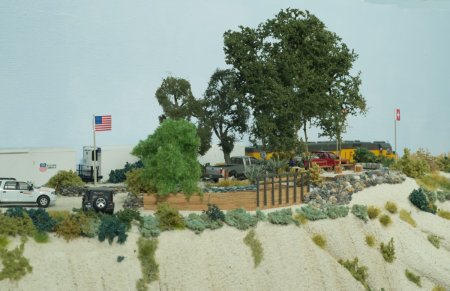

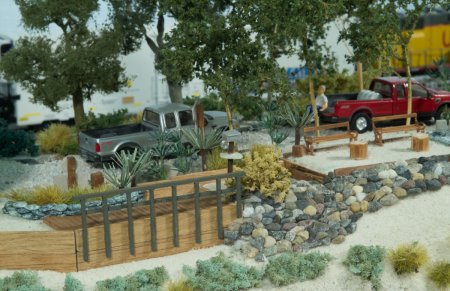

the latest railings have been added as well - KN-23 Hill 582 as seen from the South East side - KN-24

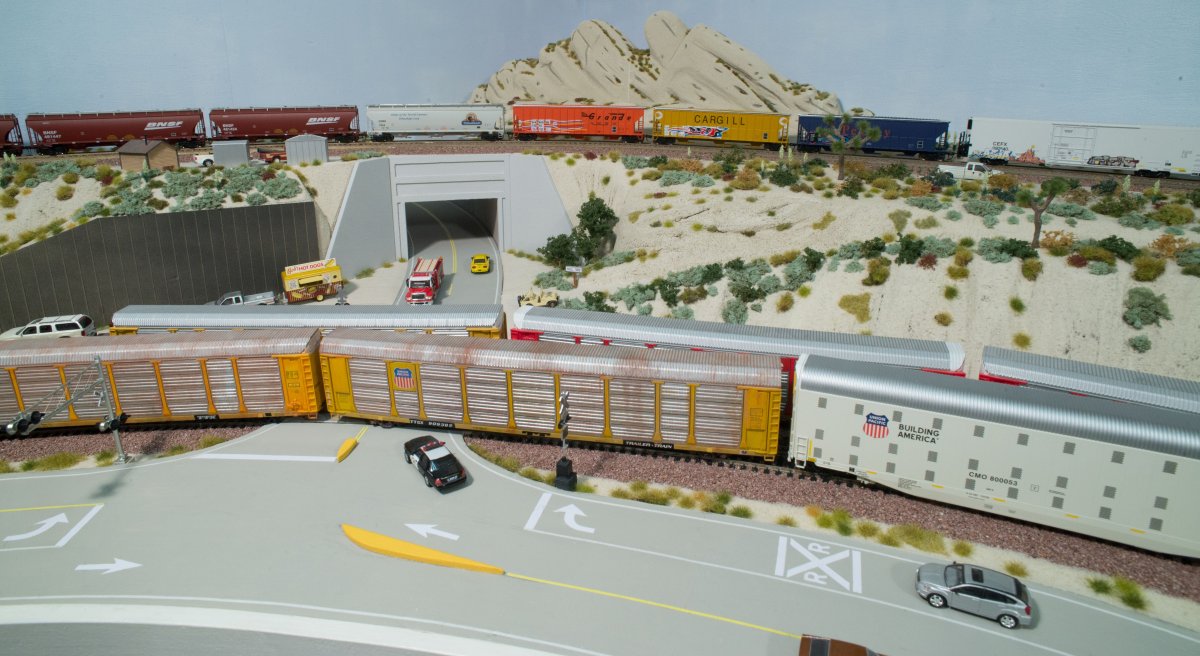

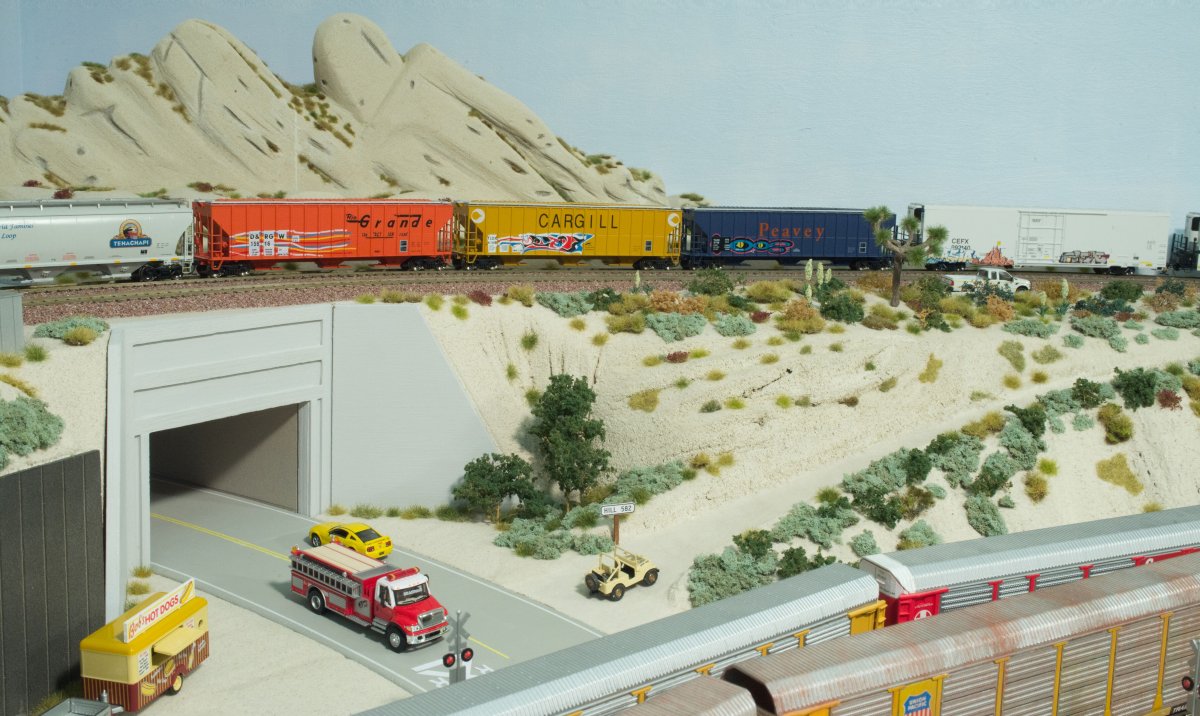

The Mormon Rocks are in the corner - KN-08 Highway 138 is passing the famous rocks - KN-07
The builder with his 8 years project looks satisfied with the result of his Mojave Desert style layout. Typical Cajon Pass icons are included like the Mormon Rocks, Hill 582 and West Summit island.
Another important part is the Percyville Terminal of Werner Enterprises. Several Werner vehicles were custom made by Pitsch Allneider and the Werner Diesel Loco was painted by Ferdinand Rat.
The City of Percyville has smilarities with the City of Mojave, CA. There are 3 buildings made by Pelle Soeeborg, These (ARCO Gas Station, Denny's and KFC) reflect acurate replicas of those in Mojave along main street. At the Percyville extenstion is another building made by Pelle: Best Deal Auto.
Glad, my layout is finally finished - KN-20 X

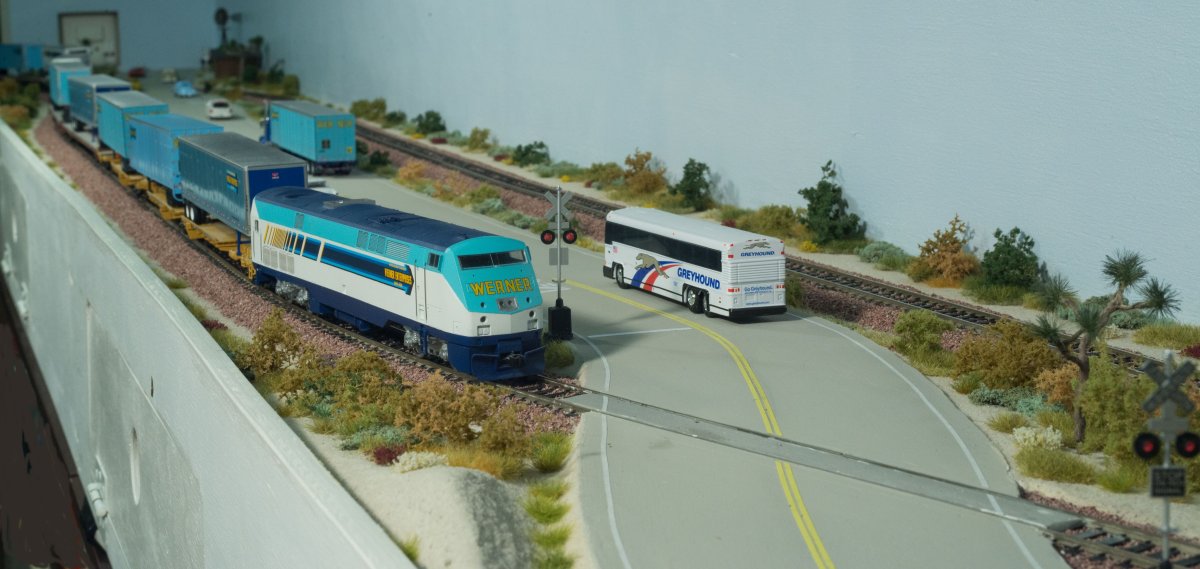

Werner Enterprises Diesel Loco is pulling Werner Trailers on Flat Cars - KN-22

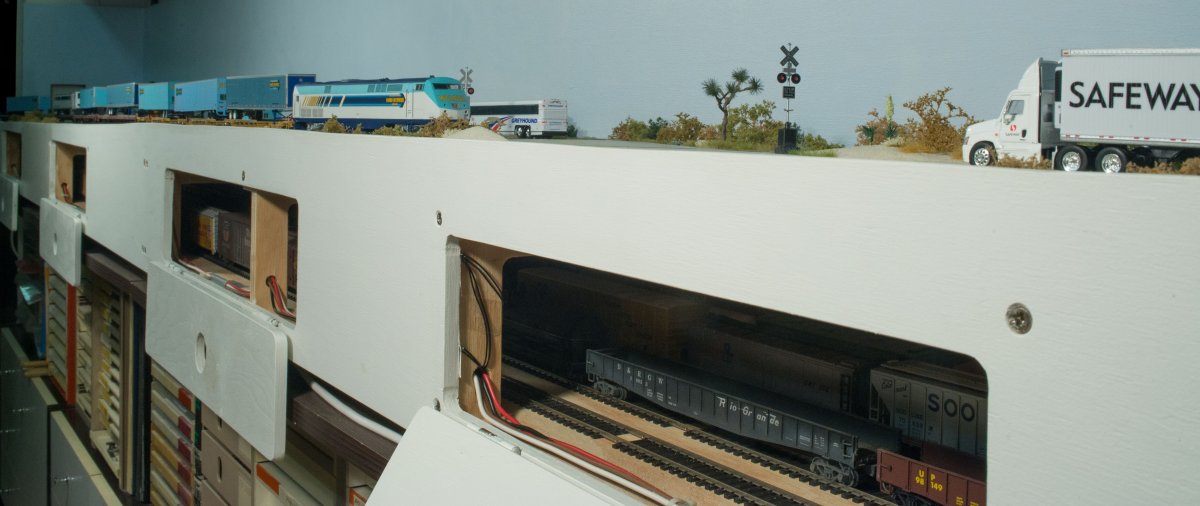

The hidden staging yard is below the main tracks along the shelf - KN-15
All 26 photos copyright by Kim Nipkow
