HO Scale Desert Layout Project  -  2/22
Construction and track laying has begun in February 2008.

Photos 100 - 203, starting 2/14/08 and ending 4/12/08

Track laying requires a lot of concentration to do a good job. Otherwise, there might be problems in the future with derailments! Thanks God, we have our Inspector Percy, who is checking every step. Once he gives us approval, we are able to continue.

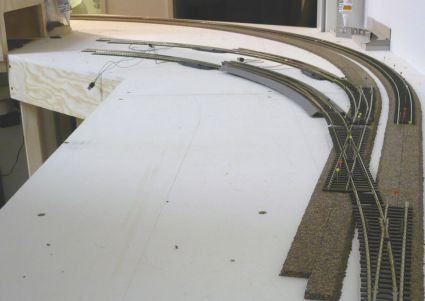

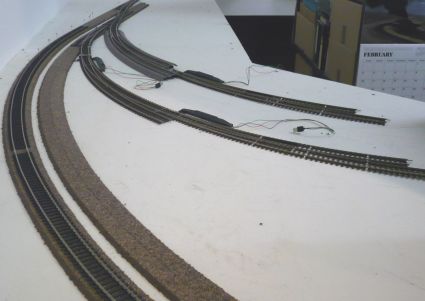

100  -  2/14/08  To enter the 6-track staging yard I am using curved switches from Rocoline.  -  101

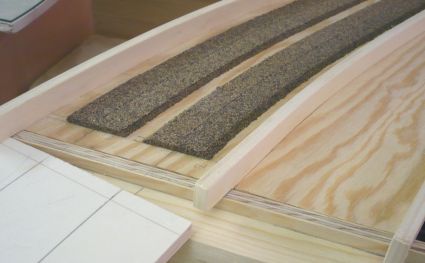

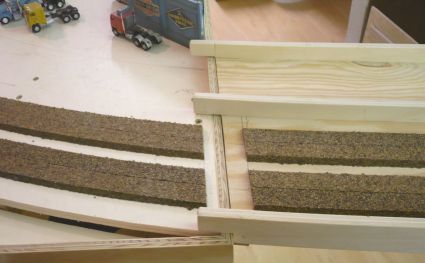

2/14/08 The first bridge is a combined rail/street bridge.  -  102 Soon, the gabs will be closed with a piece of pc board.  -  103

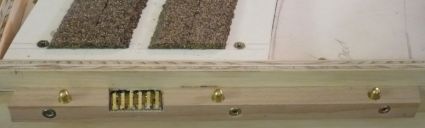

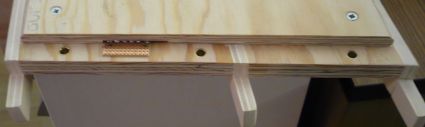

104  -  This is a lift out bridge with contact springs to power the tracks. For exact positioning we use built in metal connectors.  -  105

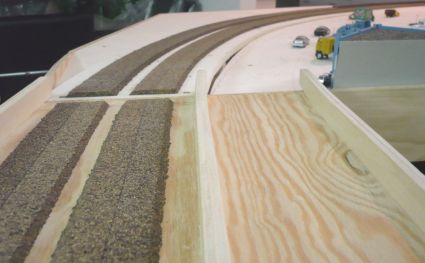

106  -  In real life, the bridge will be tested with locos but we have a special "heavy weight" inspector.  -  107

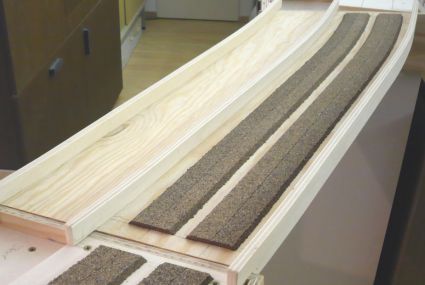

2/14/08 Track laying will be done, soon.  -  108 109

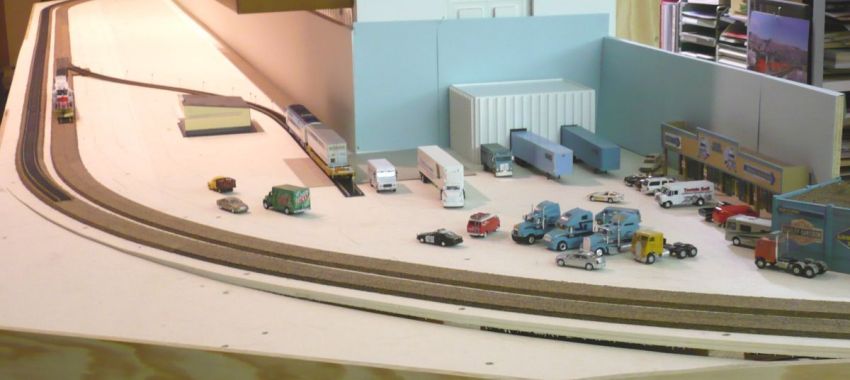

2/14/08  Along the mainline will be a desert town and at the end is the Werner Enterprises facilities.  -  110

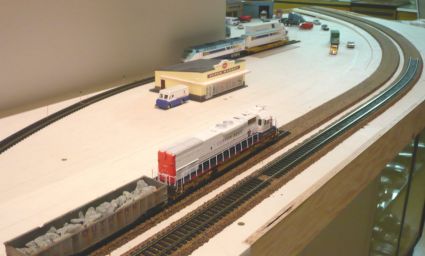

Parallel to the double track will be a highway.  -  111 Werner Enterprises will have rail connection.  -  112

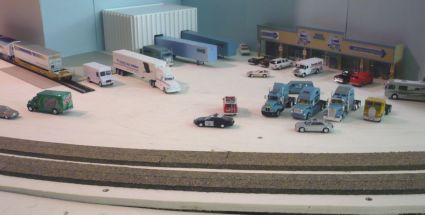

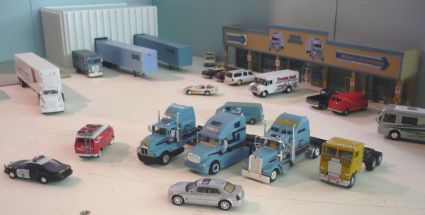

2/14/08  Temporary arrangement of WE.  -  113 114

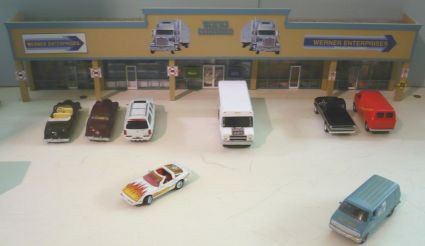

2/14/08 WE office - 115 Percy is checking if people are working in the WE building.  -  116

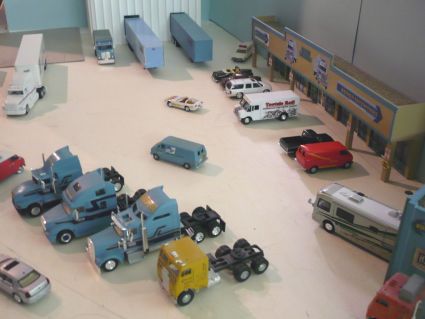

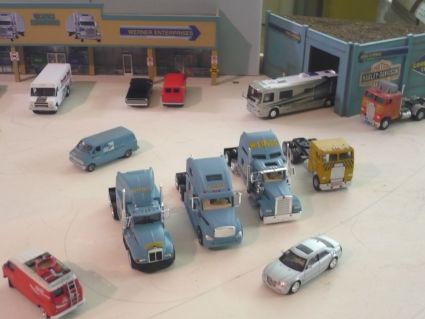

2/14/08 WE facilities - 117 119

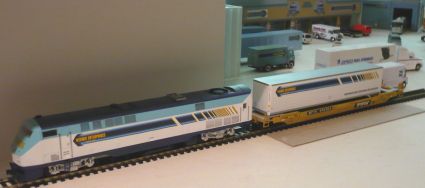

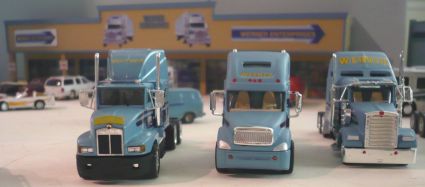

2/14/08 Werner Ent. is having its own diesel loco.  -  120 Some of the Werner Ent. truck fleet.  -  121
2/14/08  Werner Ent. Head Quarters is already in service even the rail connection is not ready yet.  -  122
Please note: The WE Building and all trucks are made by Pitsch Allneider. See the WE Diorama - click here

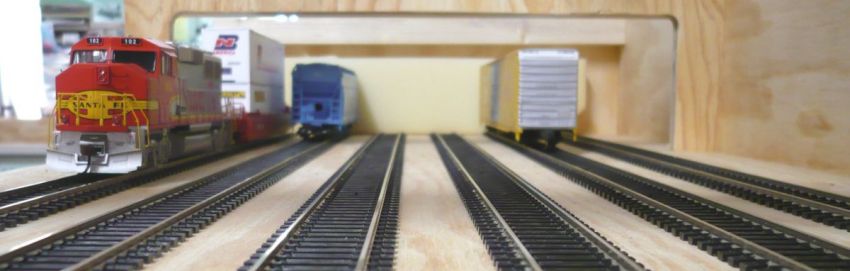

2/17/08  My 6-track hidden staging yard is finished. Each track is almost 4 m long (approx. 12 feet). This yard is resting on a wall mounted shelf and will be closed because on top will be the main line with a 1,5 % descent. The clearance between the double stack and the riser is 10 mm.  -  123

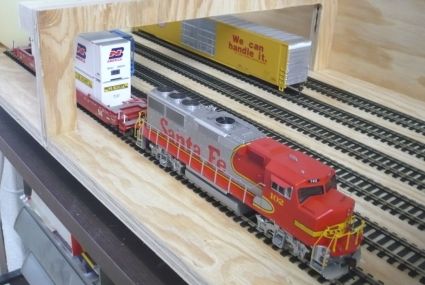

Staging yard  -  124 Staging yard  -  125

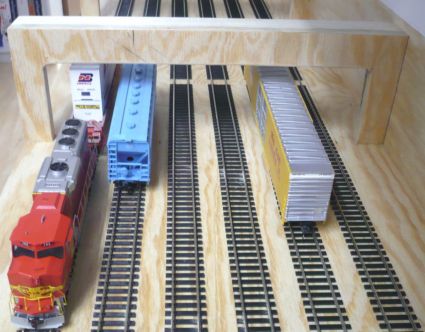

Staging yard  -  126 Staging yard  -  127

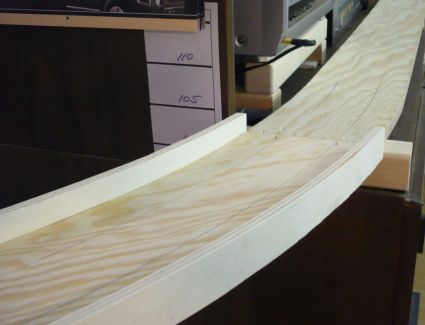

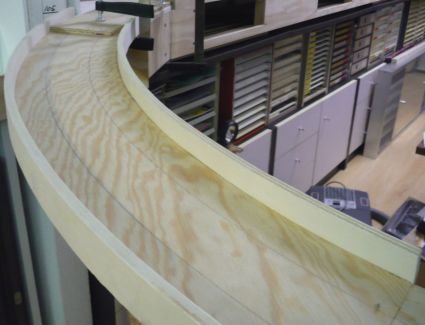

2/18/08 The 2nd bridge is under construction.  -  128 2/18/08 This is a fold down bridge.  -  129

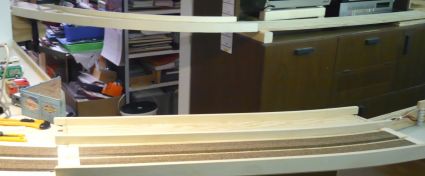

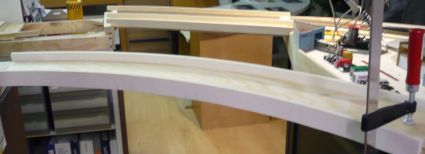

2/18/08  Combined bridge in front and new one in the back.  -  130 2/18/08 New bridge in front and combined one behind.  -  131
2/20/08 Cork roadbed was glued on the ramp after bridge 1. Some models were placed on the combined rail/street bridge to give an idea, how it might look one day.

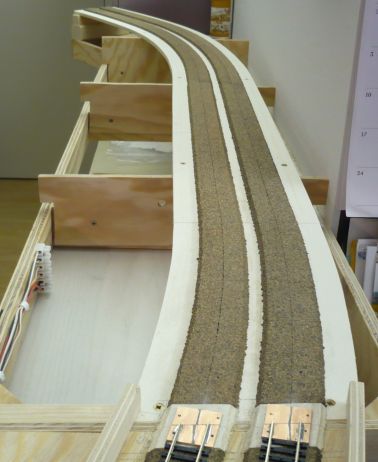

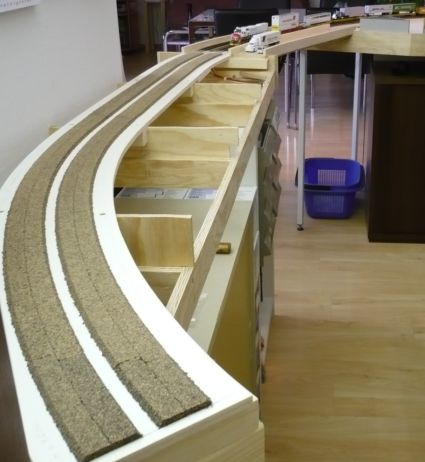

2/20/08  Next section after the combined bridge.  - 132 As seen from the from the combined bridge.  - 133

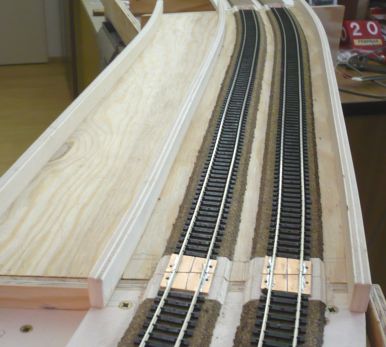

2/20/08  The first train will be rolling on the bridge.  - 134 The tracks are layed on the "naked" bridge.  - 135

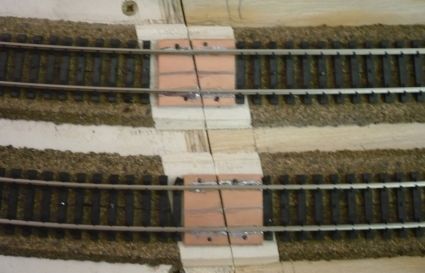

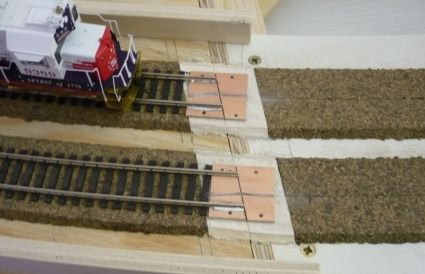

2/20/08  The rails are soldered to pc boards.  - 136 No rail joiners between the bridge and the other section.  - 137

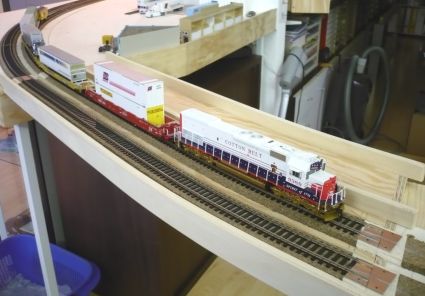

2/20/08 First train on the bridge.  - 138 Overview with WE trucking and busy bridge  - 139

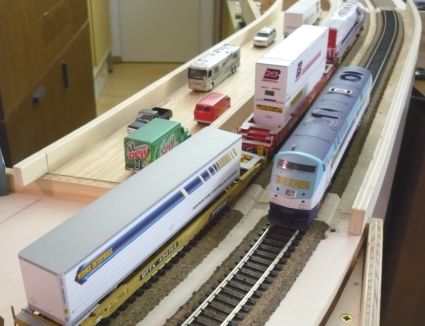

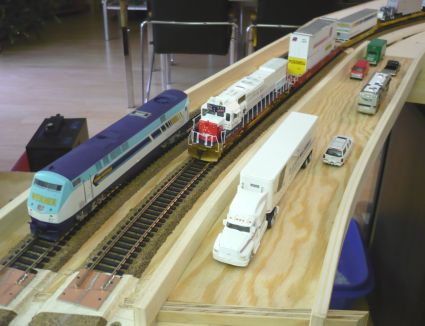

2/20/08  Heavy traffic on the bridge  - 140 WE engine is passing a WE trailer on flat  - 141

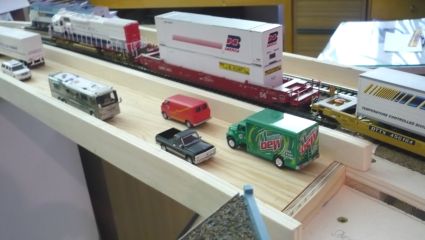

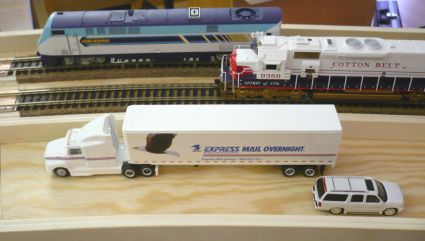

2/20/08  Imagine how it will look one day.  - 142 Trains are rolling and the street is full of traffic.   - 143
3/03/08 To make a continues operation, the wall must be cut for the tunnels. Not a big problem because it is 10 cm (4") gypsum.

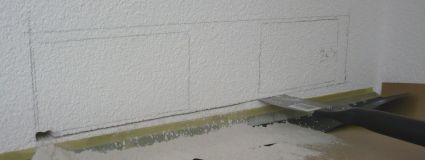

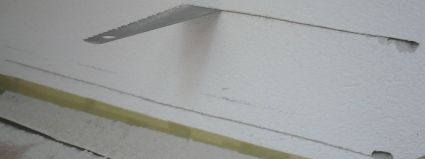

3/02/08  Cutting of the Tunnels has started (outside) - 144 I used a regular hand saw to cut the 10 cm gypsum wall - 145

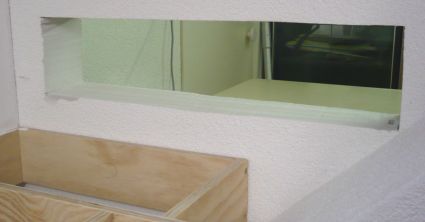

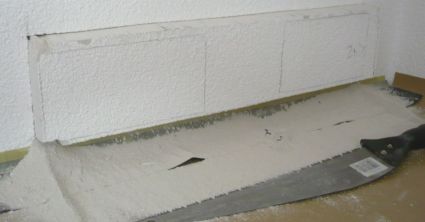

3/02/08 The Tunnel piece is ready to be taken out - 146 The finished opening for both Tunnels (inside) - 147

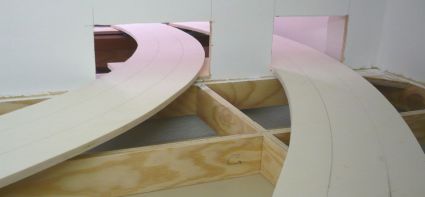

3/02/08 After inserting the frame the track boards are placed  - 148 Here we see the track boards from the inside - 149
3/03/08 Curved Bridge no.2 is mounted and cork was glued on it. Of course, our inspection officer was immediately controlling everything.

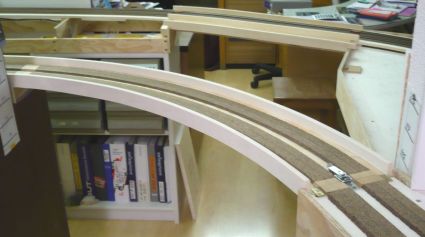

3/03/08 Bridge No. 2 is mounted - 150 Bridge weight test done by Percy - 151

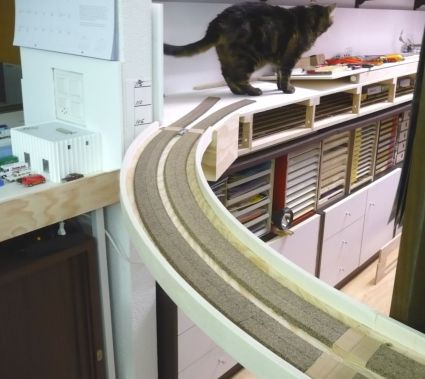

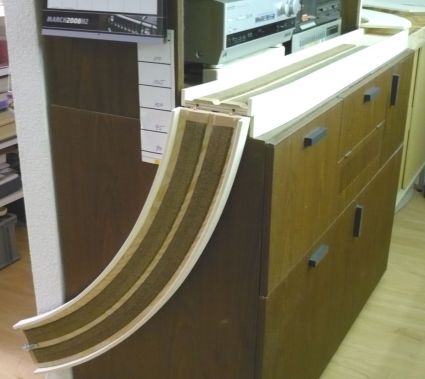

3/03/08 Pery is looking forward to the continuation - 152 Fold down Bridge No. 2 is mounted to the Music Center - 153

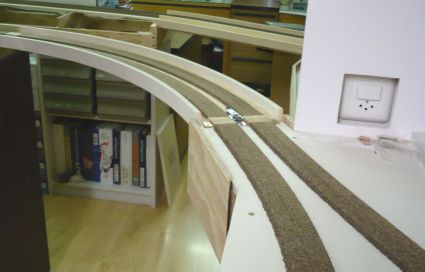

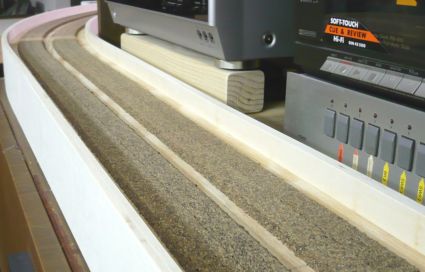

3/03/08 After the bridge, the tracks descent in front of the Stereo - 154 Curved bridge with descent of 1,5 % to  the left side - 155

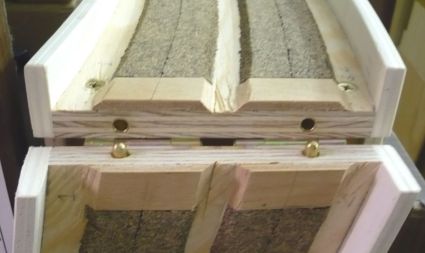

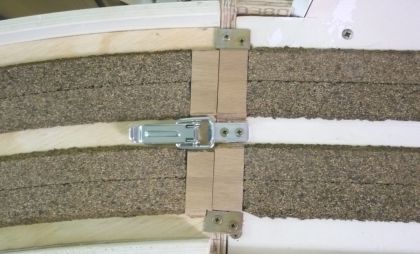

3/03/08 Fold down mechanism with metal positioners - 156 At the right side, the bridge is fixed with a locker - 157

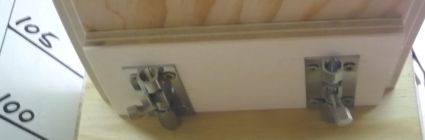

3/03/08 Below the bridge are two push in lockers - 158 The lockers will hold the bridge in firm position - 159
3/03/08 Soon, there is no more space for resting here - 160 Track Layers are having a break while the inspection is done - 161
3/16/08 Bridge no. 3 was delivered by Reto and mounted in place. It is a fold down bridge like the no.2 bridge.

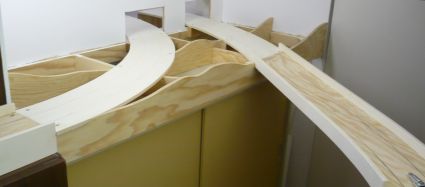

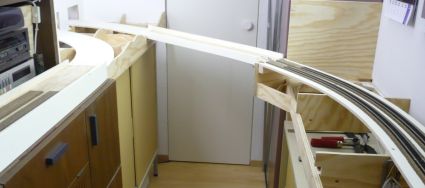

3/16/08 Bridge no. 3 is mounted with a 1,5 % grade uphill - 162 It is still "nacked" without cork and tracks - 163

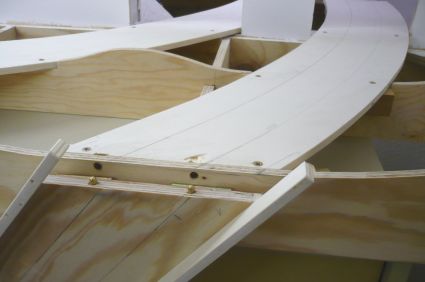

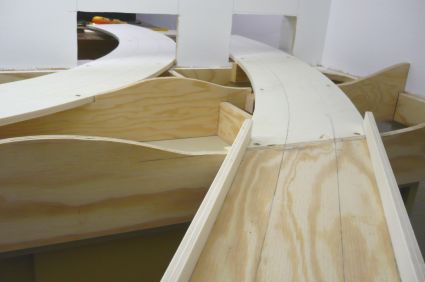

3/16/08 Both tracks go thru the tunnels (outer radius = 140 cm/55") - 164 If not in use, the bridge is folded down for easy access - 165
3/16/08 Same connectors as on brdige no. 2 (see 157-159) - 166 The bridge is resting in front of a sliding door cabinet  - 167
4/02/08 After a break, the track laying workes continued to put tracks on bridge 2 and 3 and the tunnel district. Also all wirings are finished in these sections. The wooden frames outside were painted white and the bridges in concrete gray

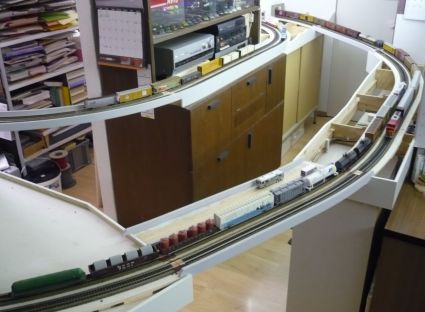

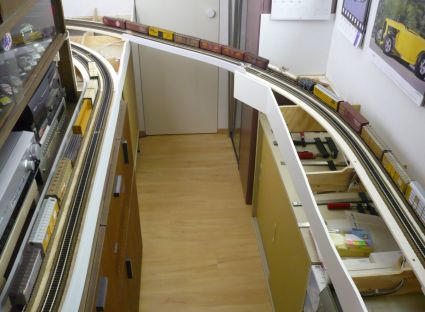

4/02/08 Tracks are mounted on Bridge no. 3  - 168 4/02/08 All 3 bridges are visible and track laying is finished  - 169

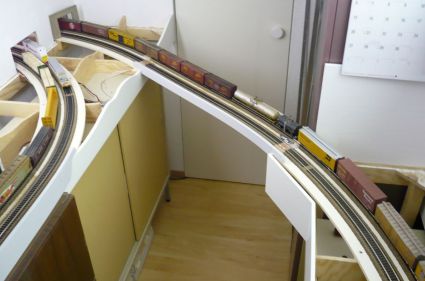

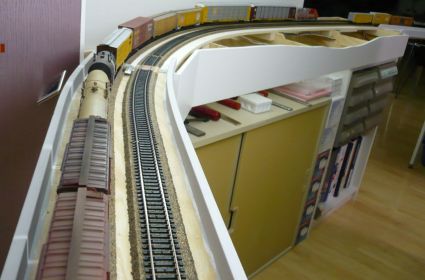

4/02/08 From Bridge 3 going down to Bridge 1  - 170 4/02/08 Going up Bridge 3 and entering the tunnel  - 171

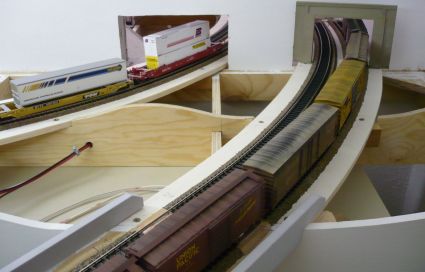

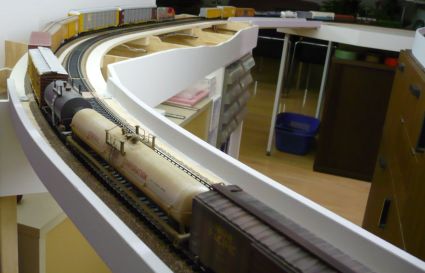

4/02/08 Looking downhill (grade is 1,5 %)  - 172 4/02/08 Both tunnels are going thru the wall  - 173

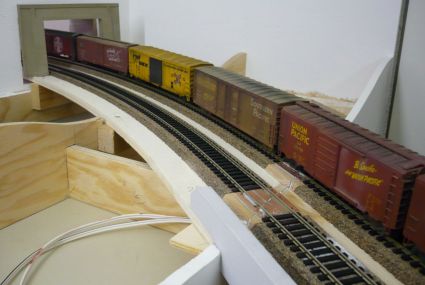

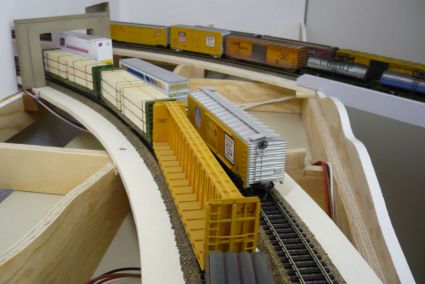

4/02/08 These tracks entering tunnel 1 go downhill - 174 4/02/08 Tracks to tunnel 2 are going uphill  - 175

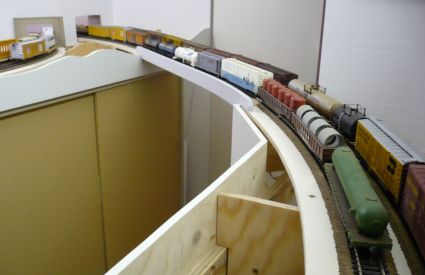

4/02/08 Both tunnels are having almost same level  - 176 4/02/08 One more view of bridge no. 3   - 177

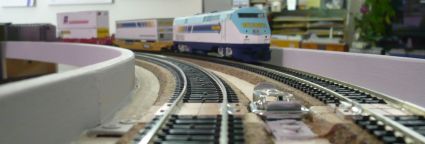

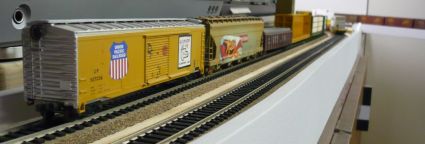

4/02/08 A freight train is passing the stereo hading to tunnel 1  - 178 4/02/08 Curved Bridge no. 2 in locked position  - 179

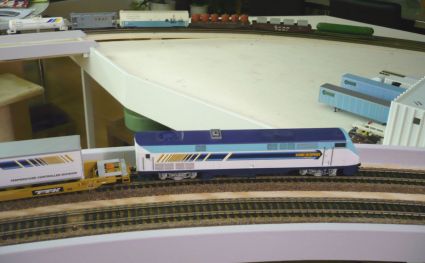

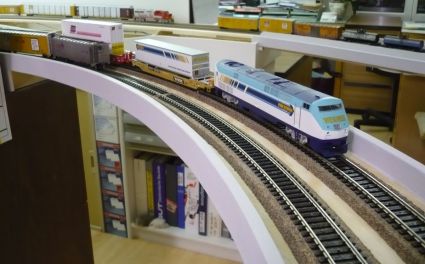

4/02/08 WE engine is going uphill on bridge 2  - 180 4/02/08 Bridge 2 in the foreground and no. 1 behind  - 181

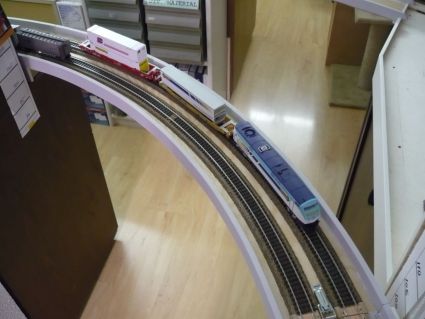

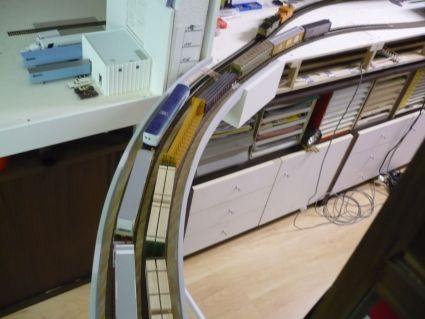

4/02/08 Curved bridge 2 from above going into office 2  - 182 4/02/08 Coming from the stereo in office 1 - 183

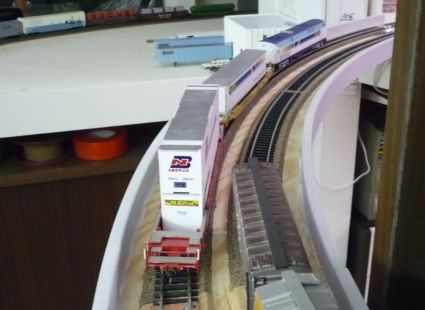

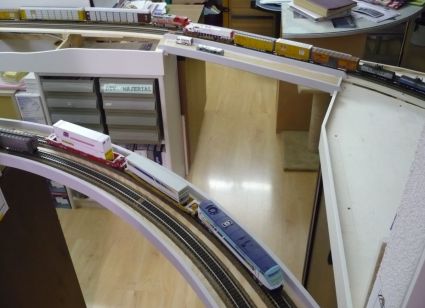

4/02/08 Remember, this bridge can be folded down  - 184 4/02/08 Bridge 1 in the distance is a lift out bridge  - 185

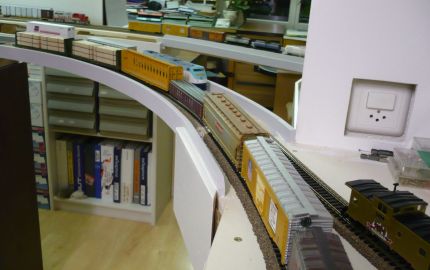

4/02/08 One more view into office 2  - 186 And looking from office 2 into office 1  - 187

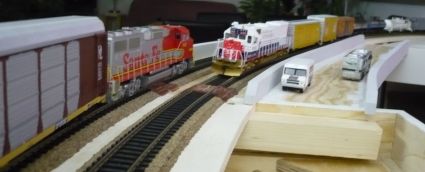

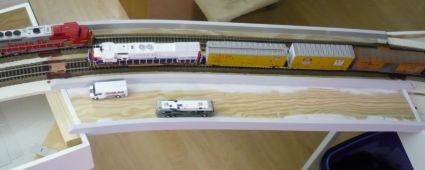

4/02/08 Bridge 1 was also painted concrete gray  - 188 Wooden frames are painted white  - 189
4/06/08 Next step was the connection between the curved switches and the 6 staging tracks.The whole area will be covered because on top will be the main line (16 cm above zero level). No question, Percy was controlling every step of this process and I had to be very careful in avoiding any mistakes. The whole wiring for the staging yard with switches for each track is done and oh wonder, it functions well. So far, all test runs were successful without any derailment, even the radius over the switches is in the 82 cm (32") range.

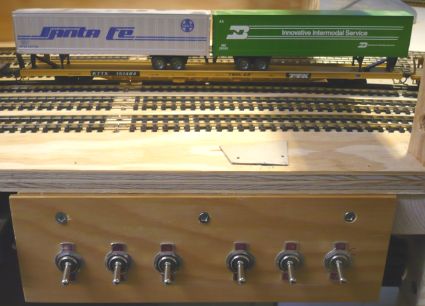

4/06/08 Panel with swtiches for the 6 tracks - 190 Every step is checked by Percy - 191

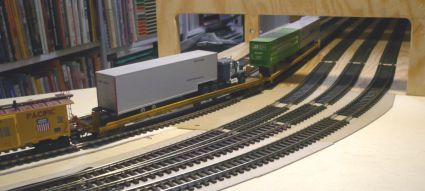

4/06/08 Hidden entrance to the staging yard - 192 Once in a while I have to be nice to the controller - 193

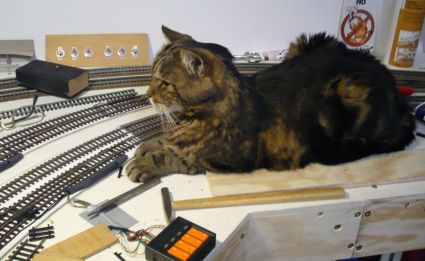

4/06/08 Birds eye view of the curved switches - 194 Everything is under control ! !  - 195

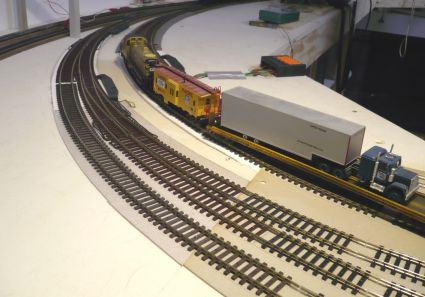

4/06/08 Looking toward the main line - 196 After all, I got the approval from the officer - 197

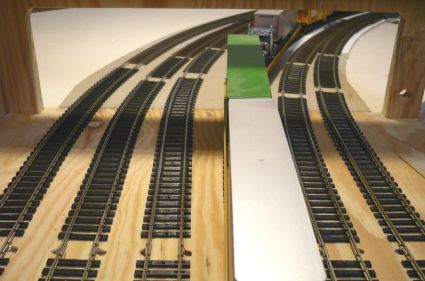

4/06/08 Staging yard entrance as seen from the inside - 198 Test train passes track no.4 - 199
4/12/08 The grand opening of the staging yard was celebrated with diesel engines from Santa Fe, Southern Pacific and Union Pacific. This part of the yard will soon be covered and not visible anymore because the upper level main tracks will be on top. See building of the upper level on next page.

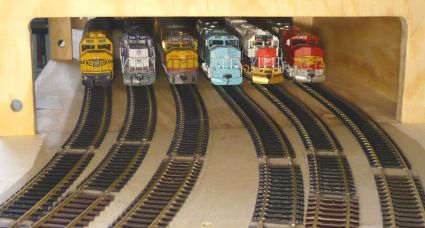

4/12/08 Diesel line up on all 6 tracks - 200  The evening sun will soon be gone - 201

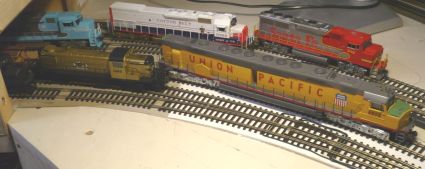

4/12/08 Another view on track level - 202 Engine display on the curved switches - 203

More photos on page 3 - click here

updated: September 24, 2008

Technical Data of my Layout:
Size: 4,5 x 6,5 m (13,5 x 19,5 feet), Era: Modern, Location: Southern California in the Mojave Desert (Cajon Pass), Layout Style: unconventional, in house along the walls, 2 swing up bridges, 1 lift out bridge, double track, min. radius 104 cm (41 inch), max. grade 1,5 %, Track: Atlas flextrack code 100, Turnouts: Peco code 100, Power: conventional DC with electrical feeders every 2 m, Mainline: 32 m (96 feet), Height: 93 cm (36,5 inch)
Overview of the layout (each square is 0,5 m)
