HO Scale Desert Layout Project  -  11/22
City of Percyville - Part 2
Long time ago, I put several buildings along main street to create the City of Percyville (the name is in memory of my "layout cat" Percy). I was never really satisfied with the arrangement and therefore, did not continue. But in December 2013 things completely changed because I had a "once-in-a-lifetime" opportunity to buy 4 buildings of Pelle Soeeborg's layout "Daneville". These buildings are exact replicas of the real structures in the town of Mojave, CA.
Take a look - click here .

The whole process of rearranging the "old" structures, one was cut in half and another one was turned 90 °, can be seen on page 10. Three of Pelle's outstanding buildings (ARCO, Denny's, KFC) found a new home in the City of Percyville.
In the meantime, the City of Percyville is completely finished. All road markings incl. handicapped parkings, road signs, bushes and Joshua Trees are done. Now, I am very pleased with the result.
We start our journey from left to right, in other words from the East side to the West side. The first building is our latest addition: HIGH DESERT COUNTRY CAFE above the road bridges, down along main street are: Super 8 Motel of Percyville, ARCO Gas Station, Denny's Restaurant, Kentucky Fright Chicken, Pizza Hut, Taco Bell, Cadillac of Percyville, FOOSE Design / West Coast Customs, McDonald's and Werner Enterprises Percyville Terminal.



As there are too many photos, I made 6 chapters for easy navigation
A) The City of Percyville is finished as of 1/29/14
B) Take a look from the East end to the West end with every structure in full details
C) Werner Enterprises Percyville Terminal (2014)
D) Werner Enterprises Percyville Terminal (2015)
E) We take another tour of Percyville from left to right
F)
Percyville, an overview from above (from the air)

Photos 1076 - 1263, starting 1/29/14 and ending 3/26/14
additional photos (Werner Enterprises) 1492 - 1514 on 5/10/15
(just click on the 4-digit number for bigger size photos)

Part A) 1/29/14 - The City of Percyville is finished and people are welcome to stay at Super 8 Motel, eat in one of the 6 restaurants, buy a Cadillac, go to the top car designers or do business with Werner Enterprises.
Abbreviations used on this page:
WE = Werner Enterprises, HDCC = High Desert Country Café, WCC = West Coast Customs
Overview w/HIGH DESERT COUNTRYCAFE (HDCC) above bridges - 1076 East side of Percyville - 1077

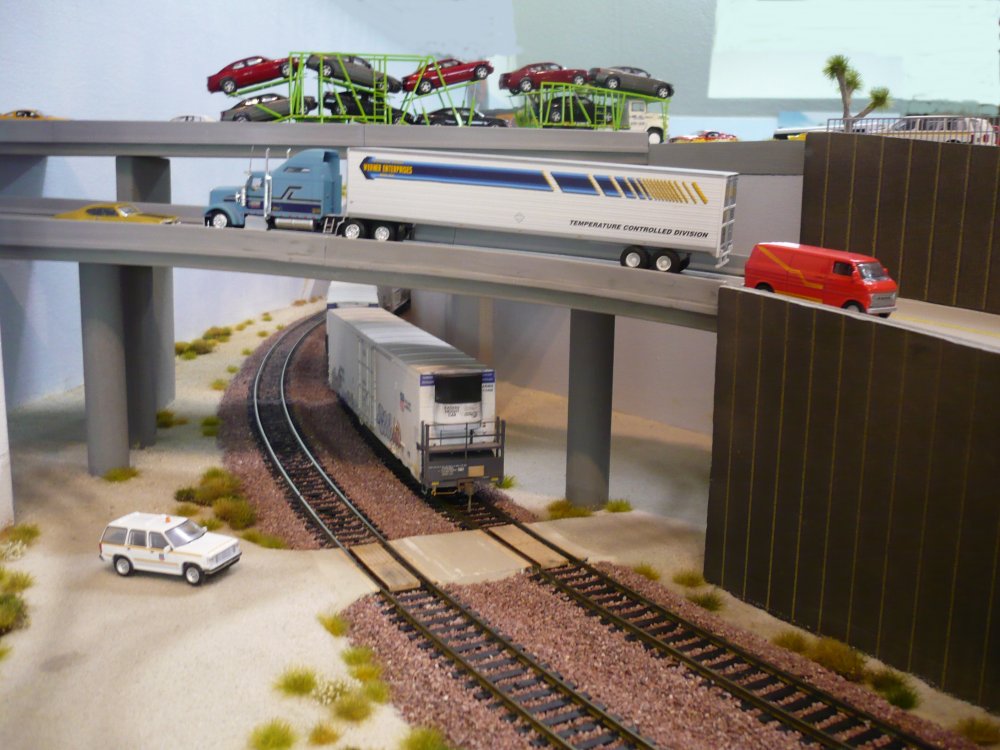

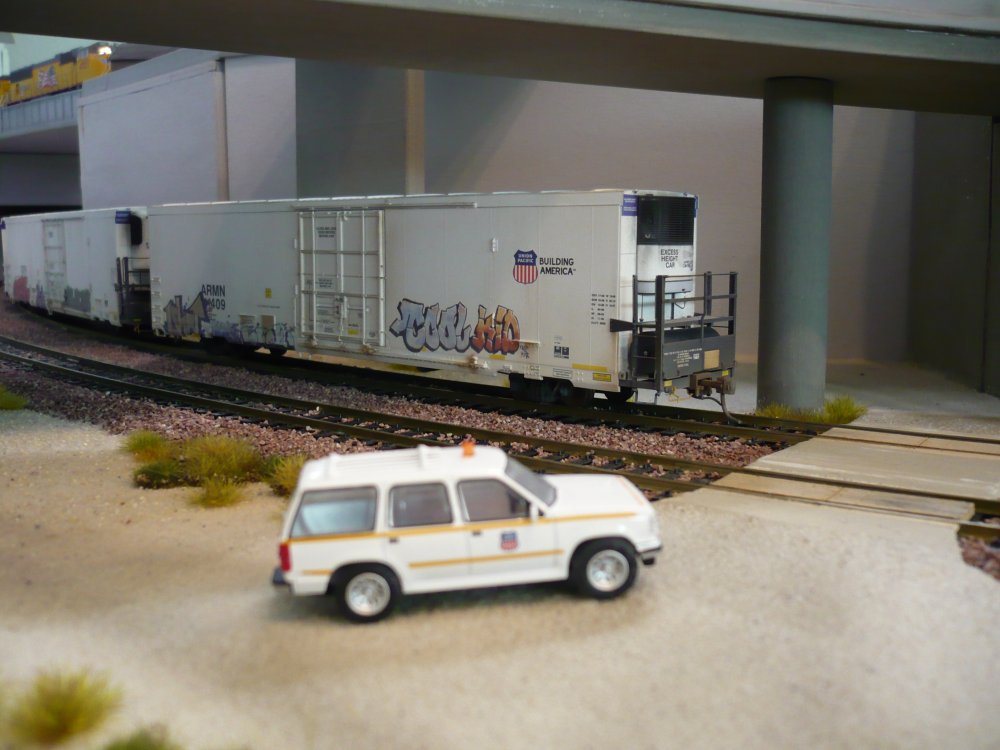

both road bridges are curved - 1079 RR-Xing access for MoW of UP - 1080

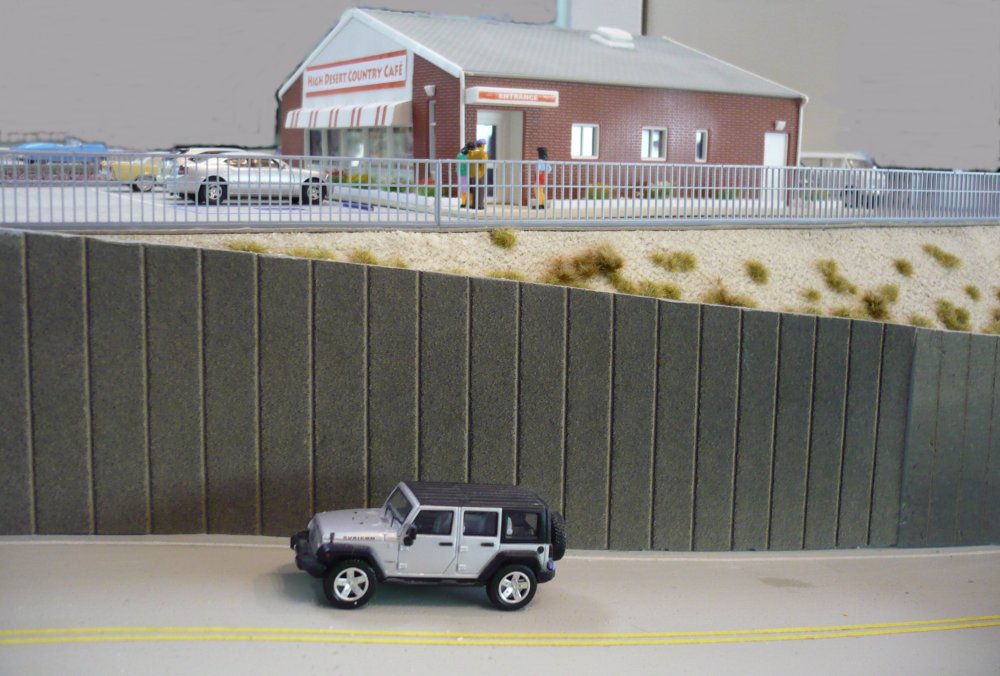

retaining wall is protecting the road below the HDCC - 1081 landscaping was not easy because everything is curved - 1082

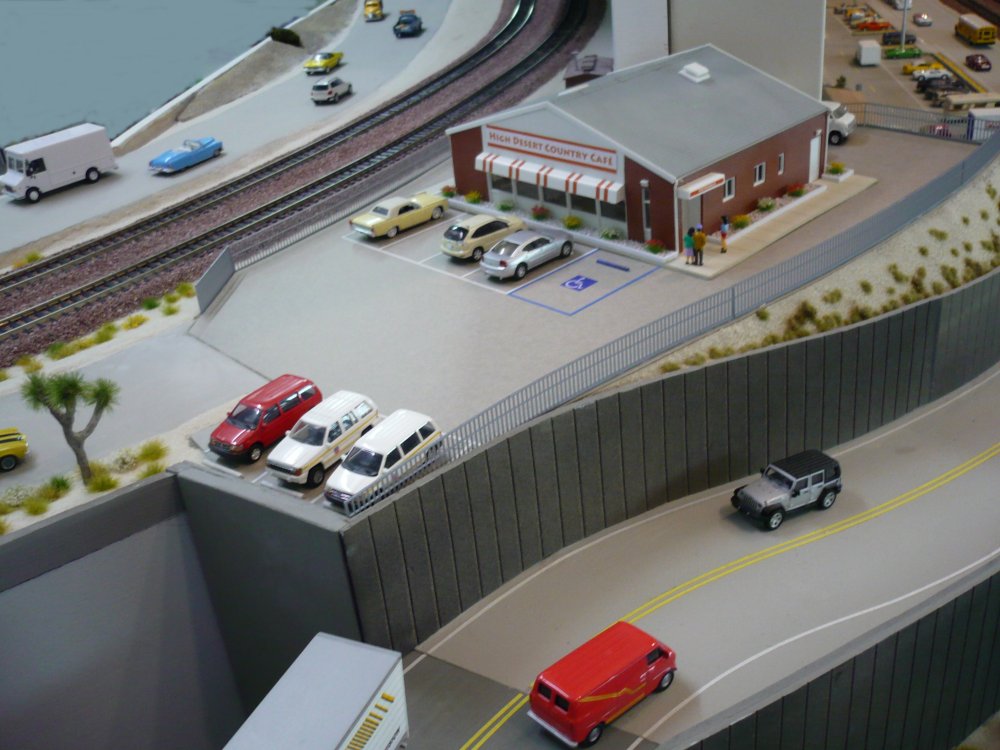

there are customers going to the HDCC restaurant - 1083 and here is a slightly different view as above - 1084

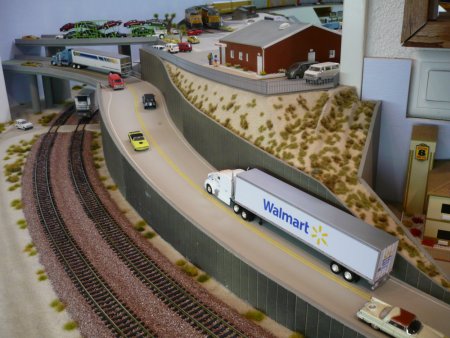

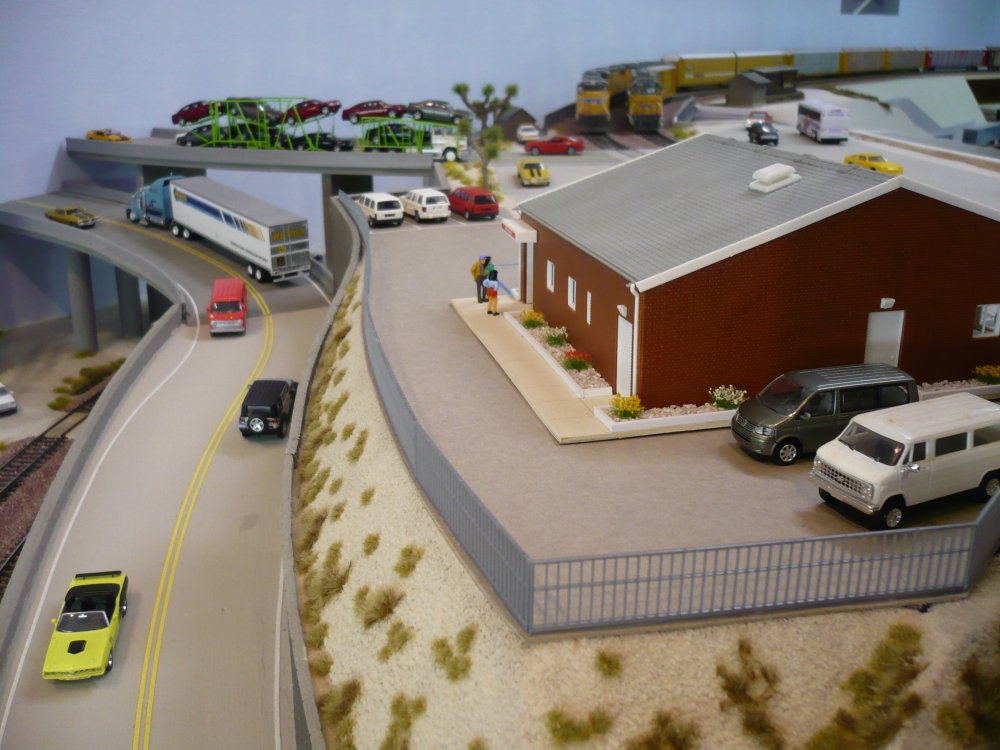

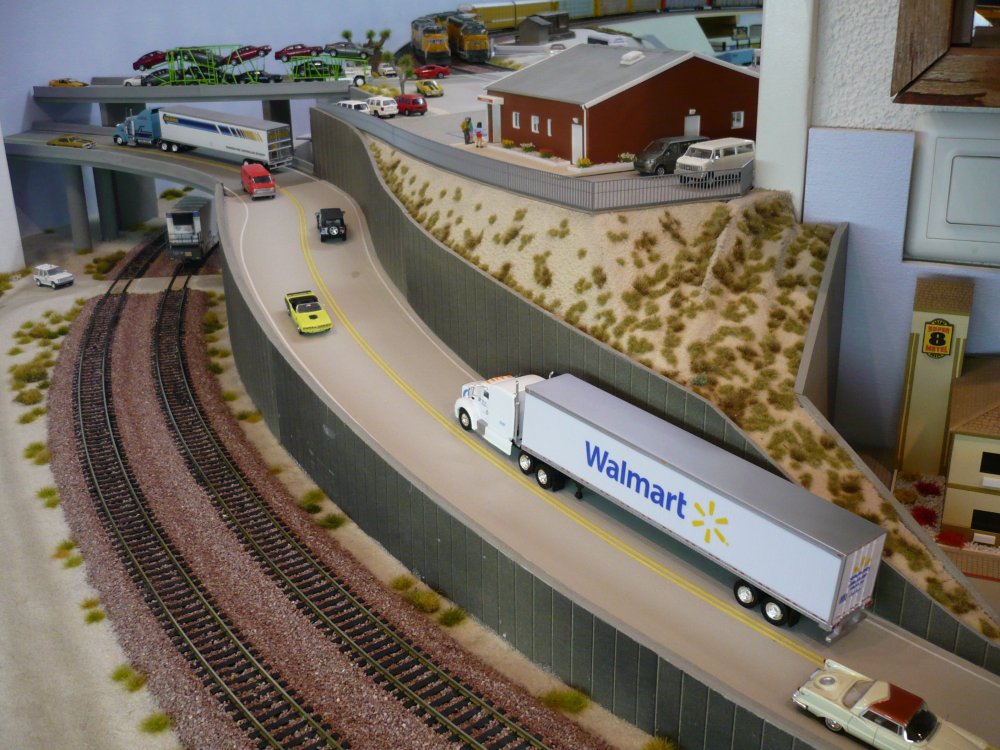

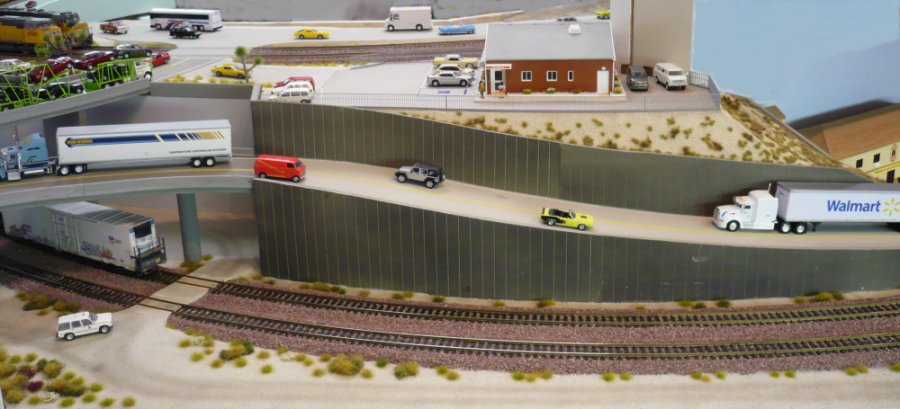

HDCC as seen from the rear side - 1085 the Walmart truck is delivering goods to the next shop - 1086

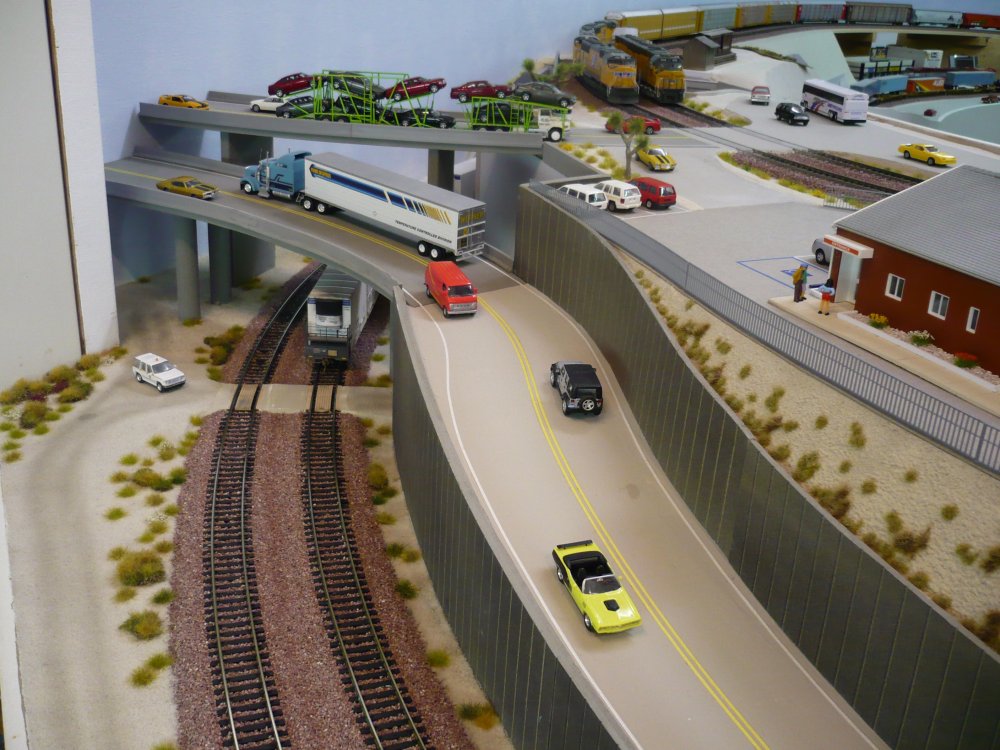

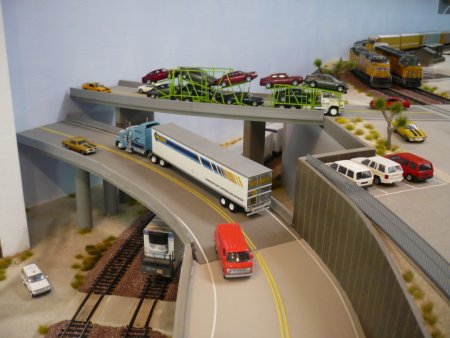

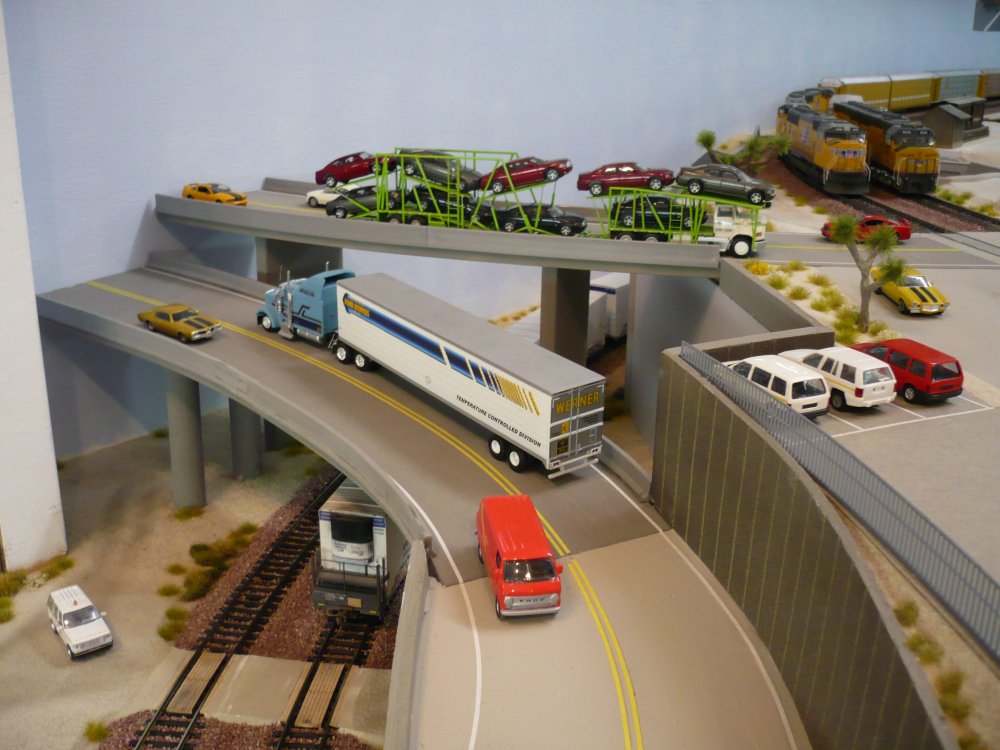

Werner Ent. Truck is coming from the Percyville Terminal - 1087 there are 3 different levels of roads and tracks - 1088
there are Joshua Trees in the Mojave Desert - 1089 Auto Carrier with a load of Dodge Chargers - 1090

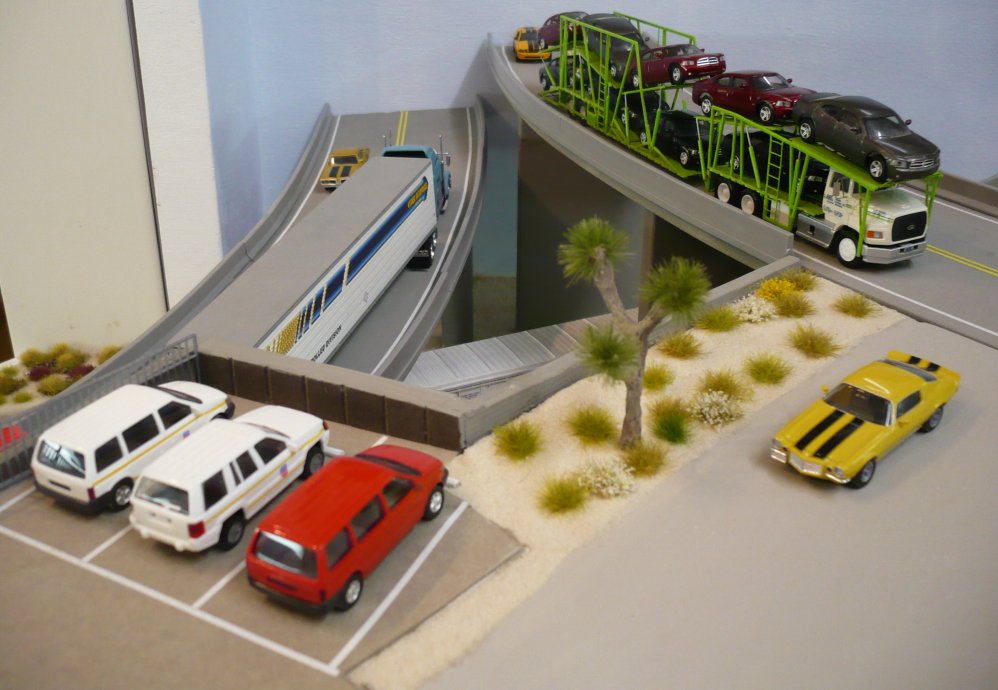

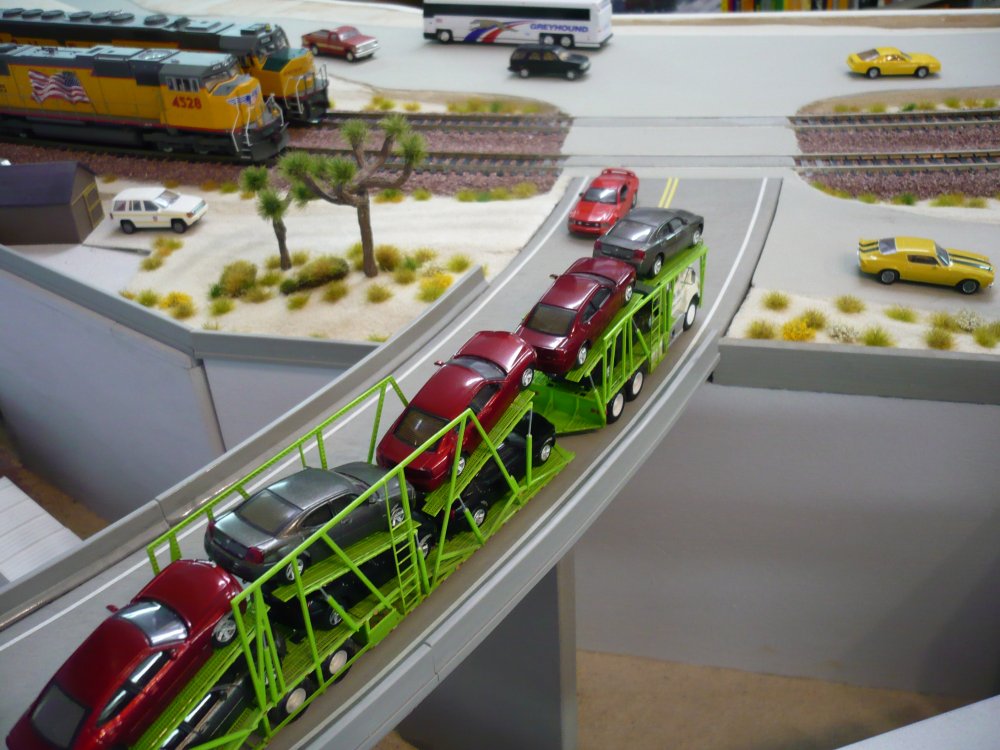

I am aware - too many photos from diff. angles - 1091 Joshua Trees can be seen well - 1092

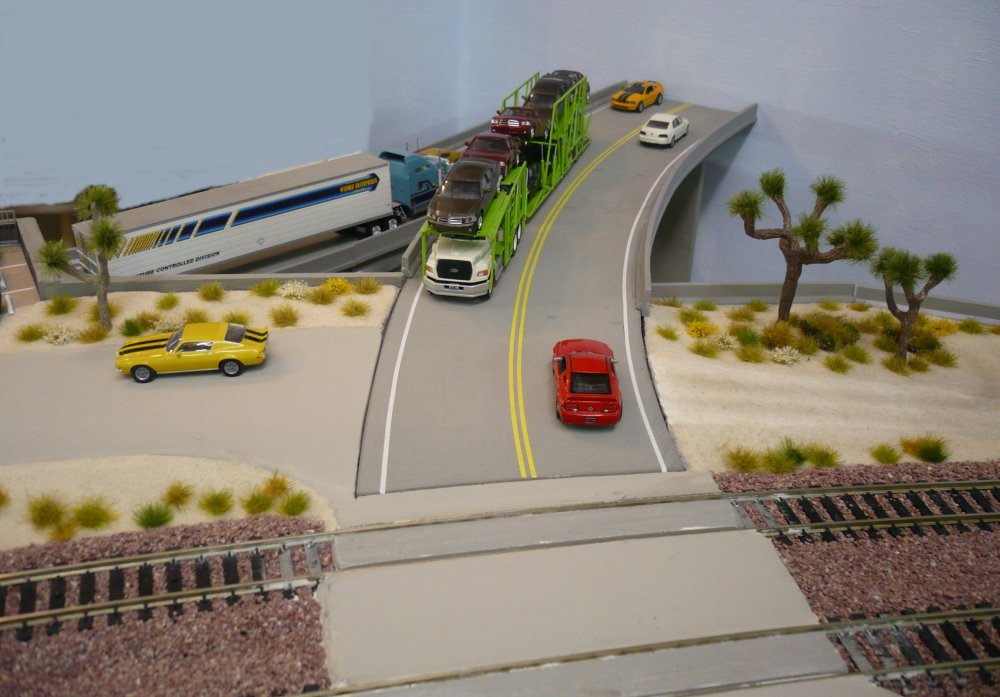

and another view of the bridges - 1093 the Auto Carrier is a brass model from Lonestar Models - 1094

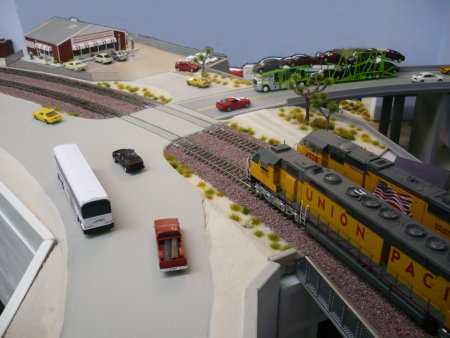

Dodge Chargers are made by Ricko - 1095 UP is the main railroad on my layout - 1096

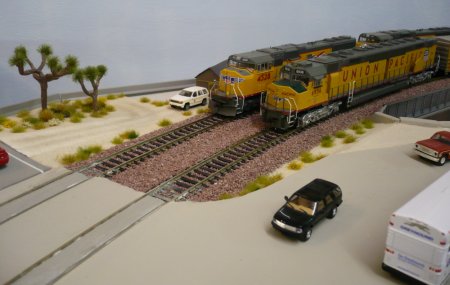

double track main line is passing HDCC - 1097 Athearn Genesis EMD DDA40X and SD70M - 1098

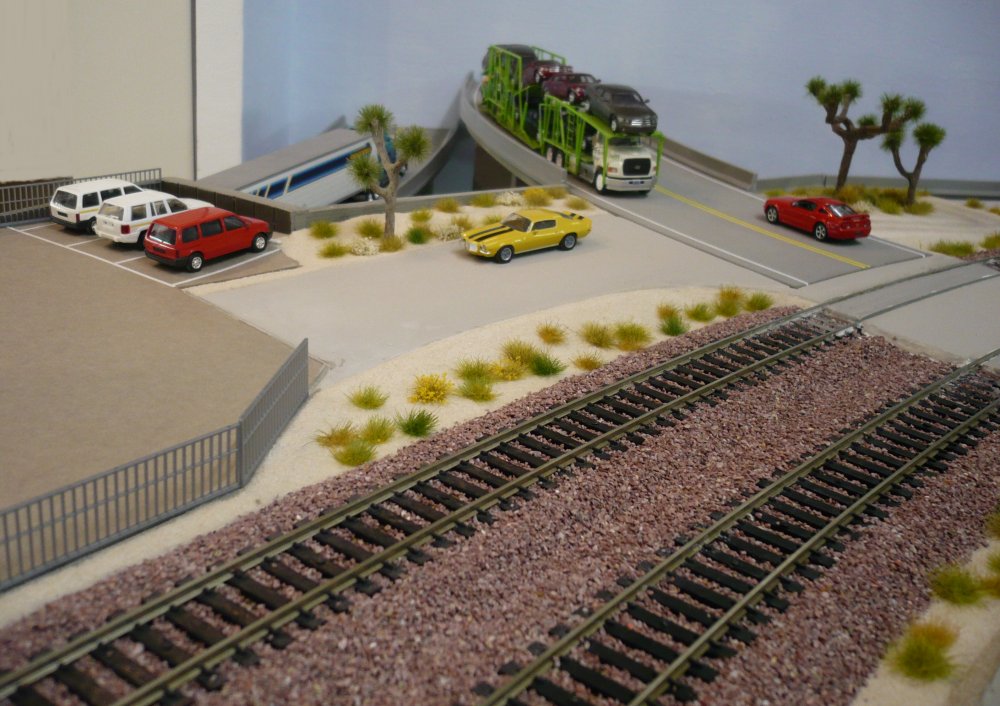

road in front needs street markings - 1099 and crossing needs RR-Xing signs - 1100
good to know, HDCC is open 24 hrs - 1101 the fence is made by Faller item # 180413 - 1102

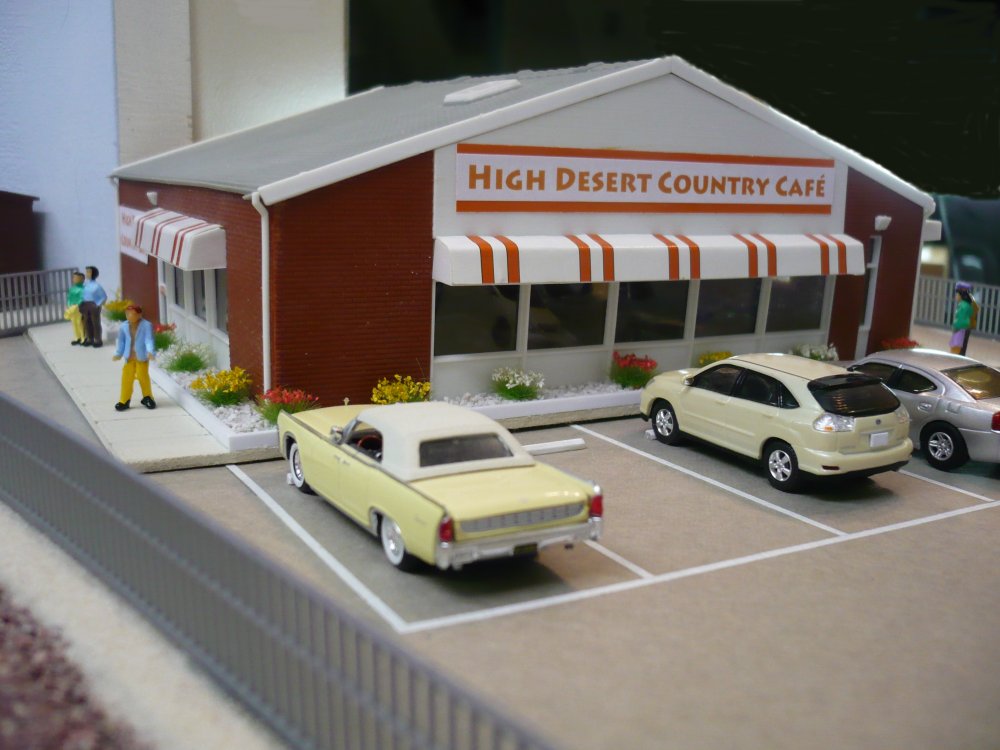

HDCC restaurant has always railfans watching trains - 1103 a 1961 Lincoln Continental and a modern Lexus SUV - 1104



Here are photos of the real buildings
(ARCO, Denny's, KFC) as located
in Mojave, CA

click here

These 3 buildings on my layout
were built by Pelle Soeeborg.



Part B) From the East end of Percyville we start travelling Westward and take a closer look at the Super 8 Motel
Eestside - here, main street is passing main lines - 1106 looking West down main street - 1107

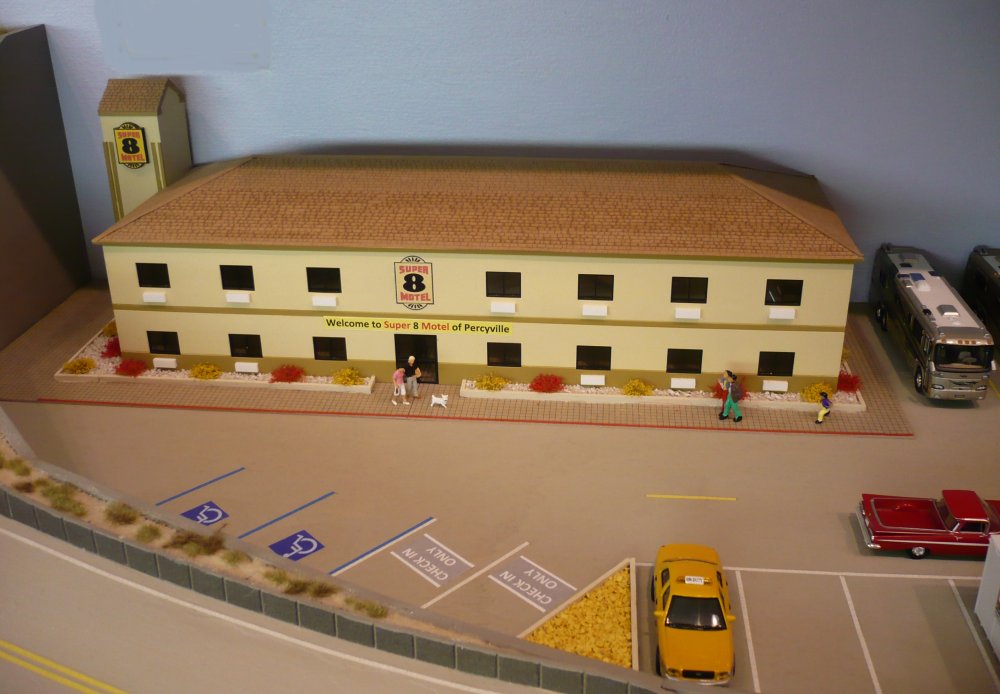

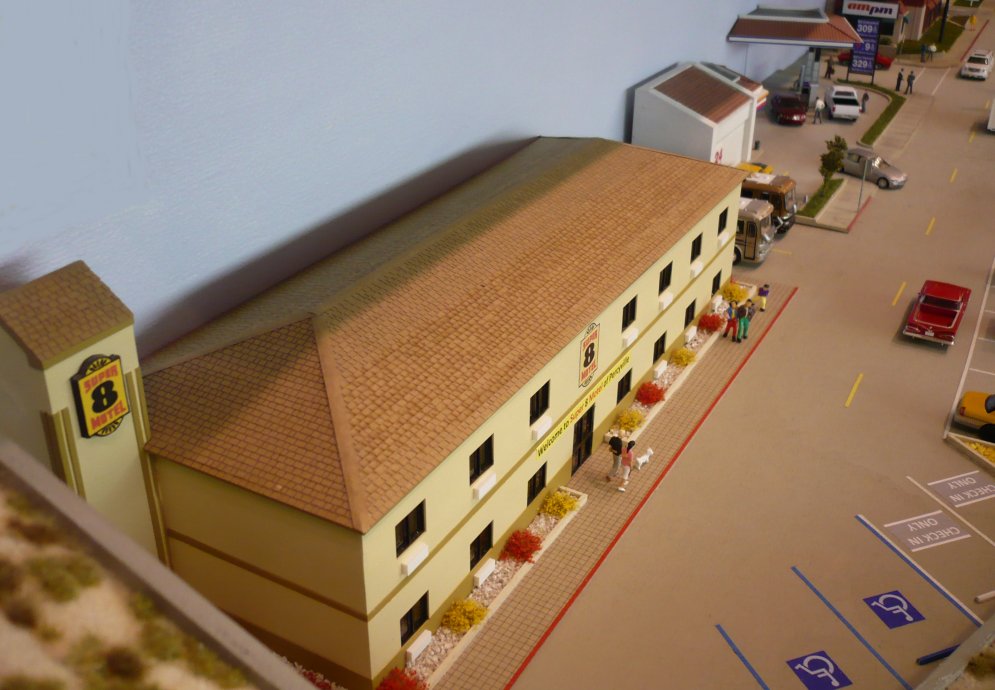

Super 8 Motel Kit is made by Summit USA - 1108 I did some customizing with the base - 1109

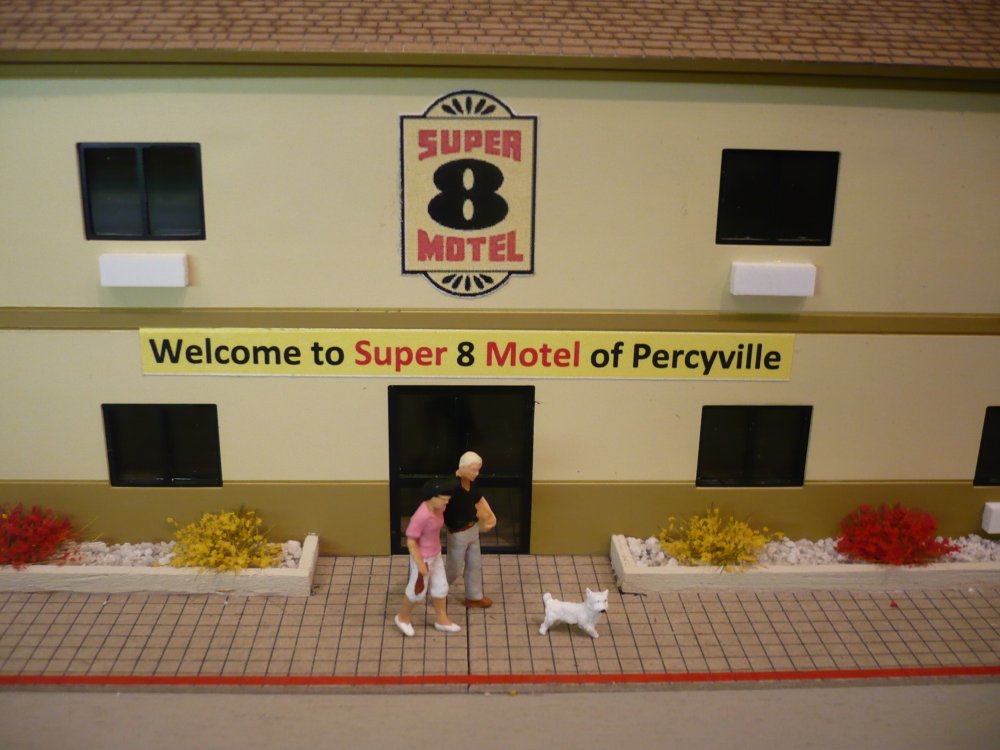

yes, Percyville got a Super 8 Motel for travellers - 1110 main parking is at the rear of the Motel - 1111

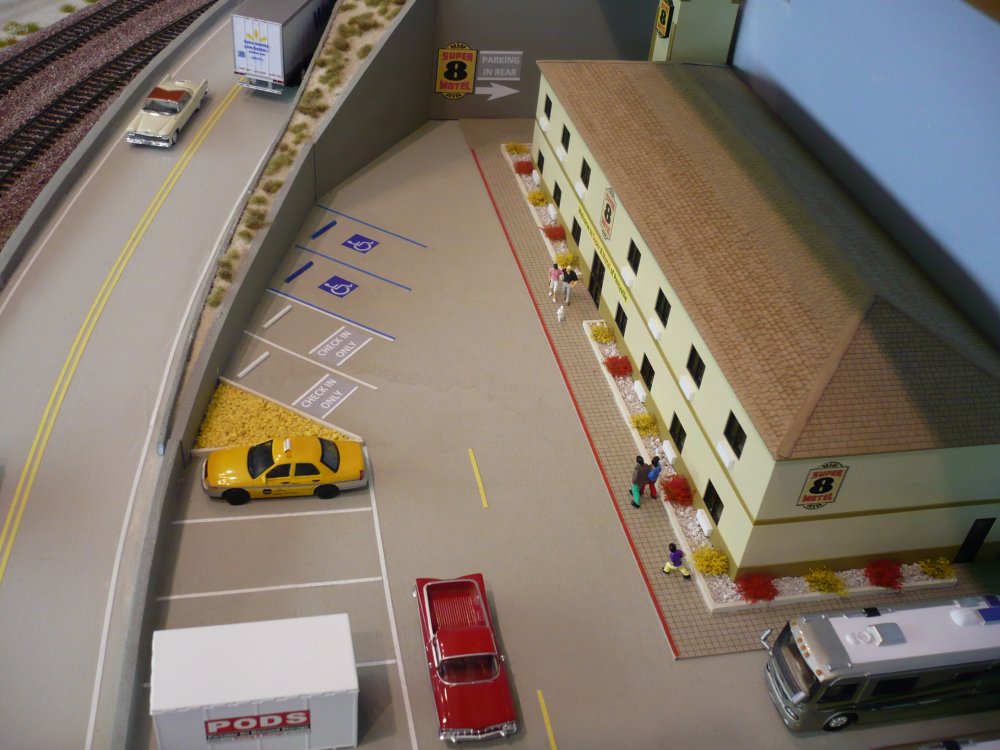

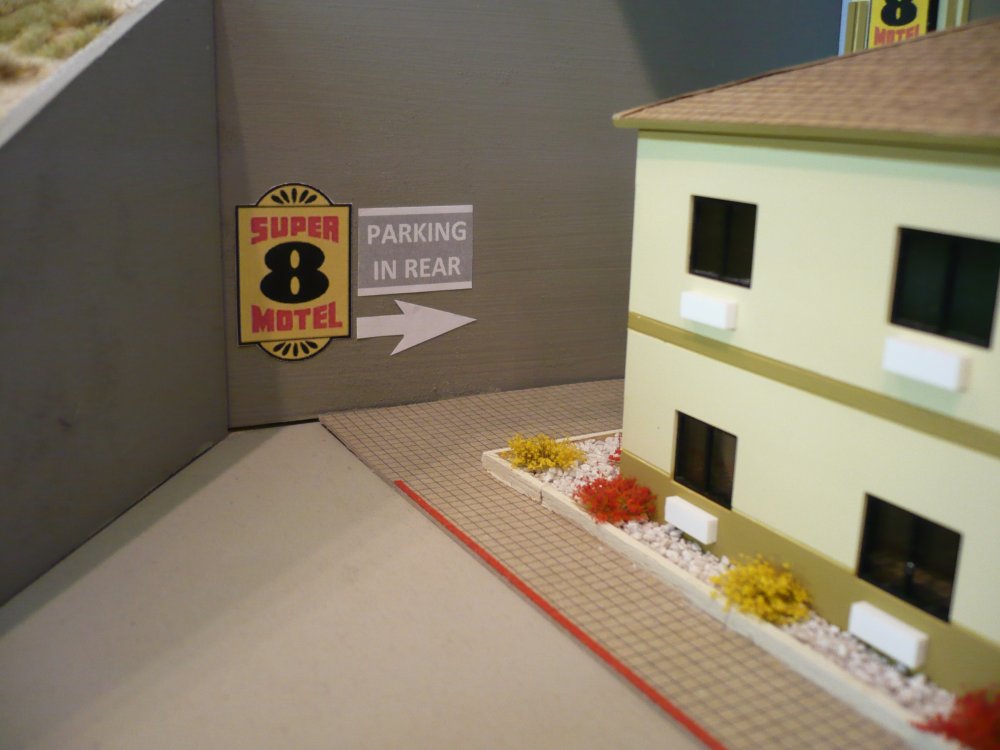

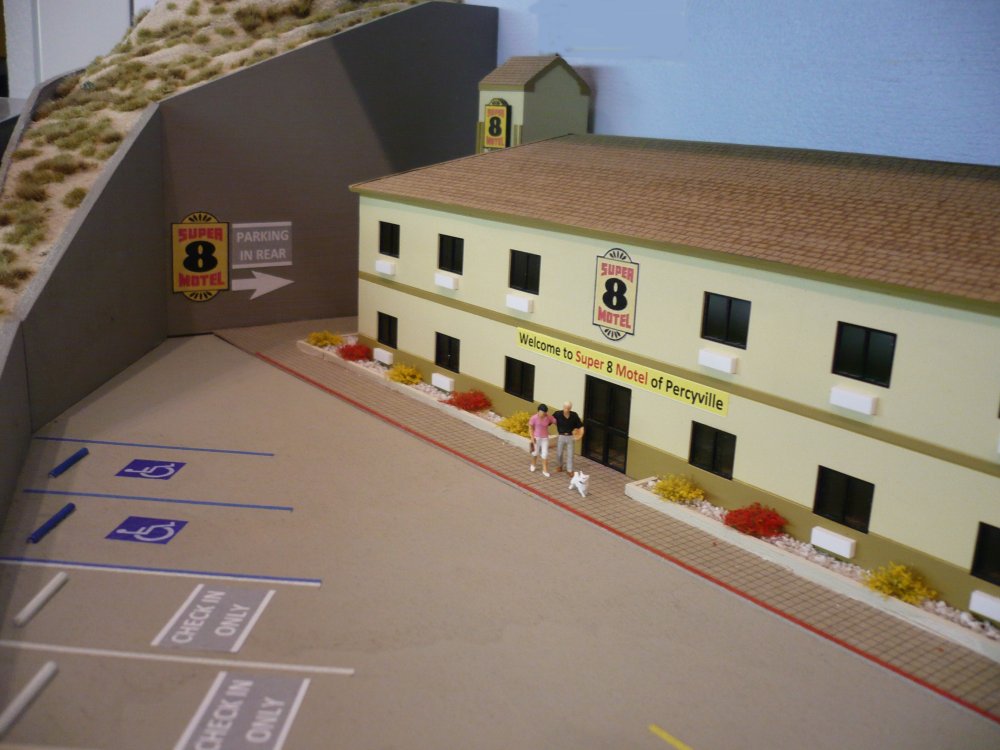

there are 2 parkings for handicapped and 2 for check in customers - 1112 1113

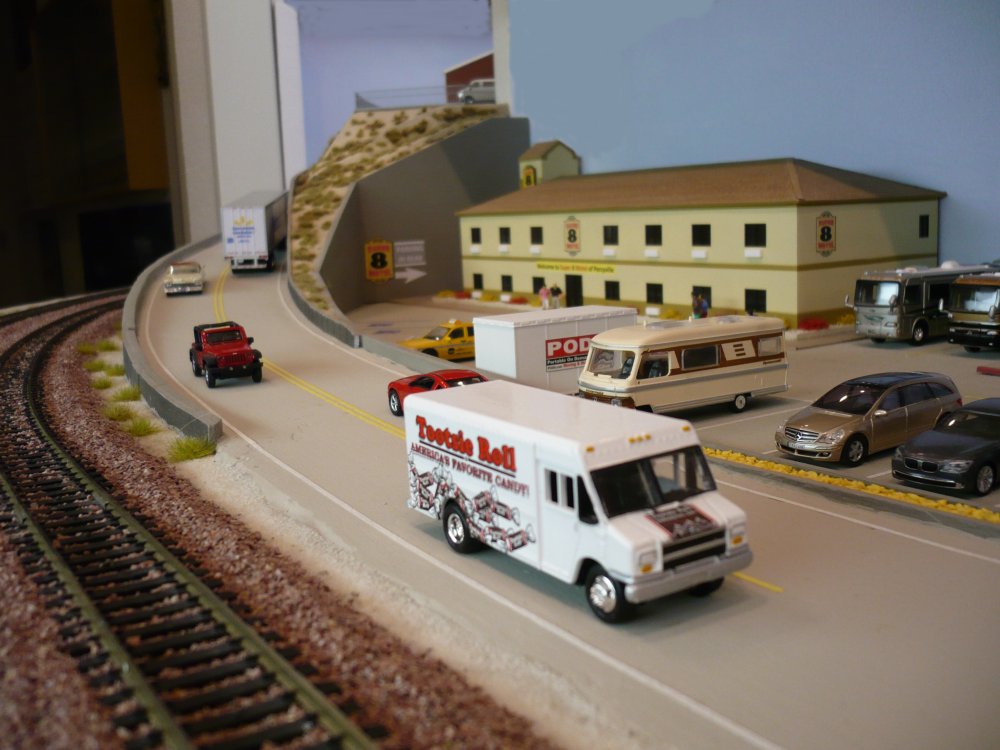

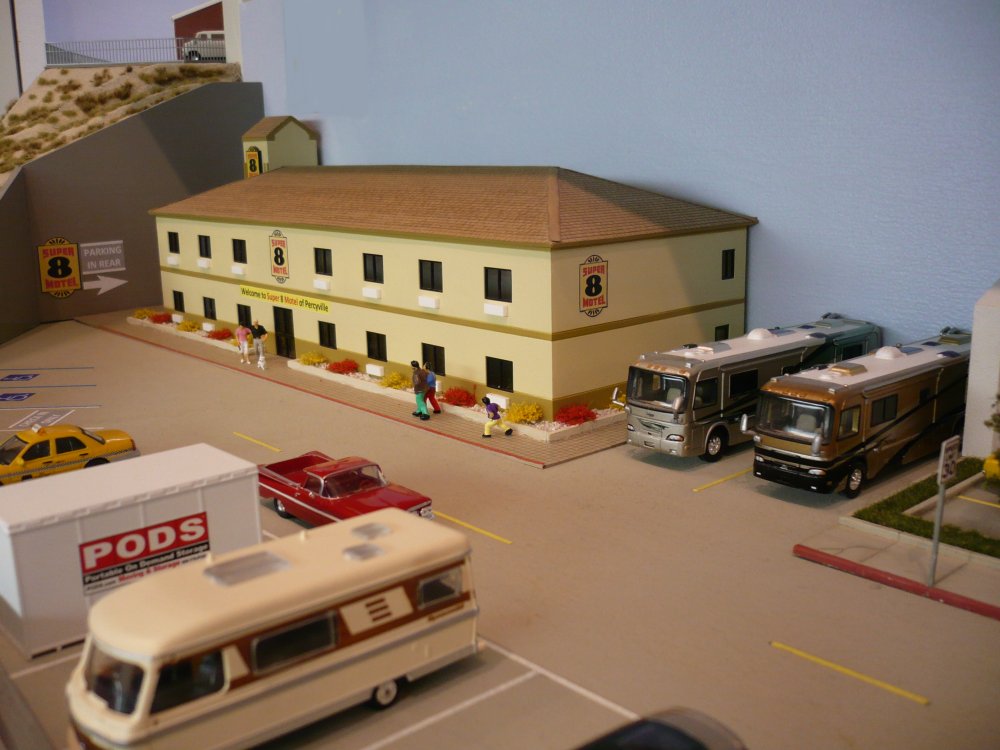

main street is coming down - 1114 the Motel has extra space for motor homes and tour buses - 1115

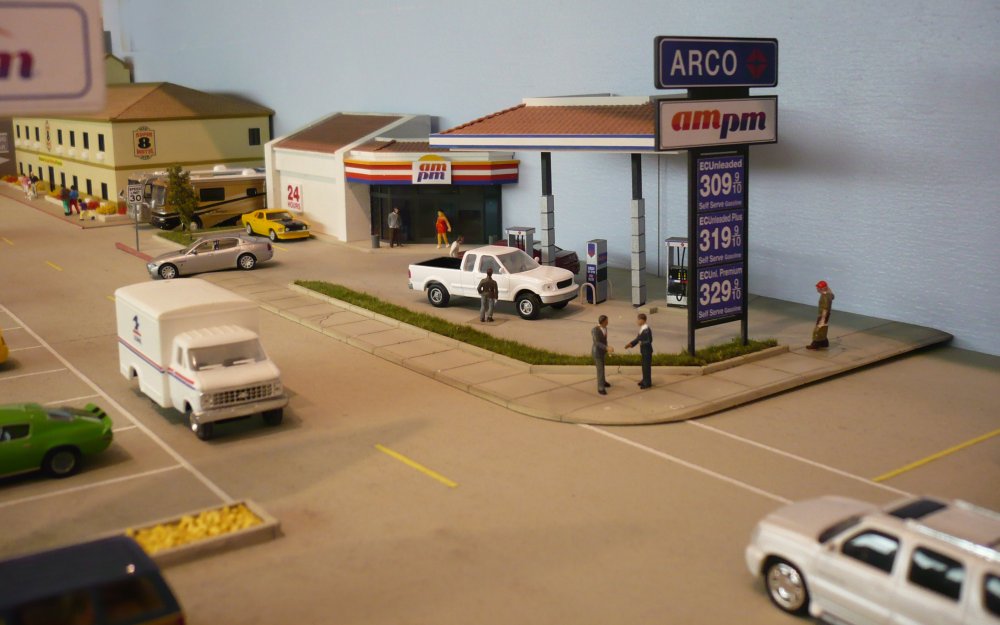

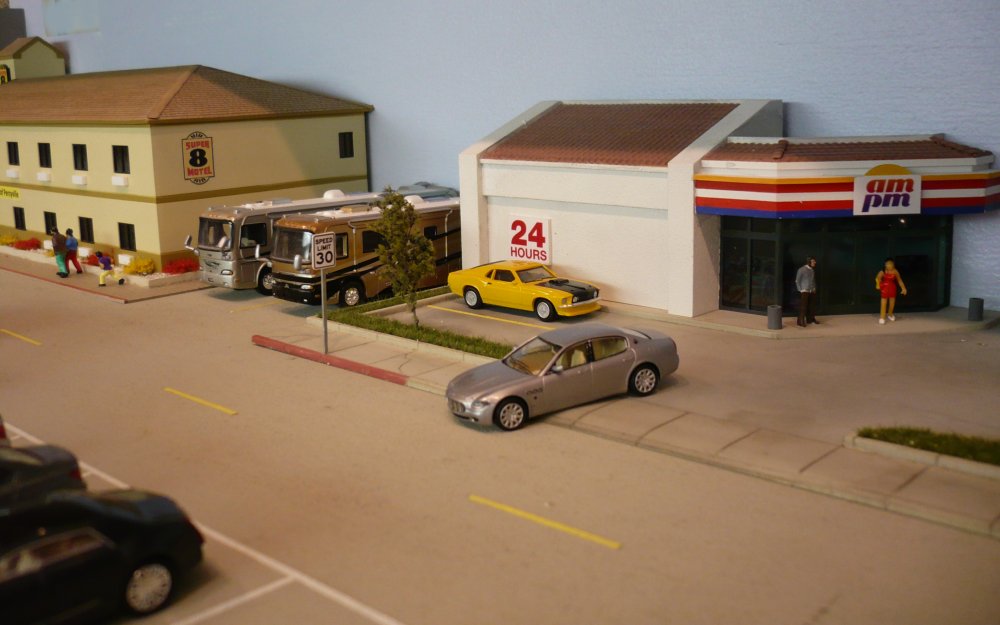

next to the Motel is a ARCO Gas Station w/am-pm shop - 1116 Kit by Summit USA, built by Pelle Soeeborg - 1117
the real ARCO Gas Station is located in Mojave, CA - 1118 the road between ARCO & Denny's is exactly the same as in Mojave - 1119

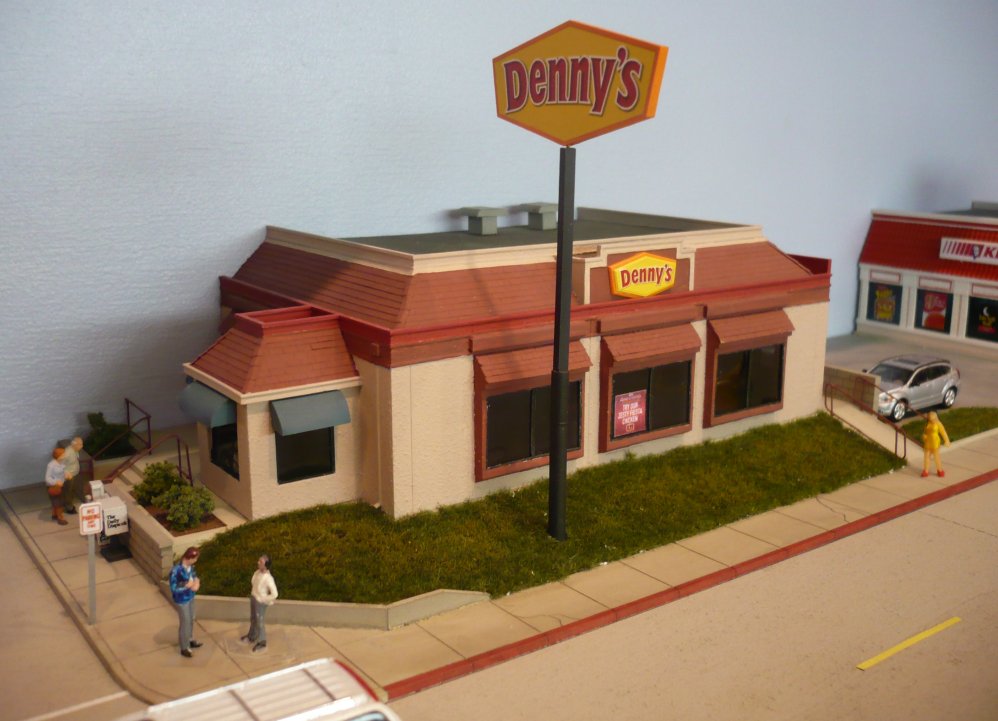

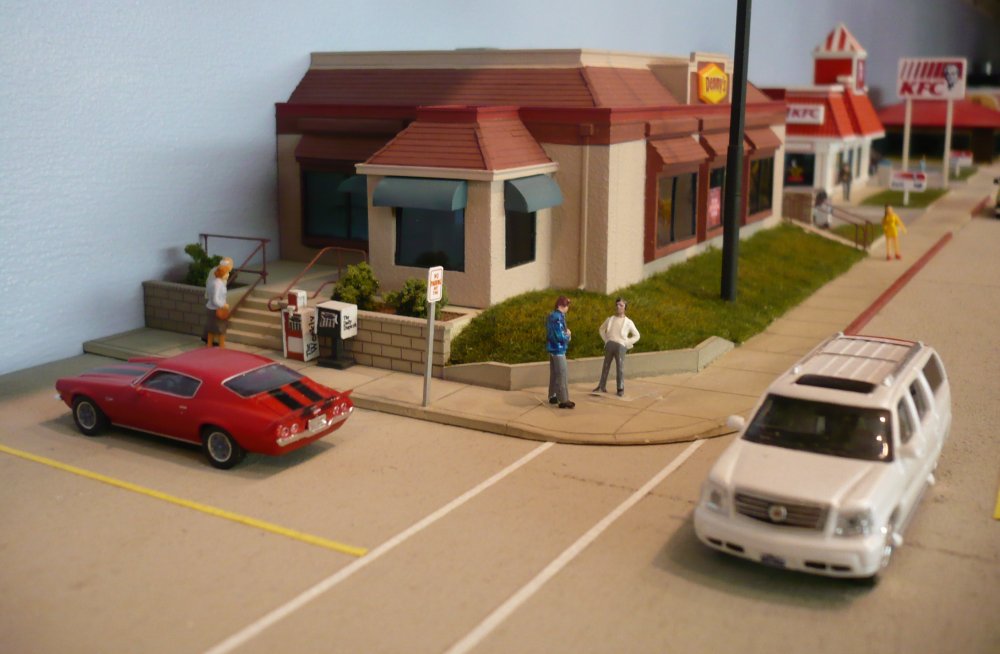

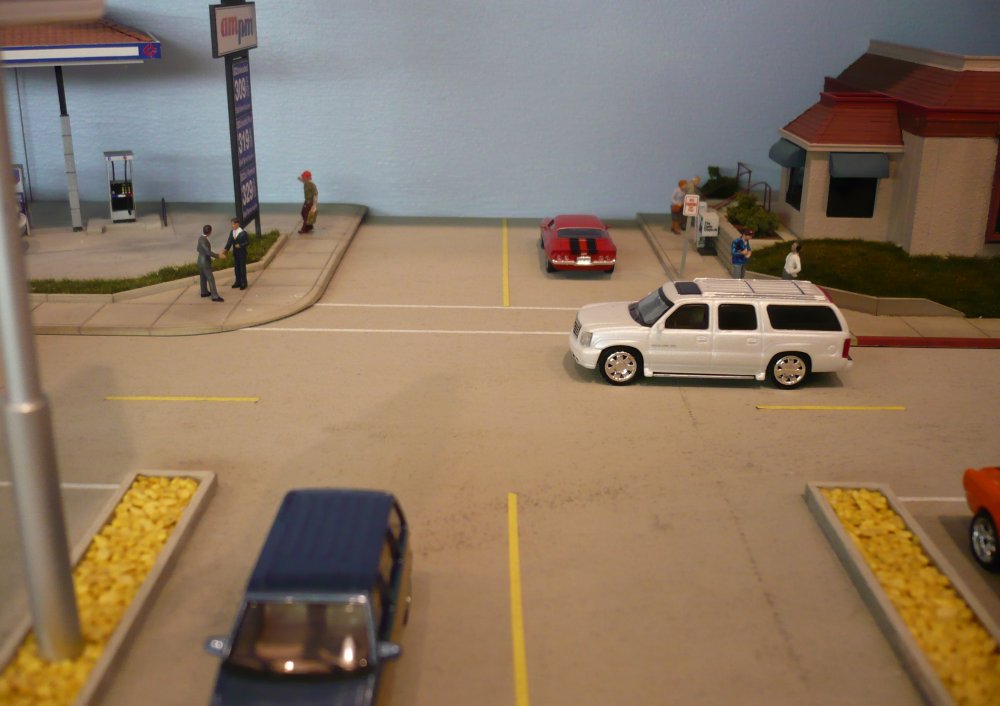

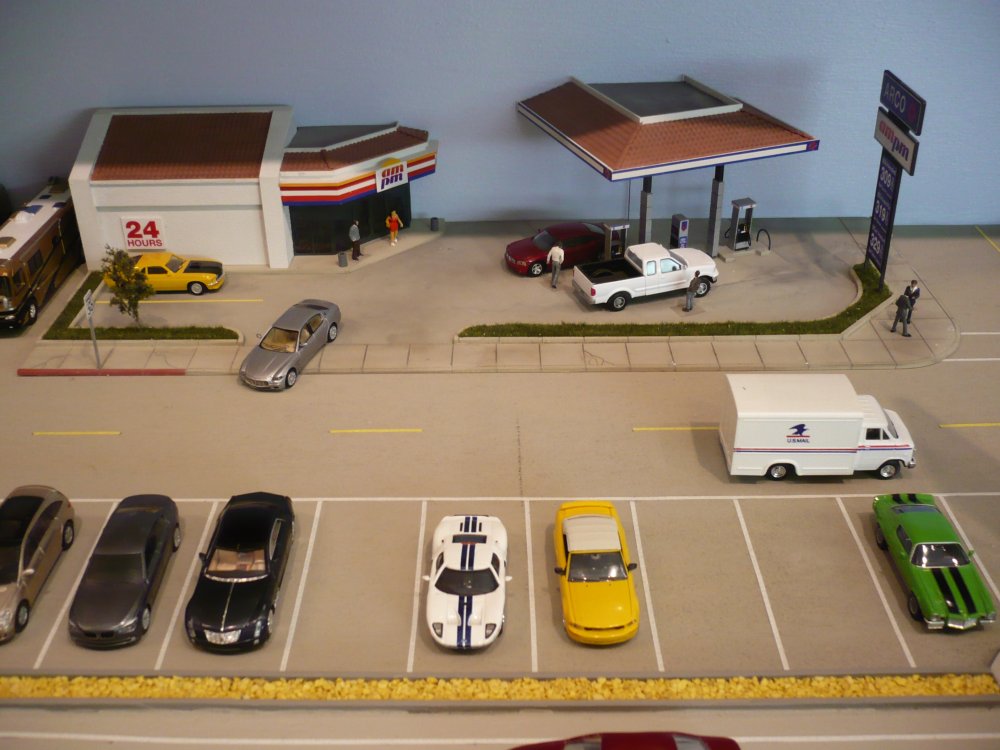

across the ARCO is a parking lot - 1120 this Denny's is an exact replica of the one in Mojave, CA - 1121

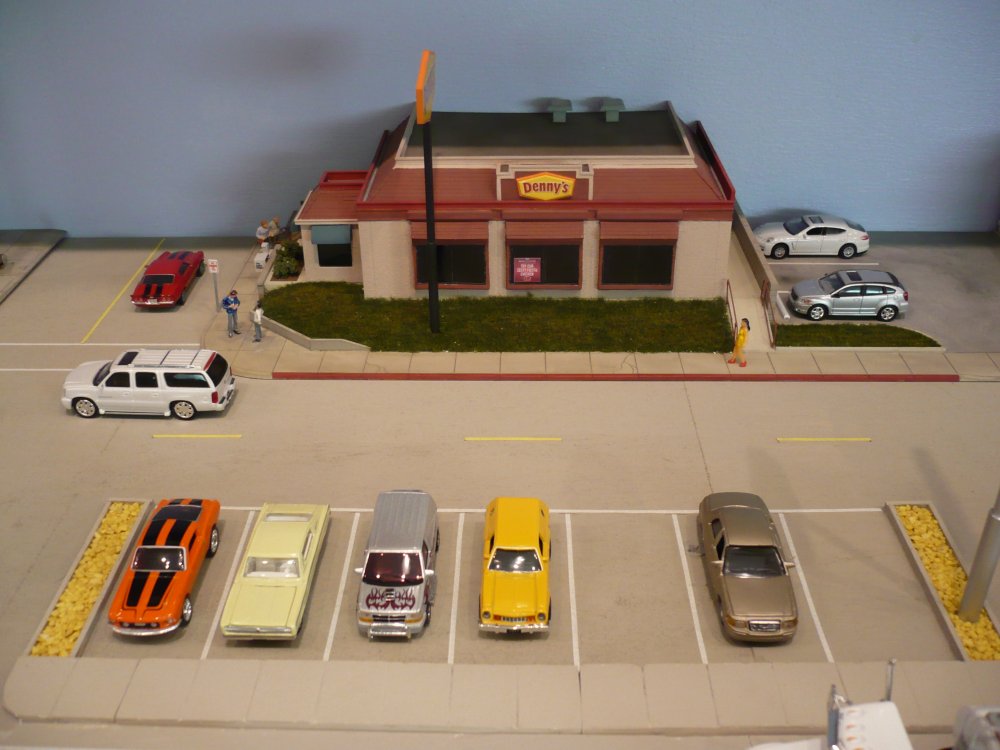

between the businesses and the parkings is a service road - 1122 main street is along the double track main lines - 1123

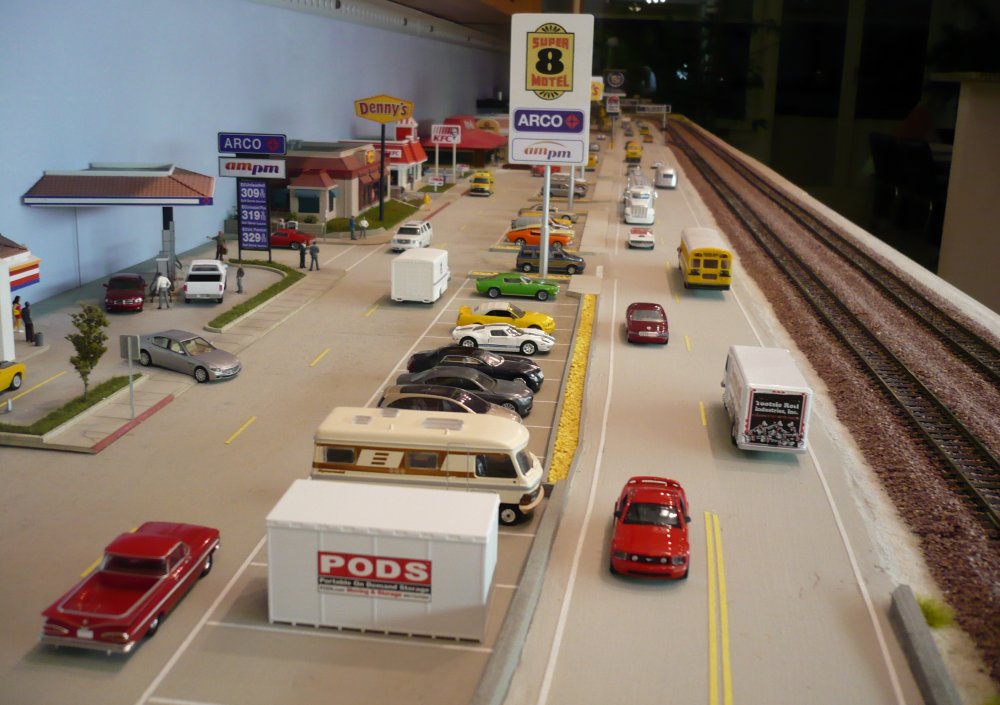

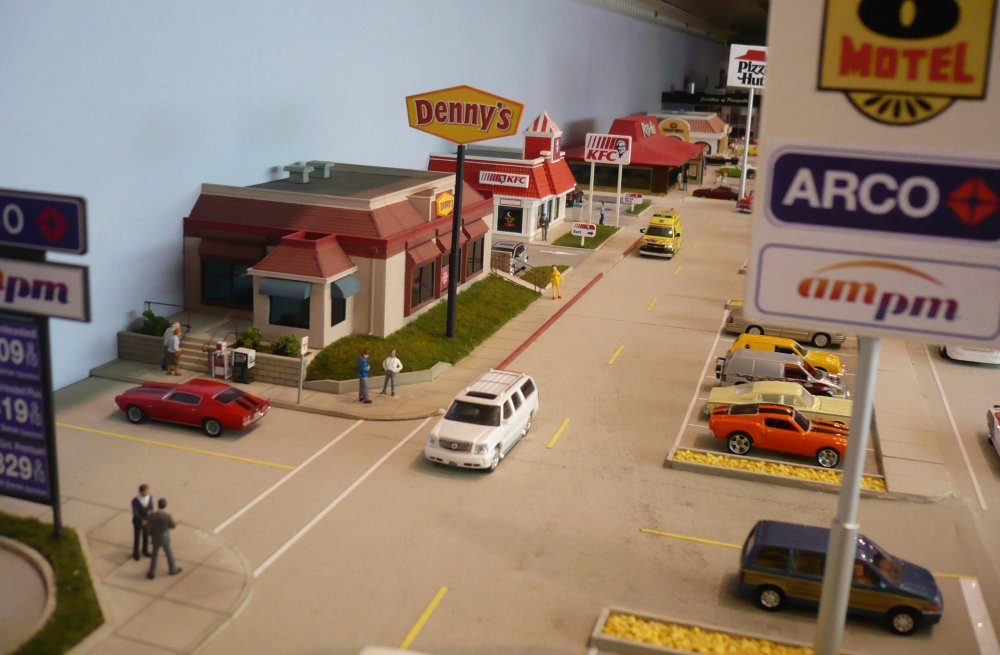

I had breakfast and dinner in the real Denny's during my trips . . - 1124 . . while staying in Mojave, CA and doing some railfanning - 1125

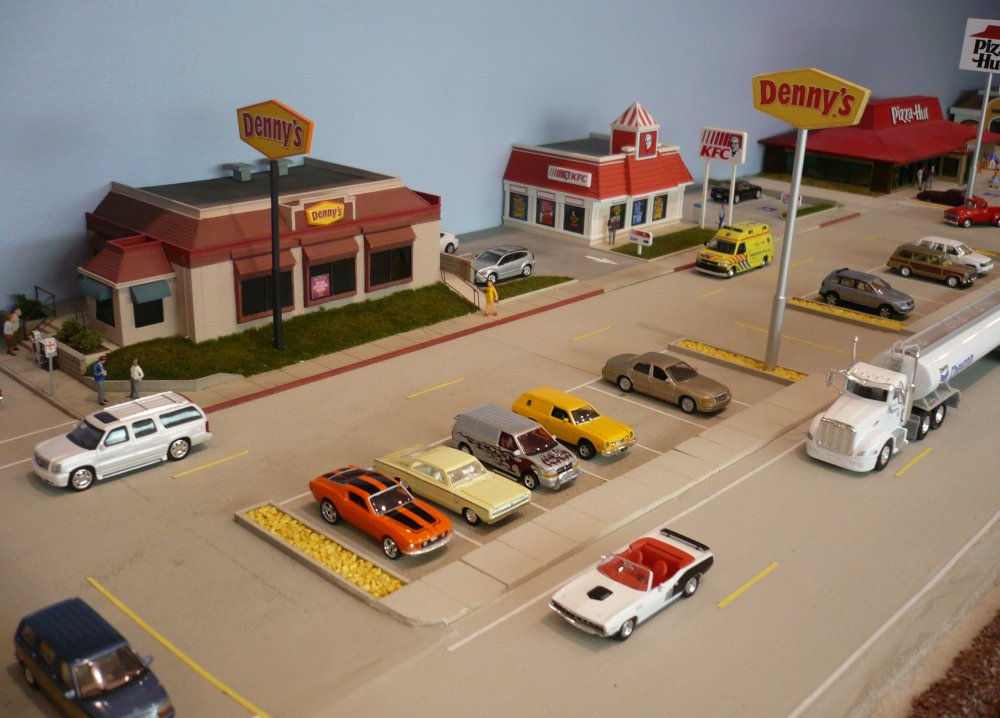

there are additional parkings across Denny's - 1126 beautiful work - custom made by Pelle Soeeborg - 1127

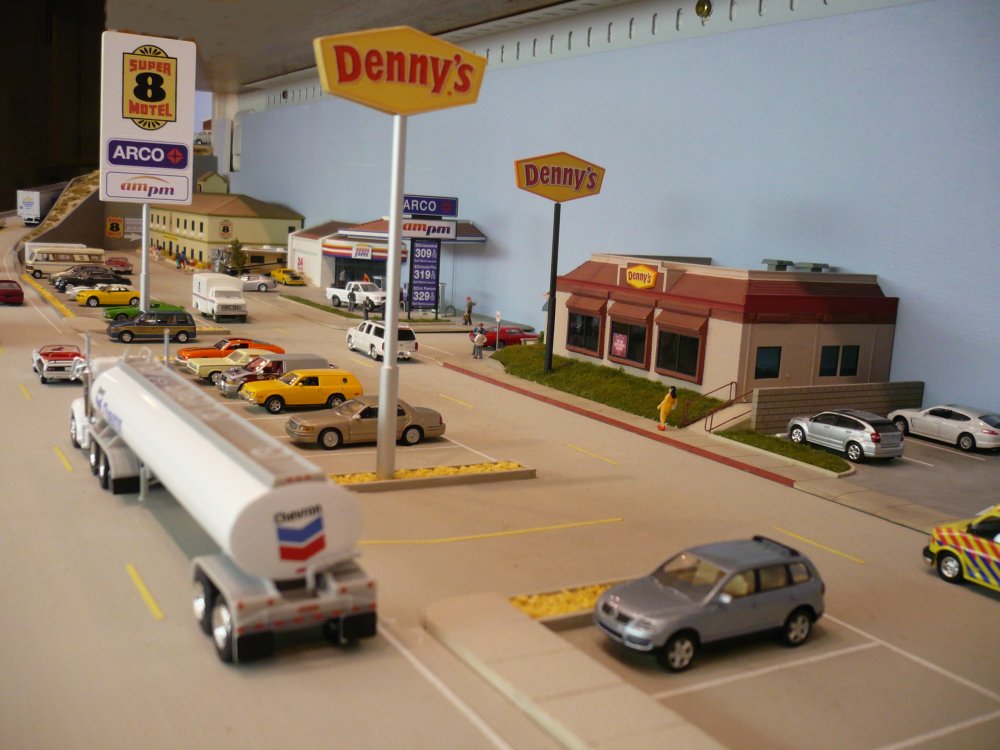

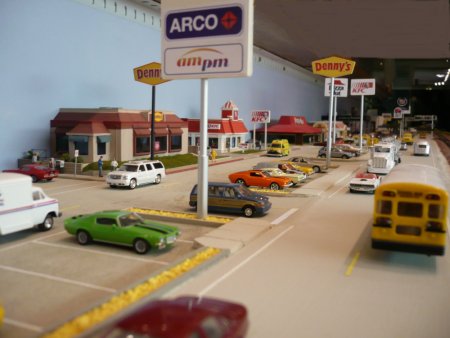

I made big signs along main street - 1128 looking West - 1129

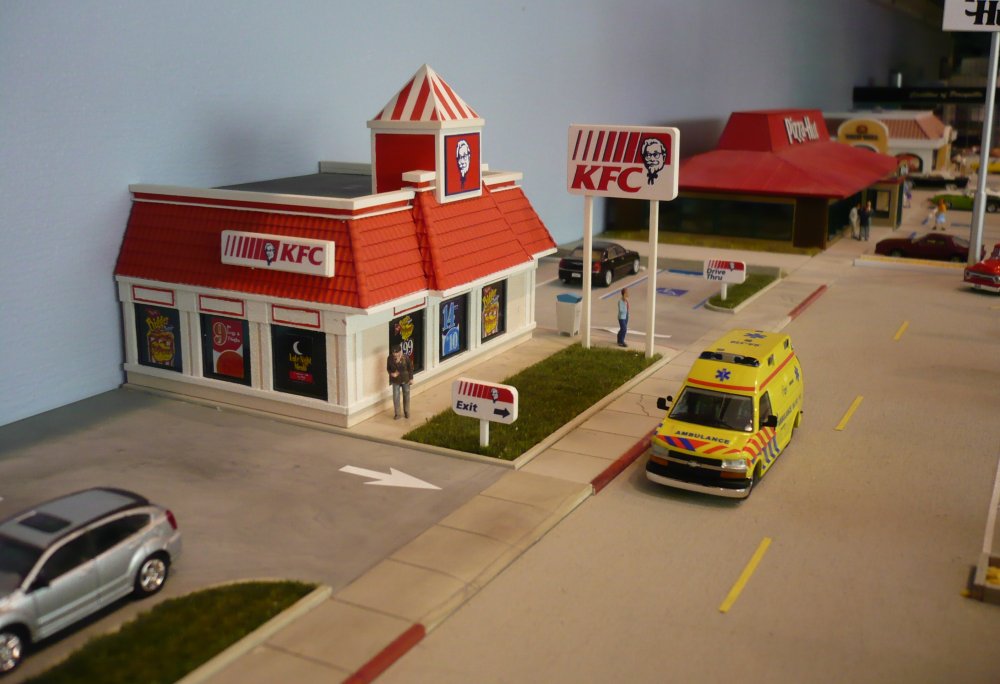

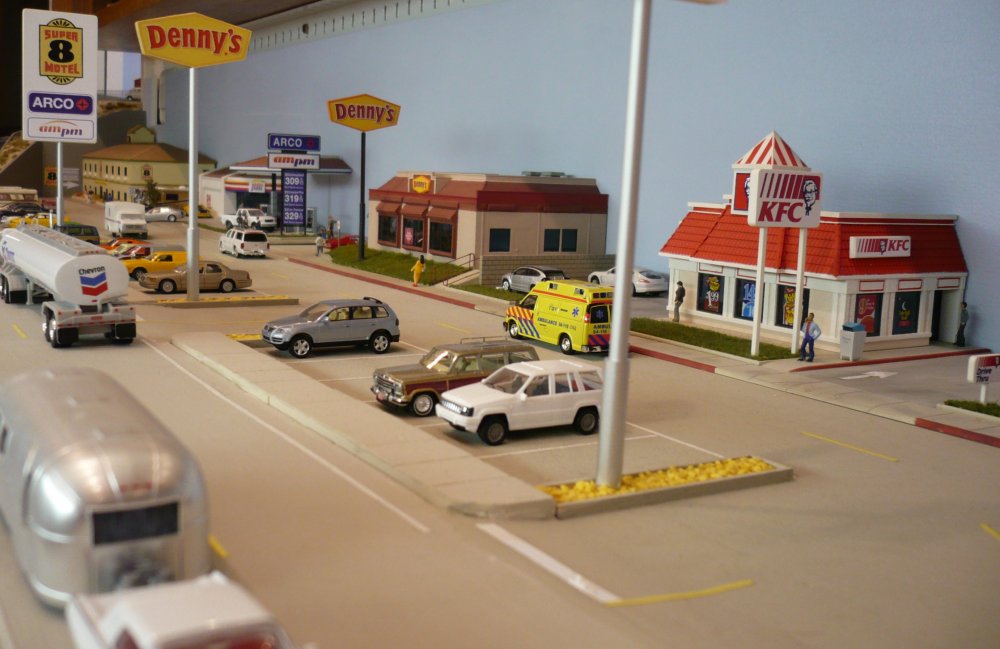

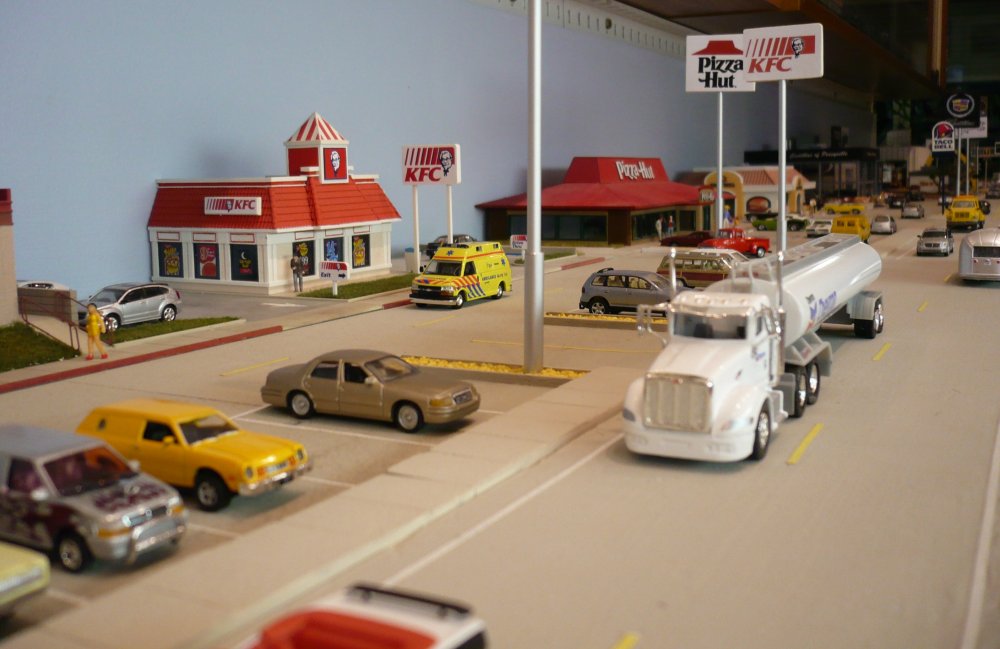

Denny's and KFC are next to each other like in Mojave, CA - 1130 this KFC is an exact replica like the one in Mojave, CA - 1131
I added markings of handicapped parking and arrows - 1132 excellent work of Pelle Soeeborg - 1133

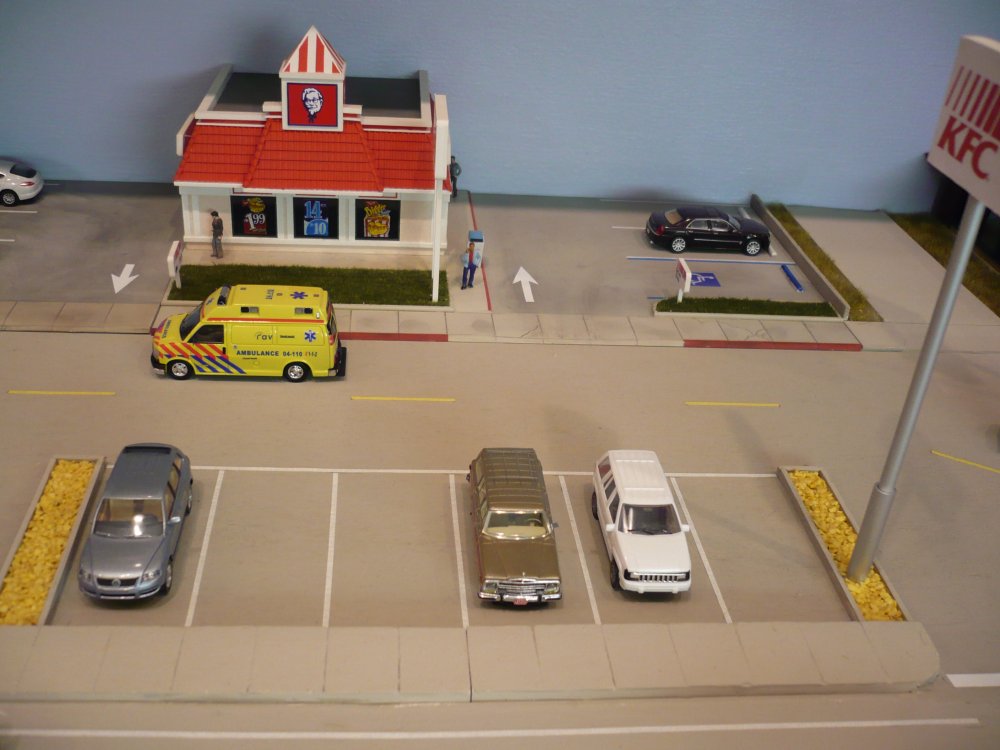

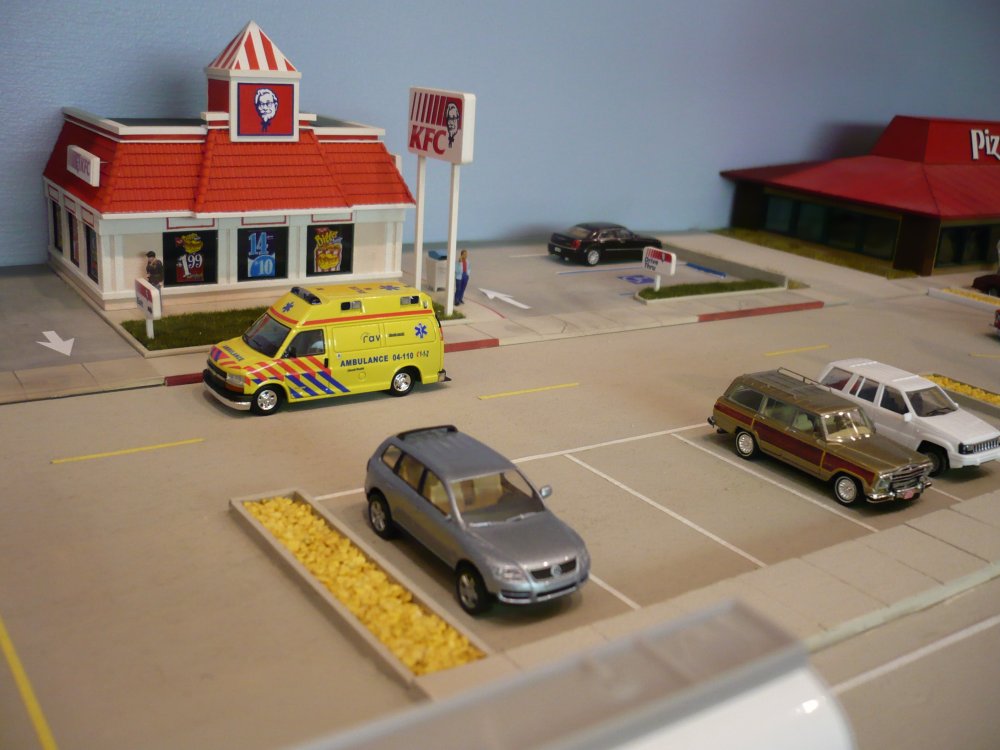

there are also parkings across KFC - 1134 proud to have the 3 buildings made by Pelle Soeeborg - 1135

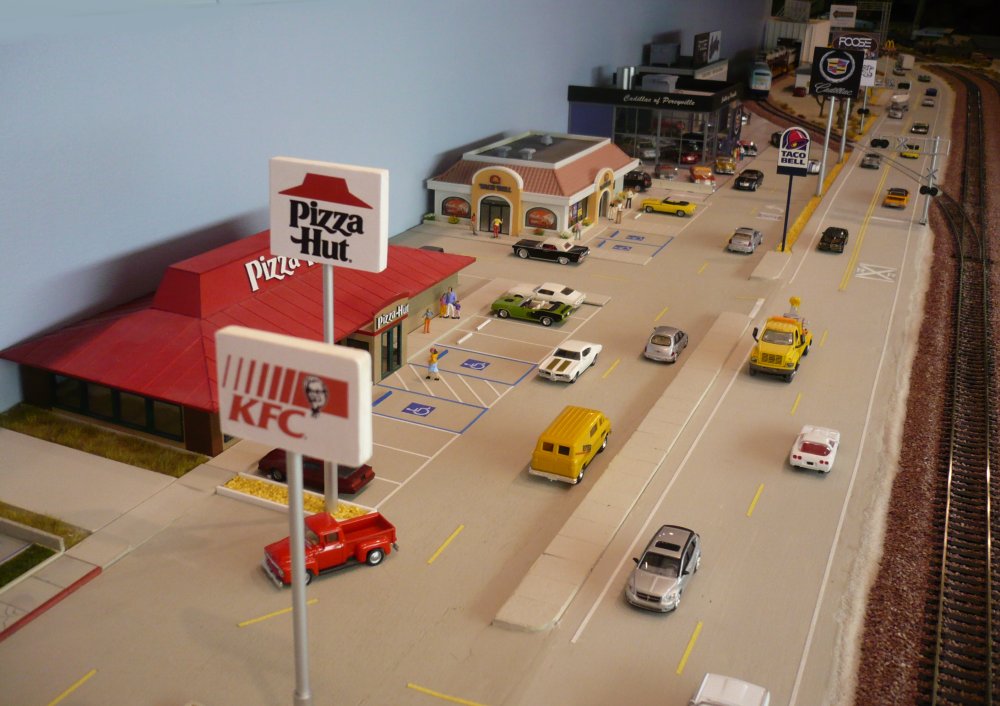

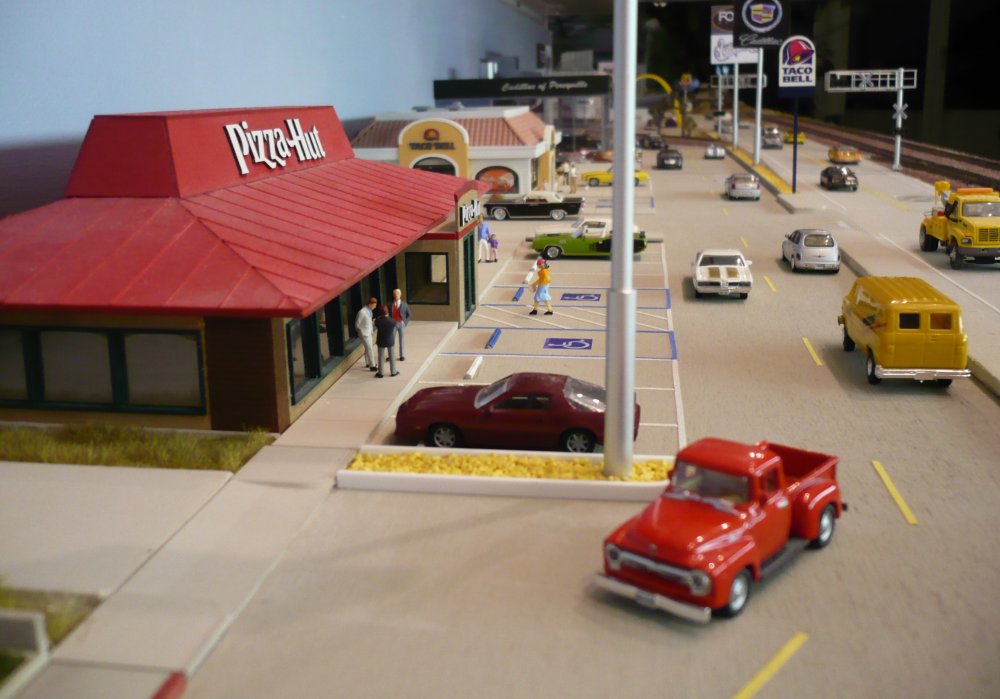

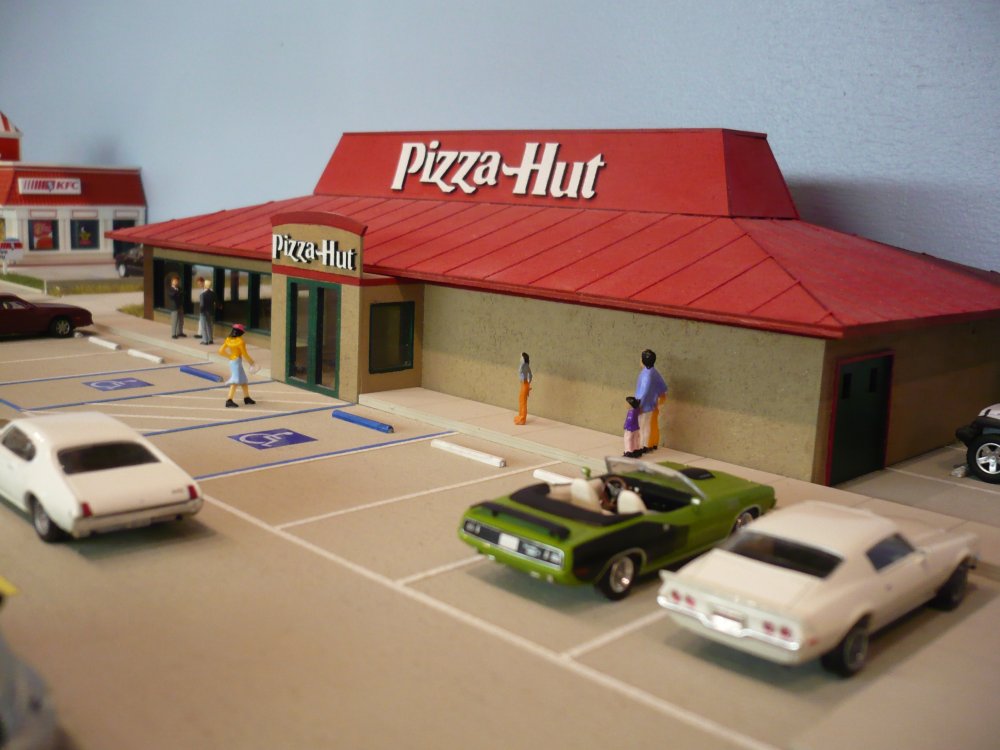

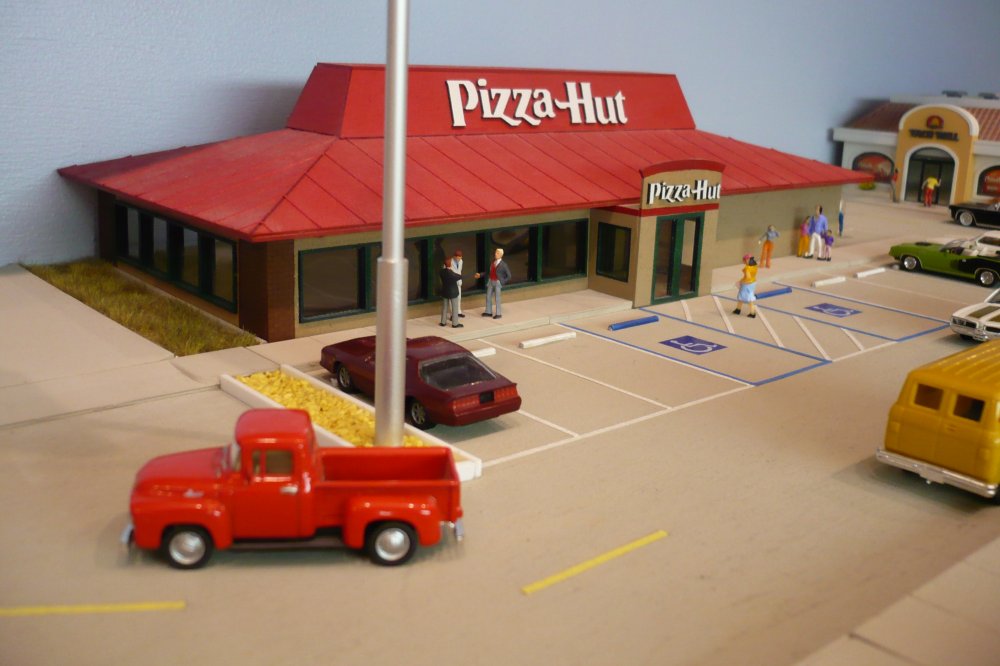

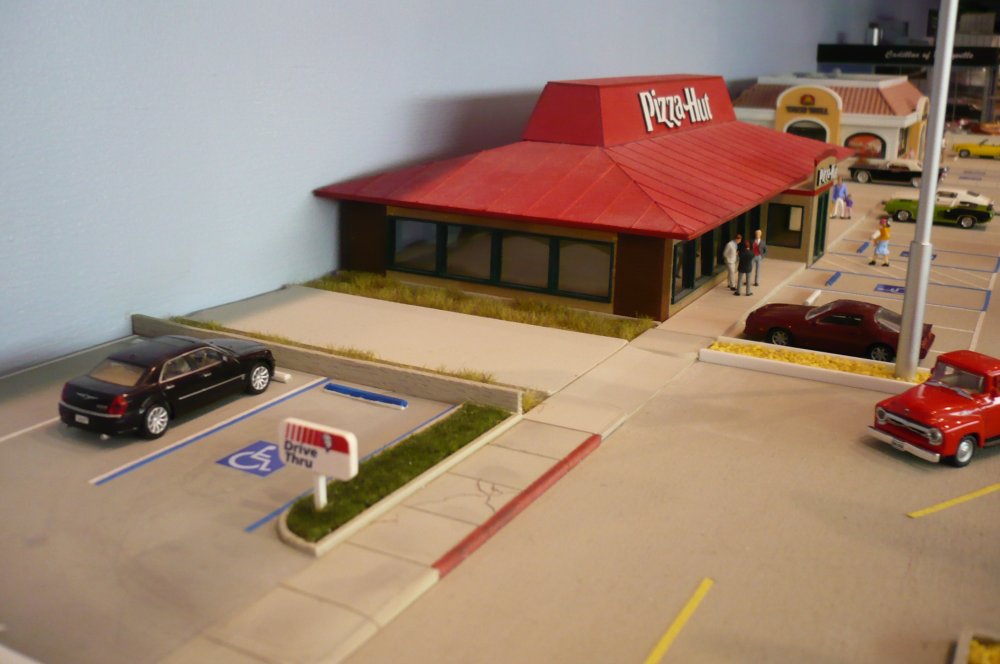

Pizza Hut made by Modellbahn-Atelier-Berlin - 1136 I am aware, there is no Pizza Hut located in Mojave, CA - 1137

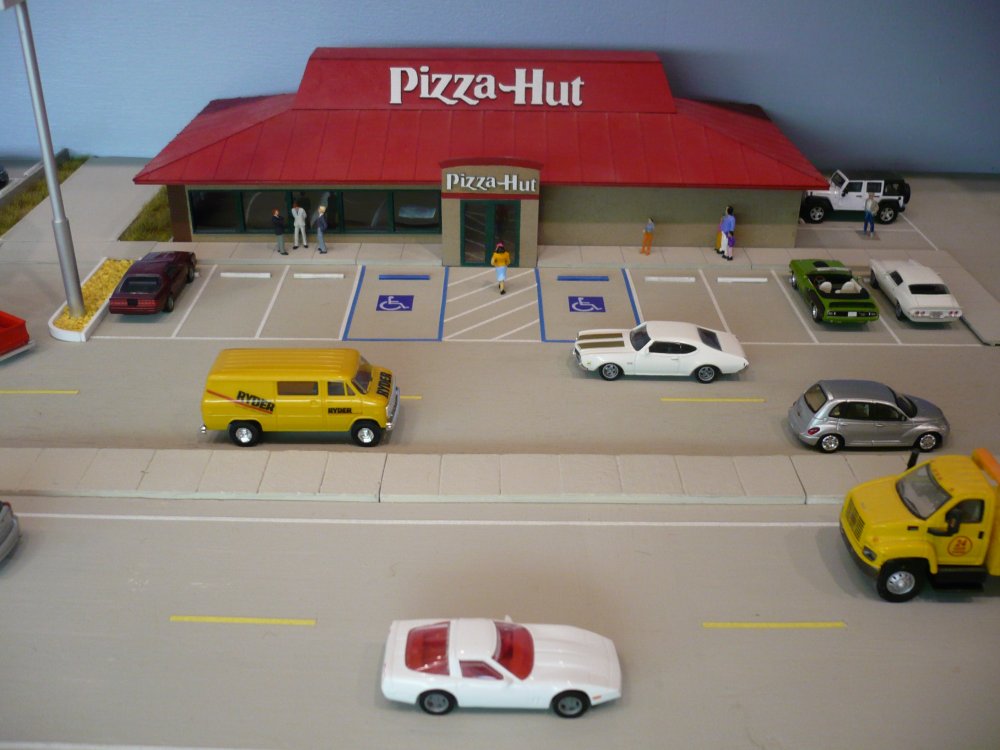

there are 2 handicapped parkings next to the entrance - 1138 - 1139

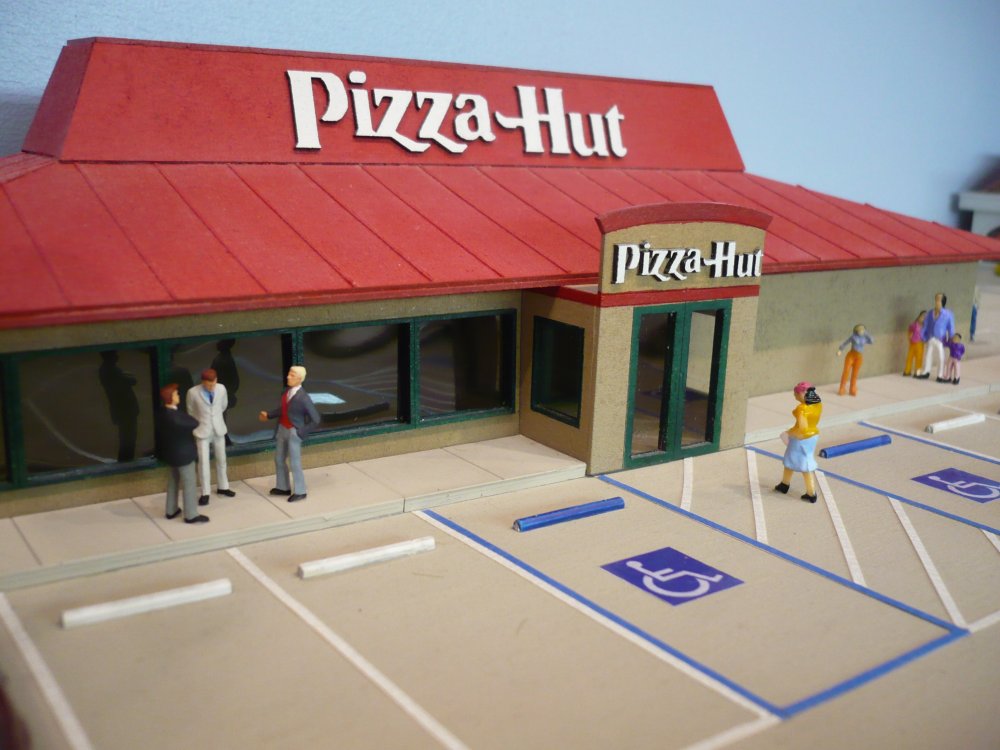

business men are talking together - 1140 - 1141
- 1142 - 1143

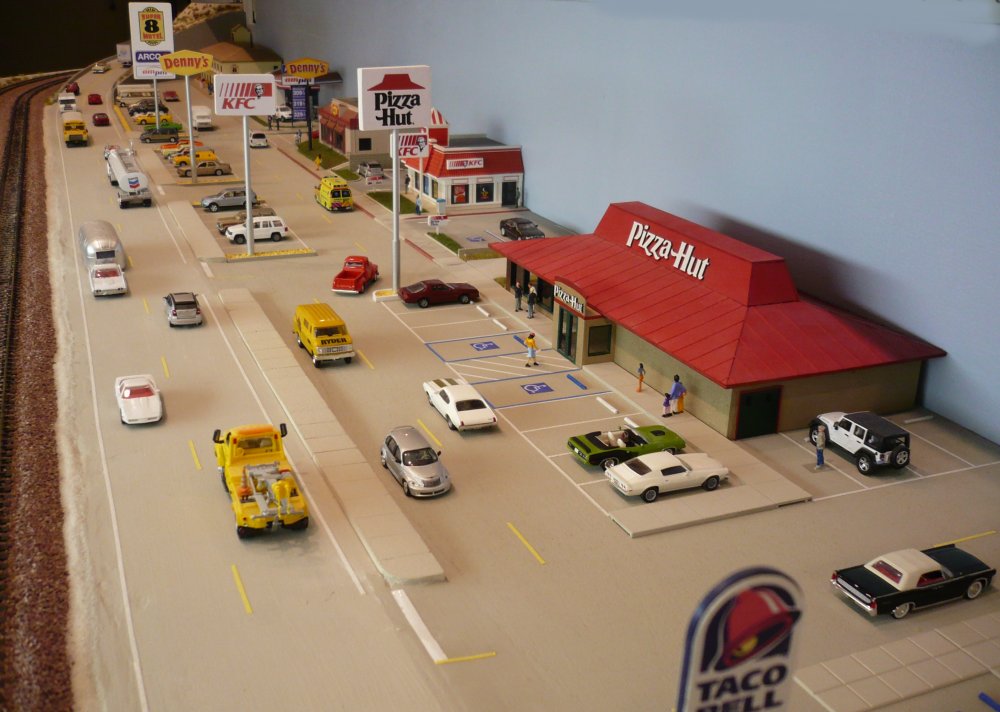

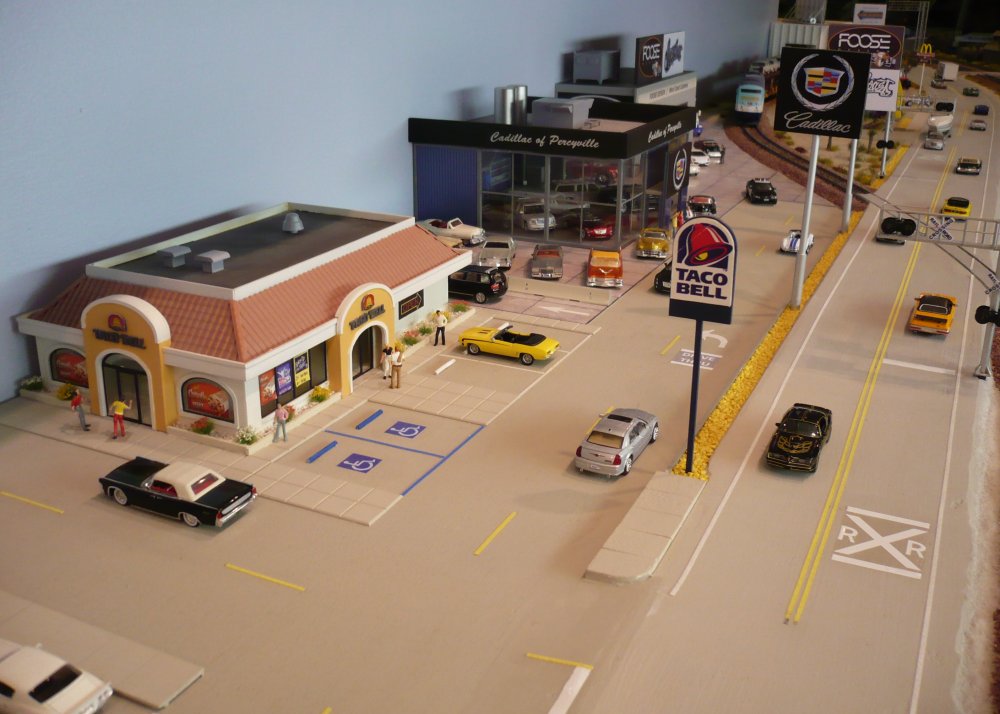

looking to the East - 1144 looking to the West - 1145

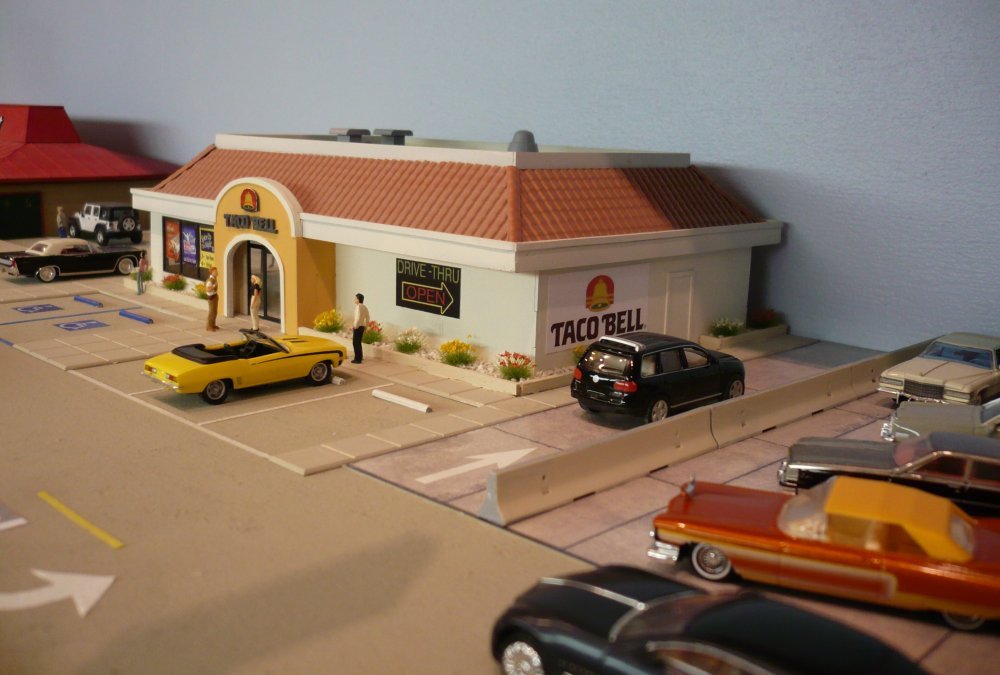

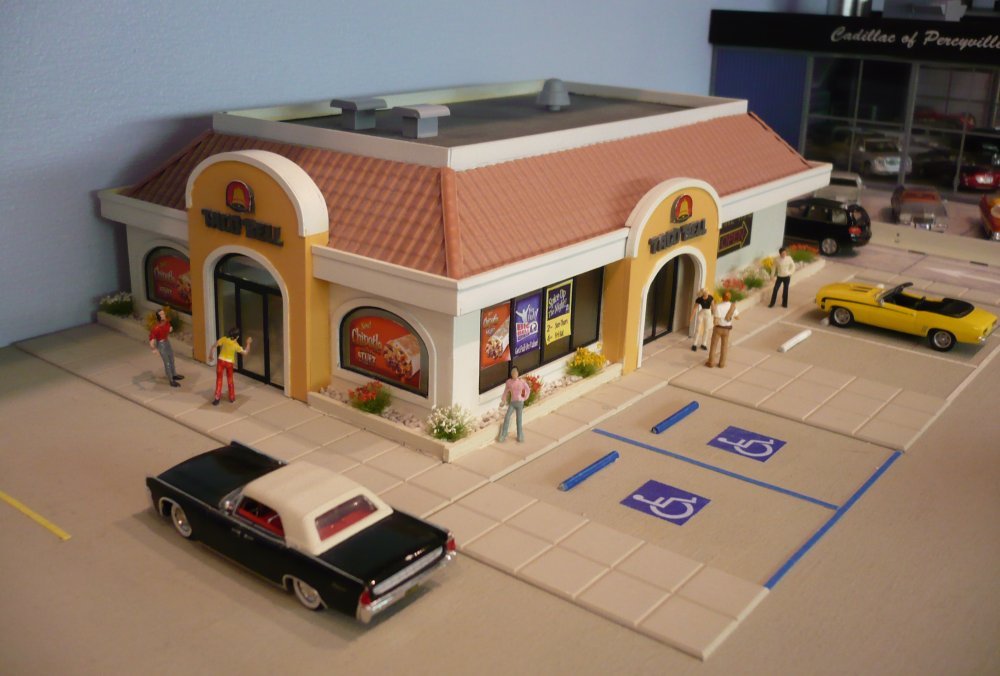

entrance for drive thru next to the Cadillac dealer - 1146 Taco Bell kit made by Summit USA - 1147
- 1148 - 1149

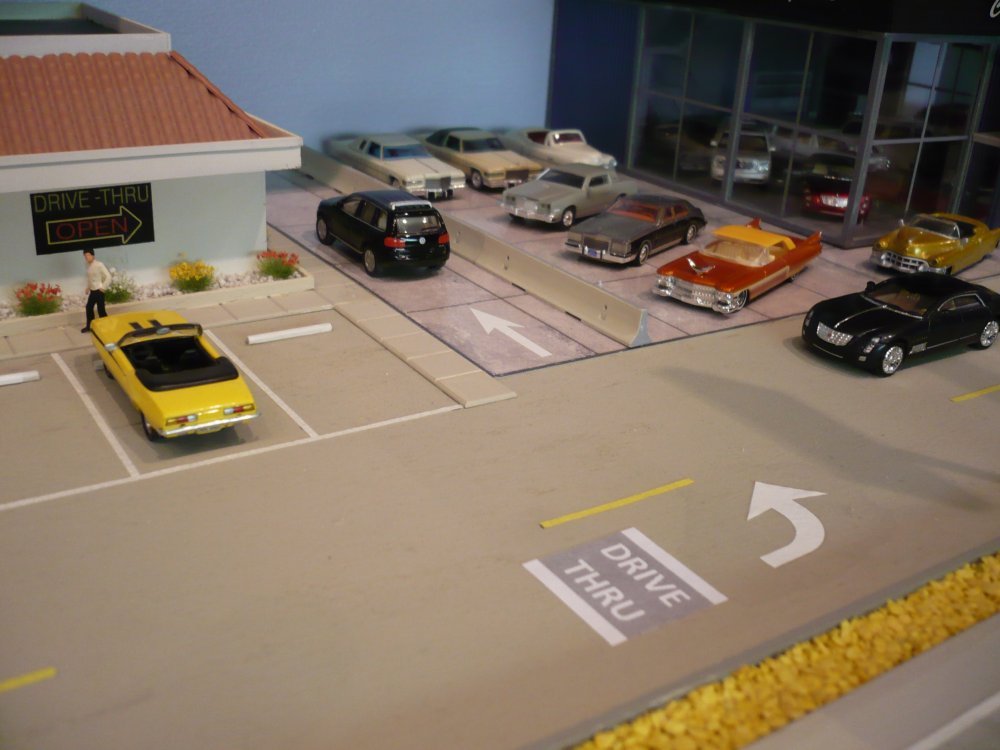

- 1150 Drive Thru entrance is marked on the service road - 1151

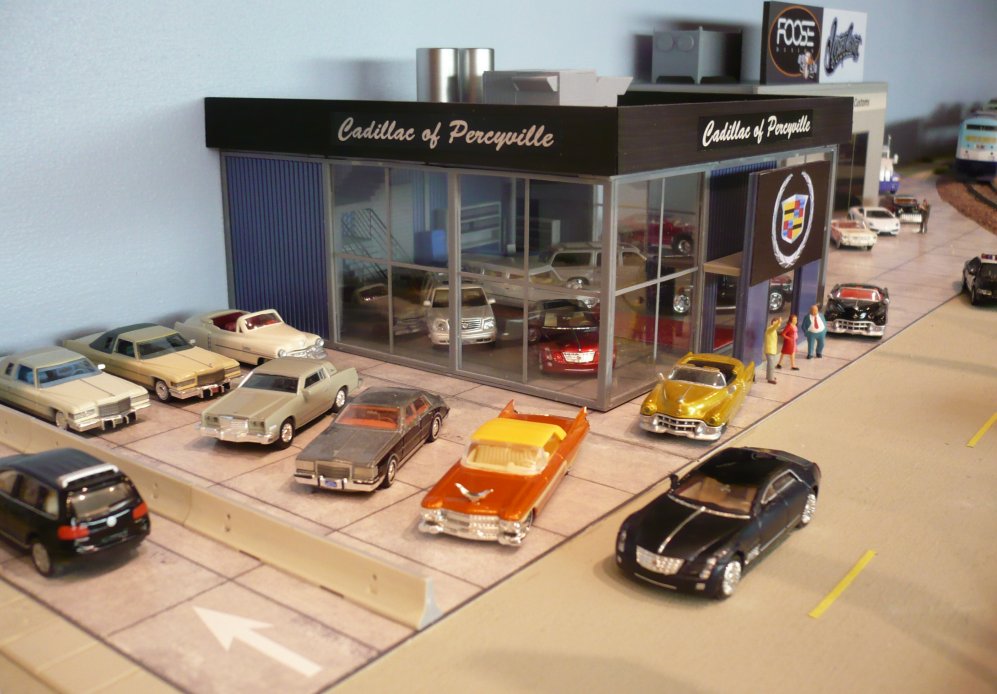

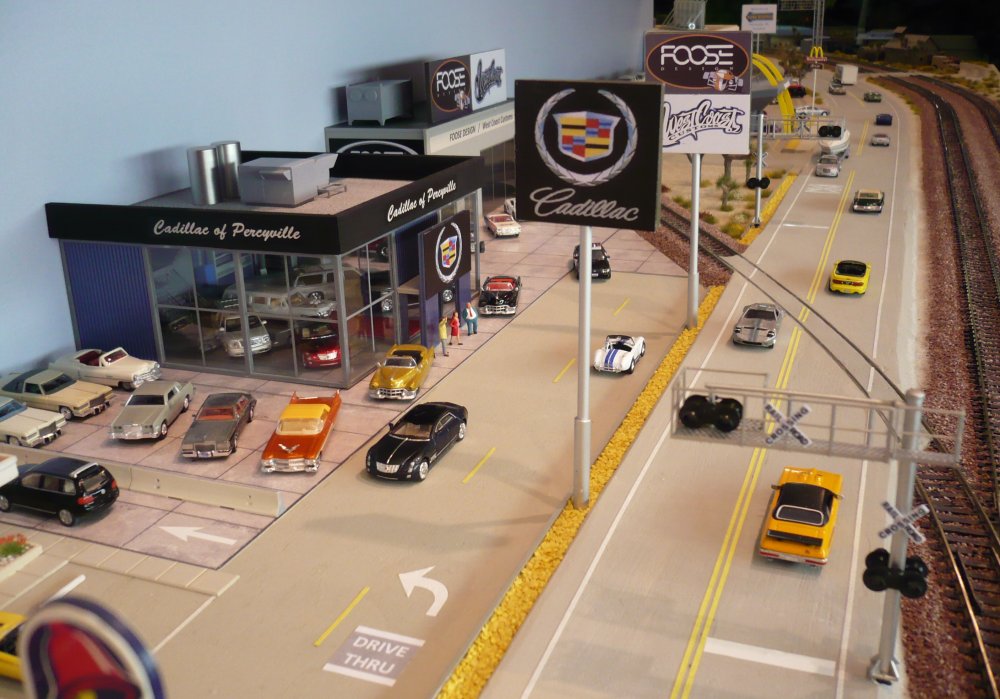

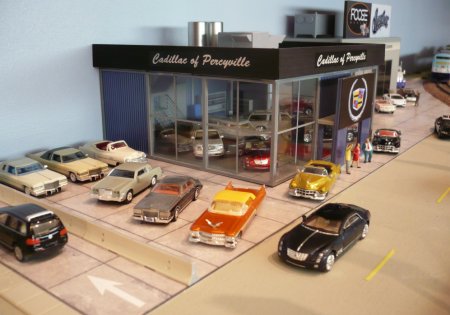

- 1152 Cadillac of Percyville has even a Cadillac Sixteen - 1153
the basic building is a kit from Faller (Car Center) - 1154 but I used only part of it and modified the roof - 1155

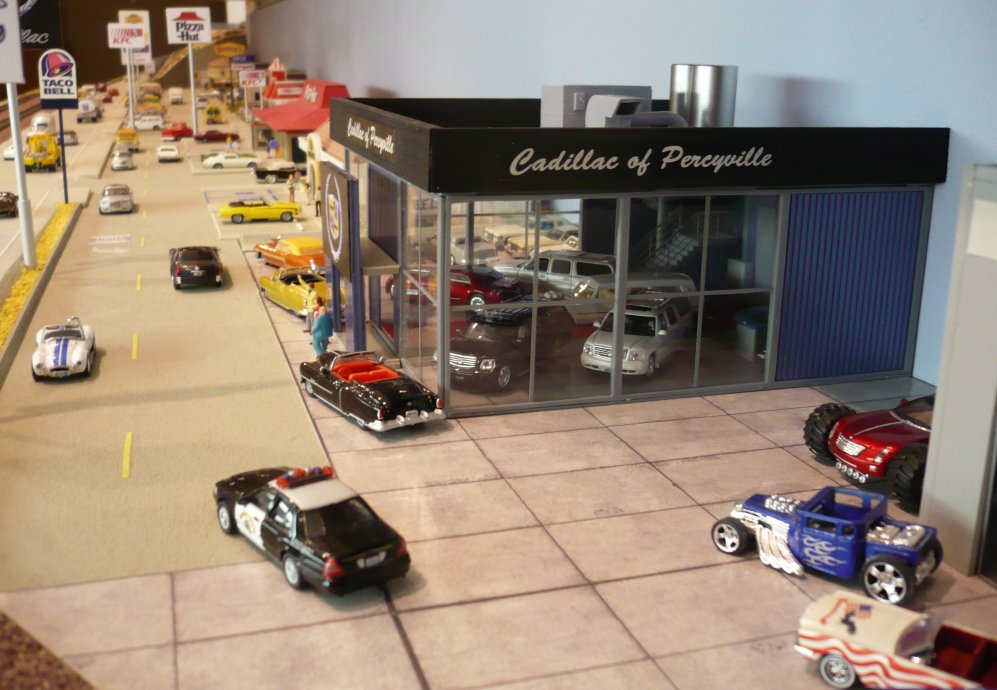

- 1156 inside are new Escalades and Sixteens - 1157

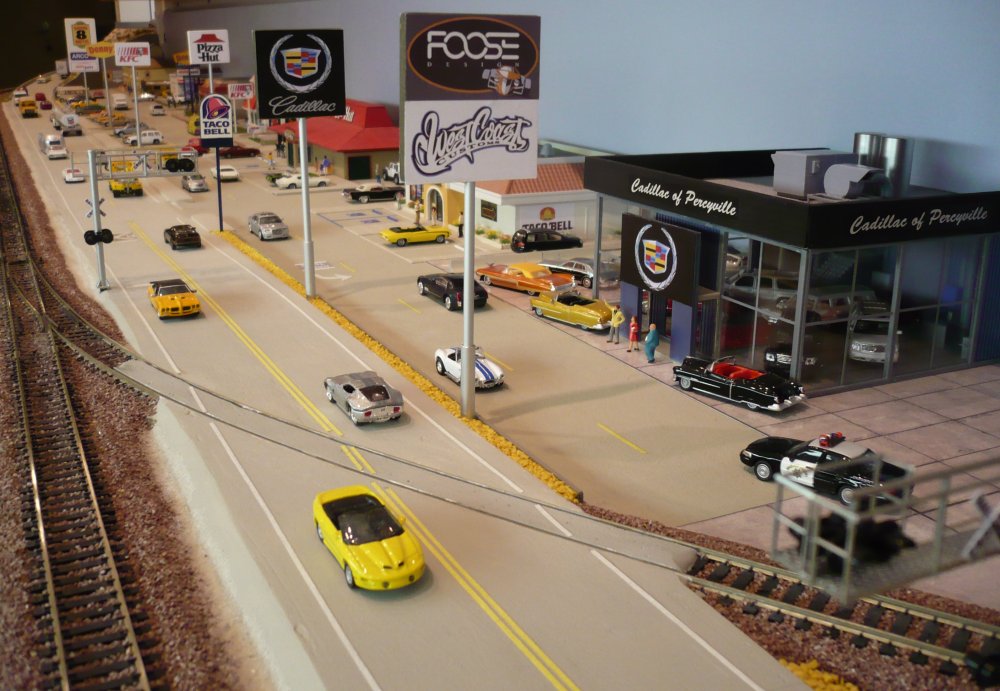

- 1158 Foose/WCC building was shortend to fit tight space - 1159
Only on my layout in the City of Percyville, two famous car designers found their home under one roof. We sure respect their copyrights, see below.
concrete floor sheets (Beton Platten) made by Busch - 1160 - 1161
Foose Design Logo copyright by Chip Foose (first class car designer) Huntington Beach, CA - Website: http://www.chipfoose.com
West Coast Customs Logo copyright by WCC (Ryan Friedlinghaus), Corona, CA - Website:
http://www.westcoastcustoms.com

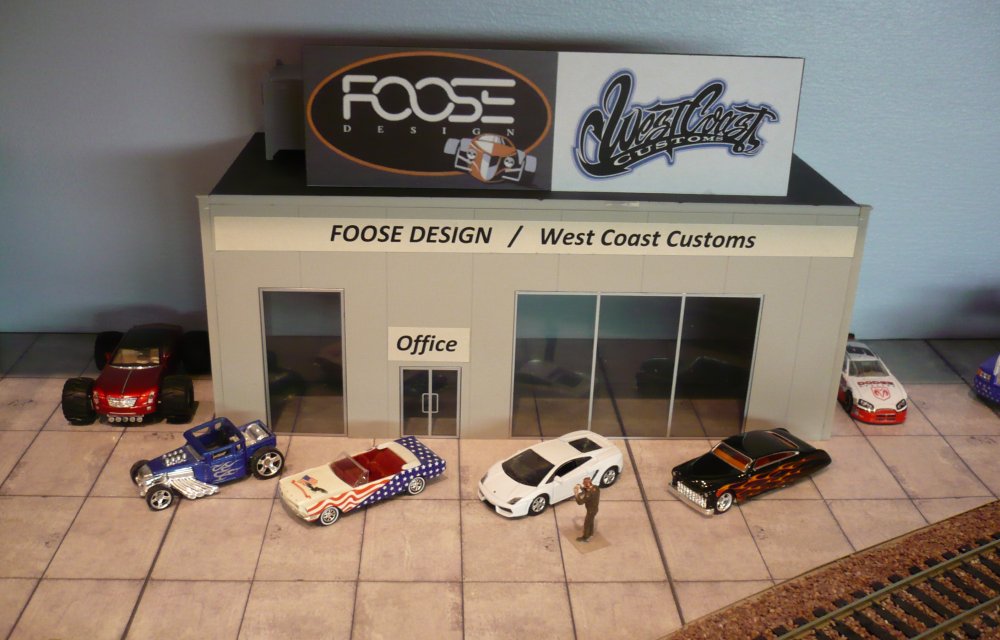

2 car designers under one roof - 1162 this building is a kit made by Promotex - 1163

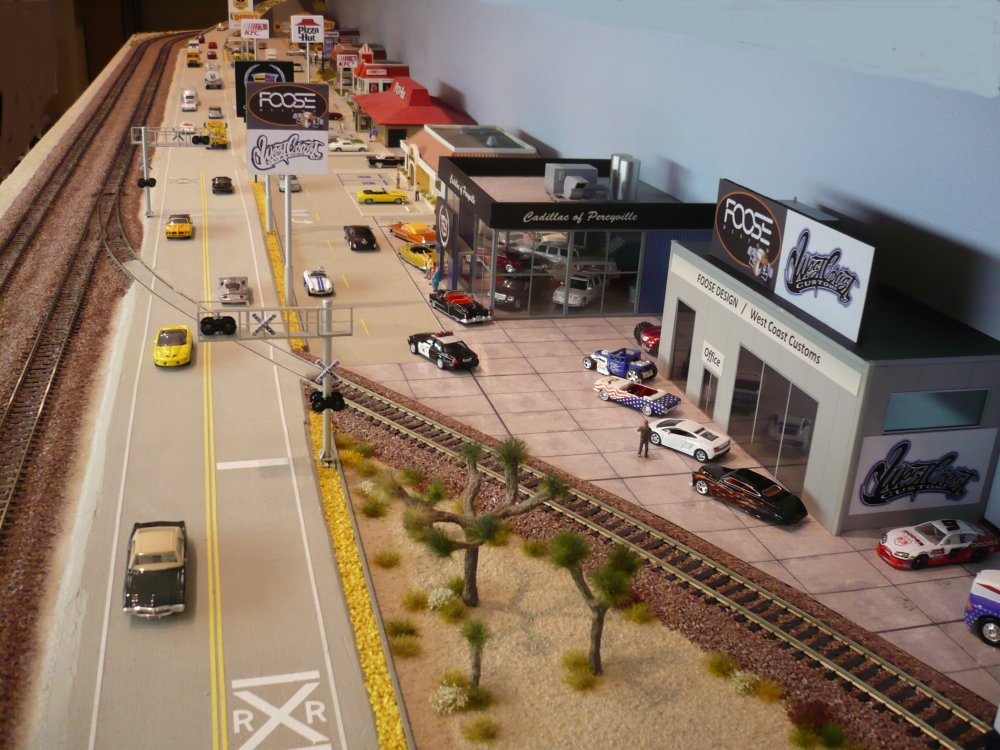

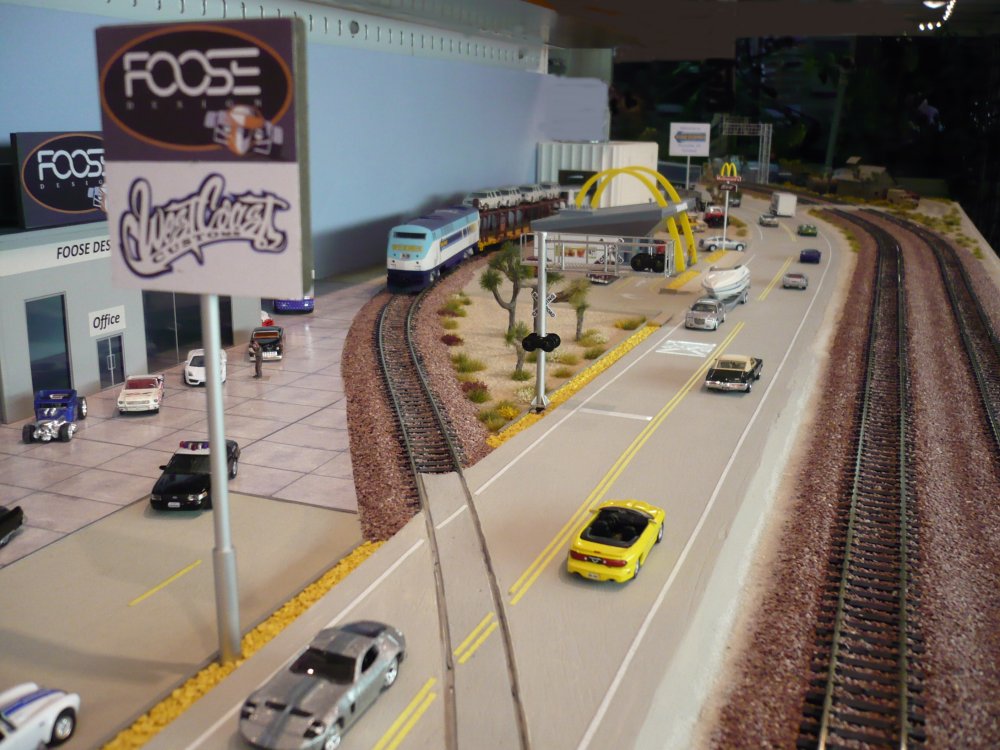

looking toward East - 1164 looking toward West - 1165

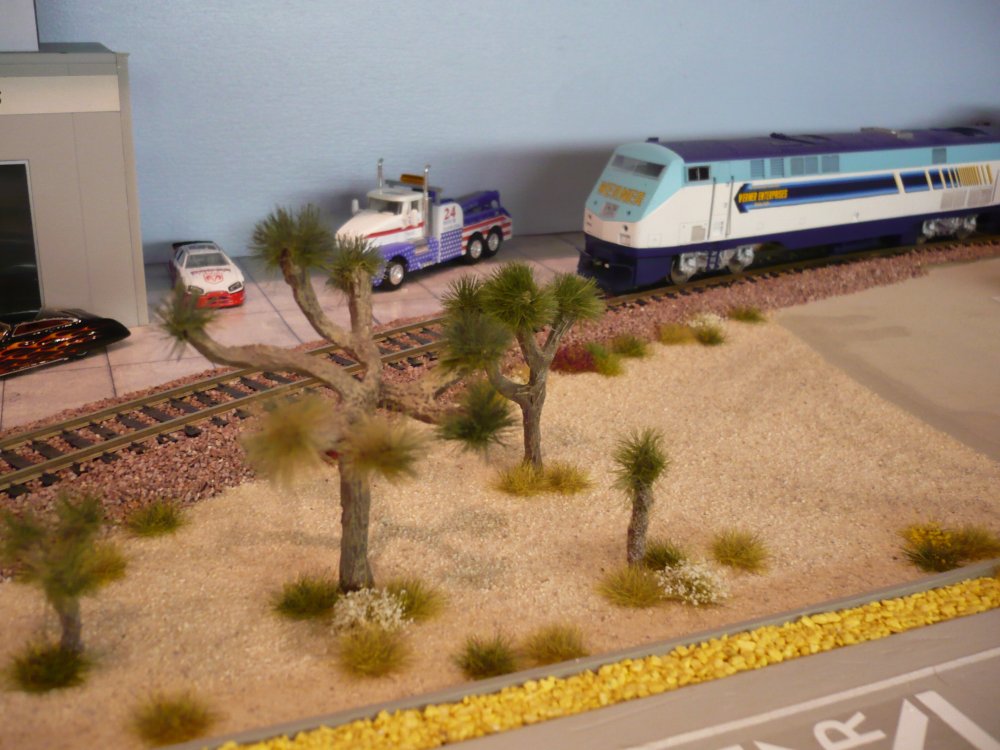

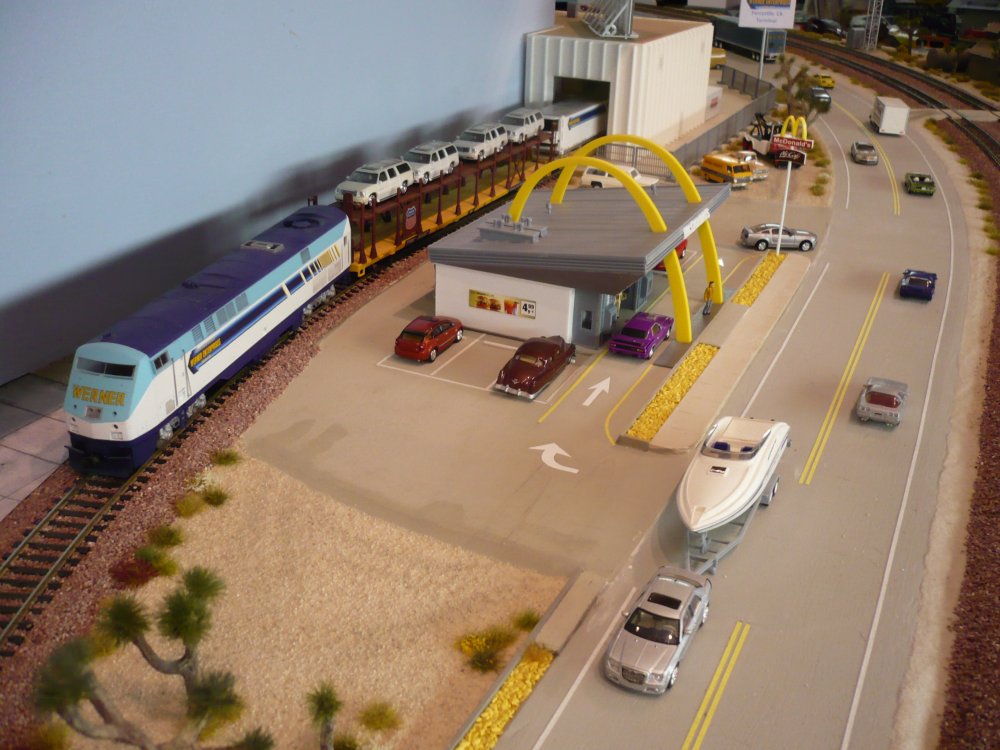

- 1166 WE has its own diesel loco - 1167

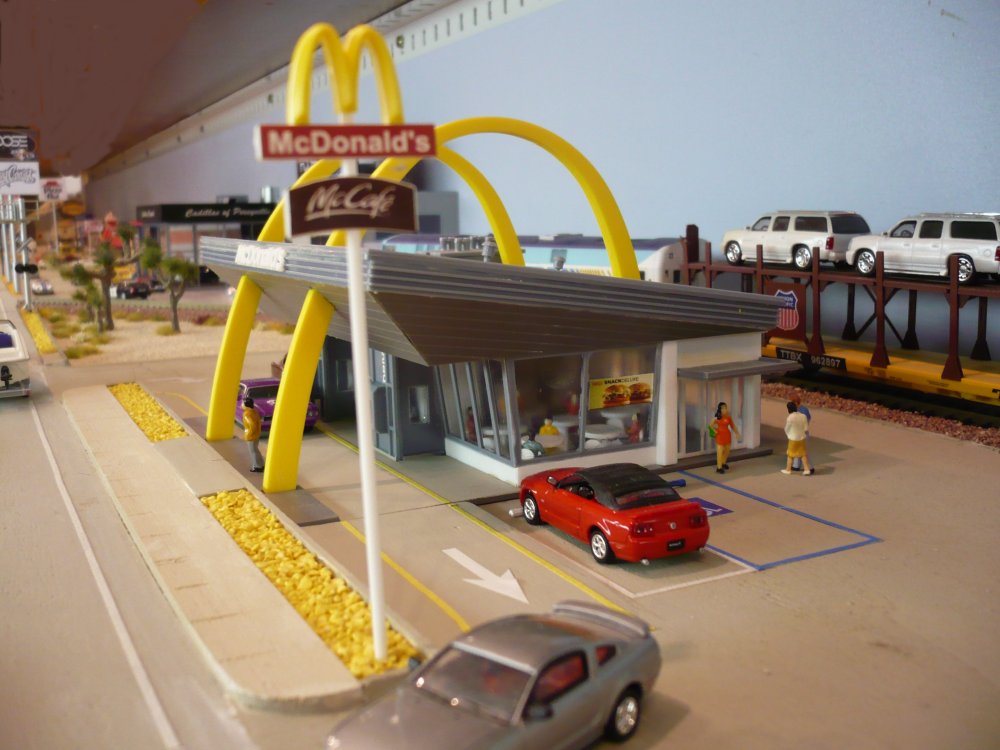

famous McDonald's Arc w/Drive Thru - 1168 MacDo has full interior - 1169
Why yellow gravel along main street and parking lots? It all started when McDonald's came to Percyville. They wanted their corporate identity with the yellow MacDo Arcs of the building. Therefore, they asked the City if yellow gravel could be used between main street and their drive thru. As it was looking attractive around the desert soil and the gray street, the City of Percyville decided to add the yellow gravel along main street and the parking lots for better visibility.

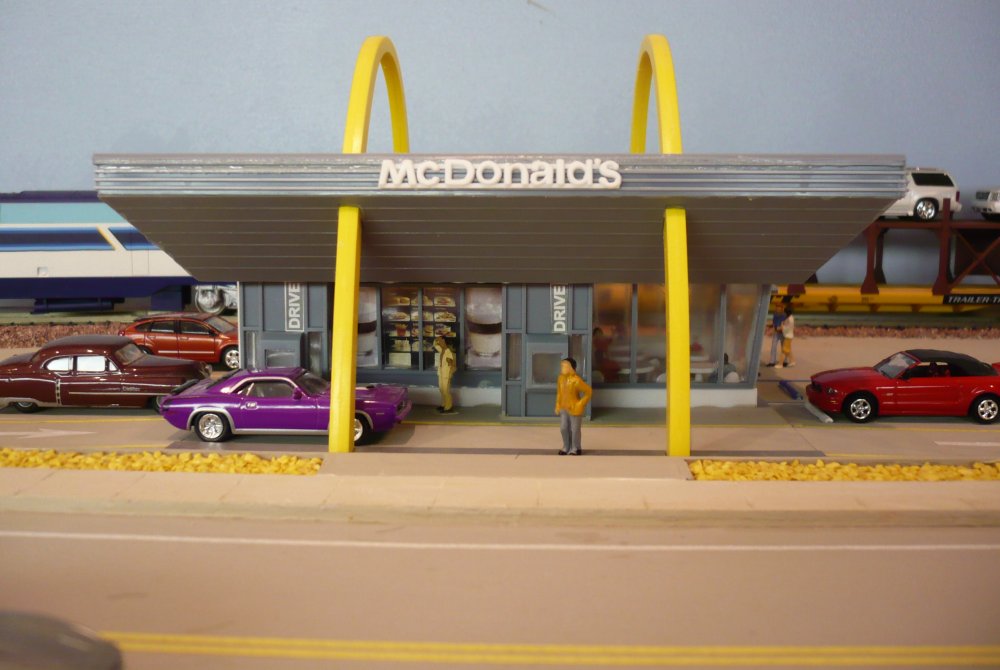

- 1170 - 1171

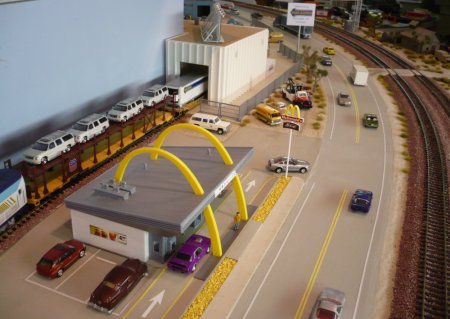

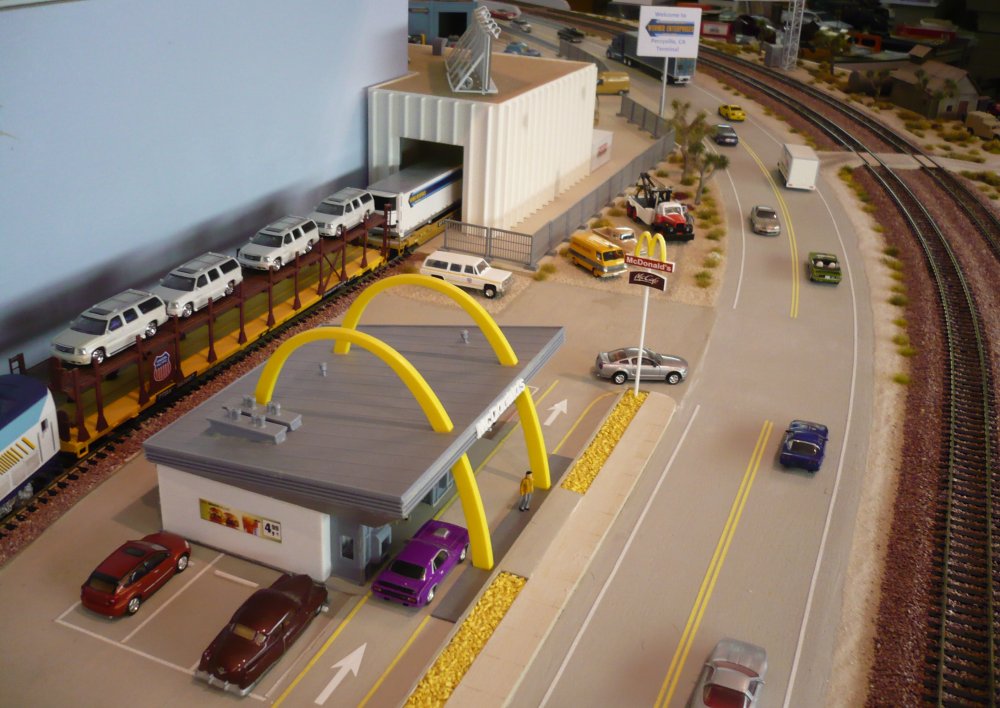

- 1172 the whole City of Percyville is 6 m (18 feet) long - 1173

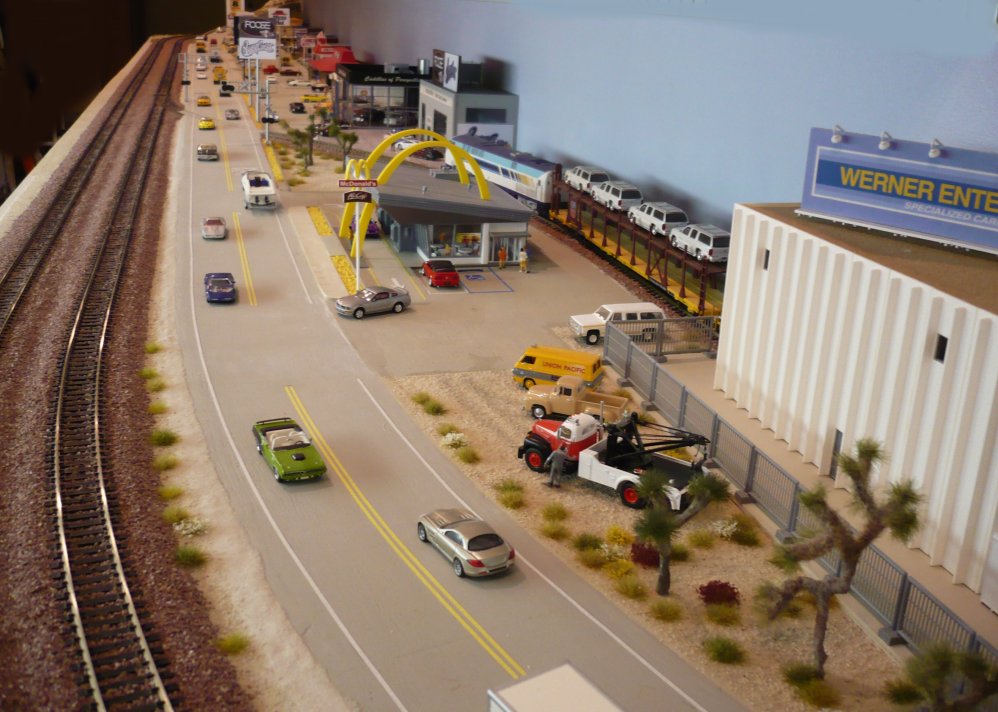

width from wall to front is 60 cm (23 1/2 inch) - 1174 looking East from the Westend - 1175



C) We finally reached the Westend of Percyville. Here is the Werner Enterprises Percyville, CA Terminal located.
Why is there a Werner Enterprises Terminal on this layout? Very simple, my first name is "Werner" and so, Werner Enterprises Trucking Co. is the best match for me !! Werner Enterprises was founded by Clarence L. Werner back in 1956. With 7'200 Trucks (Tractors), 25'000 Trailers and 14'000 employees, WE is one of the five largest truck carriers in the U.S. WE is using the railroads for TOFC service, which can be seen over Cajon Pass as well.
Direct link to Werner Enterprises:
click here
There is a WE Terminal in Fontana, CA which I was able to visit with Melinda in June 2010 and again in June 2011. Here are photos of both visits and WE Trailers on rails and WE Trucks on the road: http://www.trainmaster.ch/XC-20.htm
No question, it was a must for me to build a WE Terminal in 1:87 (HO) scale on my layout.

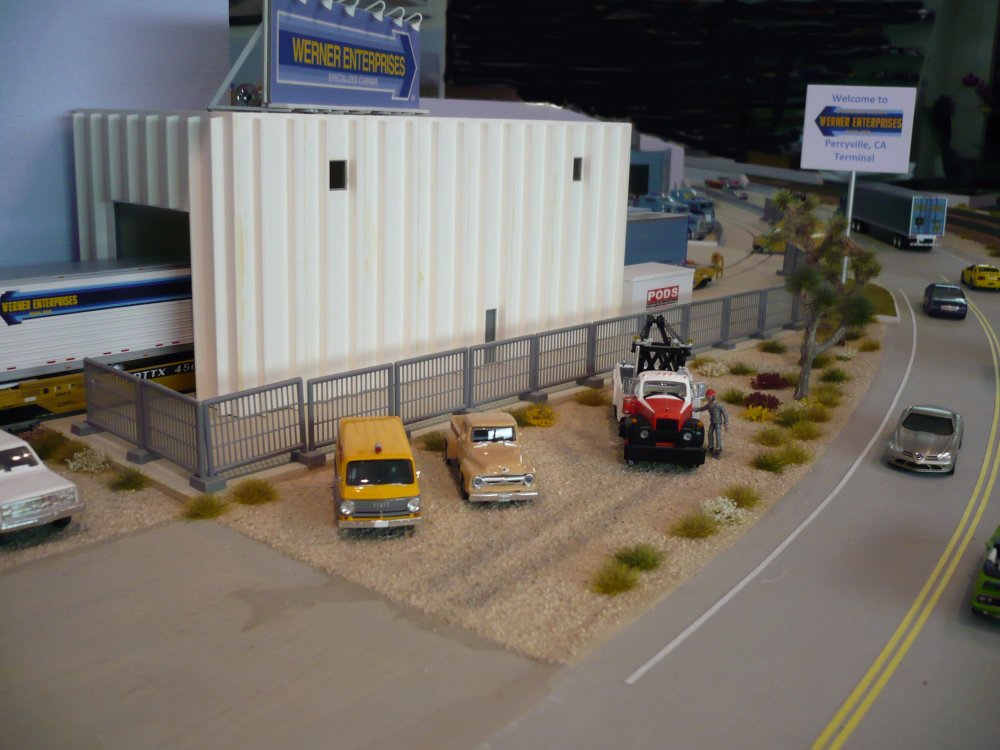

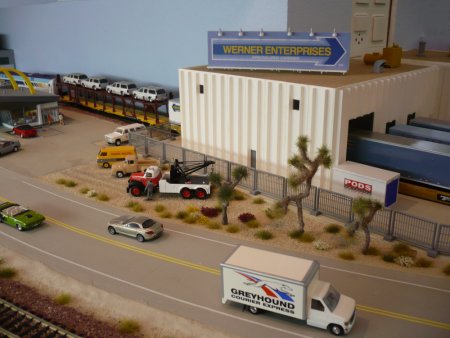

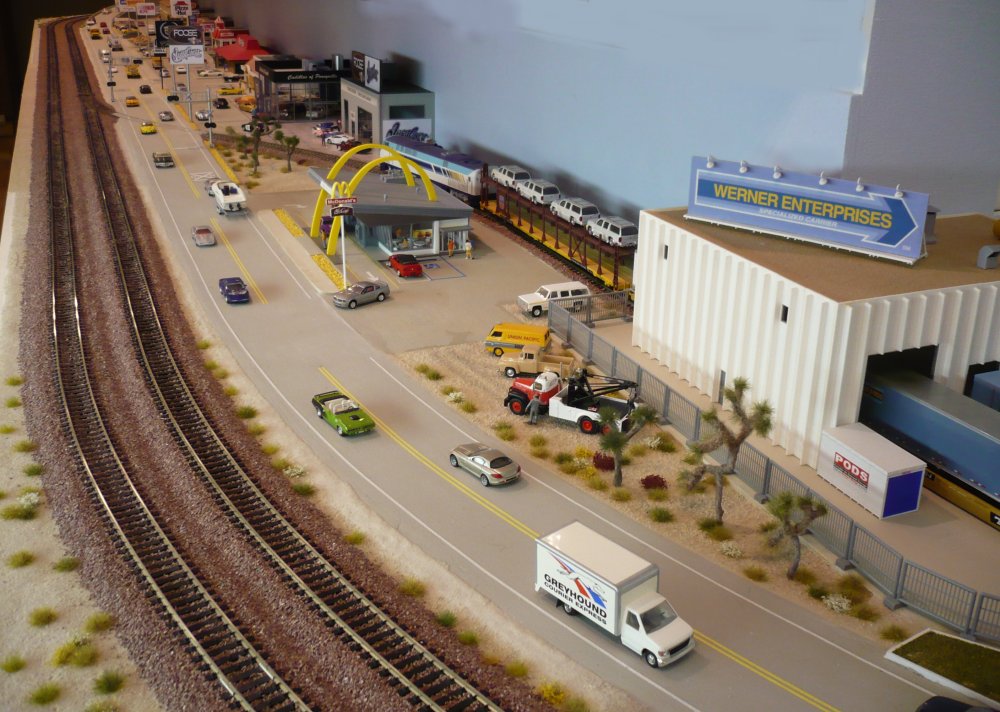

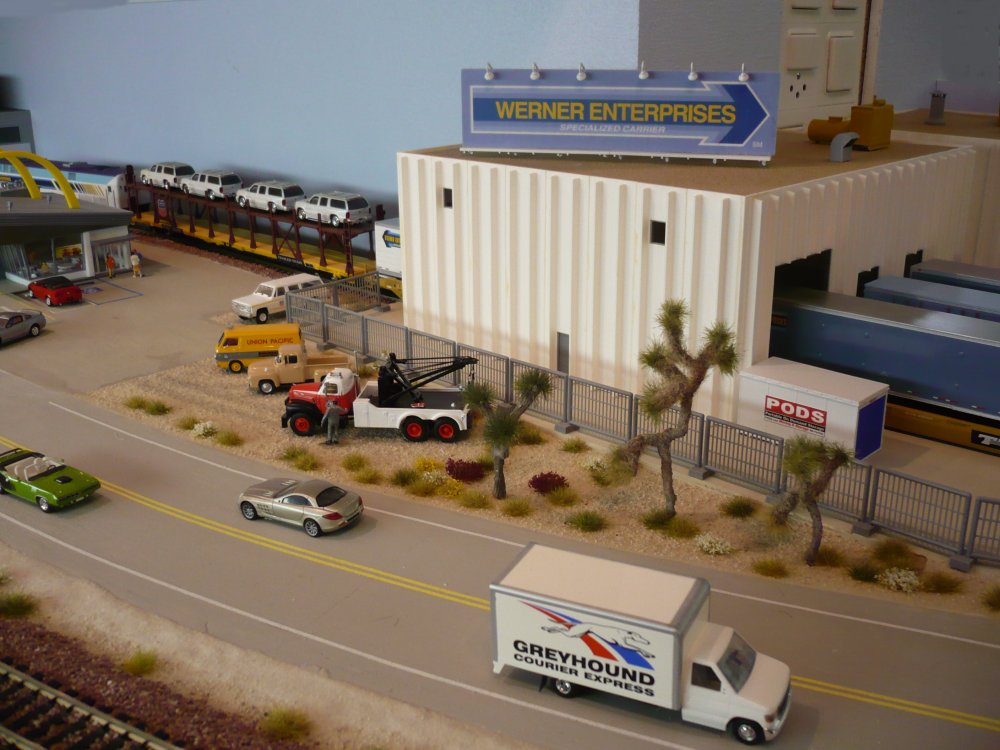

in the Mojave Desert are Joshua Trees - 1176 this Great West Models kit was modified - 1177

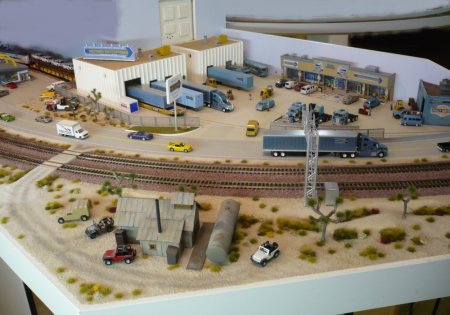

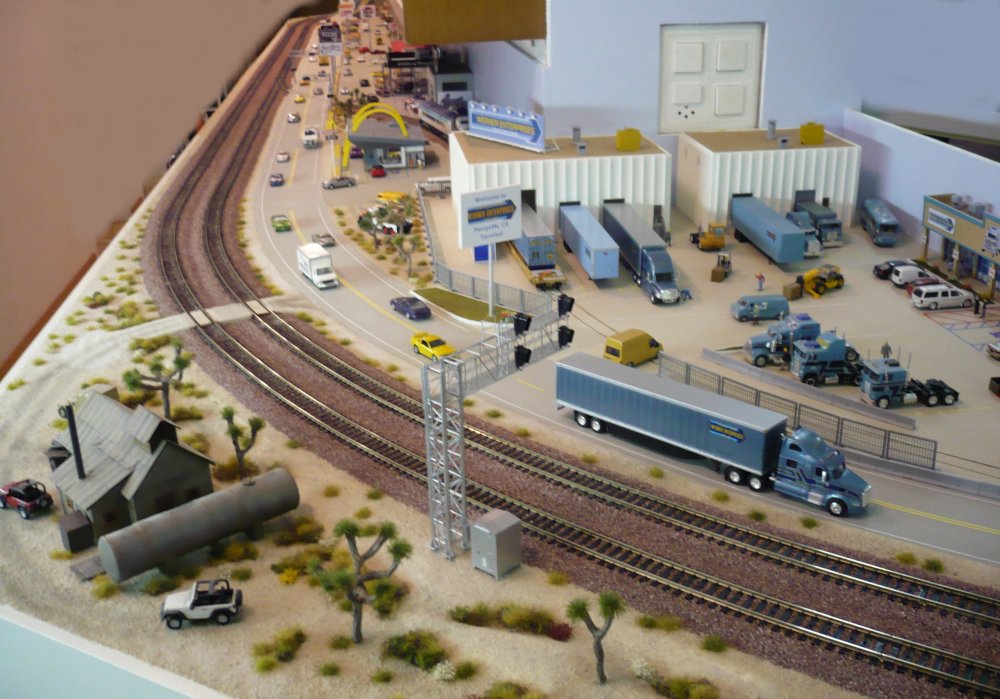

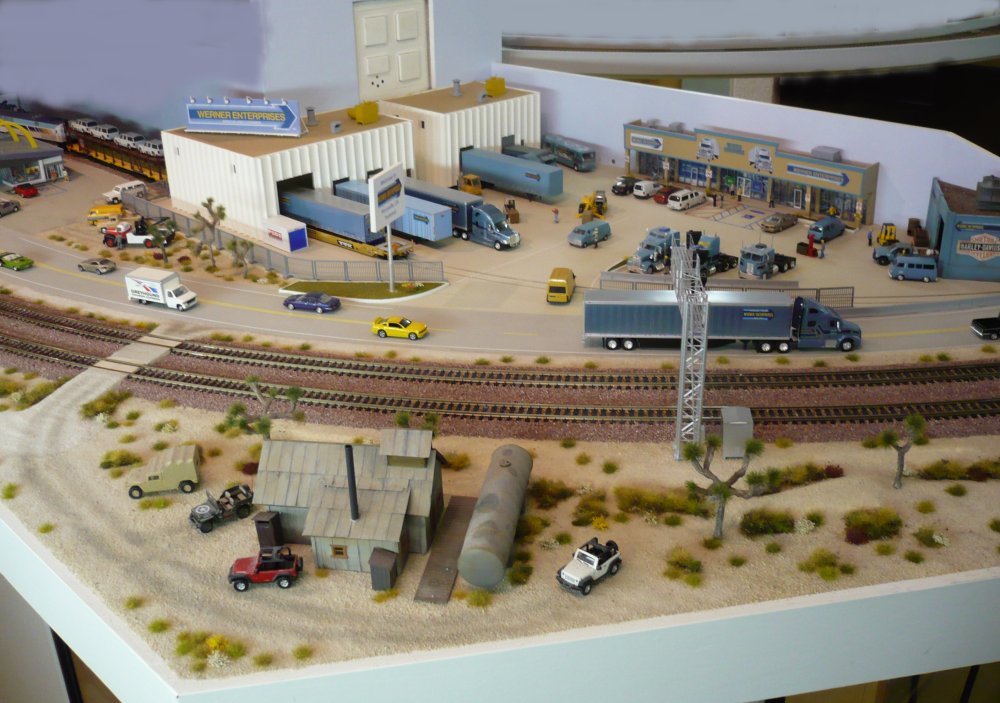

- 1178 - 1179

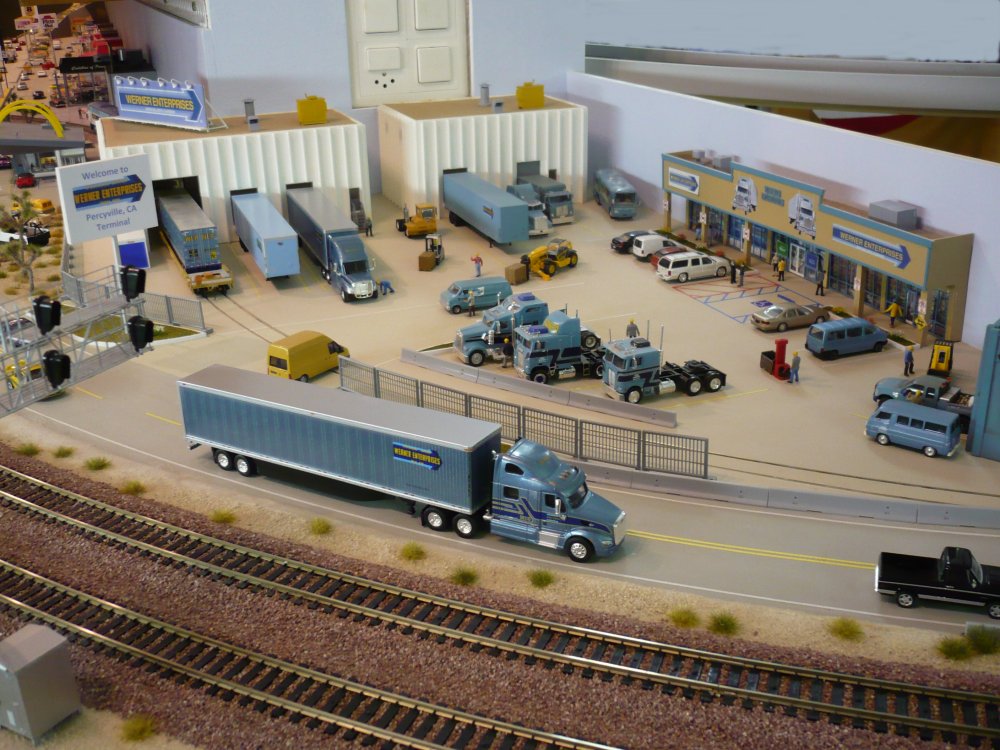

- 1180 WE Truck/Trailer made by Tonkin for WE - 1181

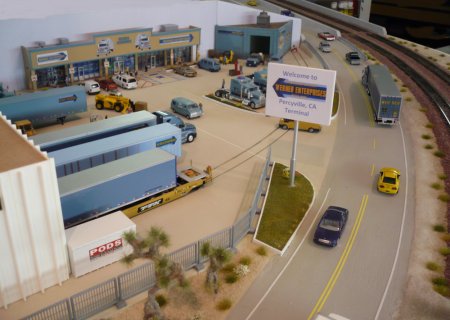

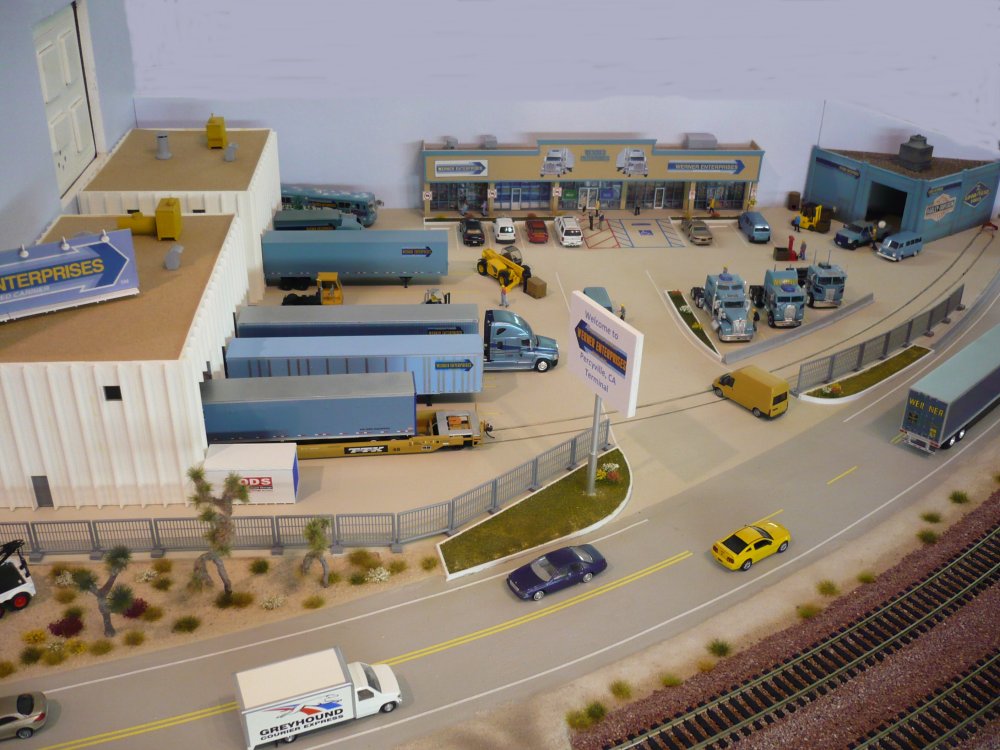

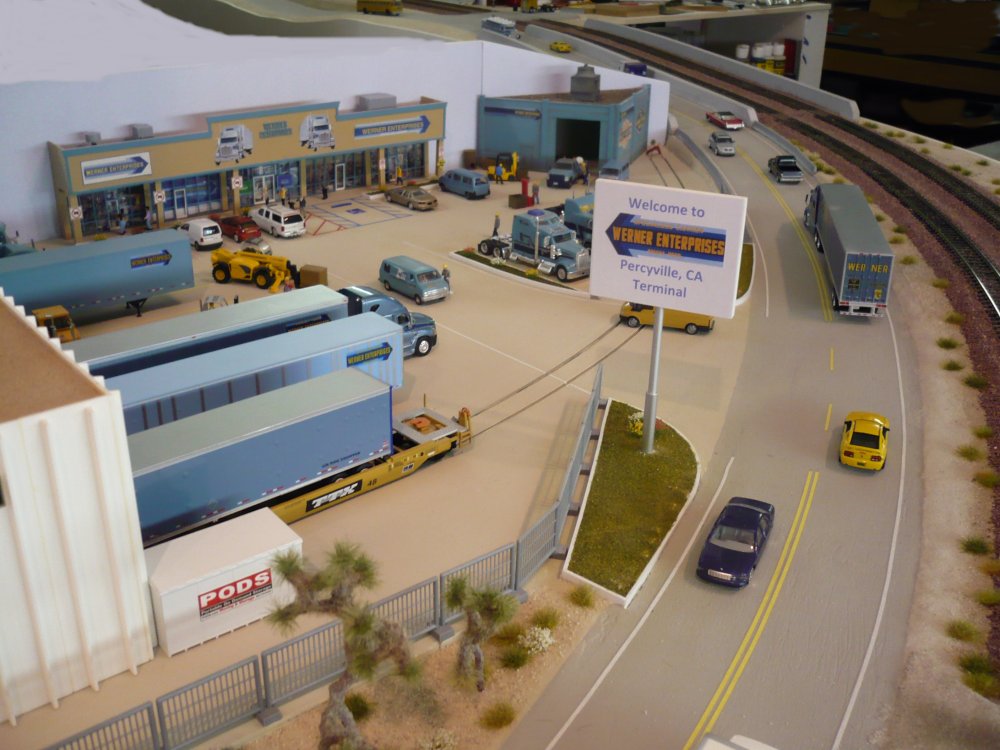

WE trailers made by Athearn and Bowser - 1182 - 1183
the WE sign was created similar to the Fontana, CA Terminal - 1184 - 1185

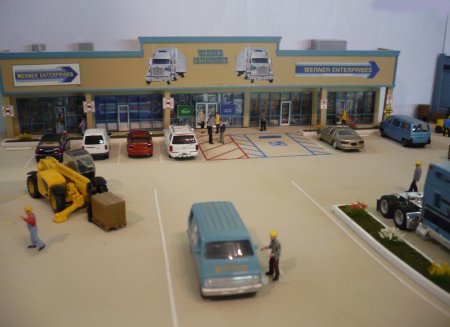

- 1186 Werner Van made by Pitsch Allneider - 1187
WE Office building made by Pitsch Allneider - 1188 also WE got a handicapped parking - 1189

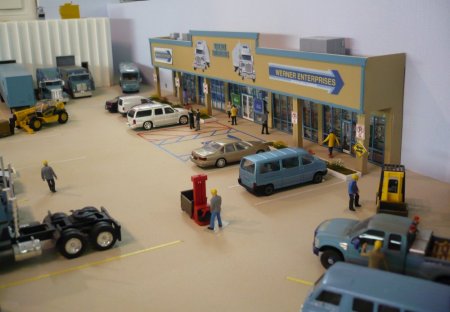

Werner Tractors made by Pitsch Allneider - 1190 the WE office is a modified "Strip Mall" back drop kit from Summit - 1191

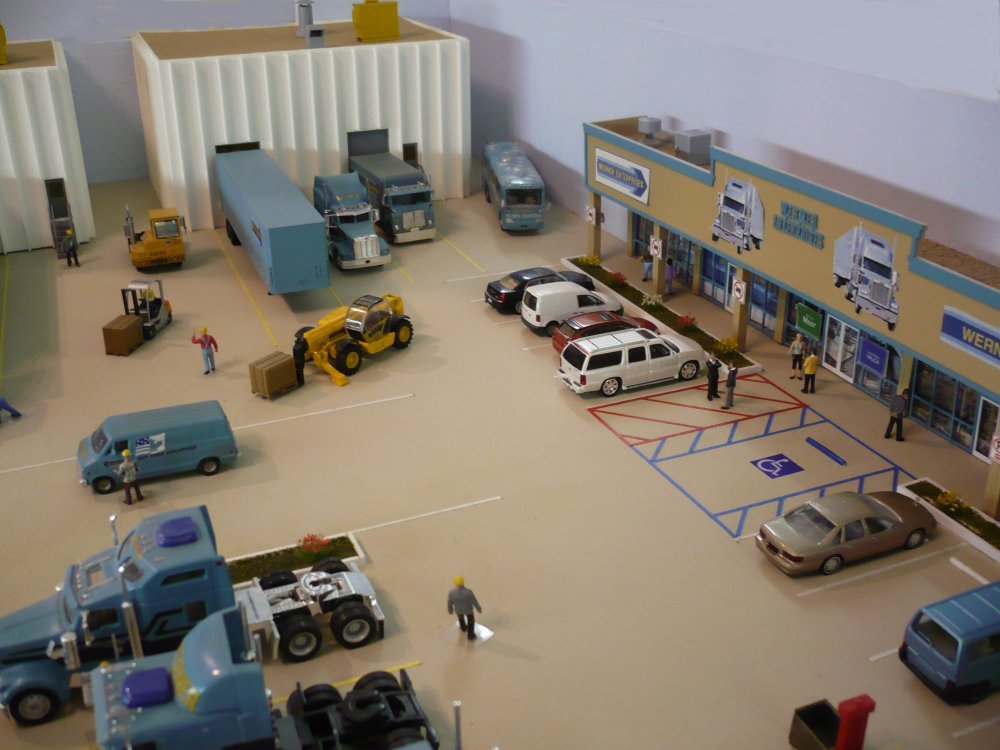

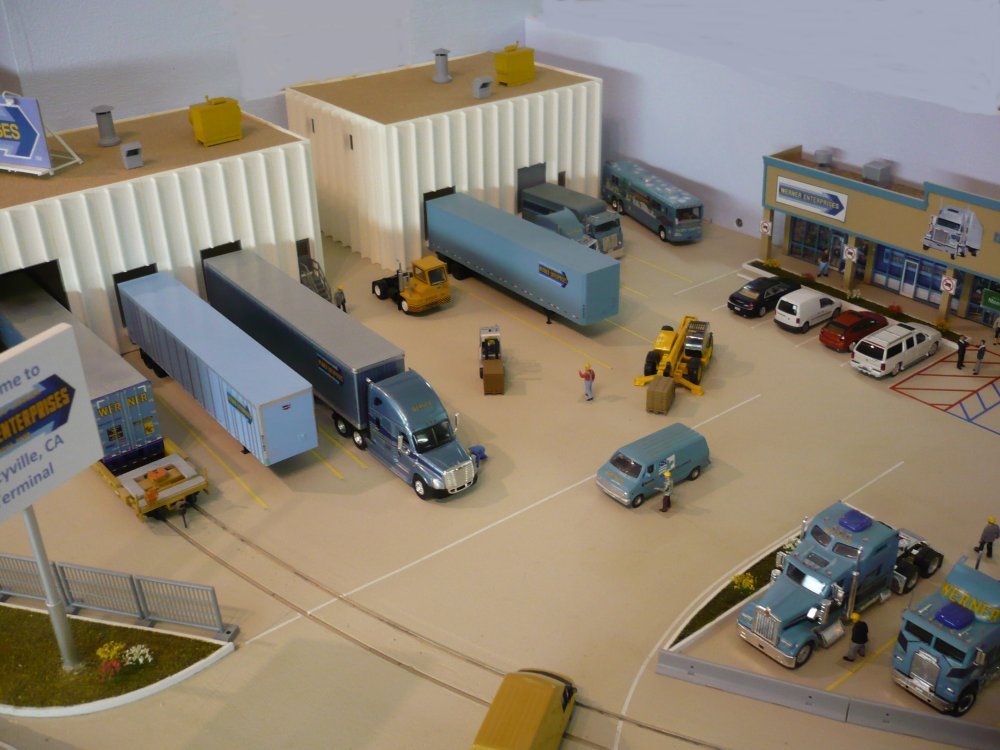

- 1192 - 1193

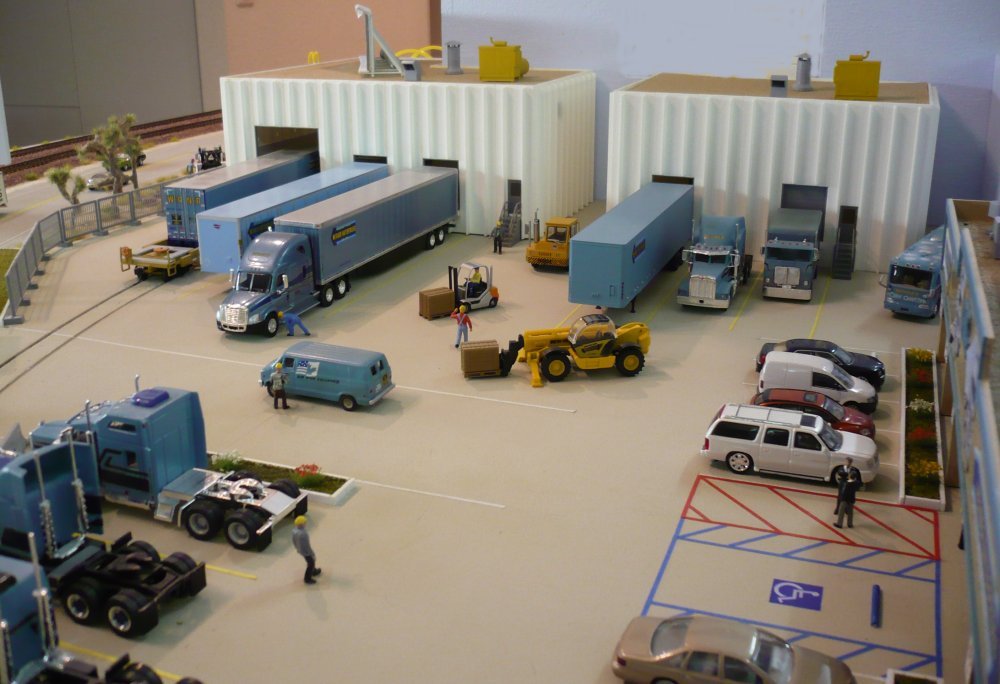

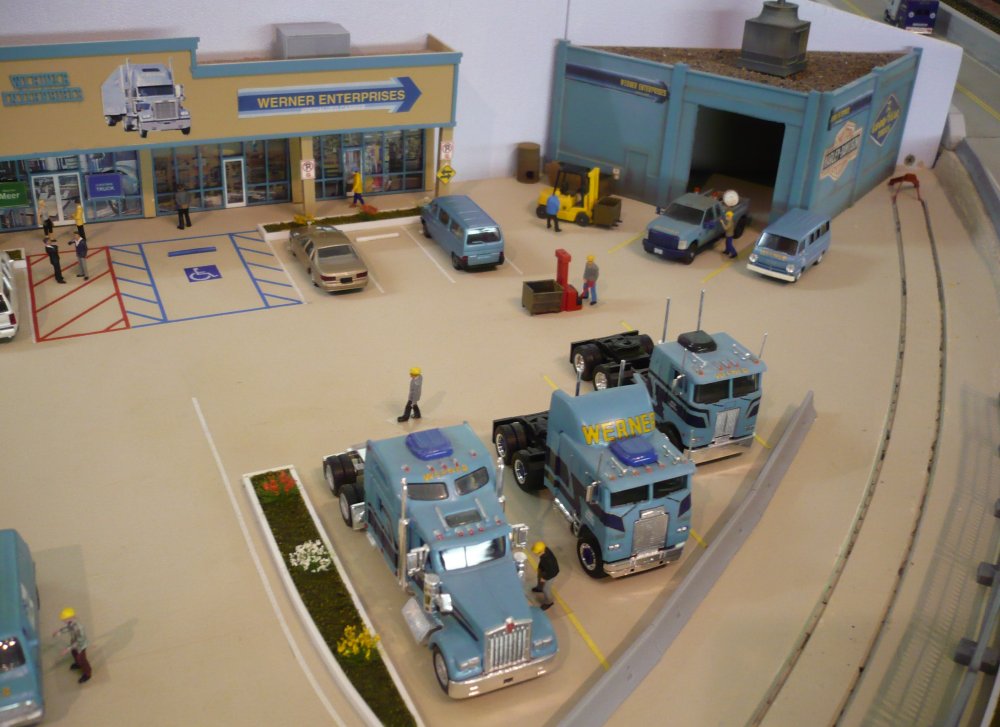

the left building was kitbashed in "L-Shape" - 1194 - 1195

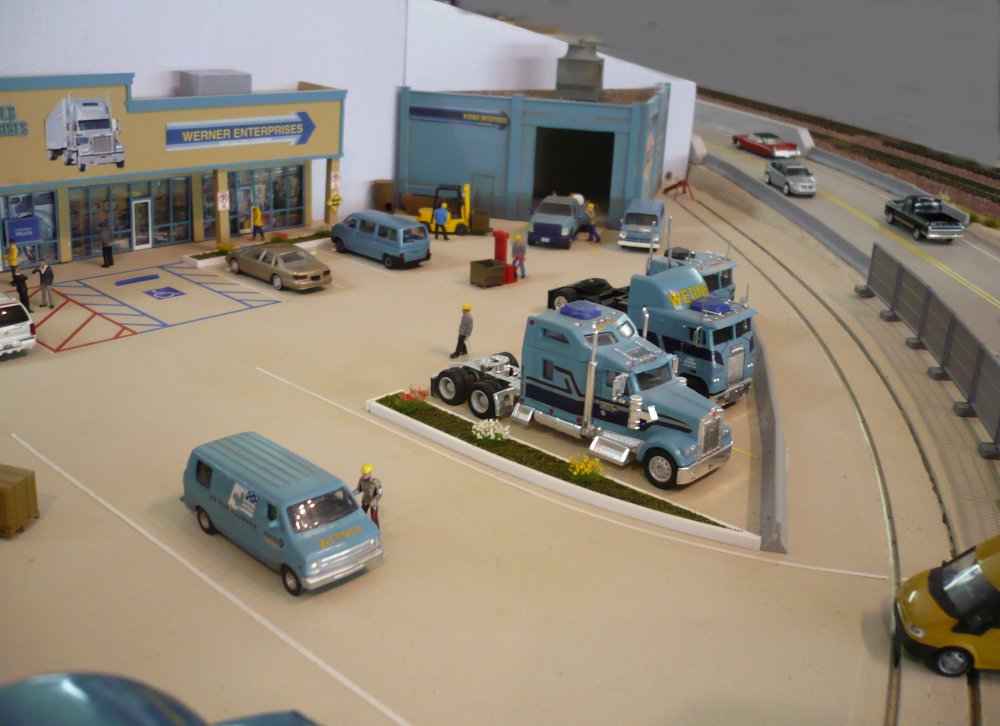

- 1196 - 1197

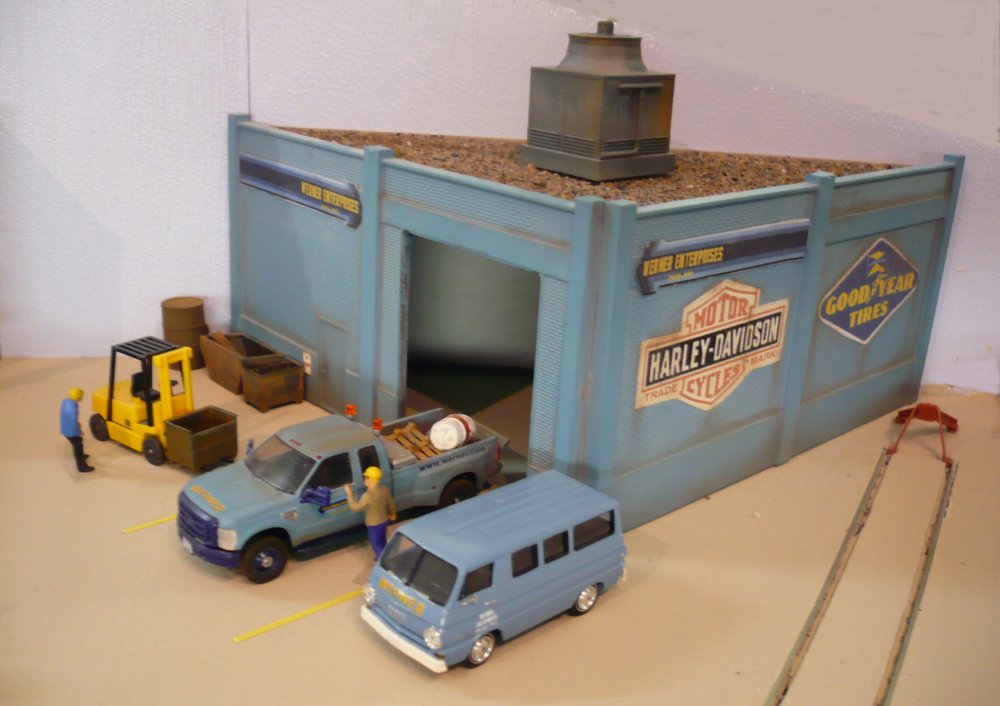

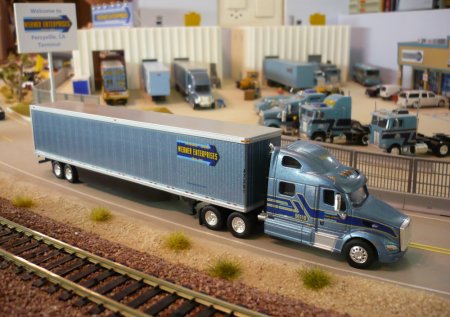

WE Truck/Trailer made by Tonkin for real WE - 1198 Werner Pickup and Van made by Pitsch Allneider - 1199

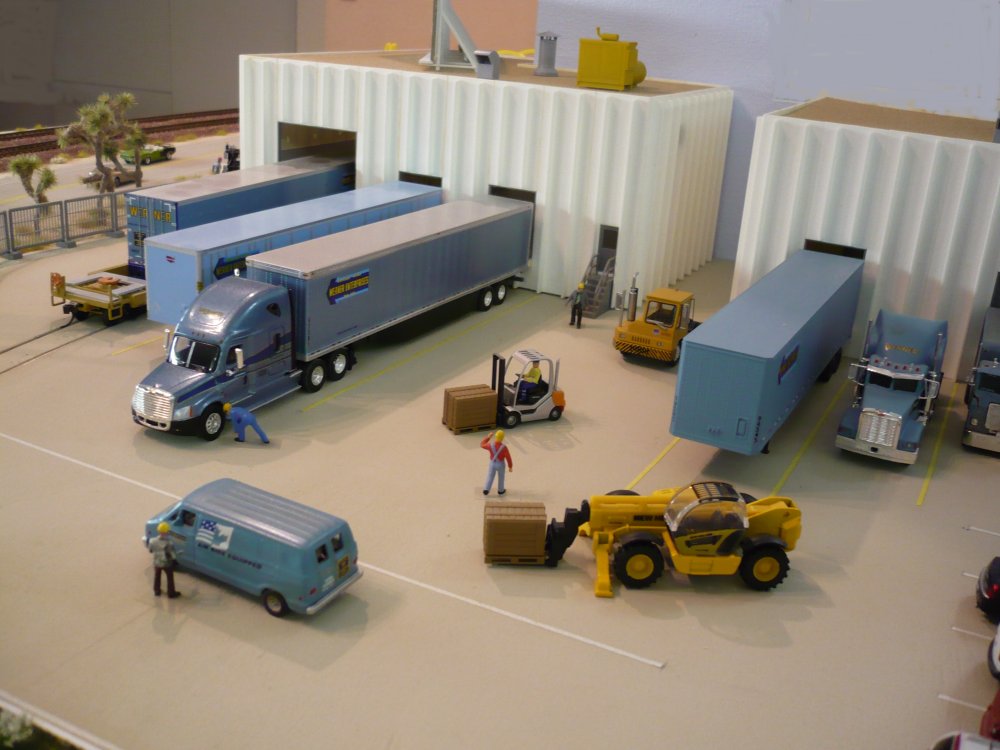

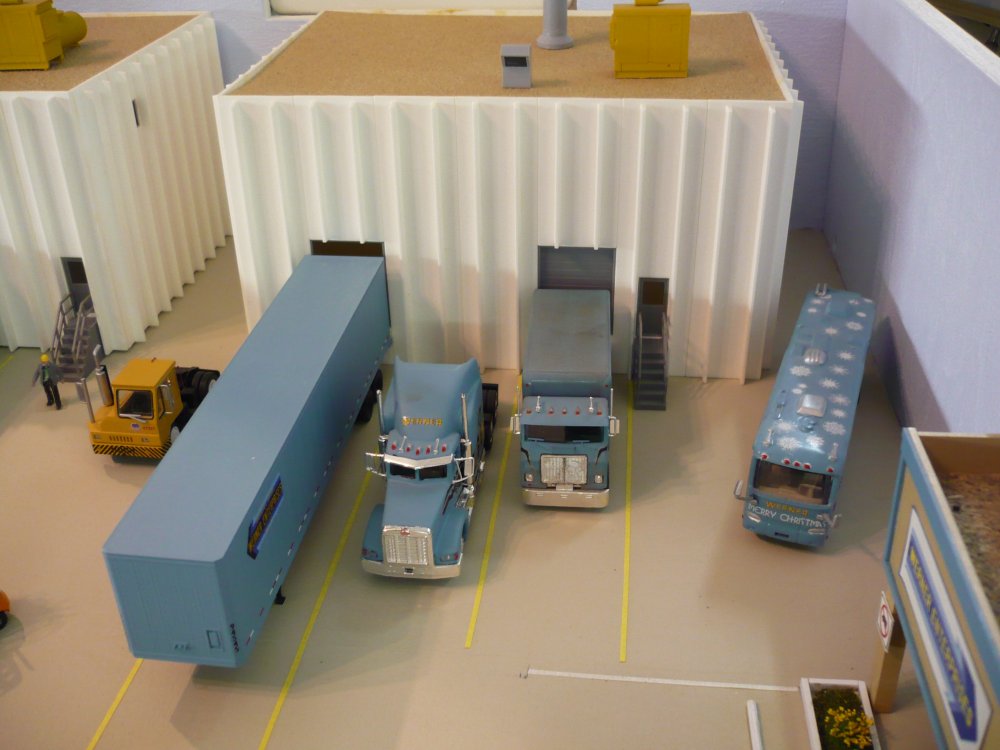

both warehouses are kits from Great West Models - 1200 - 1201

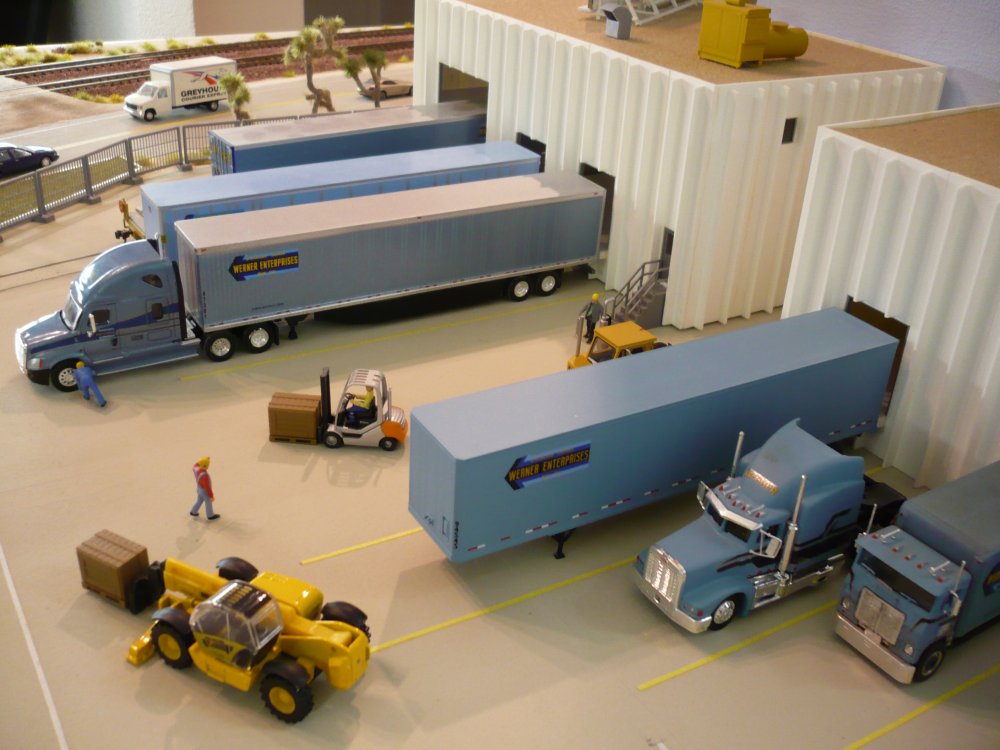

- 1202 - 1203

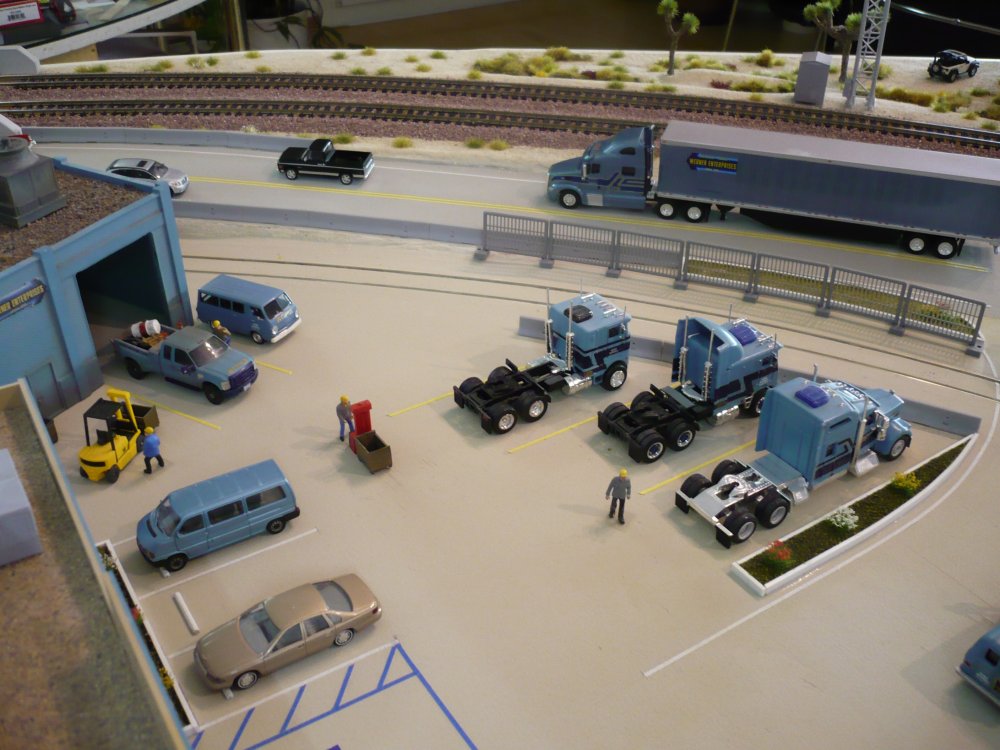

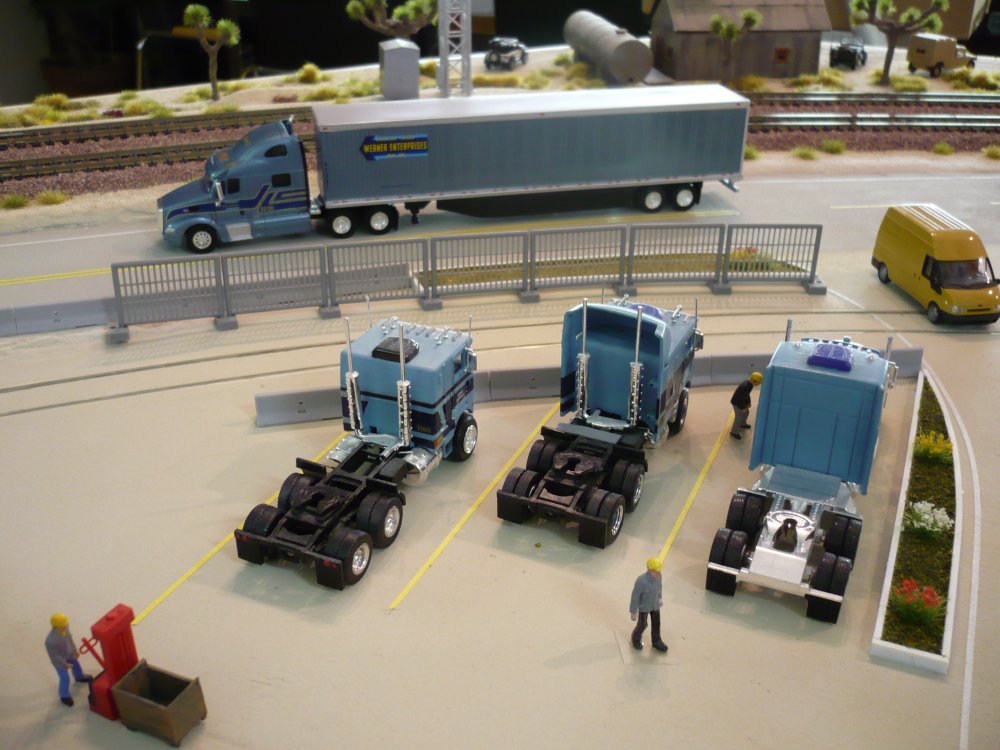

- 1204 - 1205

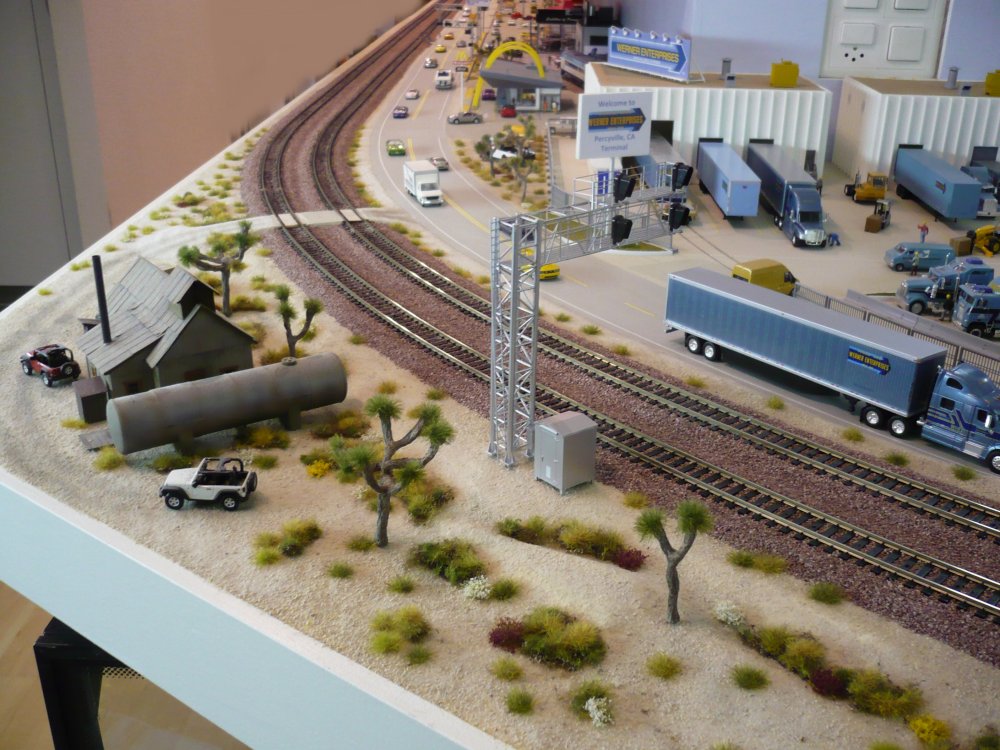

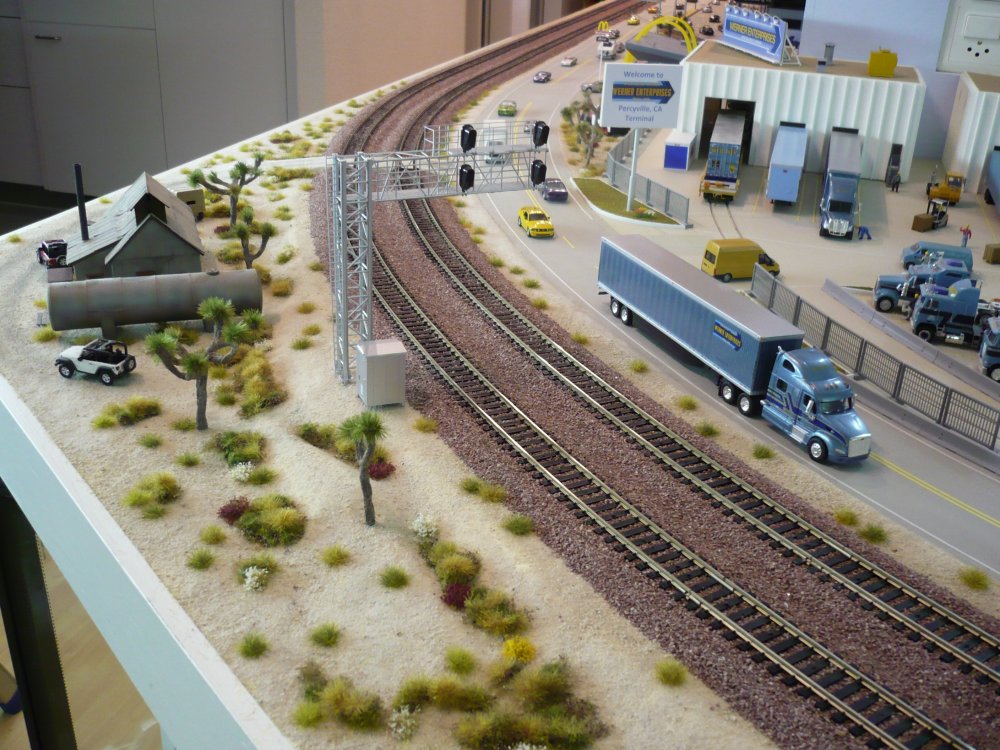

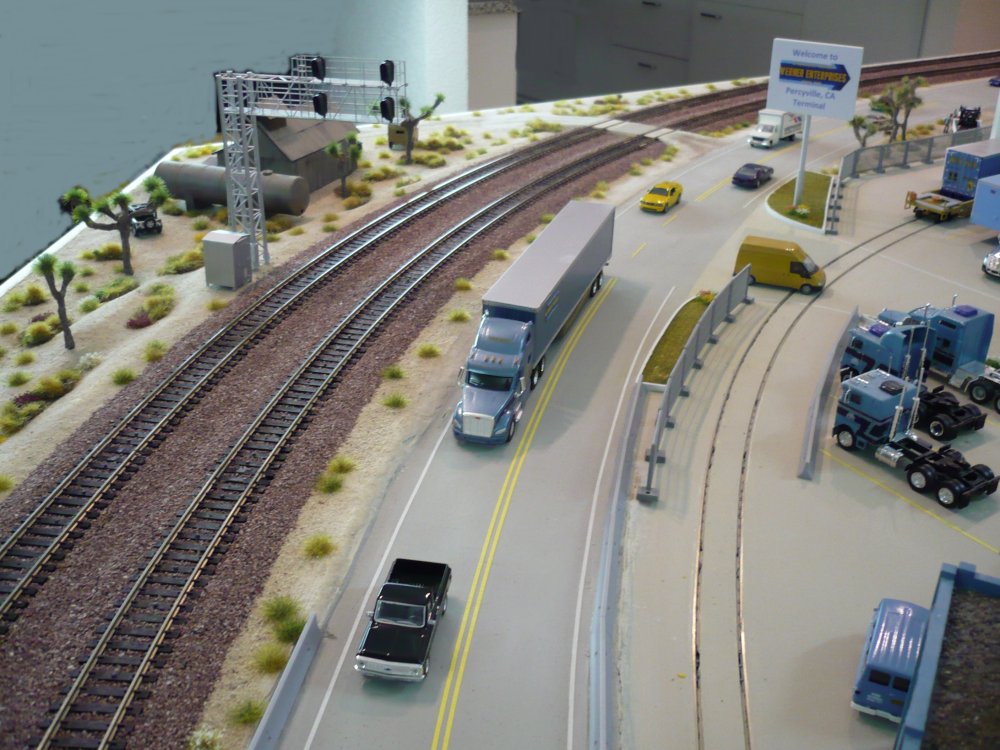

main line, main street and WE spur - 1206 - 1207

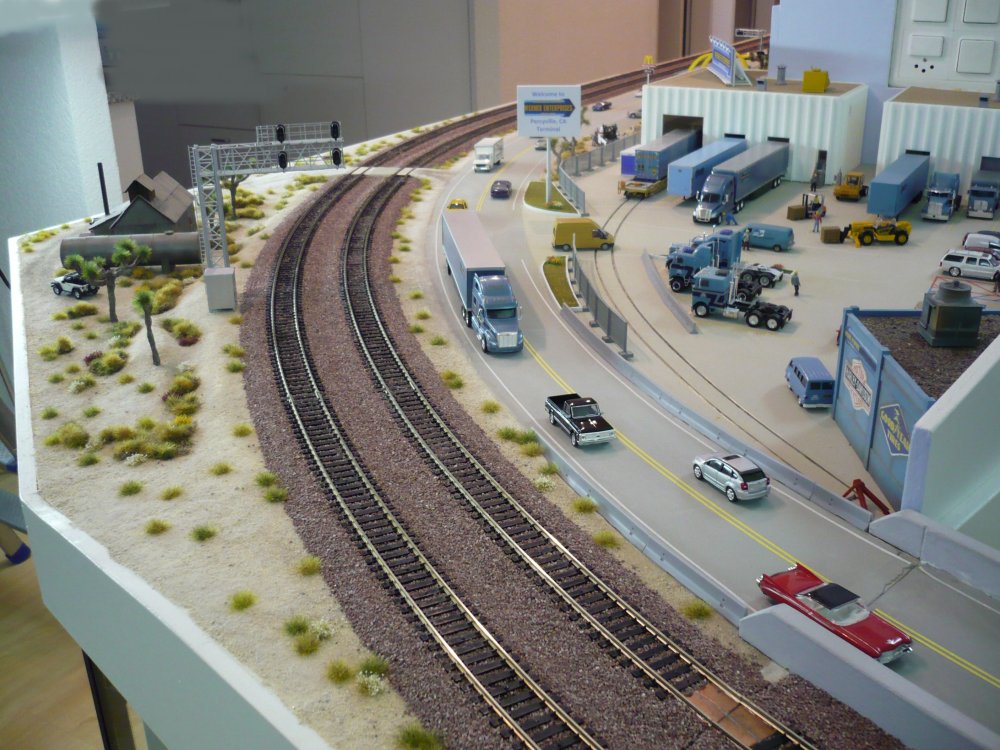

- 1208 - 1209

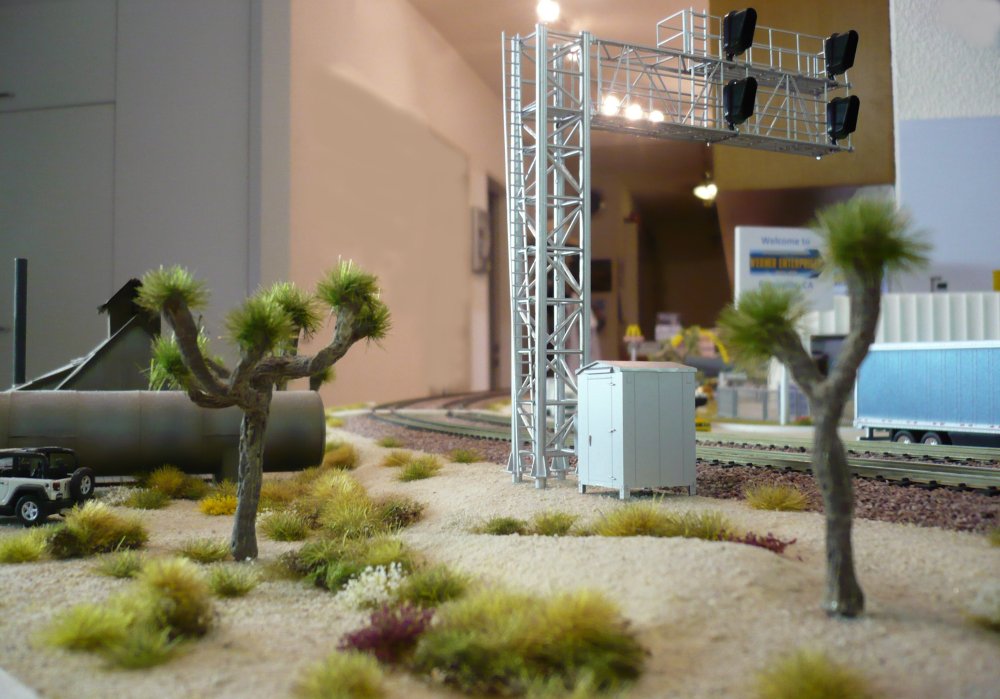

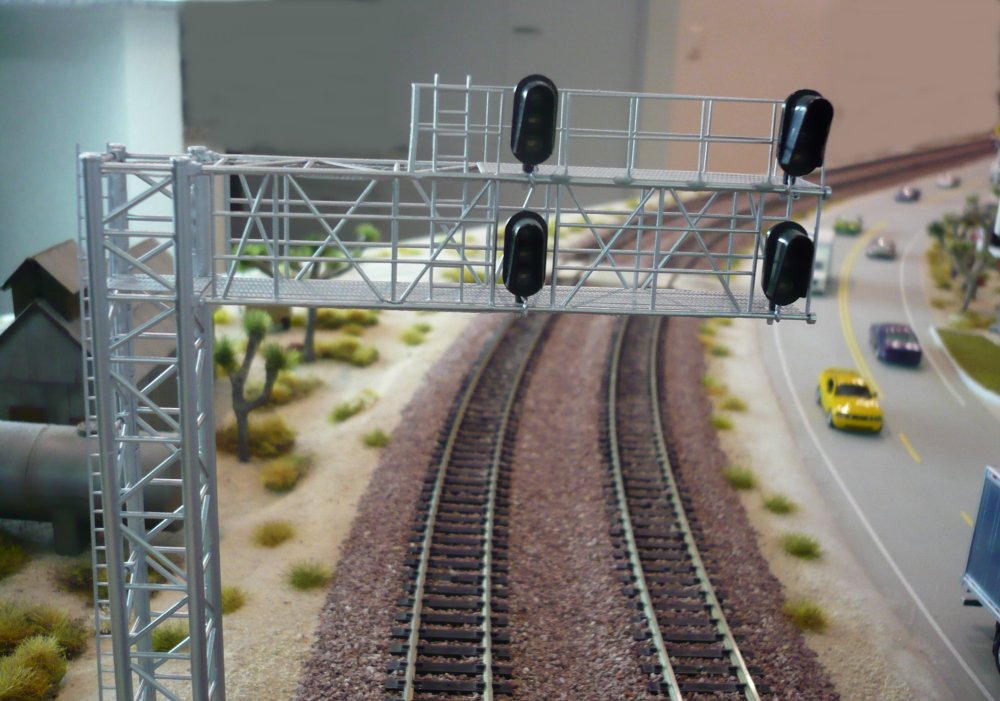

double track main requires signals (made by BLMA) - 1210 Joshua Trees and Signal Bridge - 1211

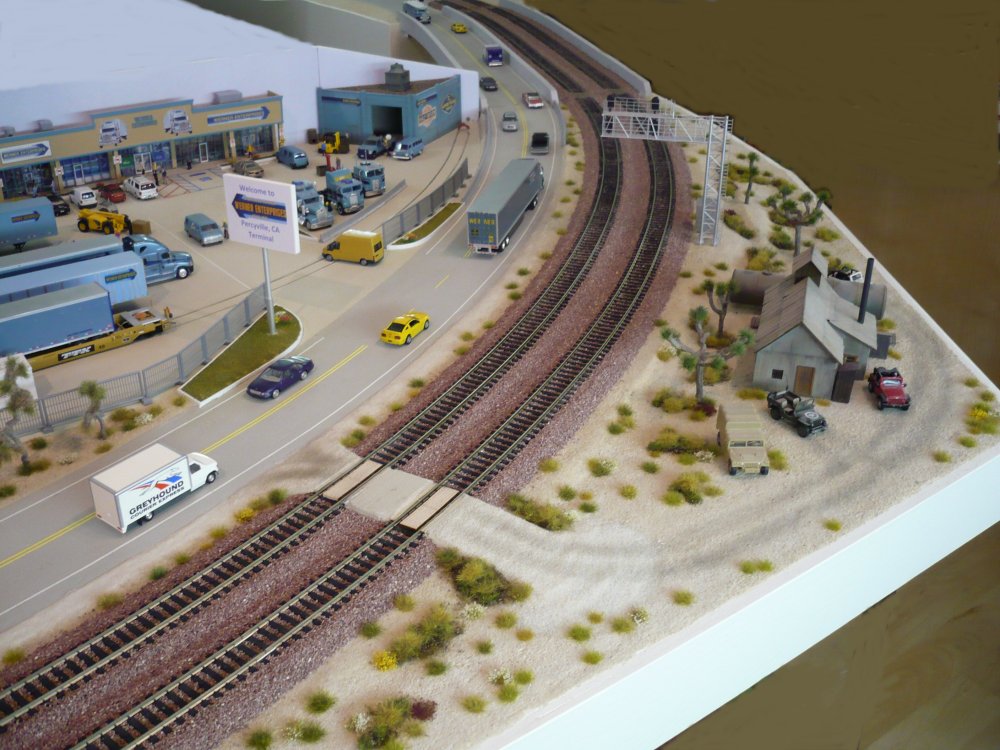

private RR-Xing for Joe's house - 1212 across WE Terminal and main line is Joe's house - 1213

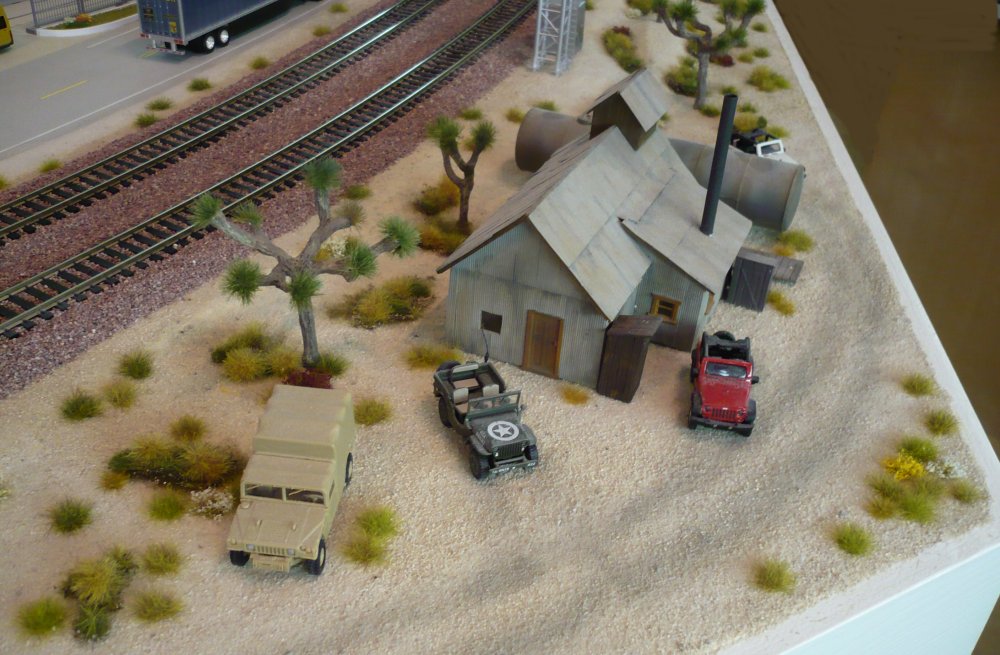

there are Joshua Trees around Joe's house - 1214 - 1215

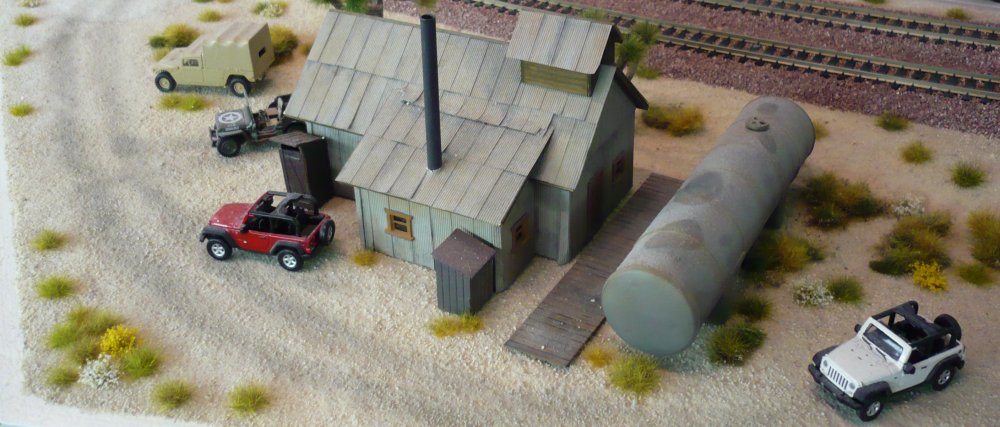

- 1216 upper - 1217  /  lower - 1218



D) On May 2015, I made a new photo shooting of the Werner Enterprises Percyville Terminal from the air.

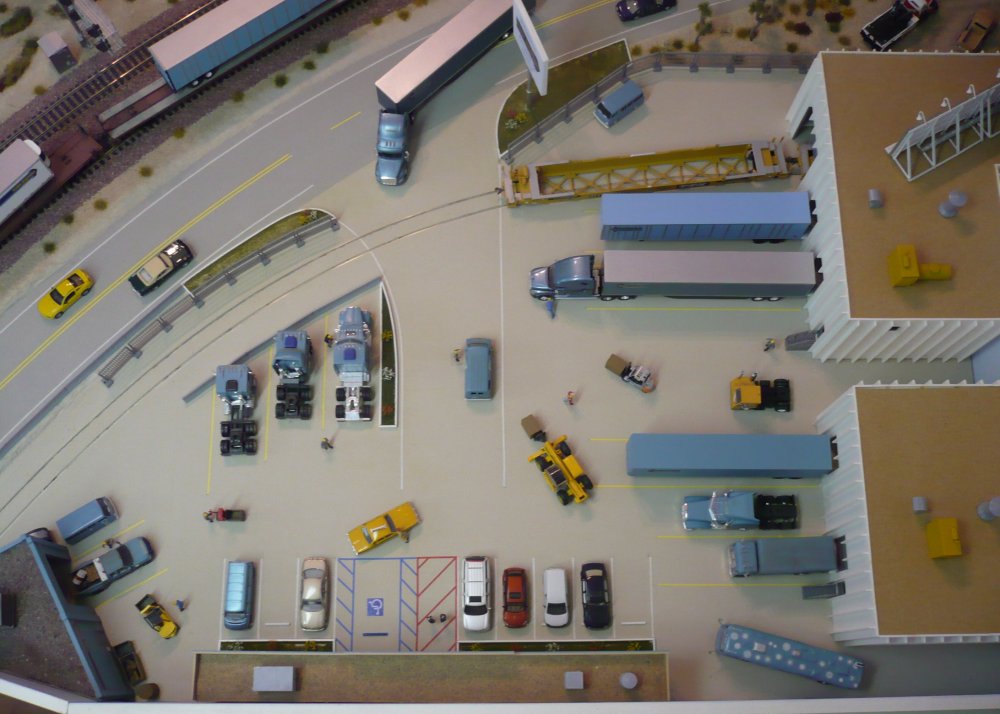

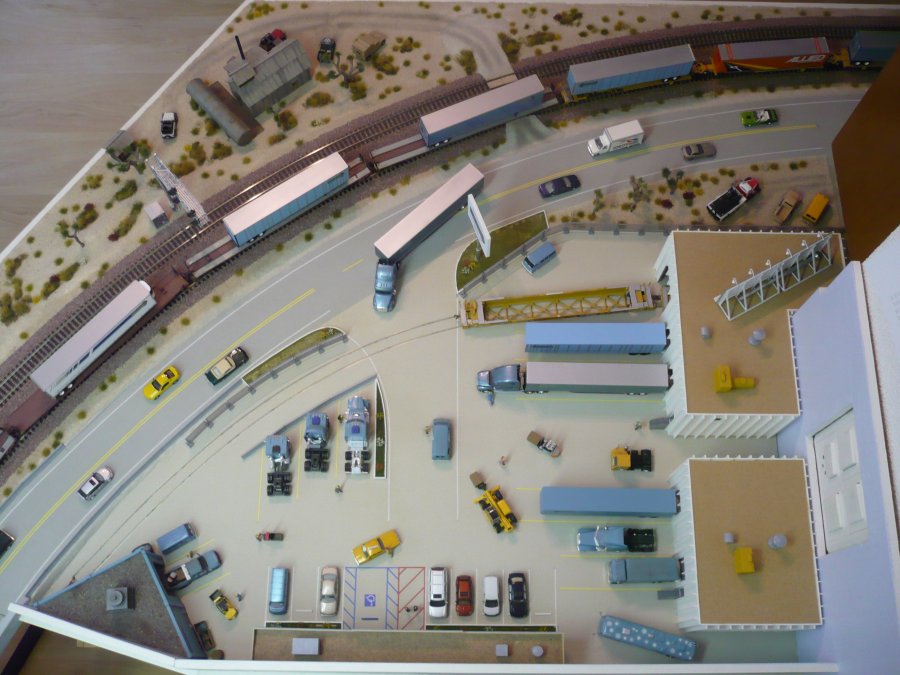

Overview of the WE Terminal. A WE Truck is entering the site. There are several WE Trailers on Flat Cars. - 1492
on the left side are the WE shops - 1493 at the bottom is the WE Terminal Office - 1494
the combined bridge 1 (road/track) is connecting the Percyville Extension with the Werner Enterprises Terminal - 1429

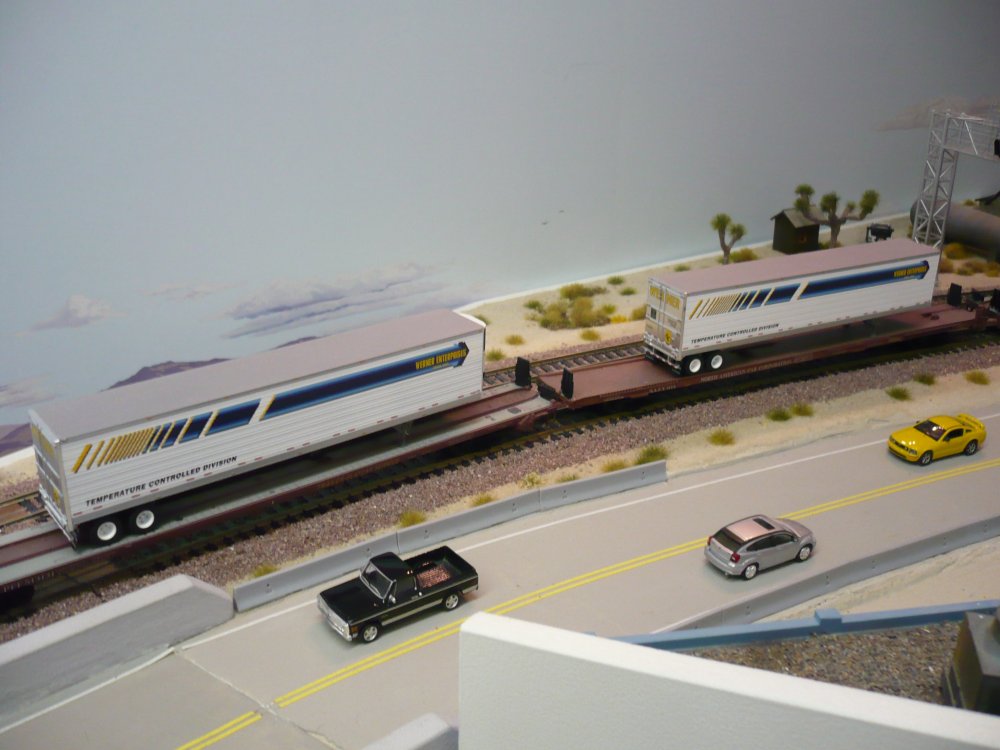

these are WE Reefer Trailers - 1495 Reefer and Standard WE Trailers on Flat Cars (TOFC)  - 1496

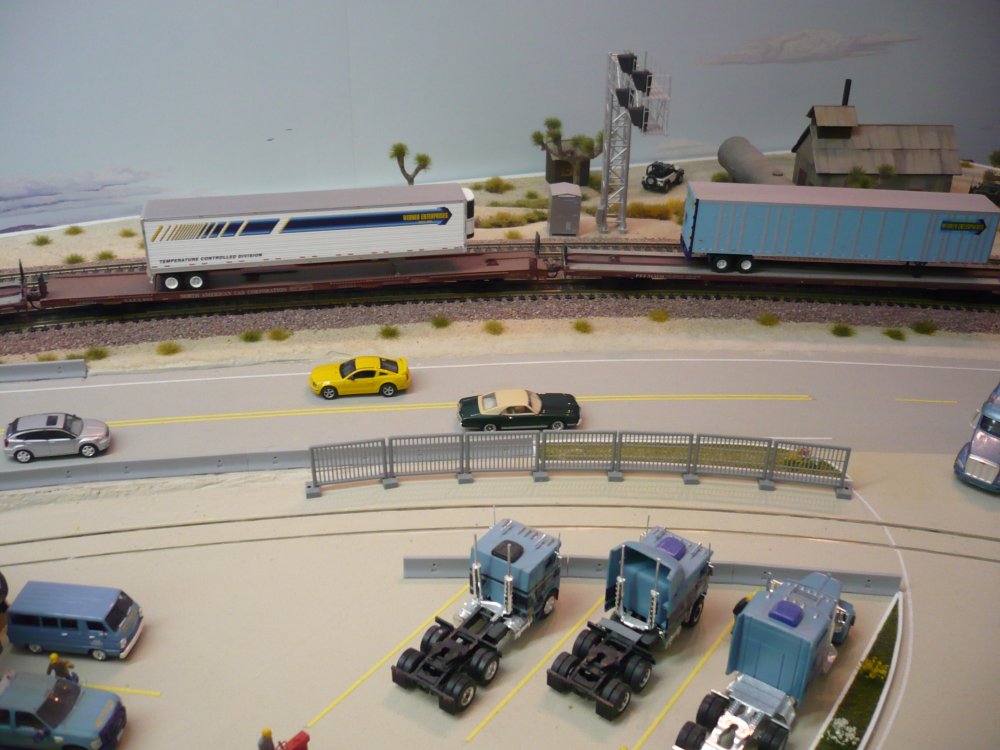

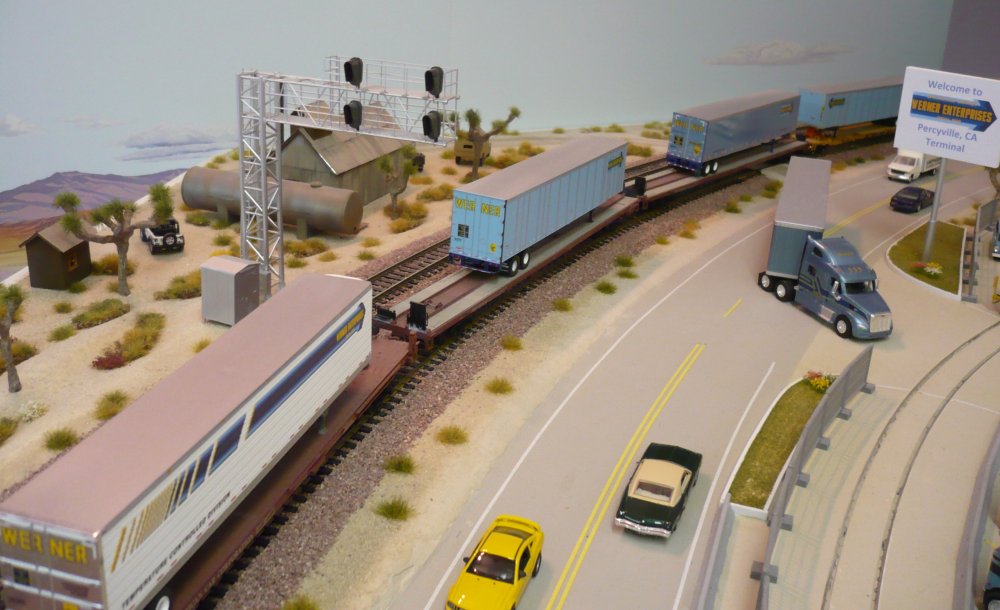

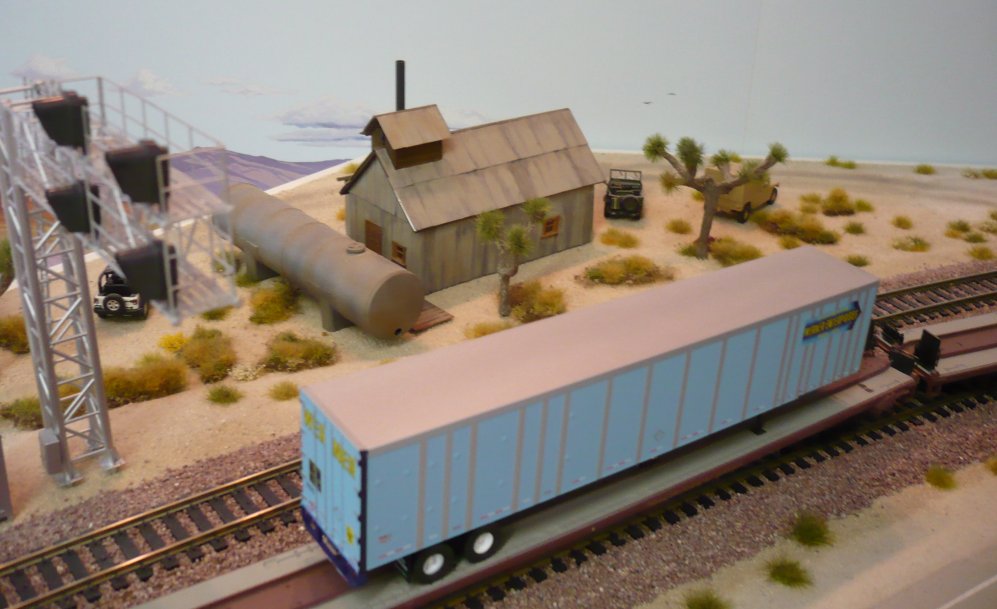

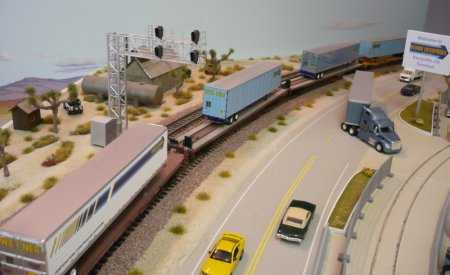

WE is active on rails and on the road - 1497 a blue Werner Trailer is passing the old house - 1498

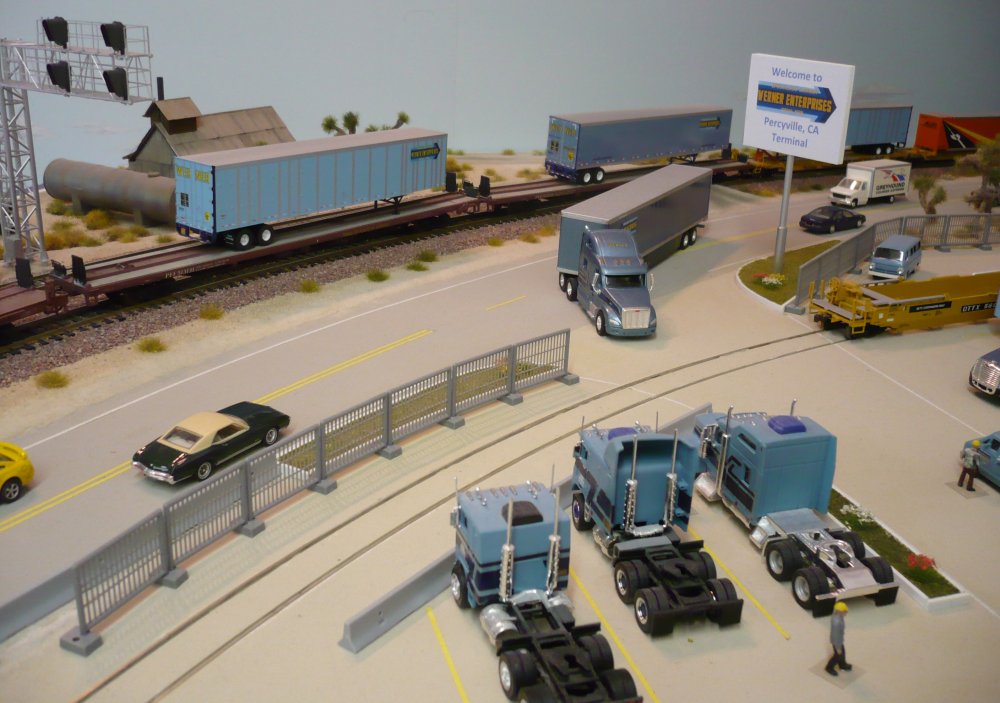

the Percyville Terminal is always busy - 1499 a WE Truck is coming home for unloading - 1500
it is common to see WE Trailers travelling by train - 1501 yes, there is a McDonald's in the background - 1502

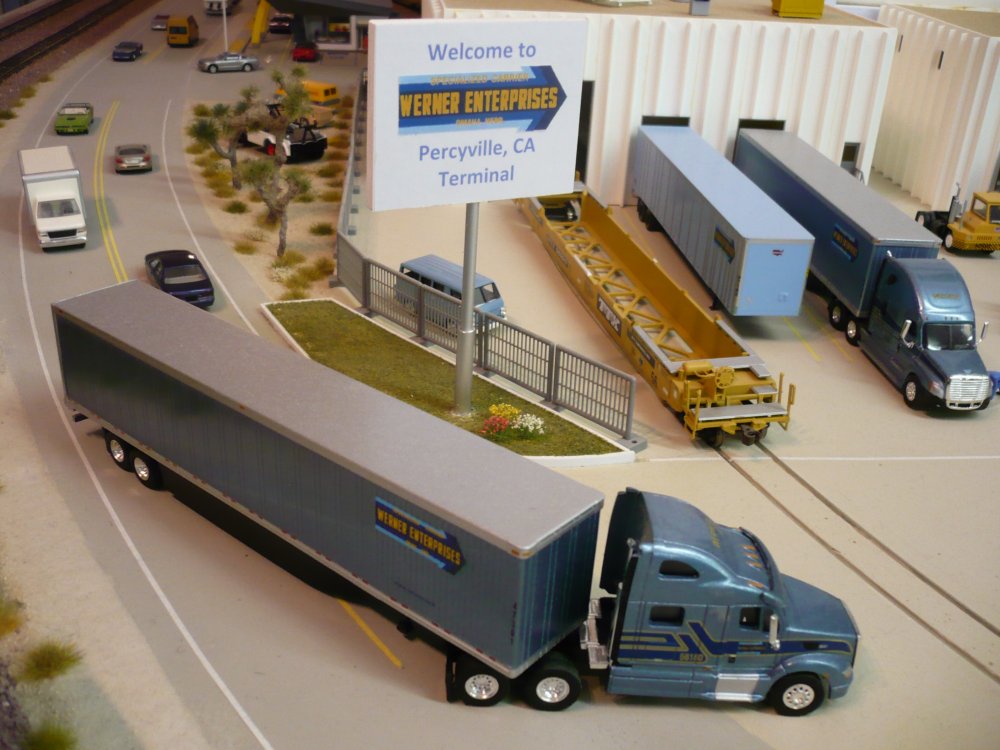

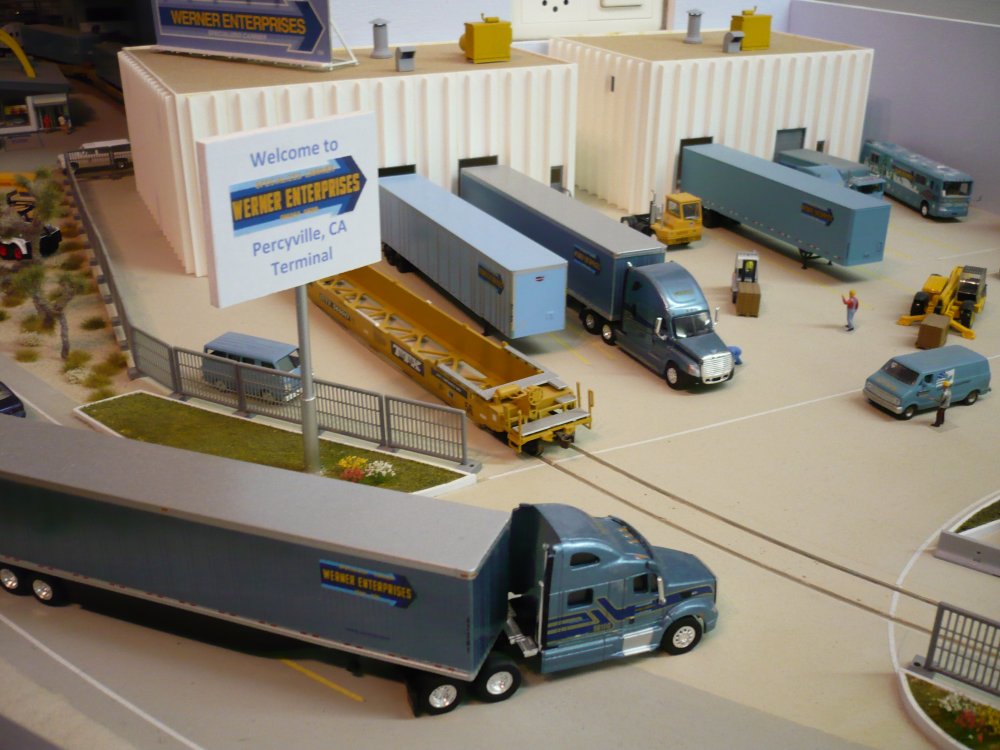

this truck is entering the WE Terminal - 1503 this model was made for the real WE by Tonking - 1504

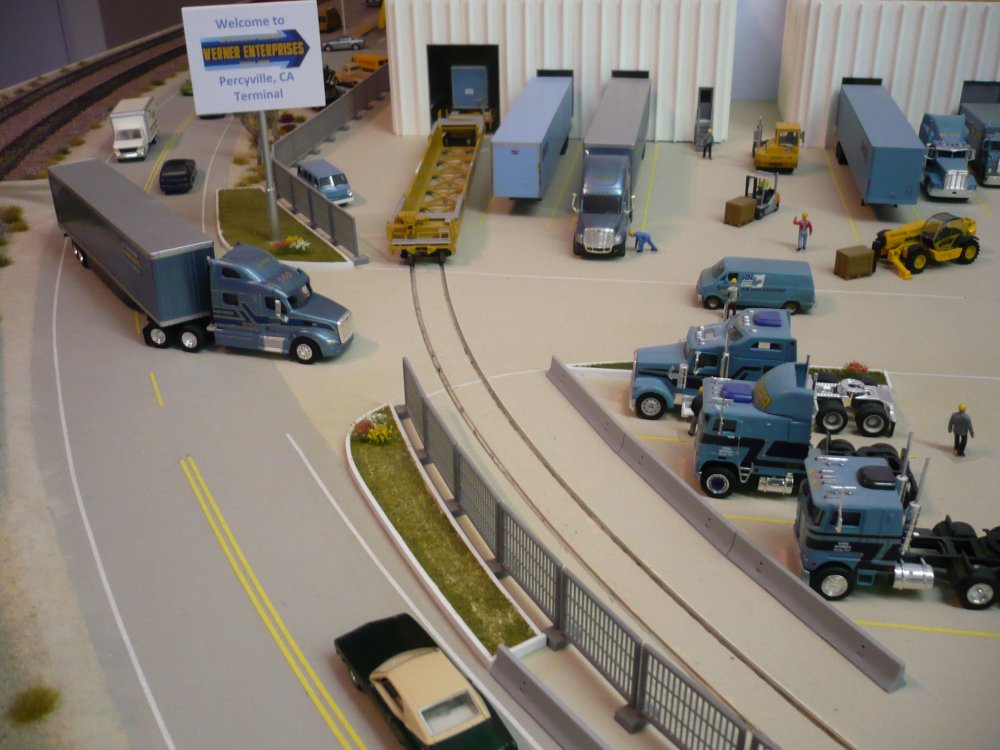

some older WE tractors are on site - 1505 here is a different view from the other side - 1506

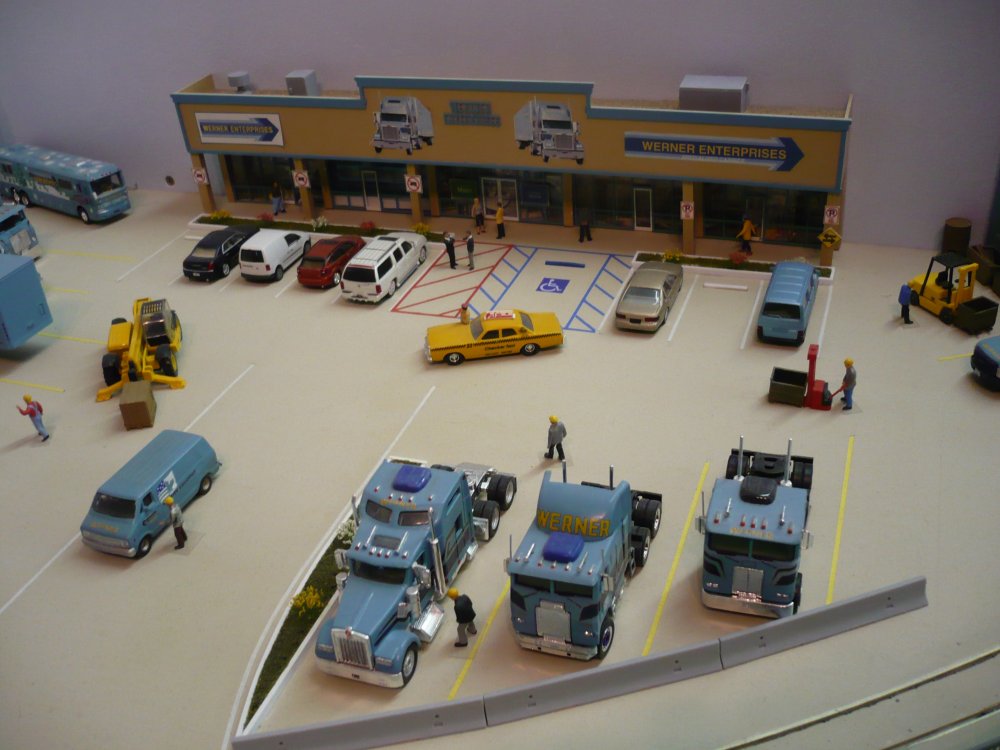

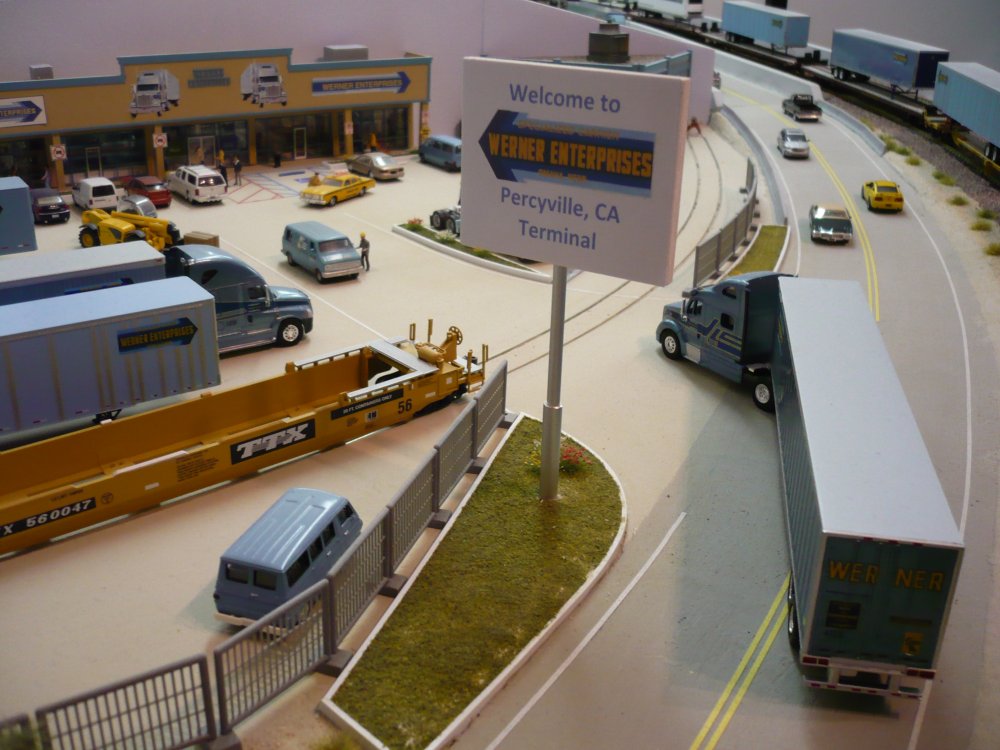

WE is having full track access with a spur - 1507 here are the offices of the WE Terminal - 1508

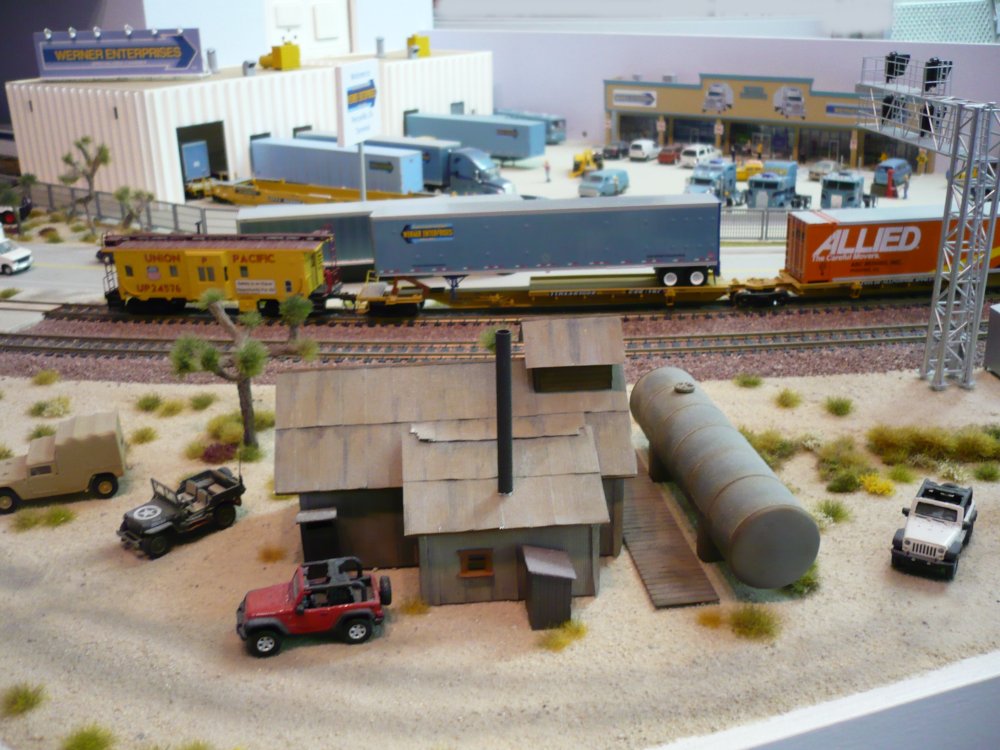

Joe's old house is just across the tracks and the WE Terminal - 1509 Allied is also a trucking company - 1510
the other day, I was able to catch the sun just seconds before sundown and the WE Terminal looks really different in the low evening light.

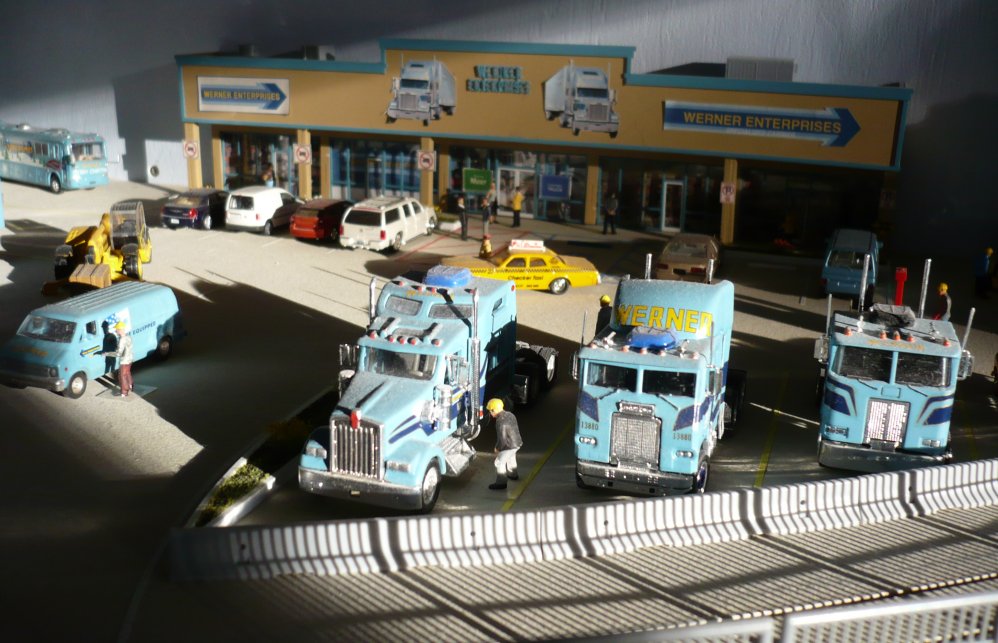

people are still busy in front of the WE Terminal - 1511 a truck driver is making a tractor ready - 1512

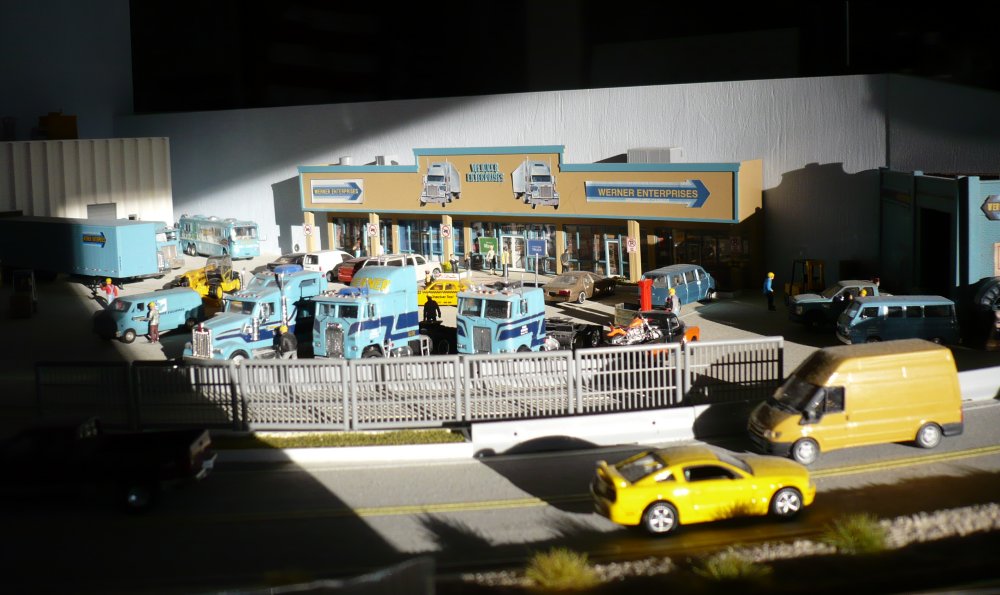

I like the atmosphere - 1513 this is the final photo of May 2015 - 1514



E) After all the detailed photos of the different structures, we make another round of Percyville from left to right.
Percyville lenght from left to right = 6 m (18 feet), width = 60 cm (23 1/2 inch)

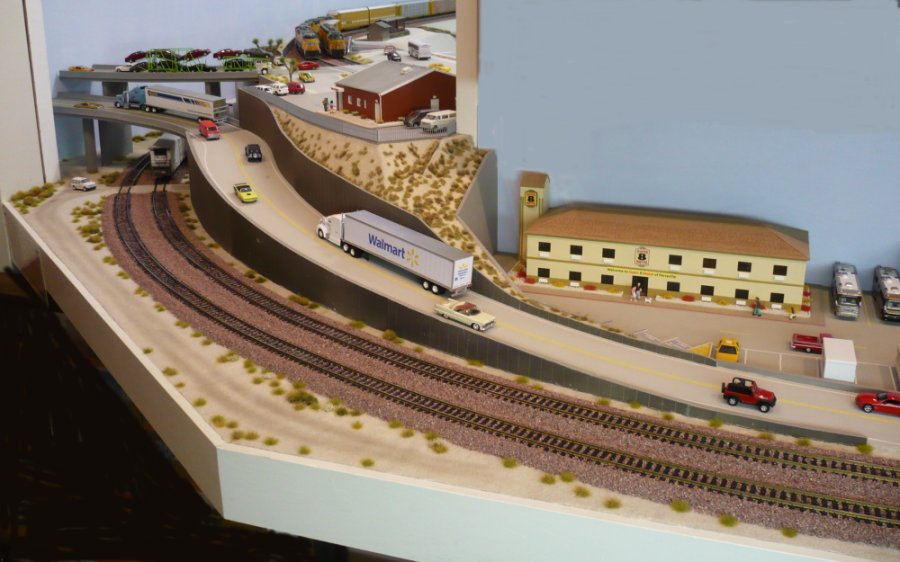

left side of Percyville = East end with road bridges, HDCC (above) and Super 8 Motel - 1224

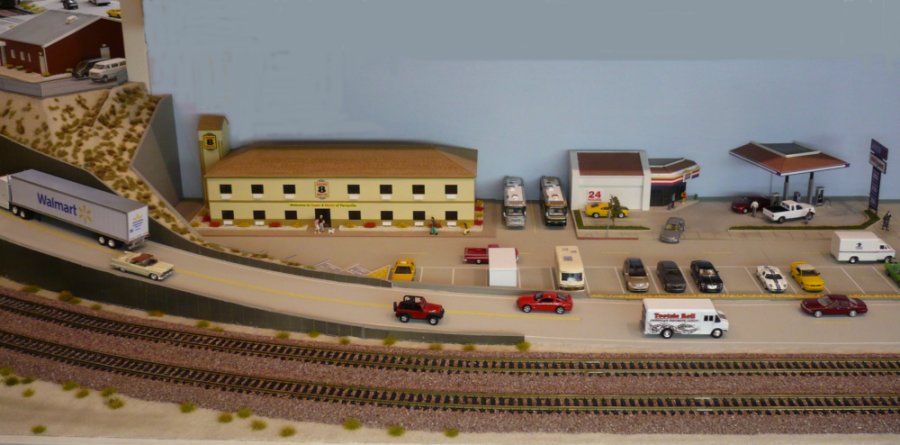

Super 8 Motel of Percyville and ARCO Gas Station with am-pm store - 1225
Super 8 Motel, ARCO Gas Station and Denny's Restaurant - 1226

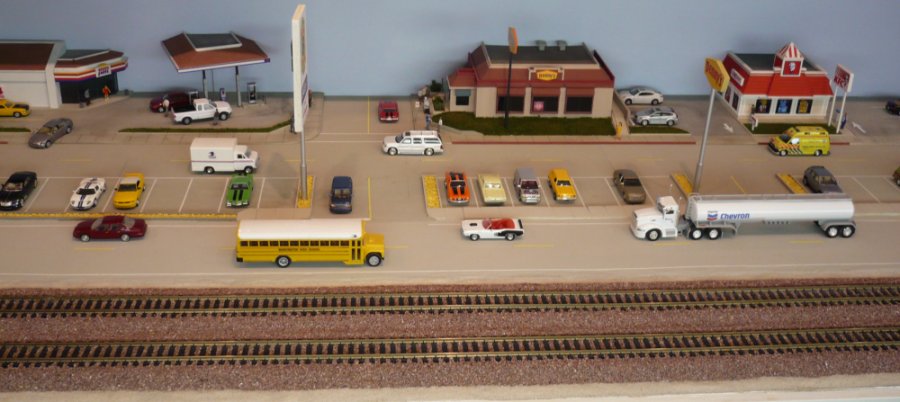

ARCO, Denny's and KFC - 1227
Denny's and KFC (Kentucky Fried Chicken) w/Drive Thru - 1228
Pizza-Hut Restaurant and Taco Bell Restautrant w/Drive Thru -- 1229

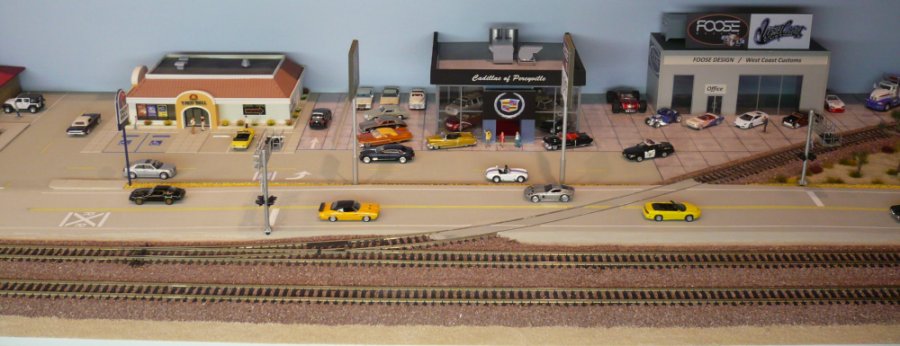

Taco Bell, Cadillac of Percyville and Foose Design/West Coast Customs - 1230
Cadillac and Foose/WCC with Werner Enterprises connector - 1231

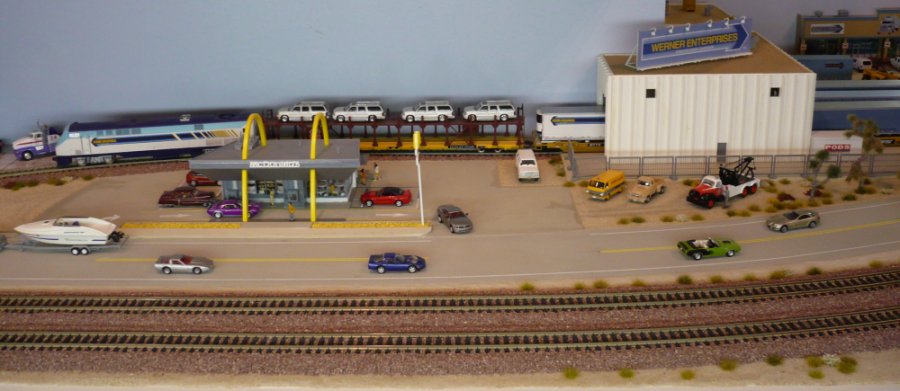

McDonald's (who invented the yellow gravel) and Werner Enterprises Percyville Terminal - 1232



F) On this last photo shooting of Percyville, we take a different overview from above

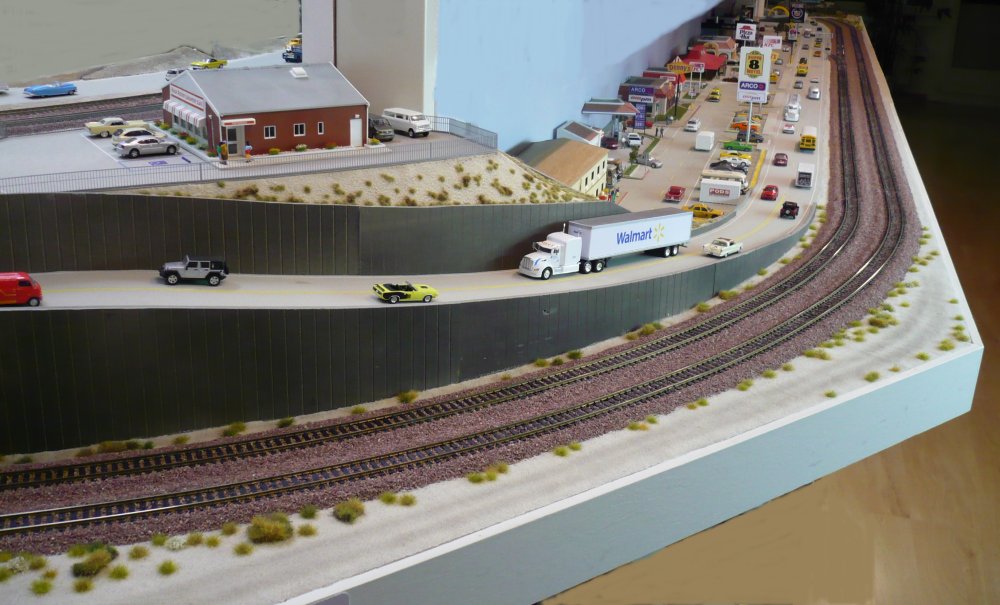

Above is the High Desert Country Cafe and we look down Percyville's main street - 1233

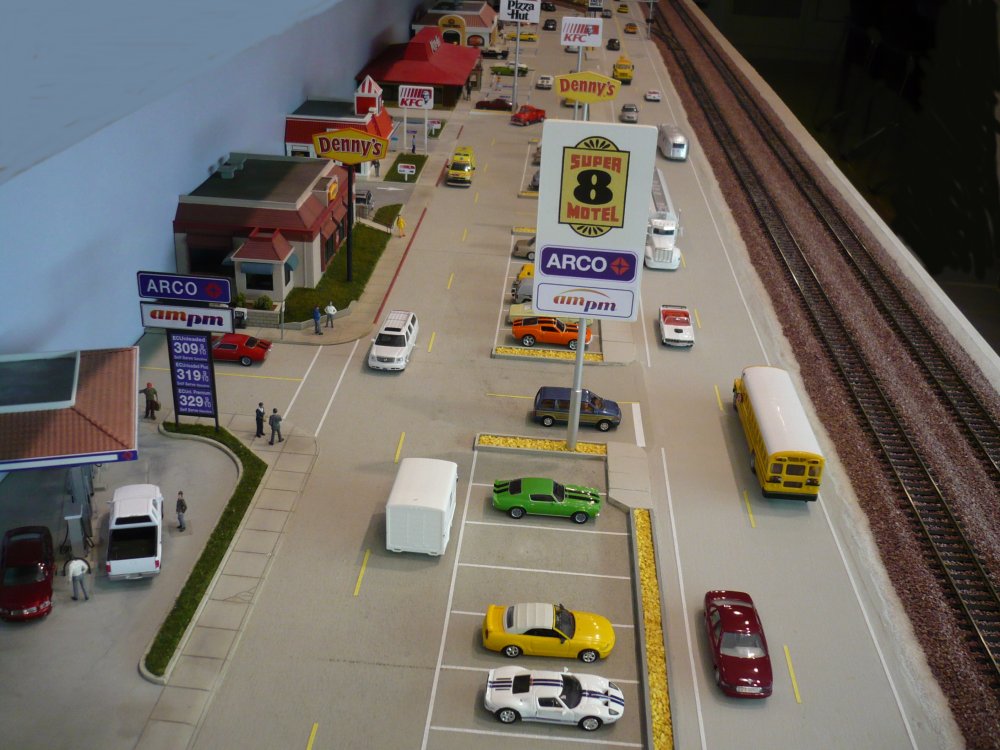

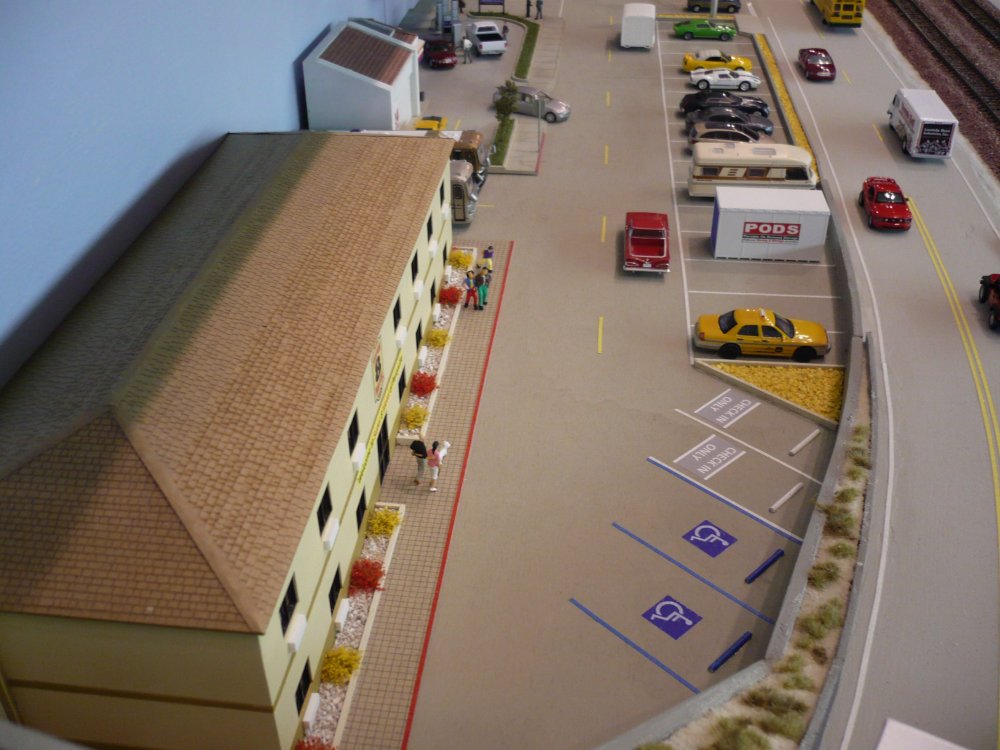

Super 8 Motel is the first building, . . - 1234 . . followed by ARCO Gas Station and Denny's - 1235

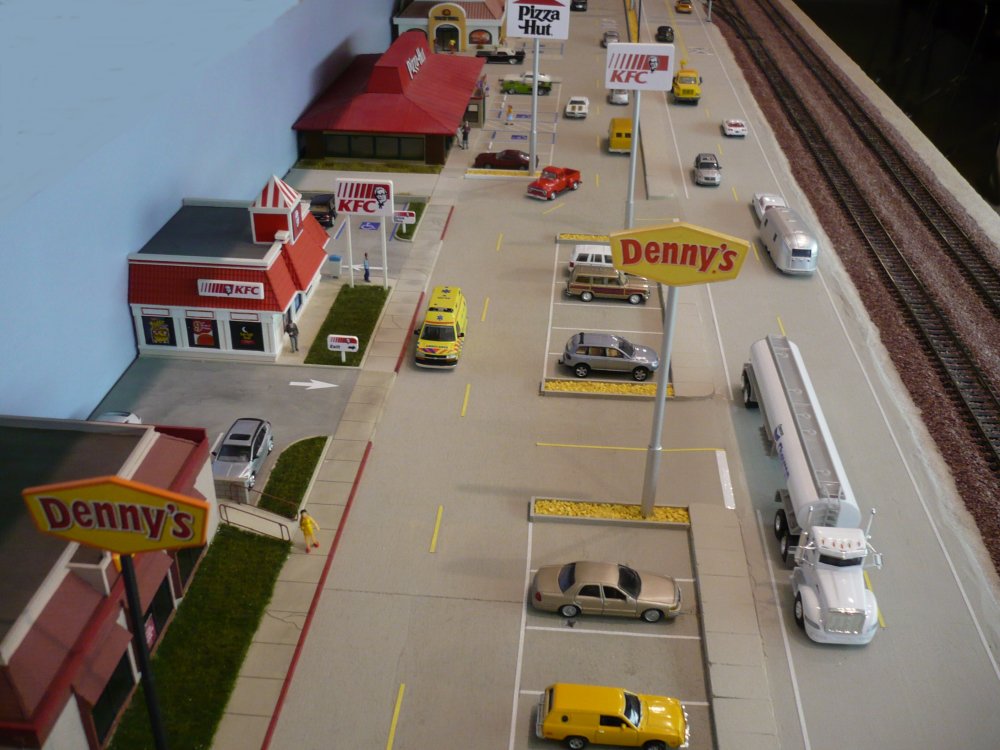

after Denny's comes KFC and Pizza-Hut - 1236 after Pizza-Hut comes Taco Bell - 1237

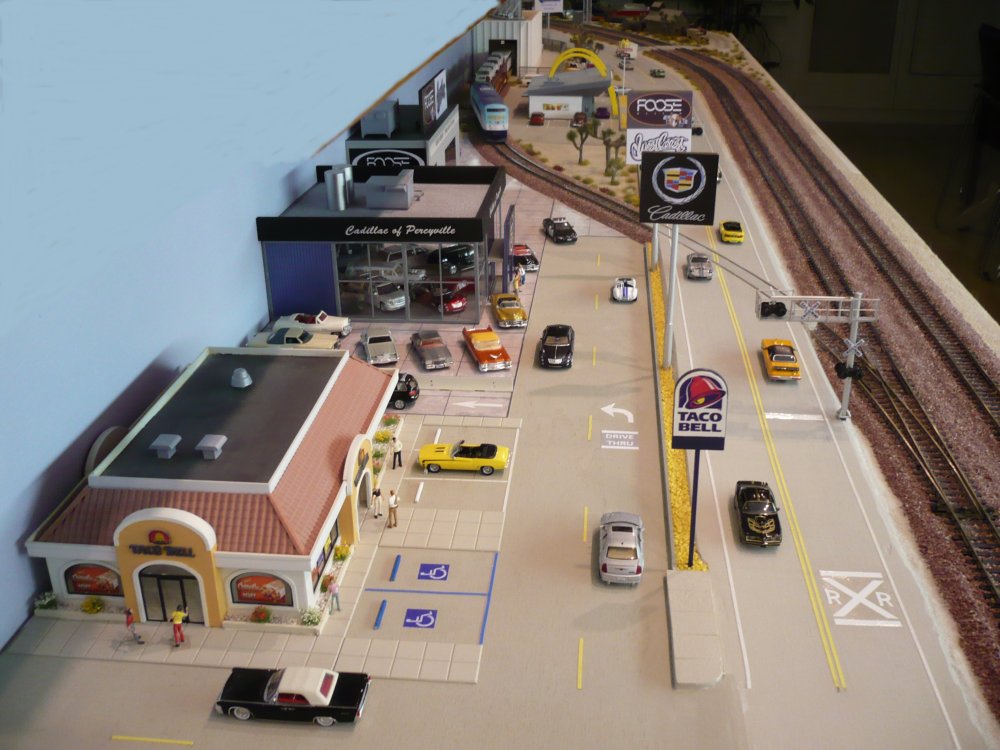

after Taco Bell comes Cadillac of Percyville - 1238 after Cadillac comes Foose Design/West Coast Customs - 1239

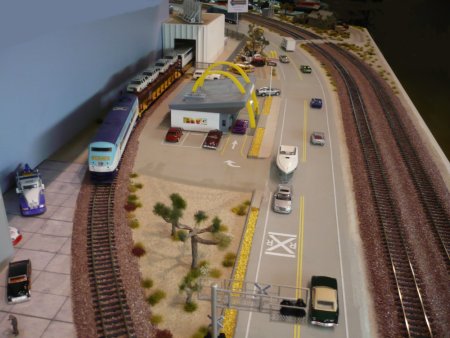

WE connector and McDonald's - 1240 looking East from WE - 1241

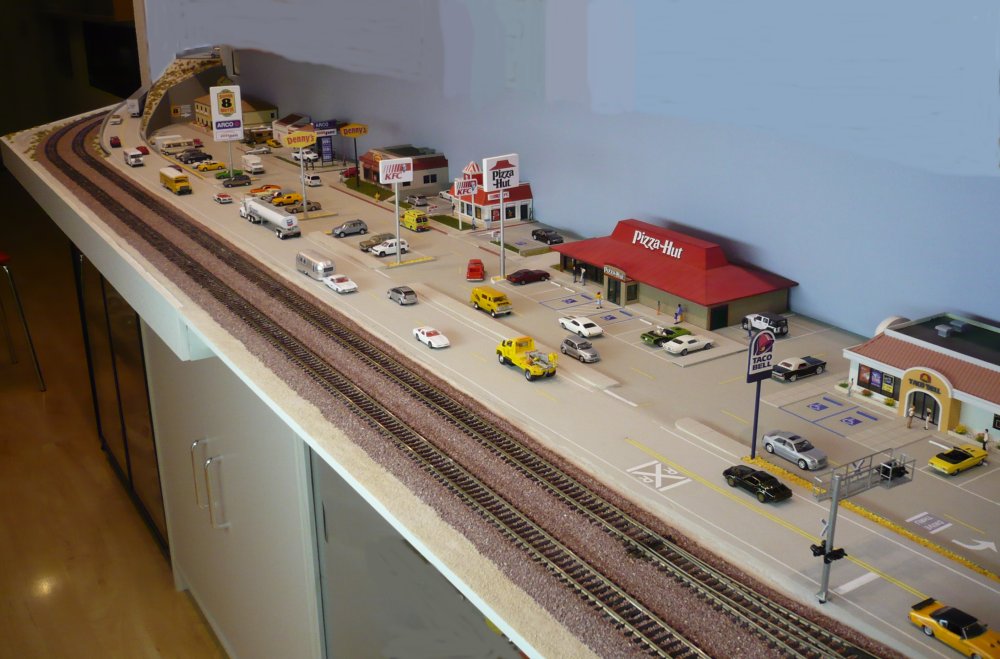

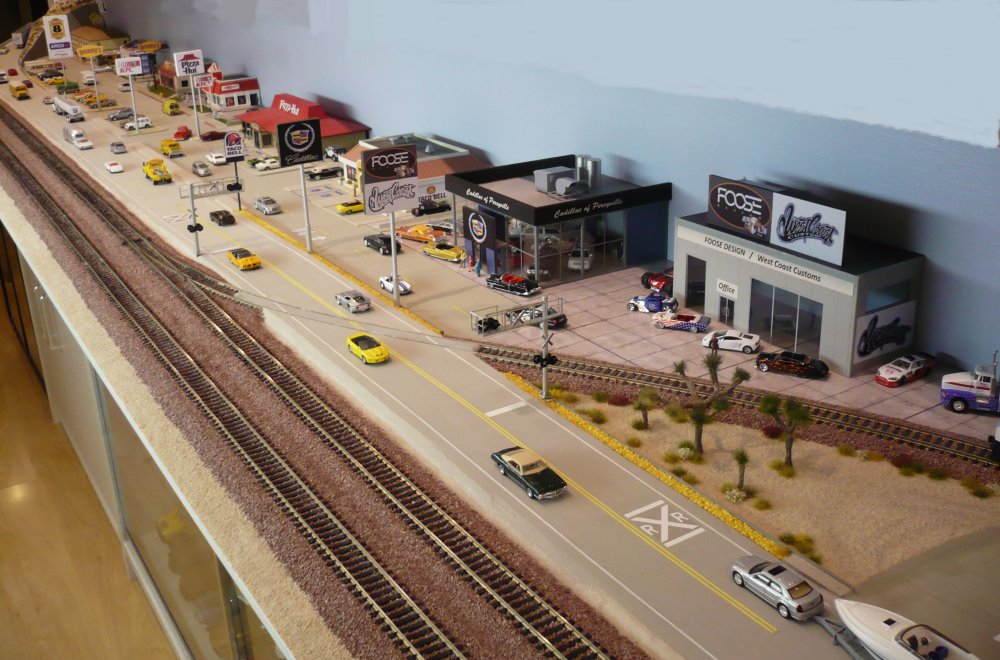

looking East from the middle to the end - 1242 looking East with both car businesses - 1243



Bonus Photos

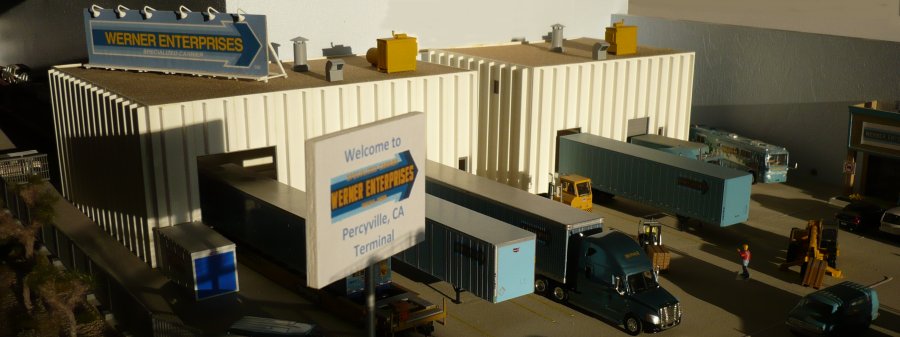

Werner Enterprises in low evening sunlight (yes, it is real sunlight)
It is middle of March 2014 and the sunset is taking place in couple of minutes - 1263

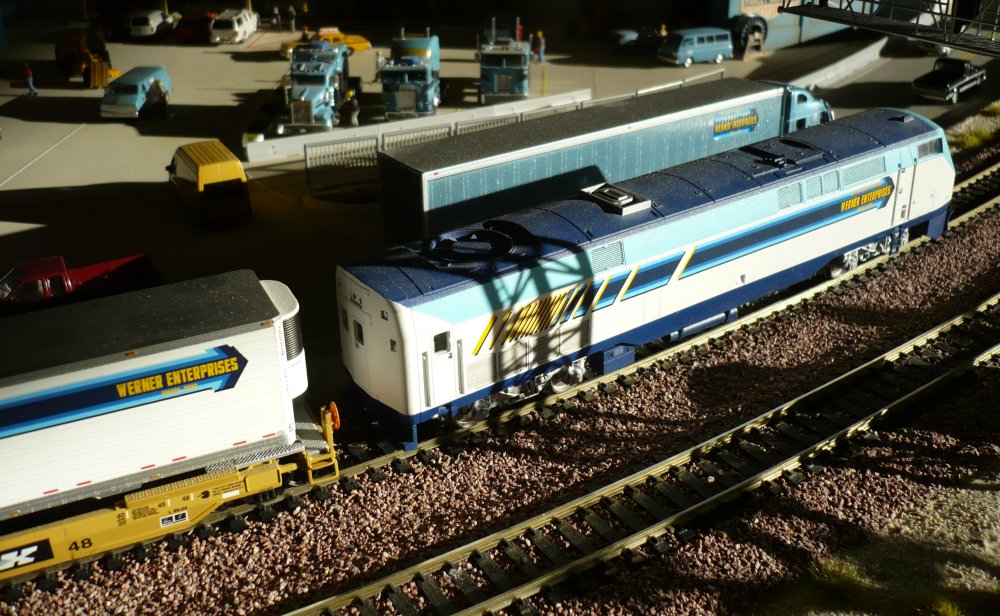

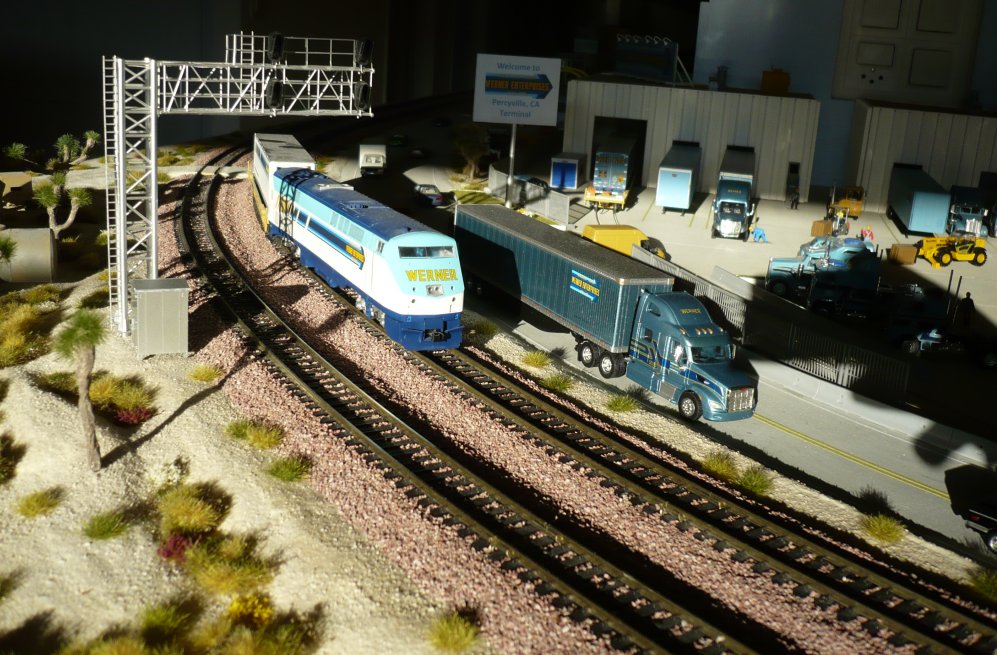

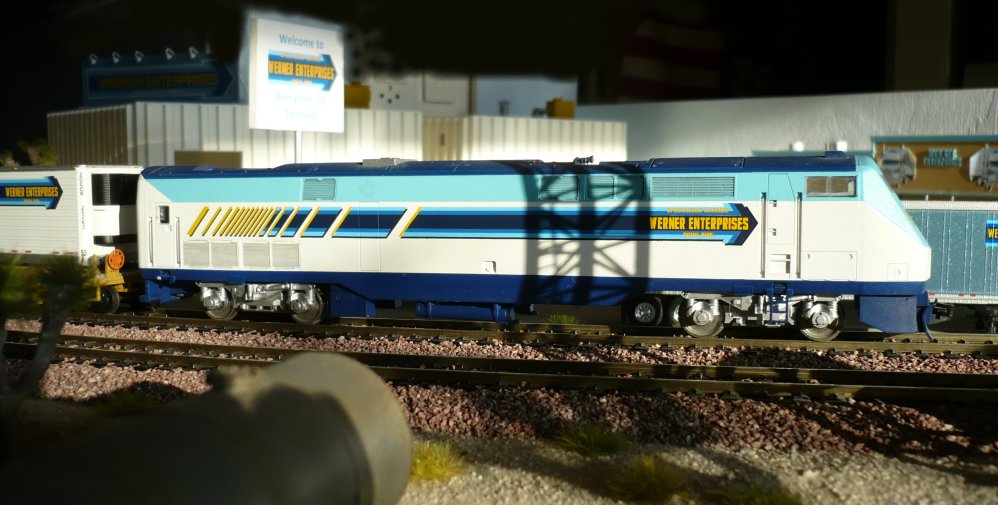

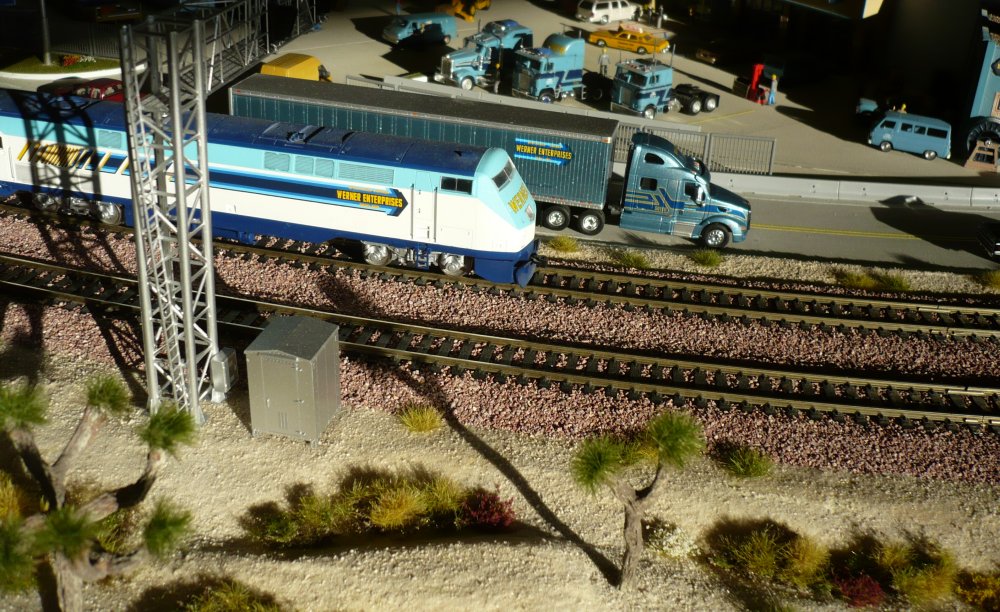

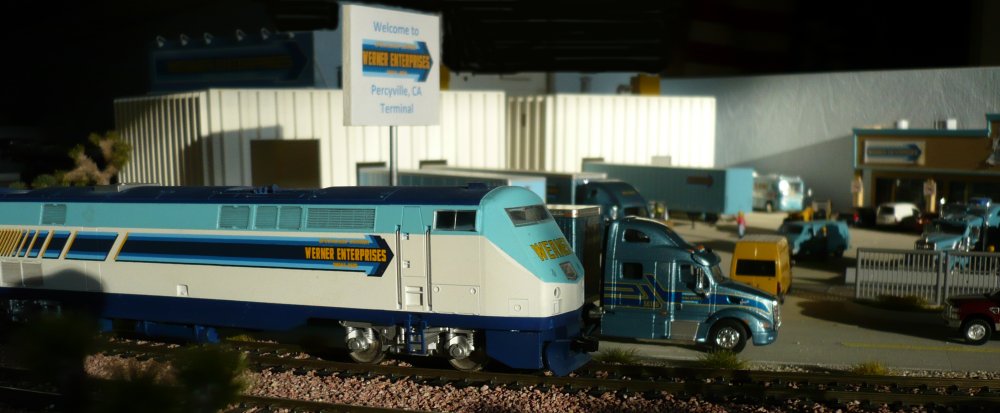

Werner Diesel Loco and Truck pass the WE Terminal - 1245 Low shadow of the signal bridge is falling over the WE Loco - 1246

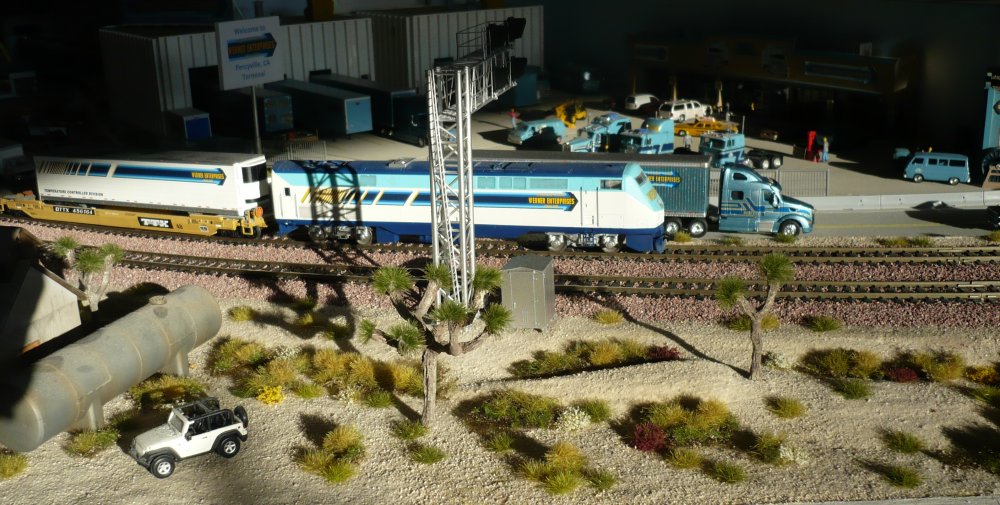

1249 1250

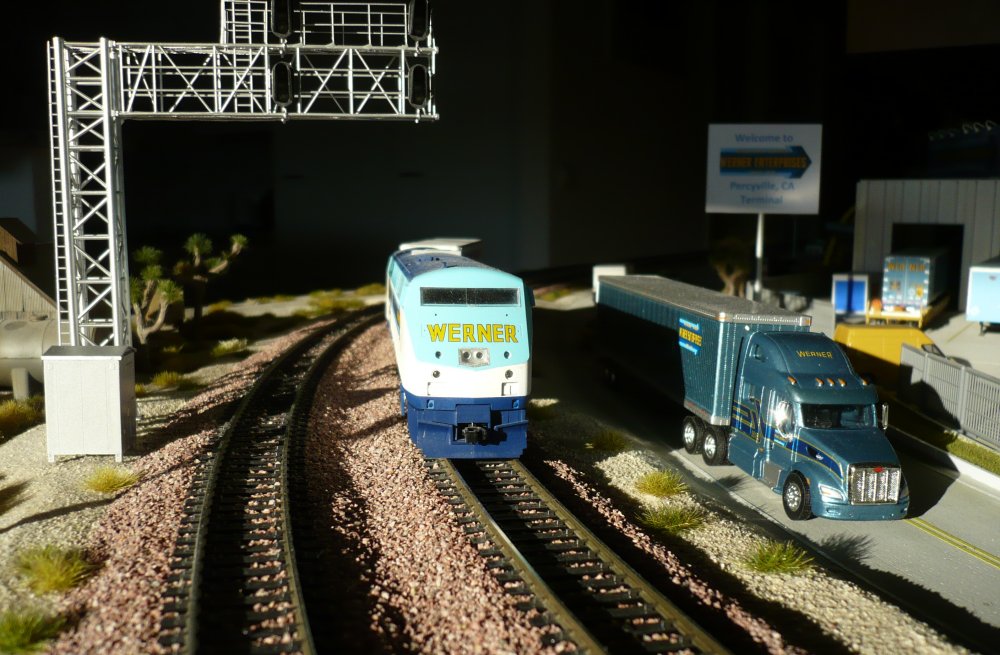

The signal bridge is still in bright sunlight - 1247 A different angle - 1248
1251 1252

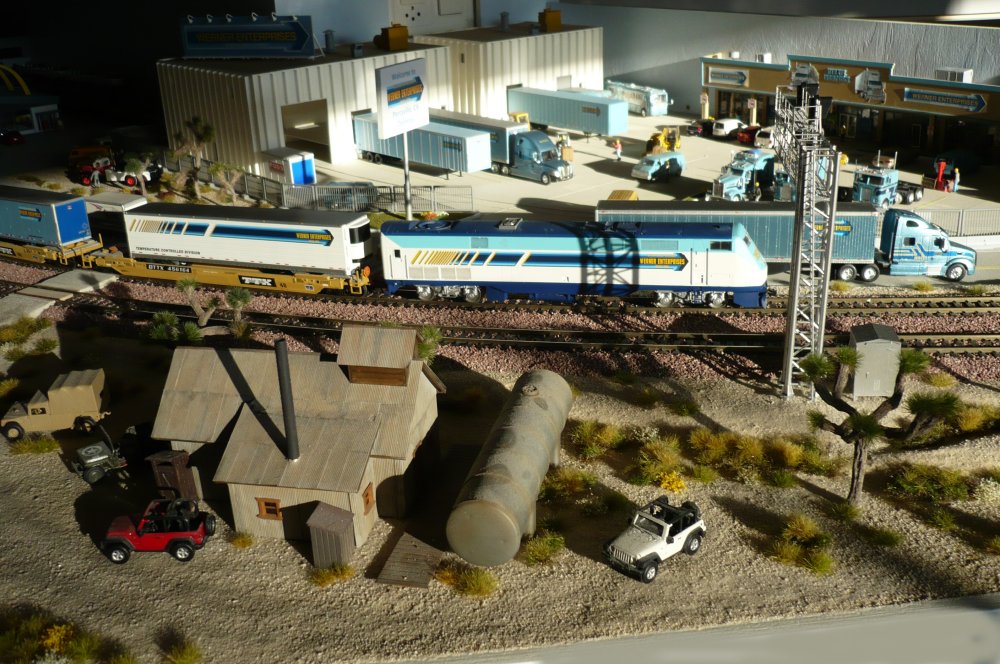

In front is Joe's old house - 1253 1254

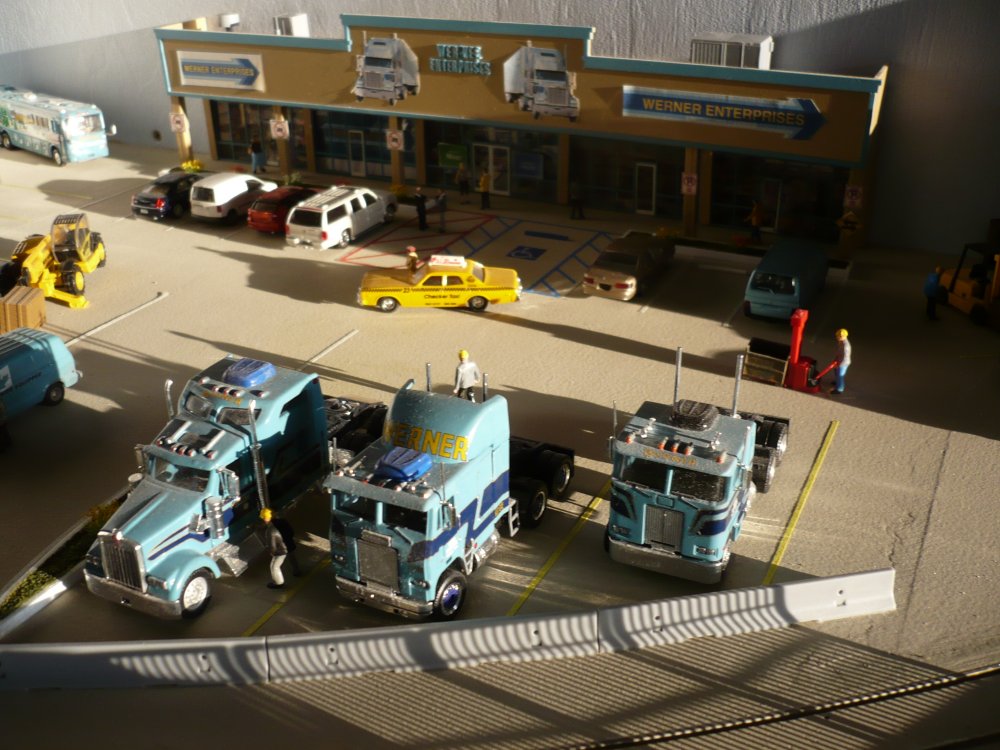

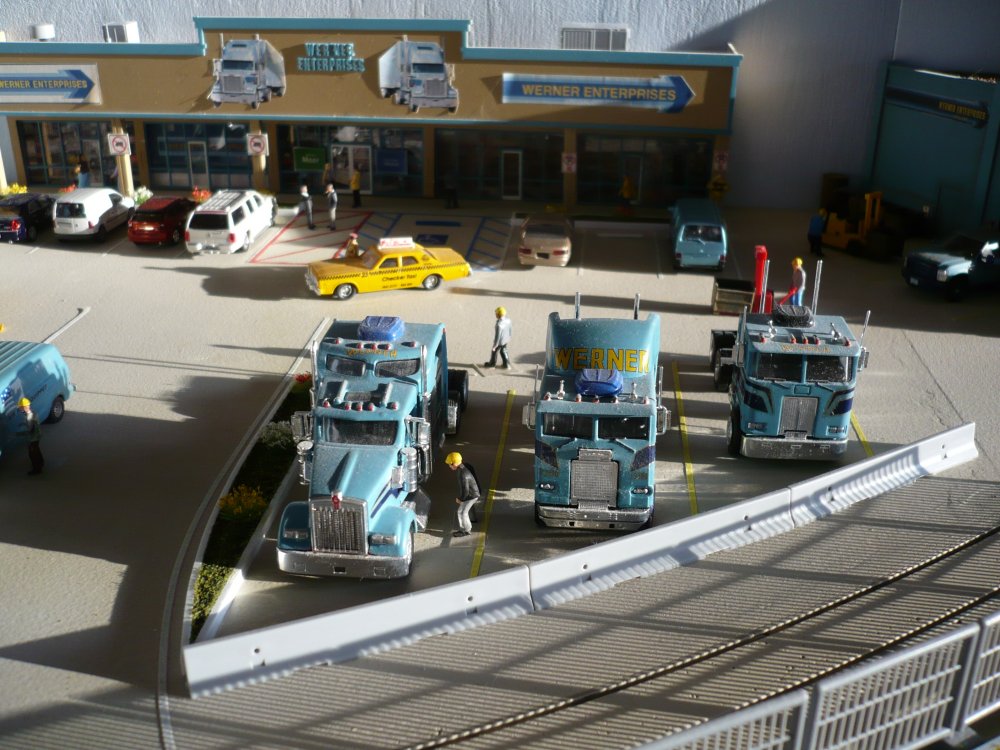

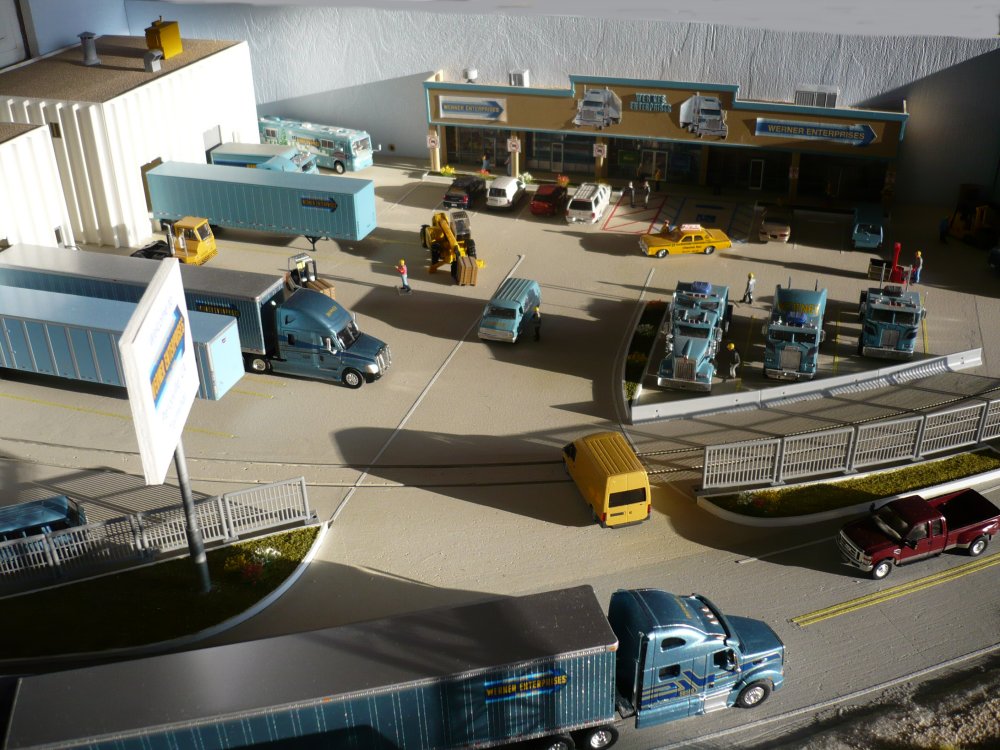

WE Percyville Terminal - 1255 Tractors in front of the office building - 1256

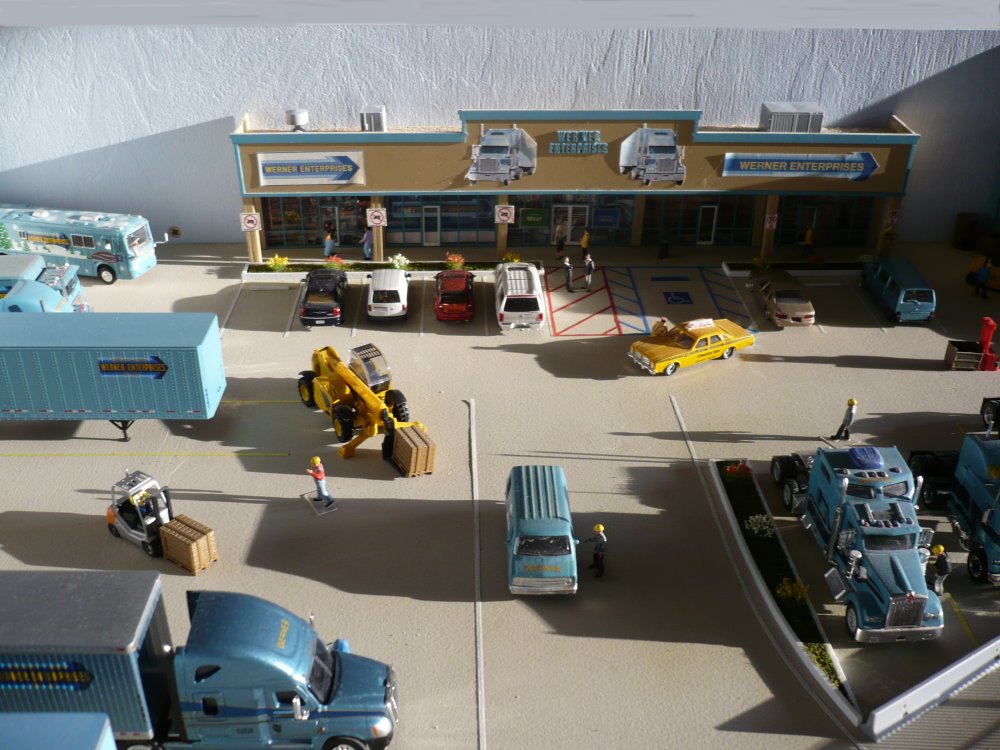

WE Terminal office straight ahead - 1257 Long shadow of the fence is almost touching the tractors - 1258

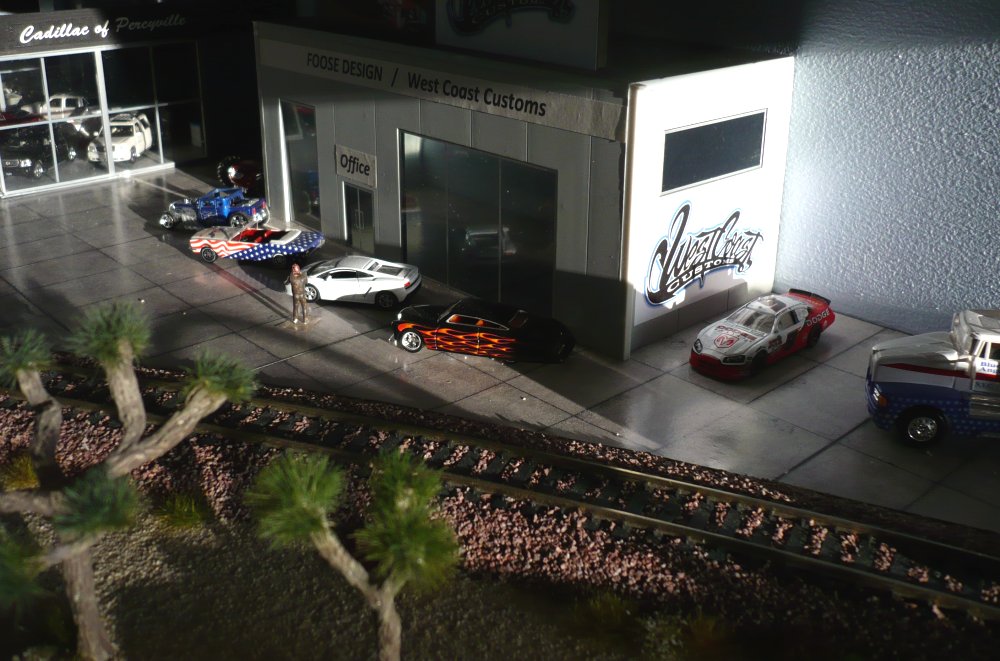

Foose Design and WCC with Joshua Trees in front - 1259 The cars of Foose and WCC - 1260

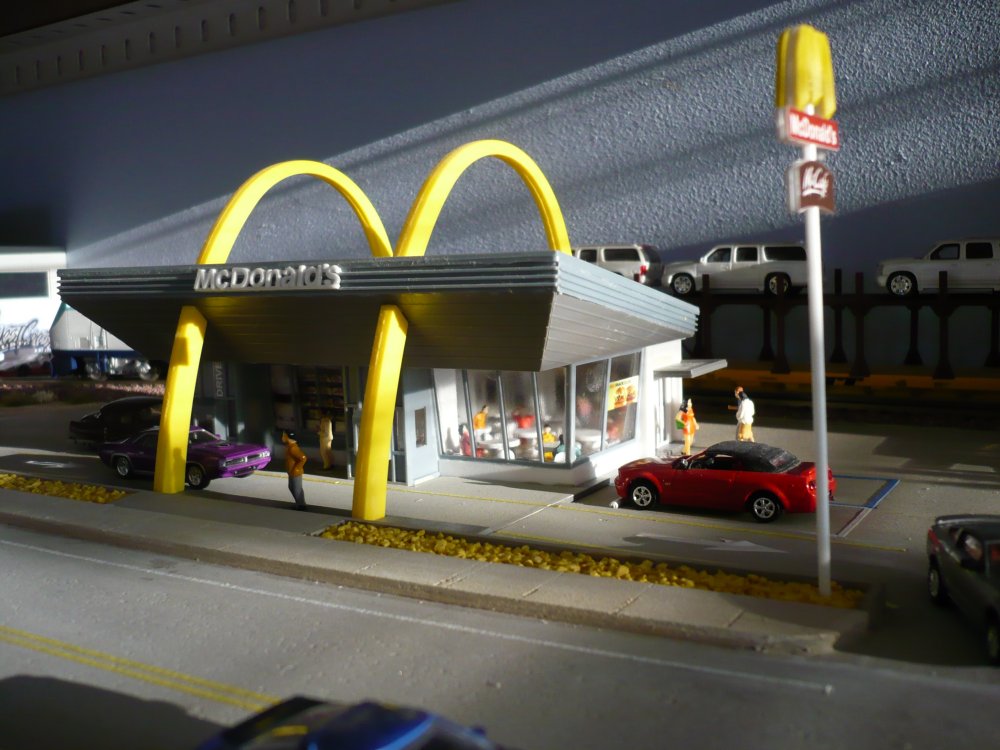

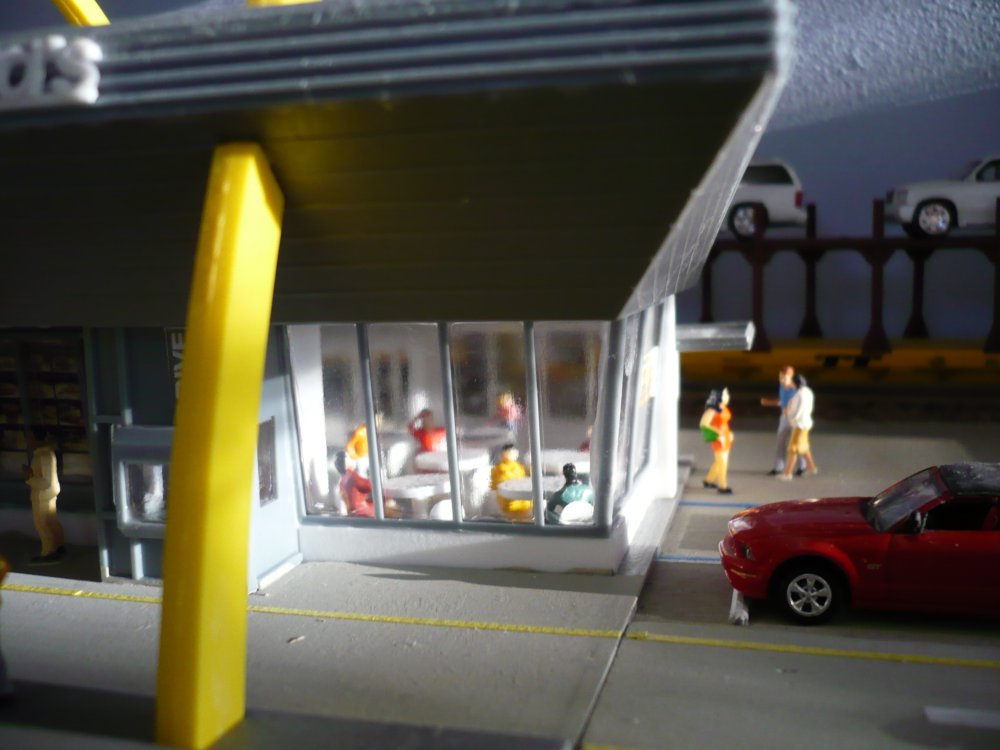

Also McDonald's is getting some low sunlight - 1261 Lots of customers are eating their BigMac - 1262
Much more photos (200 +) of our latest Extension can be seen on page 12 "Percyville - 3" - click here



Some important links for the different structures on this layout:
Summit USA Motel, ARCO, Taco Bell, WE Office http://www.summit-customcuts.com/
Great West Models 2 Werner Warehouses for Trailer loading http://www.greatwestmodels.com/
Pelle Soeeborg ARCO, Denny's, KFC http://www.soeeborg.dk
BLMA Signals, RR-Xing, parking bumpers http://www.BLMAmodels.com
Kim Nipkow & Mason Clark Joshua Trees http://www.trainmaster.ch/Y-106.htm
Modellbahn-Atelier-Berlin:  http://us-modellbahn.de/advanced_search_result.php?keywords=Pizza+Hut&x=20&y=14



Technical Data of my Layout:
Size: 4,5 x 6,5 m (13,5 x 19,5 feet), Era: Modern, Location: Southern California in the Mojave Desert (Cajon Pass), Layout Style: unconventional, in house along the walls, 2 swing up bridges, 1 lift out bridge, double track, min. radius 104 cm (41 inch), max. grade 1,5 %, Track: Atlas flextrack code 100, Turnouts: Peco code 100, Power: conventional DC with electrical feeders every 2 m, Mainline: 32 m (96 feet), Height: 93 cm (36,5 inch)
Overview of the layout (each square is 0,5 m)
