HO Scale Desert Layout Project  -  12/22
City of Percyville - Part 3 - Extension
The City of Percyville (the name is in memory of my "layout cat" Percy) got an extension. Just after the Werner Enterprises Terminal is a combined road/rail bridge. There was a RR-Xing with a dead end street (no continuation). So, I used the space above an office corpus. The size is just 43 x 72 cm but I will be able to extend the street by 72 cm and place 3 buildings along that street. On one side will be a Domino's Pizza and a Denny's restaurant (both from Summit USA). On the other side will be a used car dealer "Best Deal Auto". This particular structure was custom made by Pelle Soeeborg. In real life, it is a Ford Dealership in the town of Mojave, CA. Take a look - click here .

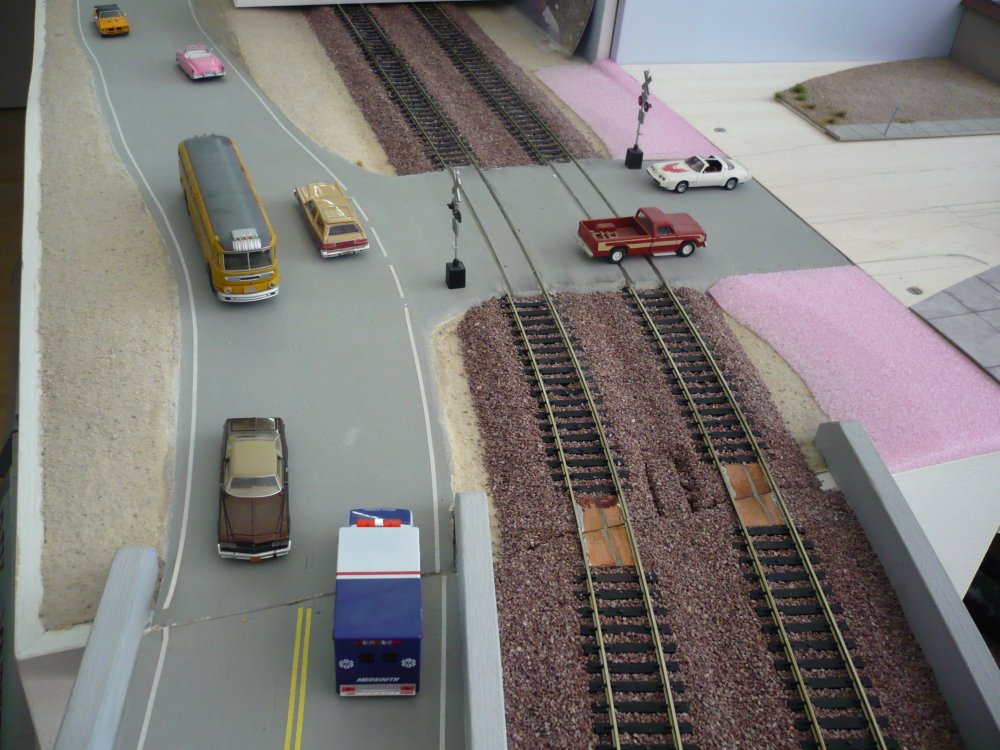

This RR-Xing will be used to enter to the extension - 1264 therefore, it is not a useless dead end street anymore - 1265
the new Percyville Extension - 1387 above before and below after landscaping - 1449



As there are too many photos, I made 5 chapters
A) Foundation of the Extension module with 3 structures and cars to get an idea, how it may look
B) Building of foundation for Domino's Pizza and Denny's Restaurant, incl. all walkways
C) Roads and parkings are painted and marked, landscaping is finished also on the connection modules and tunnels
D) All 3 Structures have been added (no models yet)
E) People, Cars, Trucks and Trains bring the scene to life
Please note: If you want to see the photos of the finished Extension with models go to Part E
Photos 1264 - 1491, starting 4/10/15 and ending 5/10/15

(just click on the 4-digit number for bigger size photos)

Part A) 4/10/15 - The City of Percyville gets an extension with 2 Restaurants and 1 Used Car Dealership.

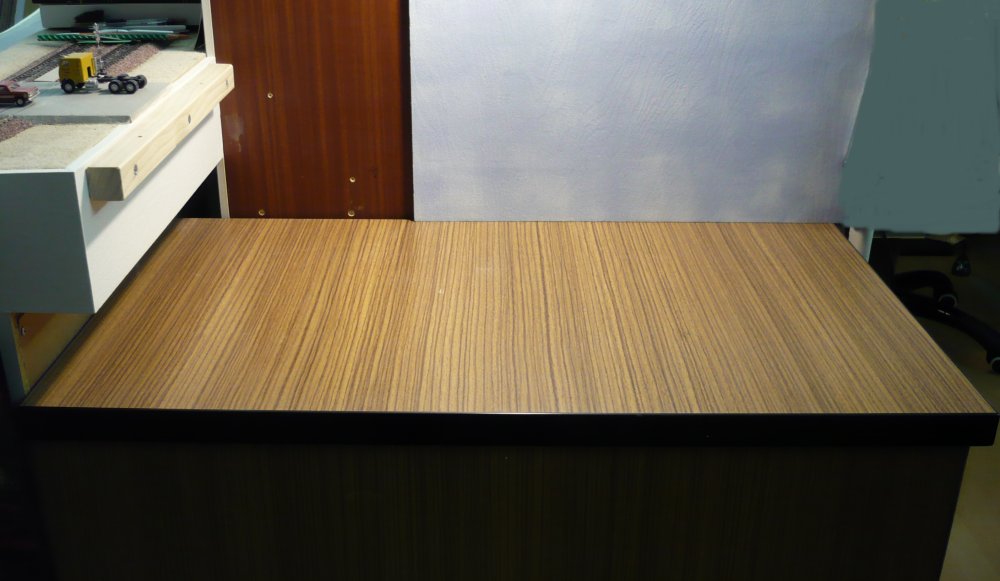

But first of all, we start with the base 43 x 72 cm (17 x 28 inches) just above the office corpus.

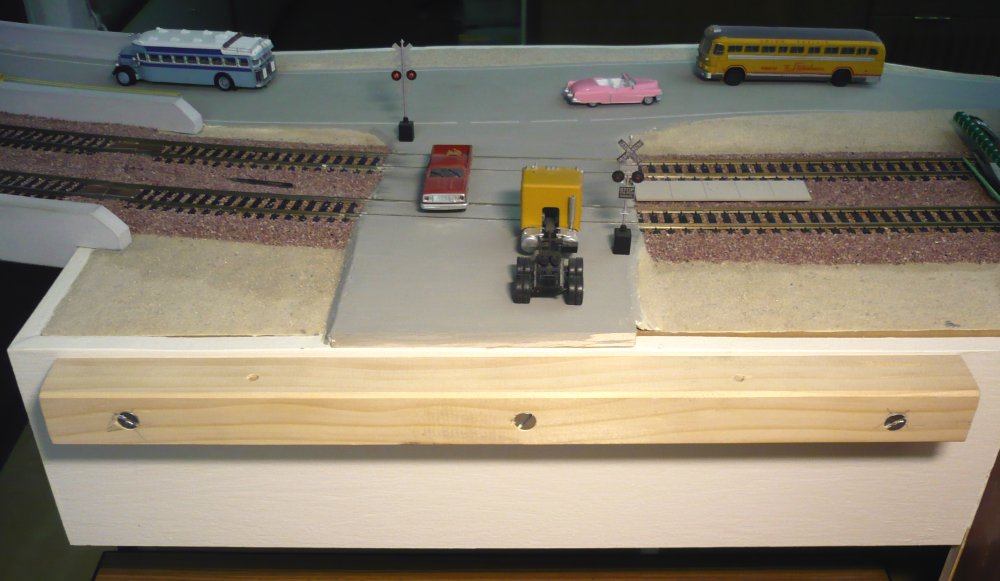

here, the extension will be connected to the modul - 1266 empty space on top of office corpus - 1267

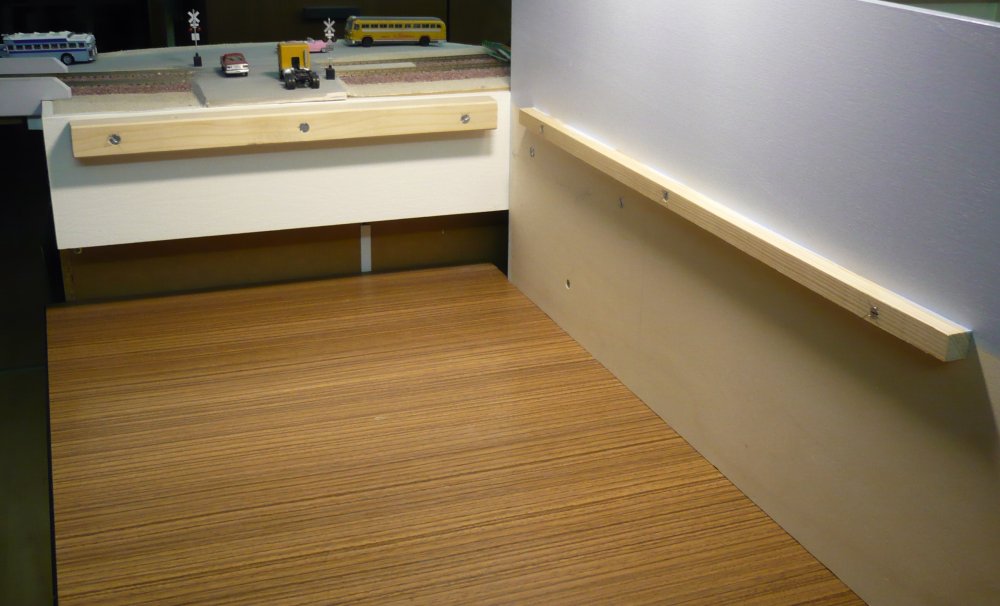

the new board will be resting on these two wooden strips - 1268 the blue sky backdrop is in place - 1269

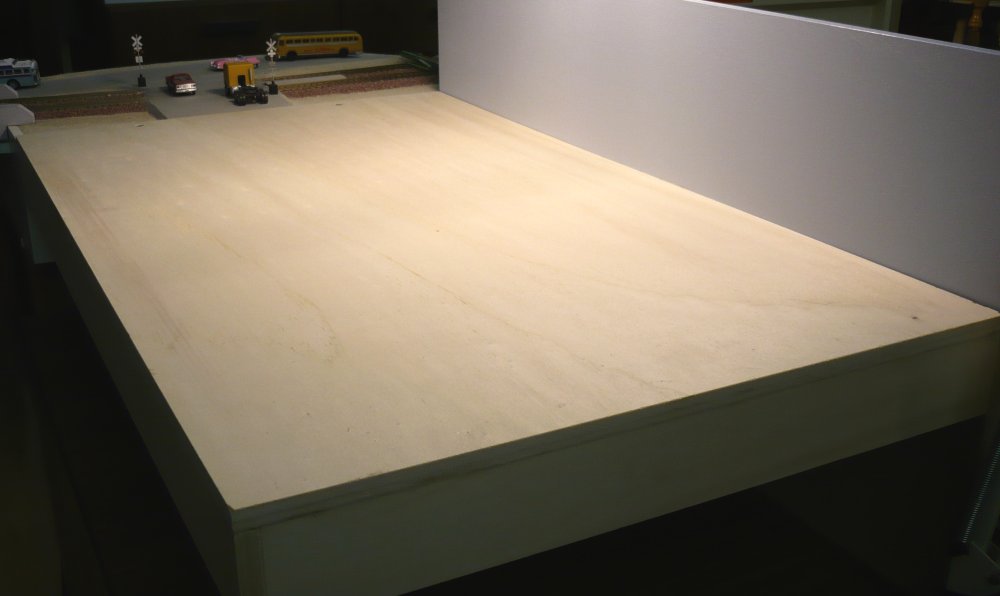

the board got a frame around it - 1270 size = 43 x 72 cm or 17 x 28 inches - 1271

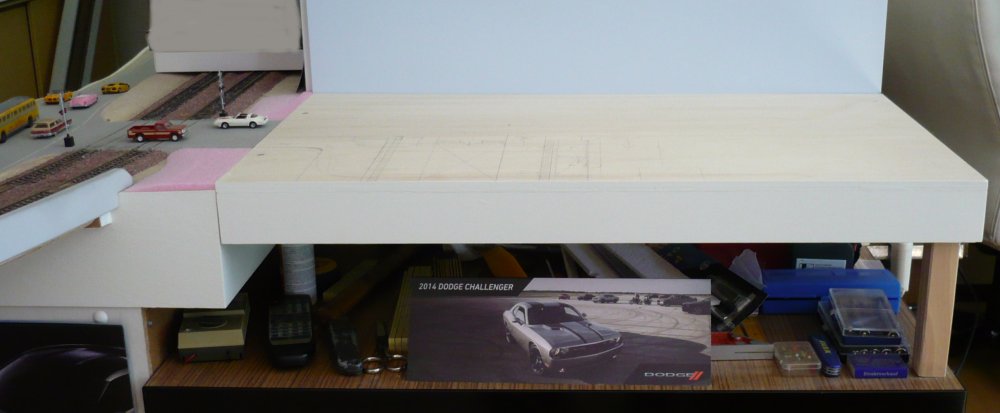

at the right side is a wooden post to hold the right corner - 1272 I used a pencil to draw the road and space for the buildings - 1273

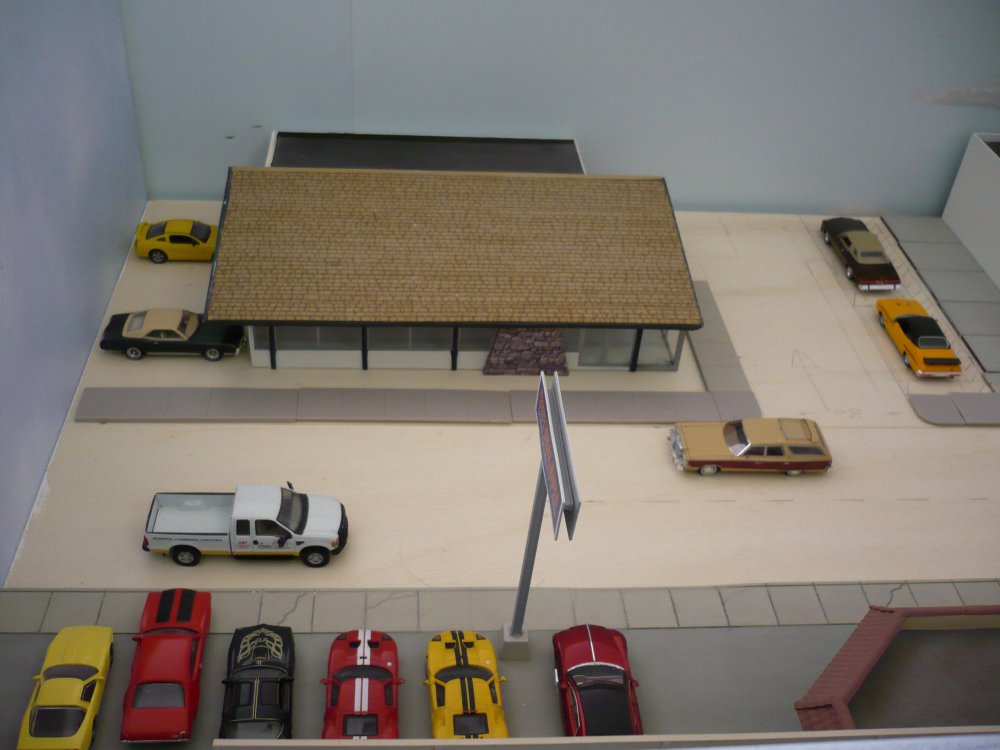

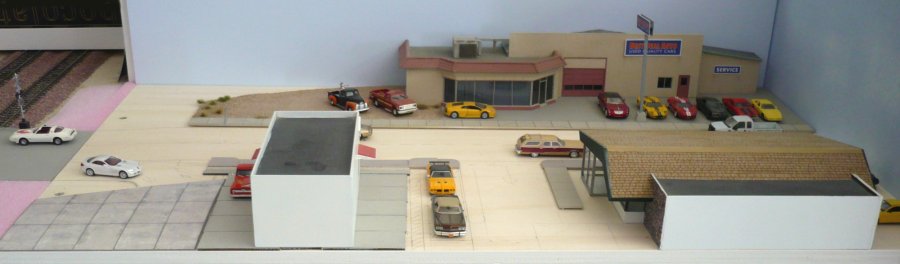

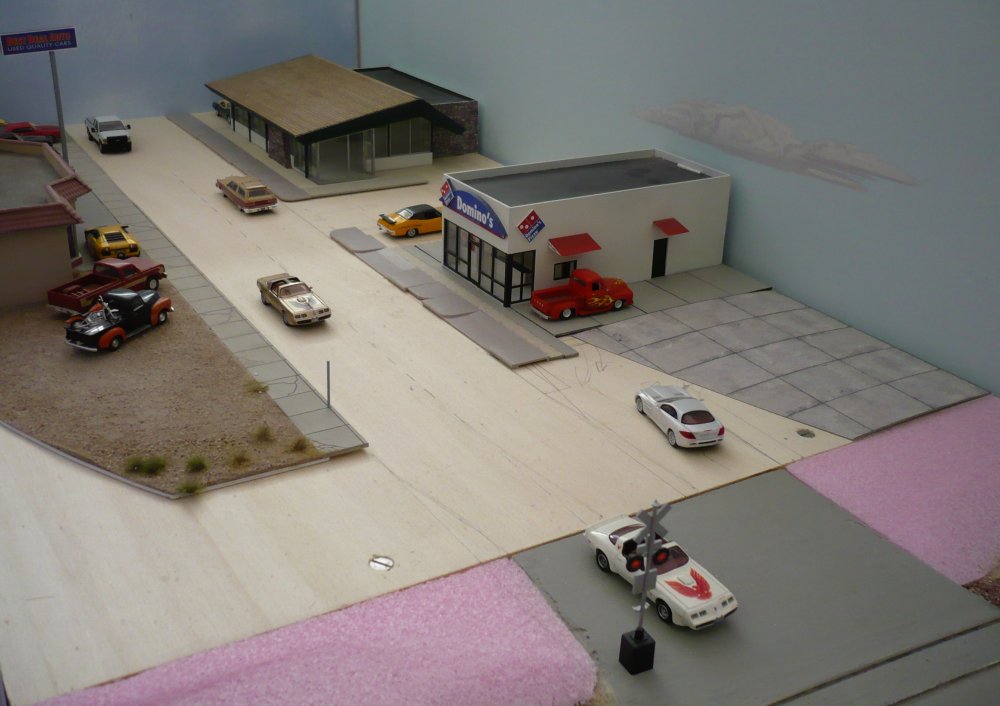

To get an idea of the arrangement, I placed the 3 buildings on the extension. Behind is the Car Dealer, left Domino's and right Denny's.
This is an important stage to take several photos from different angles to see, if everything looks good before finalizing the layout of the road and the buldings - 1274

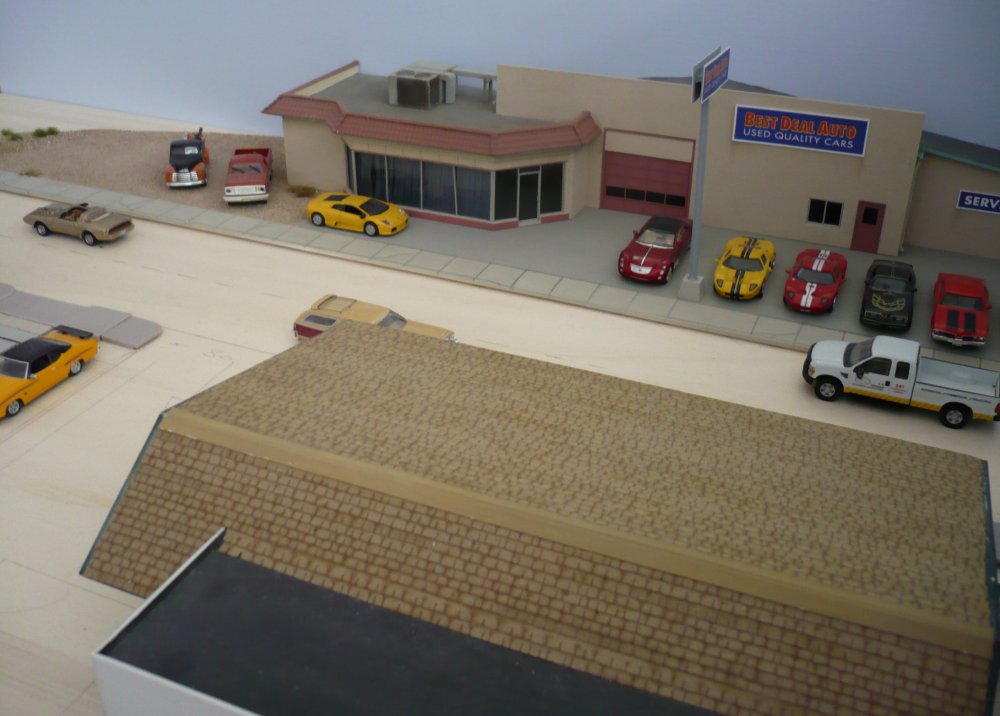

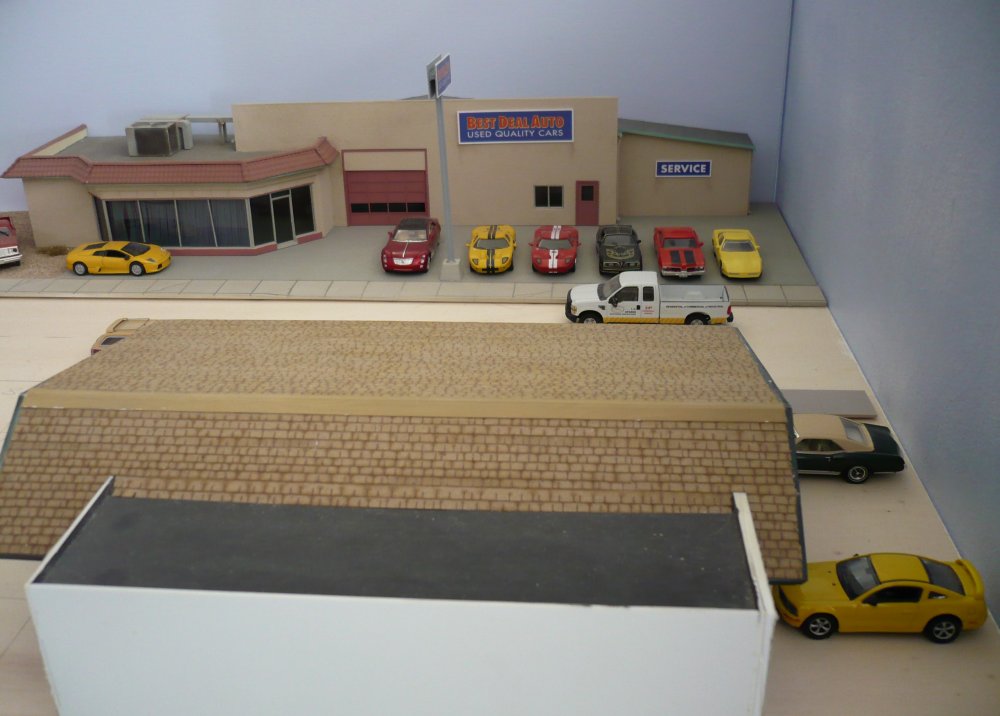

looking over the roof of Denny's . . - 1275 . . to Best Deal Auto used car dealer - 1276

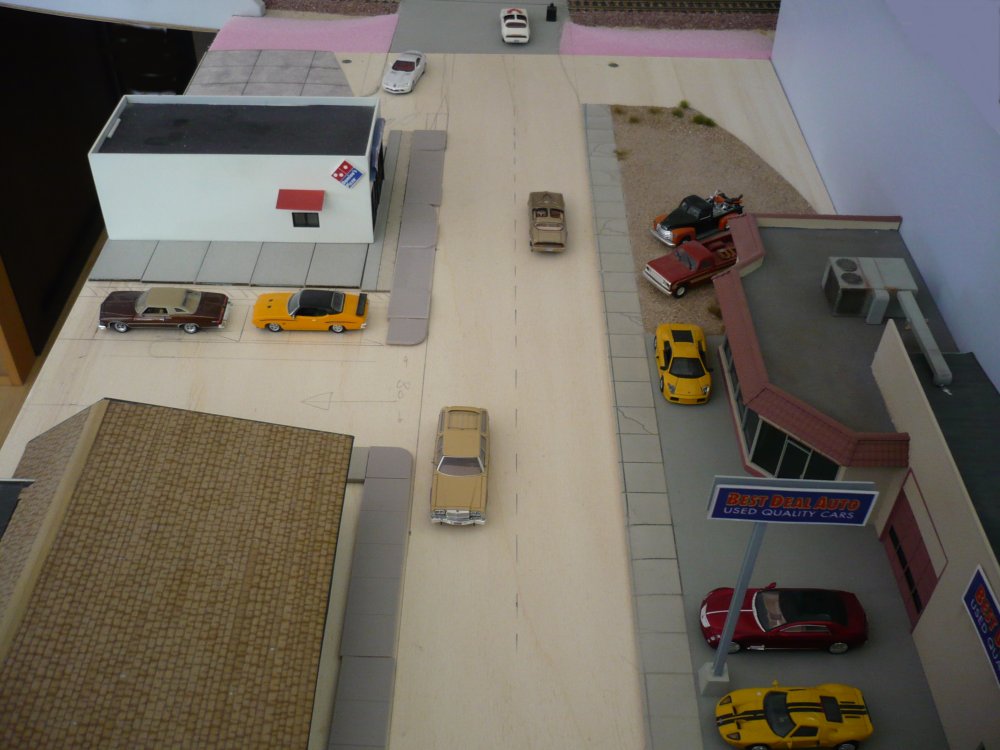

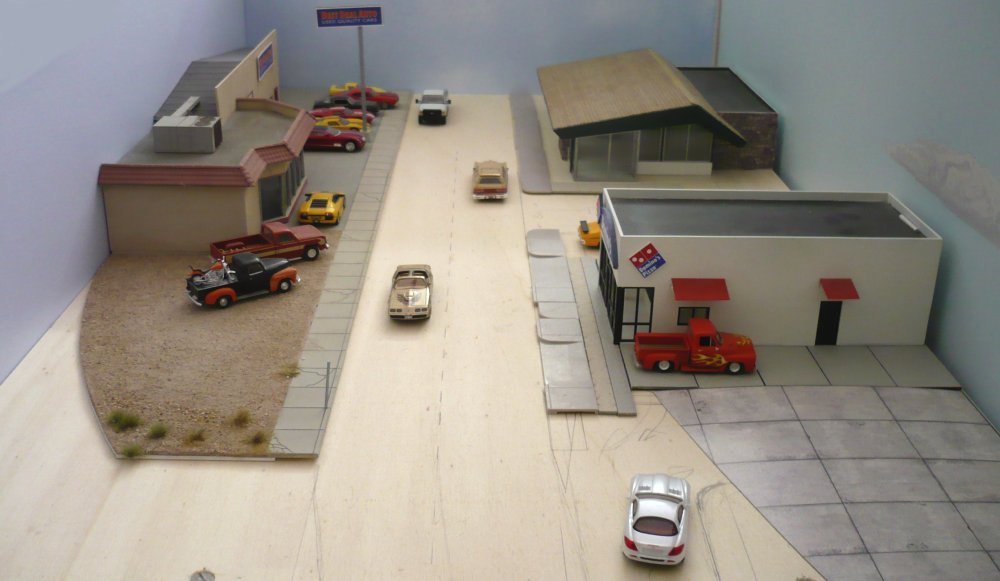

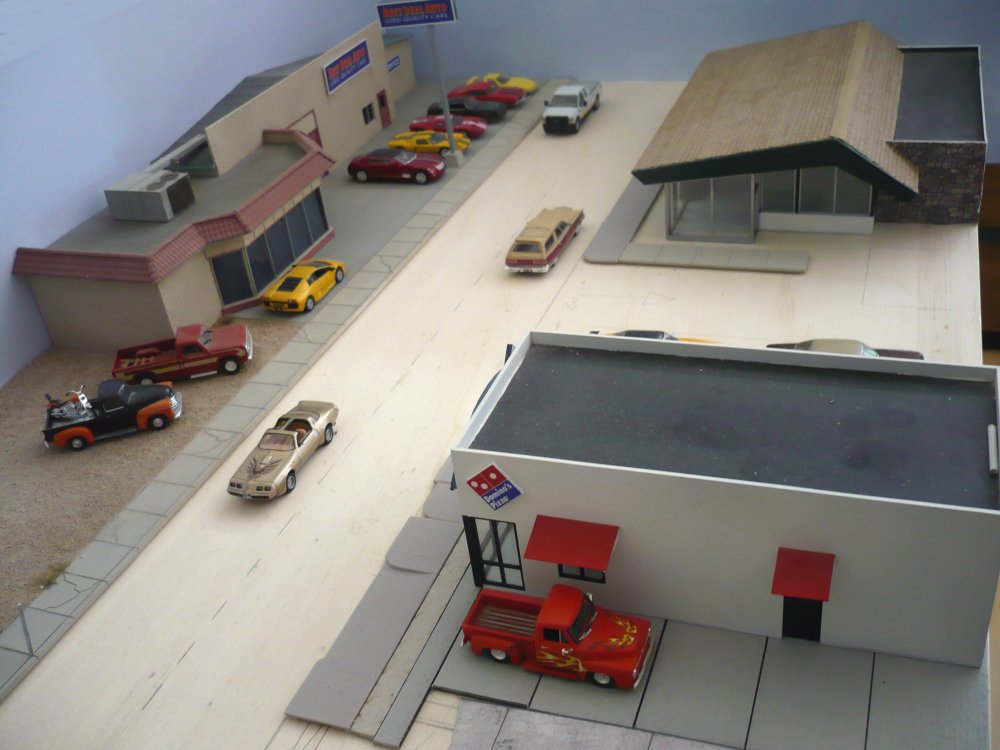

looking from above - 1277 1278
1279 1280
1281 1282

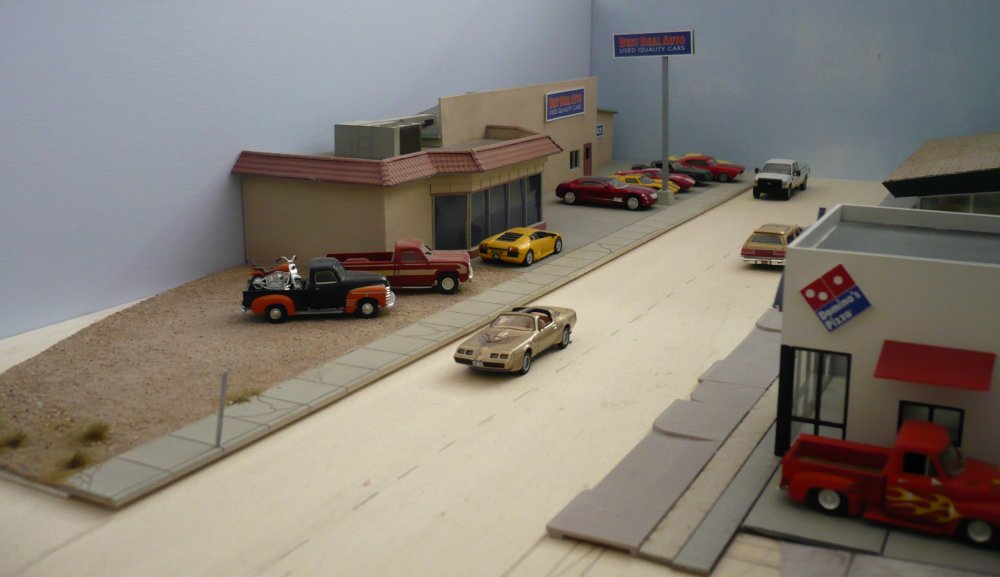

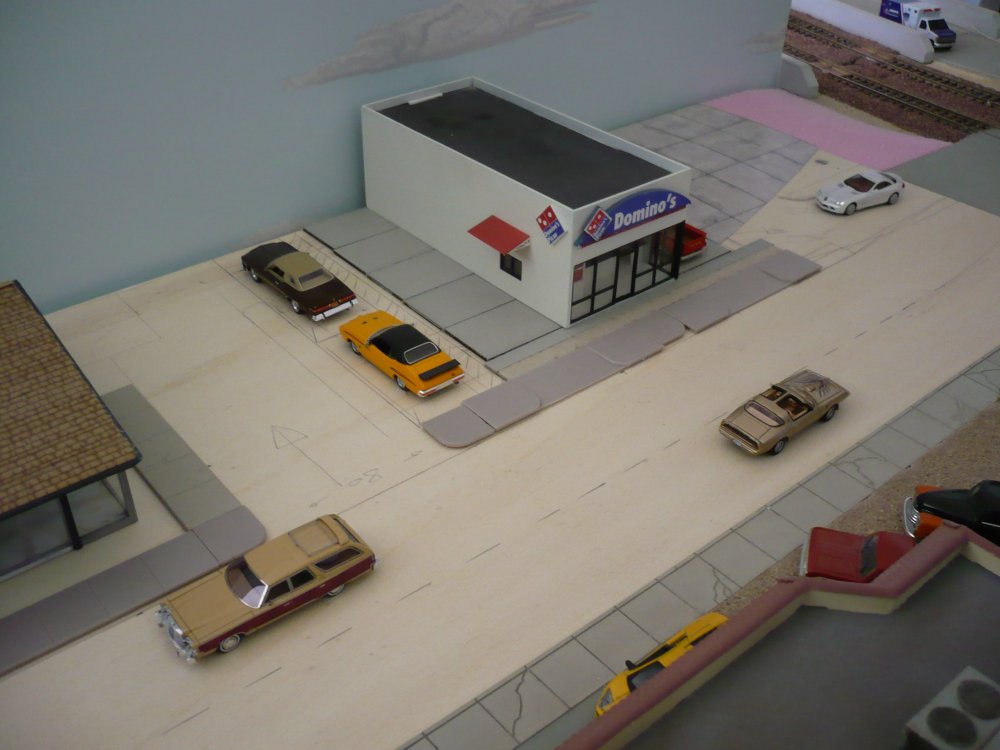

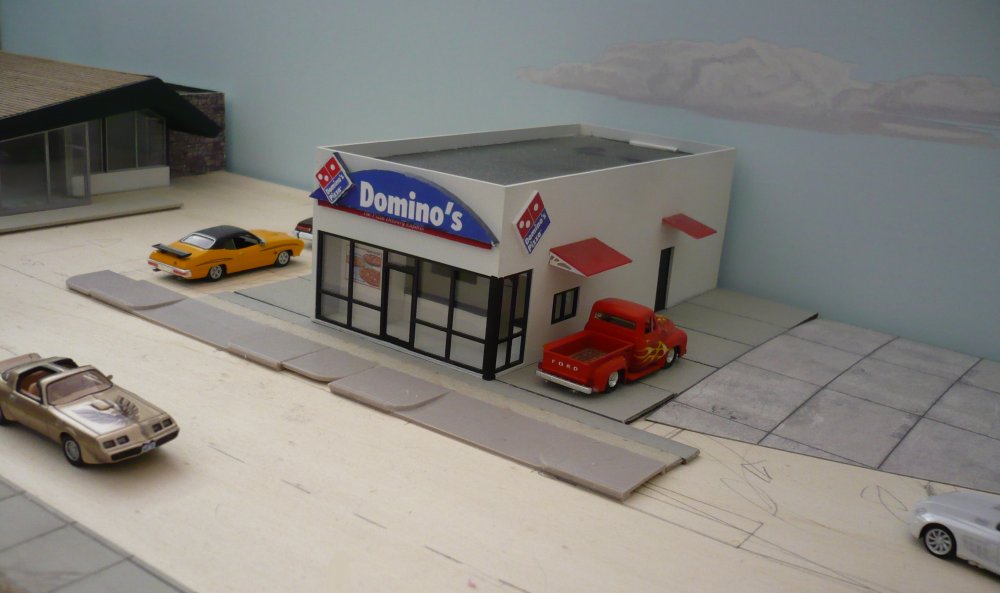

Denny's Restaurant - 1283 Domino's Pizza - 1284
1285 1286
1287 1288
1289 1290

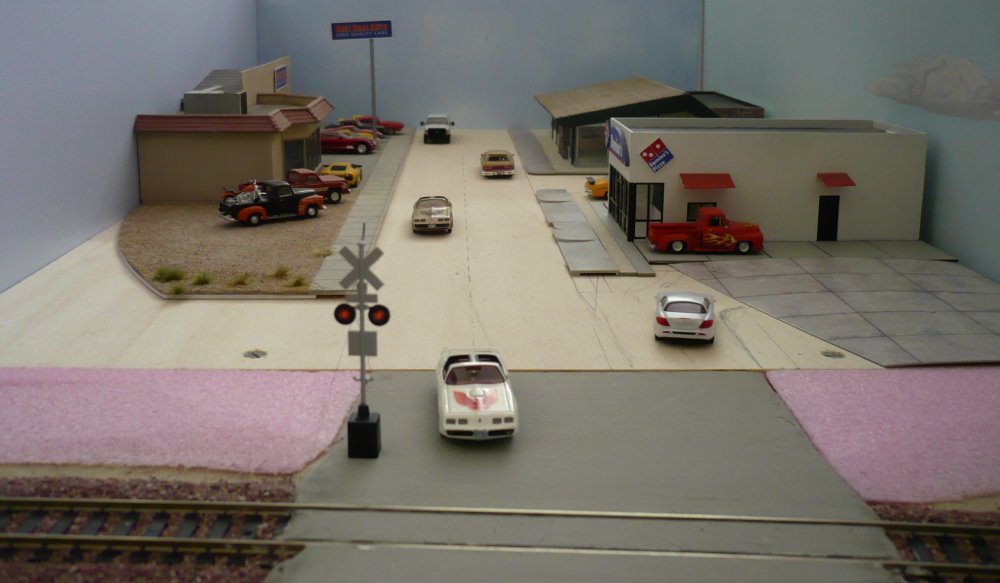

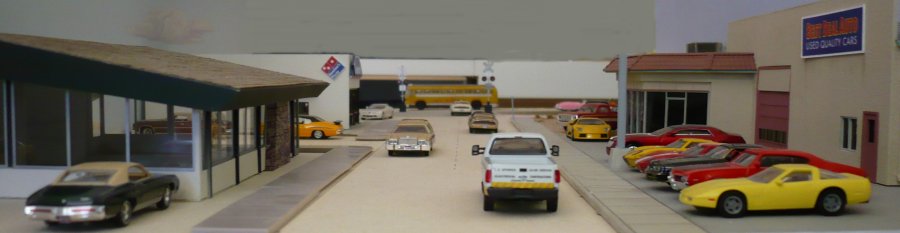

looking down the street toward the RR-Xing - 1291

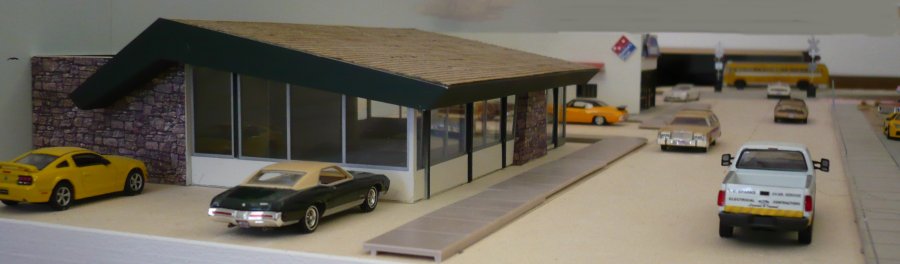

The Denny's restaurant is still empty (not in service yet) - 1292

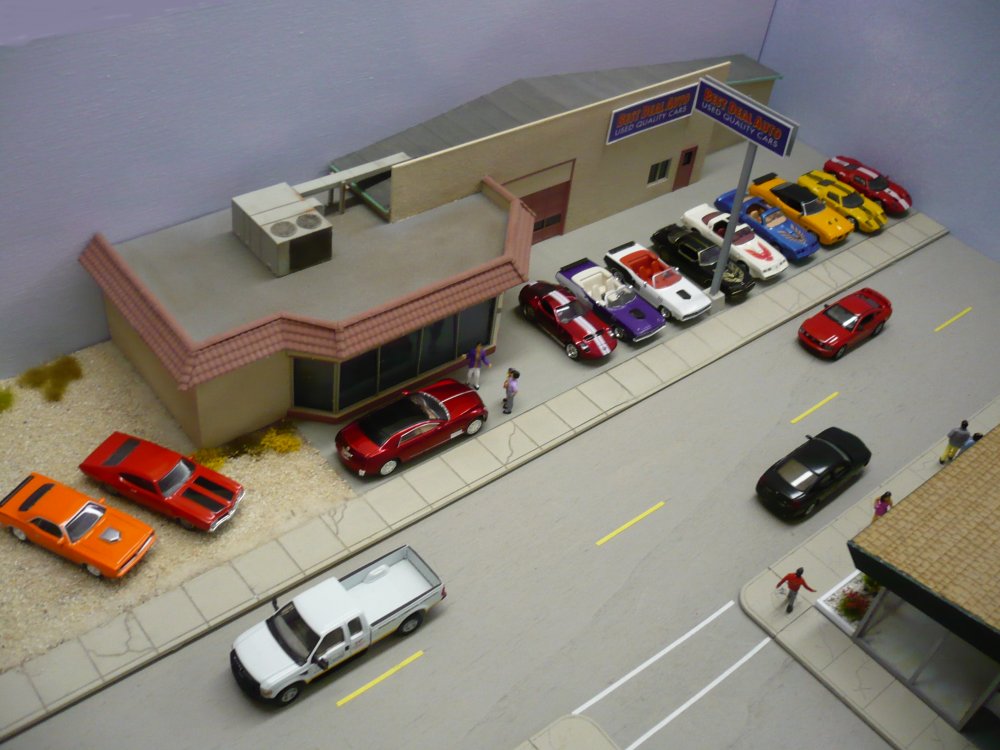

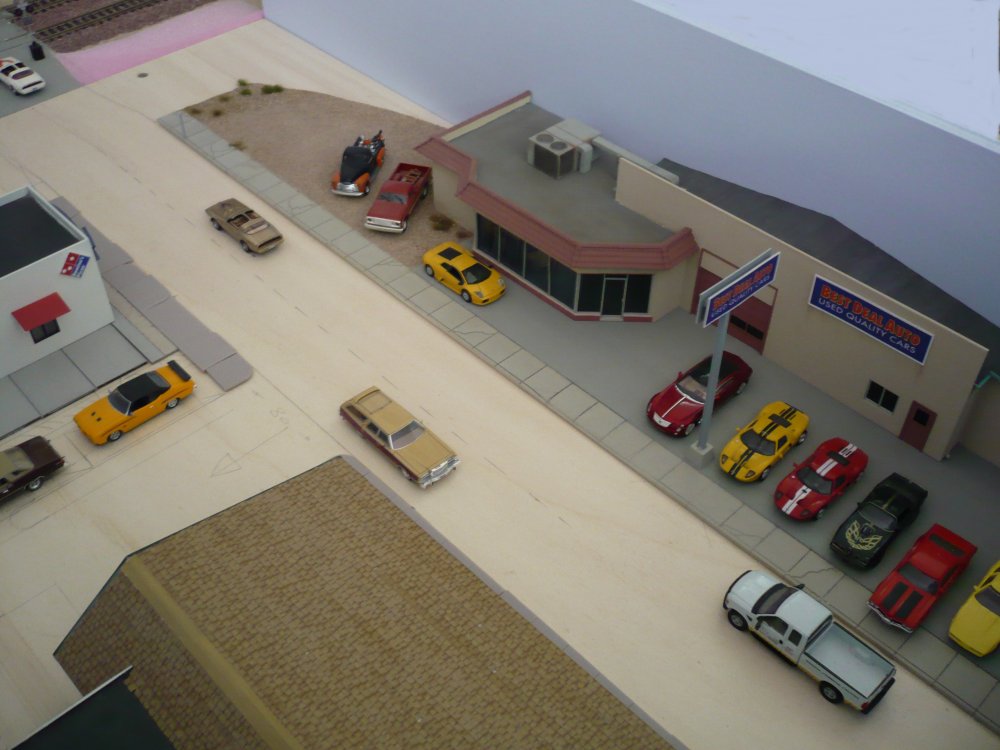

Best Deal Auto has already several nice and special cars for sale - 1293

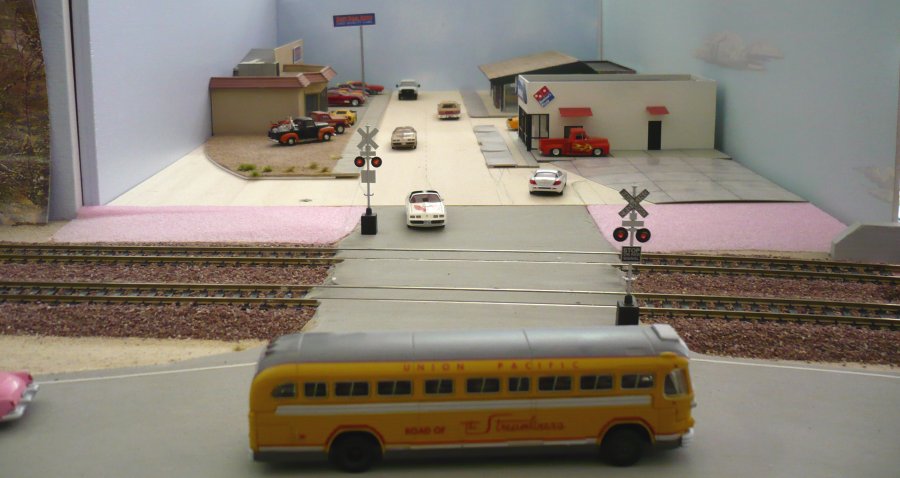

an old UP bus is passing the RR-Xing - 1294

 sorry about the endless amount of pictures, but I want to save all the different views of every corner and every step
if it is too much for you - just scroll down !

Part B) added: 4/14/2015
The construction workers came to start with the foundation for Domino's and Denny's. At the same time, the road workers made the walkways.

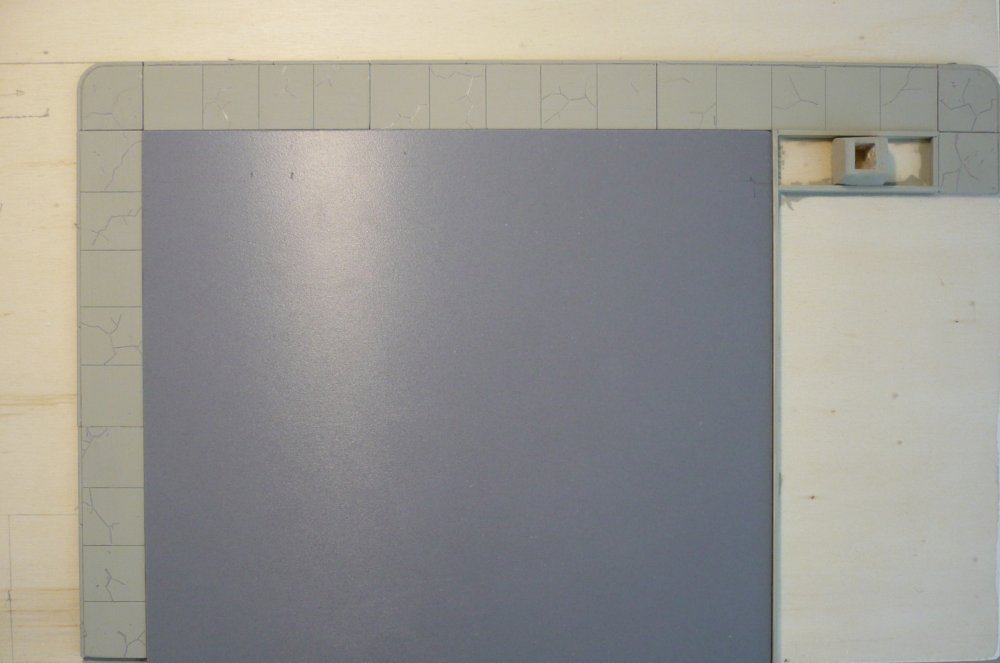

Foundation for Domino's Pizza - 1295 Foundation for Denny's Restaurant - 1296

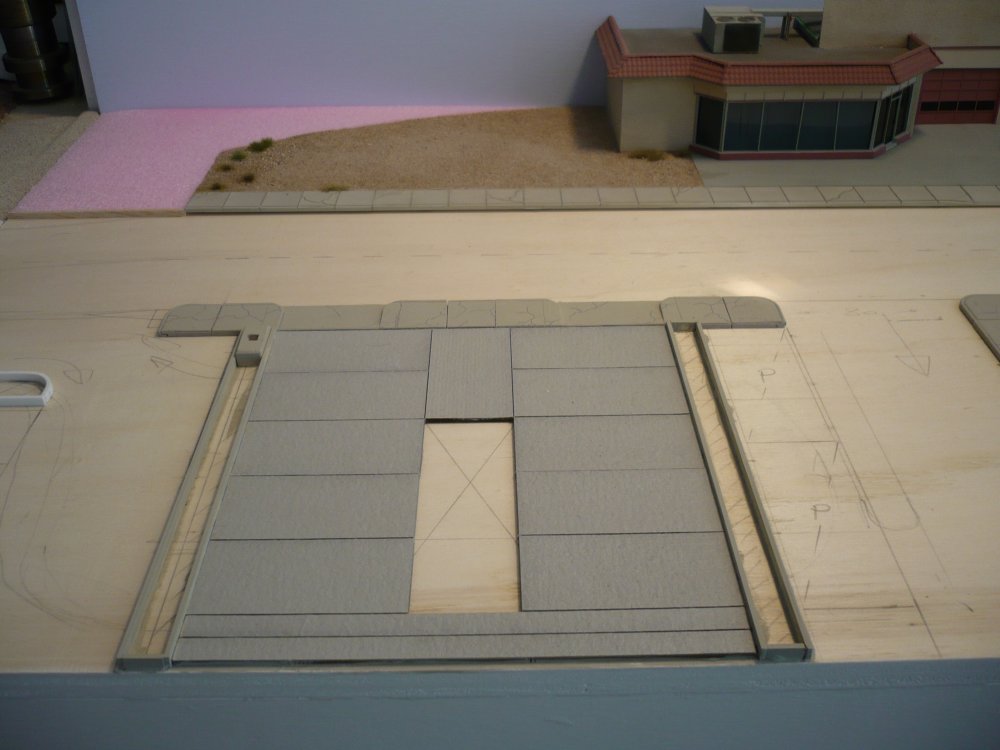

as the car dealer has nice walkways in front . . - 1297 . . those new ones should more or less match (look alike) - 1298

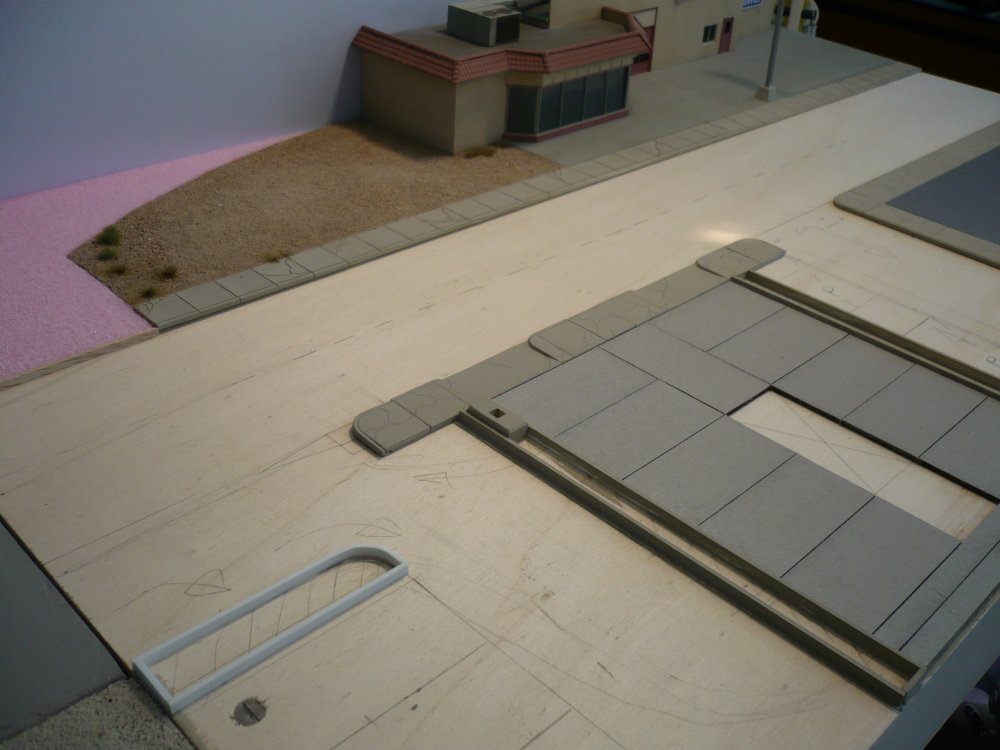

the car dealer foundation was curved and needs a filling - 1299 I used Walthers street system walkways and painted gray - 1300
1301 1302
1303 1304

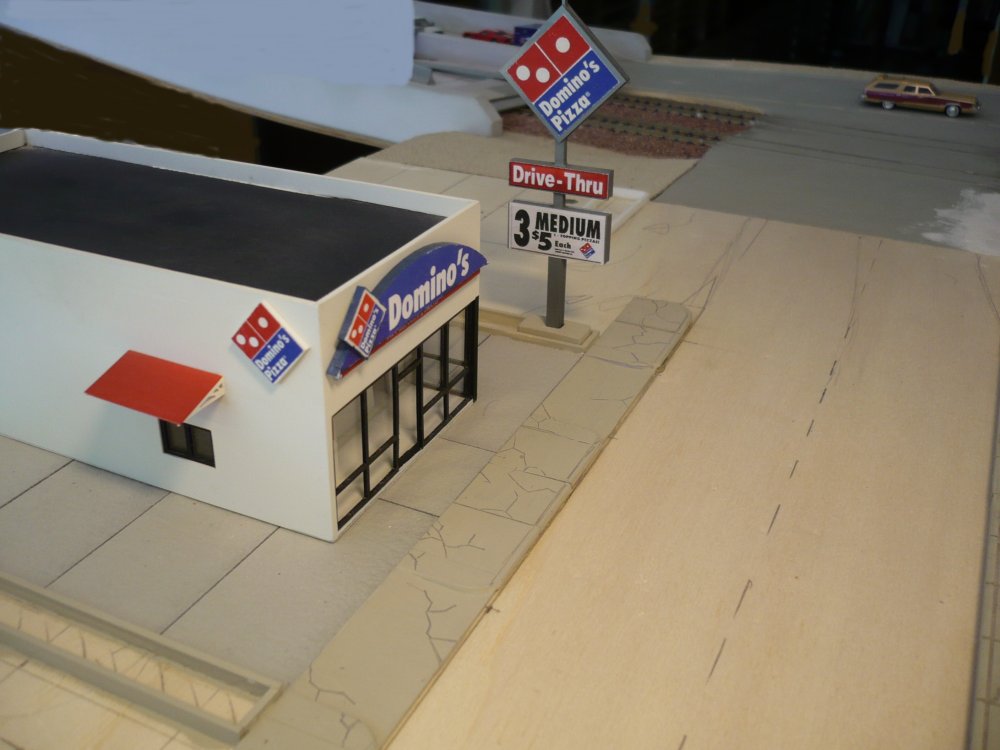

1305 yes, there are cracks on the walkways - 1306

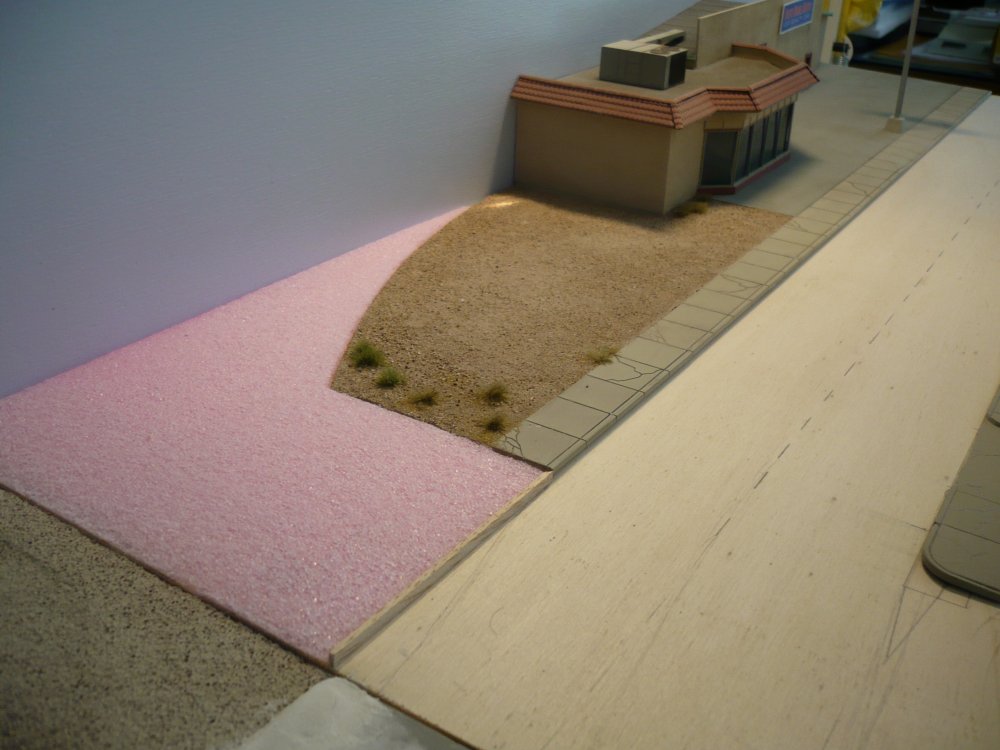

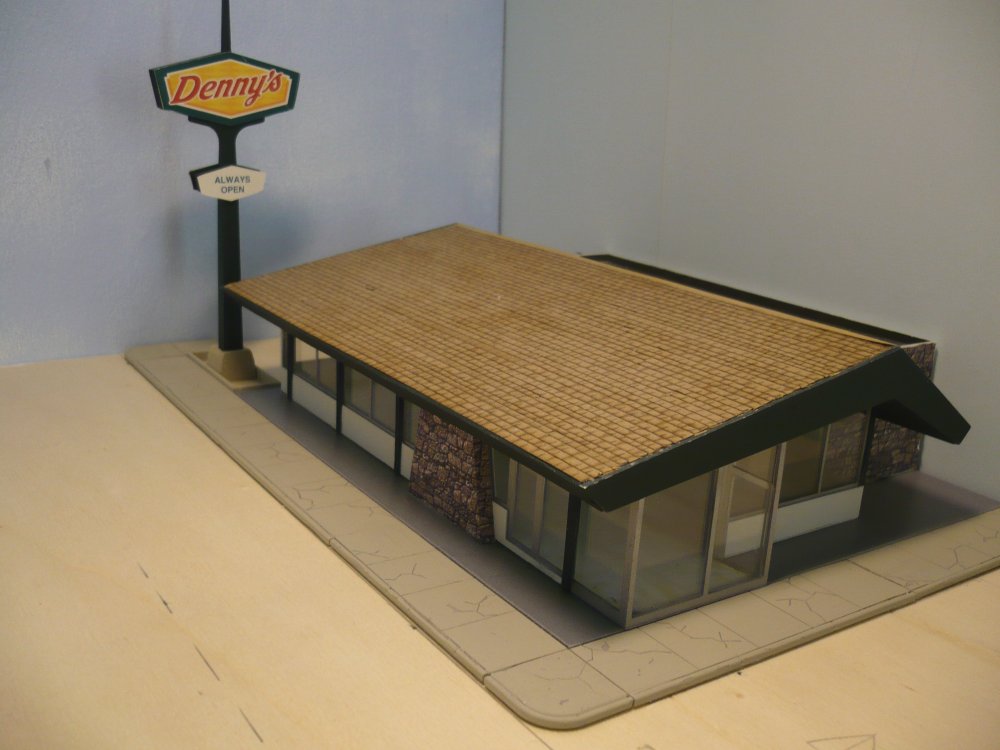

this "pink" part should fill the gap (it sure needs sand) - 1307 1308
in front will be some gravel and flower bushes - 1309 the surroundings of the drive ways will be filled with gravel - 1310

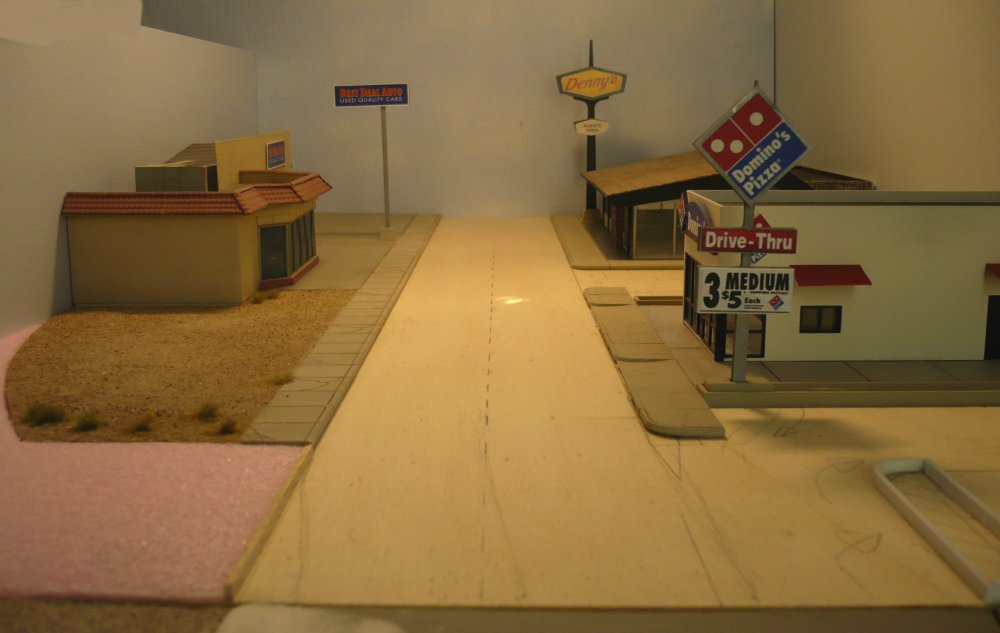

different light makes this "evening" scene - 1311 roads and parking lots will be painted - 1312

 sorry about the endless amount of pictures, but I want to save all the different views of every corner and every step
if it is too much for you - just scroll down !

Part C) added: 5/08/2015
The Streets and parkings have been painted and got markings. Also landscaping was done at the same time incl. the connection modules.
New Extension of Percyville - The used car dealer is now fully integrated - 1313
Let me explain why this RR X-ing is not realistic: The mainstreet is a 2 lane street without waiting space for those cars to cross the tracks. If a train is passing, main street will be blocked. When I started to build this part, I did not think of needing an additional turning lane.
Well, in our scale model world, we have to live with compromises !!


Combined Bridge for Mainstreet and Double Track (lenght = 80 cm)
This "lift out" bridge is connecting the City of Percyville from
Werner Enterprises Terminal to the new Extension - 1315

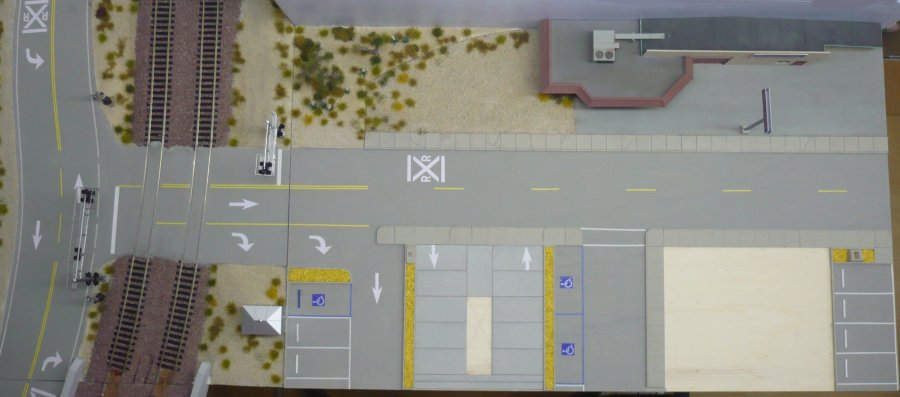

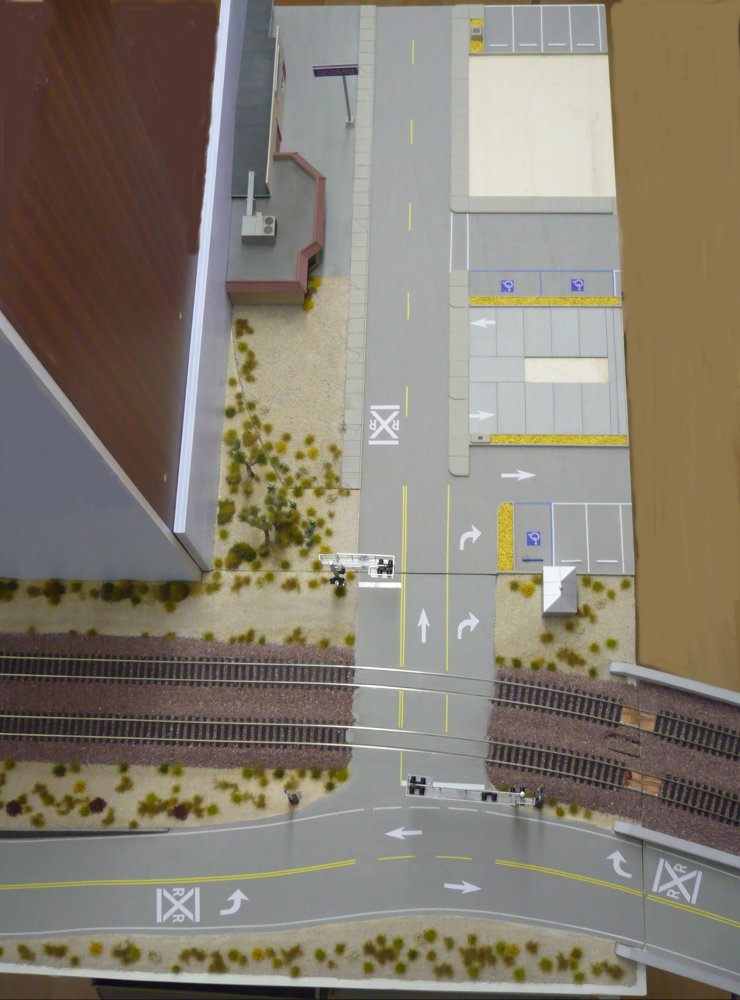

Overview of new Extension - 1314 Combined Bridge at right - 1316

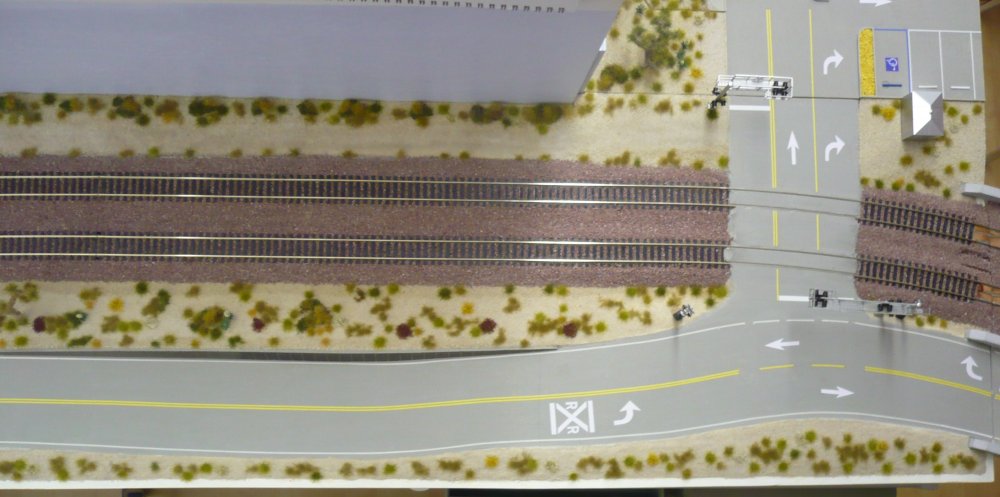

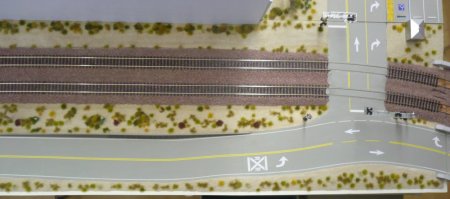

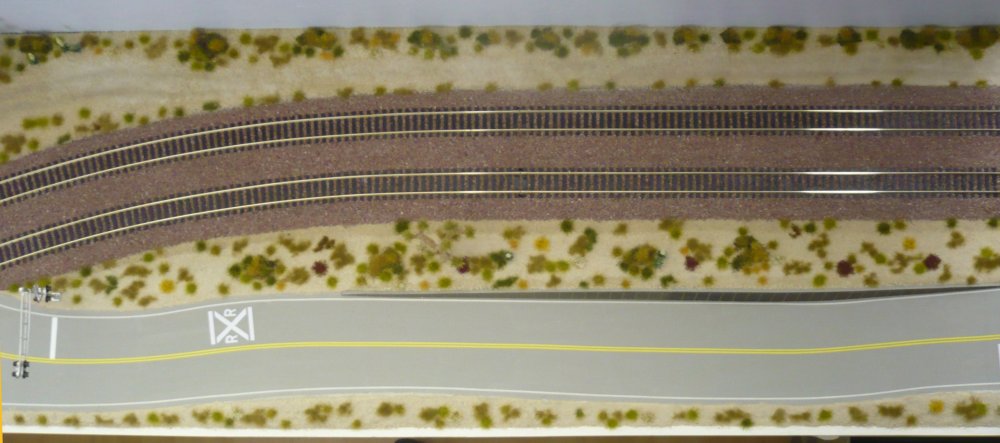

Main Tracks will go over a bridge at left - 1317 from the RR X-ing, Mainstreet and Double Track continues - 1318
here is the end of this section (width = 40 cm, lenght 195 cm) - 1319 also Mainstreet will desappear - 1320

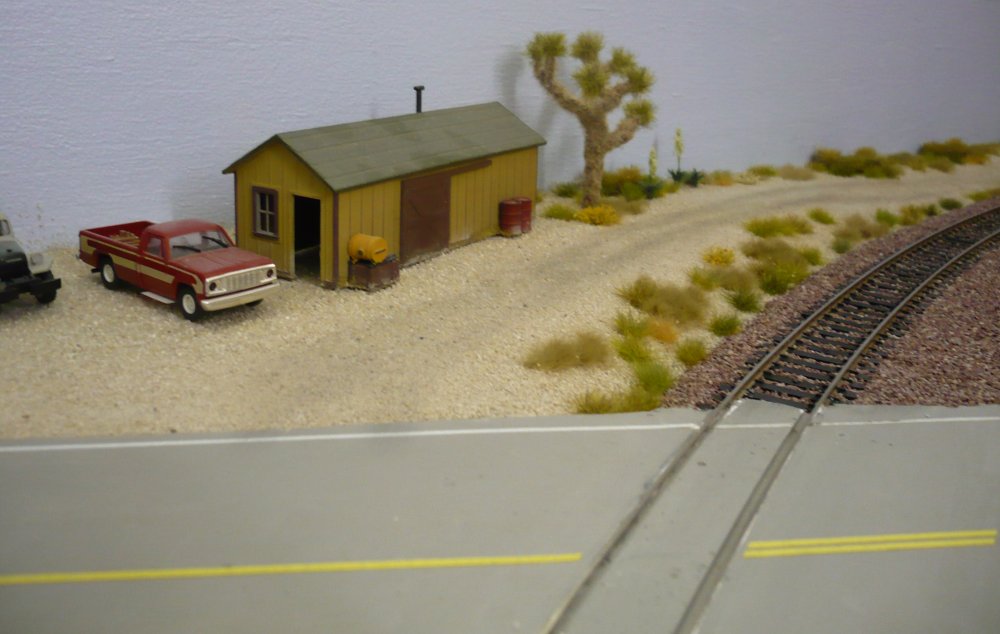

small construction site - 1360 little shed for the workers (Joshua by Denis Herm) - 1361

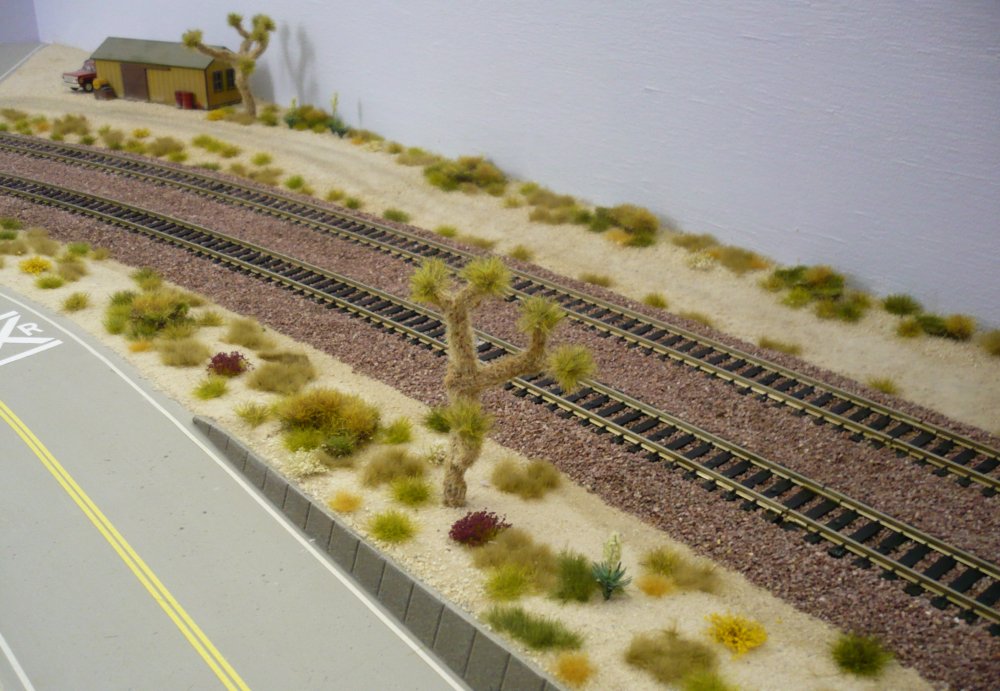

Joshua Trees made by Denis Herm (Germany) - 1358 there are even 2 blooming Yuccas - 1359

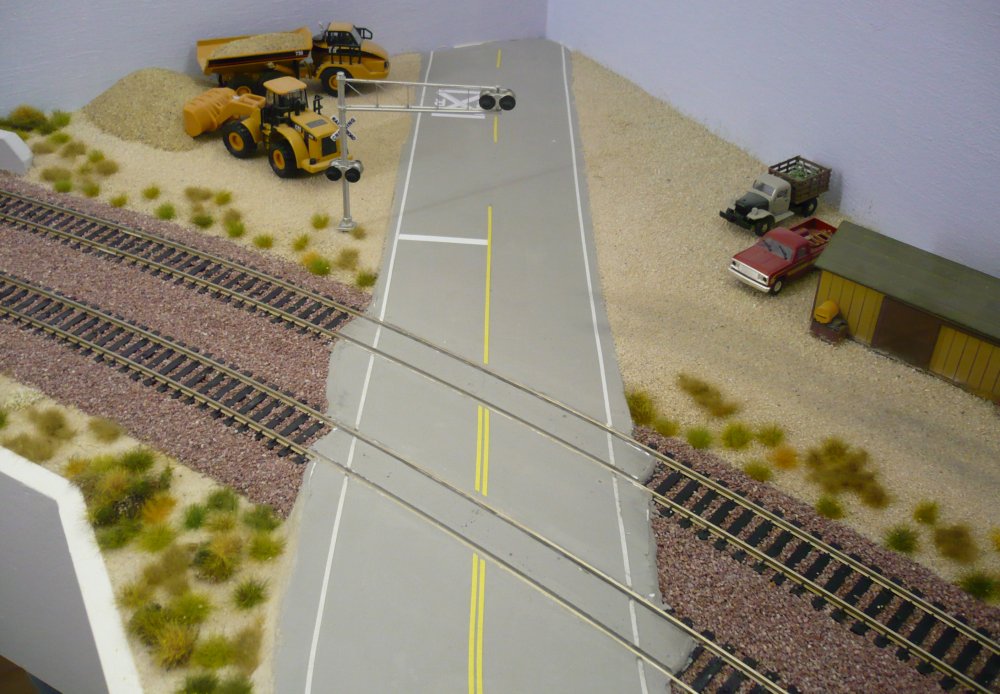

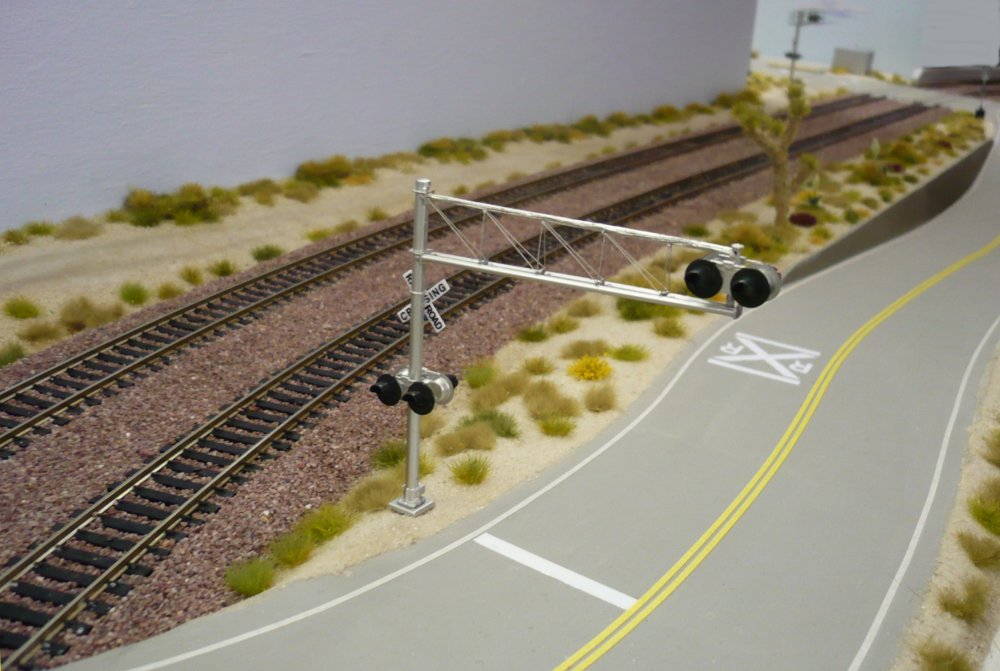

could be Hwy 138 near the Mormon Rocks - 1370 there were level crossings before the bridges have been built - 1371
there are Bushes, Joshua Trees and even blooming Yuccas - 1321 in the foreground is the line between bridge and module - 1322

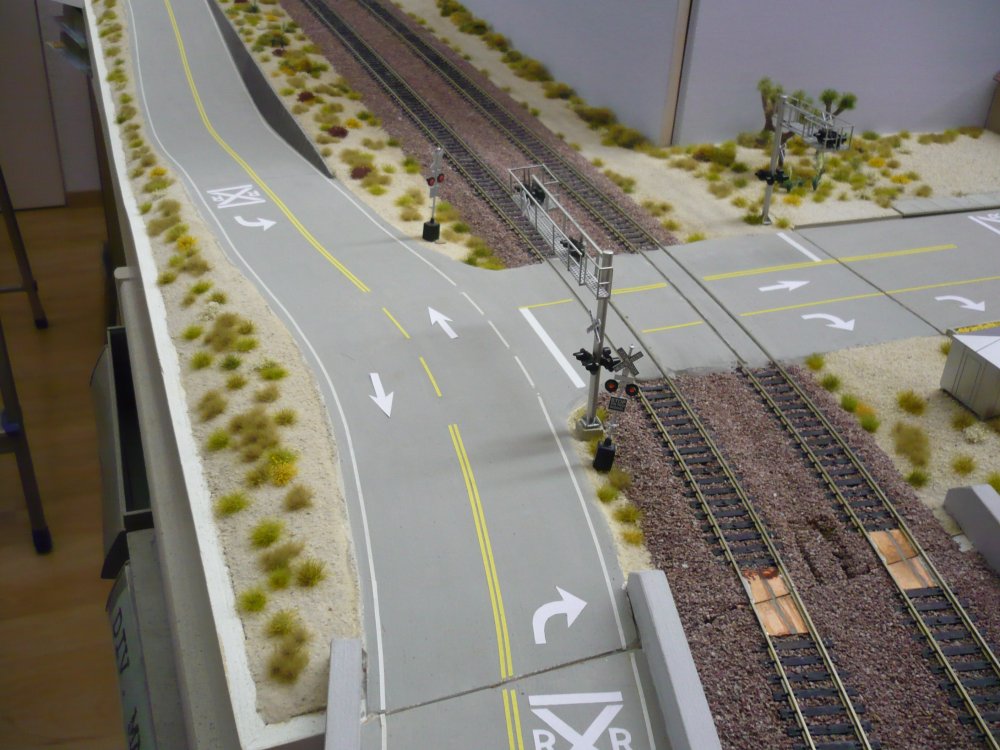

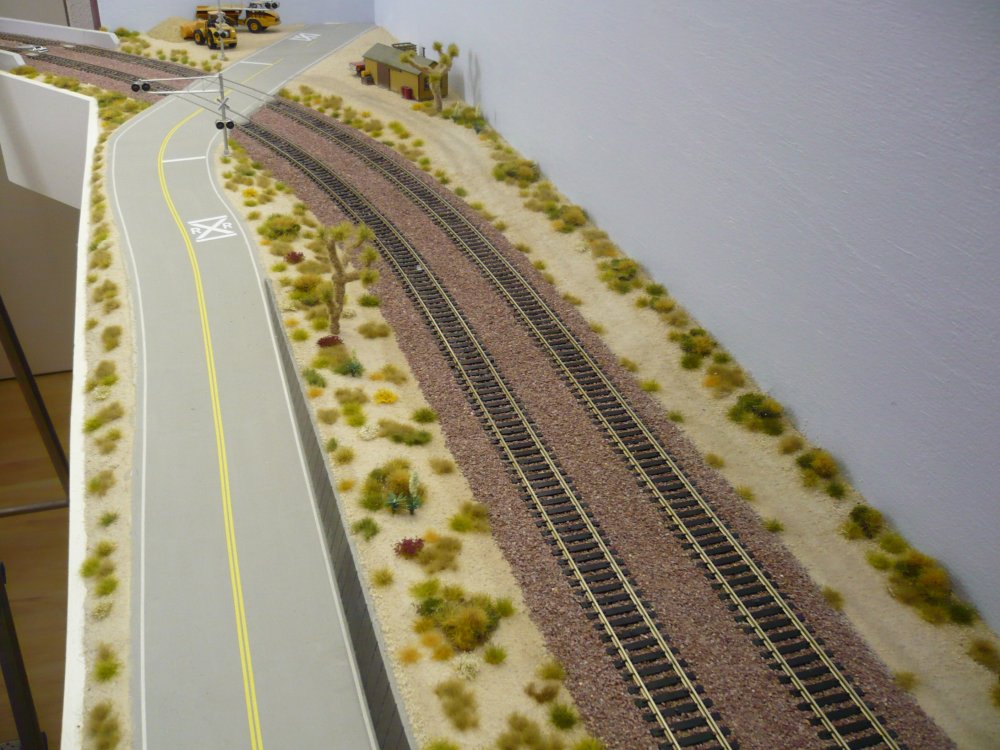

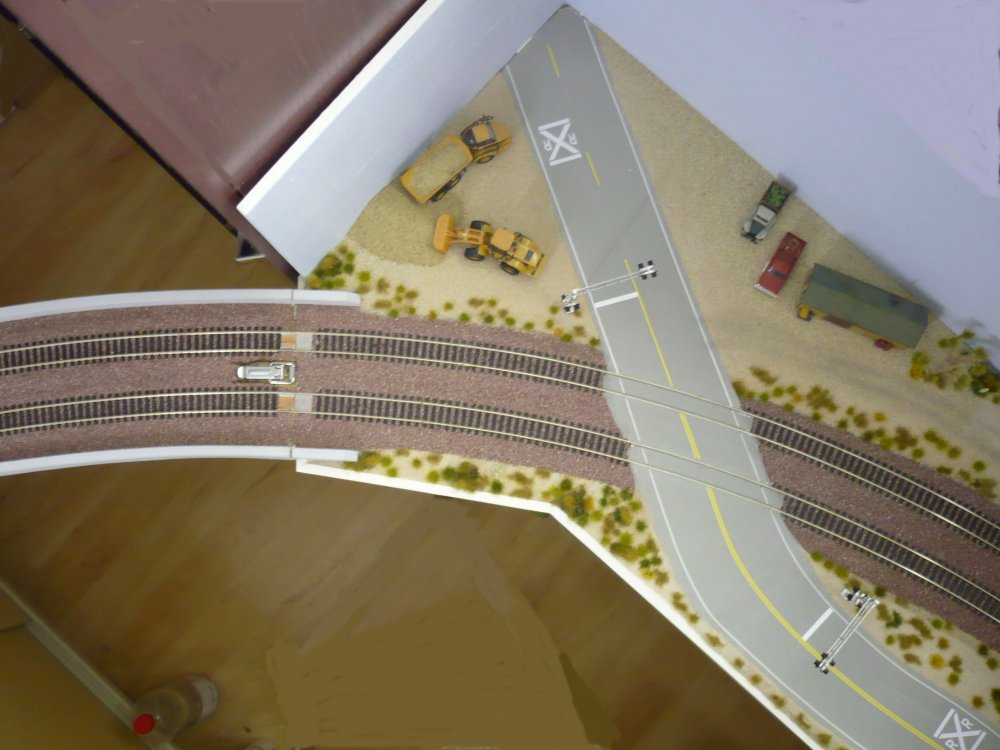

left downhill and right uphill tracks - 1323 this bridge is leading to the tunnel module at left - 1324

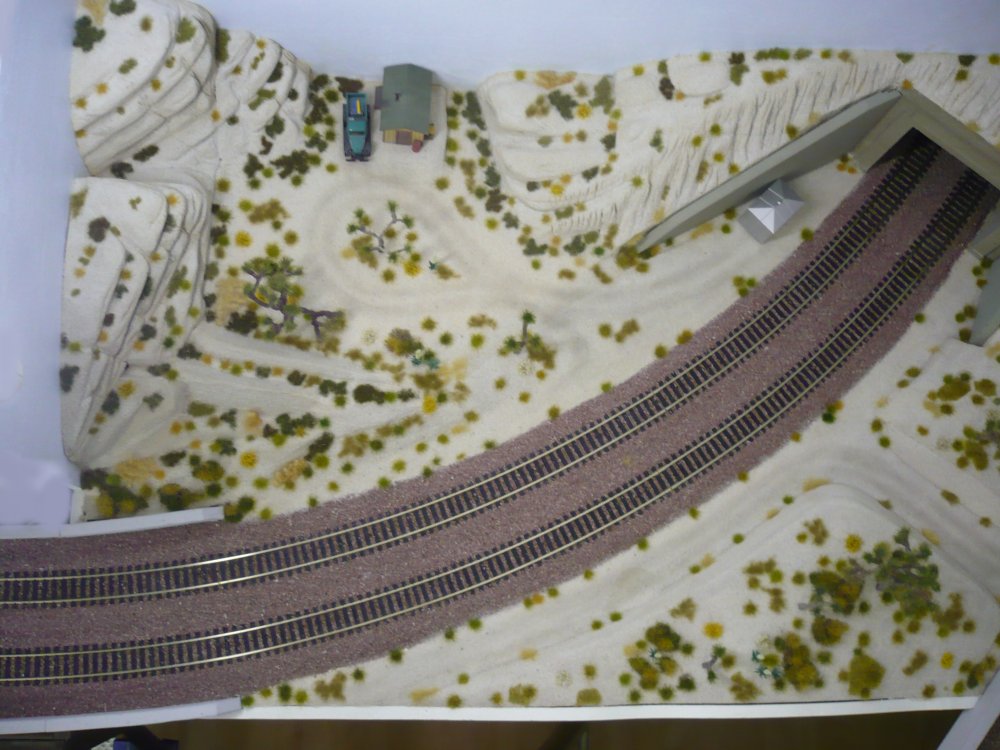

landscaping is finished on this side as well - 1325 there are Joshua Tress and blooming Yuccas - 1326

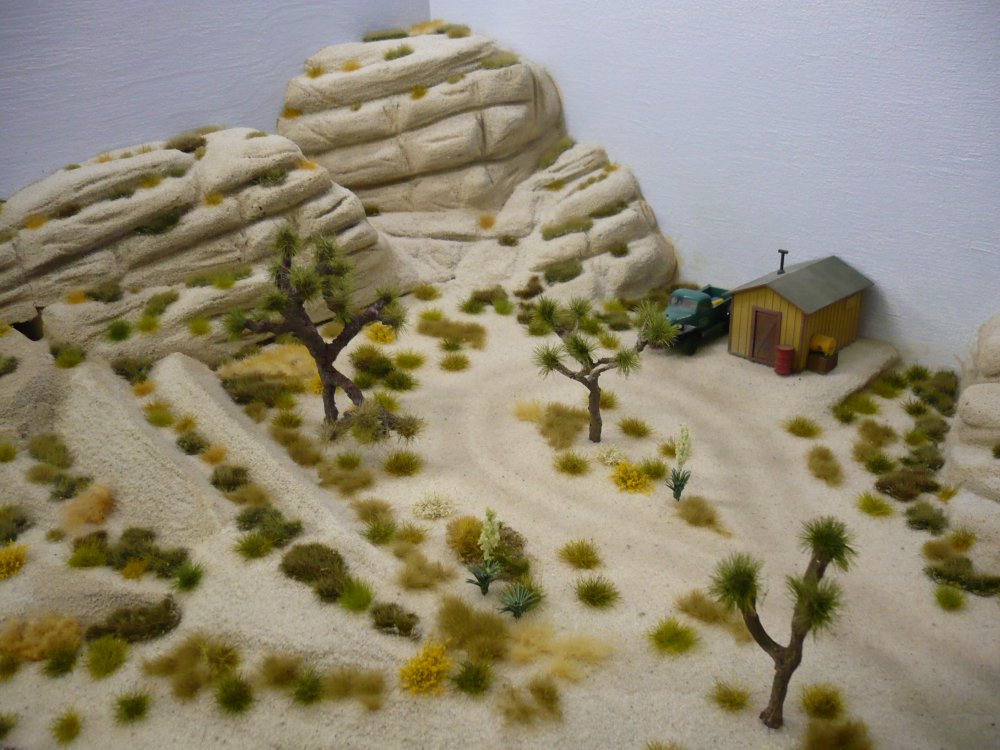

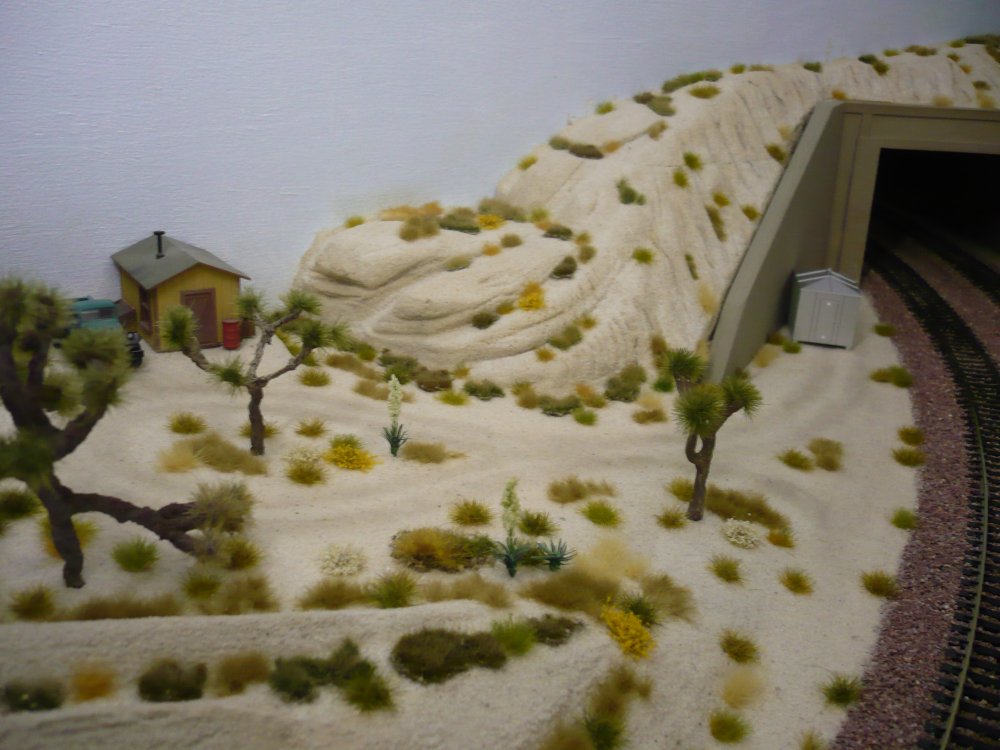

Rock formations as seen at Sullivan's Curve . . - 1362 . . or maybe Mormon Rocks near Hwy 138 ? - 1363
these Joshuas were made by Kim Nipkow - 1364 small Joshuas by Mason Clark - 1365

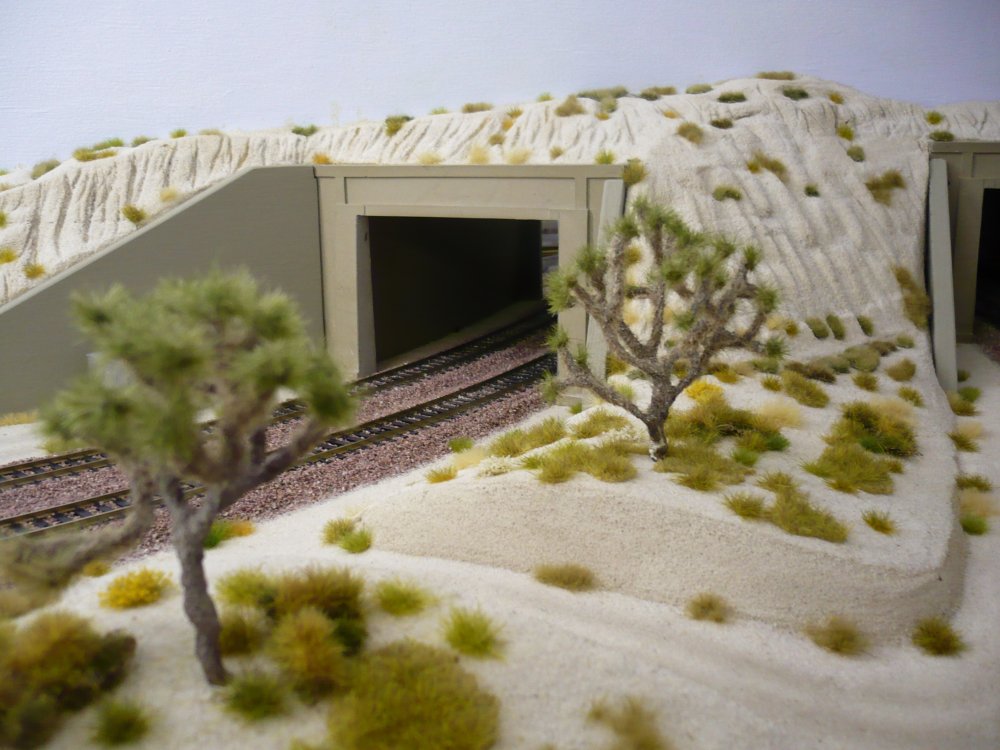

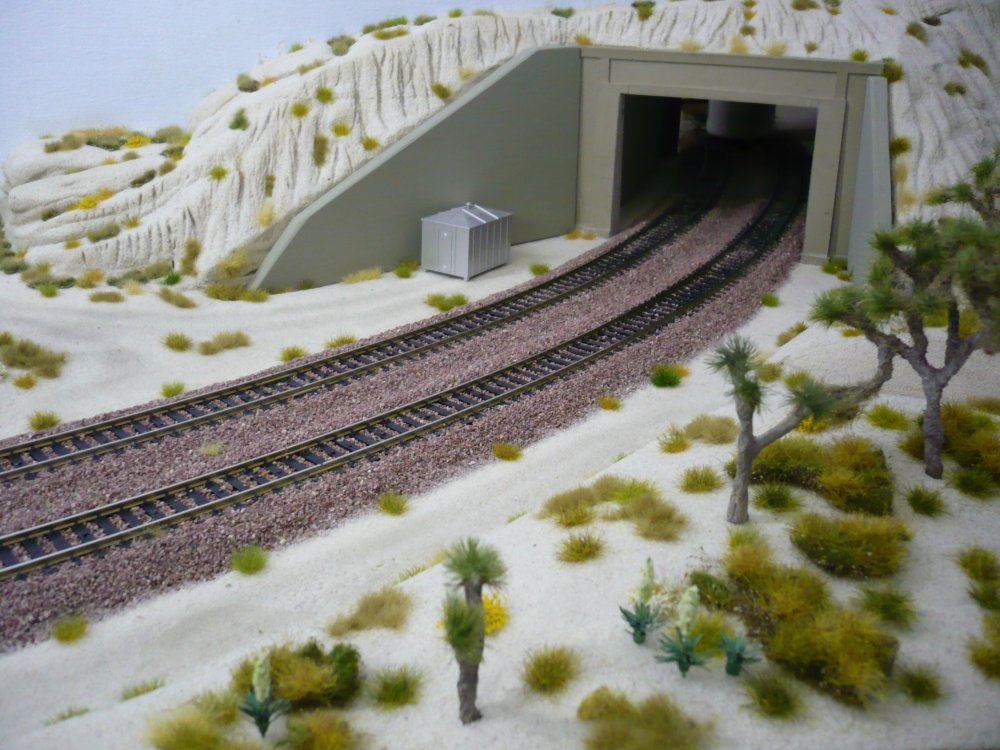

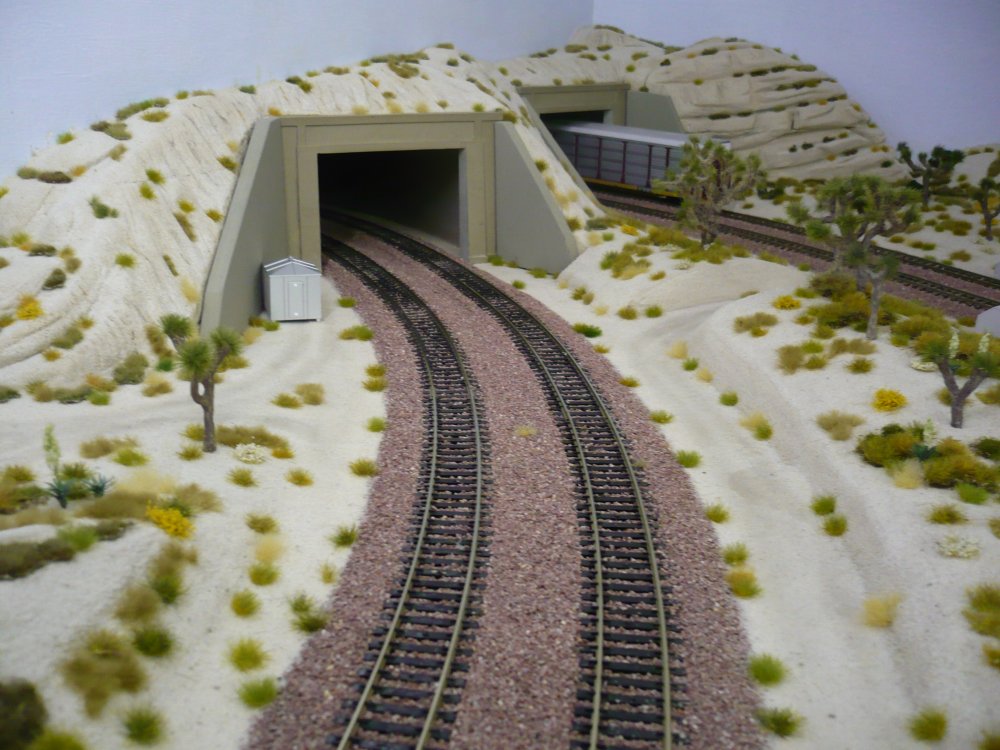

Tunnel 1 EP (East Portal) - 1366 Mojave Desert Vegetation - 1367
Tunnel 2 EP (East Portal) - 1368 these Joshuas were made by Mason Clark (USA) - 1369

 sorry about the endless amount of pictures, but I want to save all the different views of every corner and every step
if it is too much for you - just scroll down !

Part D) added 5/08/2015
Time to place Domino's Pizza and Denny's Restaurant on the Extension module.
Domino's Pizza is a Drive Thru place. Both driveways (in and out) are surrounded with yellow gravel - 1327

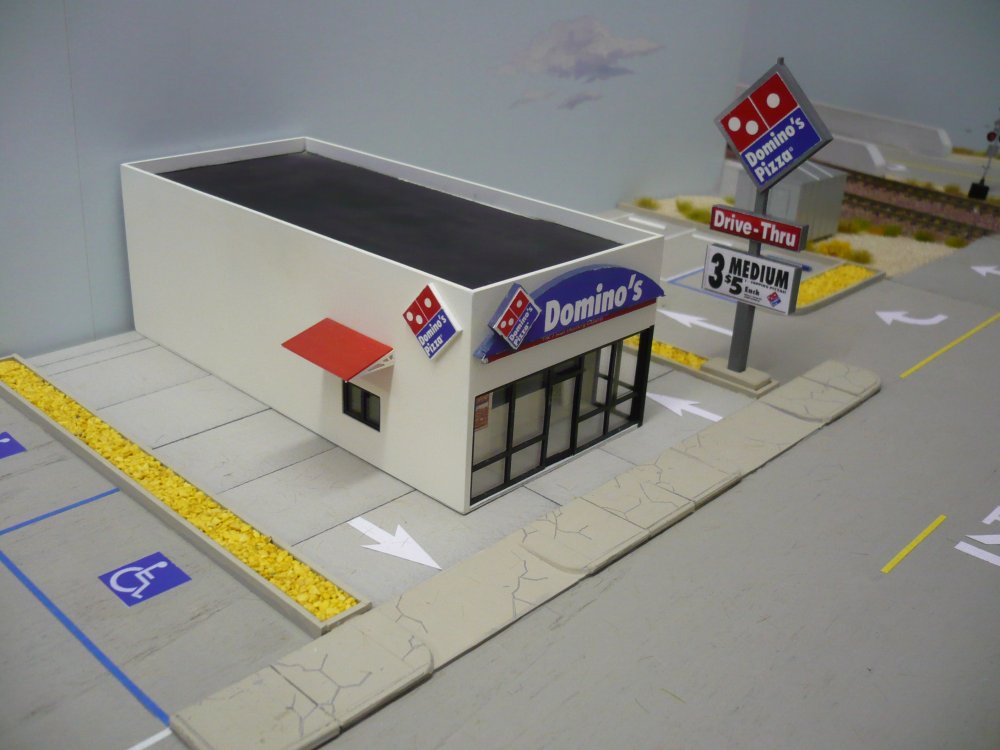

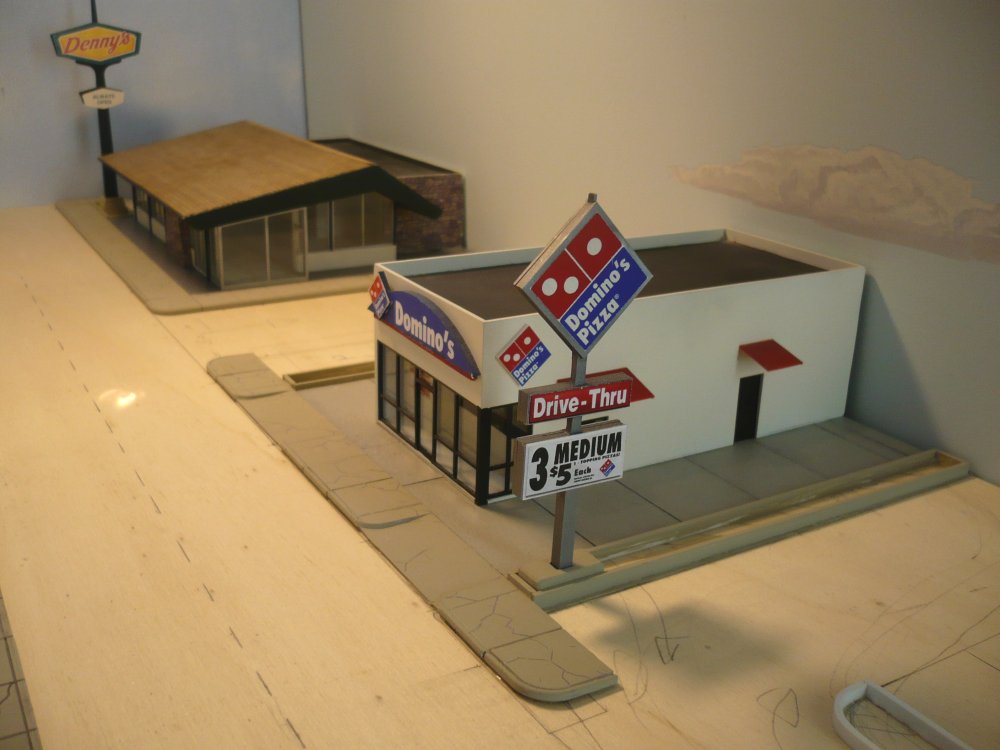

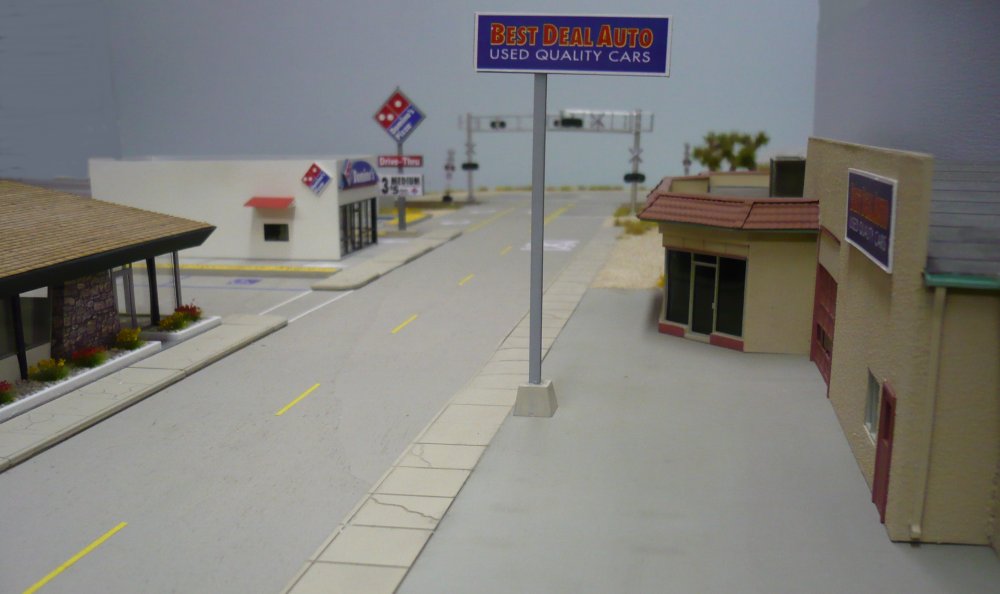

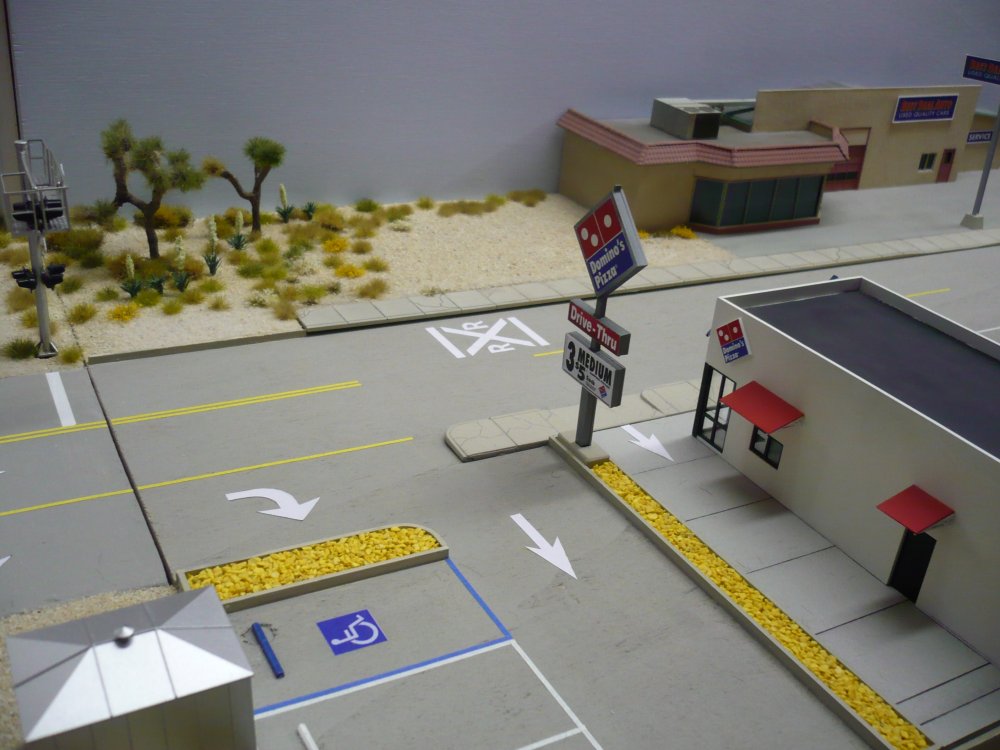

Domino's Pizza is the first building after the RR X-ing - 1328 the electrical hut is for the signals of the crossing - 1329

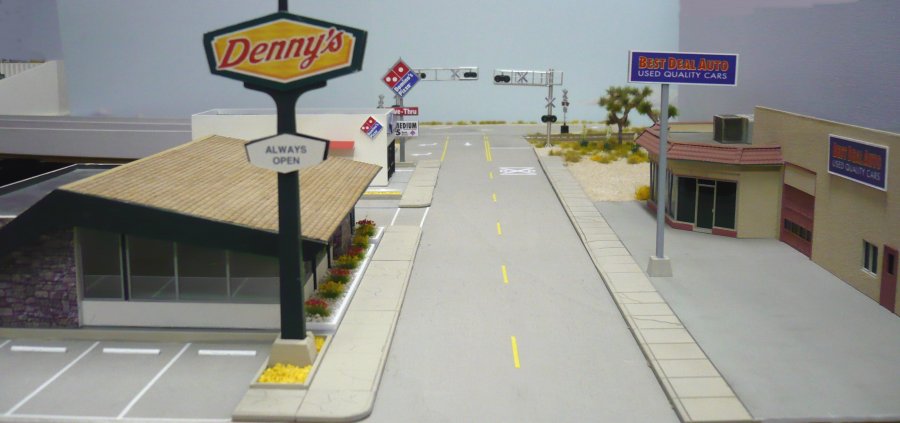

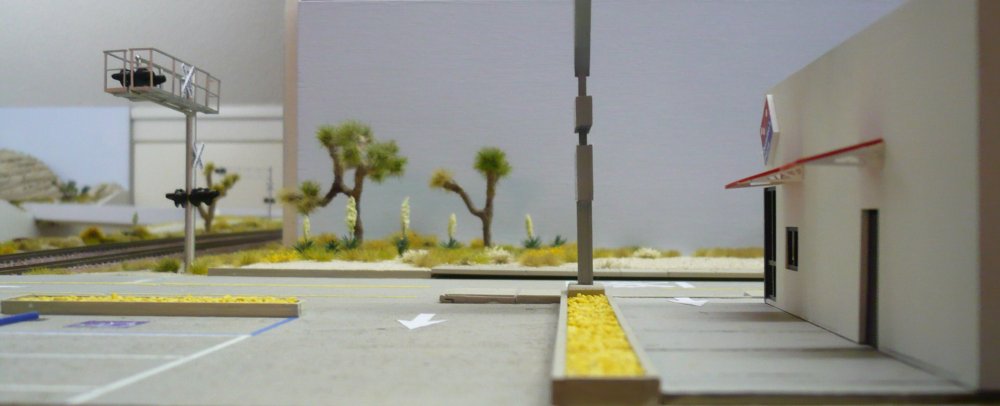

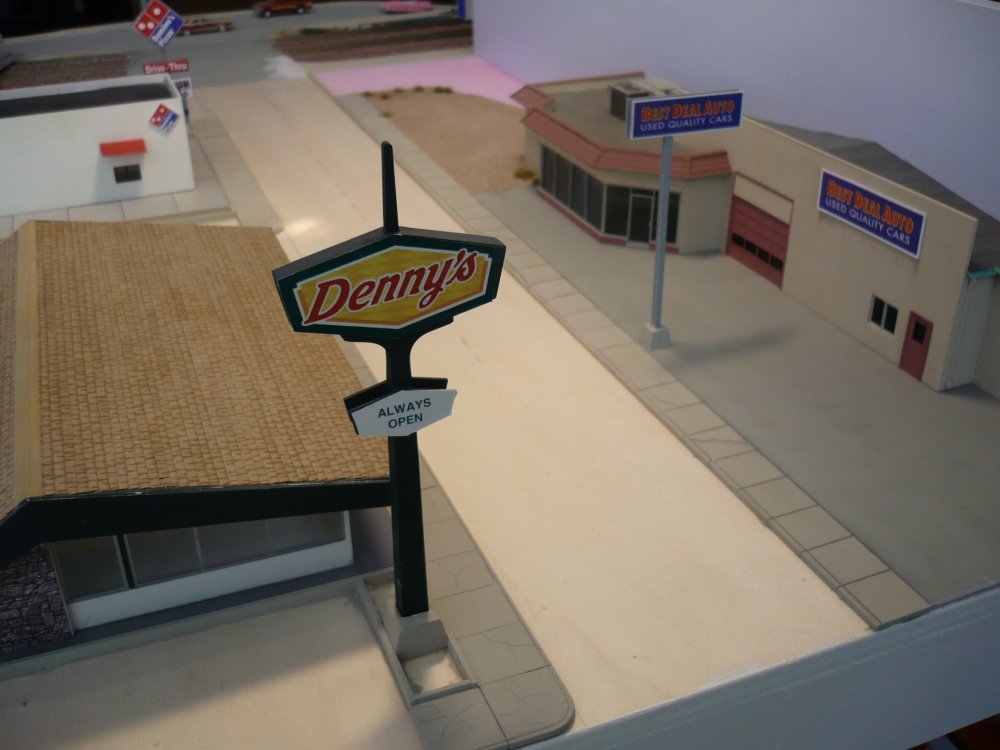

street level view - left of Domino's - 1330 street level view - Denny's at right (car dealer straight ahead) - 1331
still a clean city (no dust, no people, no cars) - Car Dealer made by Pelle Soeeborg, DK - 1332

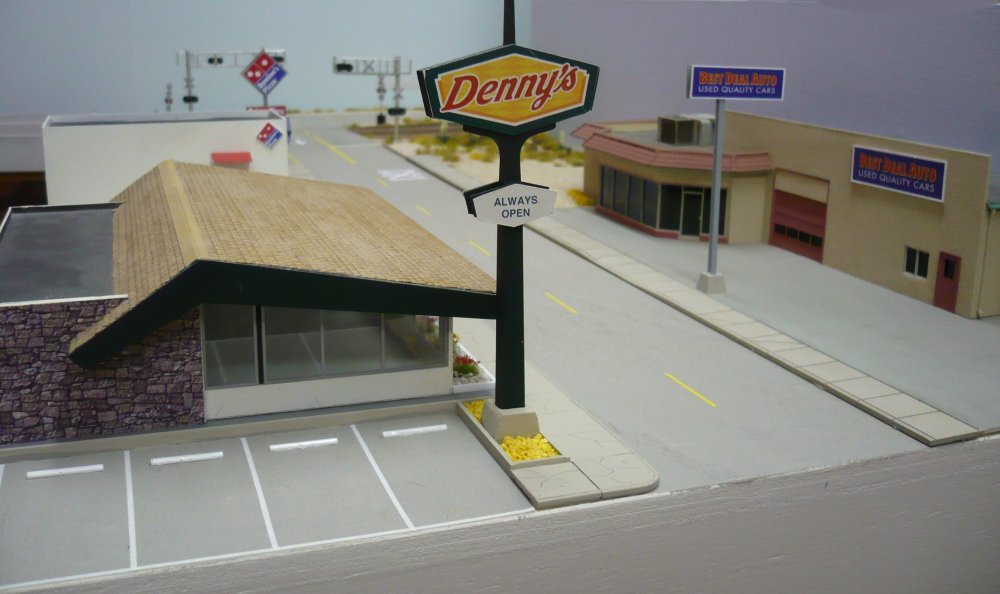

Denny's made by Summit USA - 1333 Domino's made by Summit USA - 1334

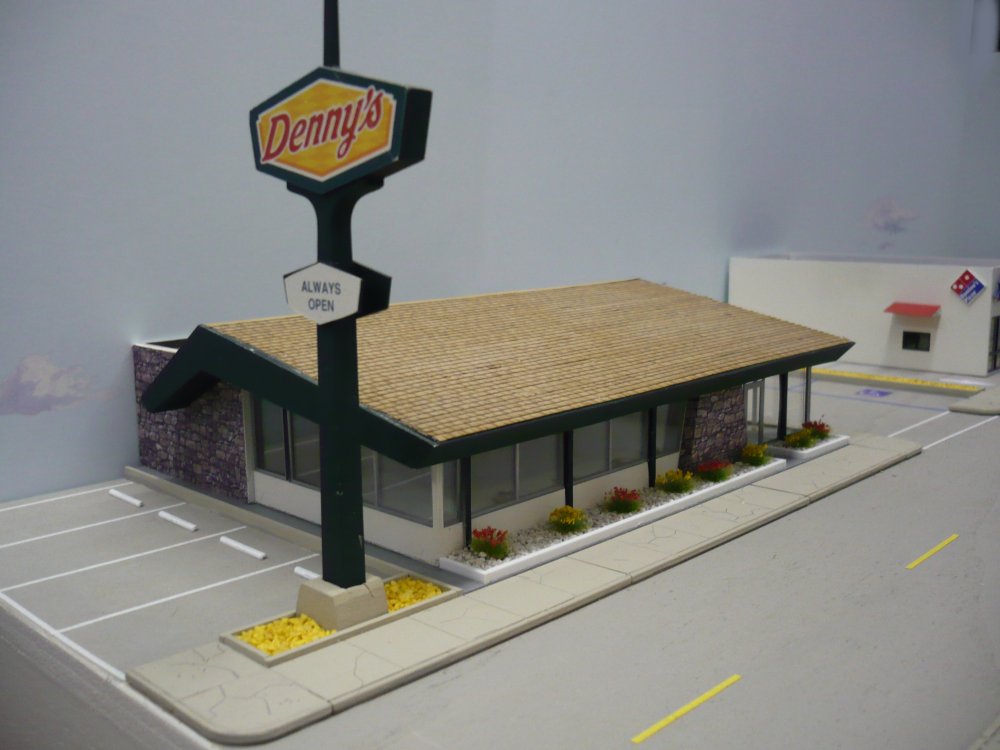

typical Denny's Building can still be seen today - 1335 also this Domino's Building is common today - 1336

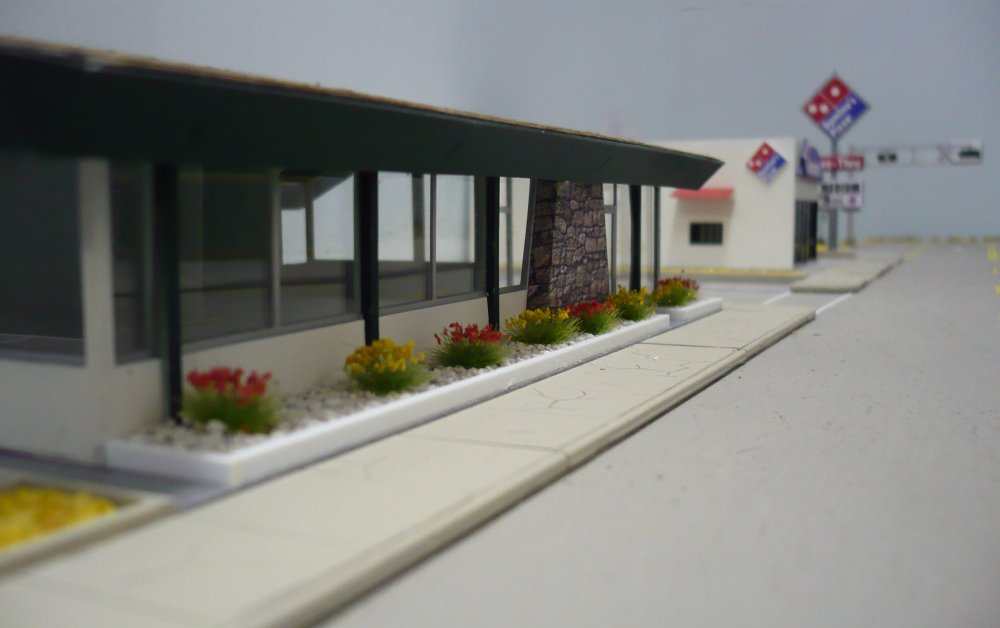

sorry, there is no interior inside - 1337 but we do have some nice flowers in front - 1338

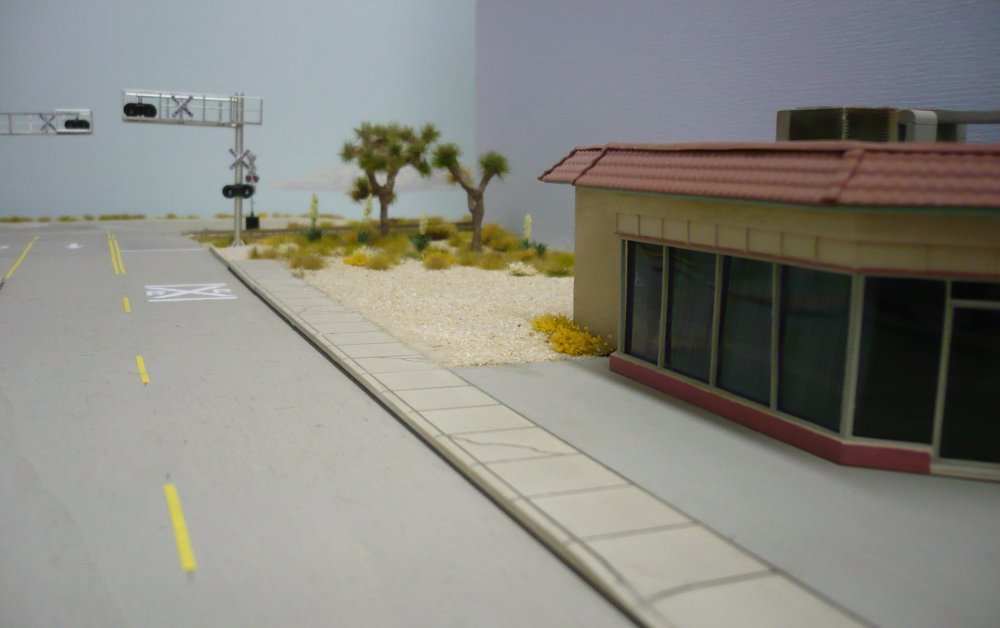

real Mojave Desert Scene - 1339 Best Deal Auto is in Mojave, CA a Ford Dealership - 1340

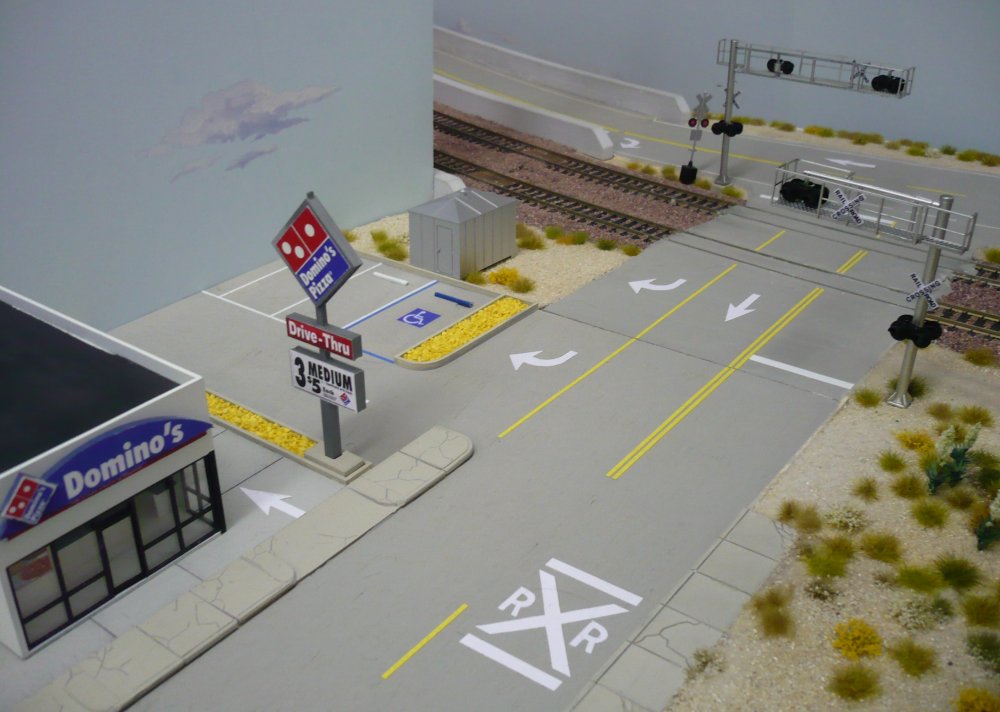

road and crossing are ready for service - 1341 Mojave Desert with Joshua Trees and Yuccas  - 1342

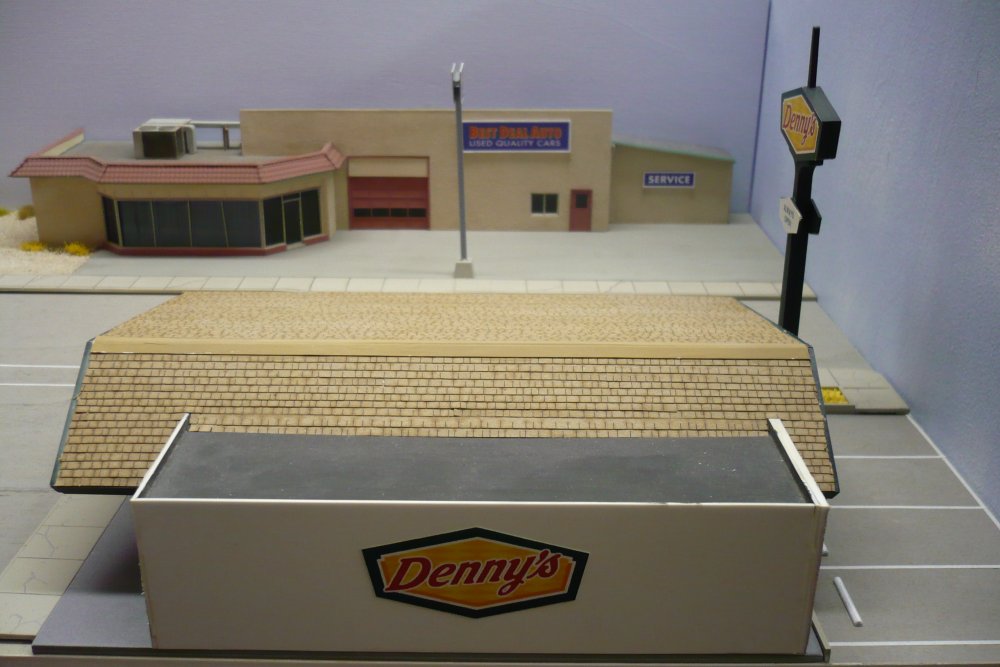

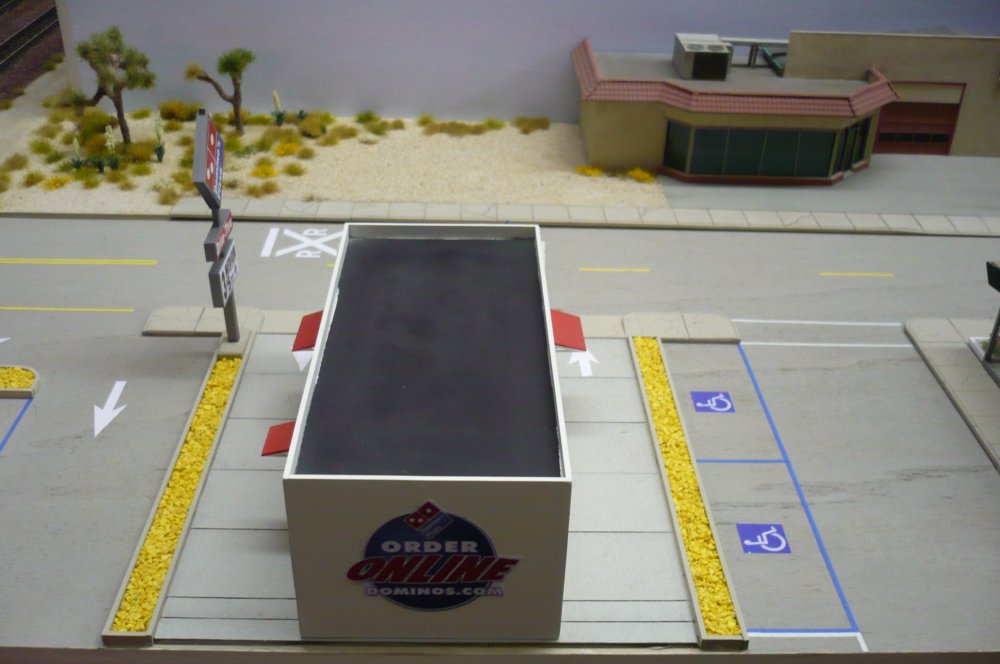

Domino's Pizza rear side - 1343 Denny's restaurant rear side - 1344

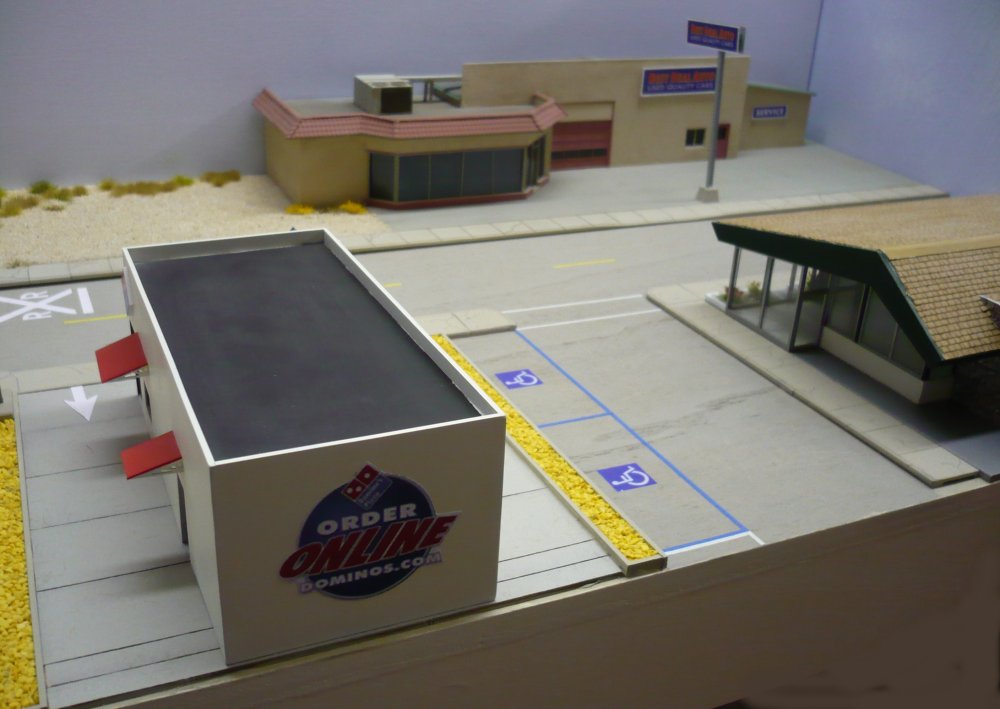

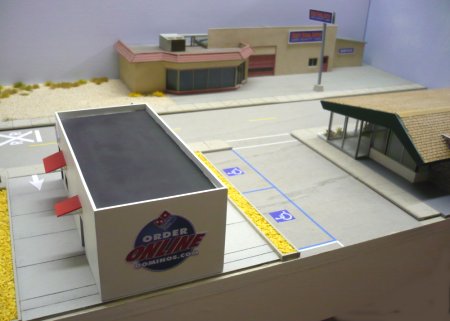

the handicapped parkings are for both restaurants - 1345 ready for business - 1346

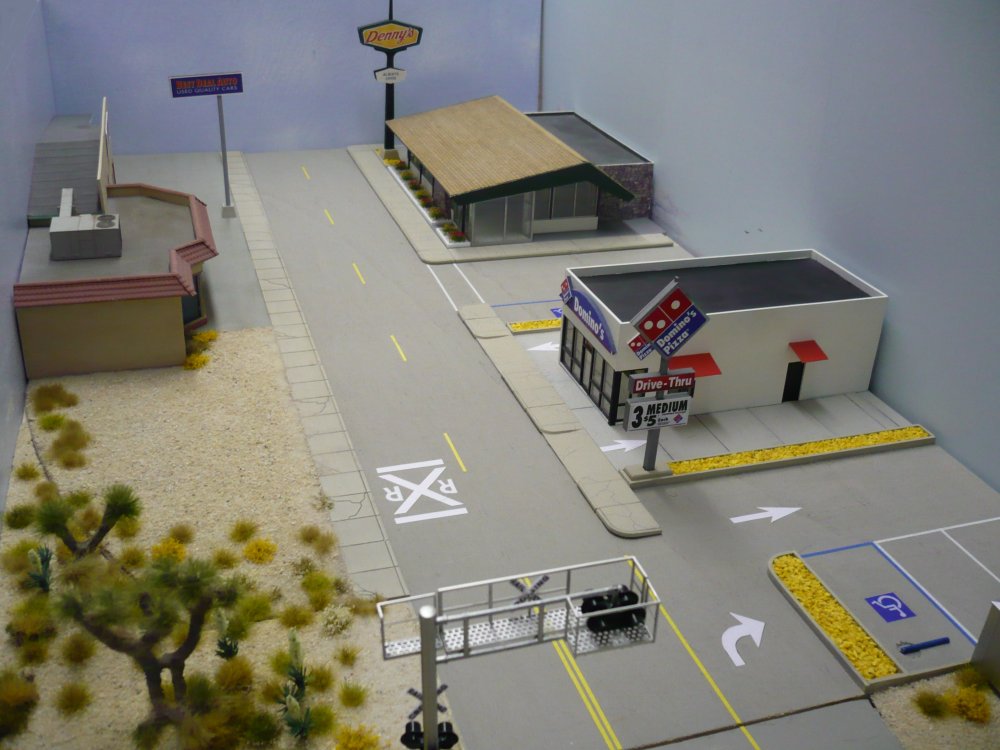

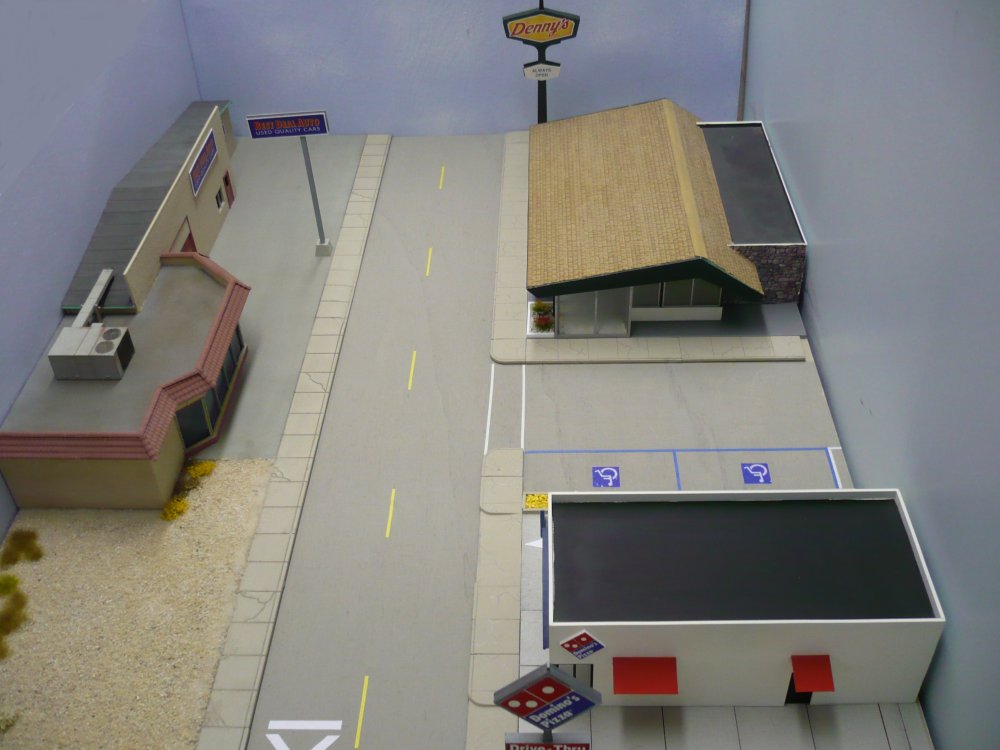

overview from above - 1347 just a little bit of Mojave Desert vegetation is a must - 1348
buildings and roads are an important part of my layout - 1349 because that's the way I used to see it during my trips - 1350
even this extension is small, it sure gives a nice . . - 1351 . . addition to Percyville and on top, I was able to place . . - 1352
. . the Best Deal Auto from Pelle and Domino's and Denny's - 1353 this intersection with the signals is not realistic - 1354
view from street level - Joshuas and Yuccas are well visible - 1355

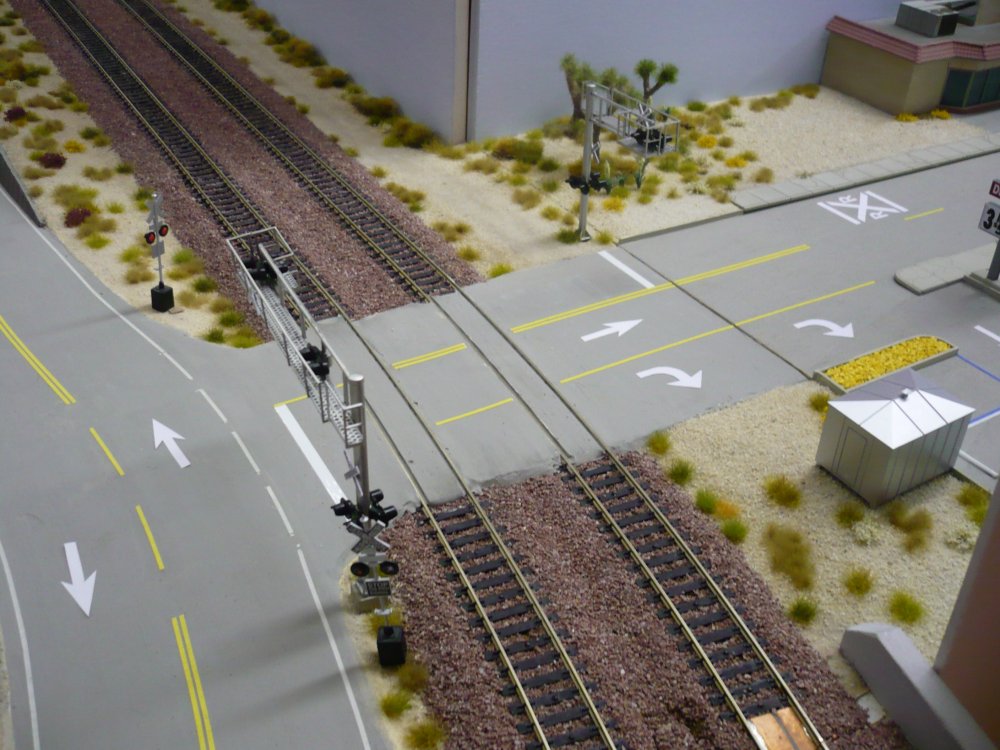

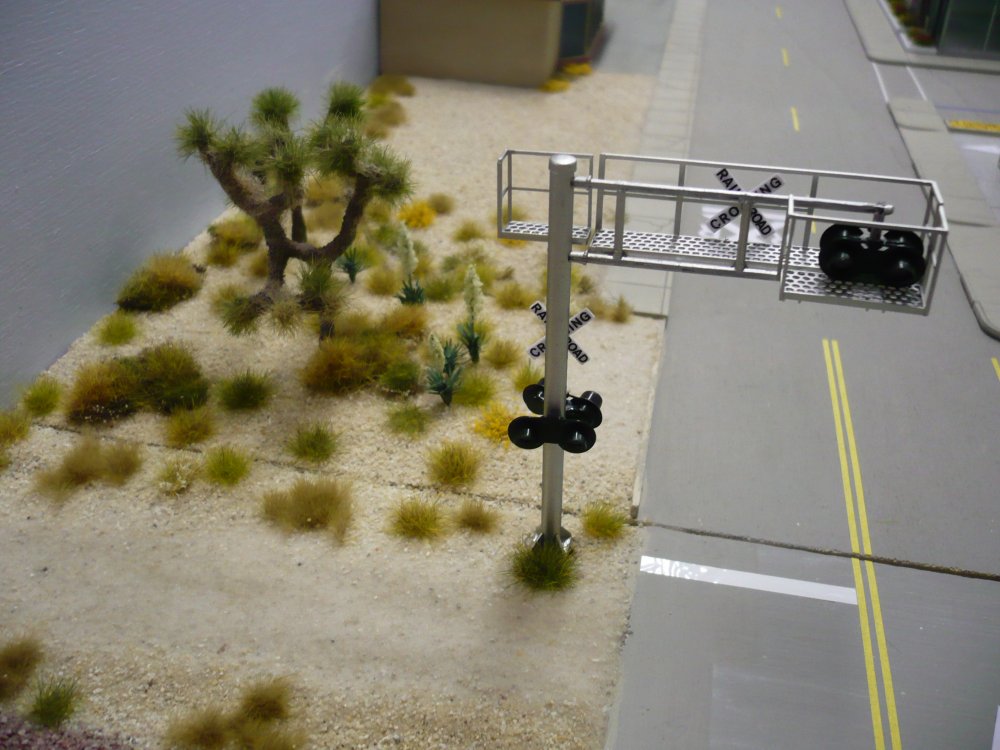

RR X-ing Signal is made by Walthers - 1356 everything is ready for business - 1357

  sorry about the endless amount of pictures, but I want to save all the different views of every corner and every step
if it is too much for you - just scroll down !

Part E) added: 5/08/2015
The time has come to bring life to the Percyville Extension. People, Cars, Trucks and Trains are activating the scene.

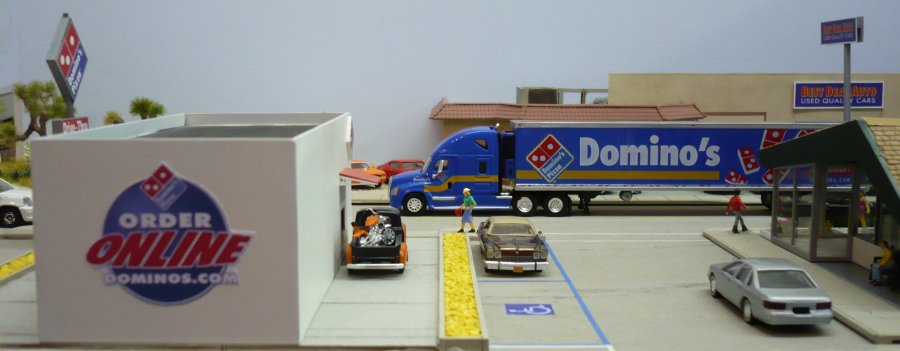

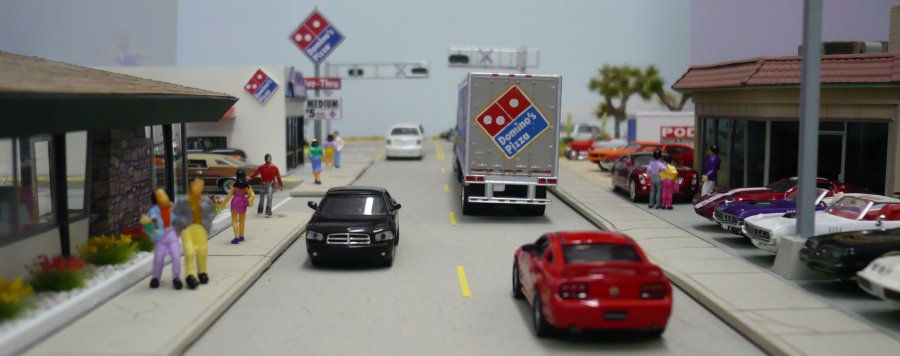

A truck load full of Domino's Pizza will be delivered to the fast food outlet - 1372

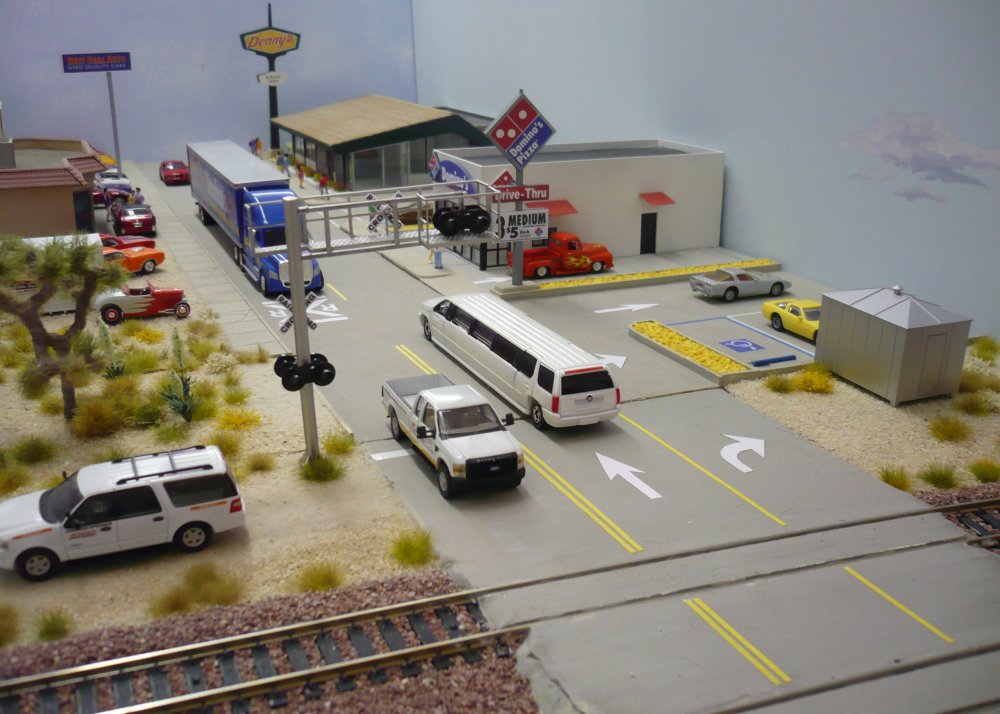

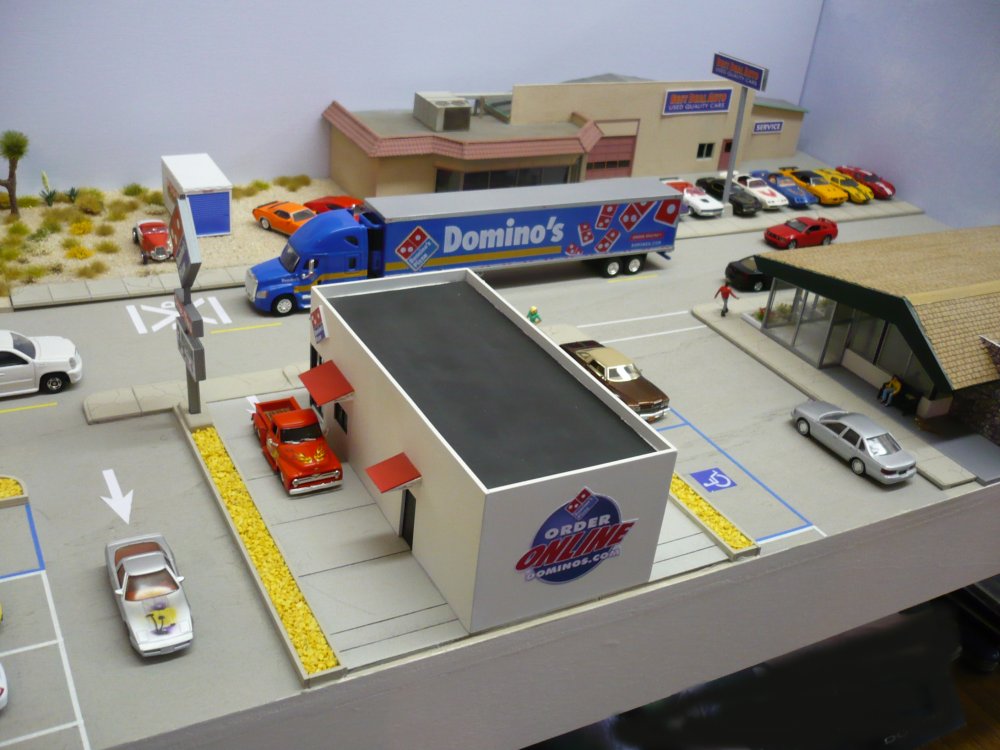

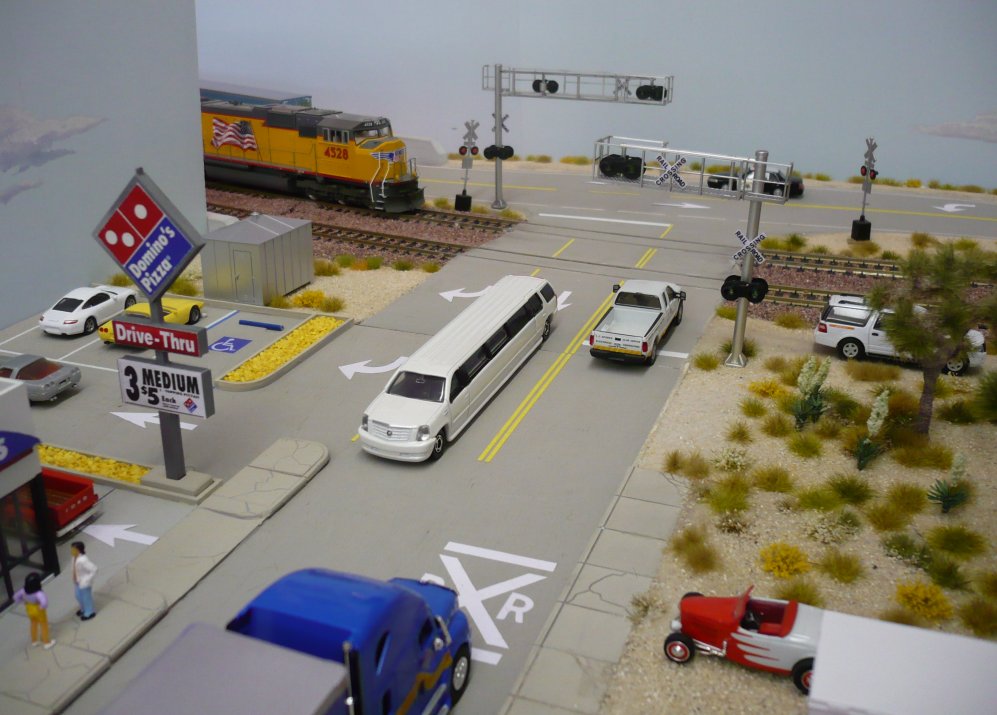

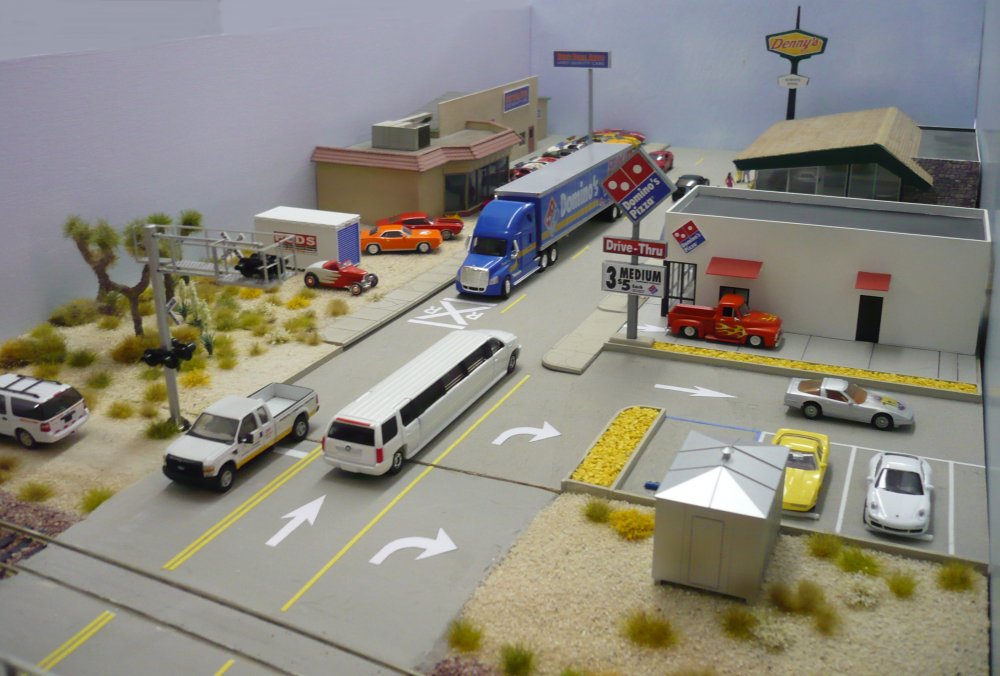

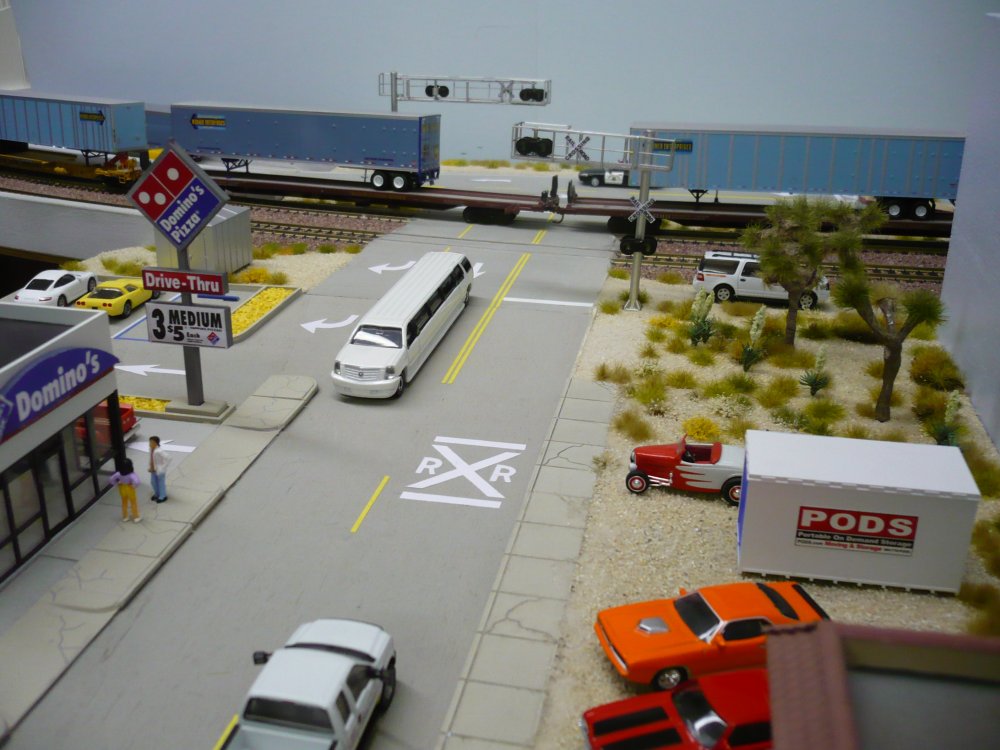

what a difference with all these vehicles - 1373 Best Deal Auto is having some cool muscle cars - 1374

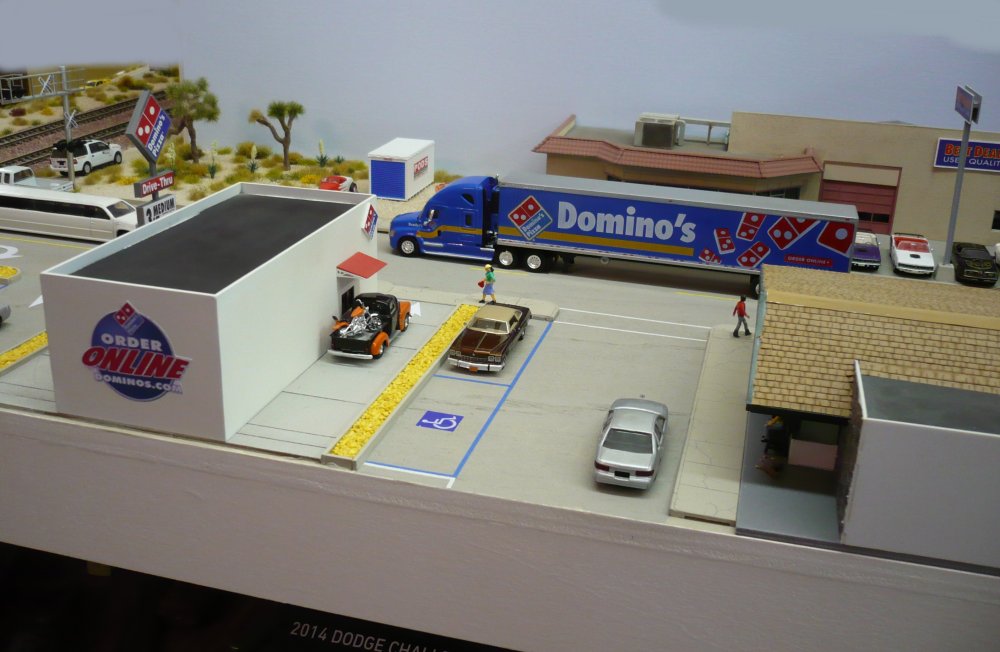

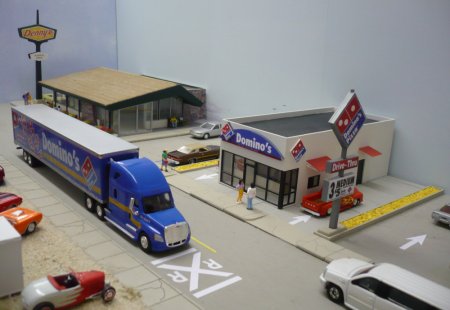

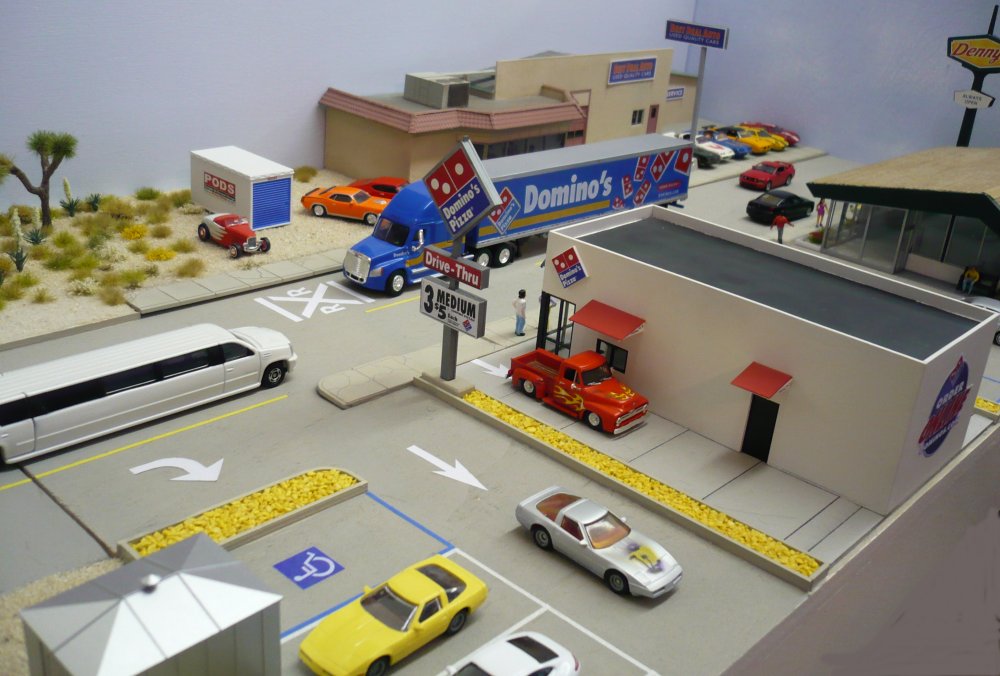

the scene is alive - 1375 the Dominos's truck is from Trucks N Stuff (Tonkin) - 1376

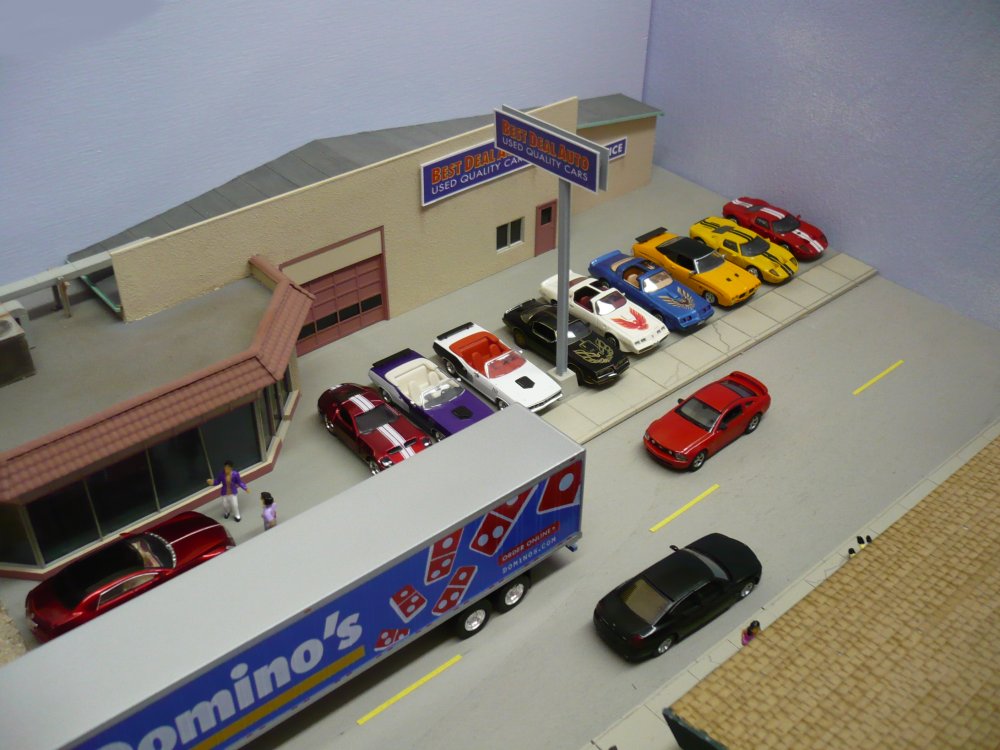

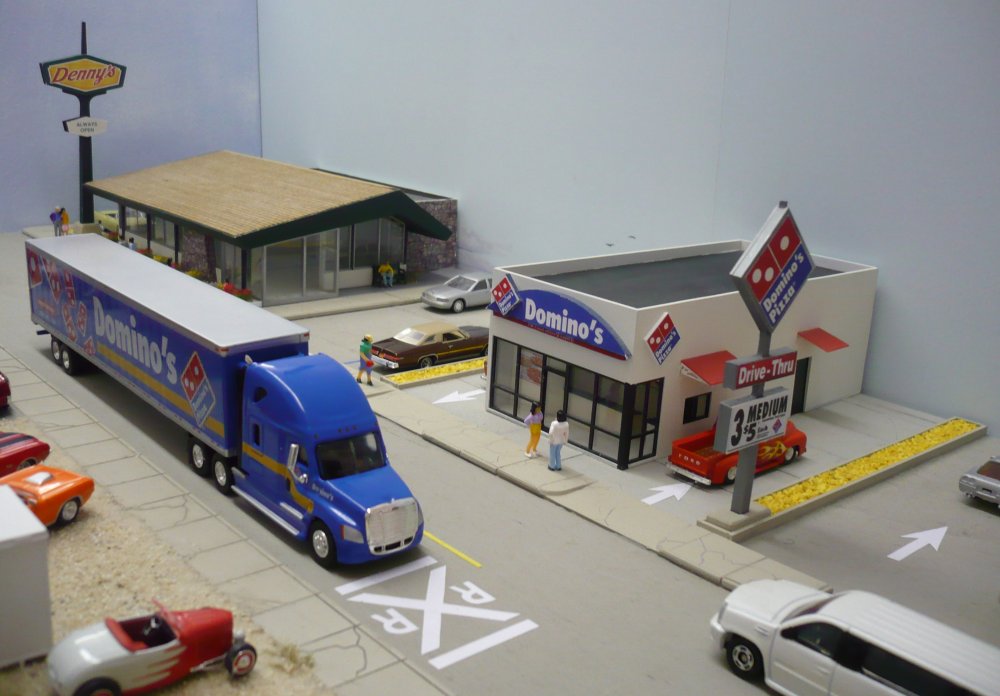

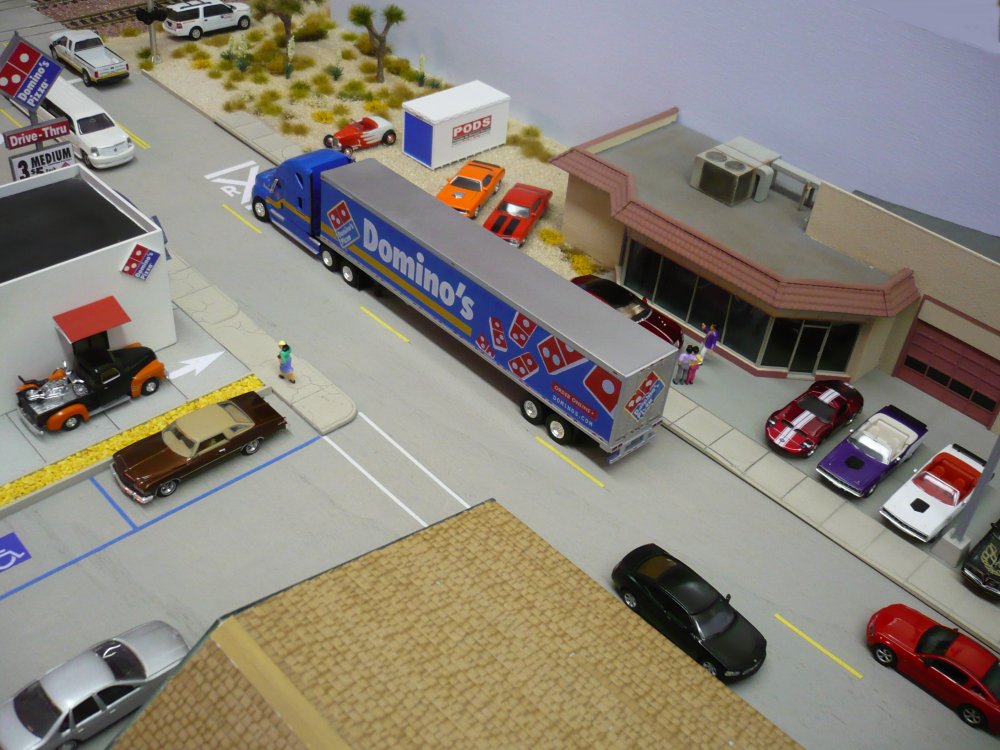

a different view from above - 1377 Domino's Truck, Stretch Limo and UP SD70M - 1378
and another view - 1379 there are people on the walkway - 1380
lots of different vehicles incl. a stretch limo - 1381 the red pickup truck is placing his pizza order - 1382

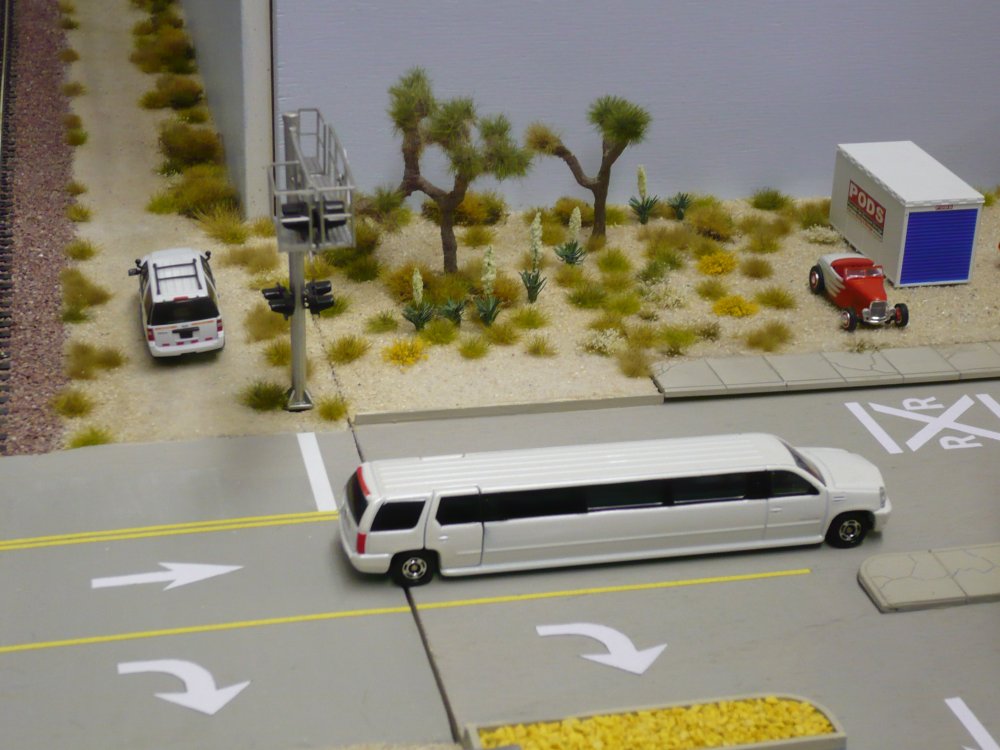

this Cadillac Escalade Limo is made by Takara Tomy # 136 - 1383 it is 1/79 scale (not HO) but still fits quite well - 1384
I always wanted to have an Escalade Stretch Limo - 1385 after all, I am the proud owner, imported from Hongkong - 1386

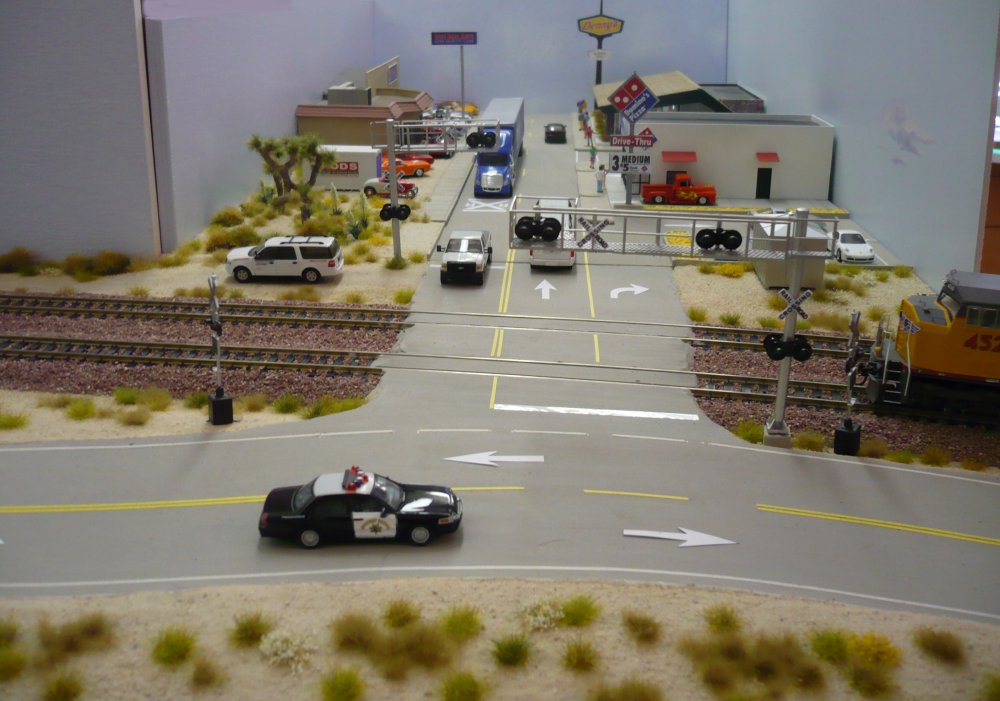

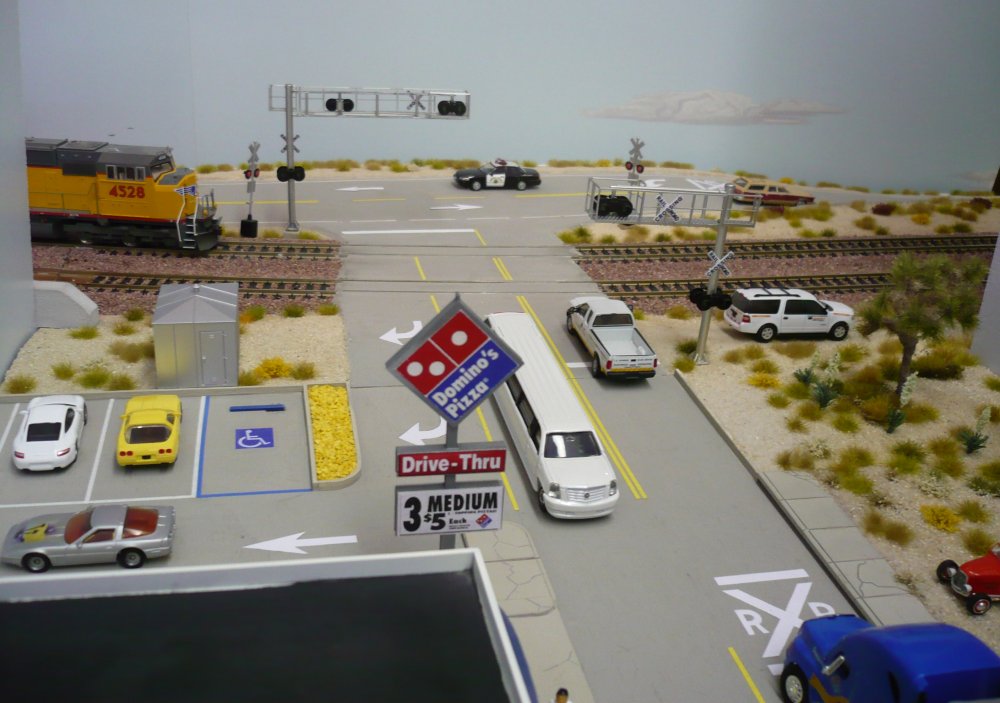

California Highway Patrol is on the road - 1387 UP will pass the crossing any minute - 1388
Dodge Charger and Ford Mustang are on the road - 1389

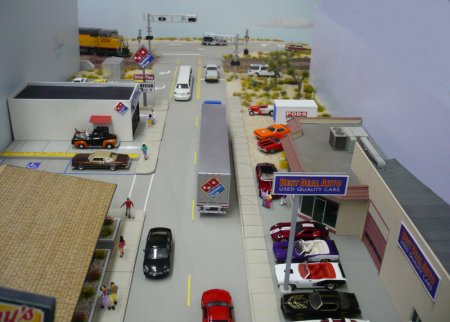

view from the back toward the RR X-ing - 1390 Best Deal Auto is having two 1971 Plymouth Hemi Cuda - 1391

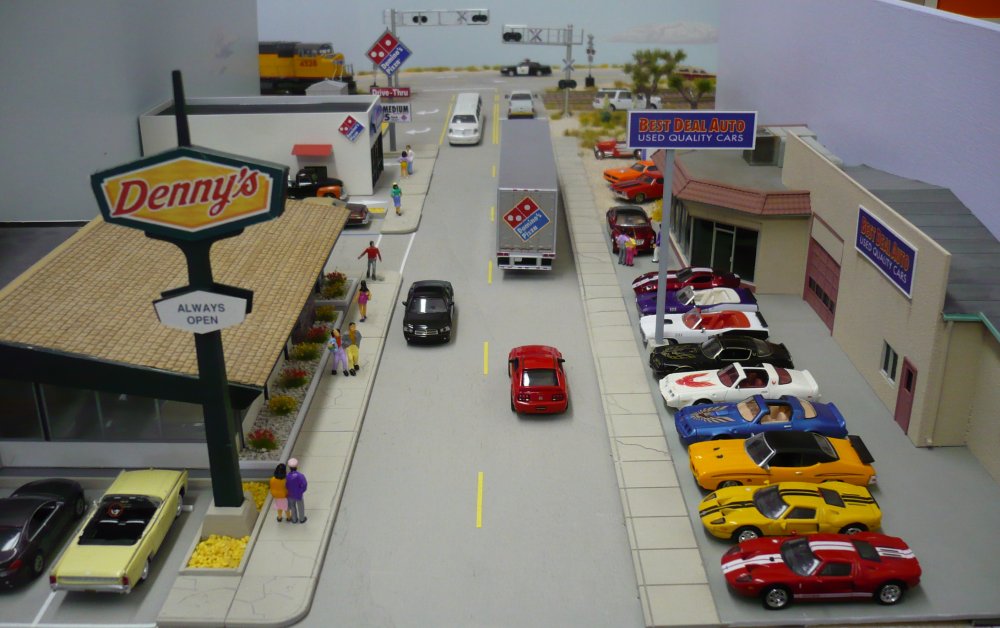

there are also two Ford GT available - 1392 we have a Pontiac GTO and 3 Pontiac Trans Am - 1393

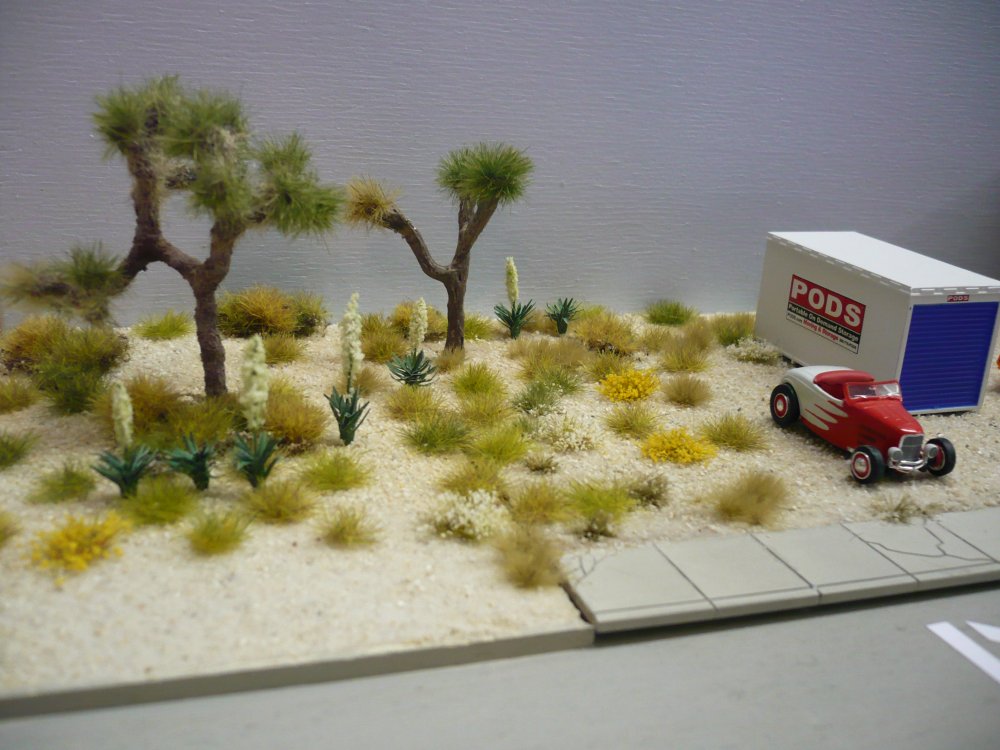

Joshuas, Yuccas and bushes cover the gap of both parts - 1406 a cool '32 Ford Hot Rod Roadster is on sale today - 1407

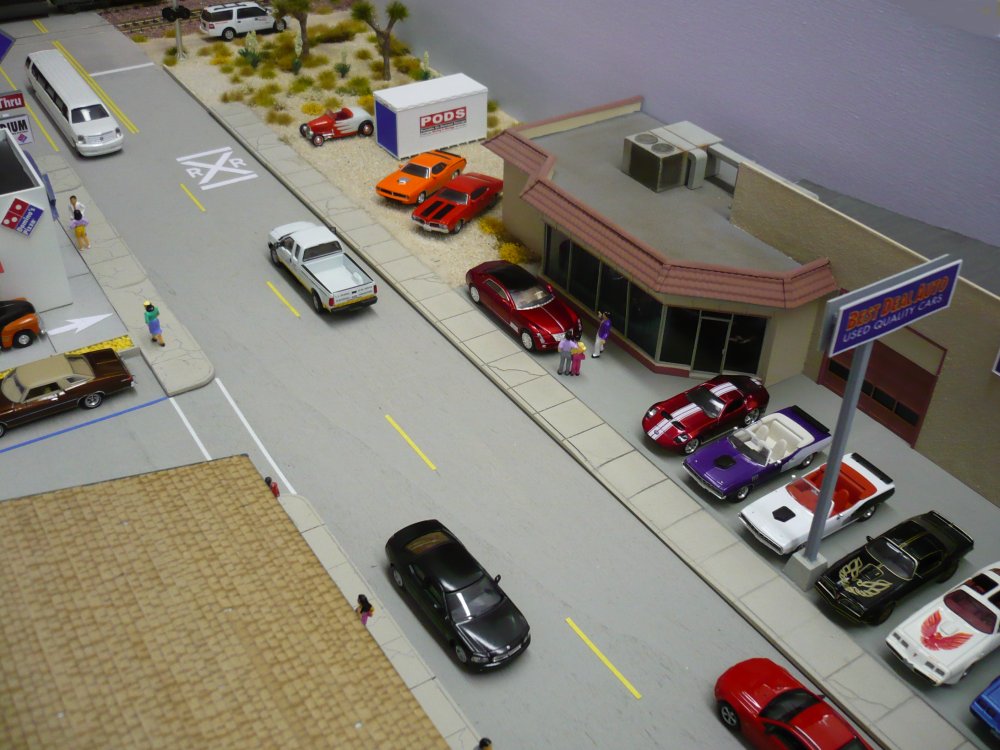

PODS storage container made by BLMA - 1408 nice variety of muscle and sports cars - 1409
view thru side street (between Domino's and Denny's) - 1410 well established used car dealer in Percyville - 1411

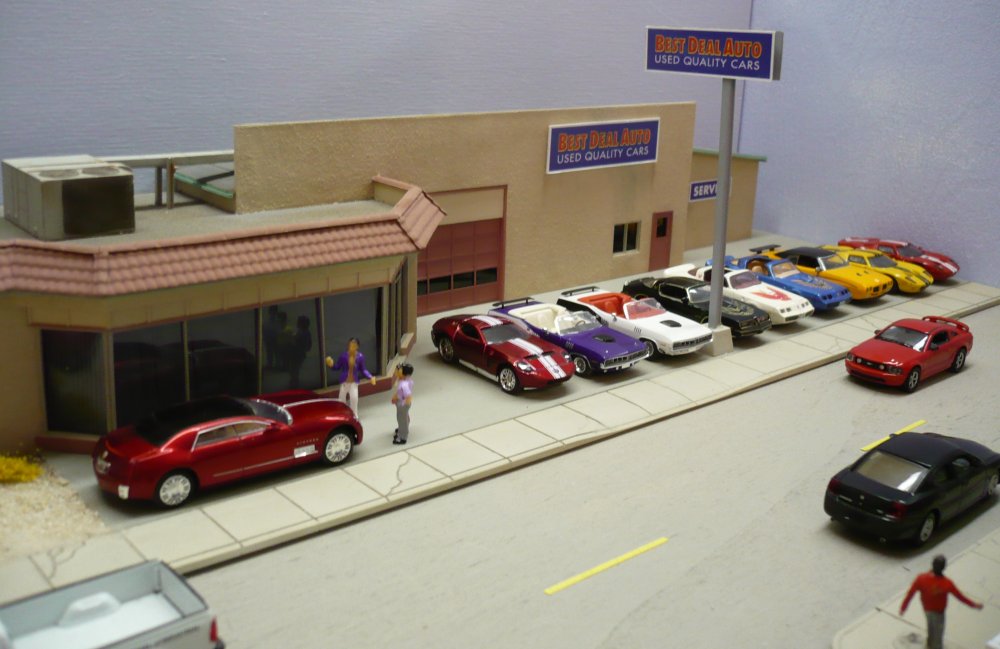

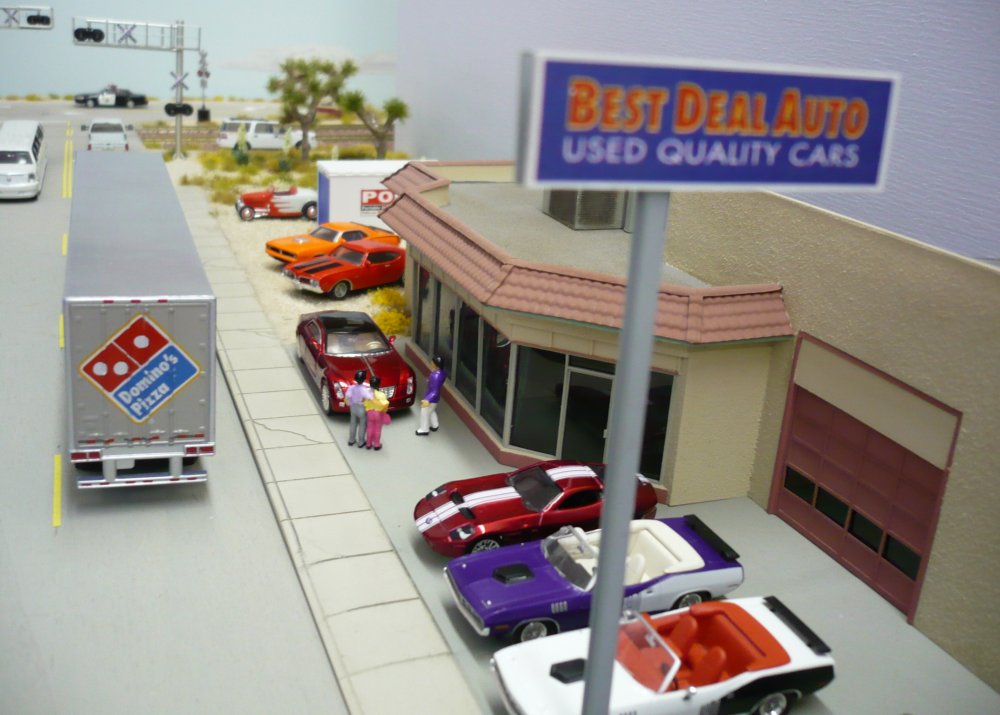

they do have some exclusive cars - 1412 no question, Best Deal Auto is the place to go - 1413

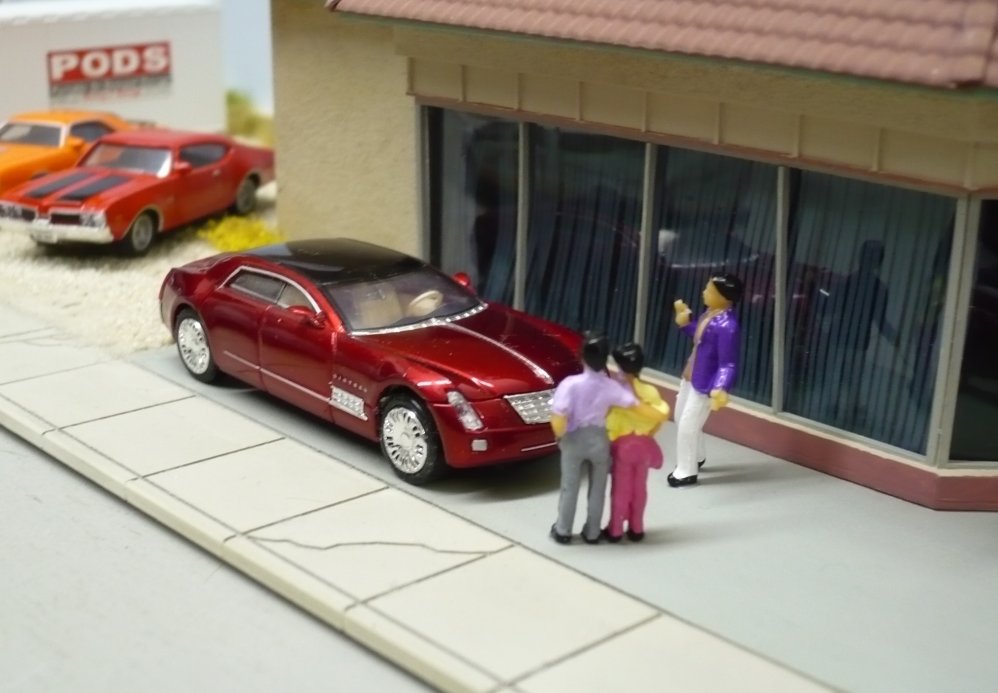

another dream would be this Cadillac Sixteen - 1394 no matter how expensive, just buy it !! - 1395
a cool pickup at the order window - 1396 pick up window with Harley load and an old Buick - 1397
on the Denny's Parking are Merc, Range, BMW, Lincoln - 1398 a 2007 Dodge Charger is passing Denny's - 1399

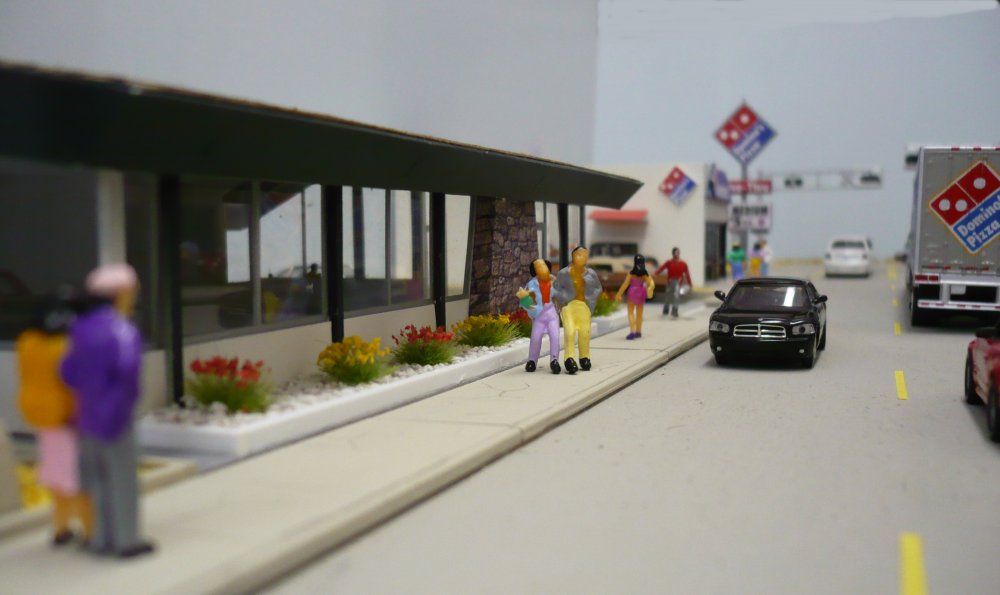

view from road side - 1400 view from street level - 1401

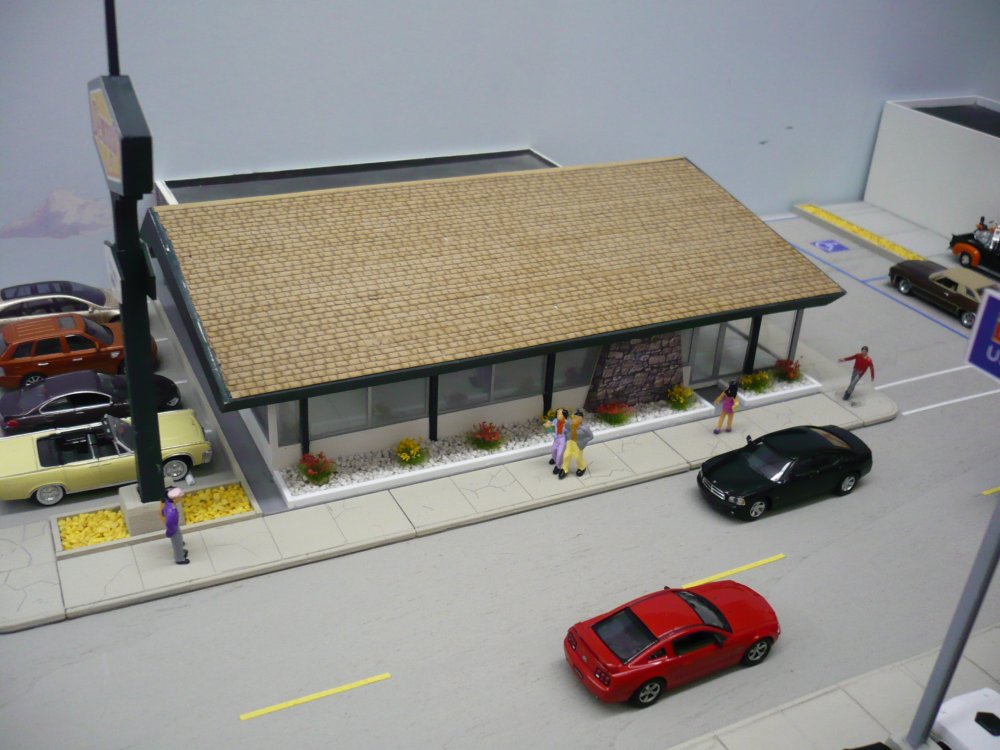

and another view of Denny's - 1402 a Chevy Caprice is passing a sitting man with his dog - 1403

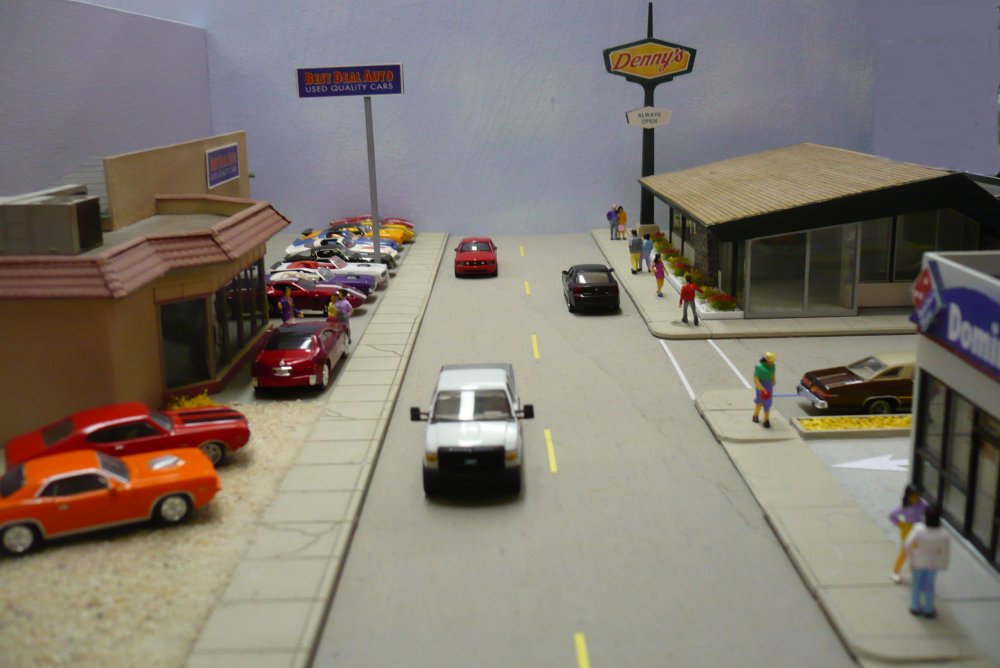

Car Dealer and Denny's are just across the street - 1404 Denny's is open 24 hours - 1405



added 5/10/15: Yes, it is actually a model railroad layout and therefore, Union Pacific is taking over the scene !!

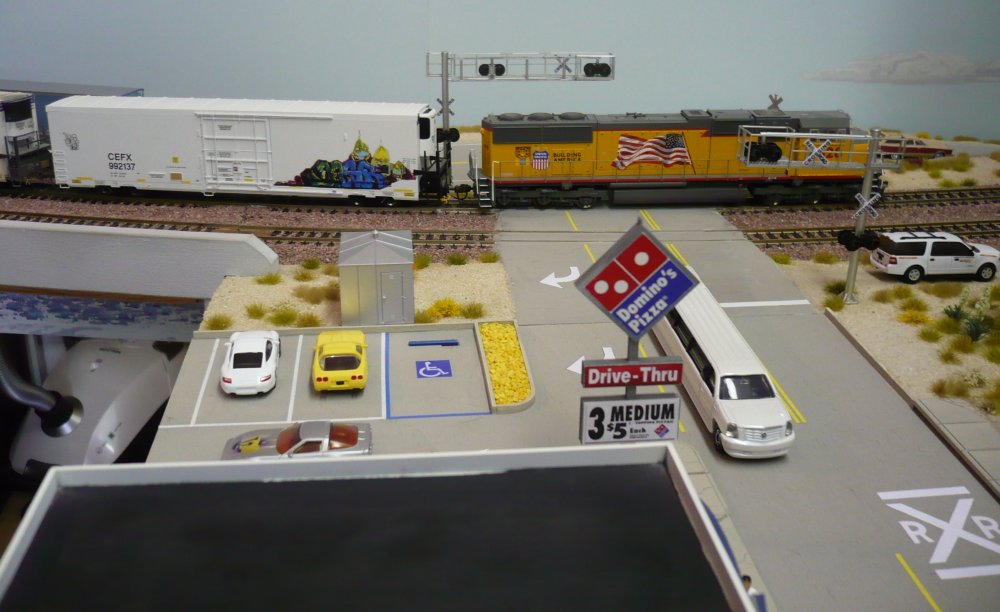

The first train is rolling uphill on 1,5 % grade - 1414 it is passing the new Percyville extension - 1415

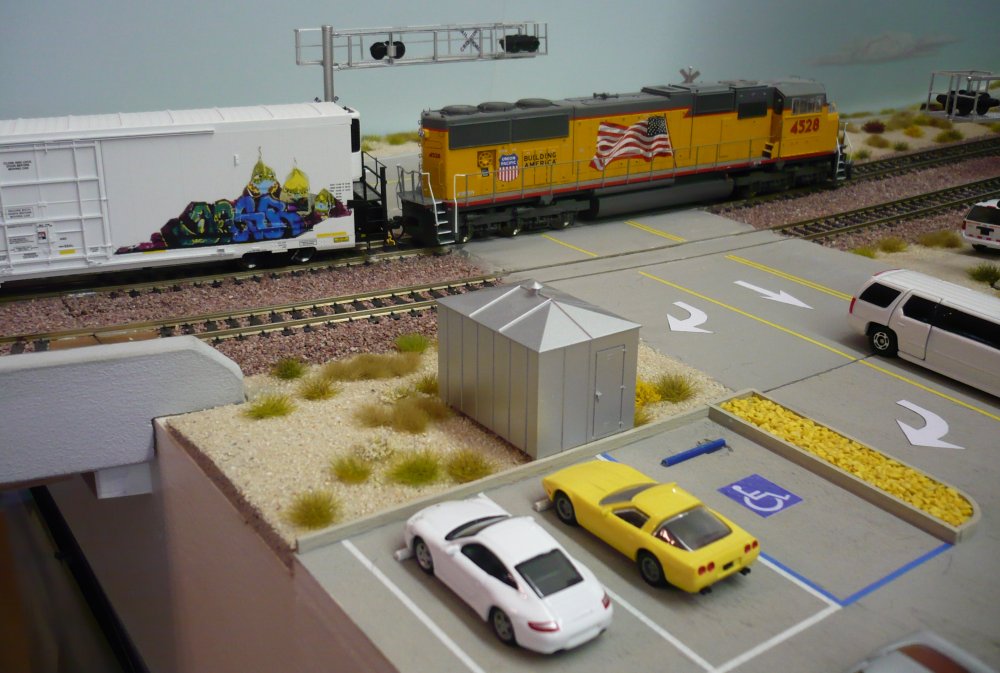

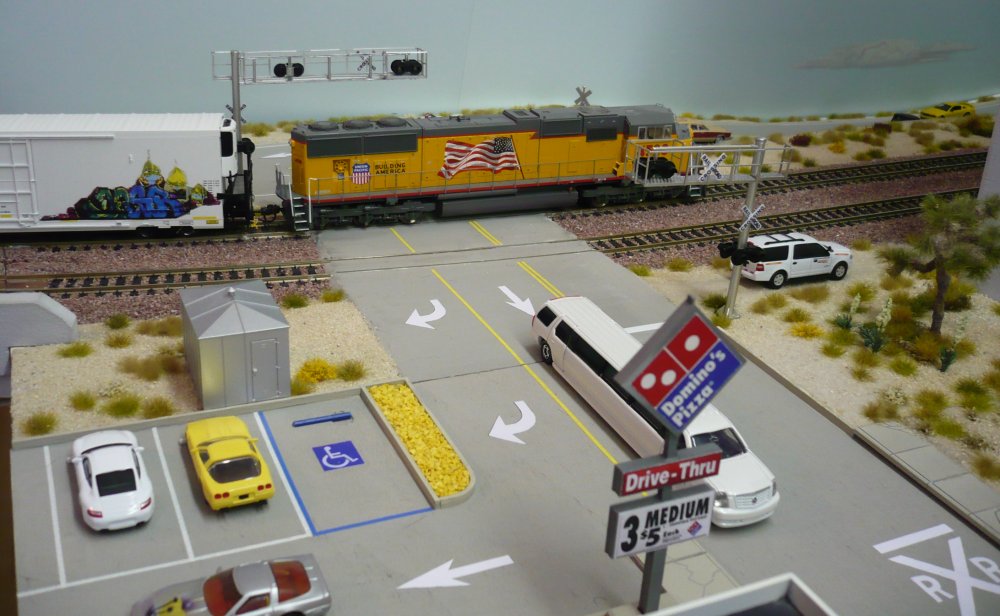

EMD SD70M made by Athearn Genesis - 1416 64' Trinity Reefer made by BLMA - 1417
Graffiti on the first reefer made by P. Schönenberger - 1418 a BNSF official vehicle is parked next to the tracks - 1419
view from outside - 1420 and another view - 1421
looking uphill from bridge 1 toward bridge 2 - 1431 the Percyville Extension is finished and well integrated - 1432

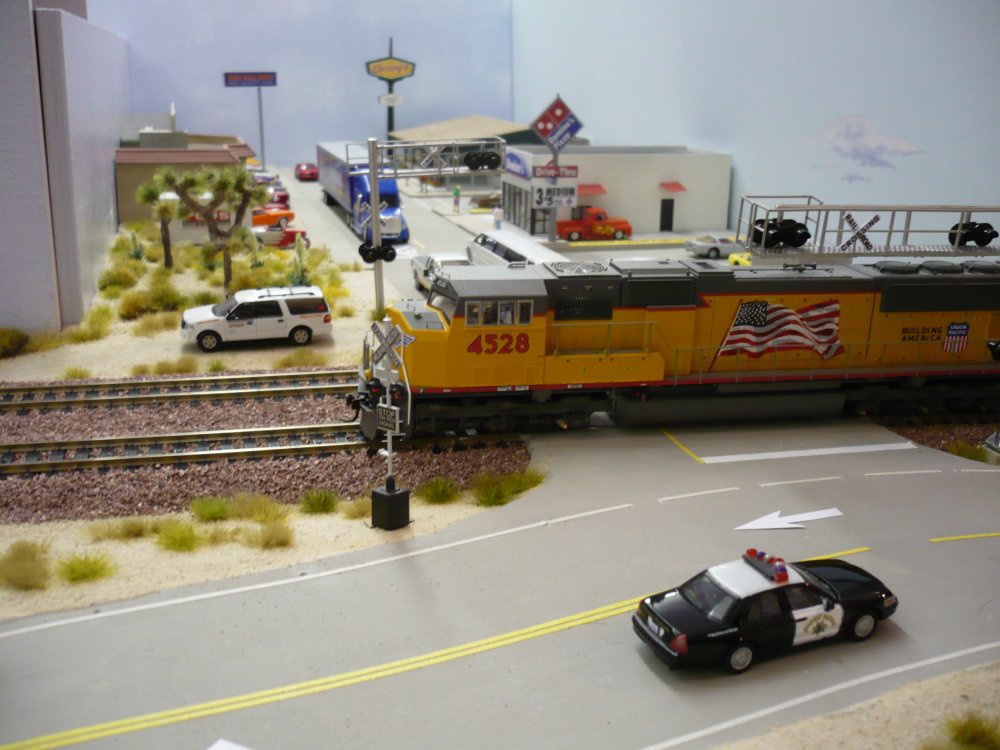

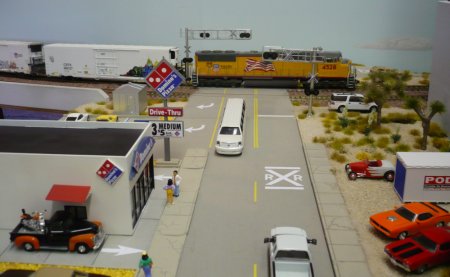

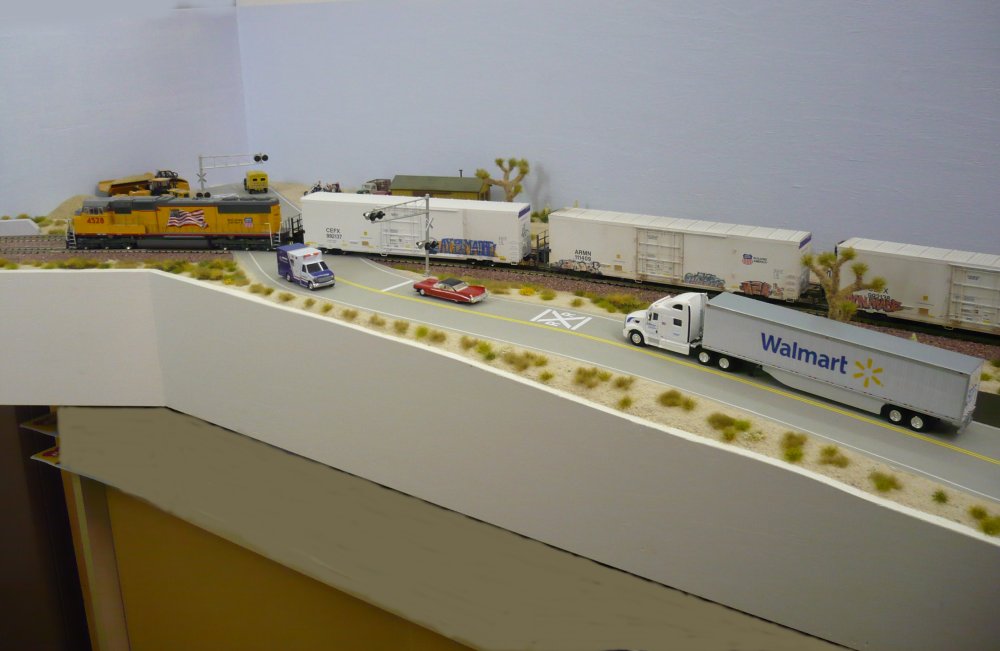

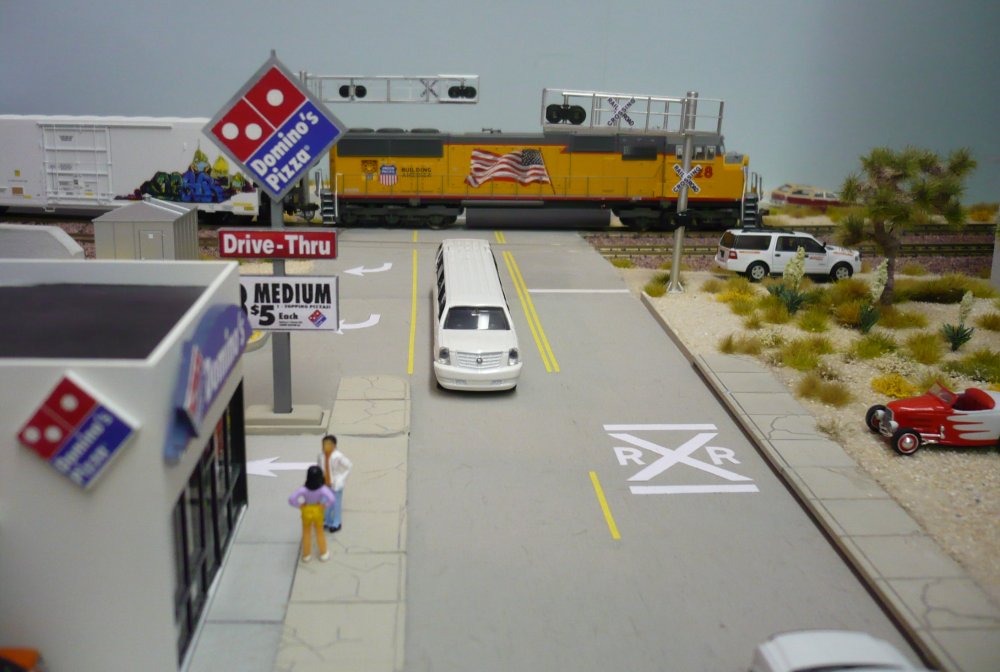

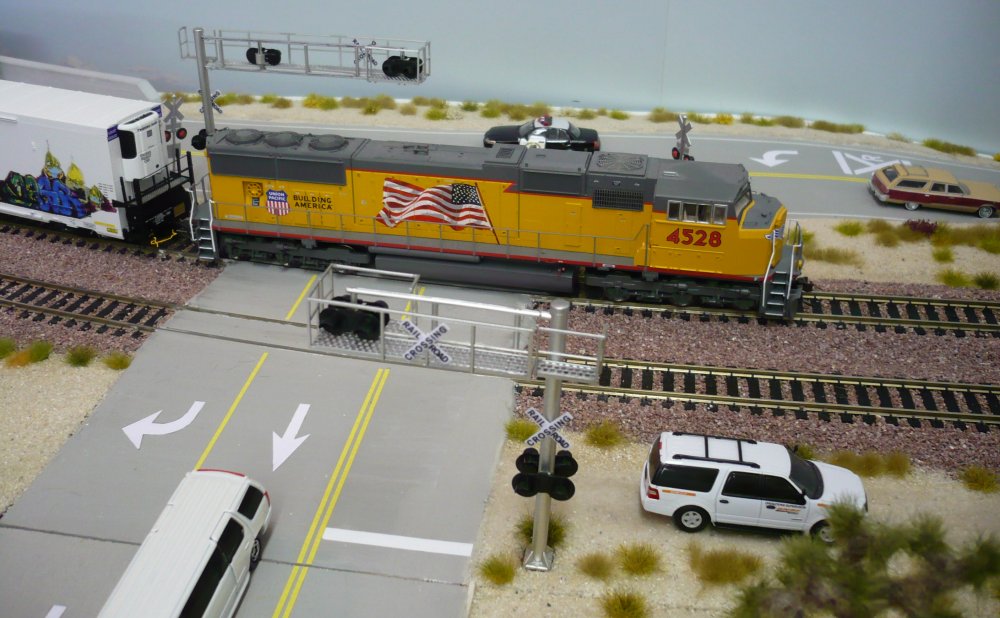

the UP Loco is rolling over the road crossing . . - 1422 . . and continuing his journey uphill - 1423

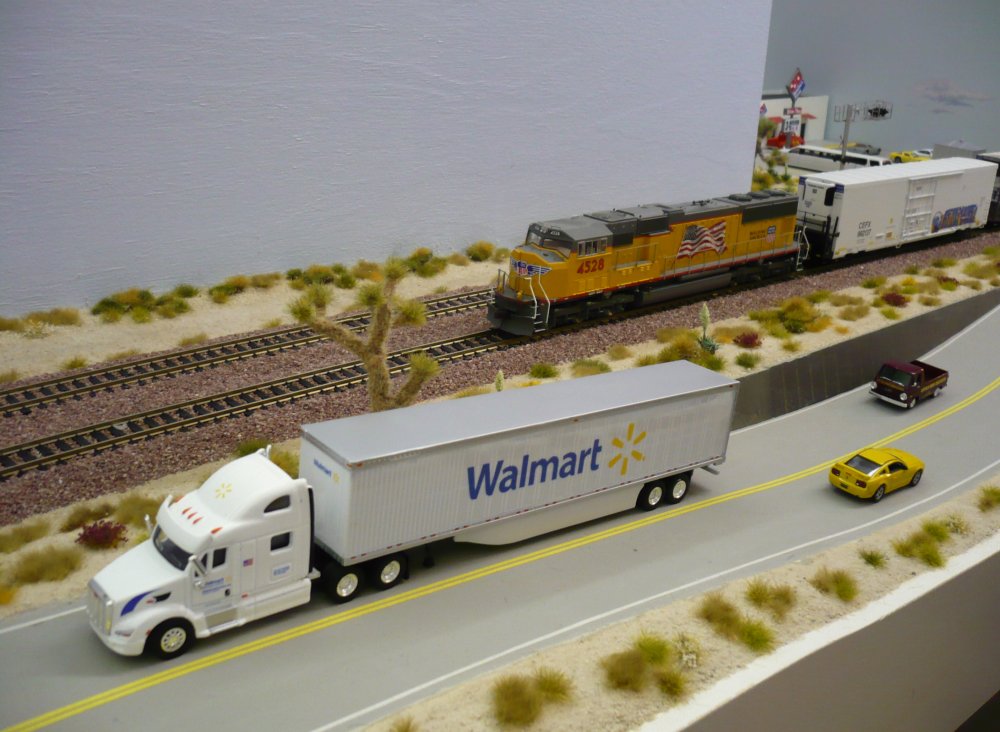

new Walmart Trailer with wind deflectors below - 1424 after all, this part of the layout got landscaping - 1425

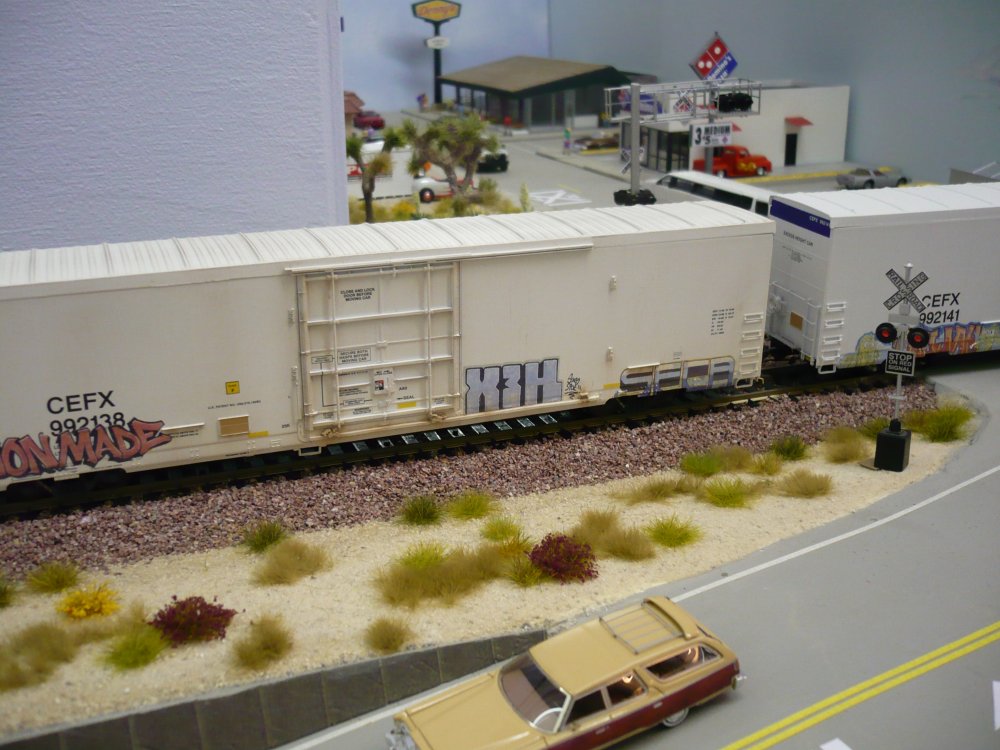

these Grafittis made by Kim Nipkow - 1433 more reefers with Graffiti - 1434
Just after bridge 1 the train is passing the Percyville Extension - 1428
main street will enter Percyville just after bridge 1 - 1426 on bridge 1 is a Werner Enterprises Truck - 1427
there is even a Nascar racer going to the enxt race - 1435 2 Werner Enterprises Reefer Trailers on Flat Cars - 1436

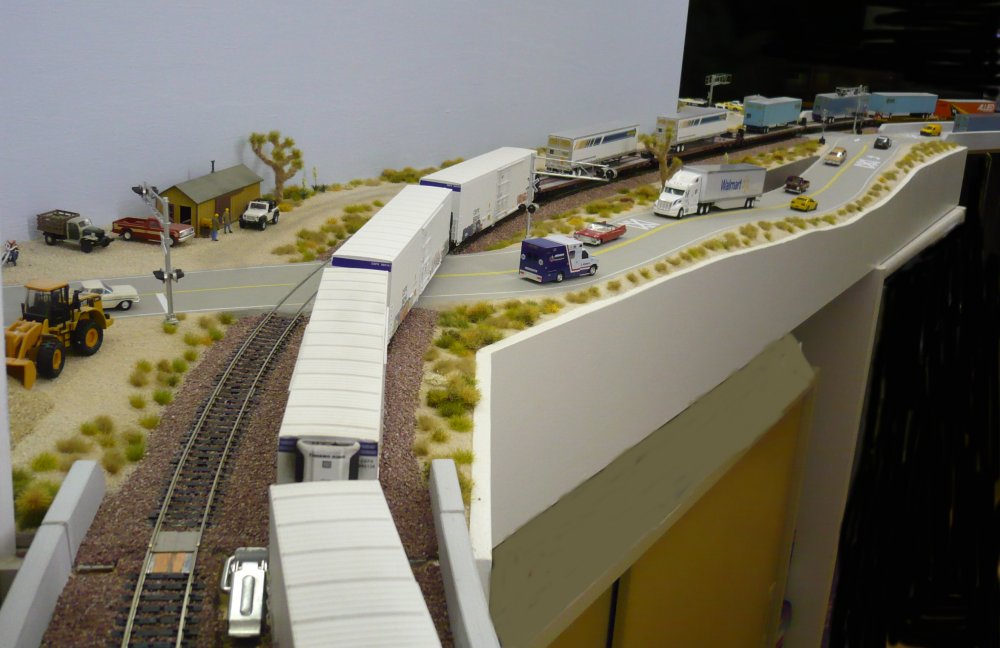

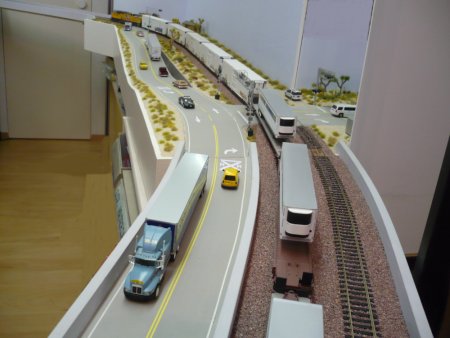

the combined bridge 1 (road/track) is connecting the Percyville Extension with the Werner Enterprises Terminal - 1429
landscaping and vehicles are giving the final touch to a layout, even there is no weathering done on the roads - 1430
the UP train reached the next road crossing - 1437 here is the end of this module - 1438

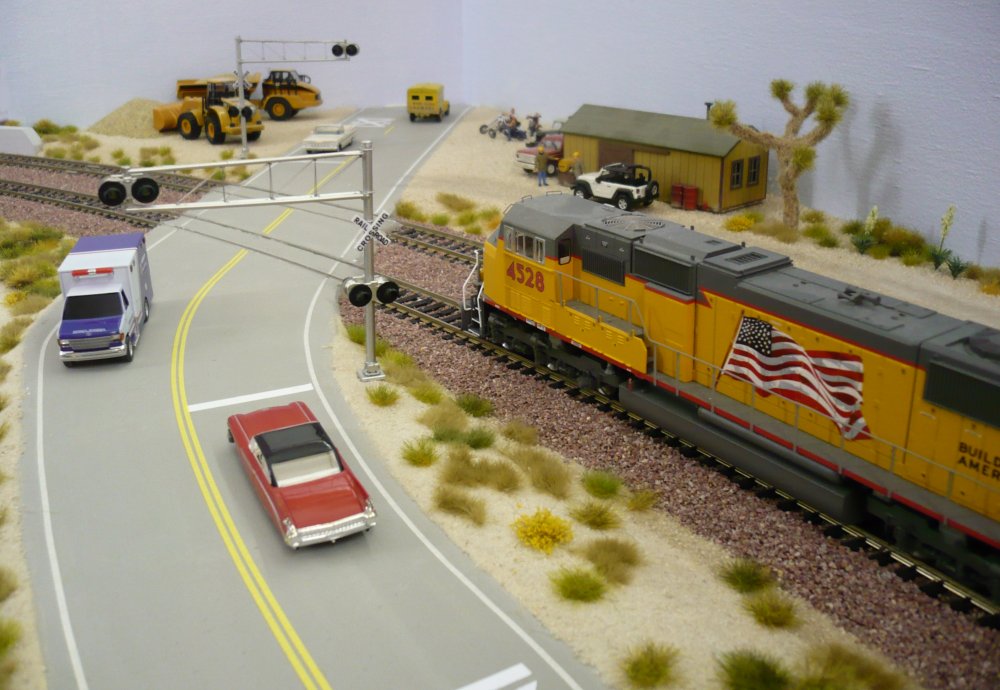

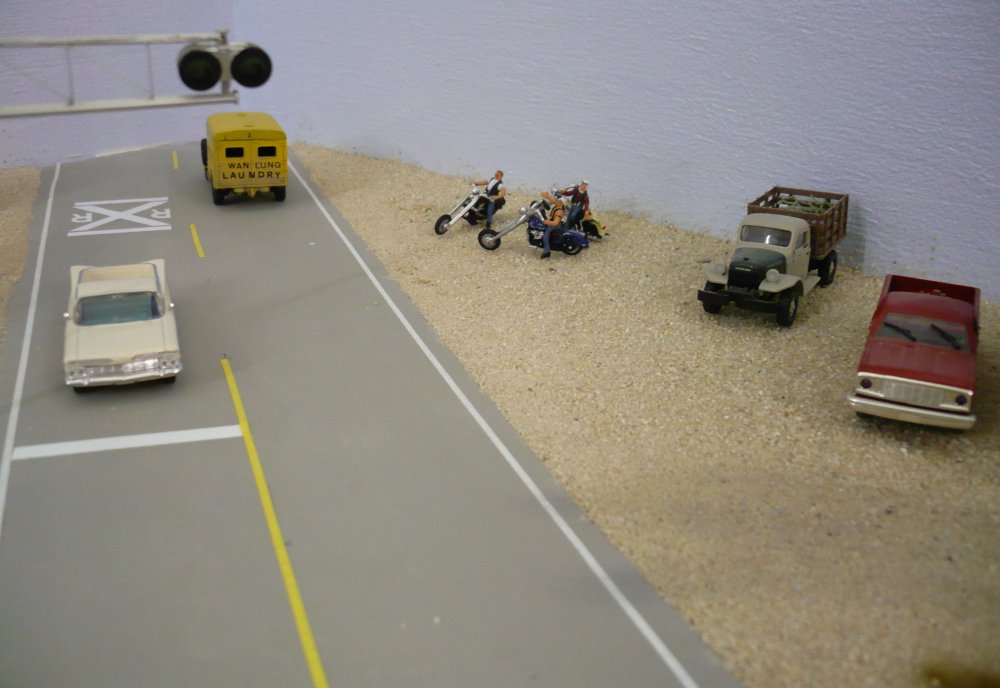

a nice Joshua Tree is completing the scene - 1439 maybe these bikers are railfans? - 1440

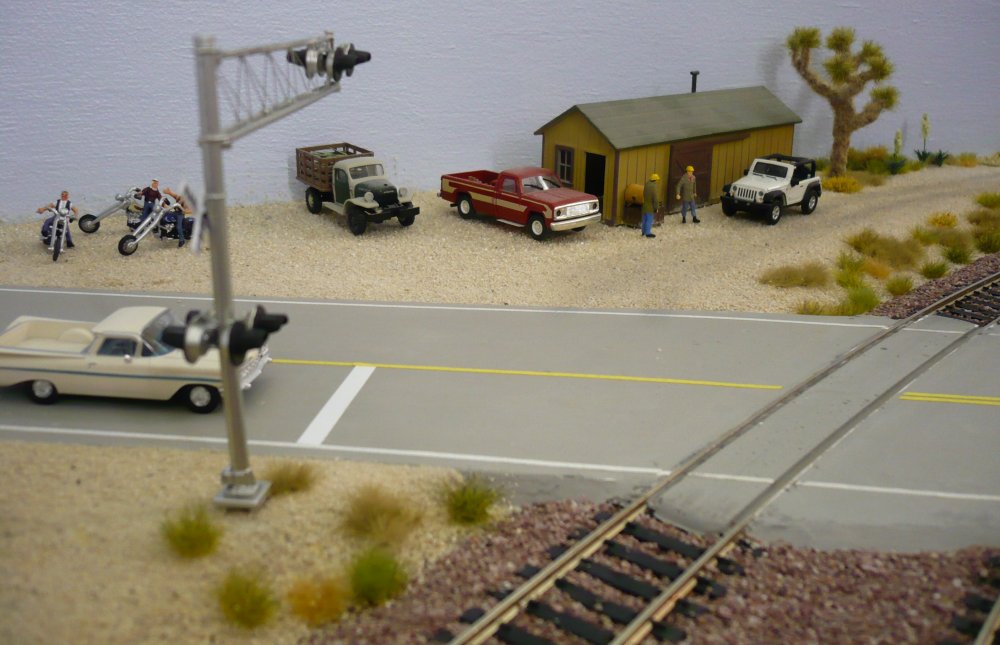

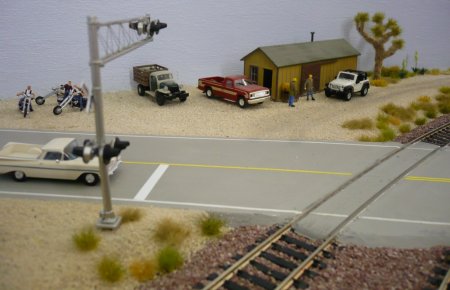

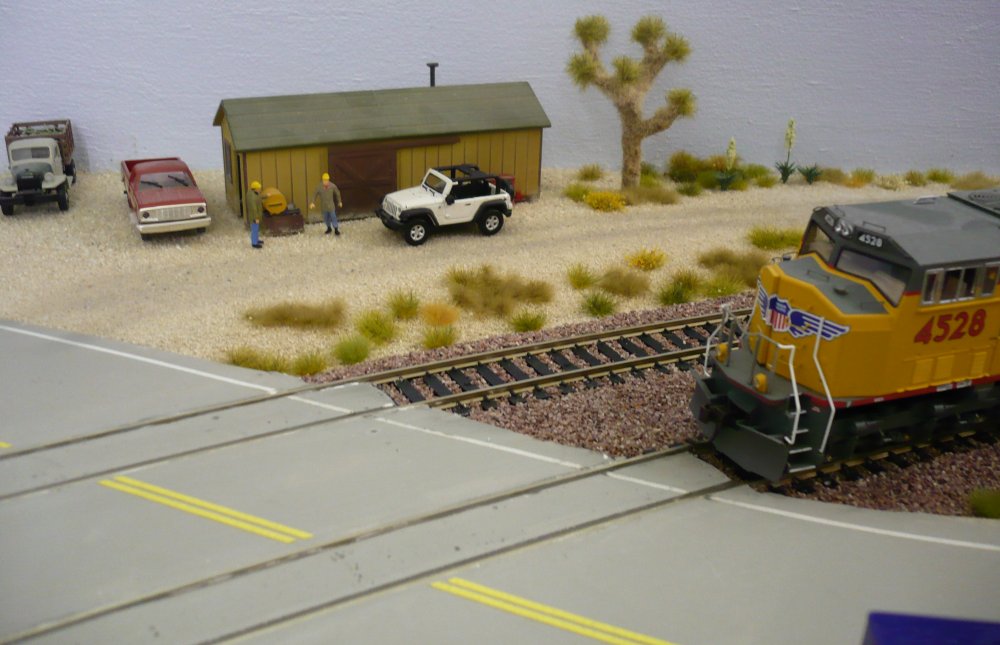

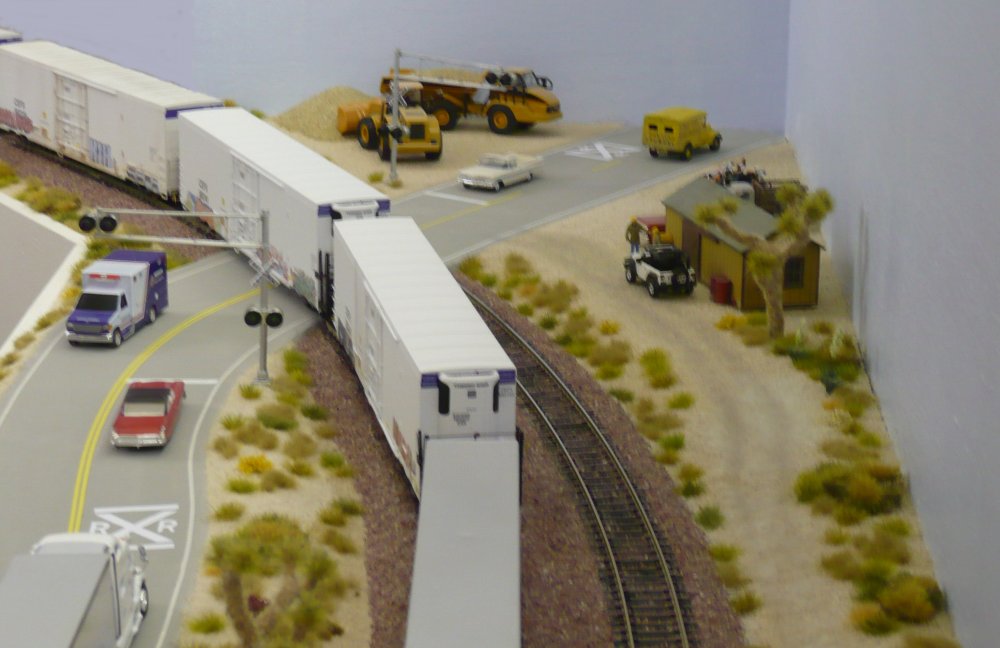

there is a small construction site - 1441 not sure how to use this small space - 1442
the engine will soon enter bridge 2 - 1443 the same position as seen from below - 1444

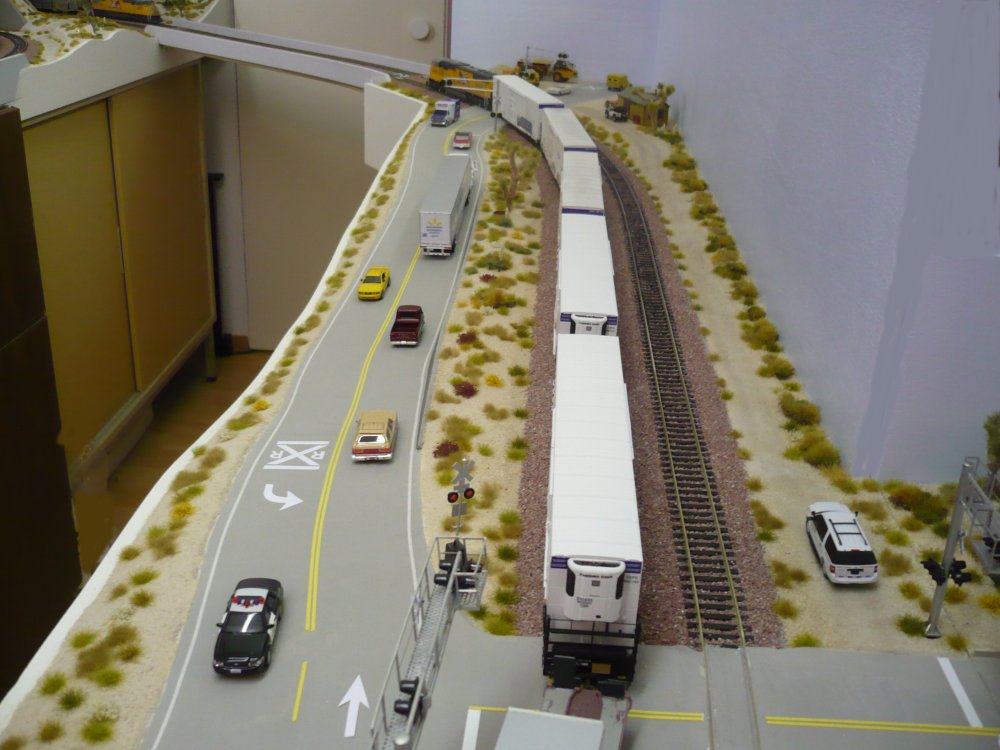

the same position as seen from above - 1445 bridge 2 is visible - 1446

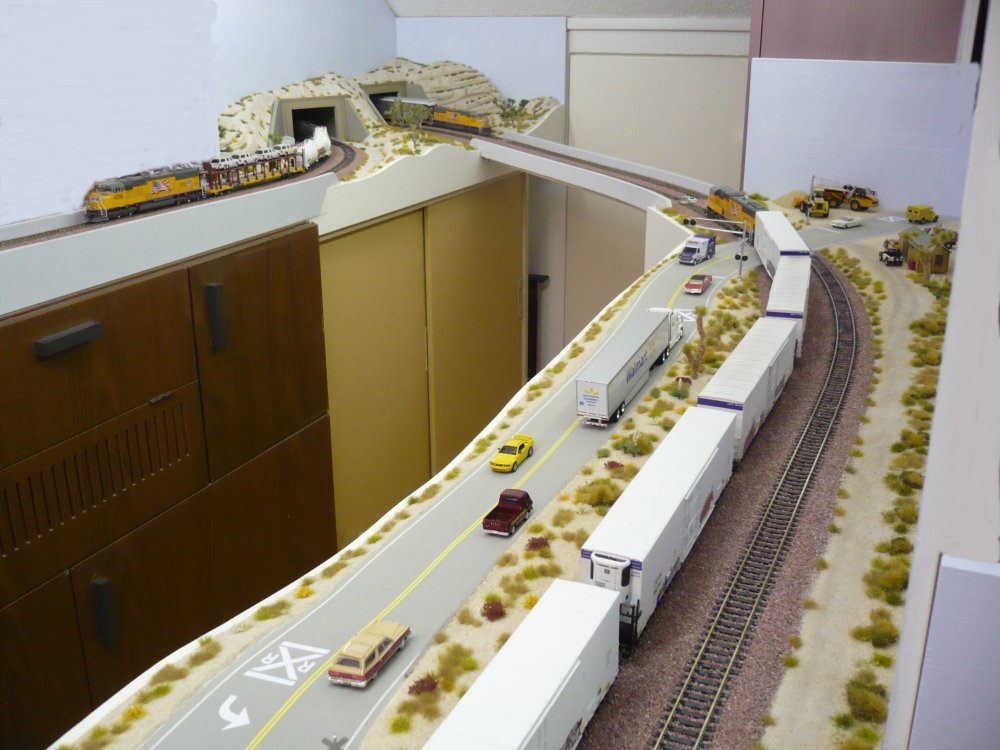

in front is bridge 1 and above left bridge 2 - 1447 overview with tunnels (East Portal) - 1448

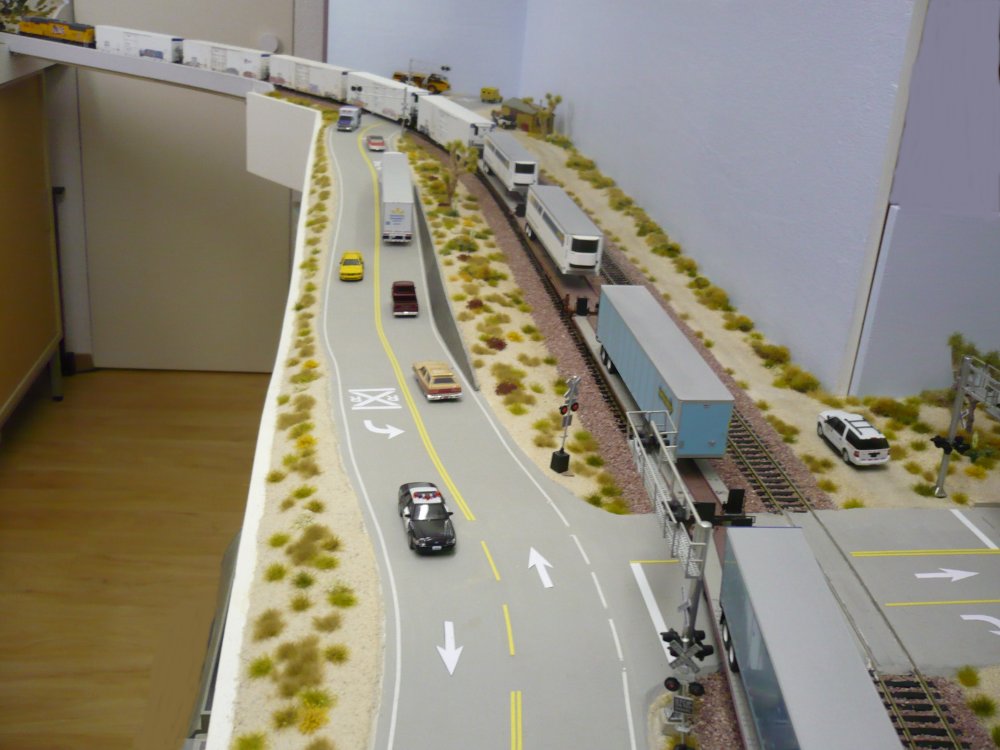

the UP Diesel is already on bridge 2 - 1449 Werner Enterprises Trailers on Flat Cars and on the road - 1450

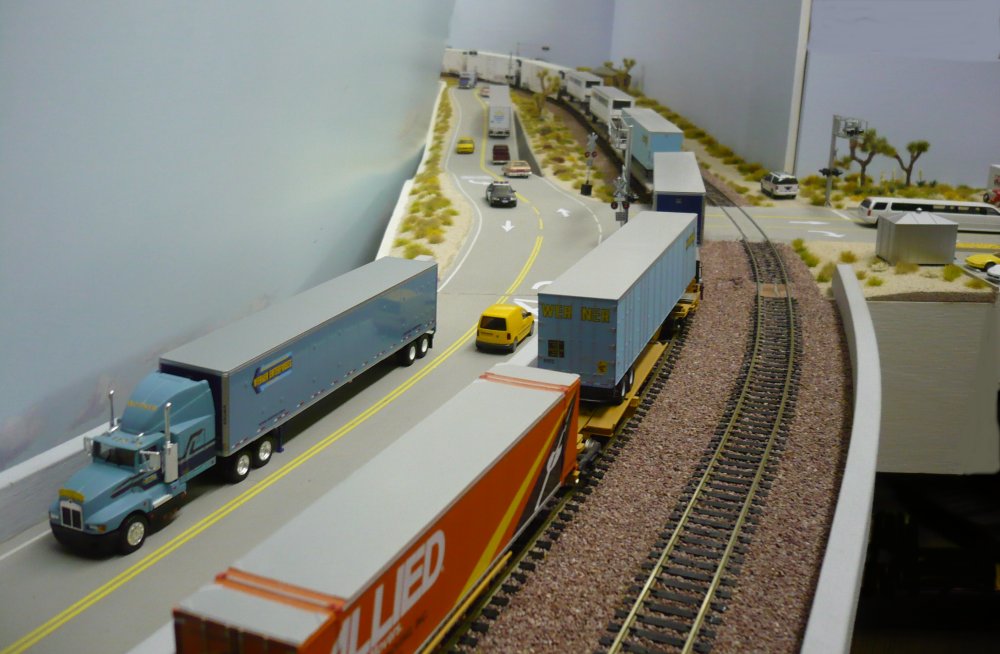

a sky backdrop was added . . - 1451 . . to get a different view - 1452

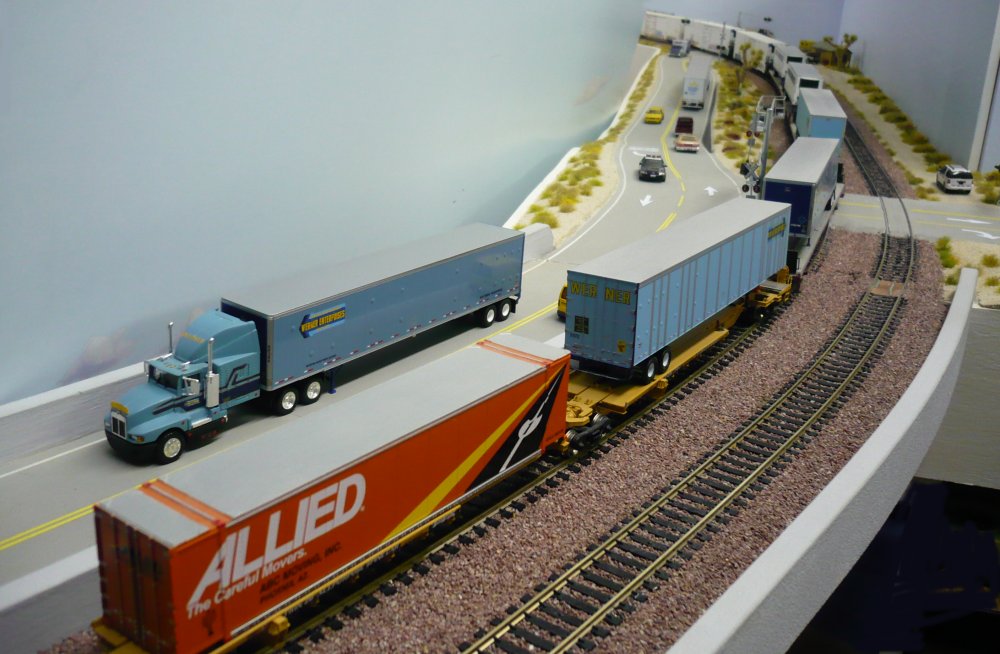

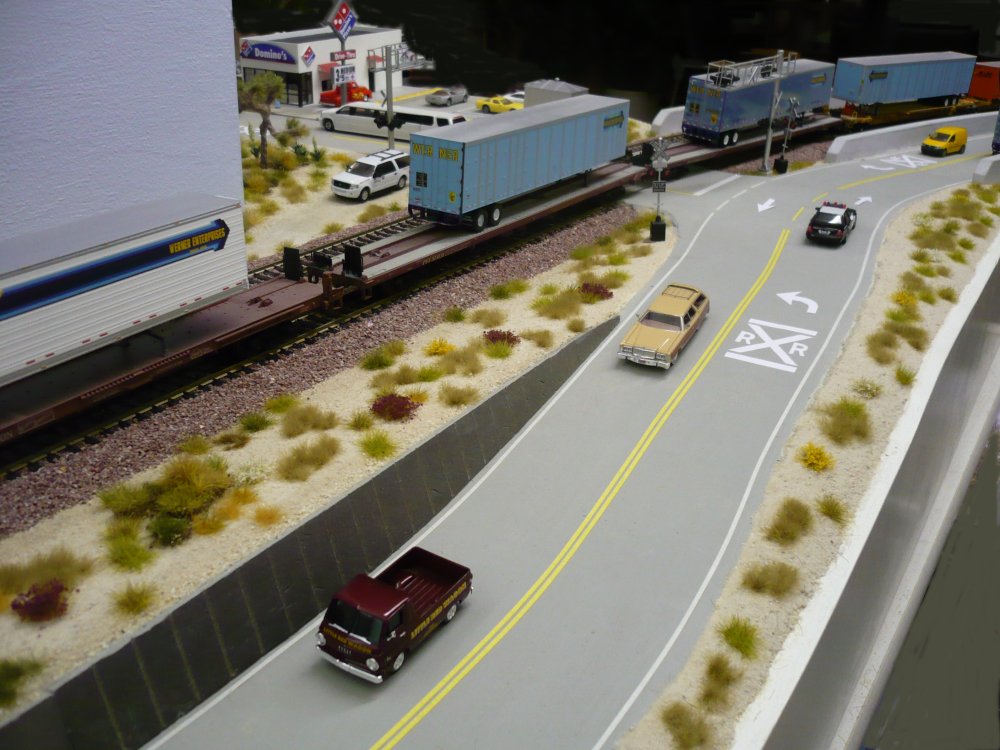

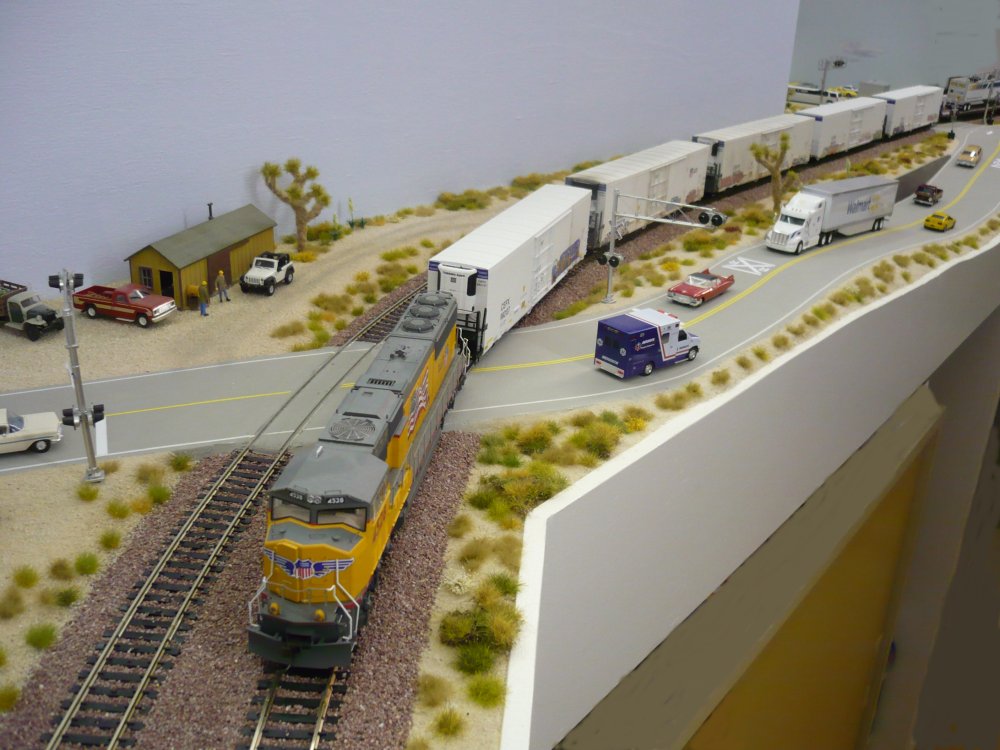

blue Werner Enterprises Trailers on Flat Cars (TOFC) - 1453 same position as seen from Percyville Extension- 1454

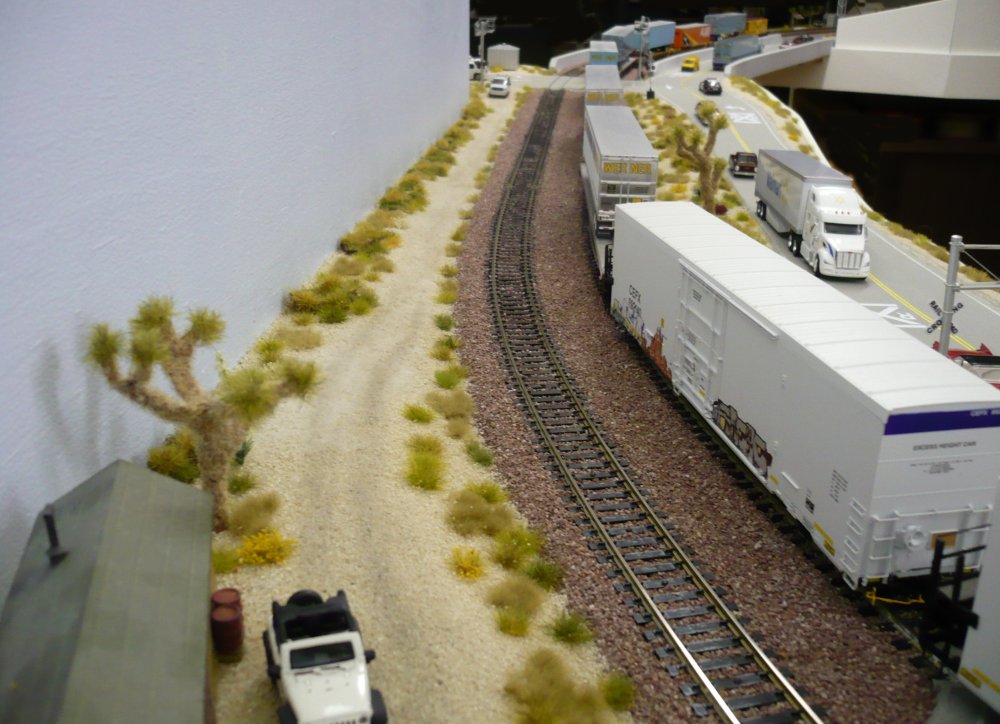

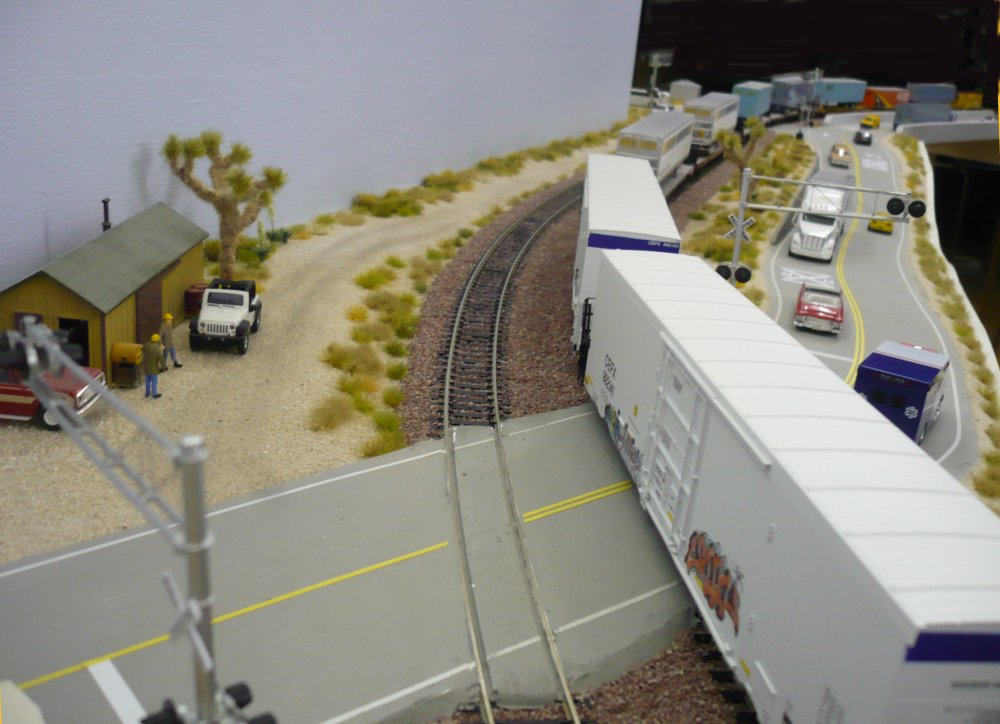

we are looking toward bridge 1 - 1455 here is a different view - 1456

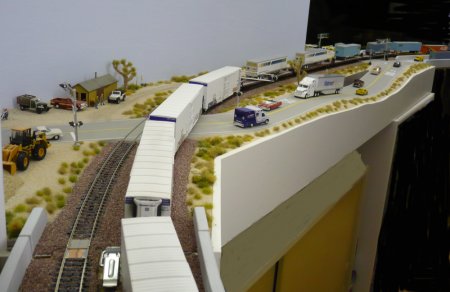

and another view - 1457 and one more view - 1458

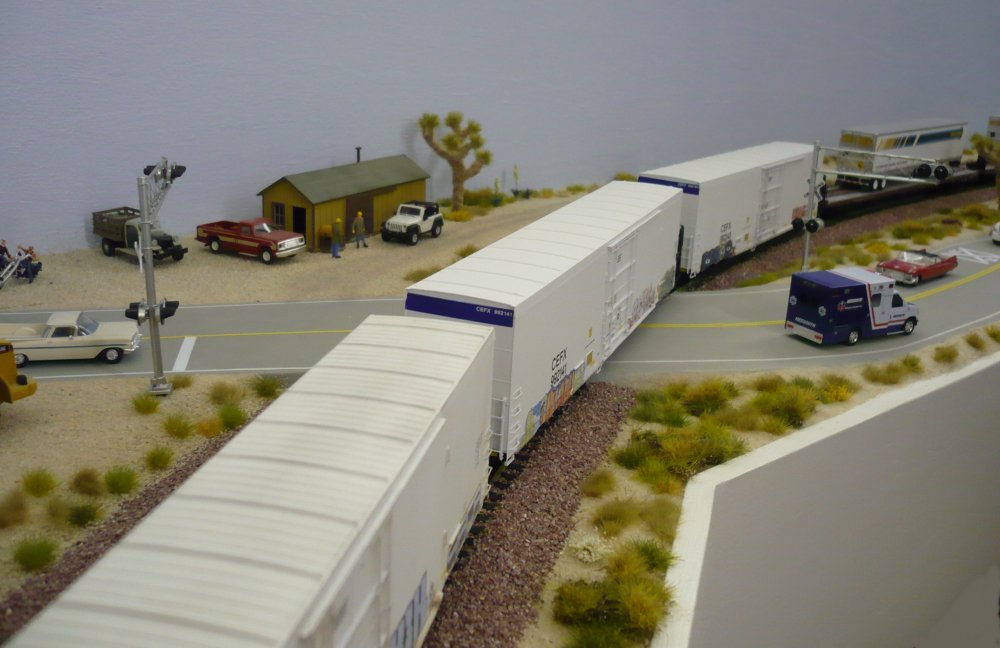

still the same position - 1459 after all, this is the final shot of this curve - 1460

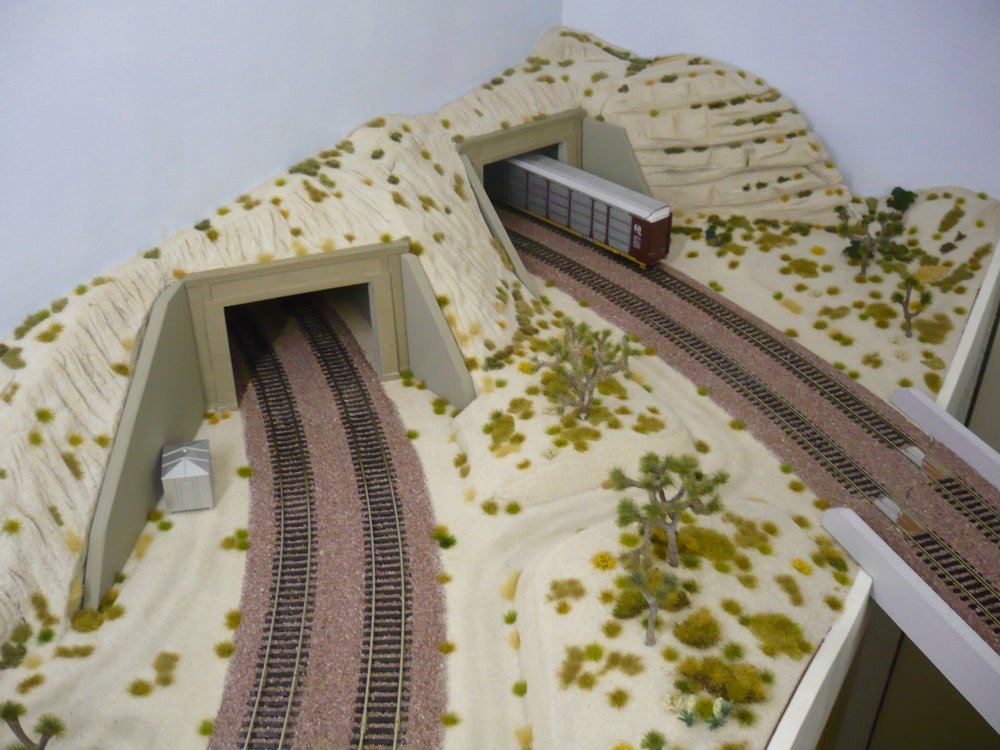

Now, we are taking care of the Tunnel modul on the East side. This module is quite small, just 135 x 55 cm. The tracks in Tunnel 1 ar going downhill. The tracks over bridge 2 and thru Tunnel 2 are going uphill.

these 2 short Tunnels are going thru the wall . . - 1462

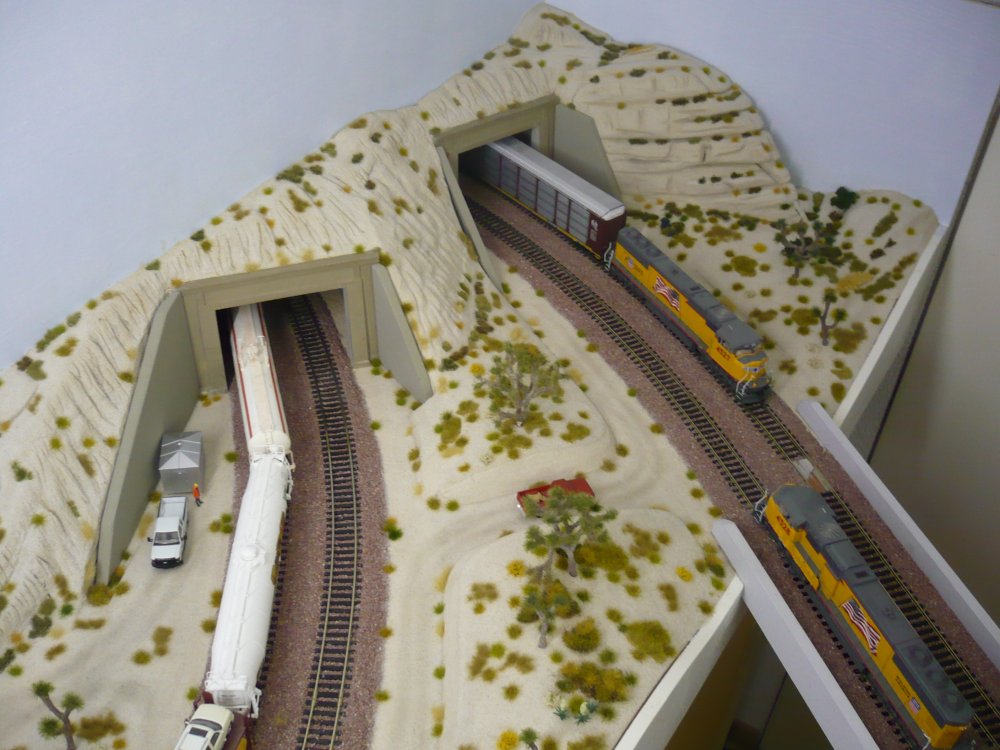

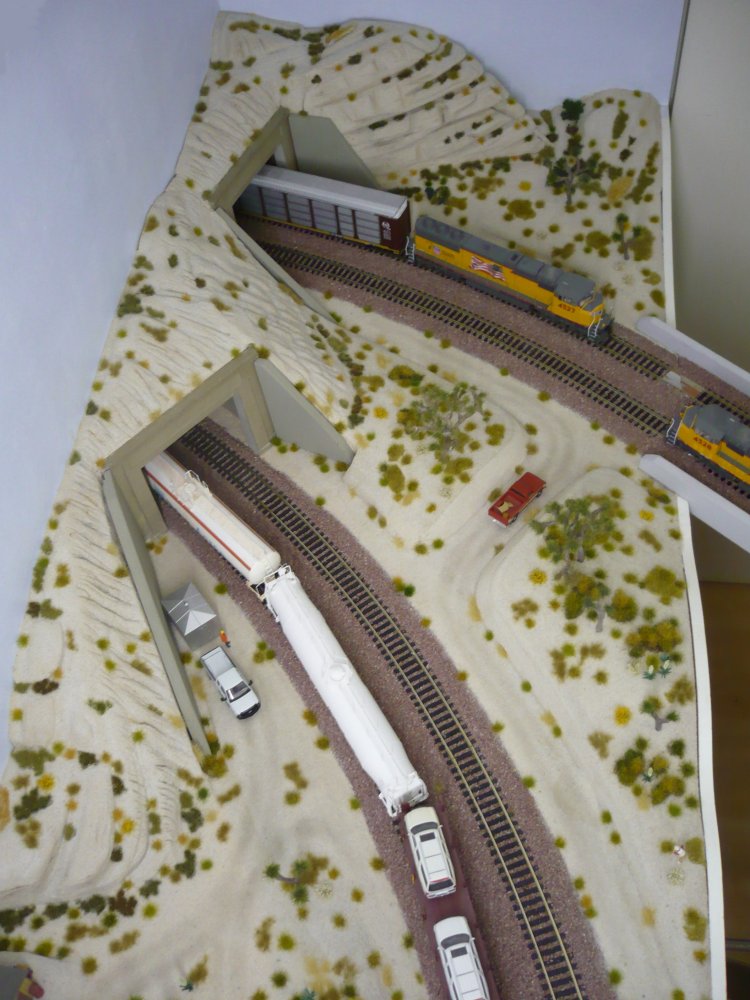

from the air: Tunnel 1 left and Tunnel 2 right - 1461 . . into office 2, where the layout is going around the walls - 1463

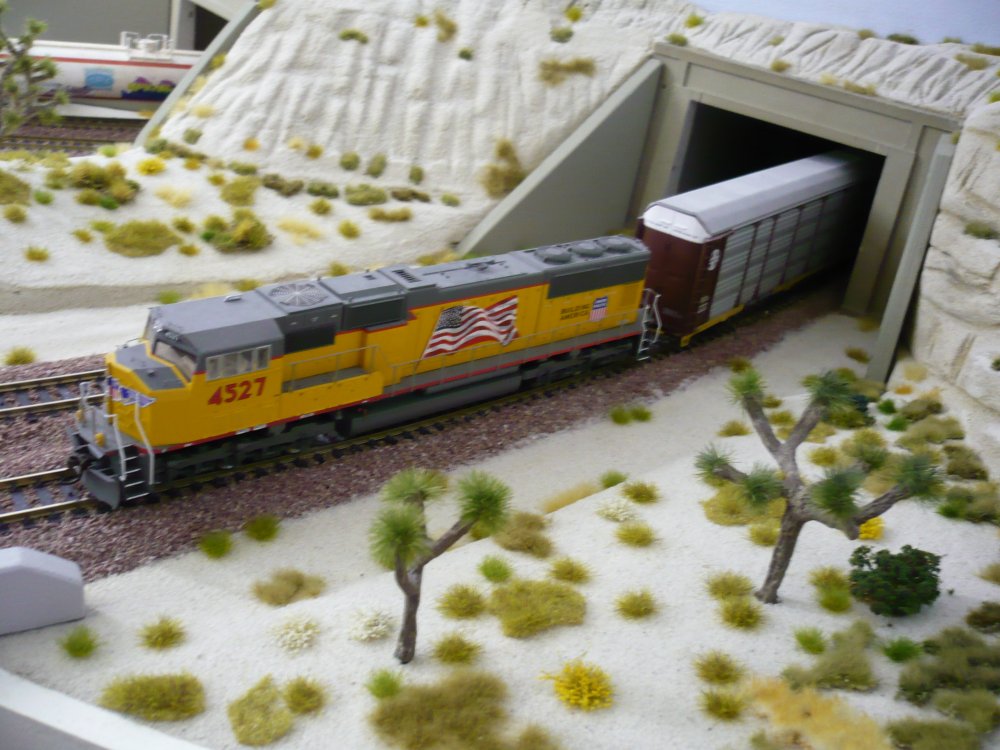

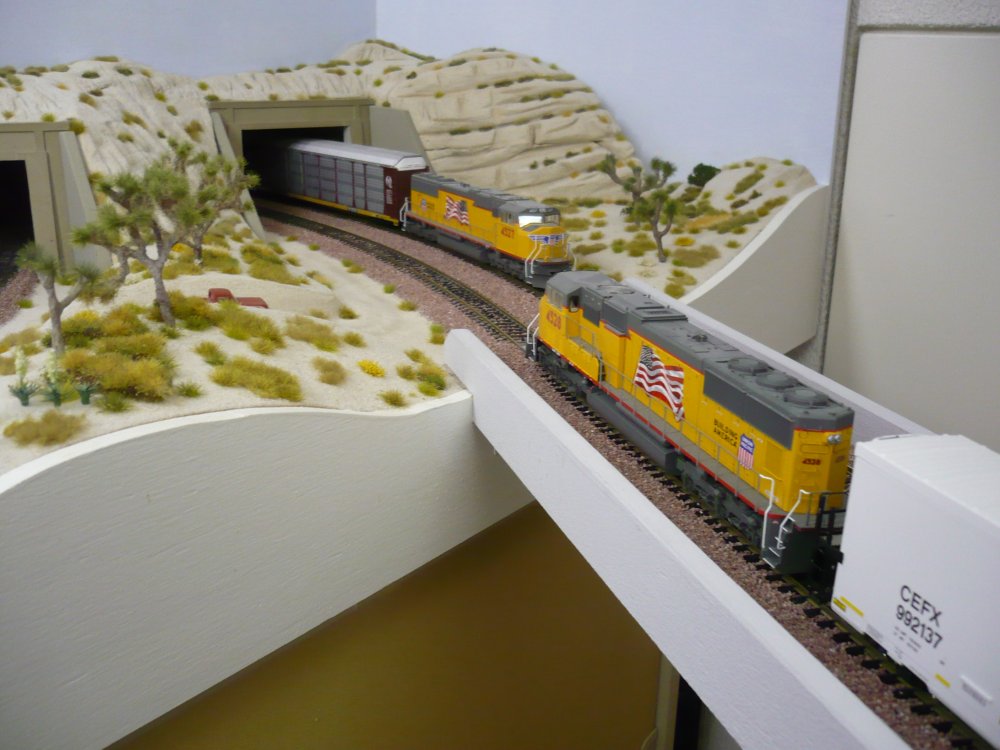

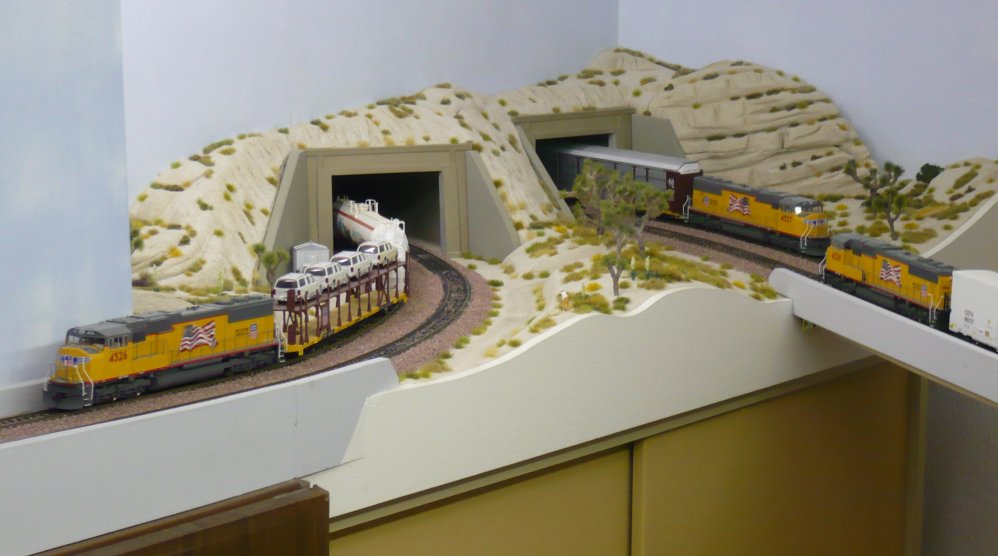

UP SD70M just passed Tuennel 1 - 1464 UP Meeting between Eastbound and Westbound trains - 1465

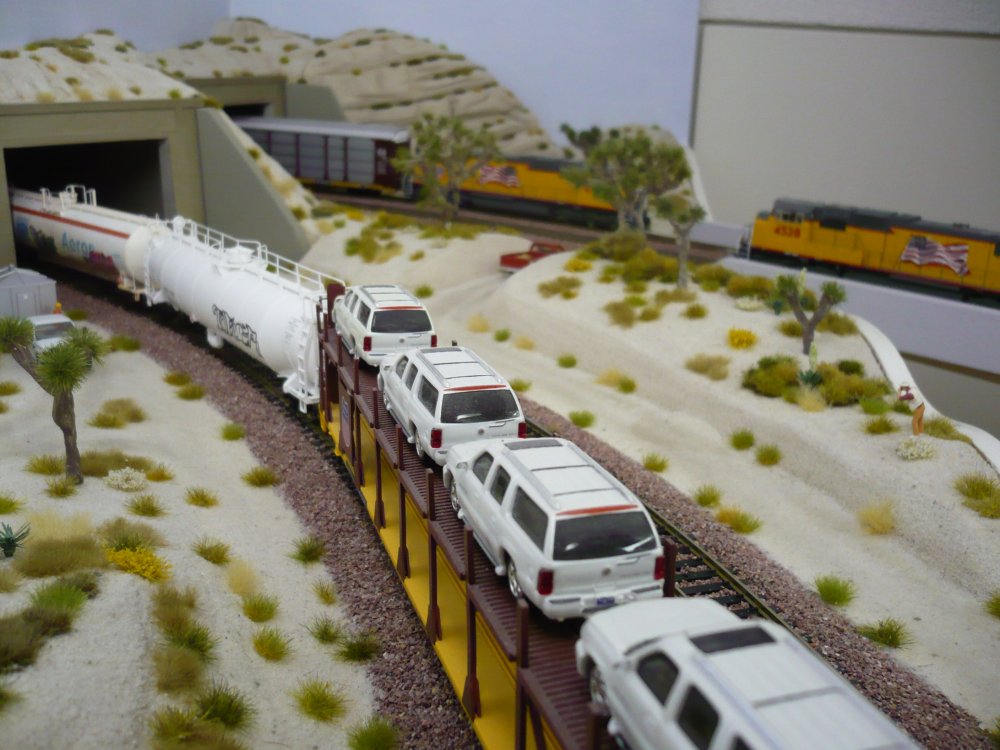

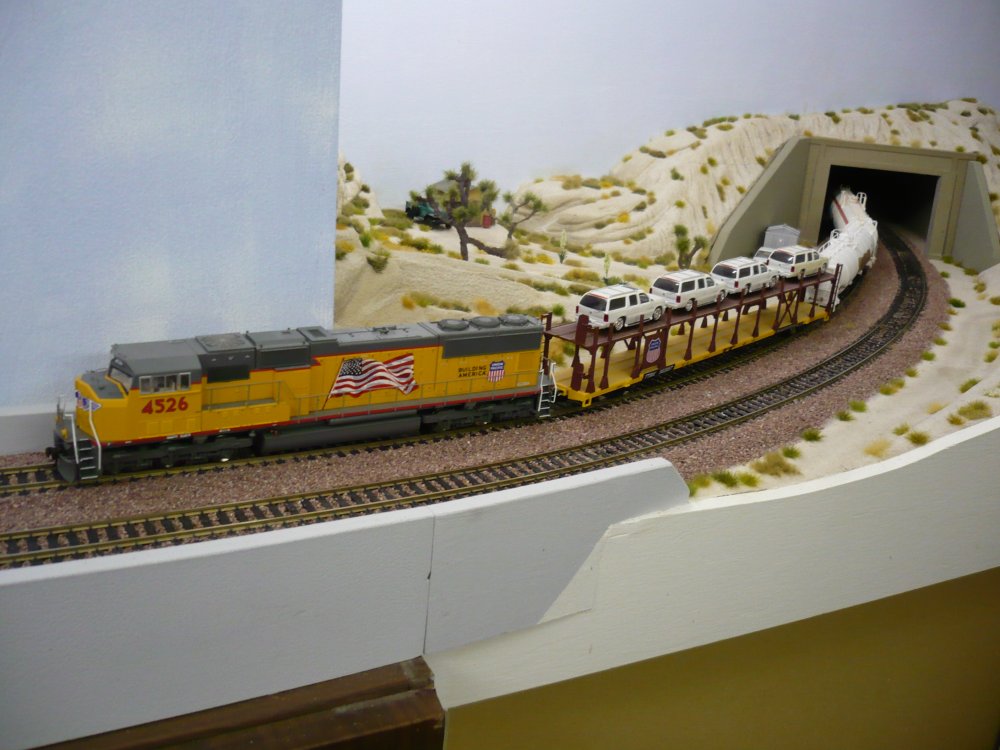

the auto carrier is loaded with Cadillac Escalades - 1466 BTW: Bridge 2 can be folded down - 1467

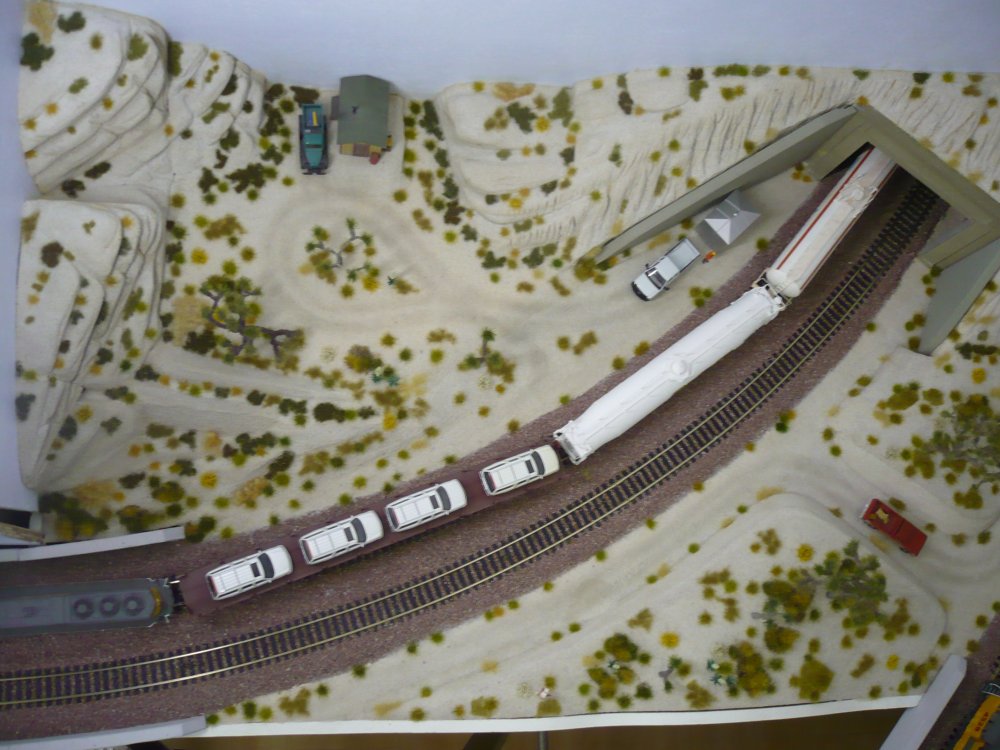

from the air: exit Tunnel 1 EP - 1468 3 different UP trains are in action - 1469

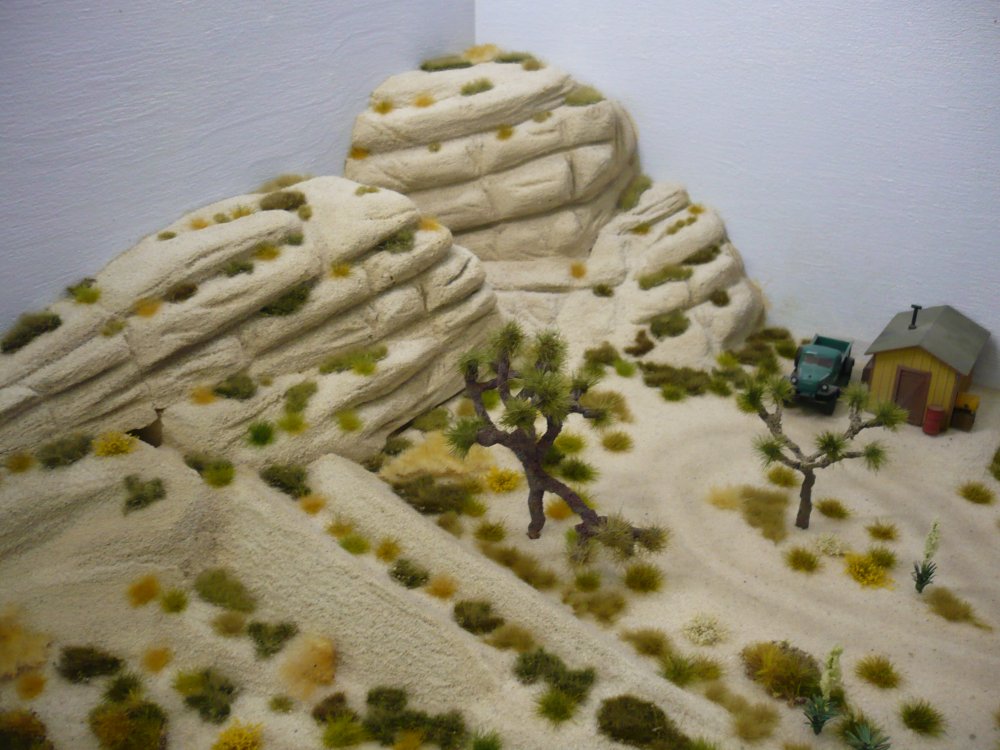

inspired by Sullivan's Curve and Mormon Rocks - 1470 this little shed belongs to the U.S. Forest Service - 1471
from the air: above Tunnel 1 - 1472 from the ground: Auto Carrier with Cadillac Escalades - 1473
here is another Joshua Tree - 1474 a BNSF employee is on duty - 1475

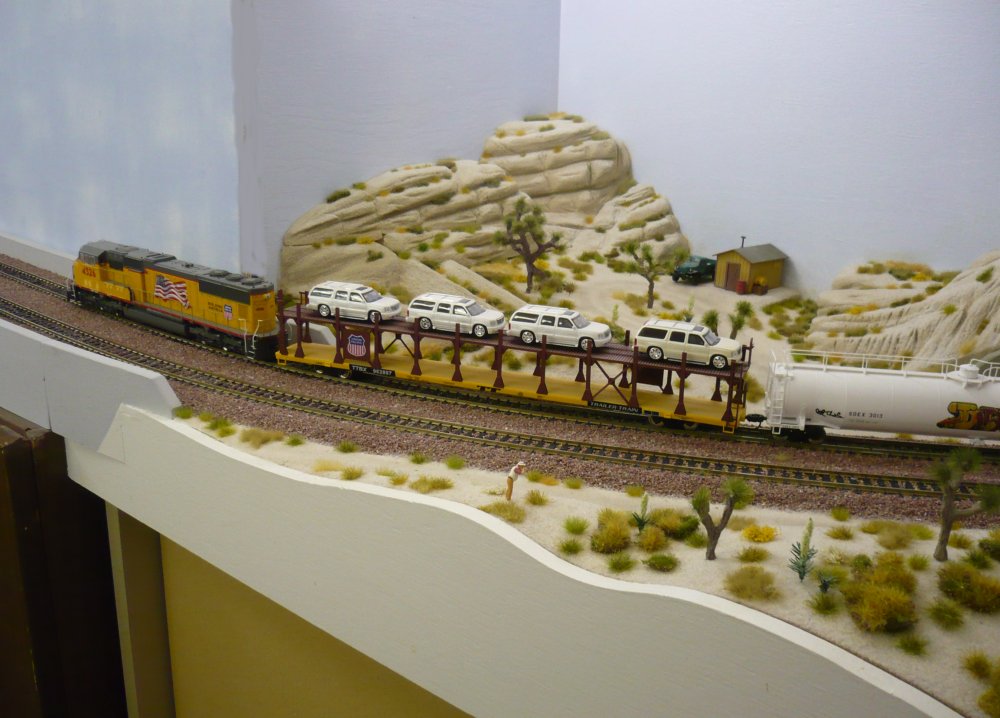

the tracks are going to Bridge 3 - 1476 actually the Cadillac Escalade is my dream car - 1477

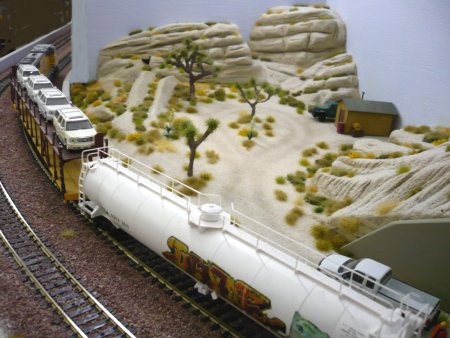

looks like the real thing - 1484 service roads are important for access - 1485

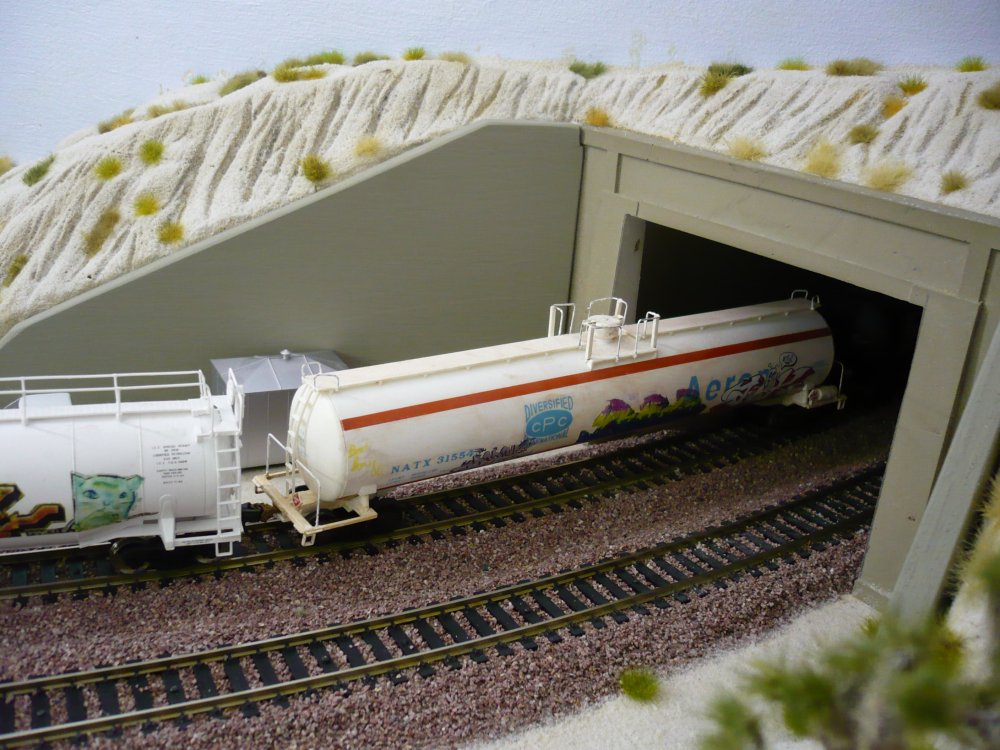

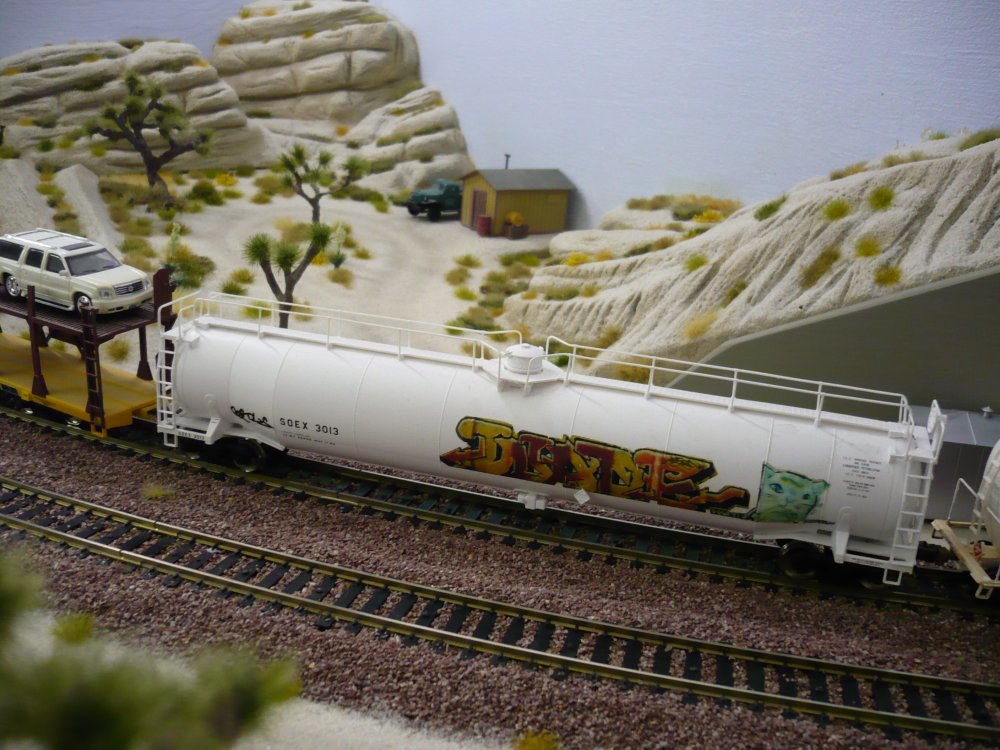

Graffiti done by P. Schönenberger - 1478 also on this tank car - 1479

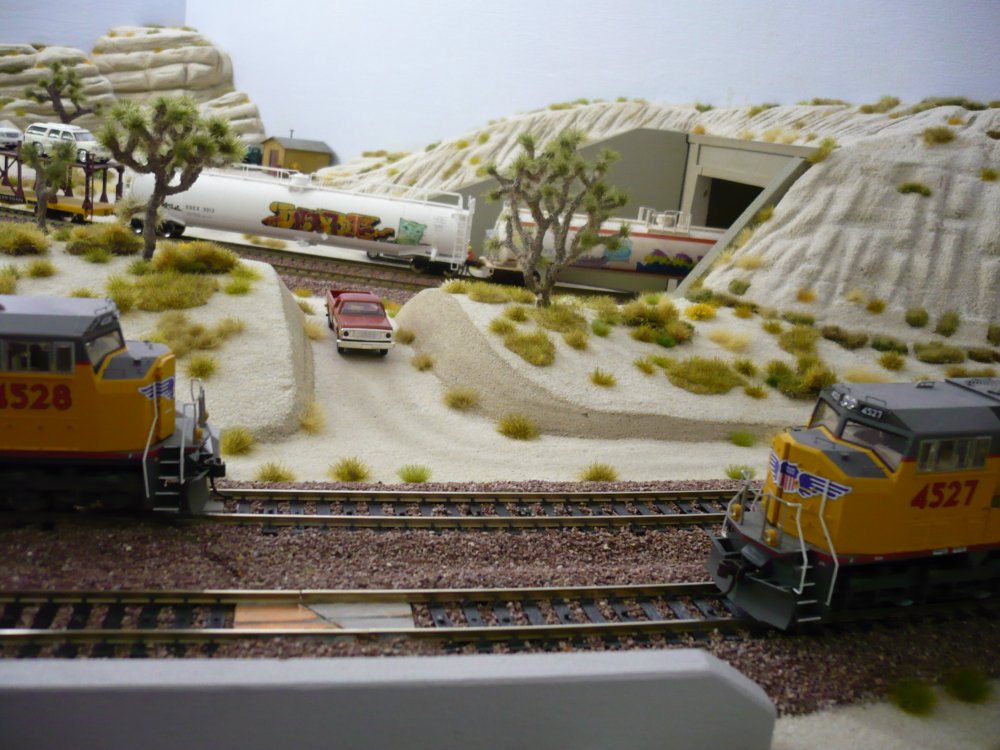

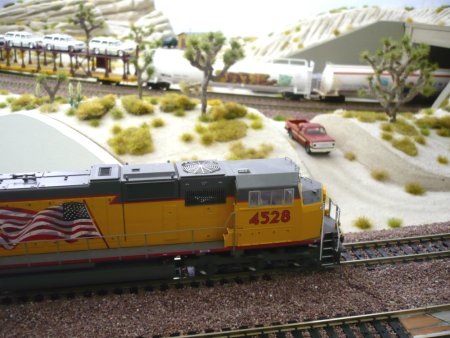

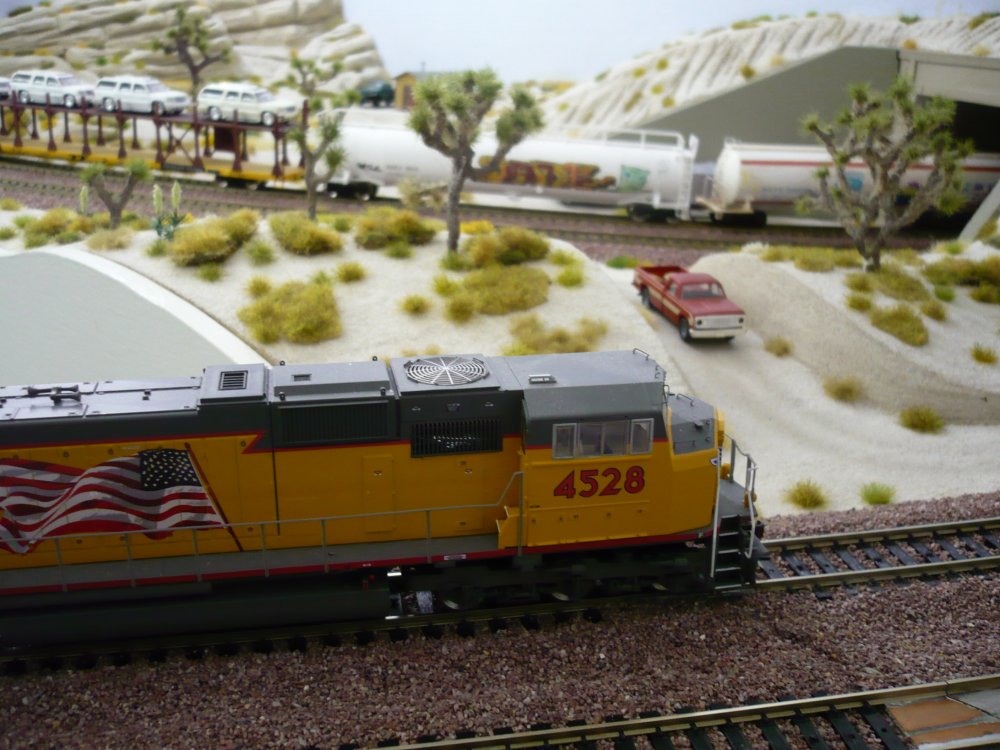

 - 1480 Meeting of WB and EB trains - 1481
 - 1482  - 1483

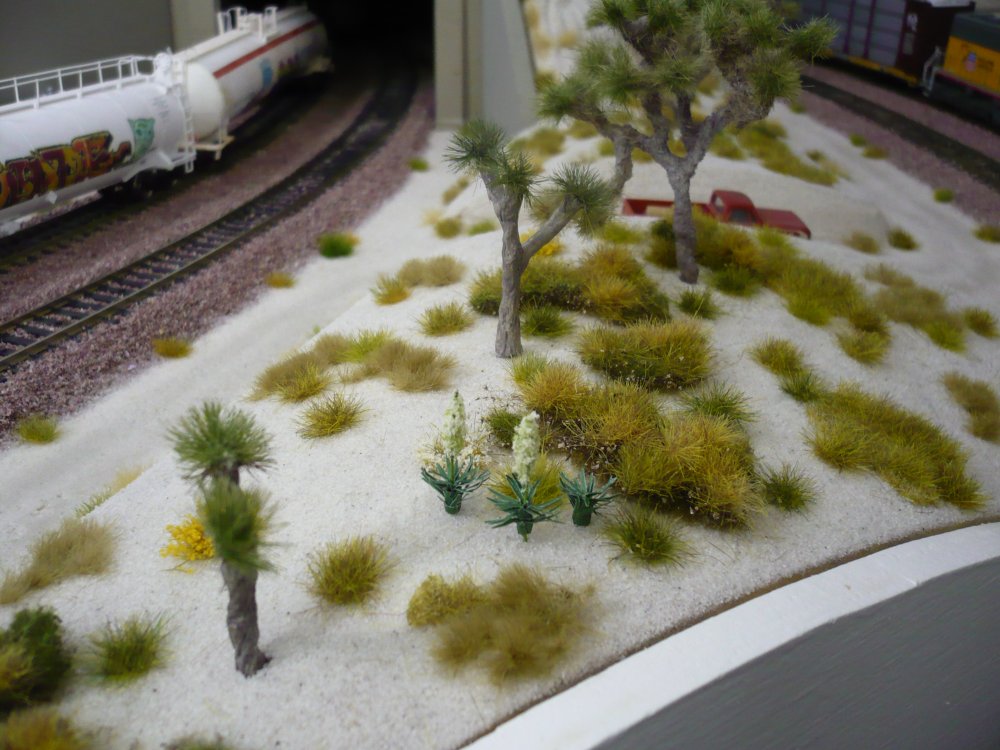

Yuccas are bloomimg between the Joshuas - 1486 a Railfan is taking pictures - 1487

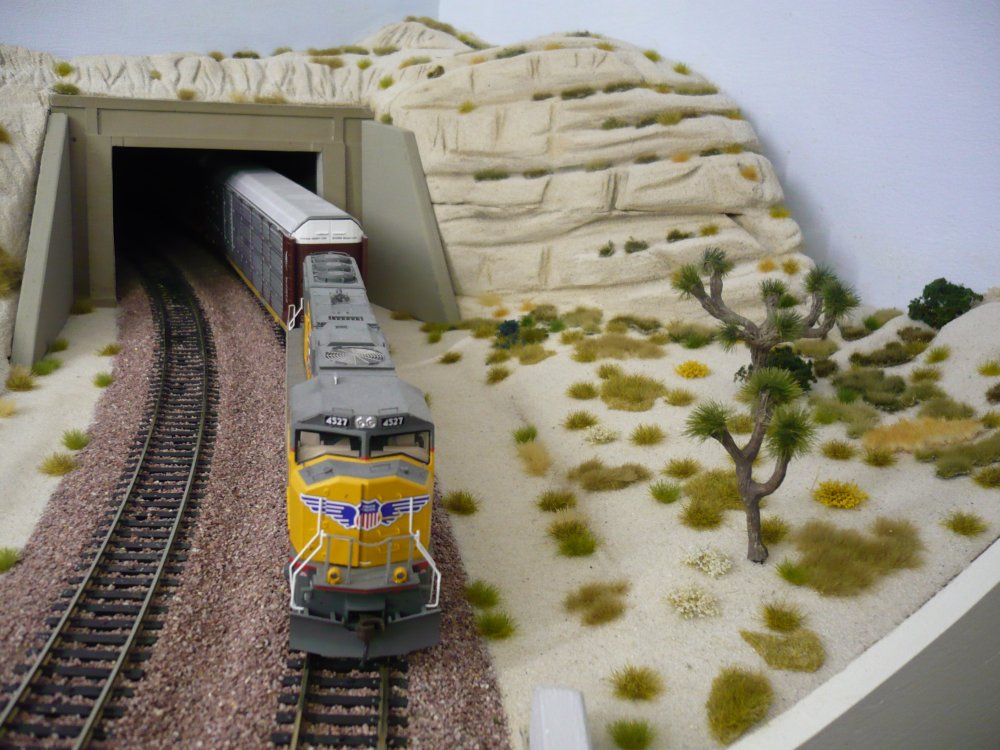

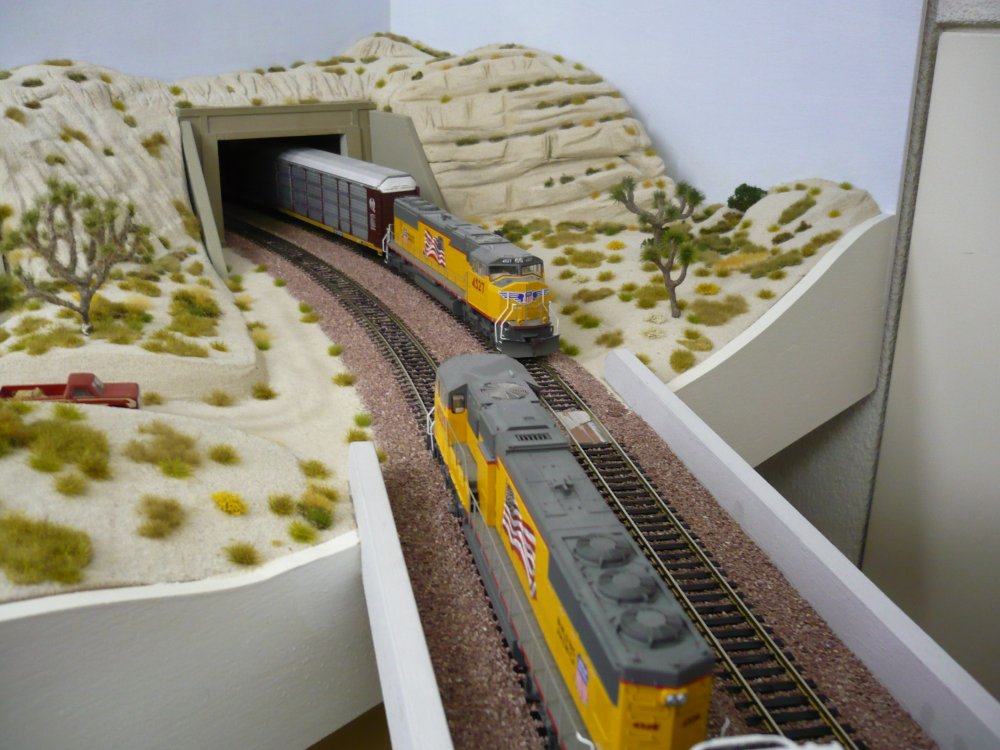

UP EB coming out of Tunnel 2 EP - 1488 Meeting of both trains - 1489

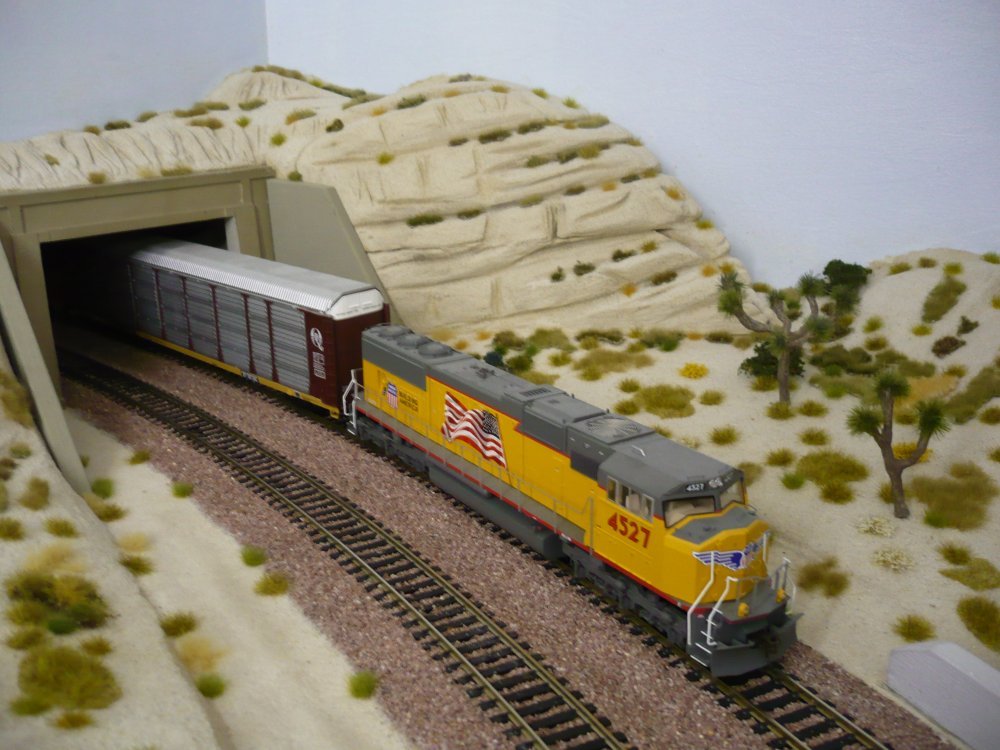

Athearn Genesis EMD SD70M - 1490 final photo of this part - 1491
May 10, 2015 - This is the End of the Percyville Extension and the connecting Module and the Tunnels East Portal Module. With this part, whole Percyville is finished. In other words, approx. 40 % of this layout is finished, actually everything which is outside Office 2. Well, inside Office 2, there was a lot of work to do, but most is done, The result is below.

Now, we are working inside office 2 and started with Cajon Pass. There is only one thing missing: Hill 582 !! (see below)

Page 14 - New 9/29715: This is the final project for my layout. Hill 582, the ultimative railfan's observation point in Cajon Pass. - click here



Page 13 - New 7/27/15: Landscaping Cajon Pass - under contruction - click here



Page 11 - New 3/26/14: The City of Percyville (2) - (with main street) is finished - click here



Some important links for the different structures on this layout:
Summit USA Motel, ARCO, Taco Bell, WE Office http://www.summit-customcuts.com/
Great West Models 2 Werner Warehouses for Trailer loading http://www.greatwestmodels.com/
Pelle Soeeborg ARCO, Denny's, KFC http://www.soeeborg.dk
BLMA Signals, RR-Xing, parking bumpers http://www.BLMAmodels.com
Kim Nipkow & Mason Clark Joshua Trees http://www.trainmaster.ch/Y-106.htm
Modellbahn-Atelier-Berlin:  http://us-modellbahn.de/advanced_search_result.php?keywords=Pizza+Hut&x=20&y=14



Technical Data of my Layout:
Size: 4,5 x 6,5 m (13,5 x 19,5 feet), Era: Modern, Location: Southern California in the Mojave Desert (Cajon Pass), Layout Style: unconventional, in house along the walls, 2 swing up bridges, 1 lift out bridge, double track, min. radius 104 cm (41 inch), max. grade 1,5 %, Track: Atlas flextrack code 100, Turnouts: Peco code 100, Power: conventional DC with electrical feeders every 2 m, Mainline: 32 m (96 feet), Height: 93 cm (36,5 inch)
Overview of the layout (each square is 0,5 m)



Did you see page 1 ? - click here Did you see page 2 ? - click here Did you see page 3 ? - click here
Did you see page 4 ? - click here Did you see page 5 ? - click here Did you see page 6 ? - click here
Did you see page 7 ? - click here Did you see page 8 ? - click here Did you see page 9 ? - click here
Did you see page 10 ? - click here Did you see page 11 ? - click here Did you see page 12 ? - click here
Did you see page 13 ? - click here Did you see page 14 ? - click here Did you see page 15 ? - click here
Did you see page 16 ? - click here Did you see page 17 ? - click here Did you see page 18 ? - click here
Did you see page 19 ? - click here Did you see page 20 ? - click here Did you see page 21 ? - click here
See the track plan and the 1:10 cardboard model of this layout - click here Did you see page 22 ? - click here

Werner Enterprises HO Diorama built for the 14th Convention - click here

Did you see the Werner Ent. Truck Fleet ? - click here

Back to layout main page - click here

Home News Models Brass Books HO Cajon Layout Cajon Pass Photos
Info Monthly News Models Plastic DVD/Videos Layout Center LCH California Gallery
Shop how to find Consignment News Commission Plastic Structures US-Layouts Joshua Trees
RR-Shop Photos Models History Passenger Cars Future US-Dioramas USA by Train
Reports sold out Brass Freight Cars Sale Customized Models 350 Links
Hobby Shows sold out Plastic Cars/Trucks US-Cars (Autos) Different Items Railroadfans
