HO Scale Desert Style Diorama - Cajon Pass with Mormon Rocks
size 4 x 0,6 m (13 x 2 feet) built by Werner Meer, Switzerland
This Diorama was part of a huge 17 m long (56 feet) HO layout formerly located at the American Layoutcenter Adliswil.
It is on display in my US Railroad Shop Kilchberg.



Part 1: Before touching anything
just scroll down to see all 9 photos



Part 2: Rebuilding started on 2/03/17

just scroll down to see all 40 photos



Part 3: New Landscaping started on 2/26/17
just scroll down to see all 40 photos



Part 4: New Landscaping with Vegetation is finished on 3/03/17
just scroll down to see all 47 photos



Part 5: Santa Fe All the Way - passing the Mormon Rocks (Cajon Pass) on 3/03/17
just scroll down to see all 21 photos



Part 6: Modern Times - Union Pacific and Werner Enterprises in Action on 3/03/17
just scroll down to see all 61 photos



The story behind it: Franco Rossi and Roland Scherler have built an HO modular layout for the 3rd CV. For the 4th CV, Peter Dossenbach and Werner Meer each have built 3 elements with a total length of 5 m, thus complementing the Rossi / Scherler system to a length of 10 m. But in 2003 the ALCA had to leave the attick in the school house. As part of the large layout was distributed to various interested parties, the 3 modules of the then-built by Werner Meer were available. The 2 modules, each with a length of 2 m and a width of 0,6 m, were built as a three-track test track in the US Railroad Shop. The modules built in 1986 urgently needed a new facelift. Thus, WM and Melinda decided to revive the Mojave Desert in Cajon Pass with the Mormon Rocks. We had gathered from the construction of our own HO-layout between 2008 and 2015 desert experience. The entire landscape has been reworked and has received matching sand, bushes, blooming Yuccas and Joshua Trees. In addition, a dirt road with a lookout platform was built on the right side. Photos of the layout:  https://www.trainmaster.ch/layout.htm
Vorgeschichte: Franco Rossi und Roland Scherler haben für die 3rd CV eine HO-Modulanlage gebaut. Für die 4th CV haben Peter Dossenbach und Werner Meer jeweils 3 Elemente mit total 5 m Länge gebaut und damit die Anlage von Rossi/Scherler auf 10 m Länge ergänzt. Doch im Jahr 2003 musste das ALCA die Winde im Schulhaus verlassen. Da Teile der grossen Anlage an versch. Interessnten verteilt wurde, standen die damals gebauten 3 Module von Werner Meer zur Verfügung. Die 2 Module zu je 2 m Länge und 0,6 m Breite wurden im US-Railroad-Shop als 3-gleisige Teststrecke aufgebaut. Die 1986 erbauten Module haben dringend ein neues Facelift gebraucht. Somit hat sich WM und Melinda entschieden, das Mojave Desert mit den Mormon Rocks zu neuem Leben zu erwecken. Wir hatten ja vom Bau der HO-Anlage zw. 2008 und 2015 Wüstenerfahrung gesammelt. Die gesamte Landschaft wurde neue überarbeitet und hat passenden Sand, Büsche und Joshua Trees erhalten. Zudem wurde auf der rechten Seite noch eine Naturstrasse mit einer Aussichtsplattform erstellt.

Total 218 photos, taken from 2/03/17 to 3/03/17 (just click on the 3-digit number for bigger size photos)
As usual, I am taking a huge amount of photos from a scene to show a lot of different views.

Part 1

Part 1: The way how this diorama was looking in my shop and was used as a test track for the last 14 years

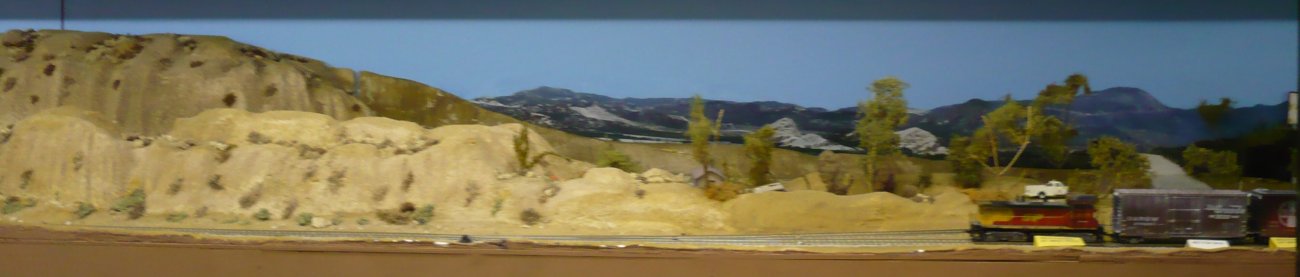

right side - 059

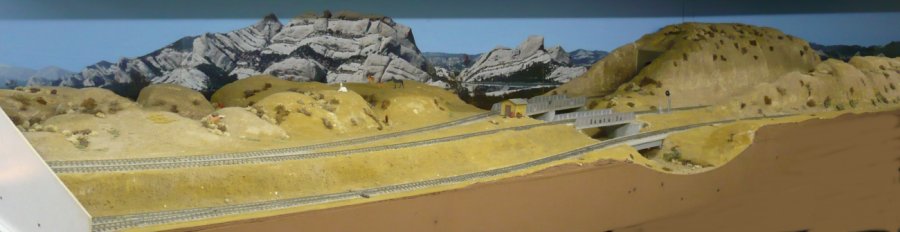

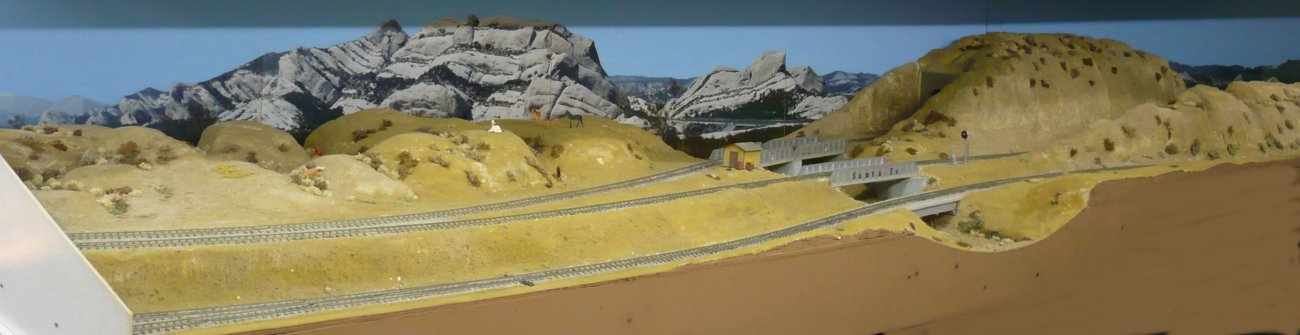

left side with Mormon Rocks - 063

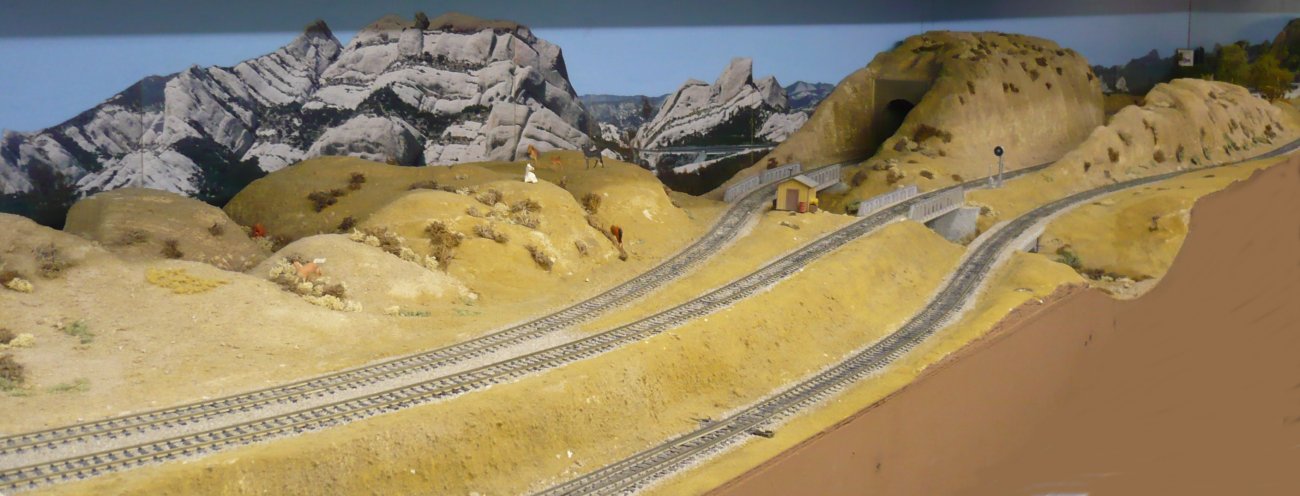

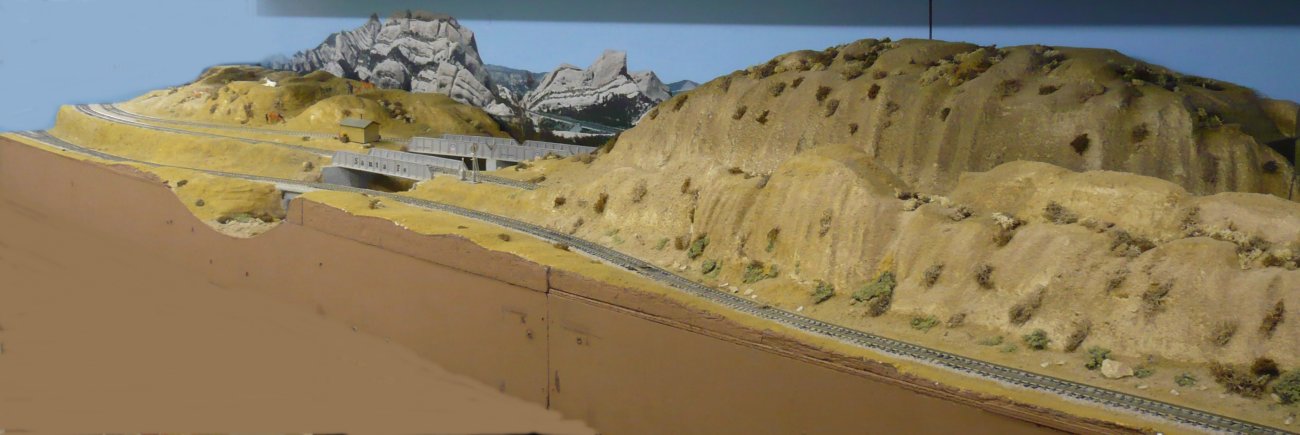

 Here we can see the joint of both 2 m long modules - 060

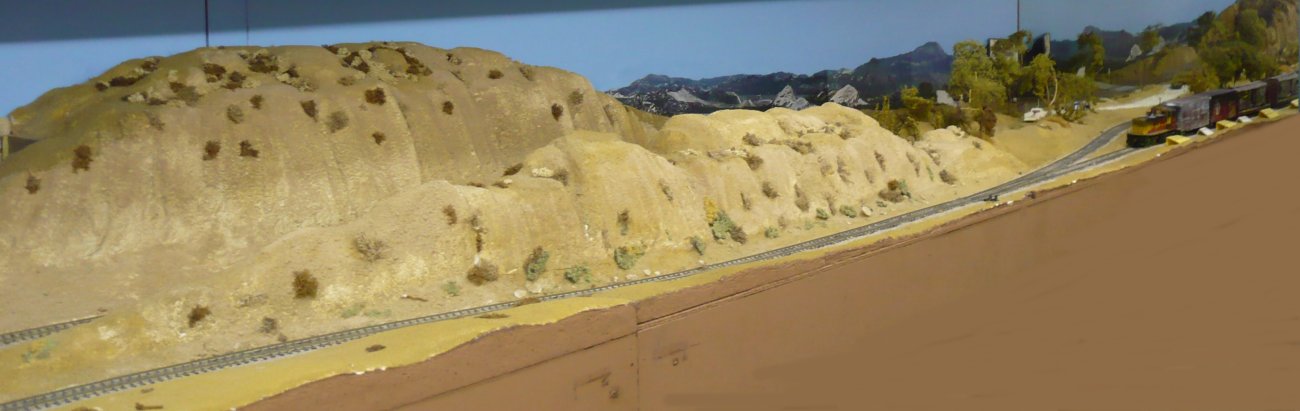

061
Main Track 1 goes thru the tunnel, Main Track 2 goes thru the cut and Main Track 3 is in front.
(MT 1 and 2 are having an uphill grade of 1,5 % and MT 3 is level) - 062

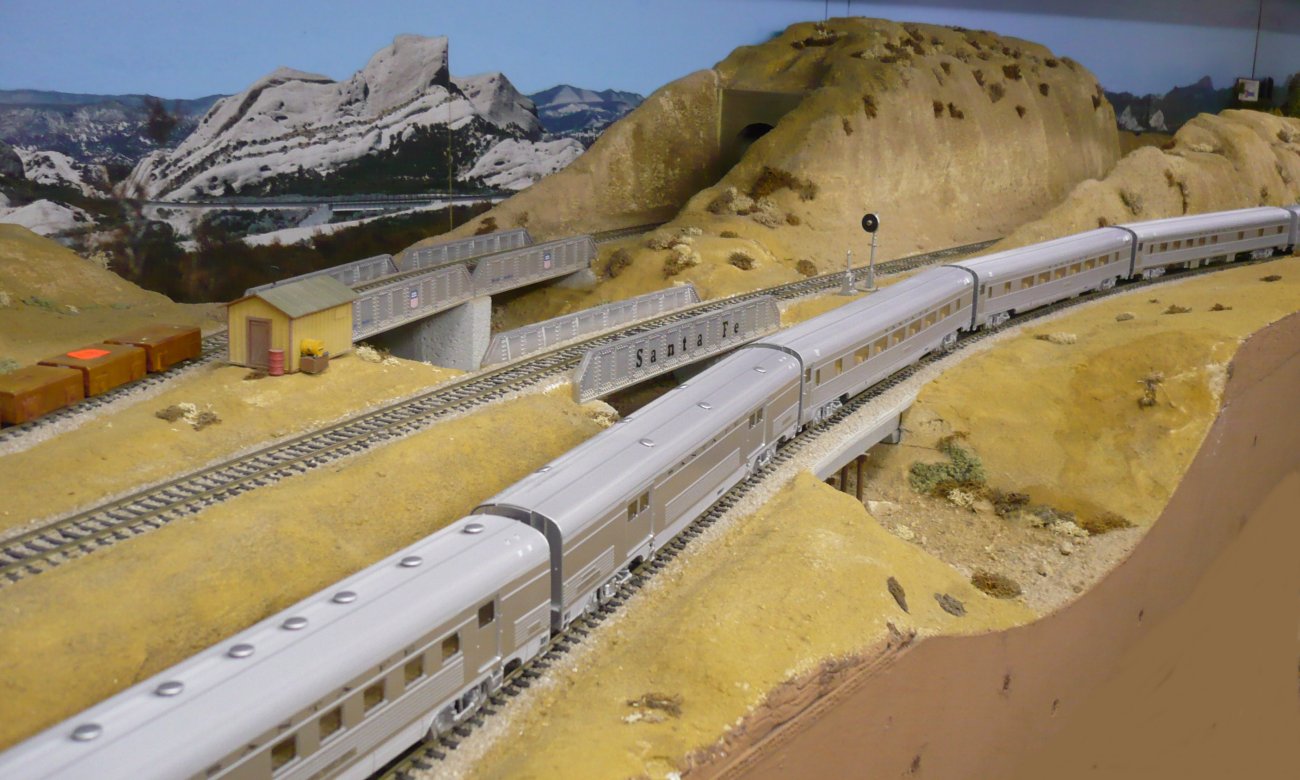

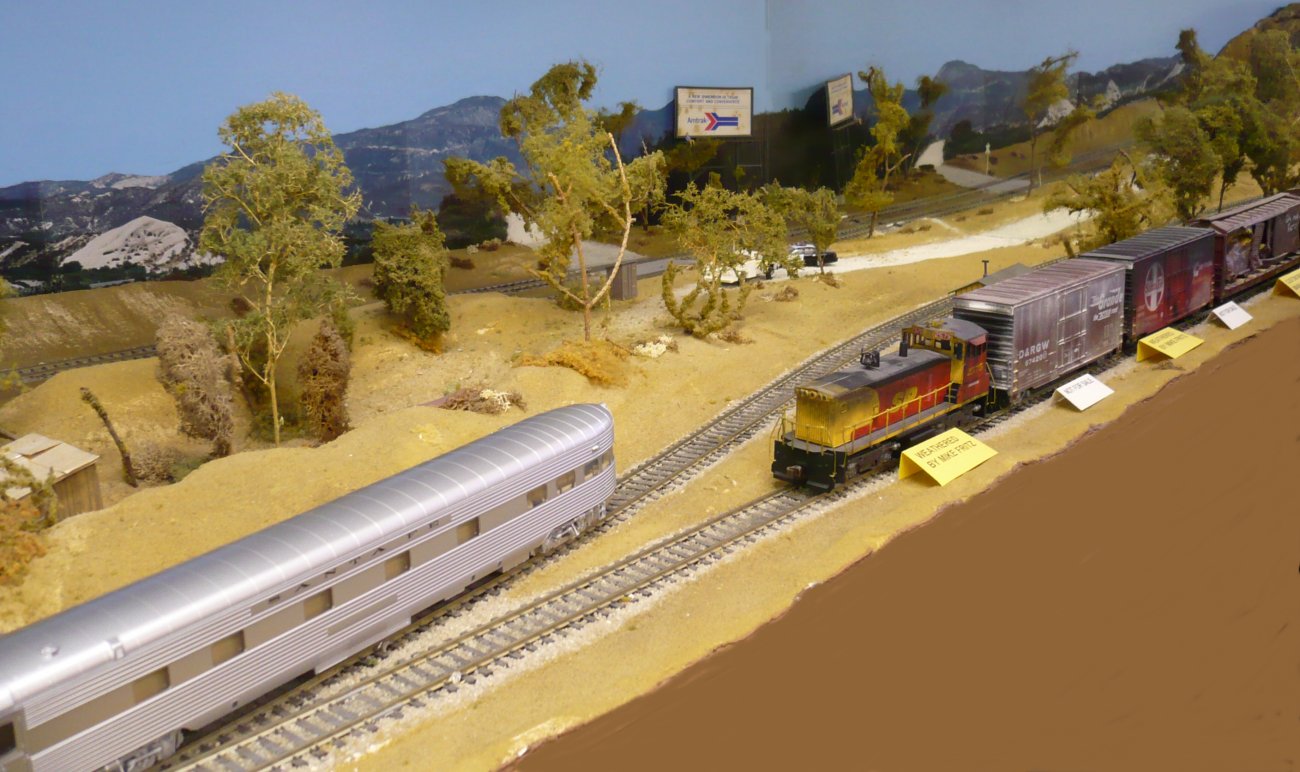

068  -              Once in a while, the diorama was used for display of rolling stock             -   064

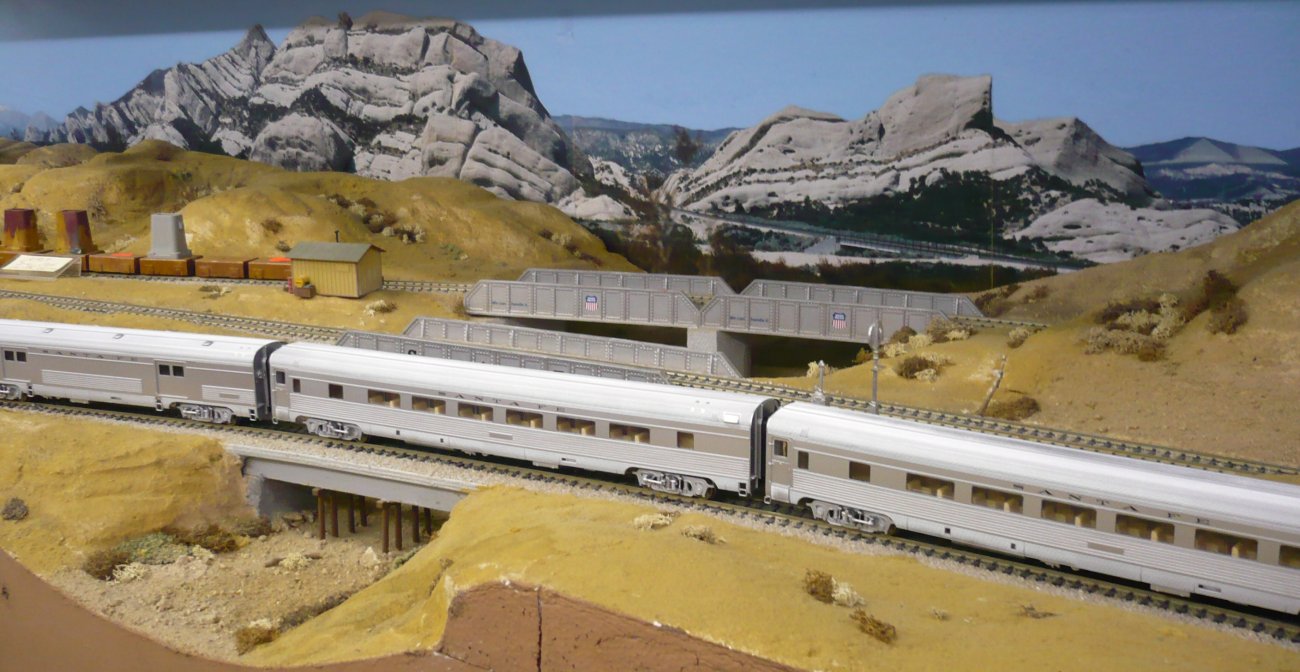

Backdrop are photos of the real Mormon Rocks along Highway 138 - 065

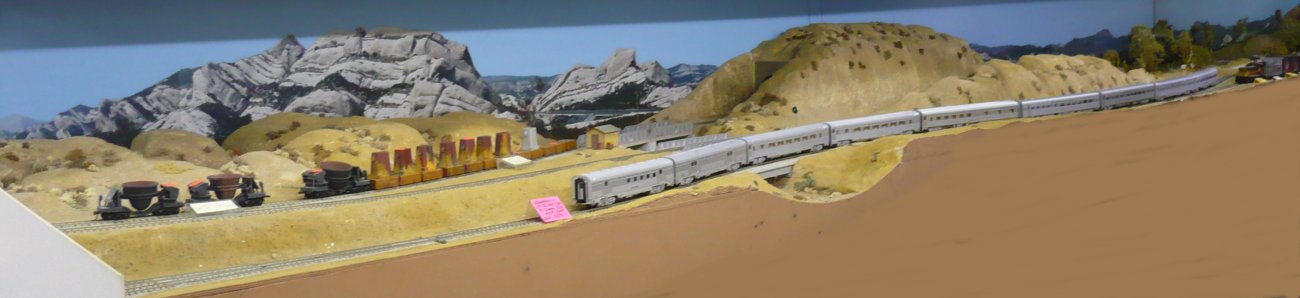

overview of the whole 4 m long diorama (tunnel and cut in the middle) - 071

 Part 2

Part 2: Rebuilding started on February 3, 2017

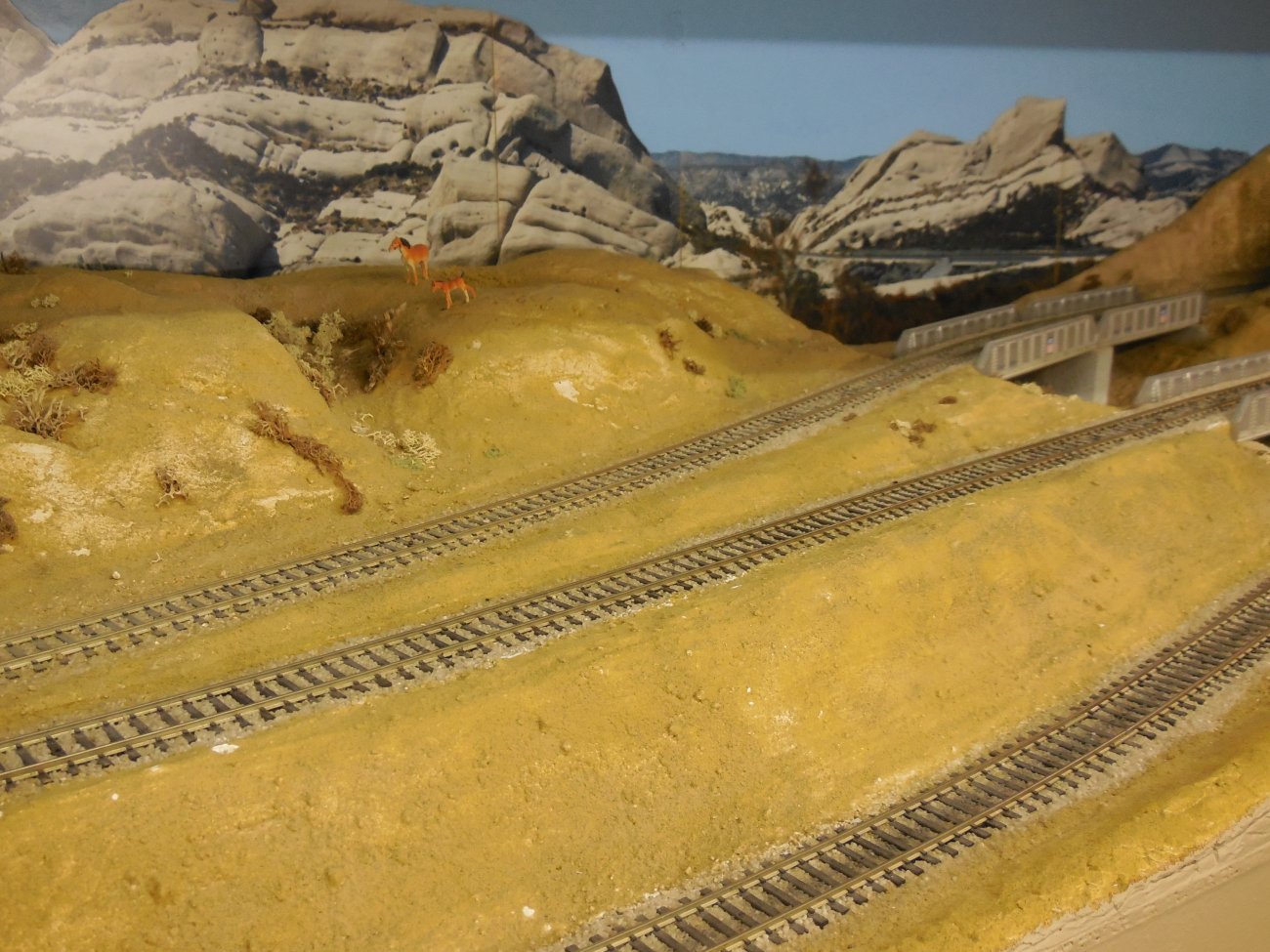

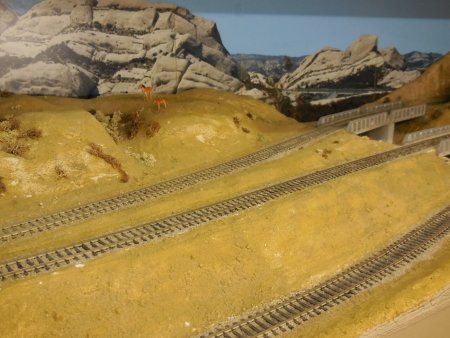

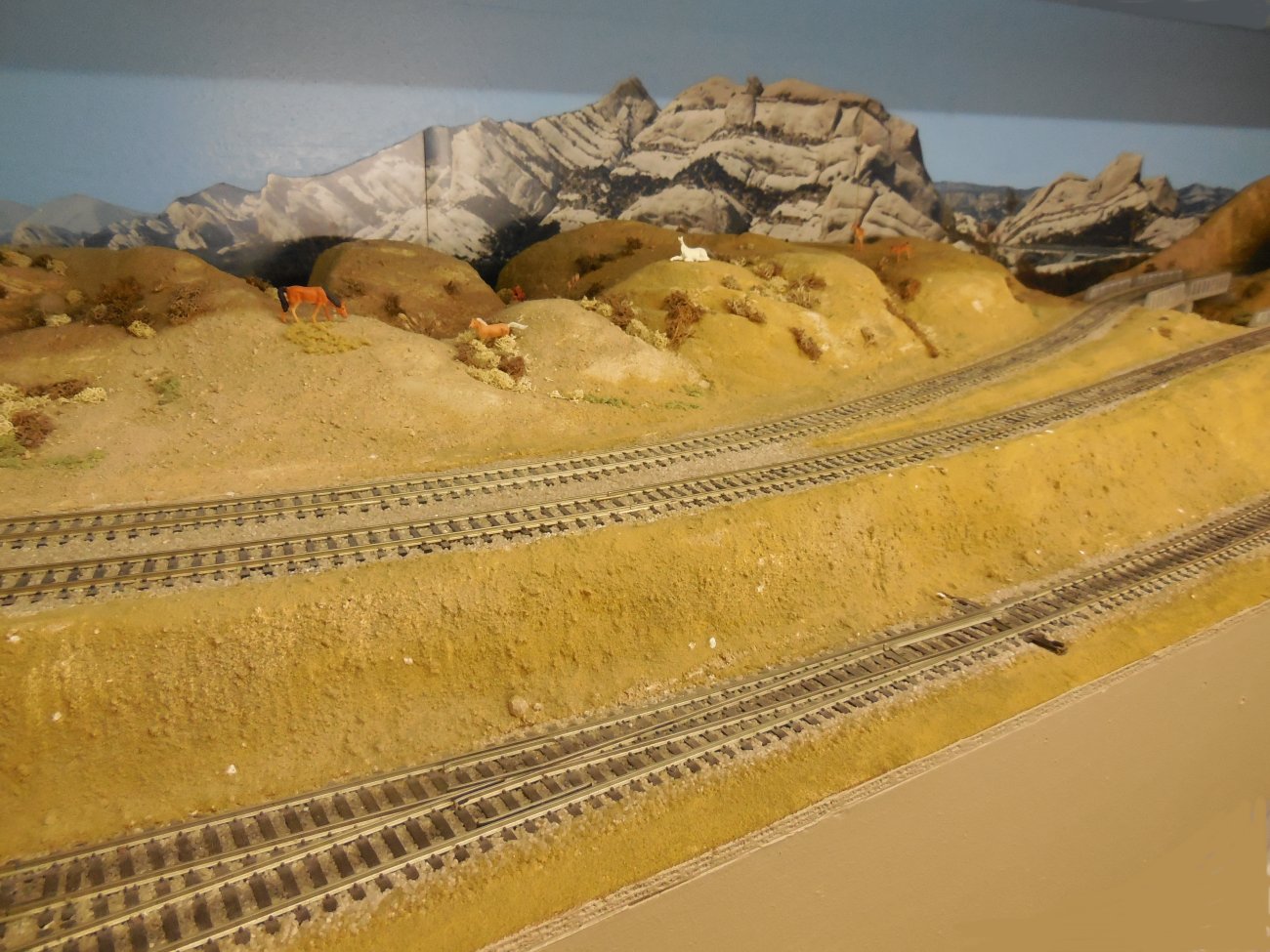

When originally built, the color of the ground cover . . . - 187 . . . did not really satisfy as it was too greenish - 188

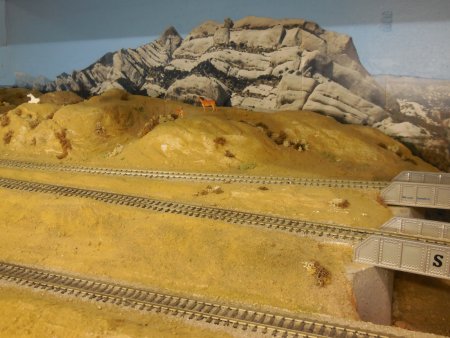

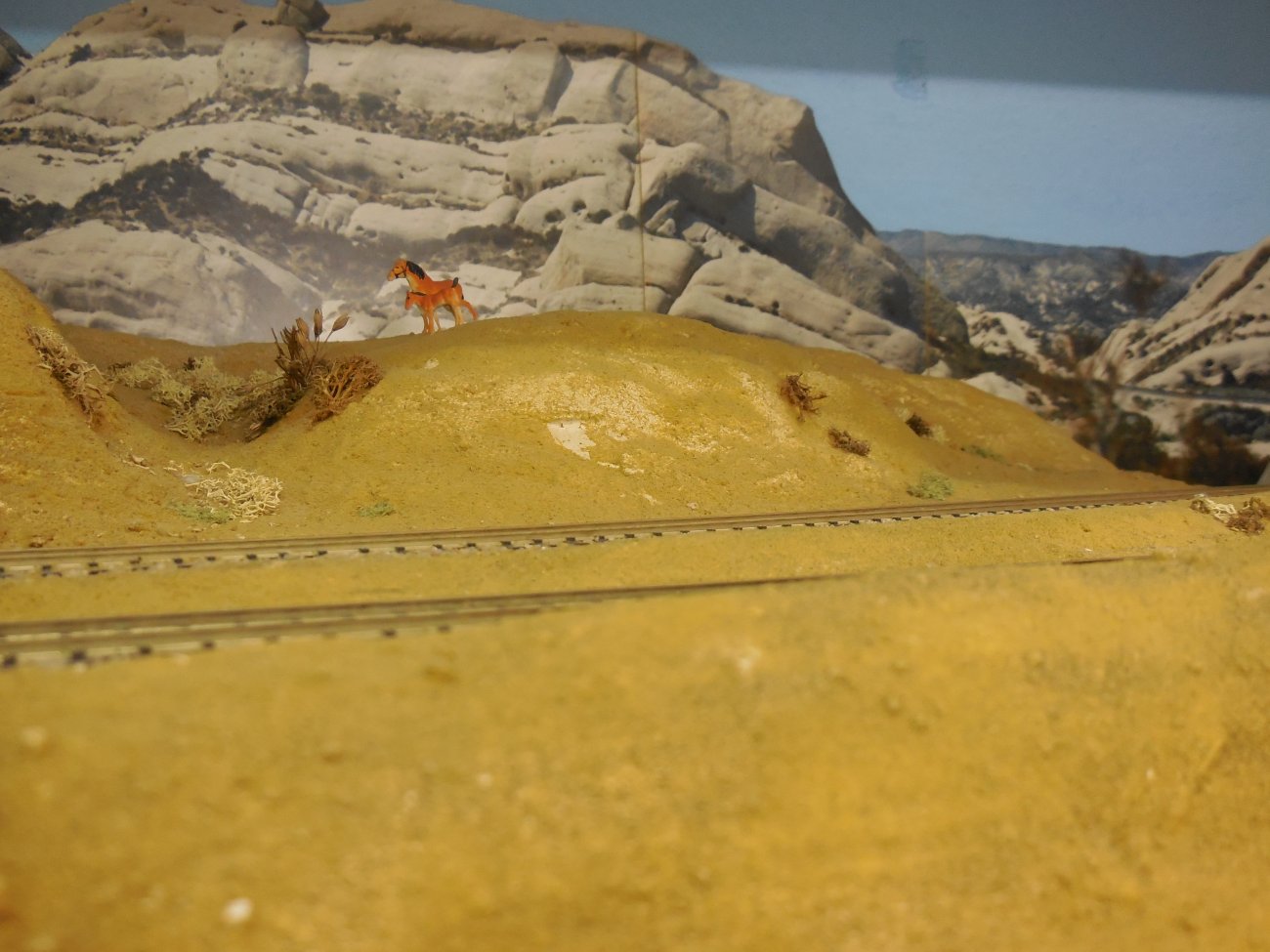

another problem was the almost none vegetation . . . - 189 . . . and therefore, it really needed a major upgrade - 190

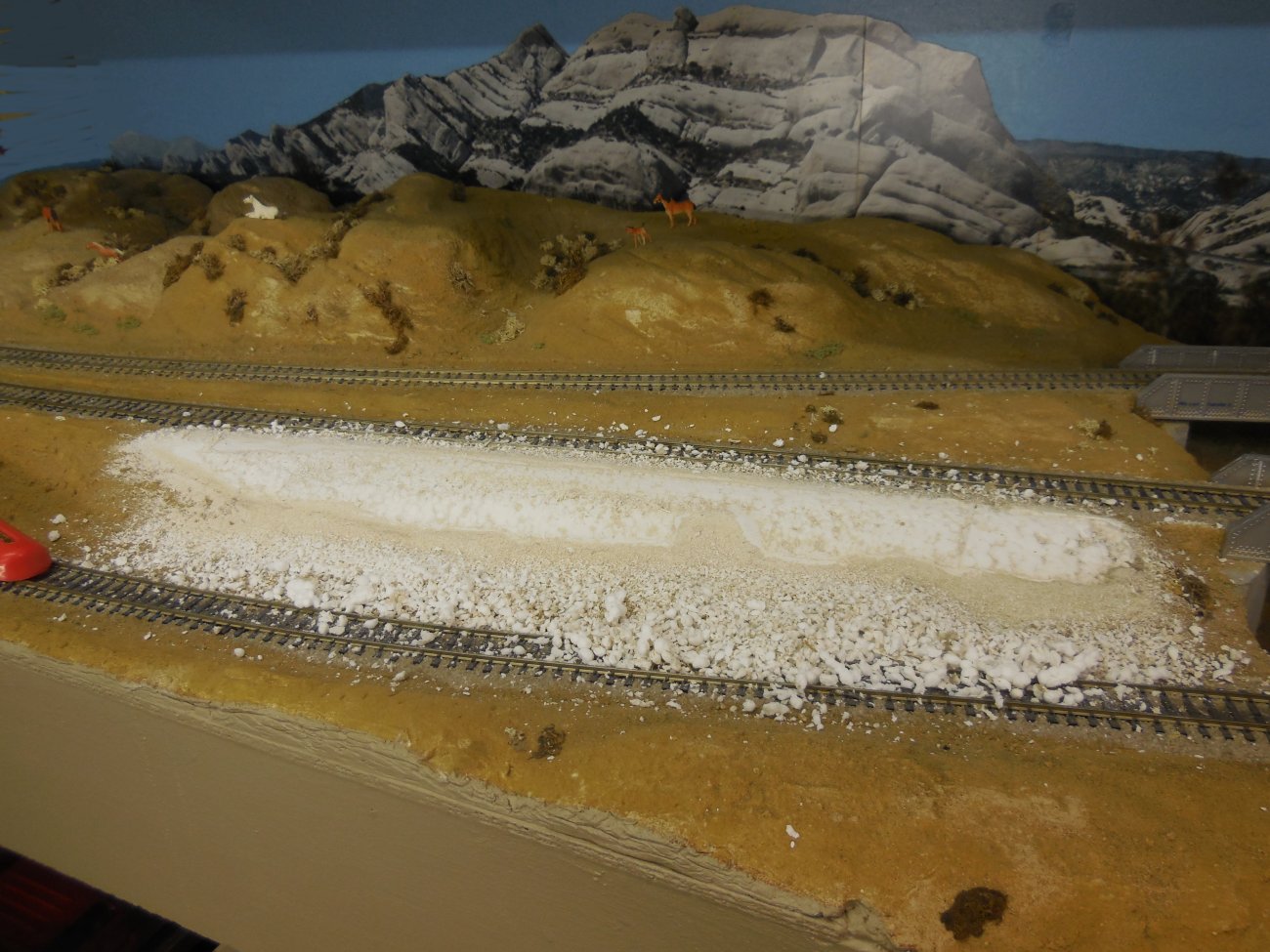

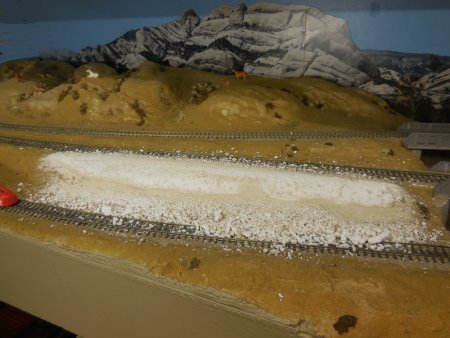

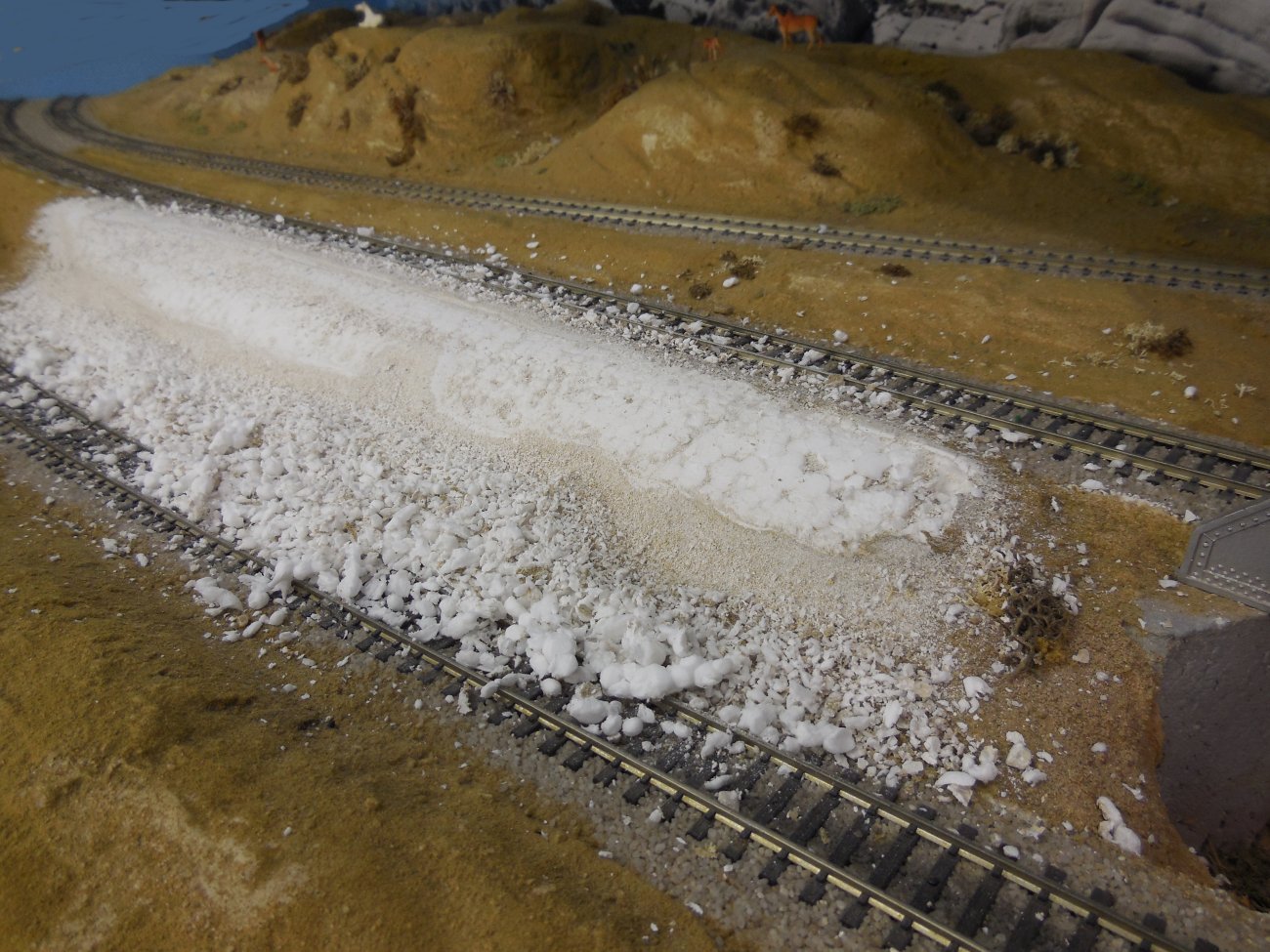

Never nice to work with this kind of styro foam - 193 192

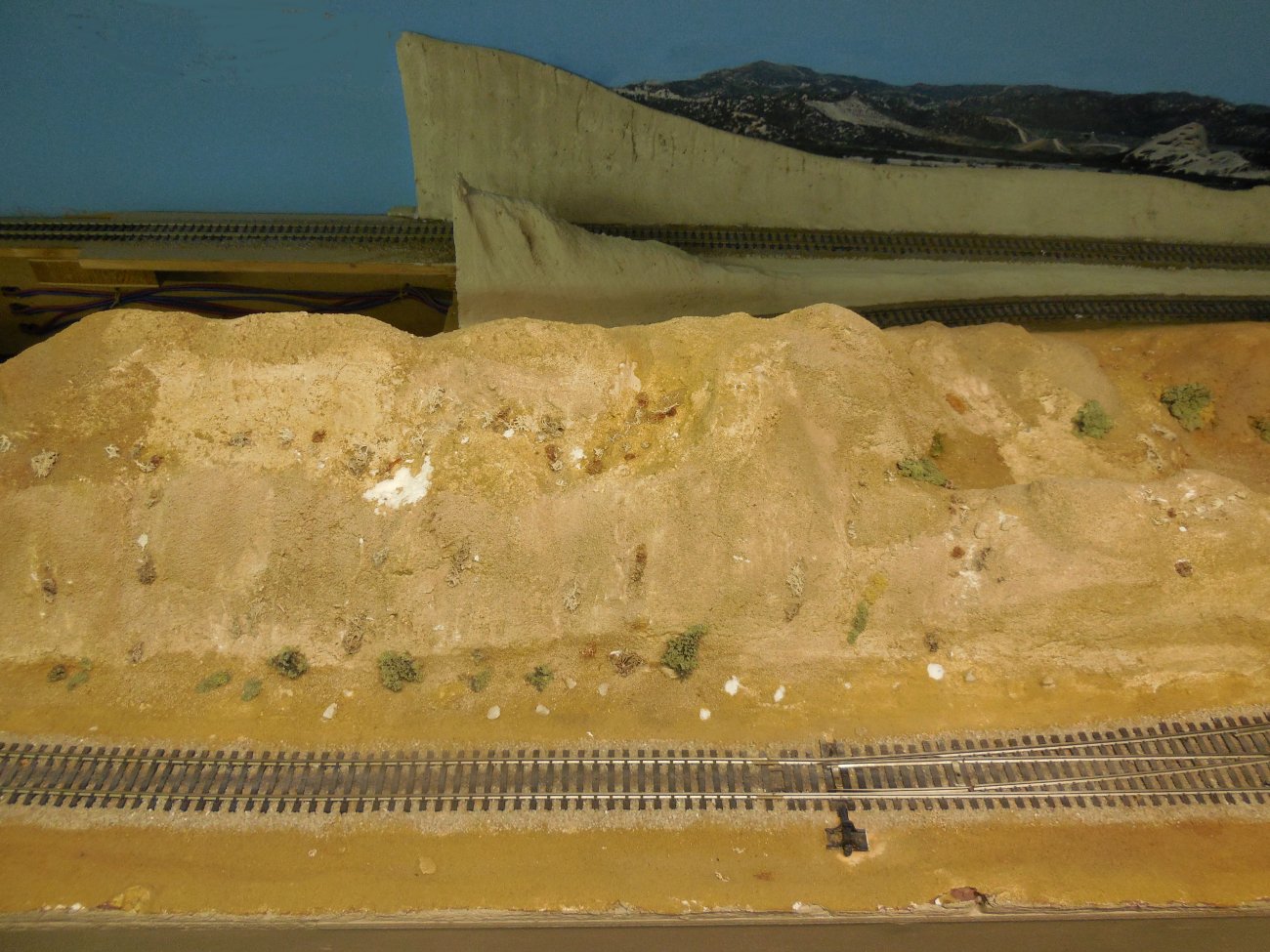

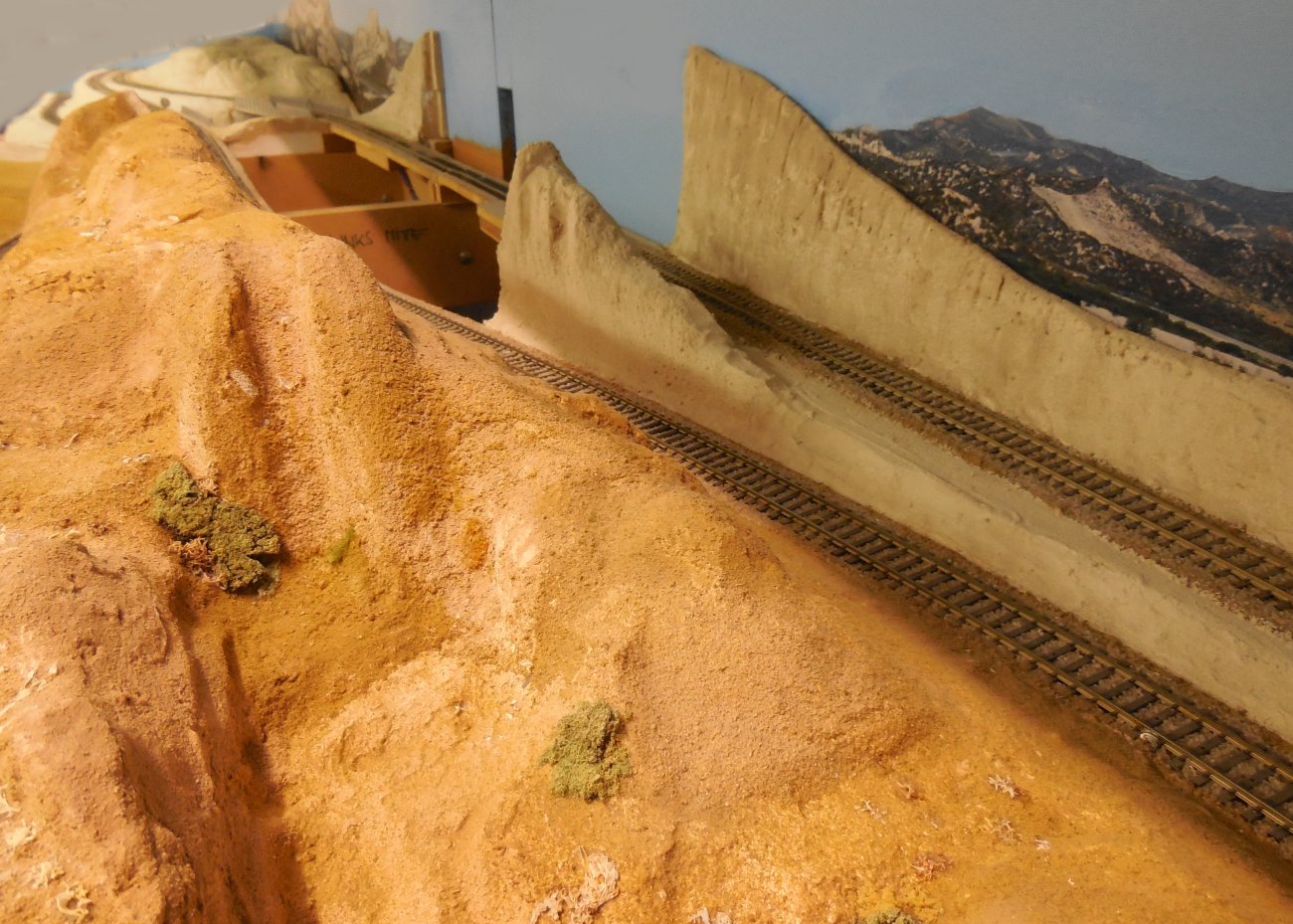

Between main tack 1 and 2, I had to remove the higher part for better access to re-rail a model for testing. On these old modules, I just used the white styro foam which is not the best material for sanding down (as you can see). Afterwards, it was painted light beige. The color I used is from Woodland Scenics "Concrete ST1454" out of their Road System (Top Coat). It dries with a dull finish

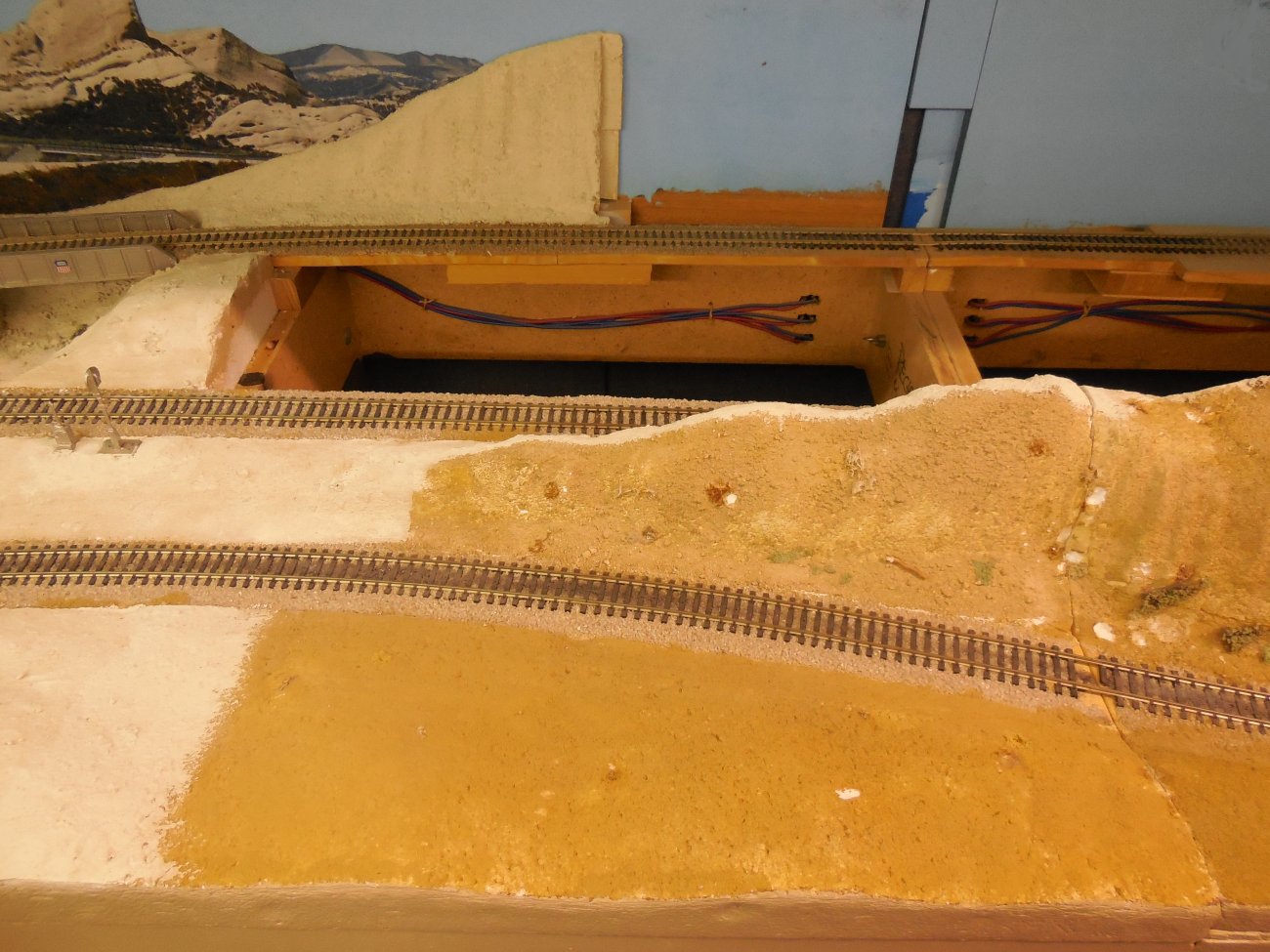

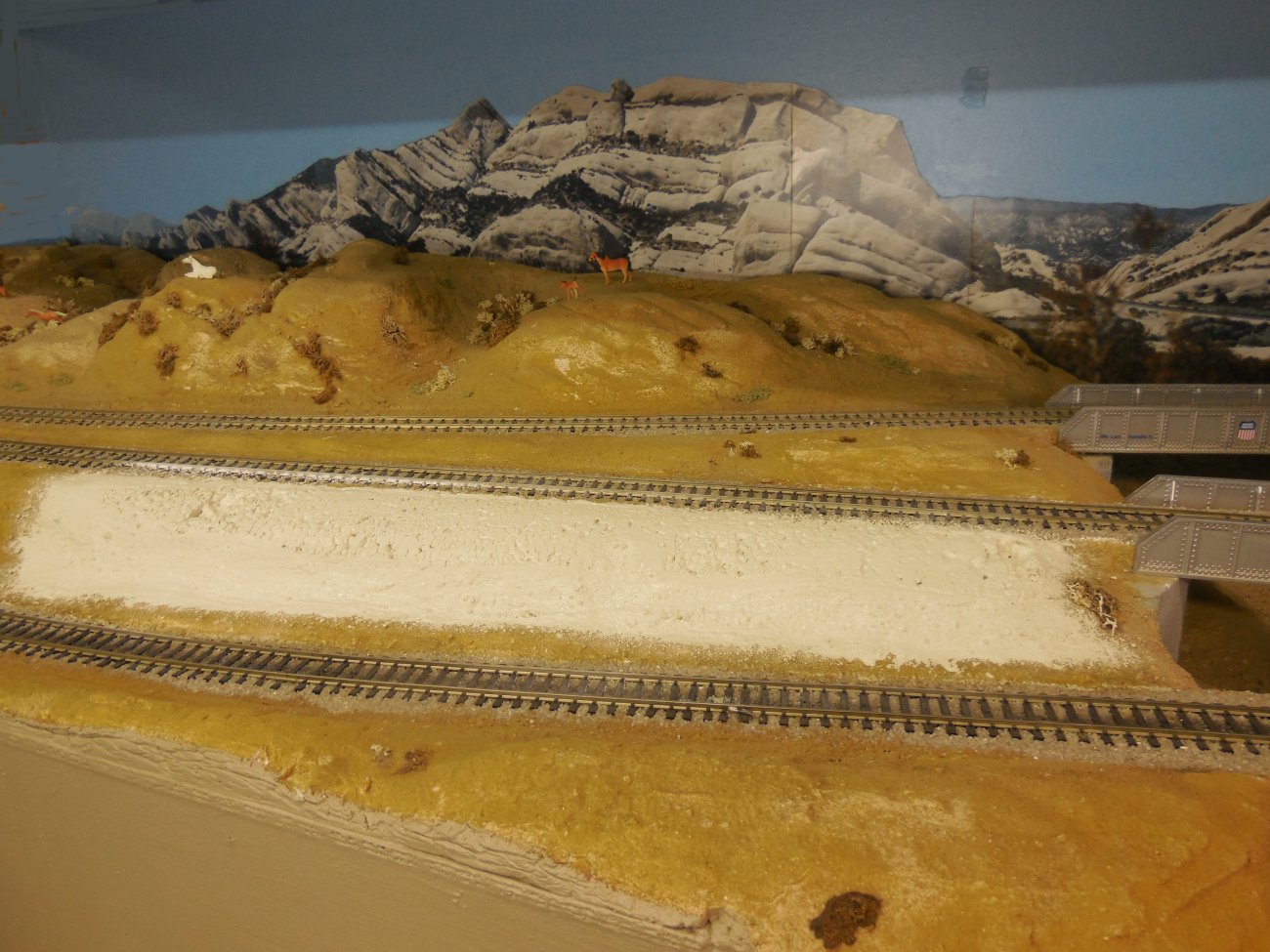

after sanding it down, I painted the blank surface - 195 194
2/03/17 Old vegetation was scrachted down and . . - 196 . . . removed before starting to over paint everything - 197
Now, I overpainted the whole surface with the light beige color (left side incl. the bridges area).

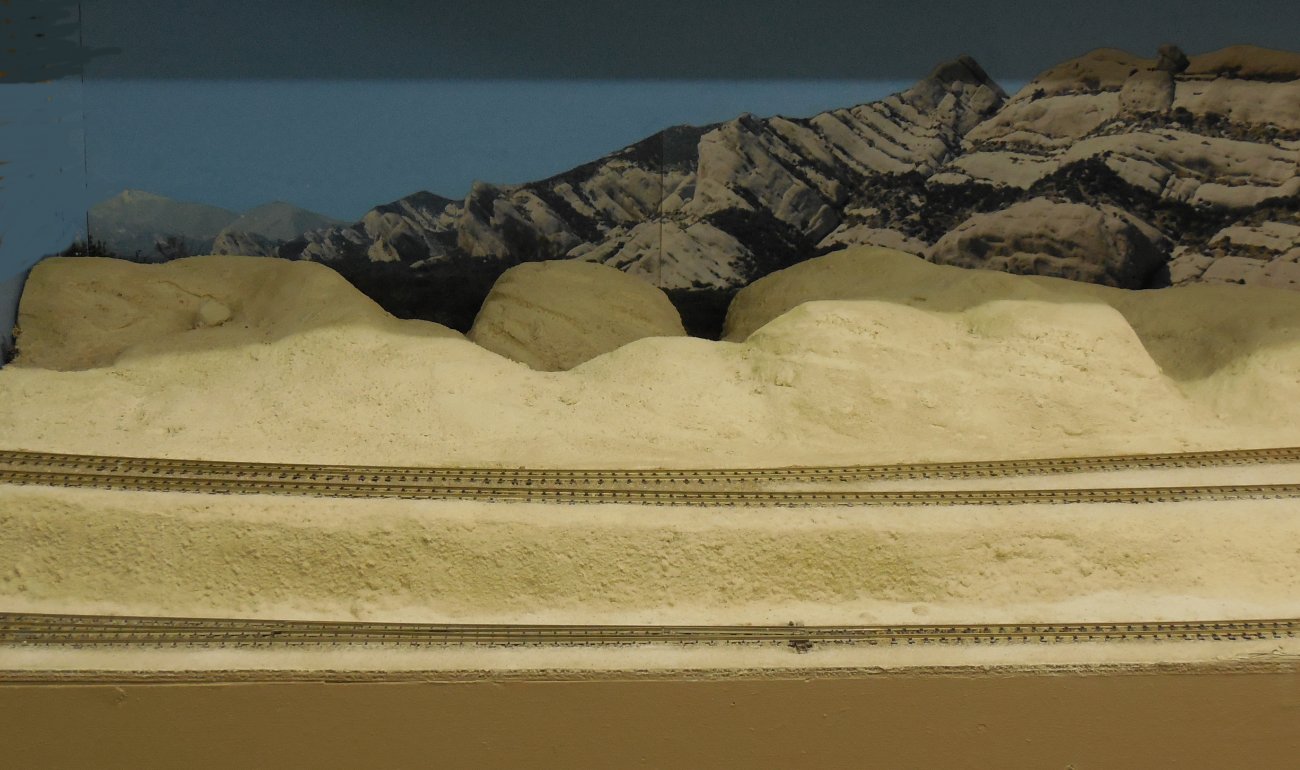

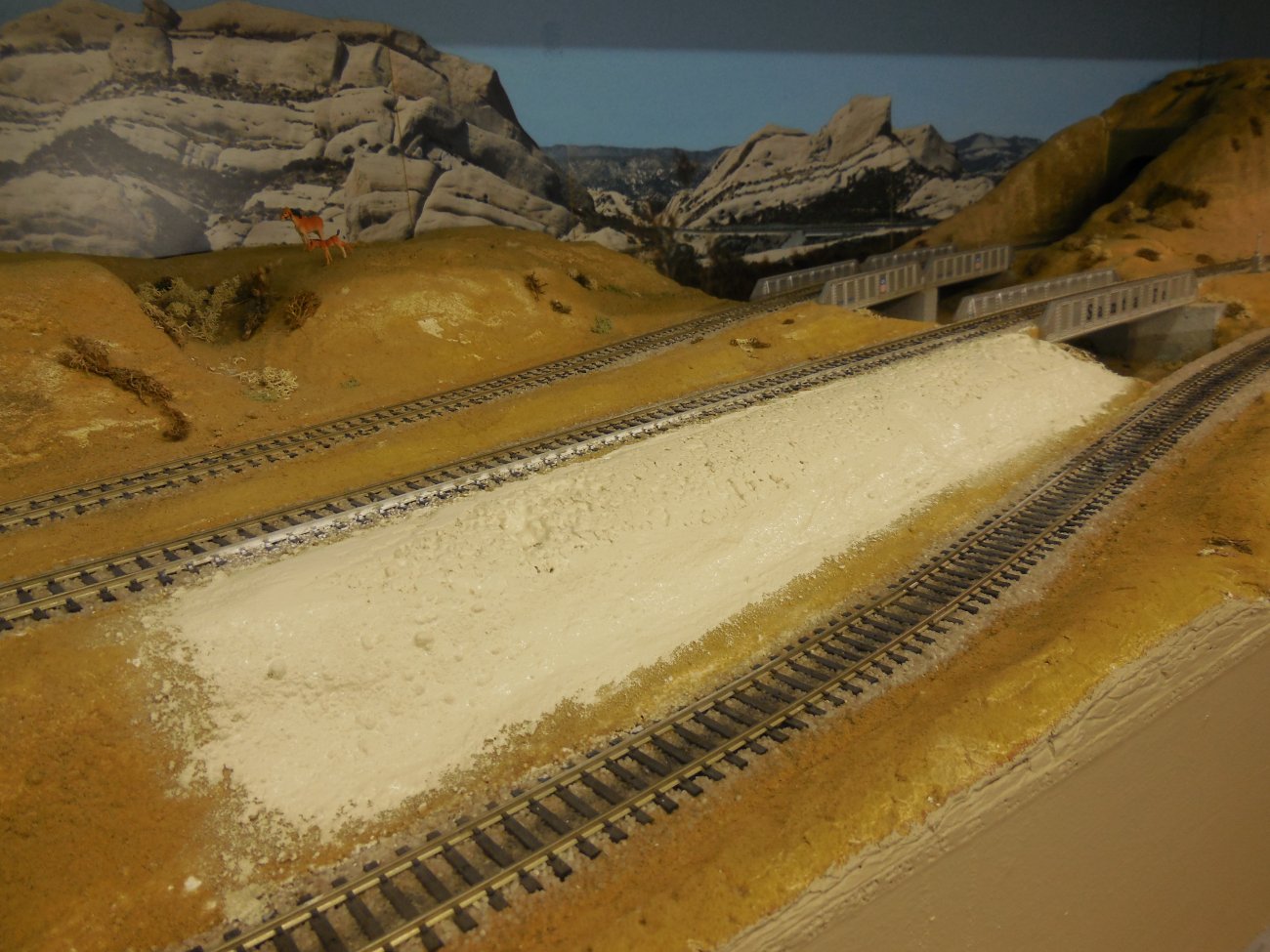

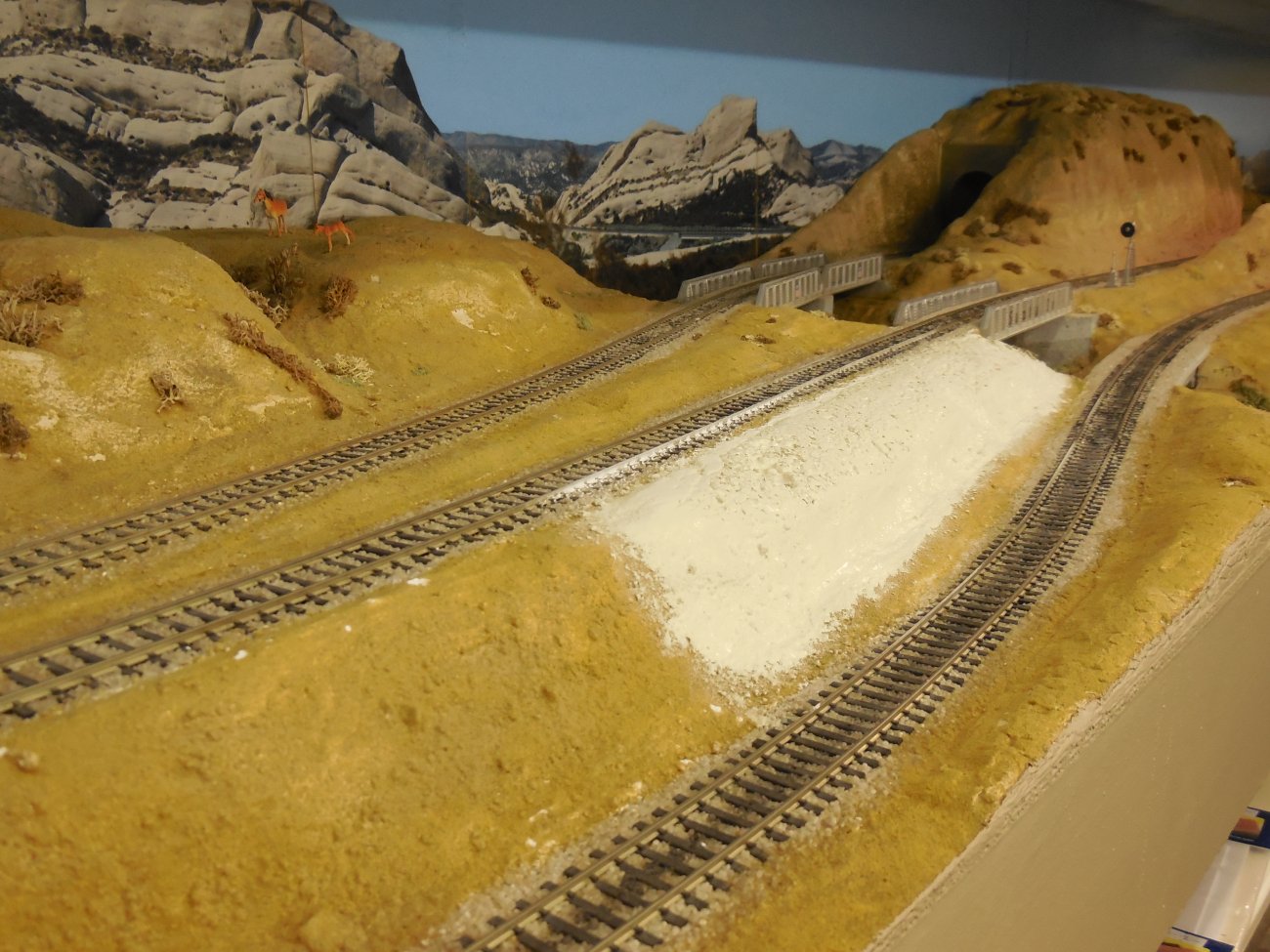

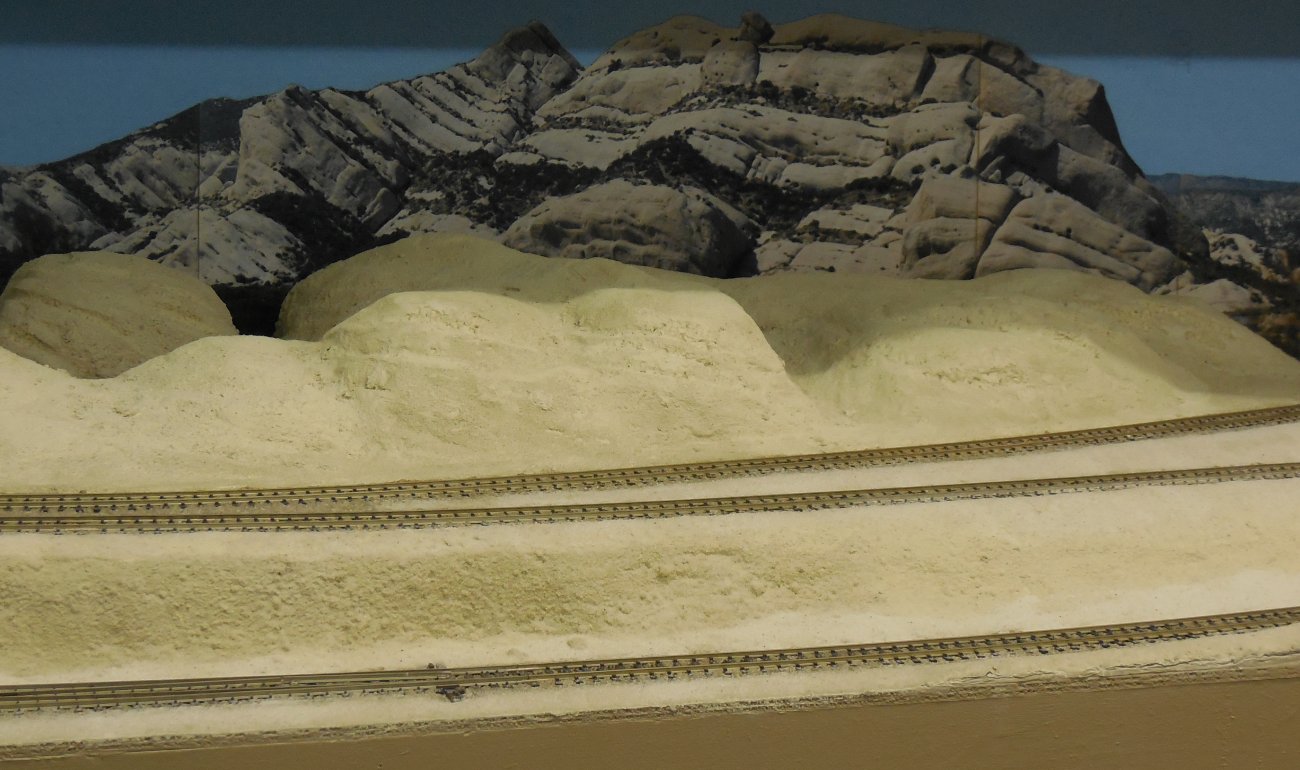

2/07/17 First layer of paint - 198 It looks much better and is matching the backdrop - 199

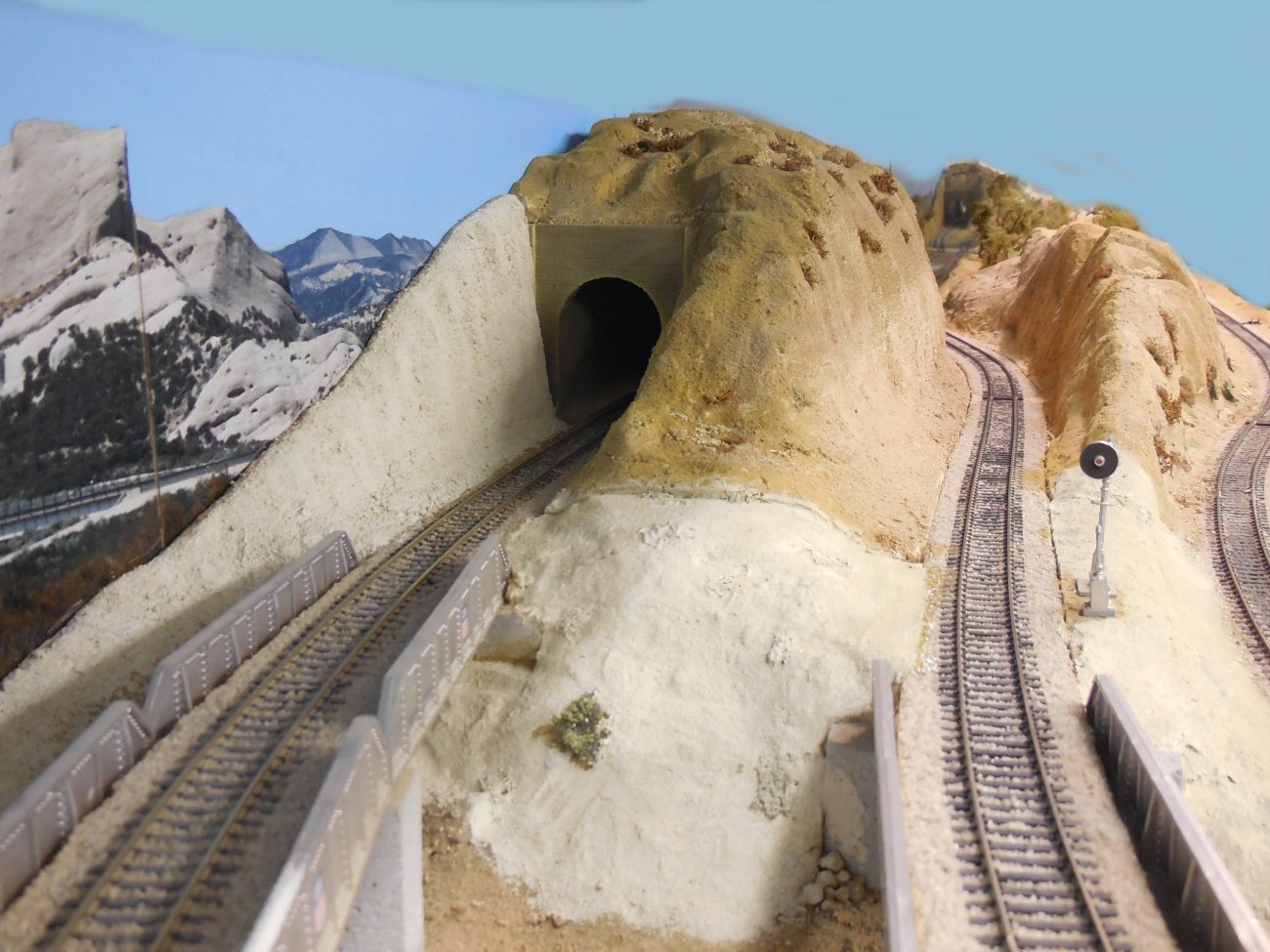

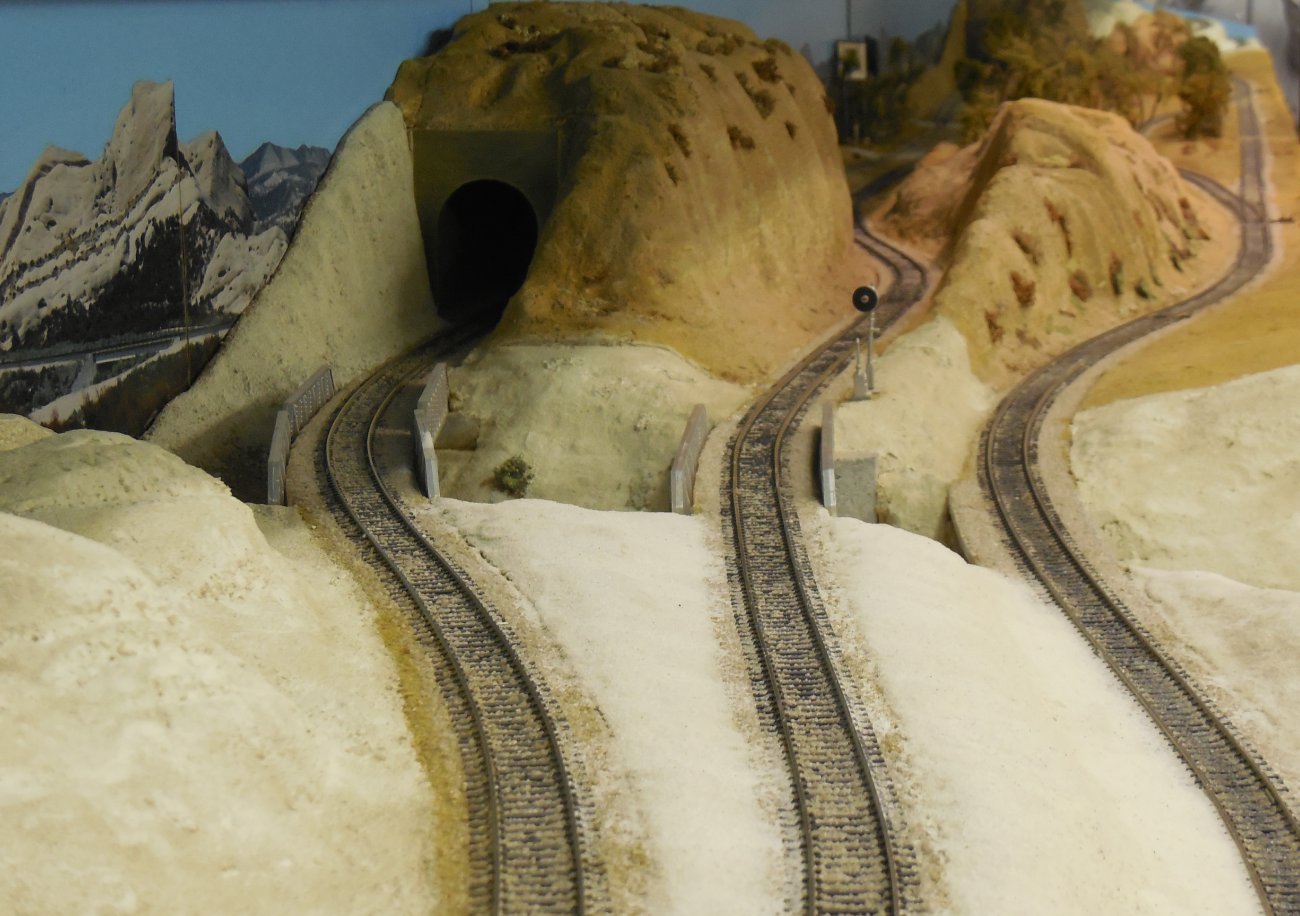

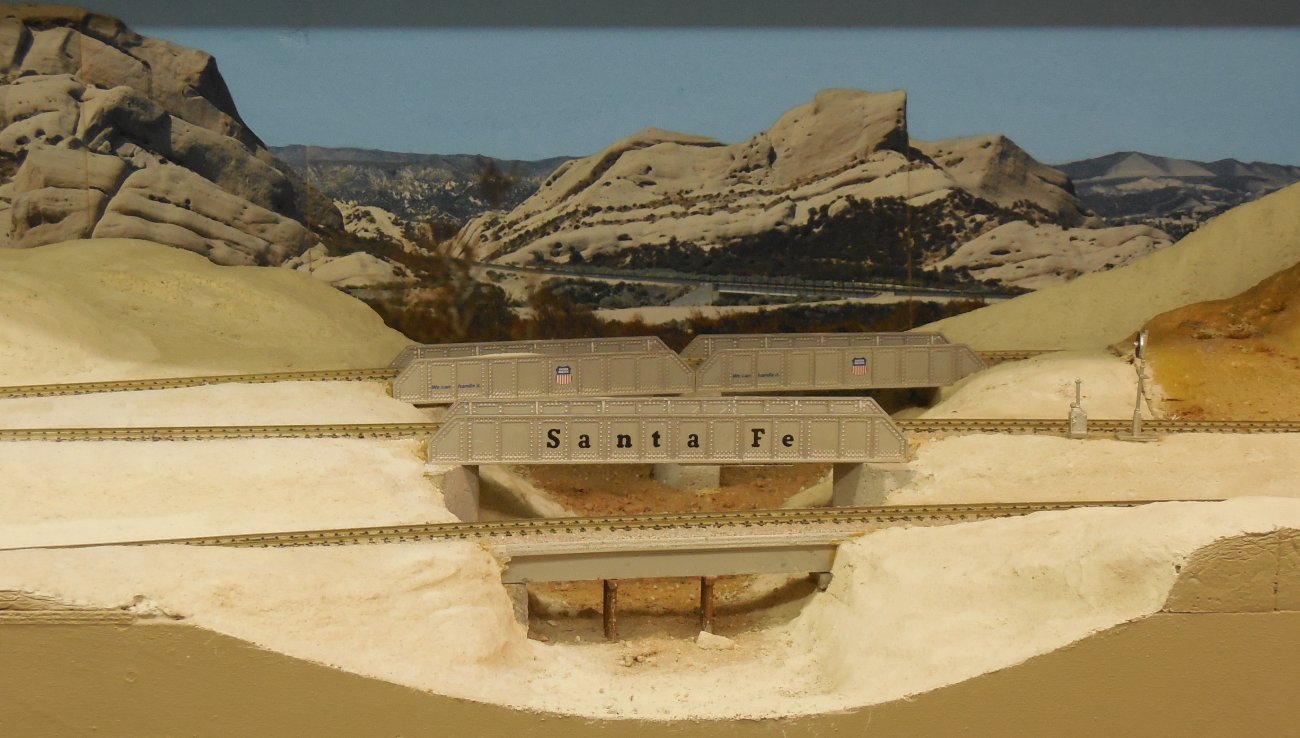

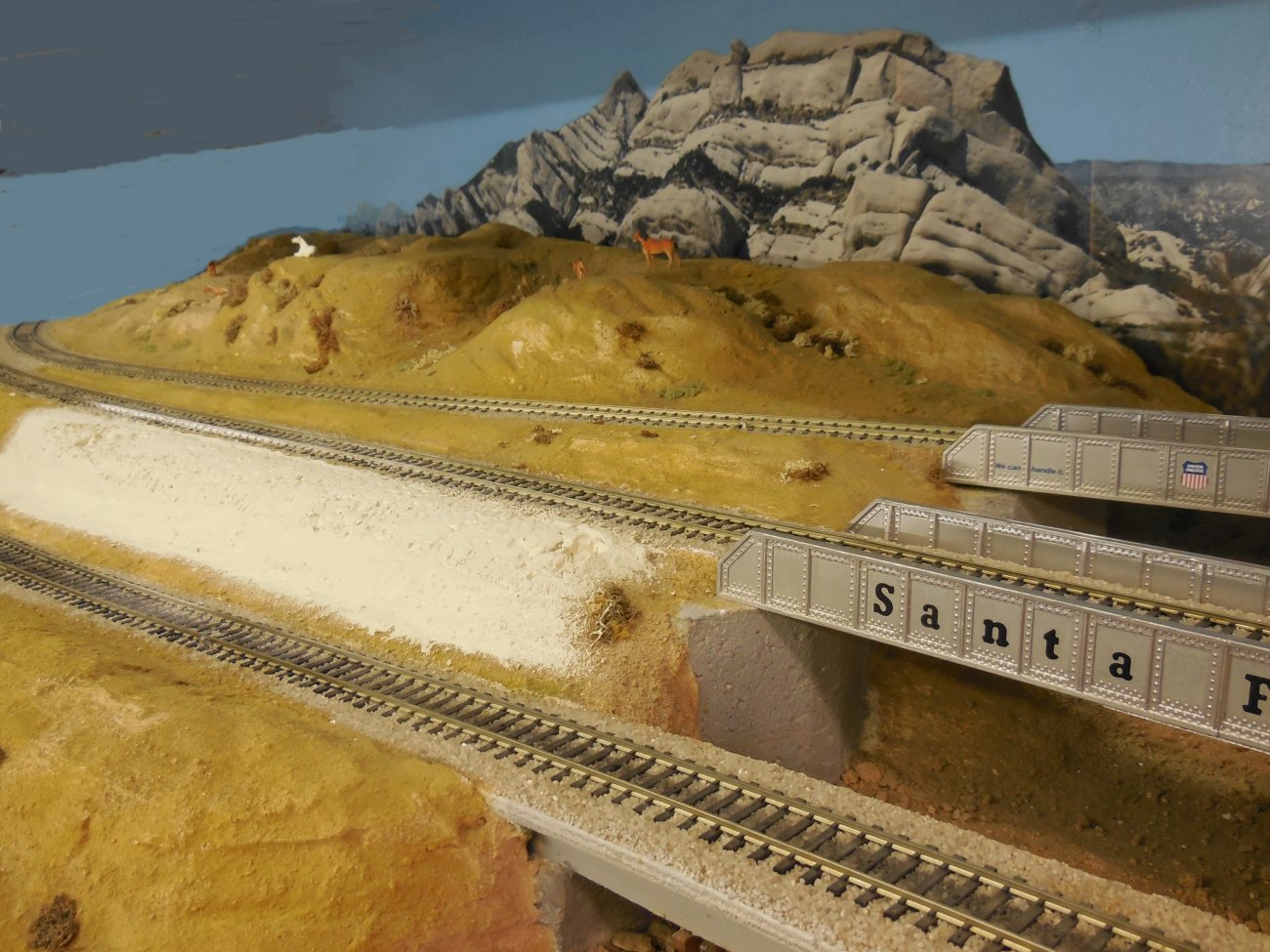

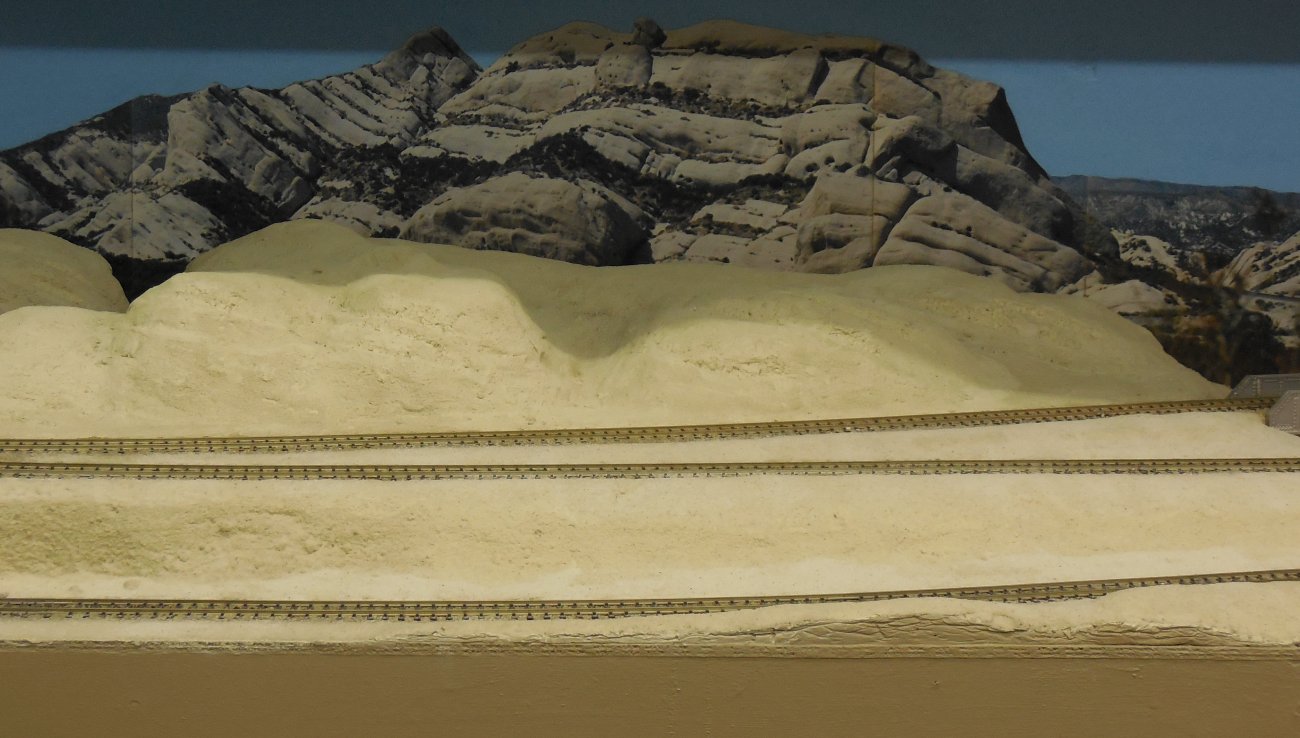

200 The 3 bridges were untouched as they fit in the scene - 201

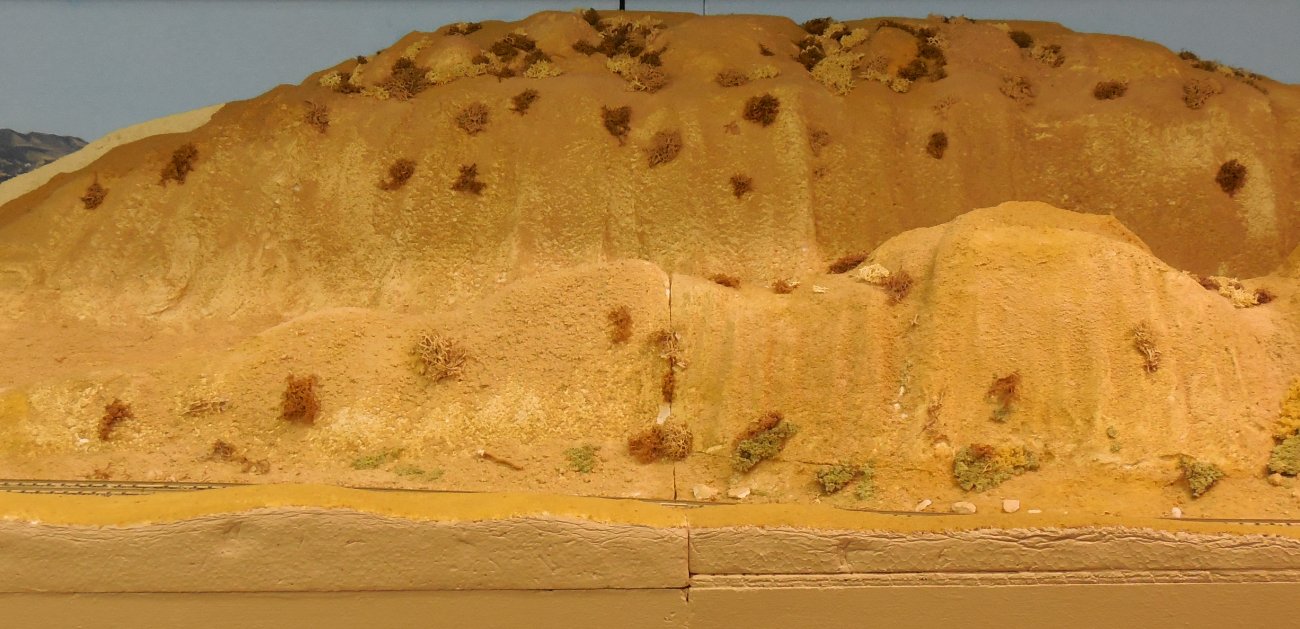

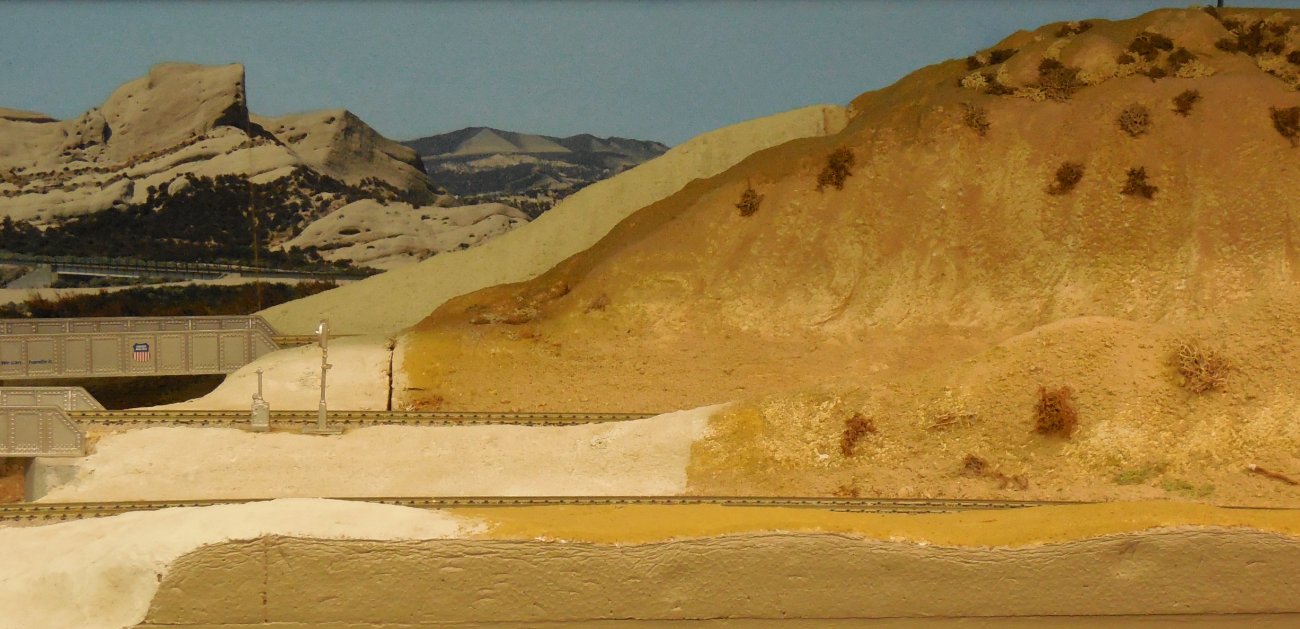

At that time I could not continue painting because. . . - 202 . . . I had to reorder "concrete" paint from Woodland Scenics - 203

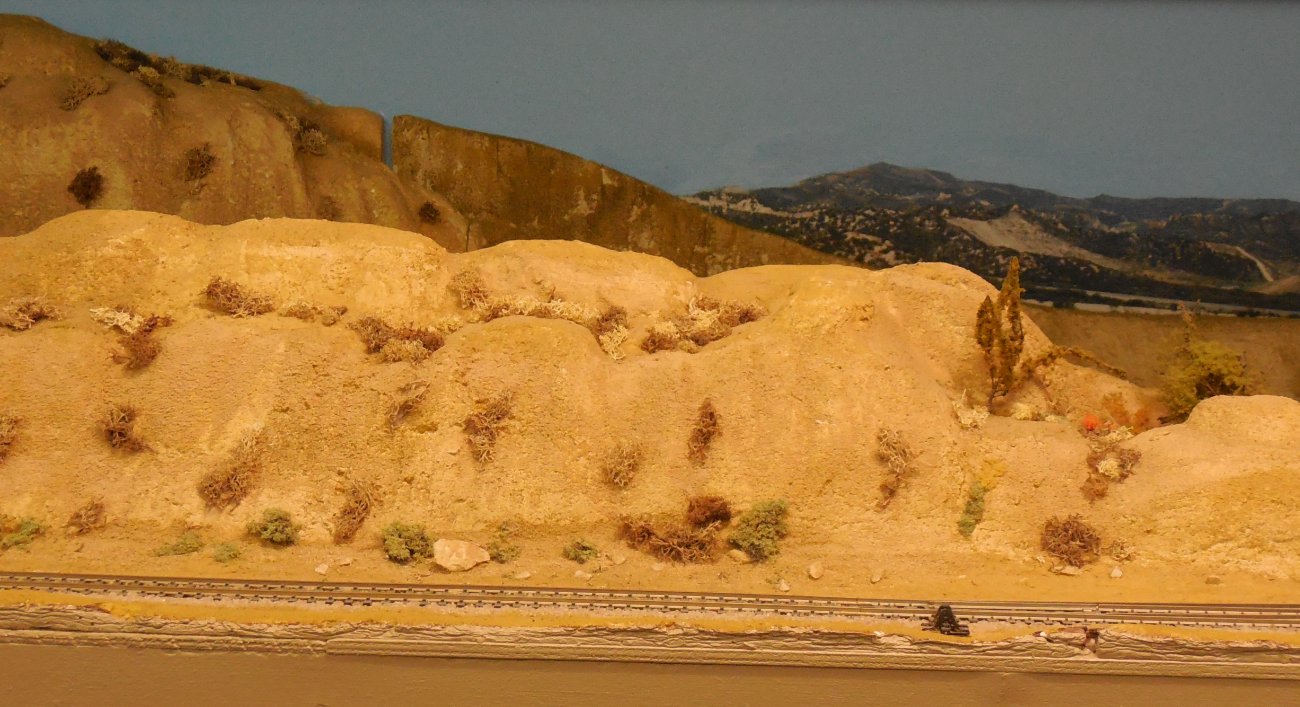

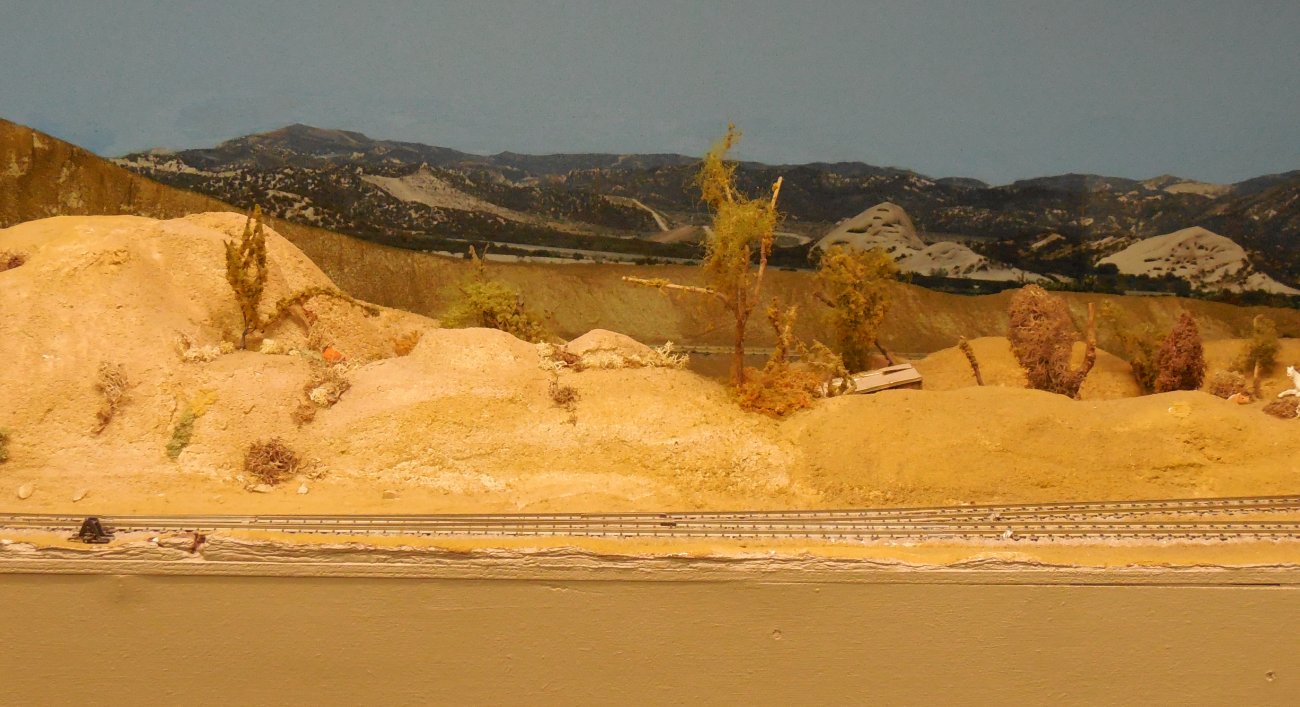

204 205

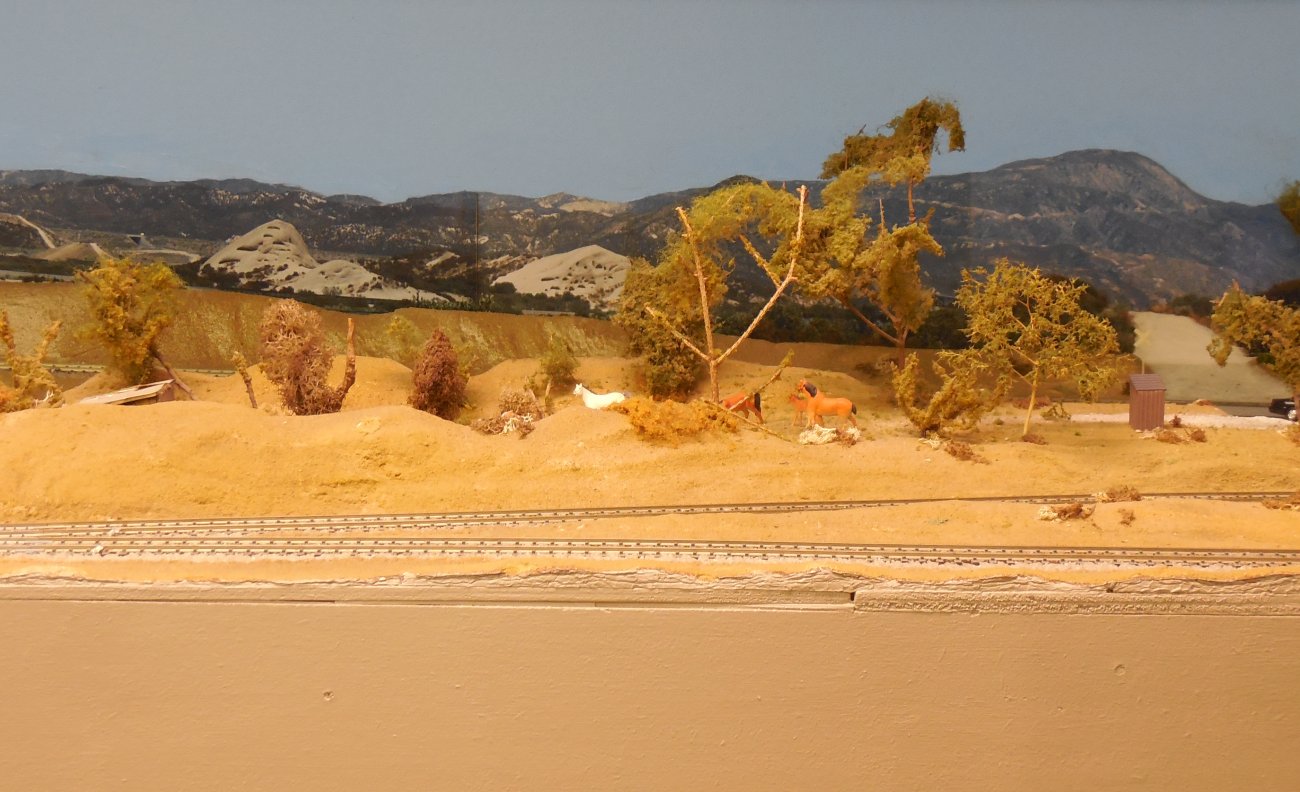

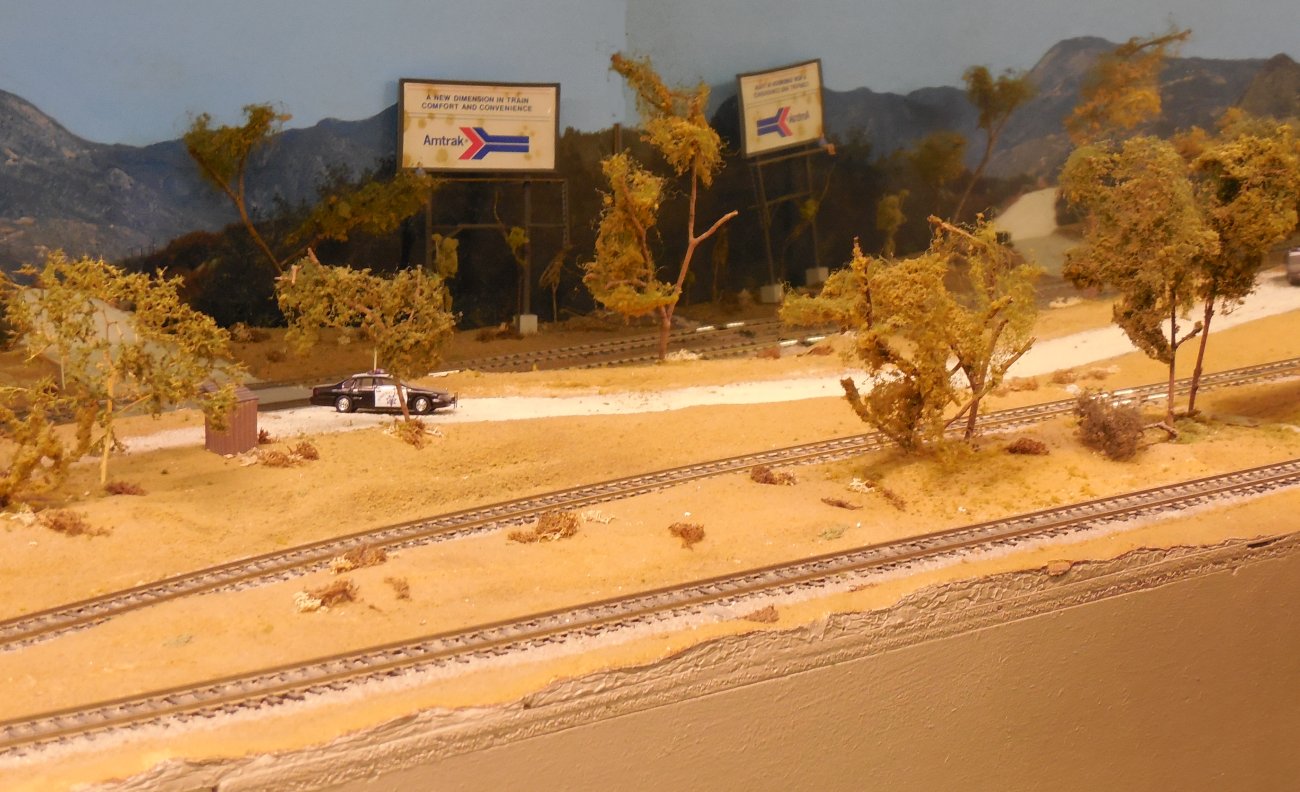

These old trees did not look nice anymore - 206 Therefore, everything has been removed - 207

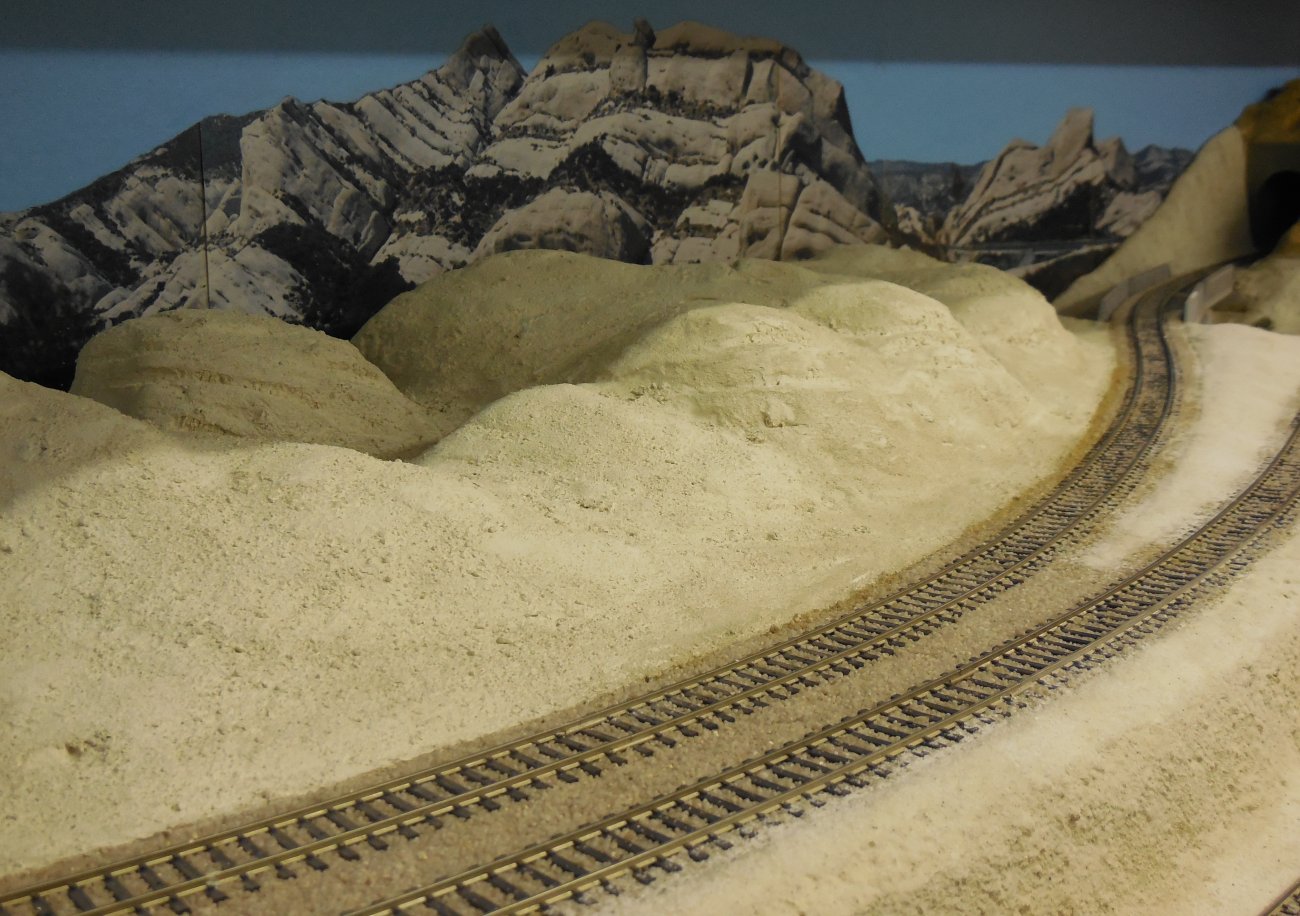

Next step: I started to apply sand over the painted surface. I used a fine light beige sand.
209 210

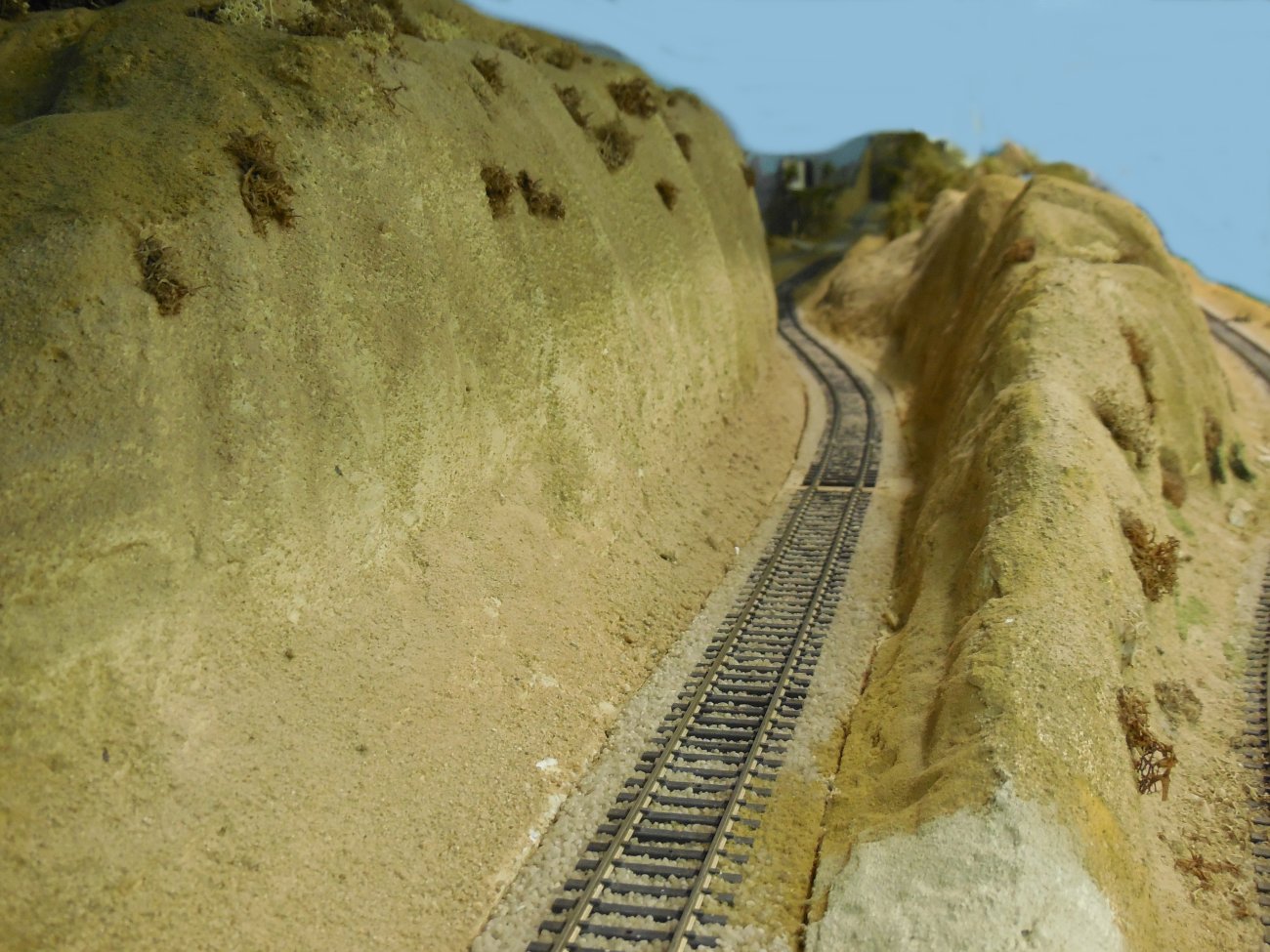

211 212

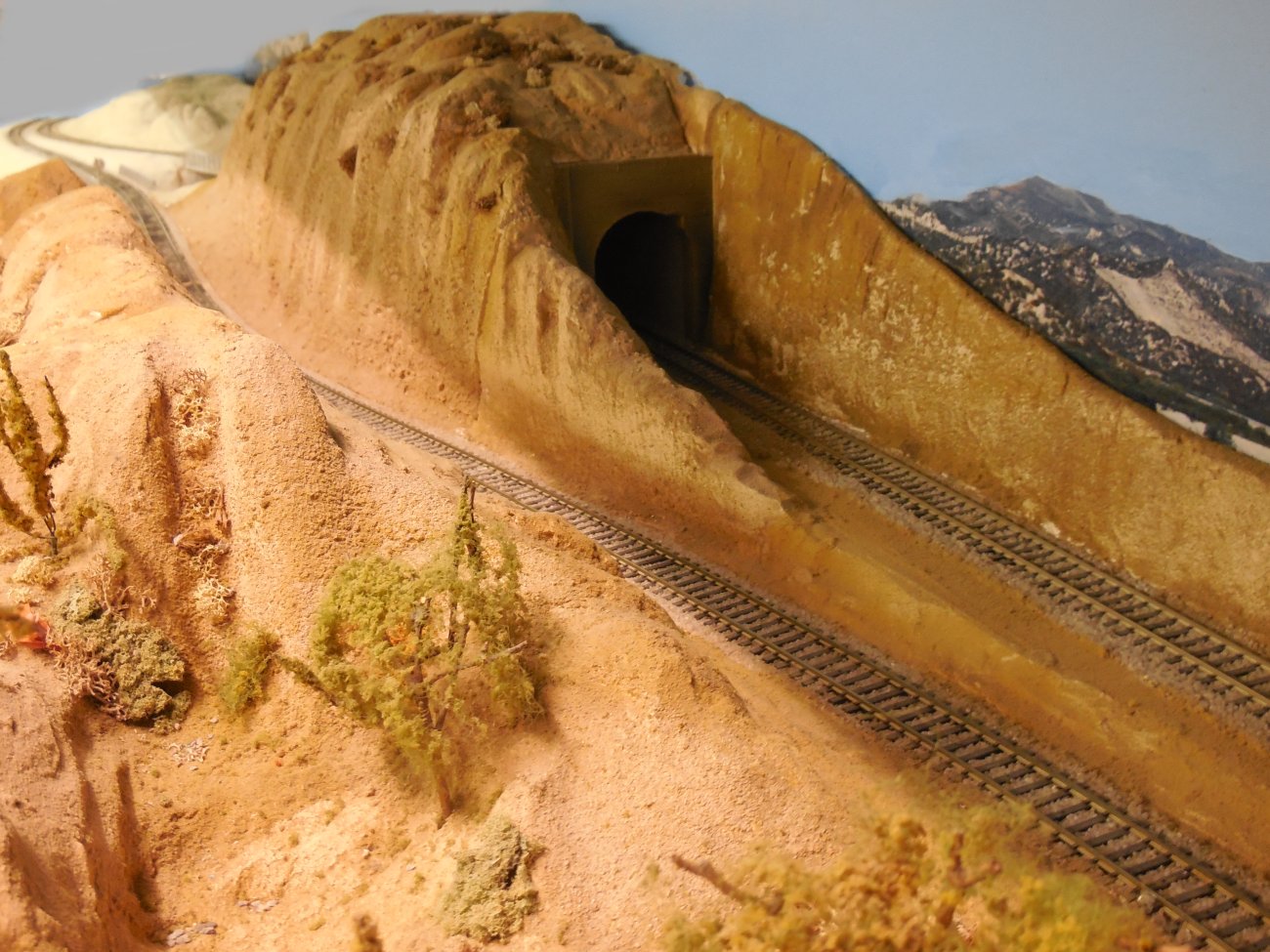

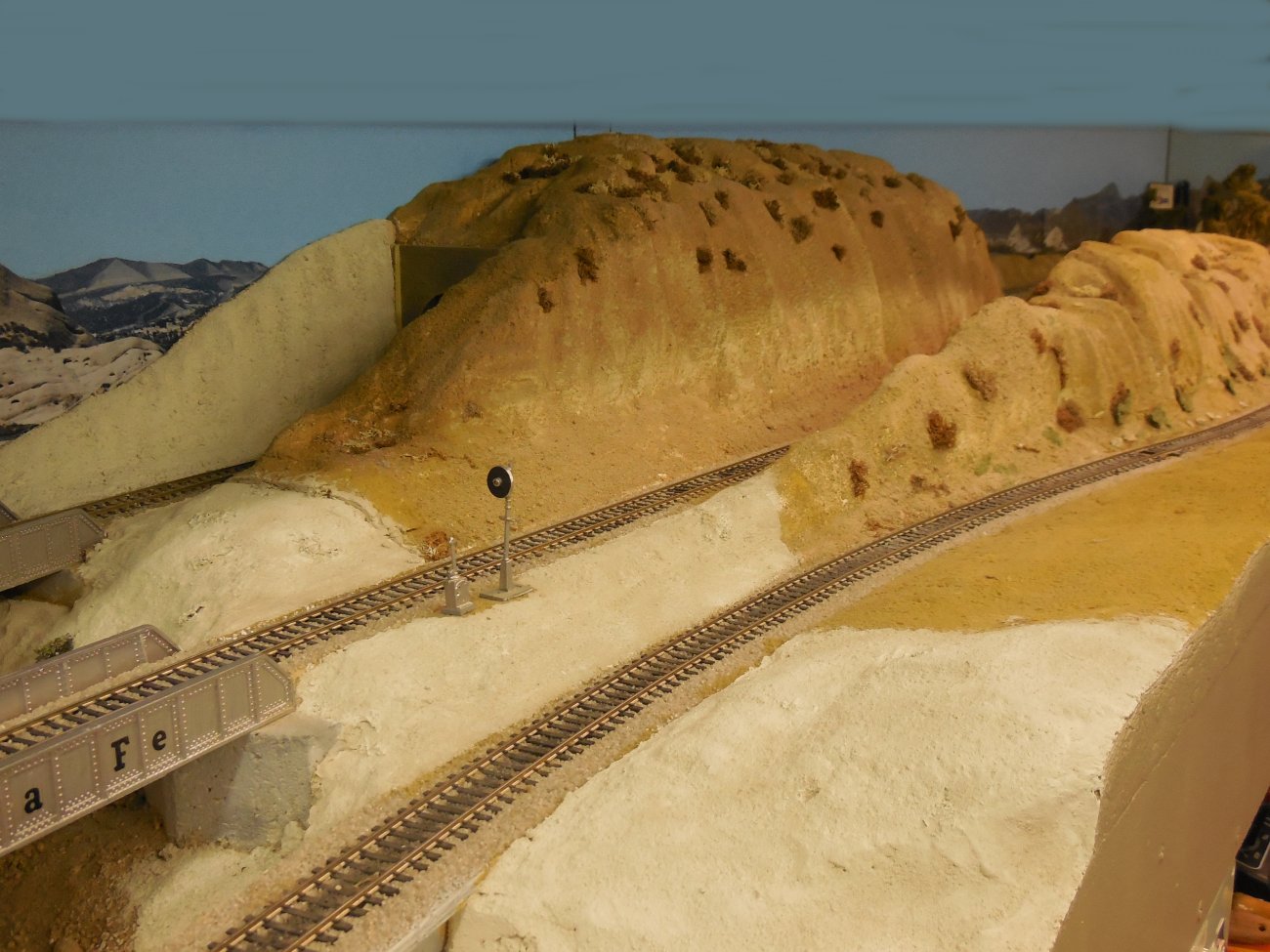

The rest after the bridges needs to be painted - 213 214
The tunnel section can be removed for access. For connecting the 2 modules (especially the tracks) it was much easier that way-

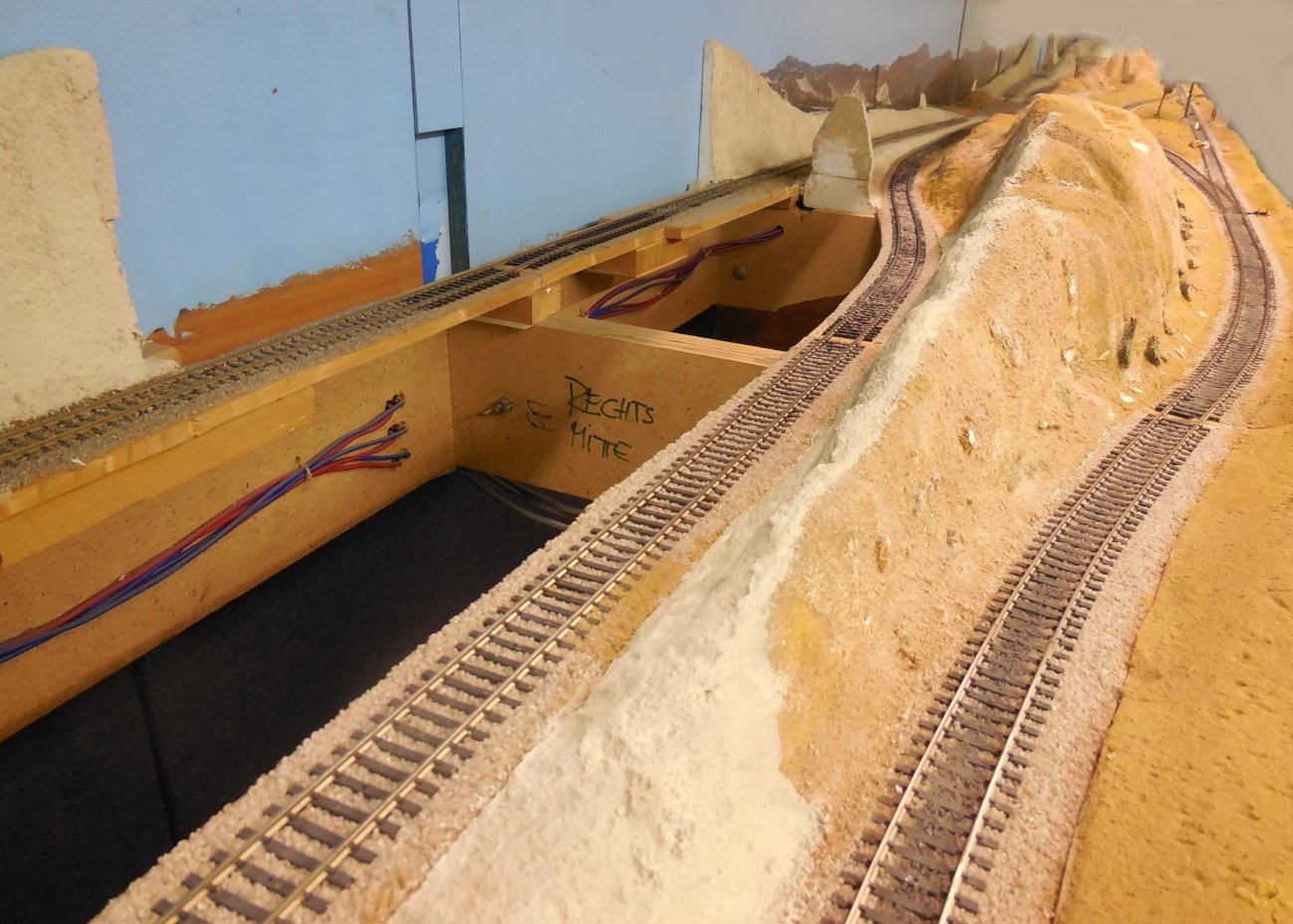

2/07/17 - 216 217
2/08/17: The next day, the whole left section is with sand all over. In other words, it would be ready for landscaping the vegetation.

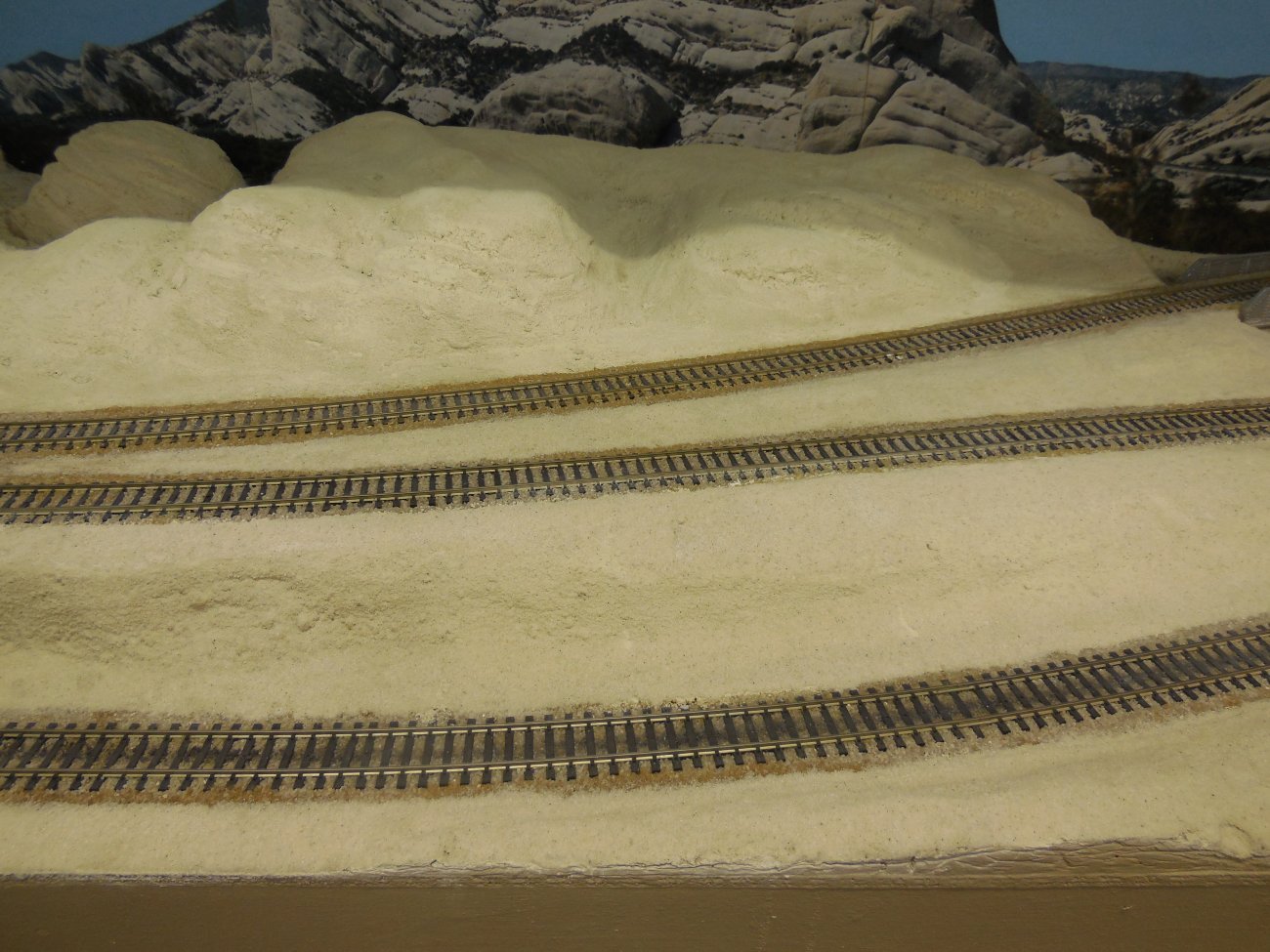

 220 221

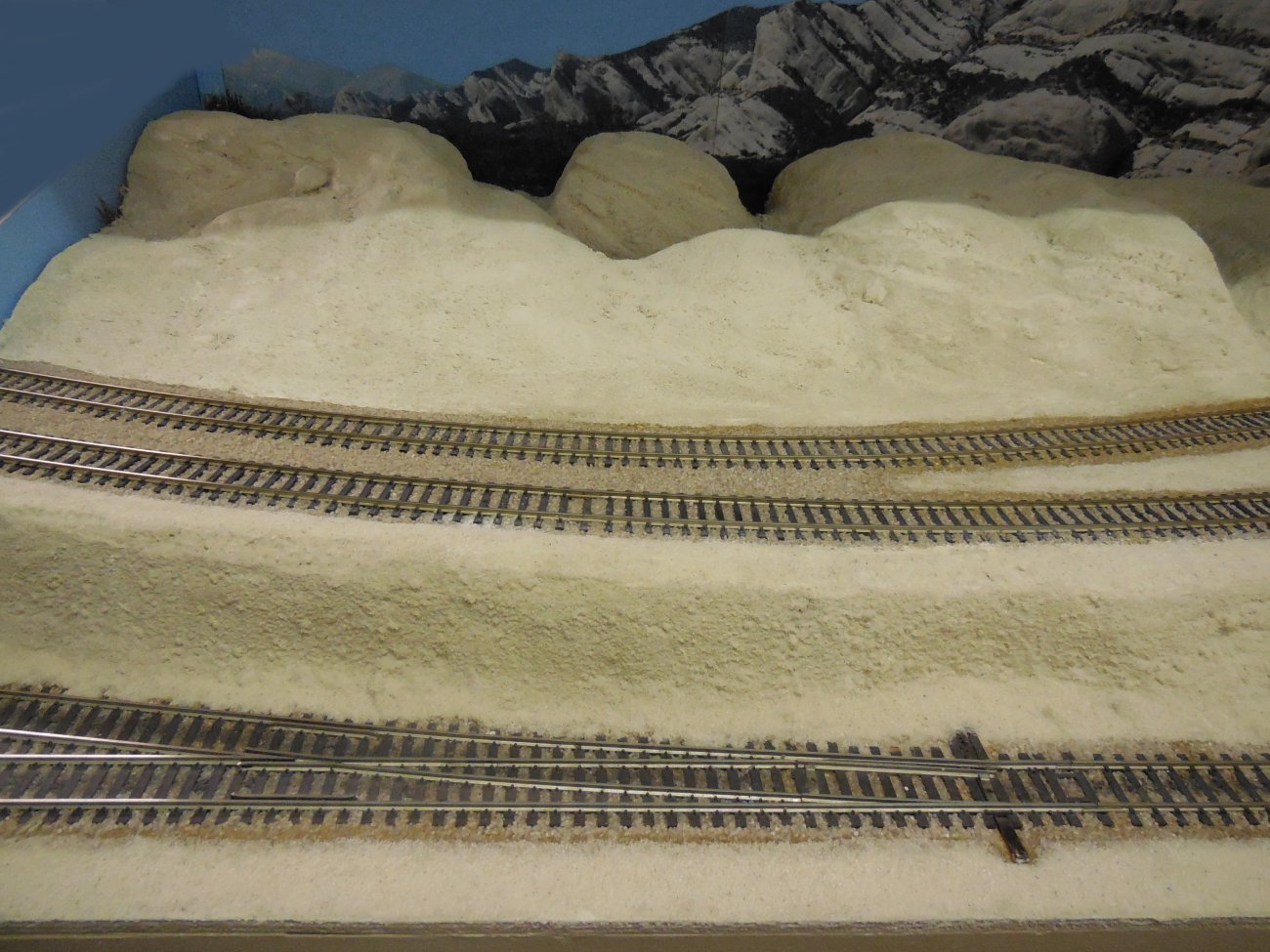

222 228
On the tunnel section, old bushes and trees on the right side have been stripped down.

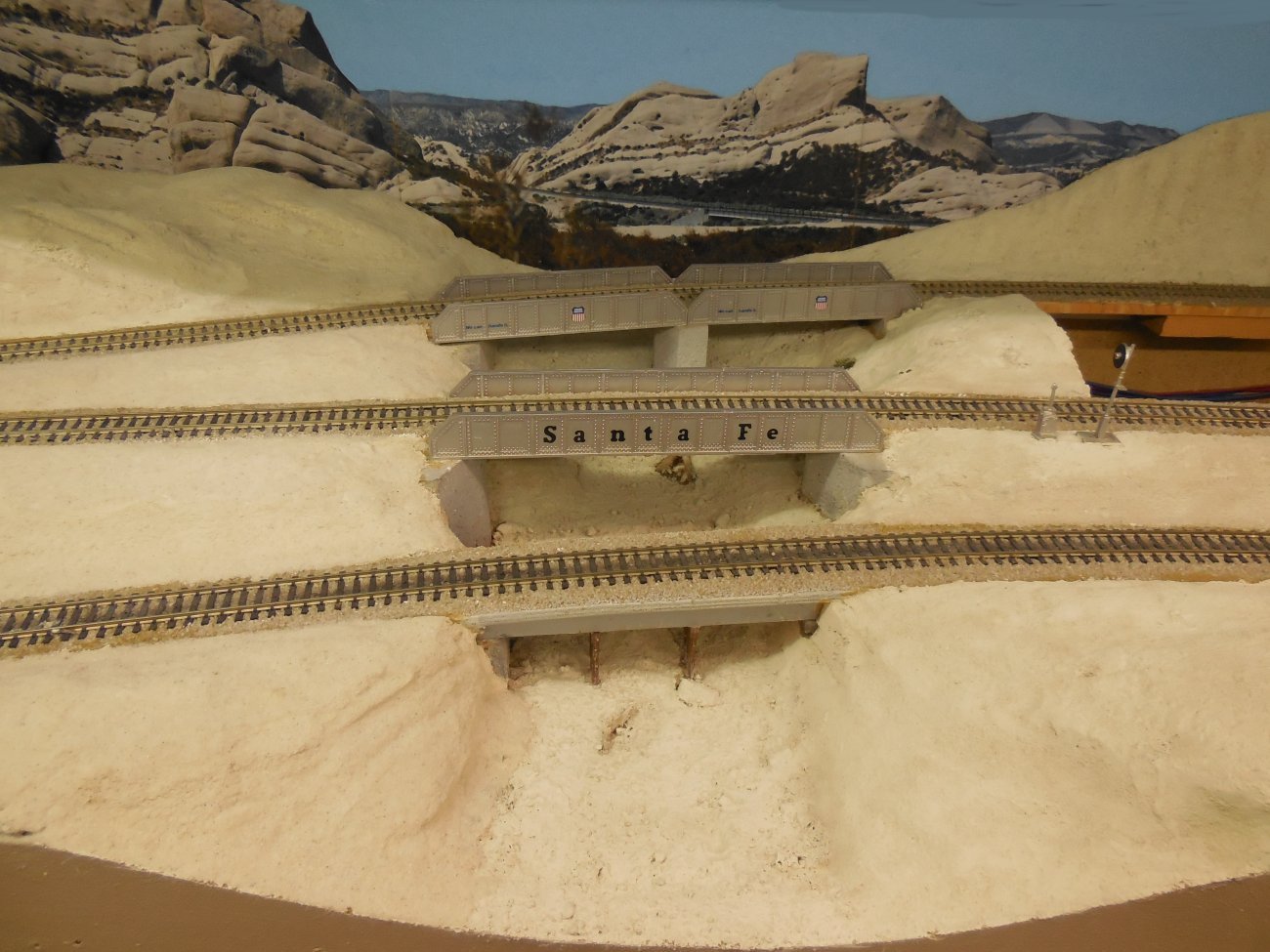

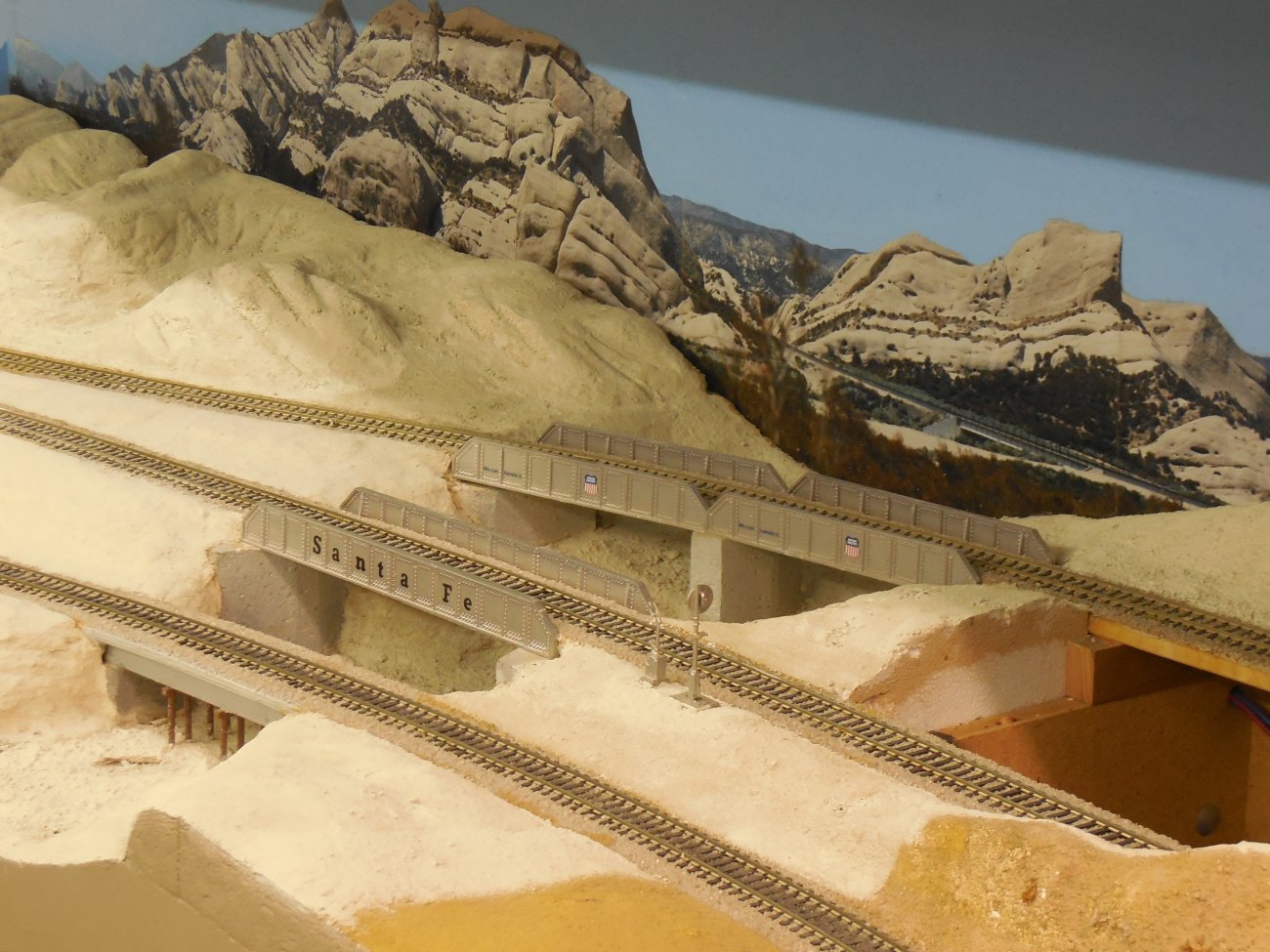

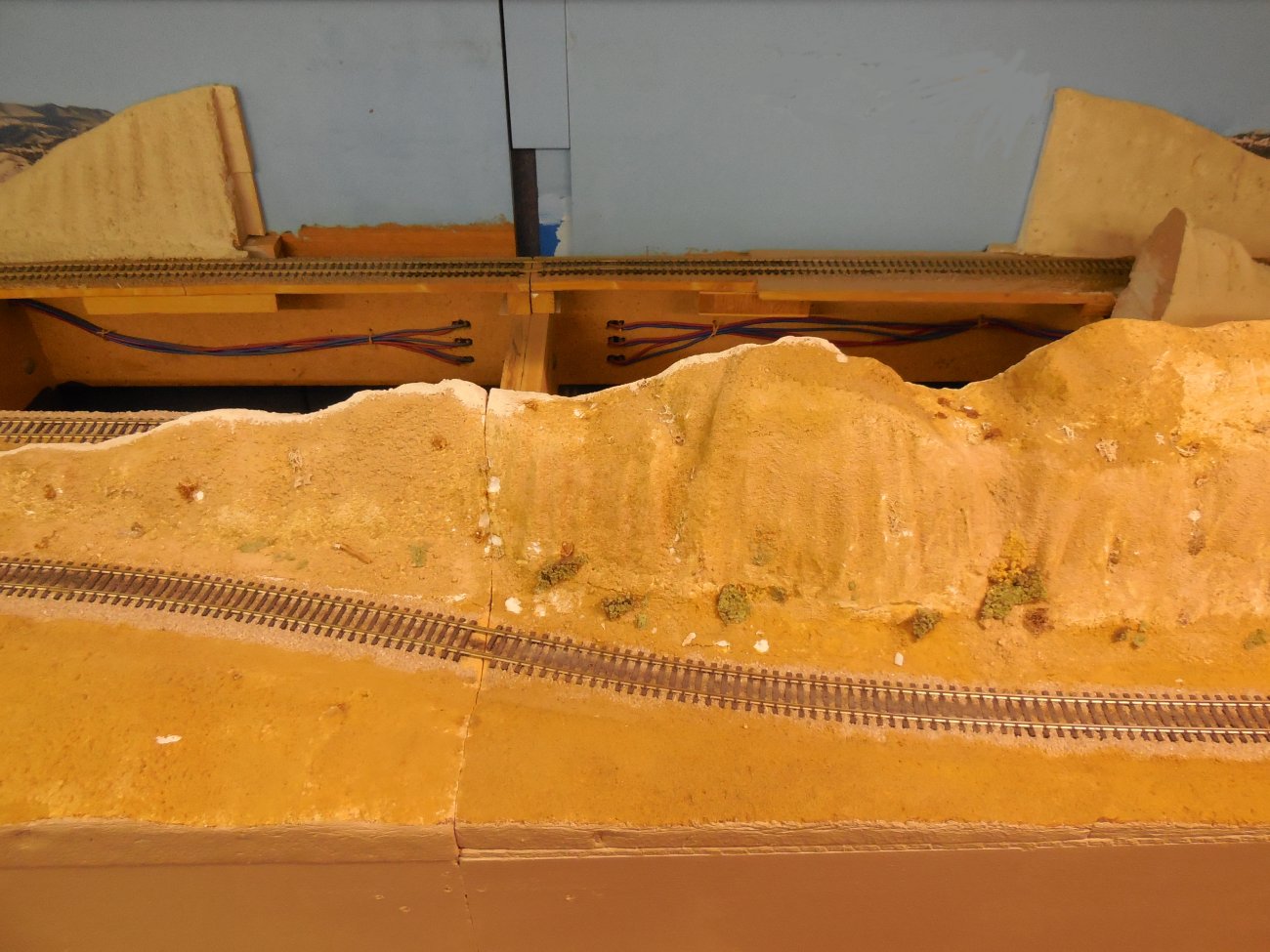

223 here we can see the division between the 2 modules - 224

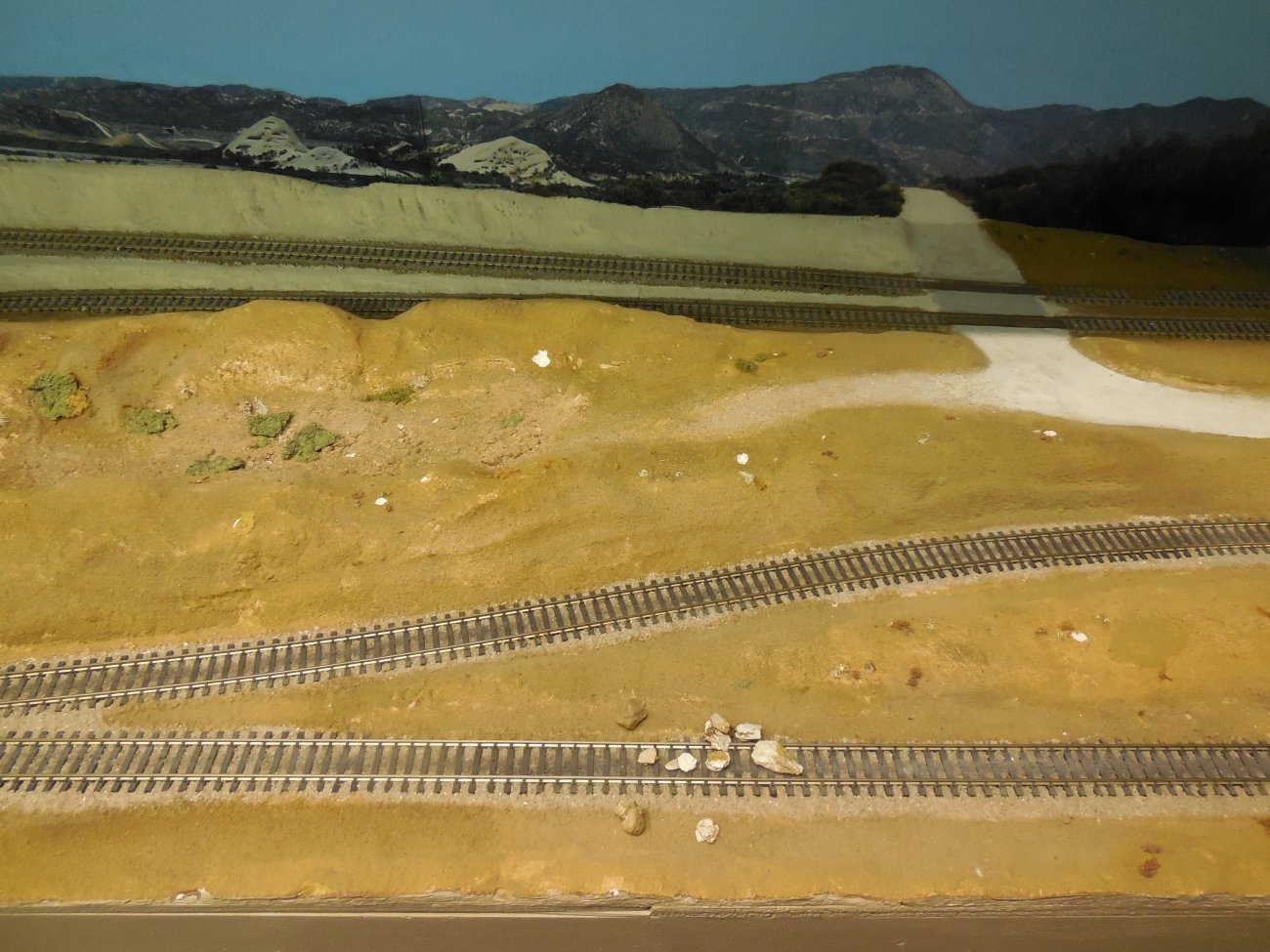

225 227

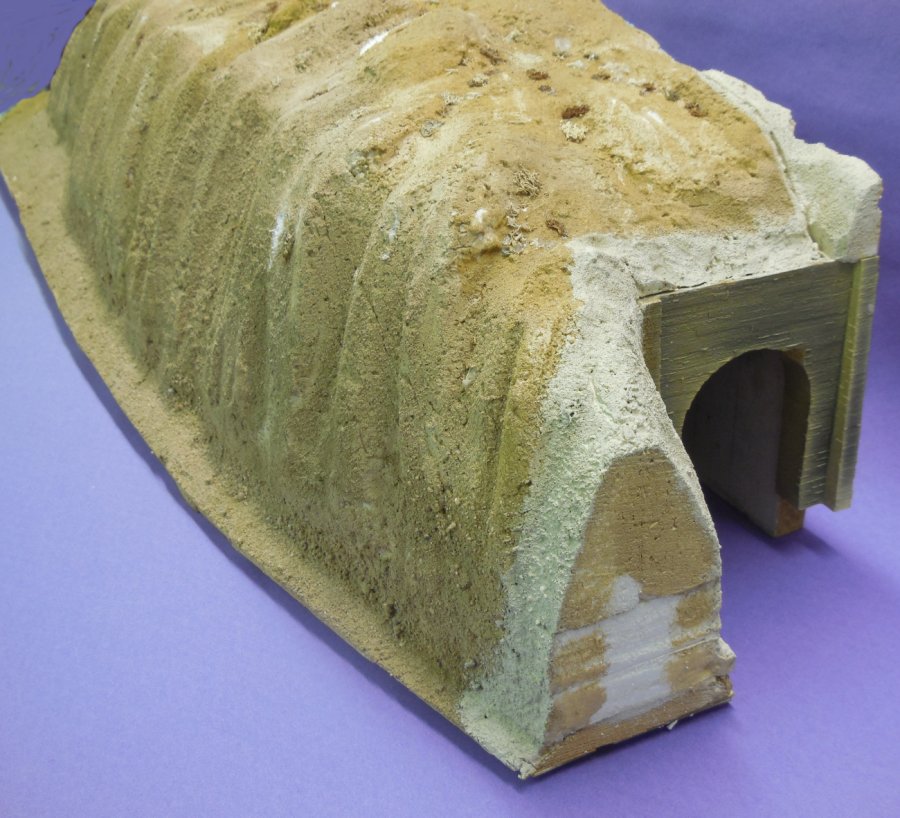

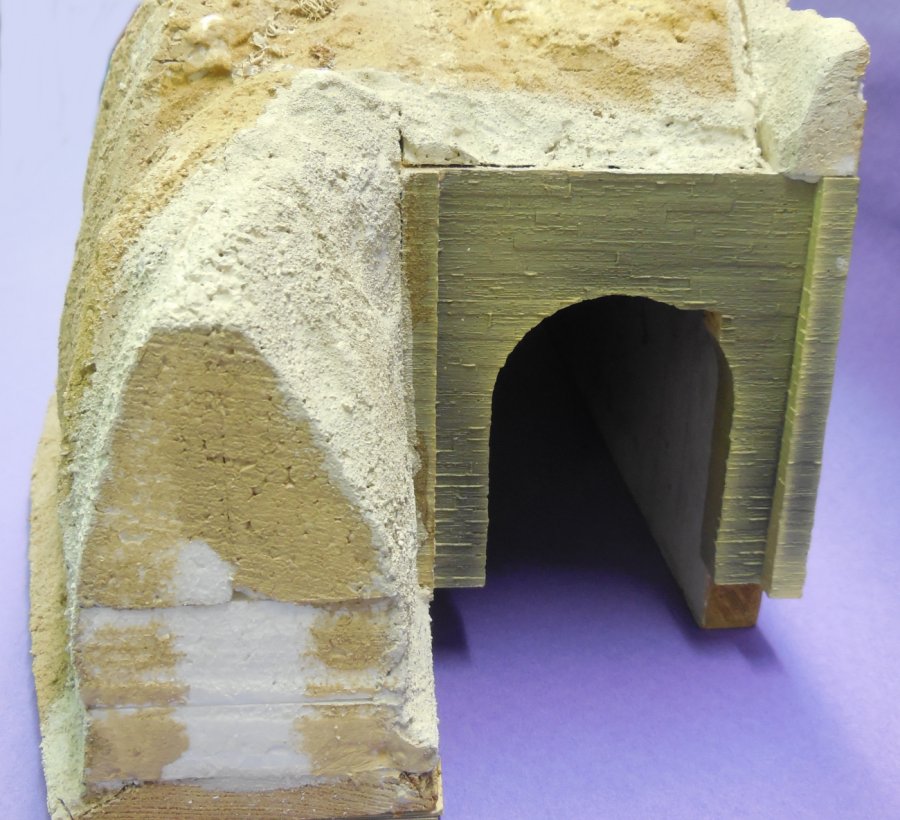

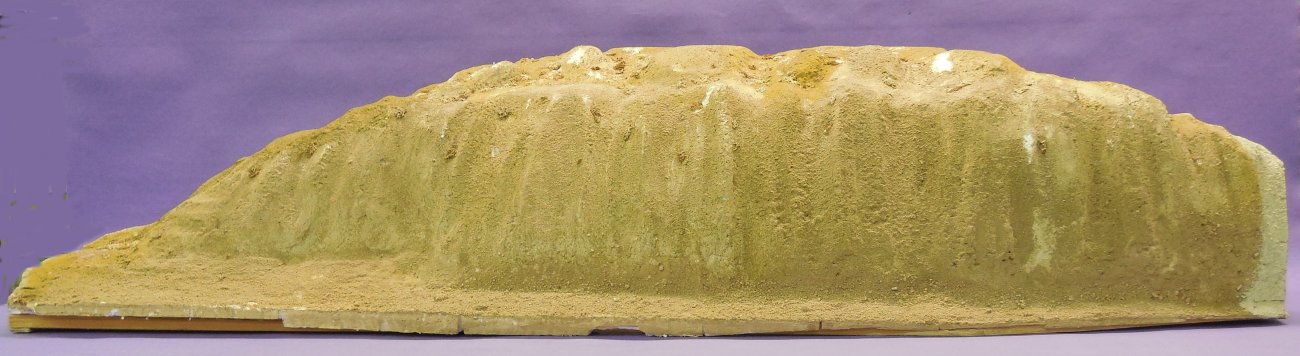

The removable tunnel section has been stripped off the old bushes. Afterwards, it will be painted and will get a cover of sand - 229

231                                                                      232                                                                                   233
Let me explain the combination of a tunnel near the Mormon Rocks. Of course, in real Cajon Pass there was no tunnel near Highway 138 and the Mormon Rocks. There were 2 tunnels at Alray toward Summit (both have been daylighted during the 3rd Main Track Construction in 2007 and 2008. See more infos about it here:  https://www.trainmaster.ch/cajon-01.htm
My idea to build 2 straight and 1 curved modules with 3 tracks gave just more variaty with a short tunnel and a cut between MT-1 and MT-2. It sure did never refelect the correct situation in Cajon Pass. I just used for the background the Mormon Rocks formation along Highway 138.

 Part 3 A (2/26/17)

Part 3: 2/26/17 - The Left side up to the tunnel got grass tufts (made by Herpa)

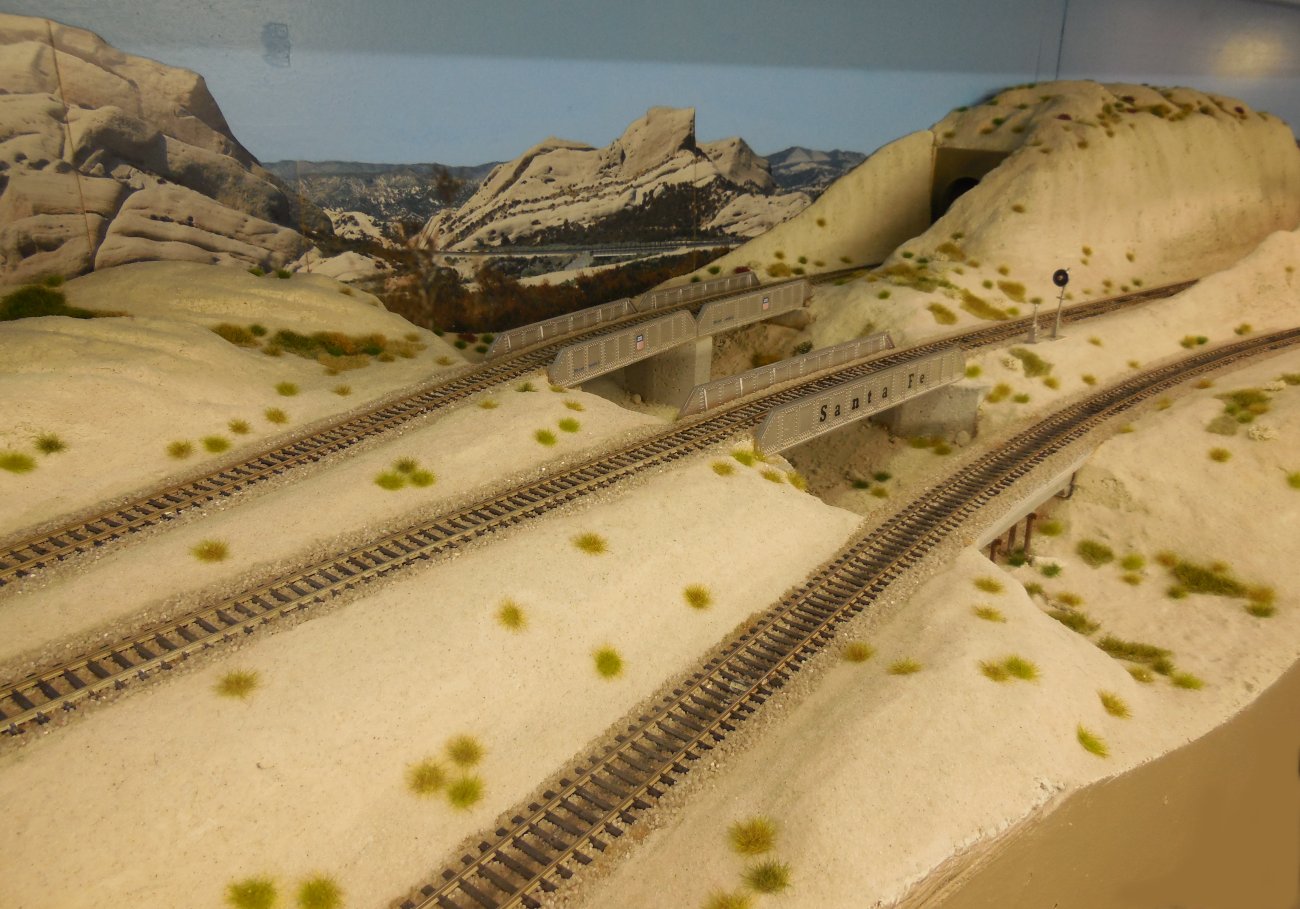

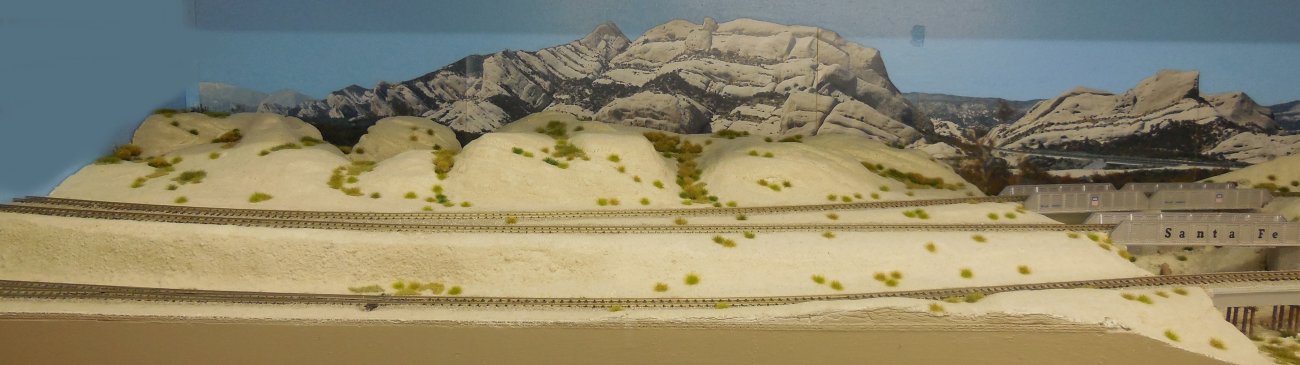

2/26/17: How different it looks with the first grass tufts. Later on, Melinda will plant some bushes. - 237

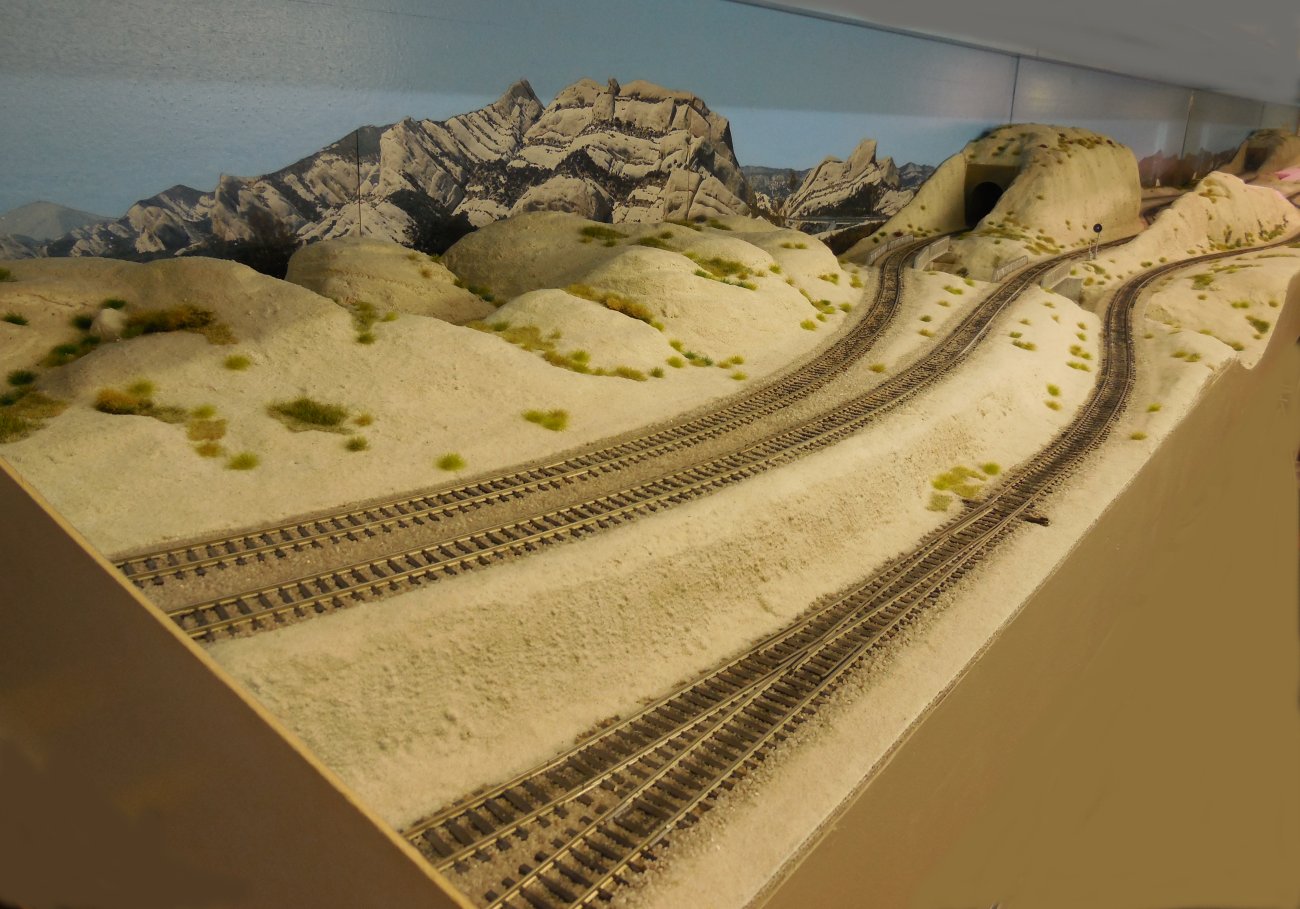

238 239

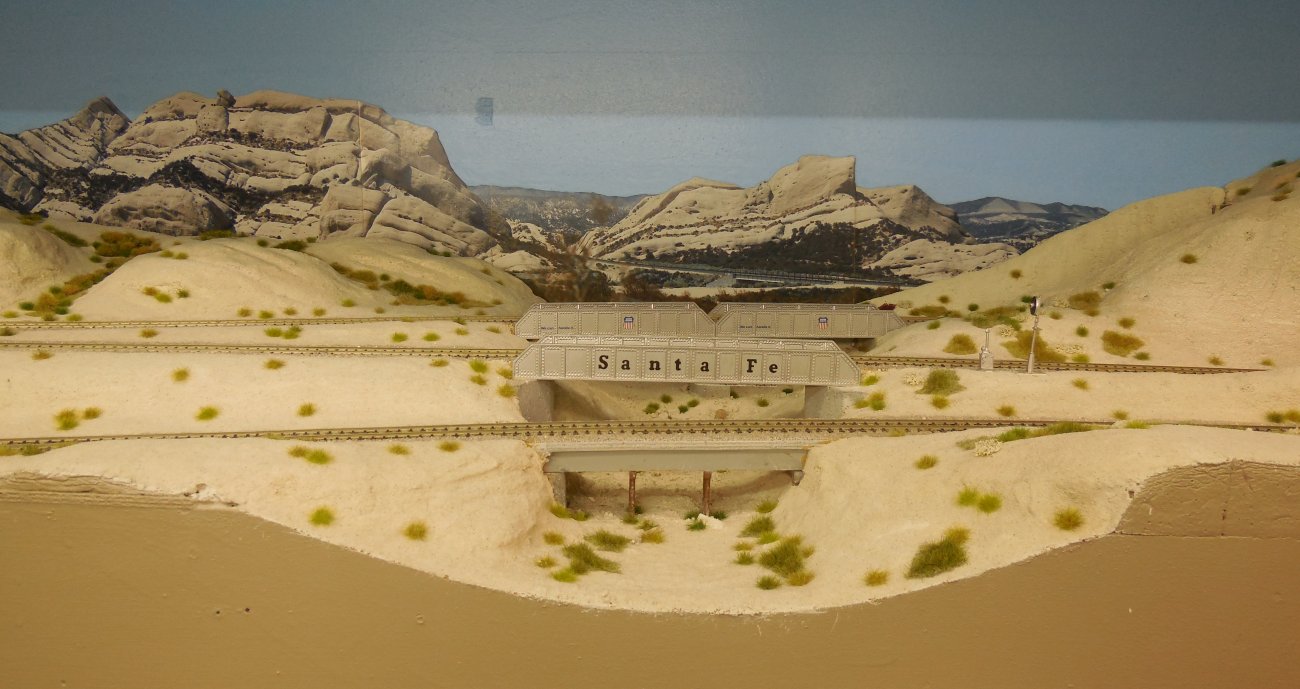

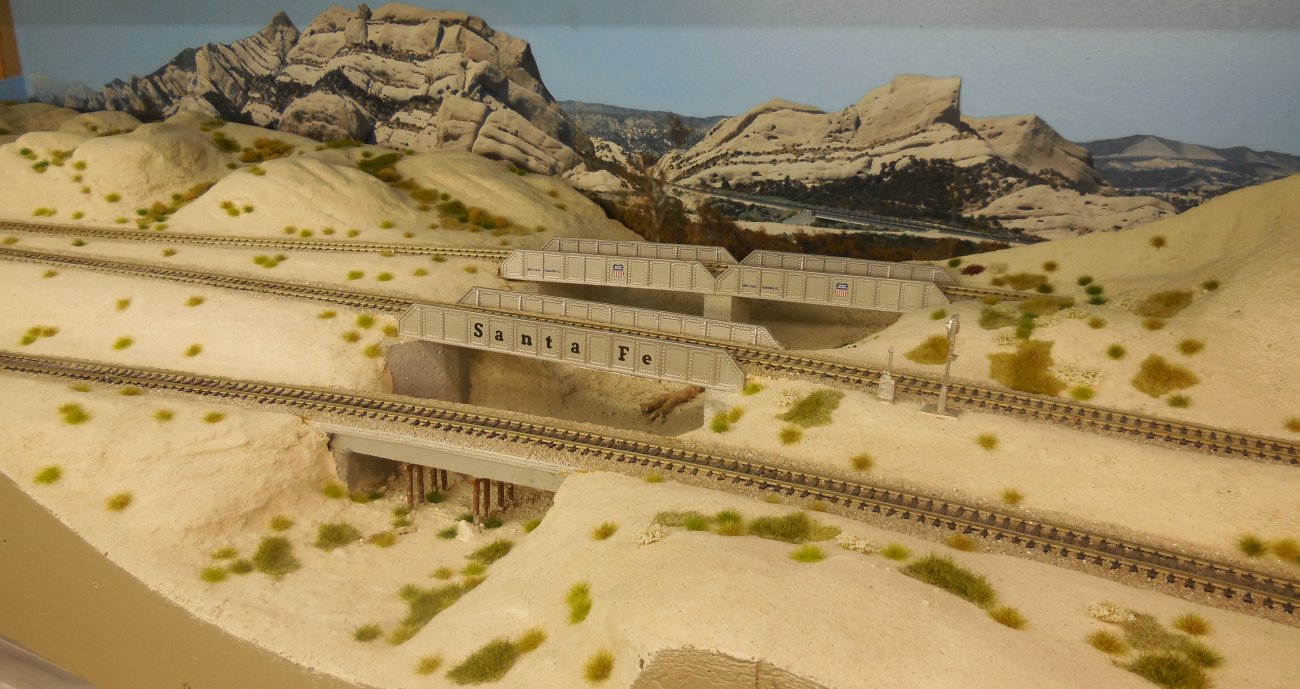

241 240

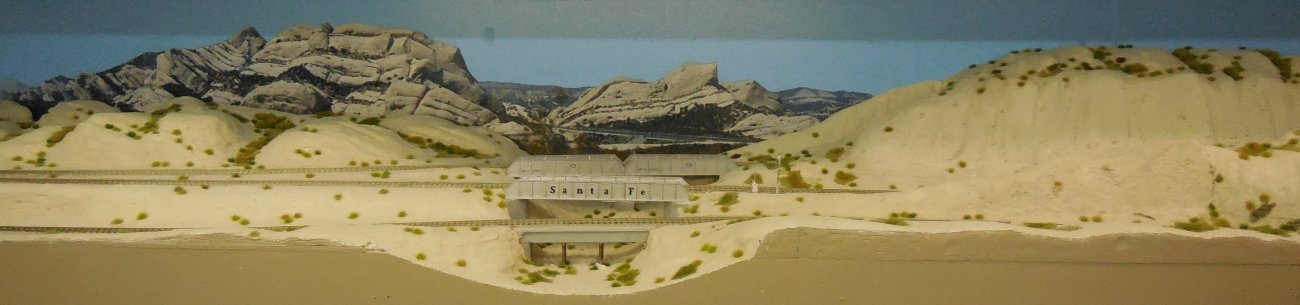

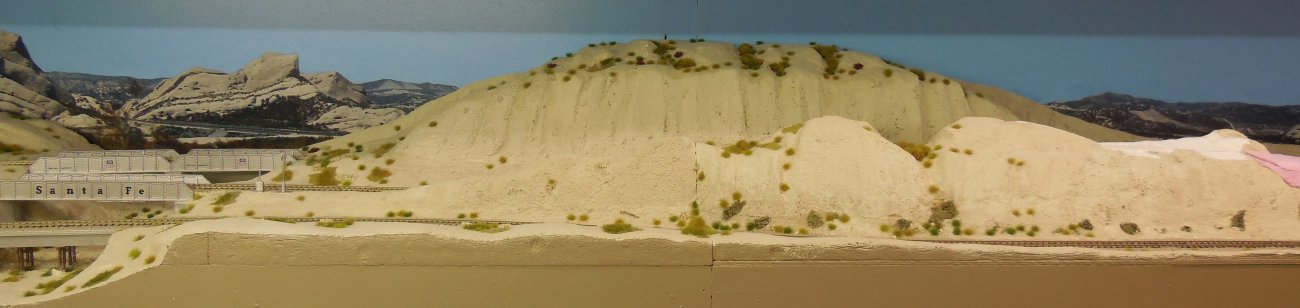

243

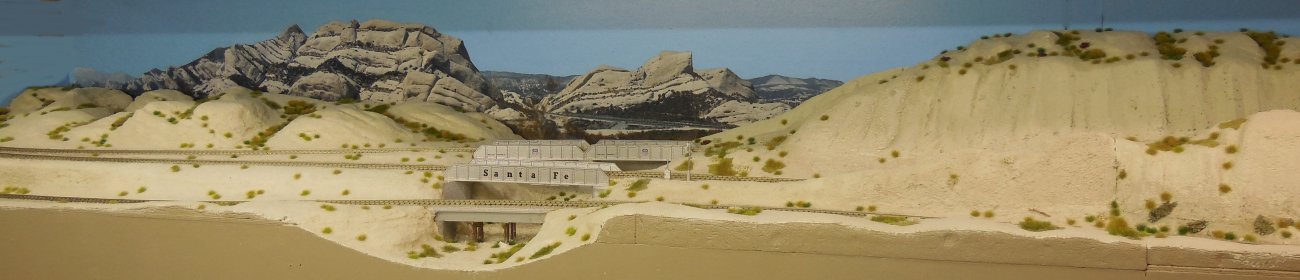

244
245

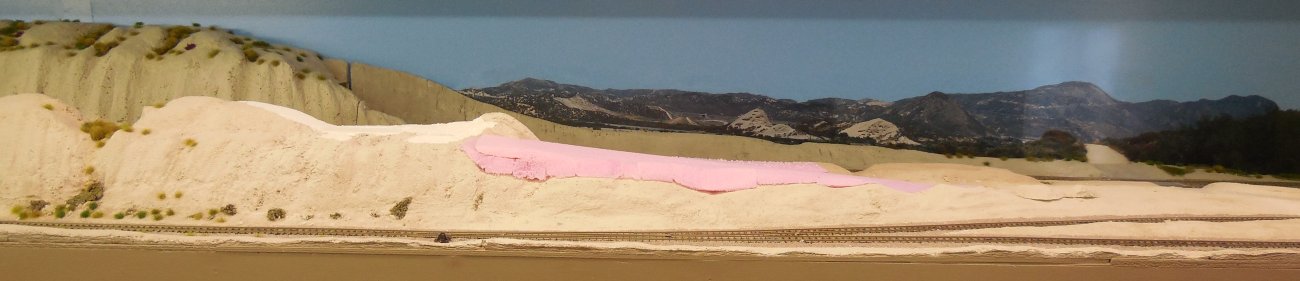

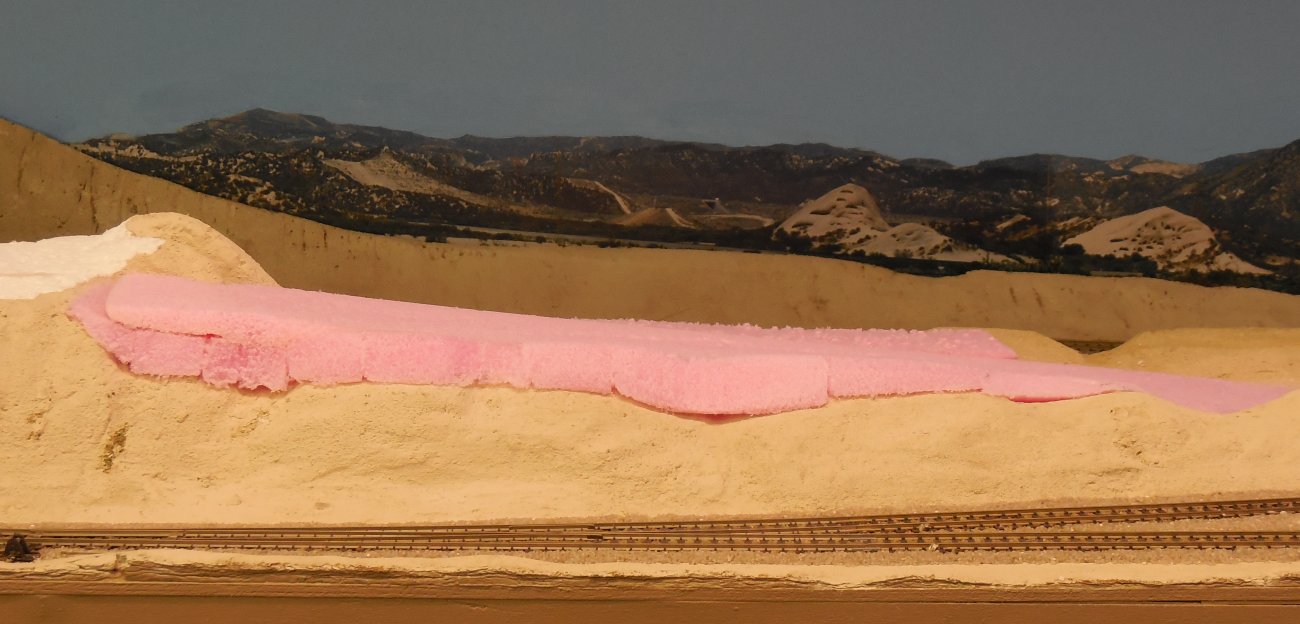

Between the cut and the lower section at right, I decided to add a dirt road. So, I cut off the top section (hill crest) and added pink styro foam to build up the road bed and also some addtional rocks on both sides. This "pink" material is much better for cutting and sanding. Once everything is shaped well, it will be covered with plaster. I use Woodlans Scenics Road System "Smooth It" ST1452 plaster. It is a high qaulity material which does not crack after trying. It can be easy sanded smooth. Afterwards, it will be painted light beige and finally get a layer with sand.

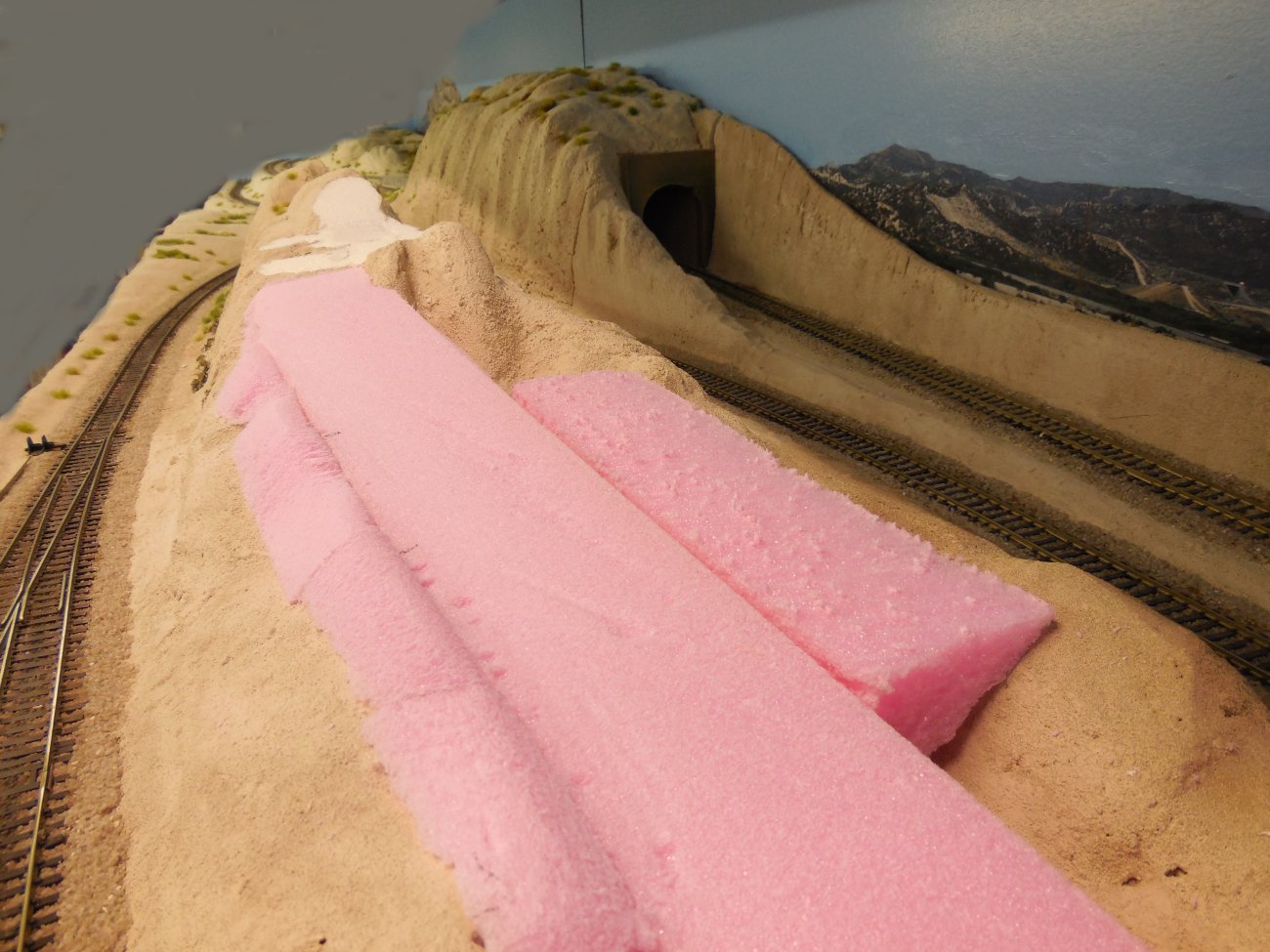

Construction site for the new dirt road going uphill to the new observation platform. - 246

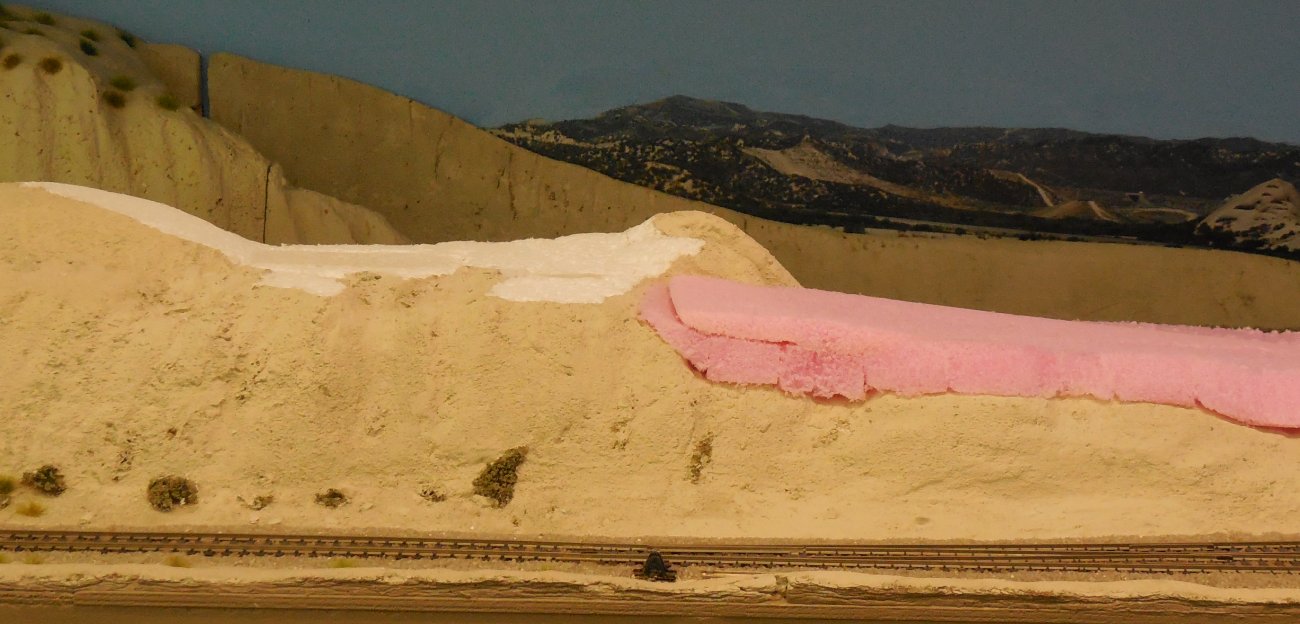

248 249

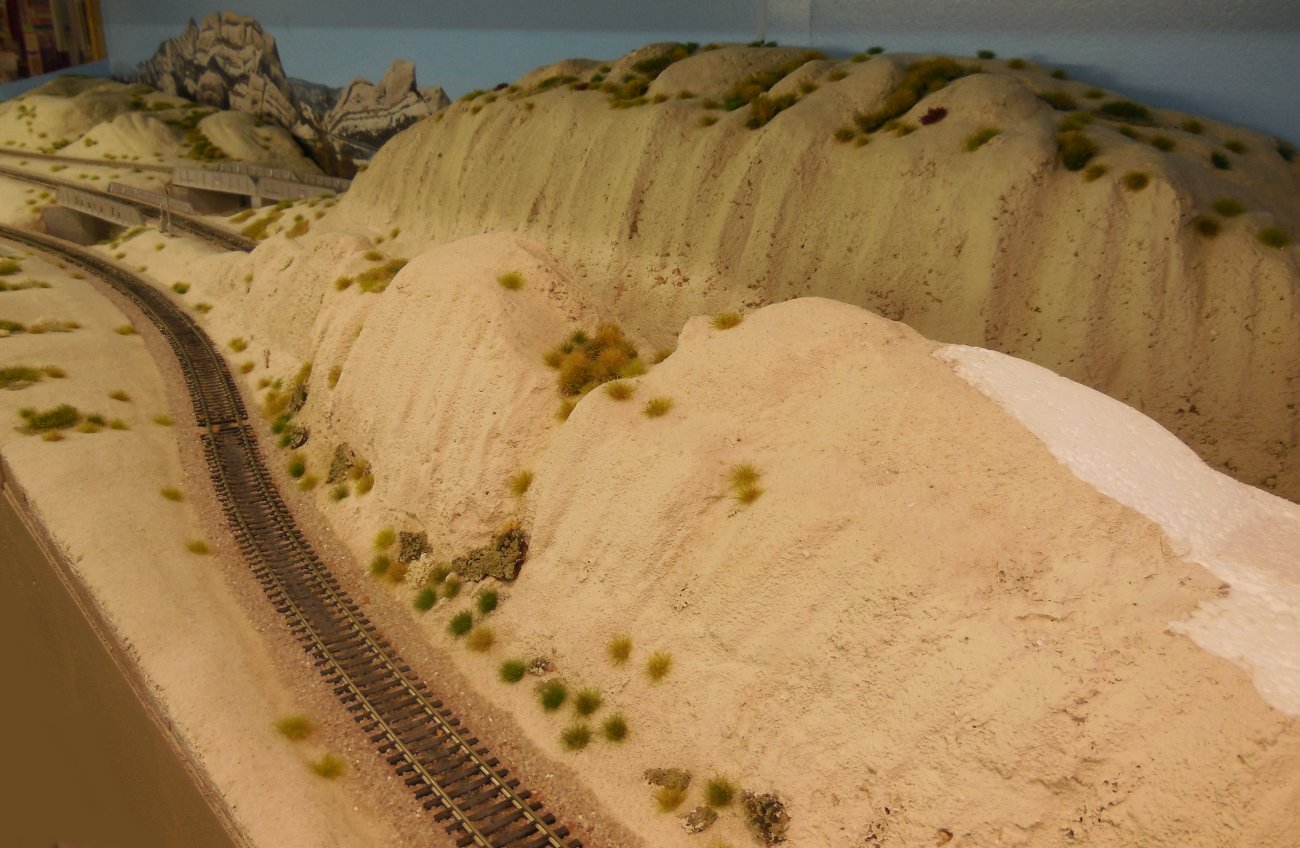

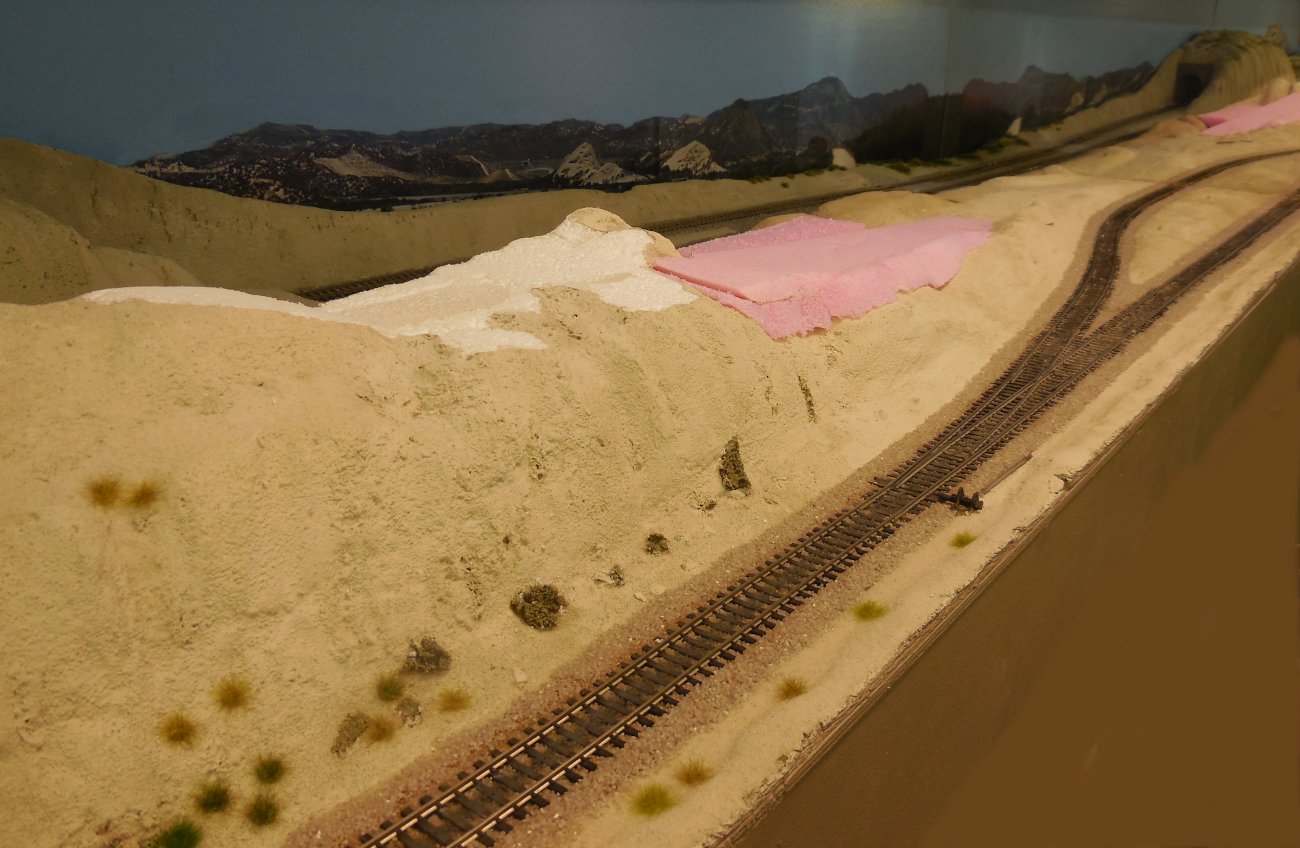

250 Did anyone note? There is a mirror at the right end !!  -  251

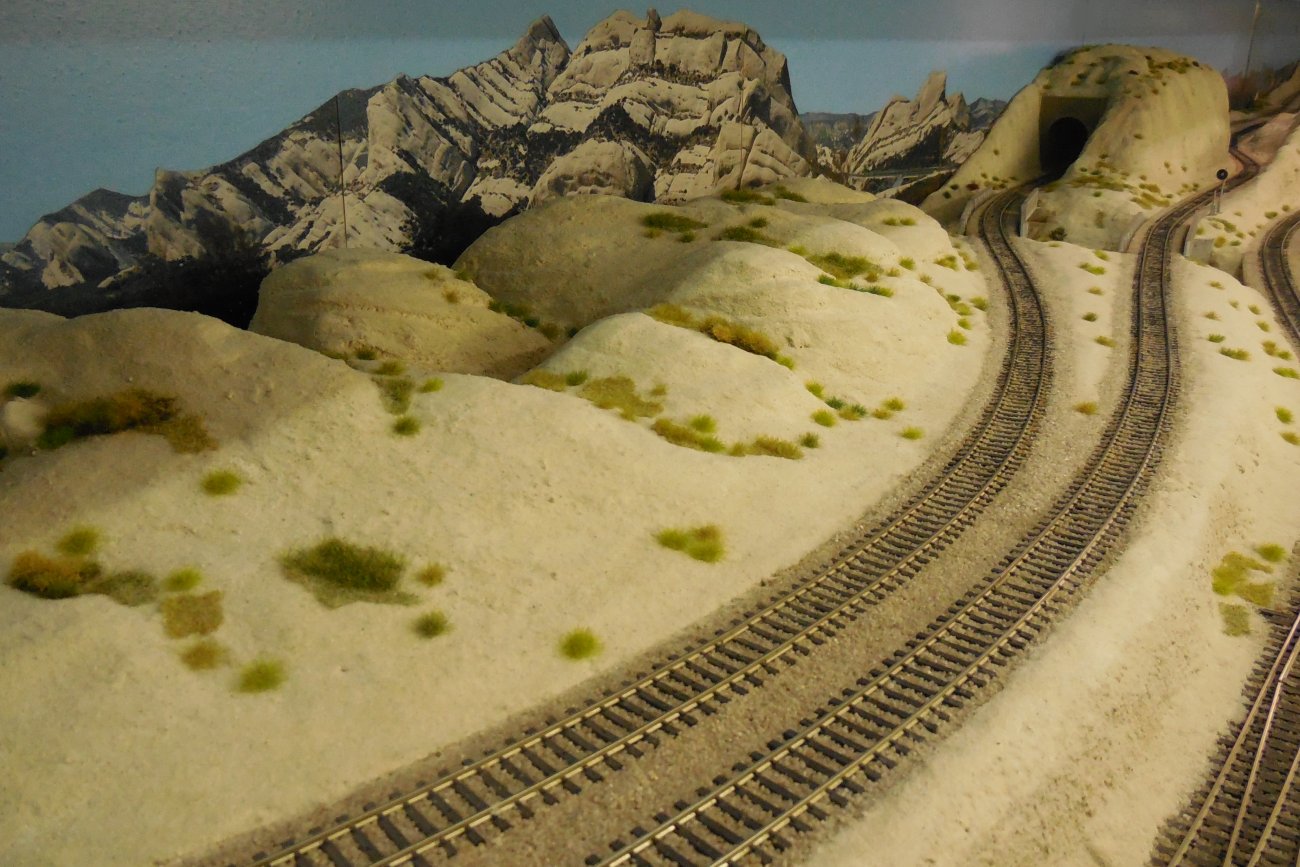

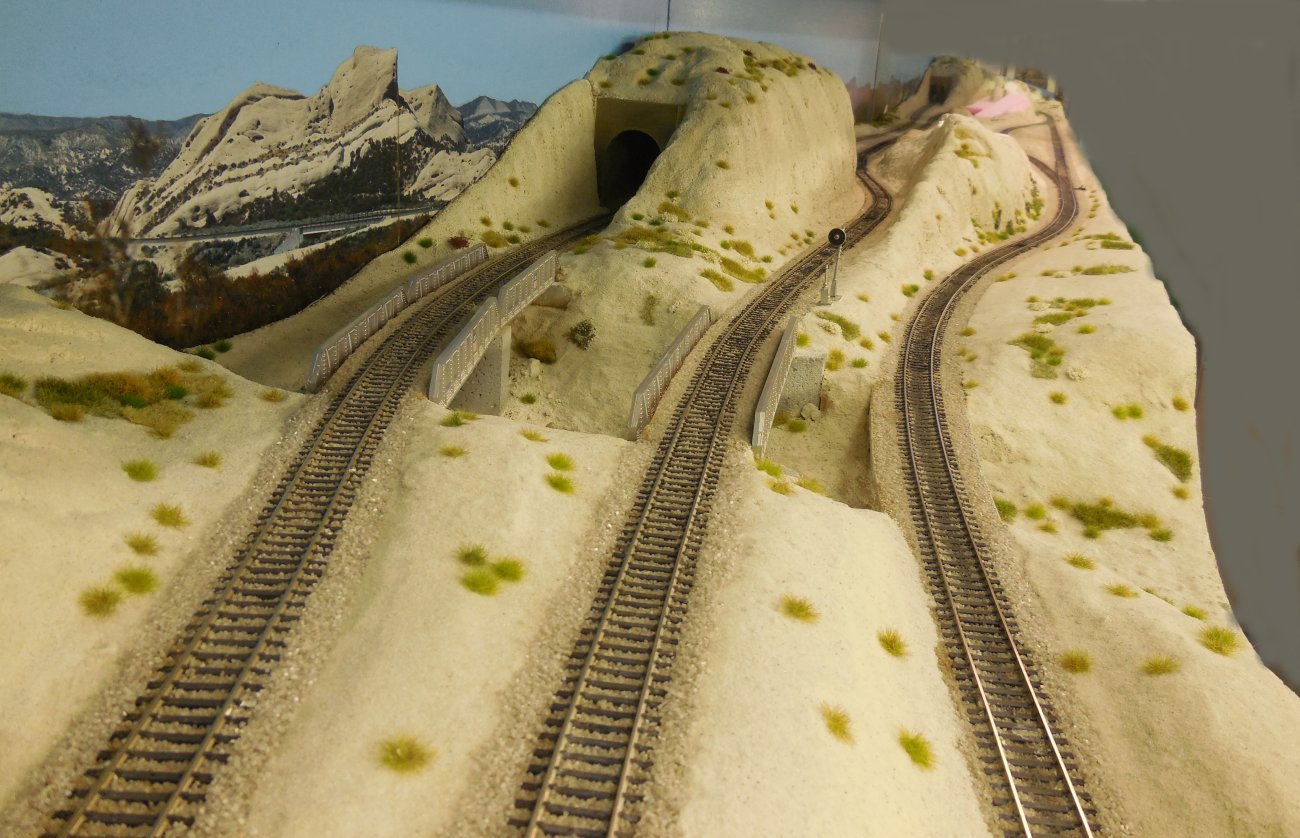

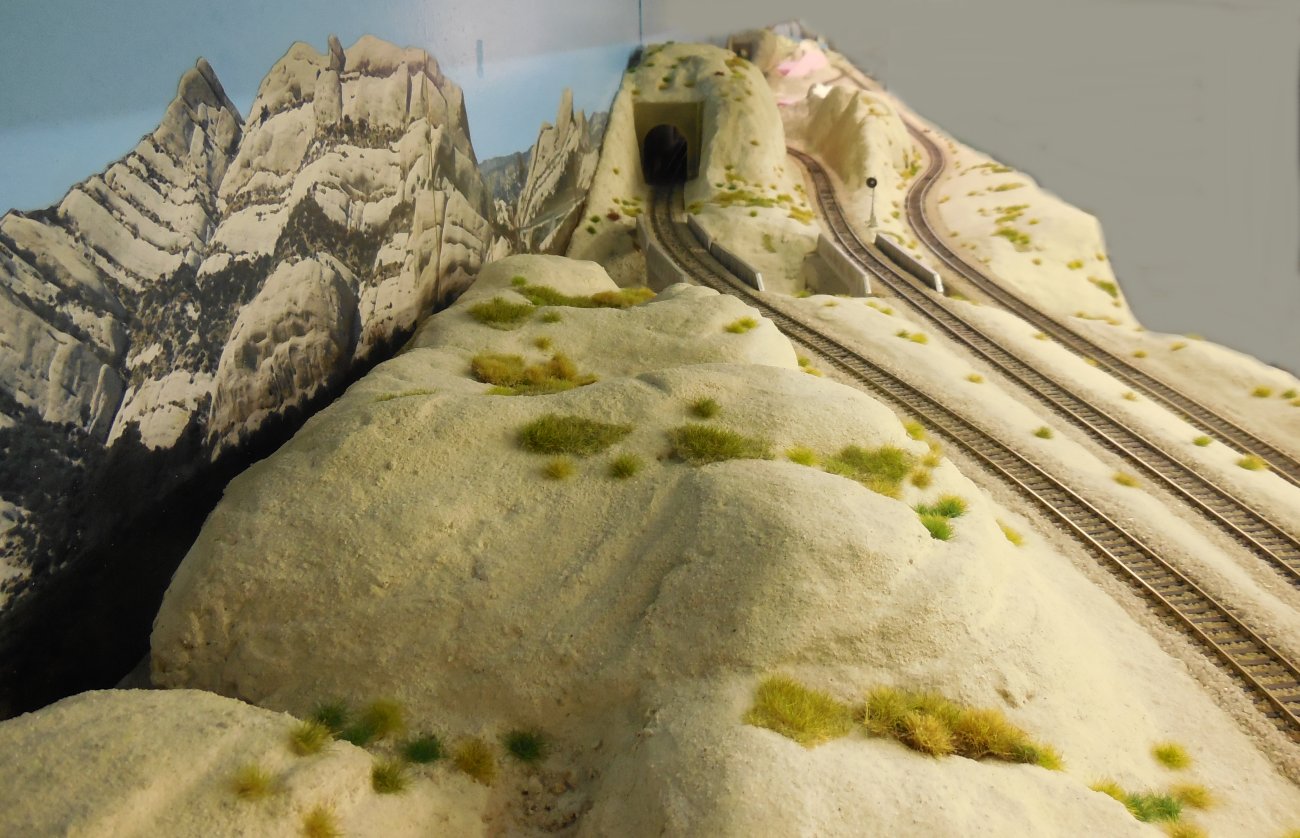

The basic landscaping structure was not changed, . . - 254 . . . just new color and sand and vegetation - 255

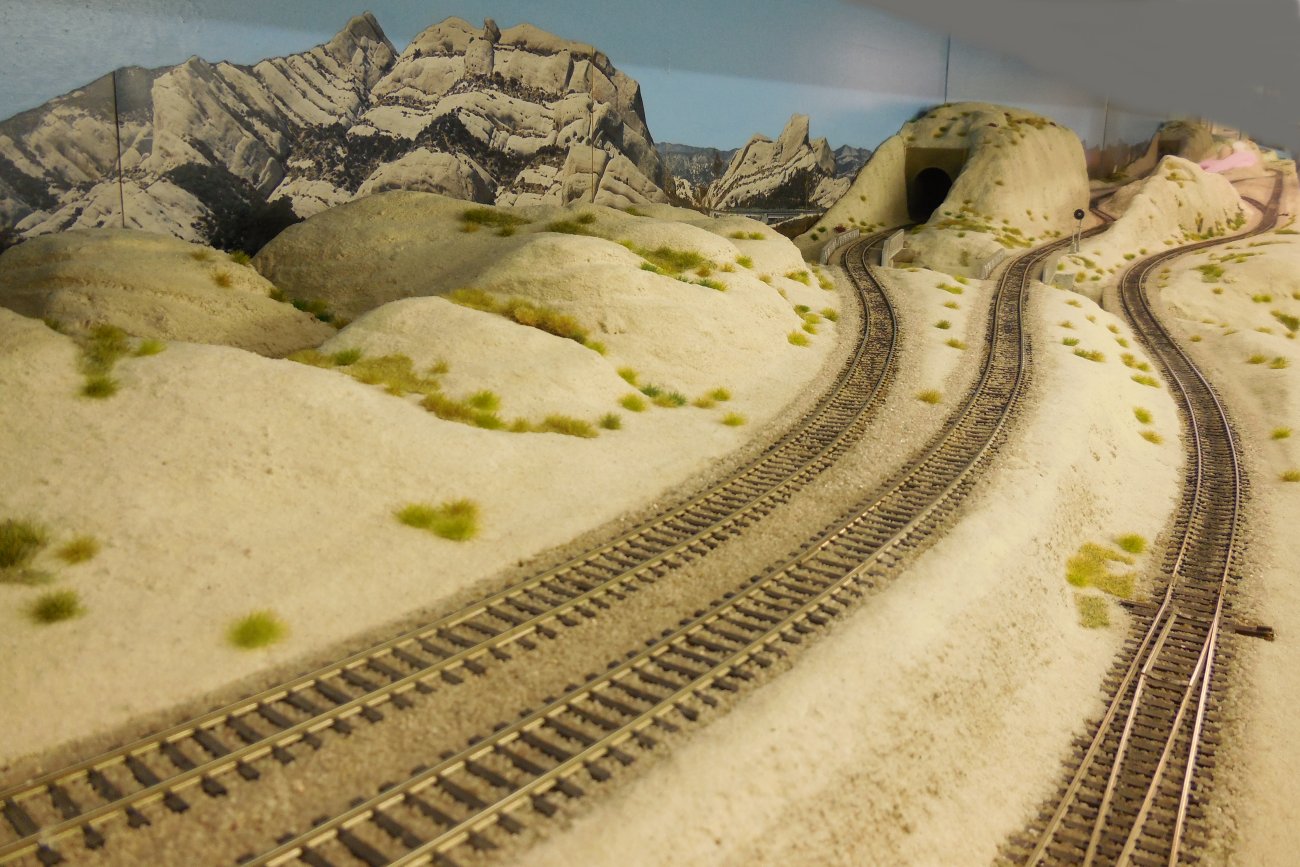

253 252
256 261

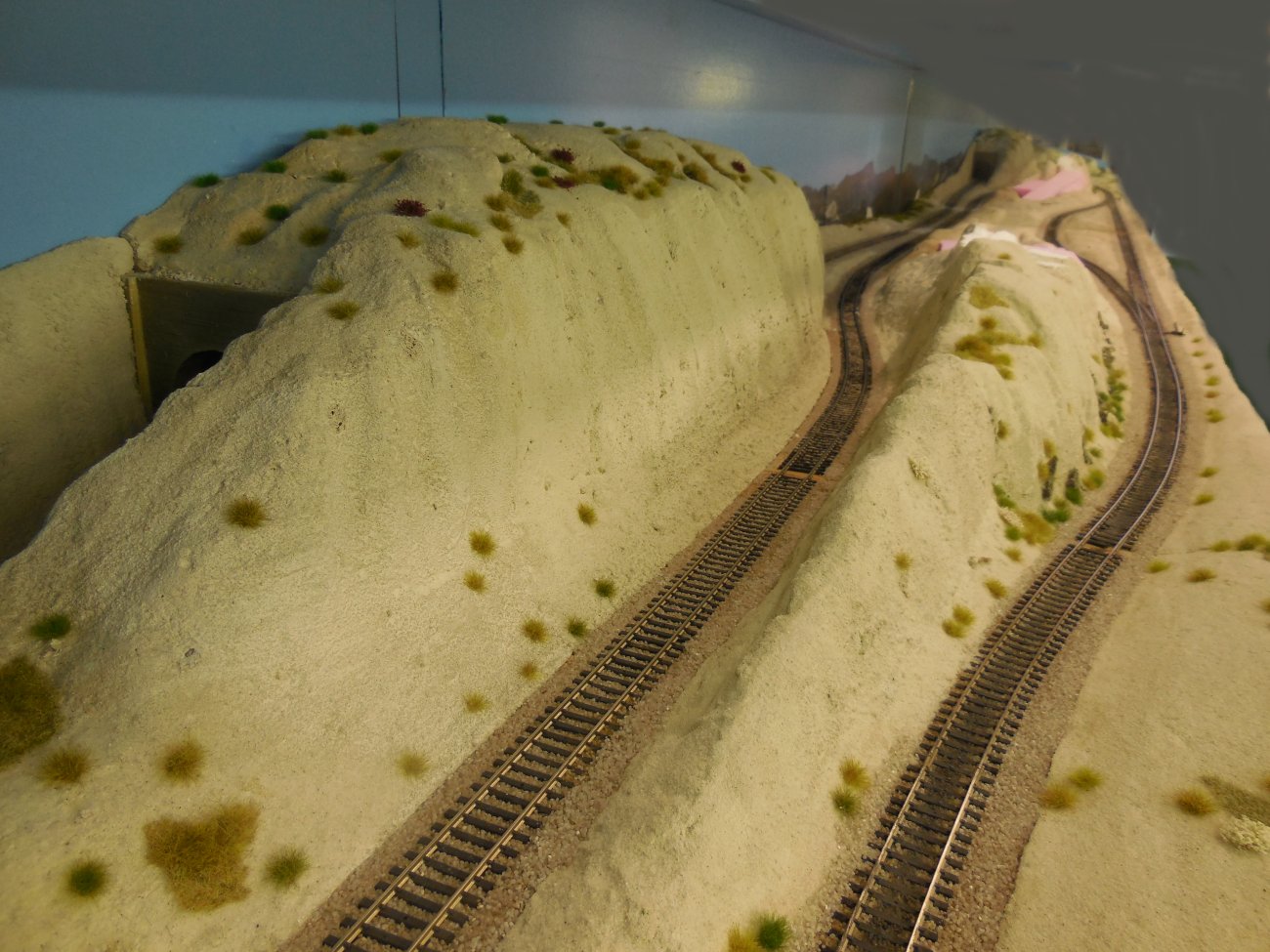

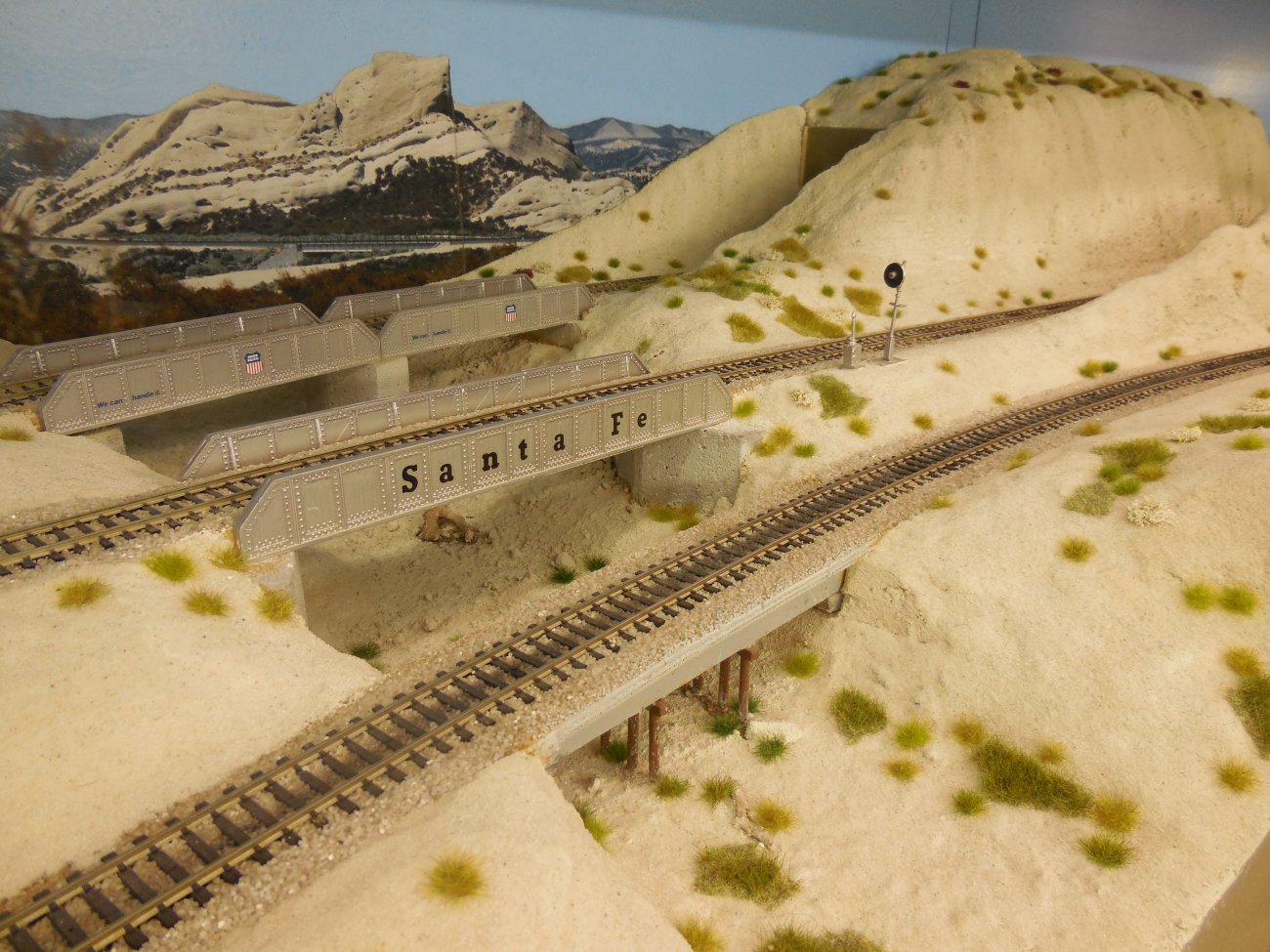

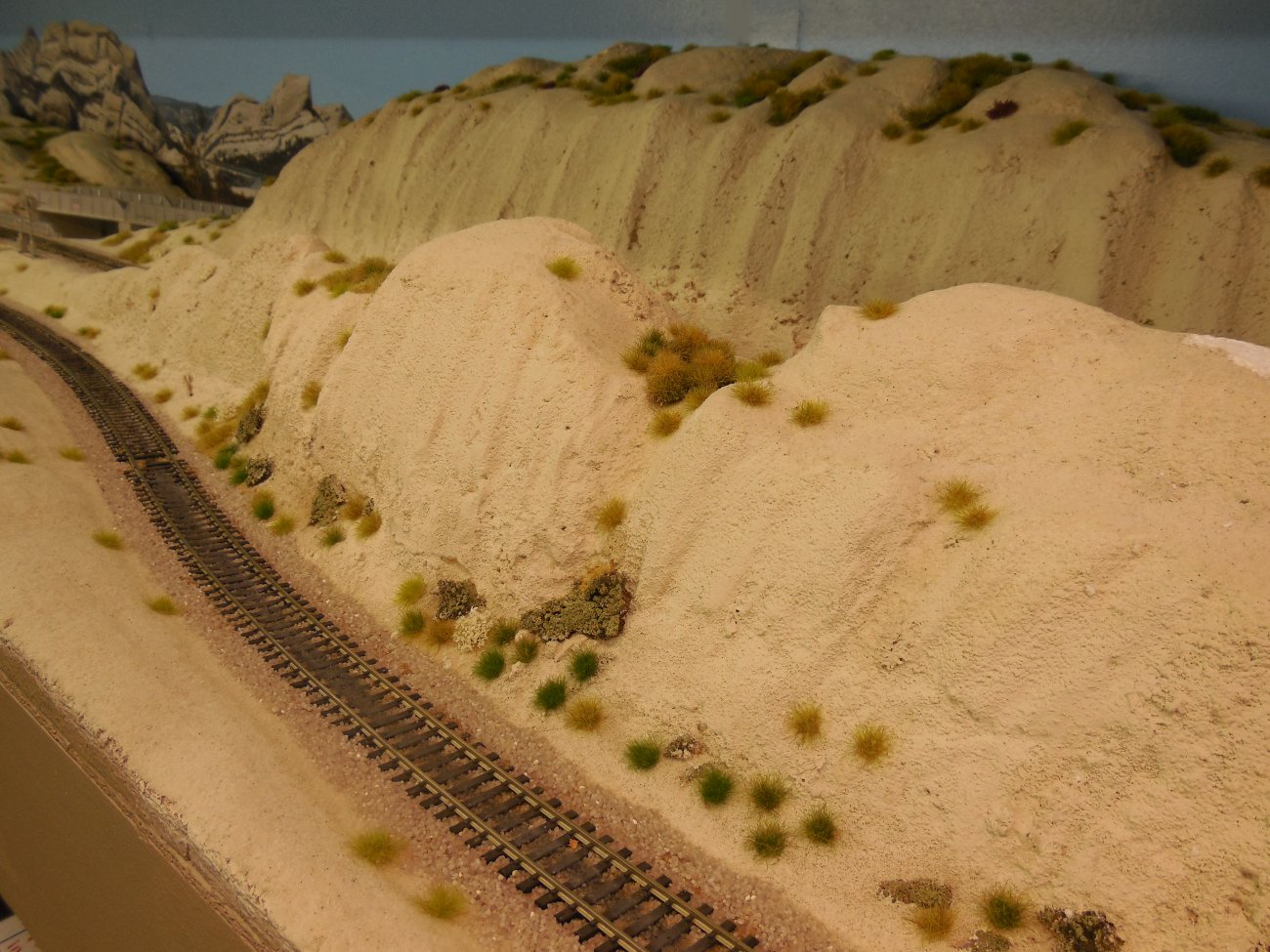

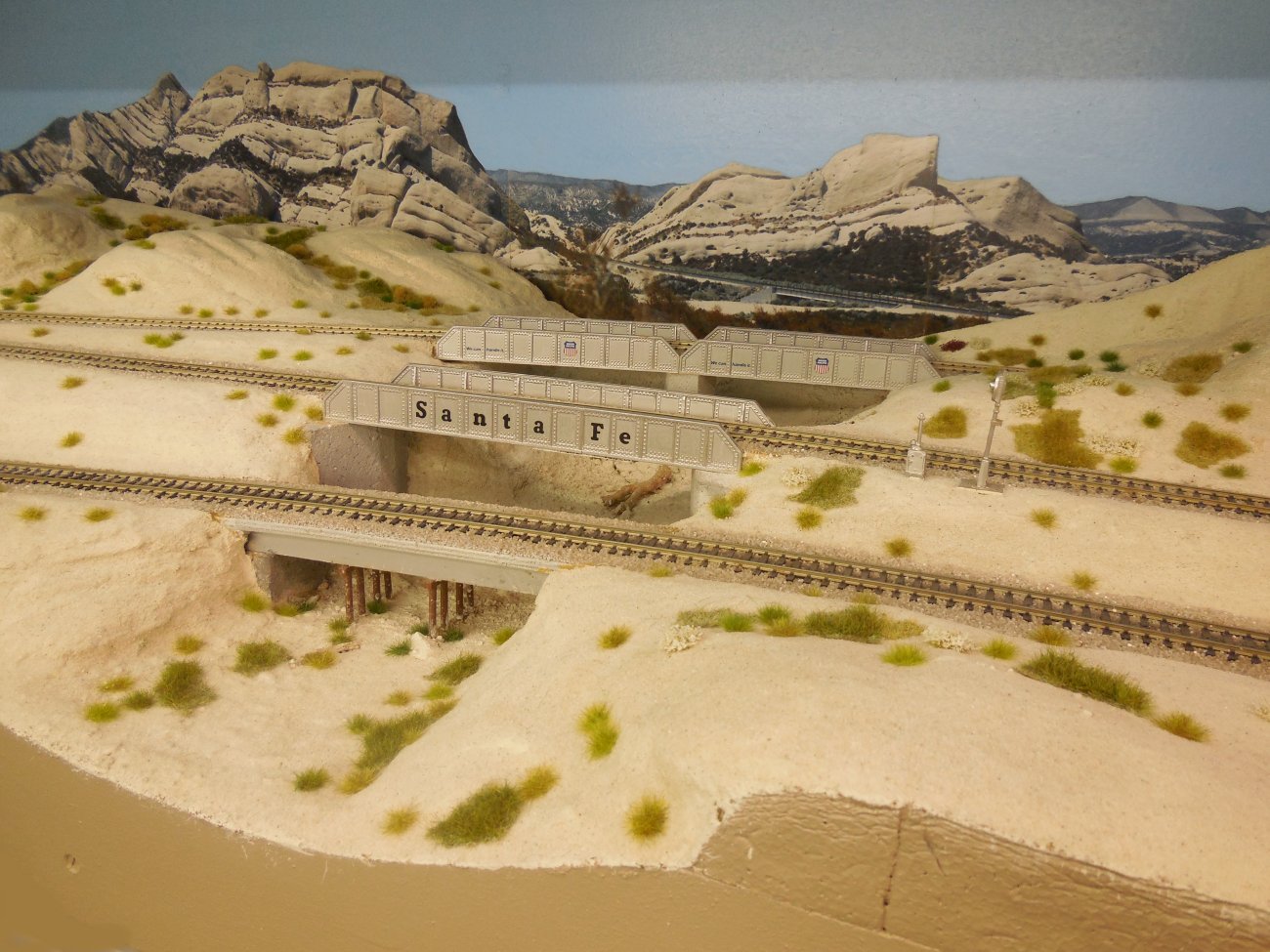

The great cut of Main Track 2 - 262 260
258 still a long way to go as it needs hill structures on both sides - 264

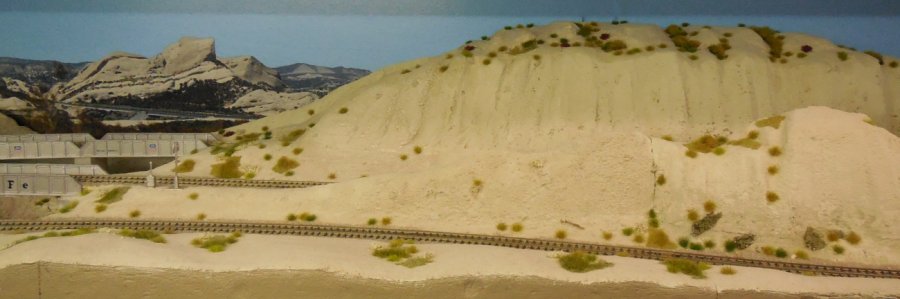

last photo of 2/26/17: middle section with cut and tunnel behind - 259

 Part 3 B (3/01/17)

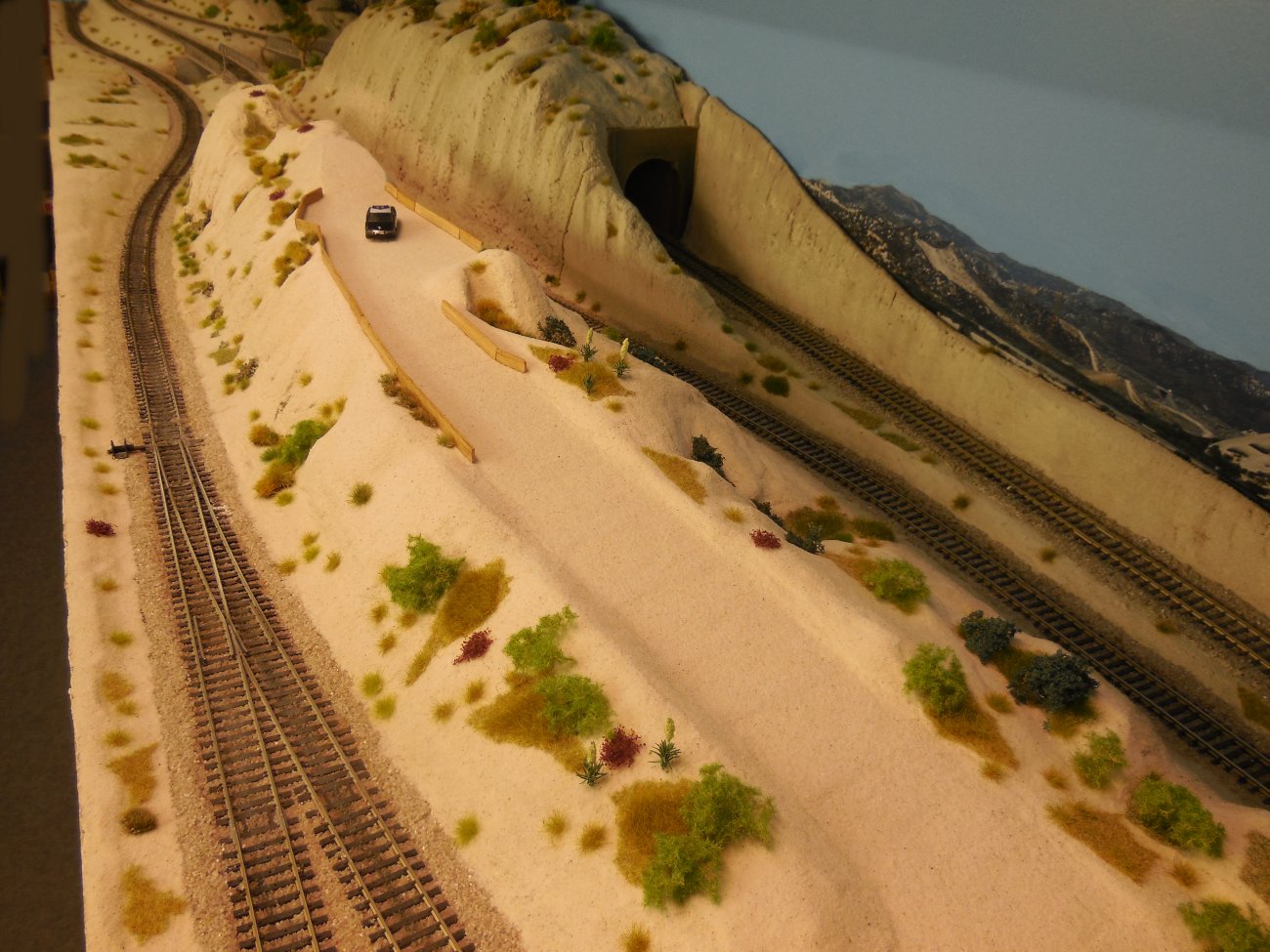

3/01/17: The right side with the dirt road and the observation deck is ready for landscaping
Ground cover is all the way light beige sand which I found in a local "Coop Bau and Hobby Center". It has the right color and the sand is fine enough for HO scale scenery. I used a 50/50 mix of white glue and water and was appling it with a brush and puoring the sand over it, step by step. You cannot make too much at once otherwise the glue will start to dry and the sand will not hold on the ground.

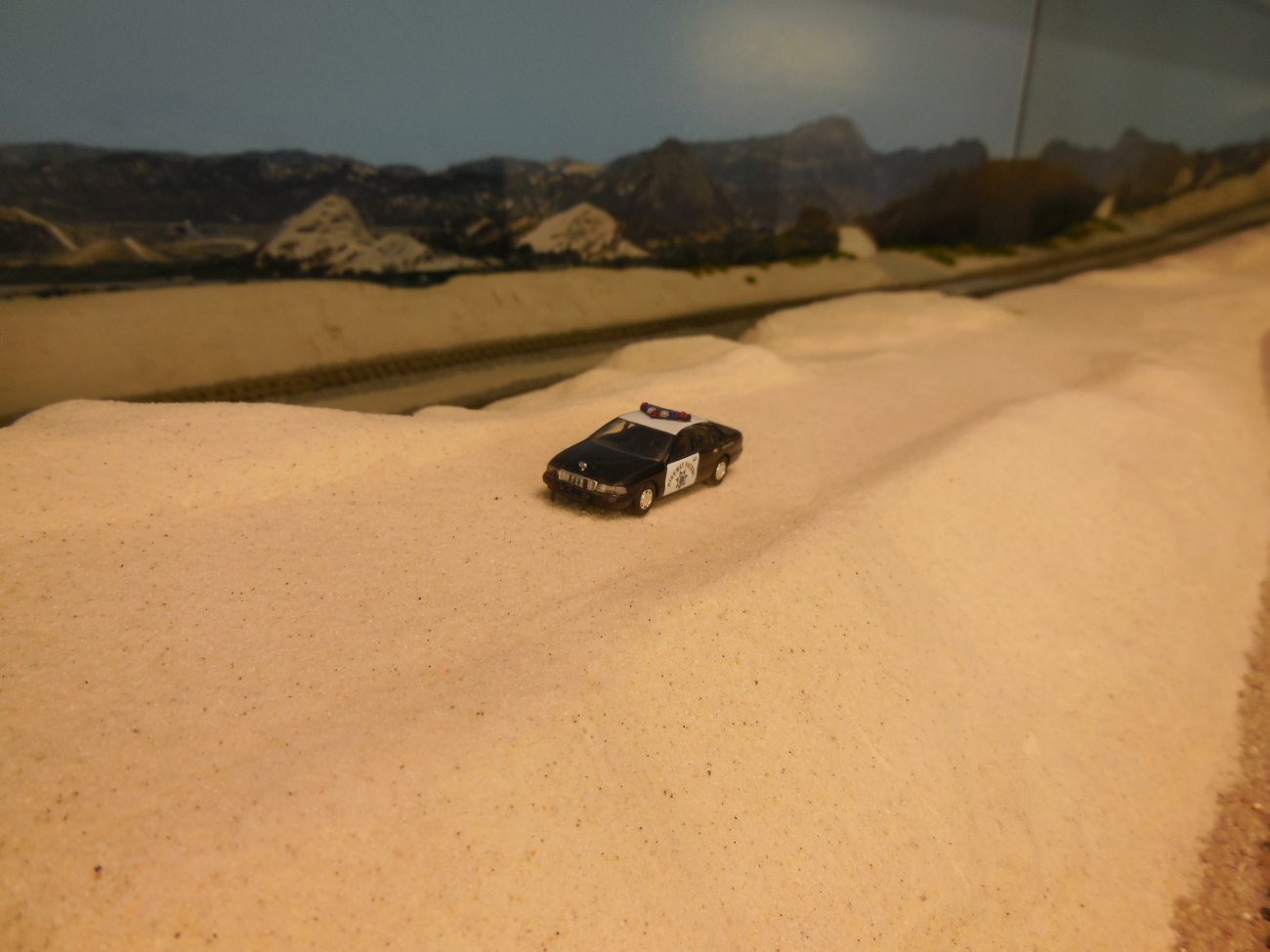

3/01/17: It looks as this dirt road and the platform would have been here for a long time !! - 265

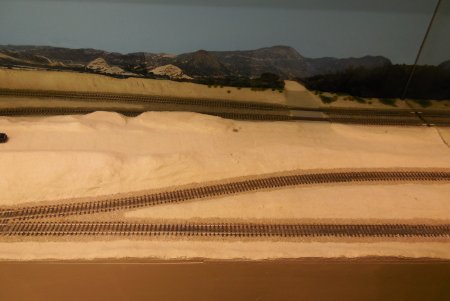

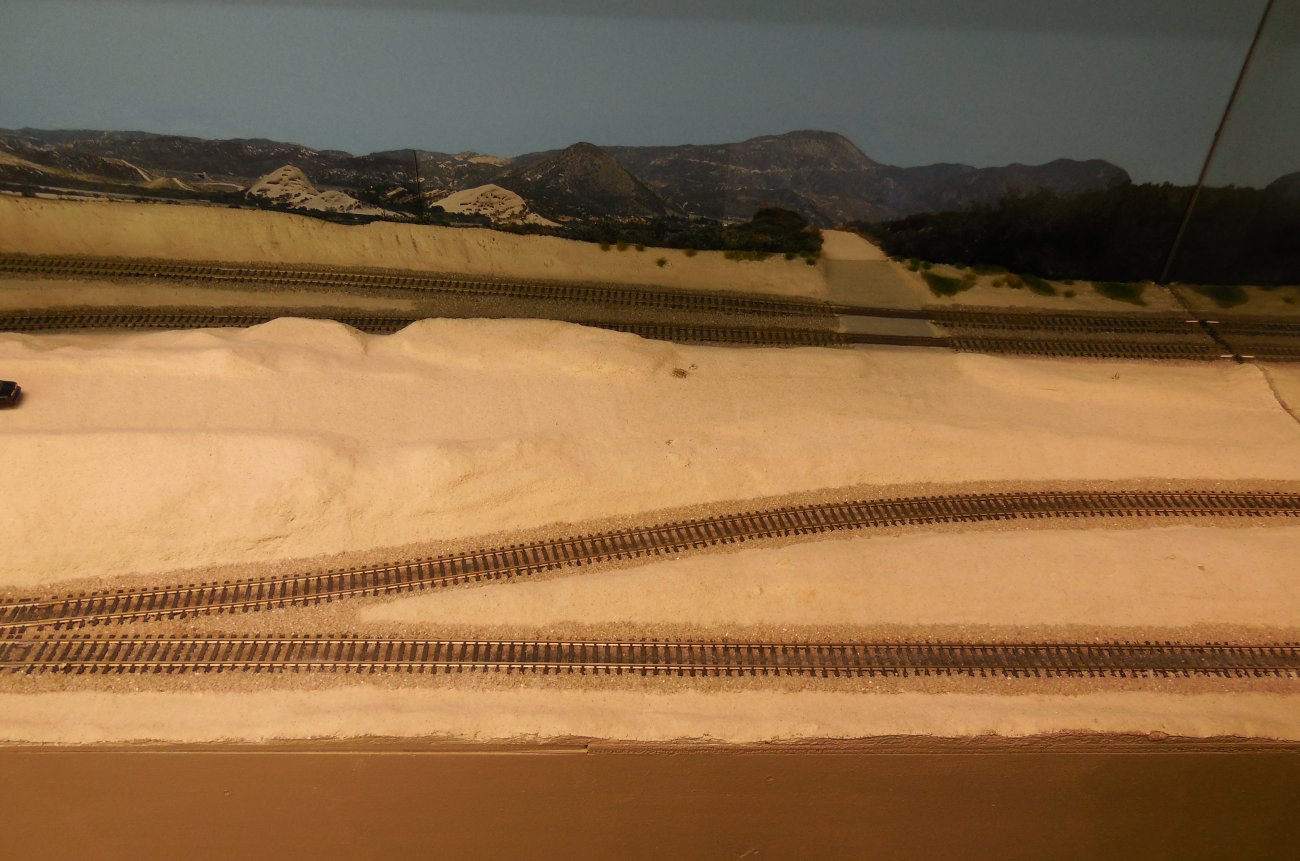

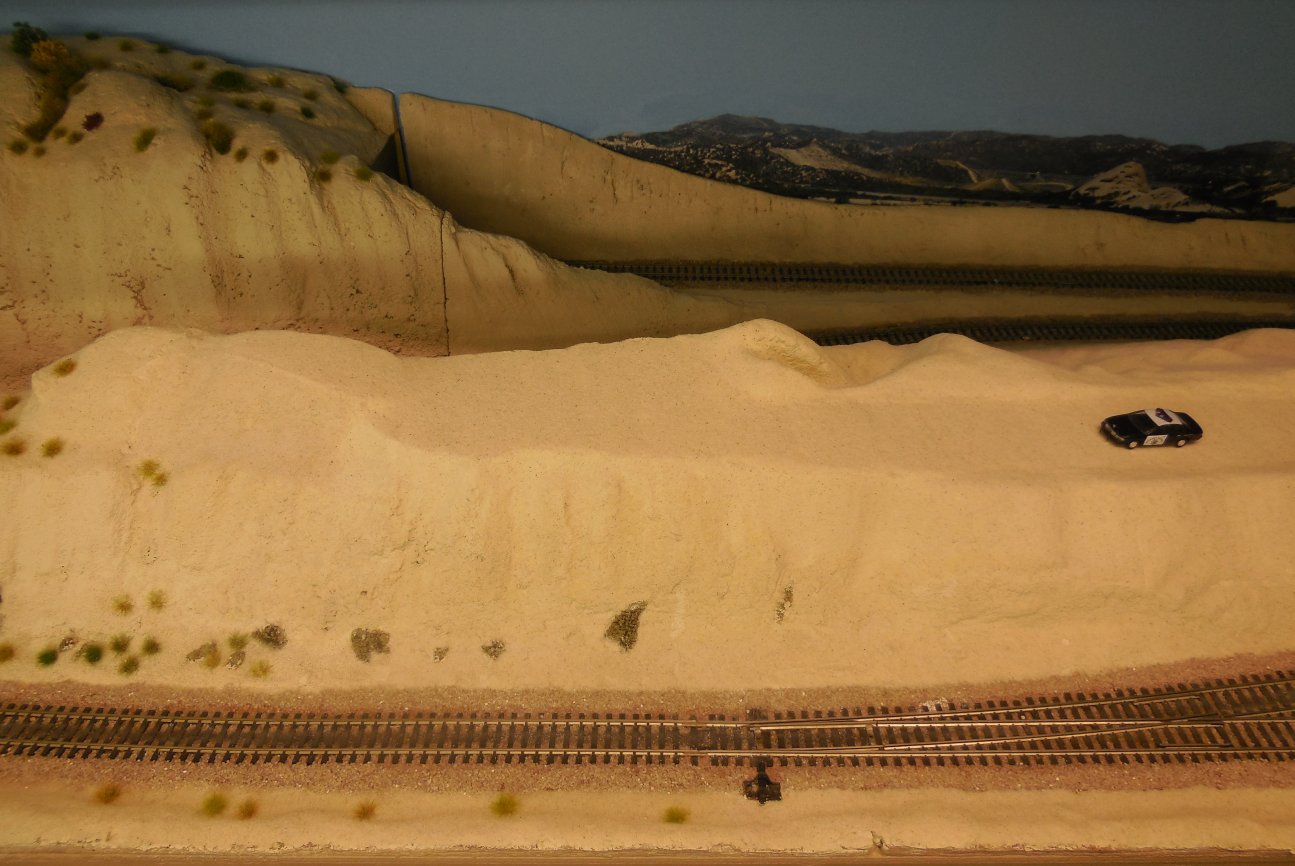

267 269

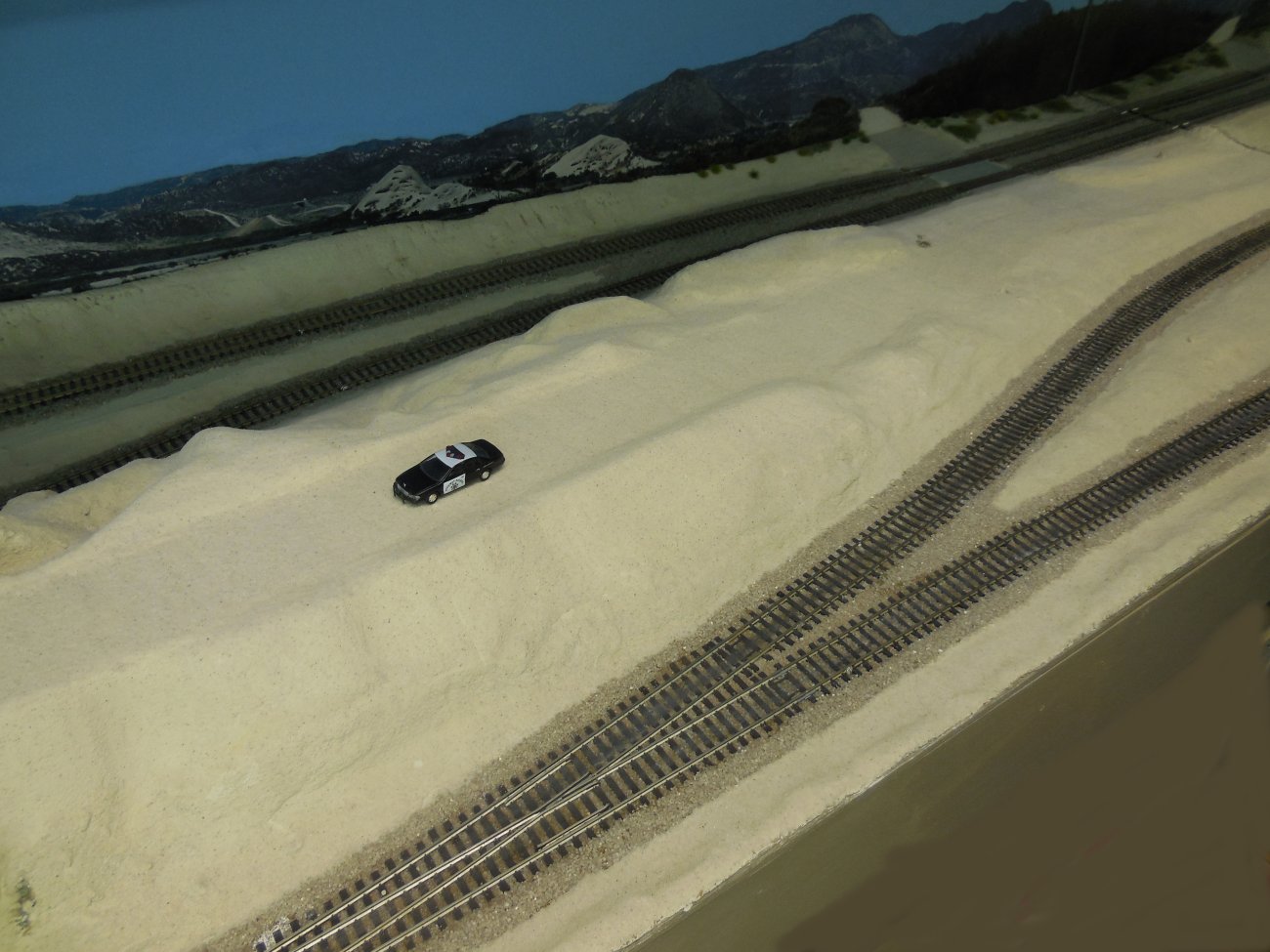

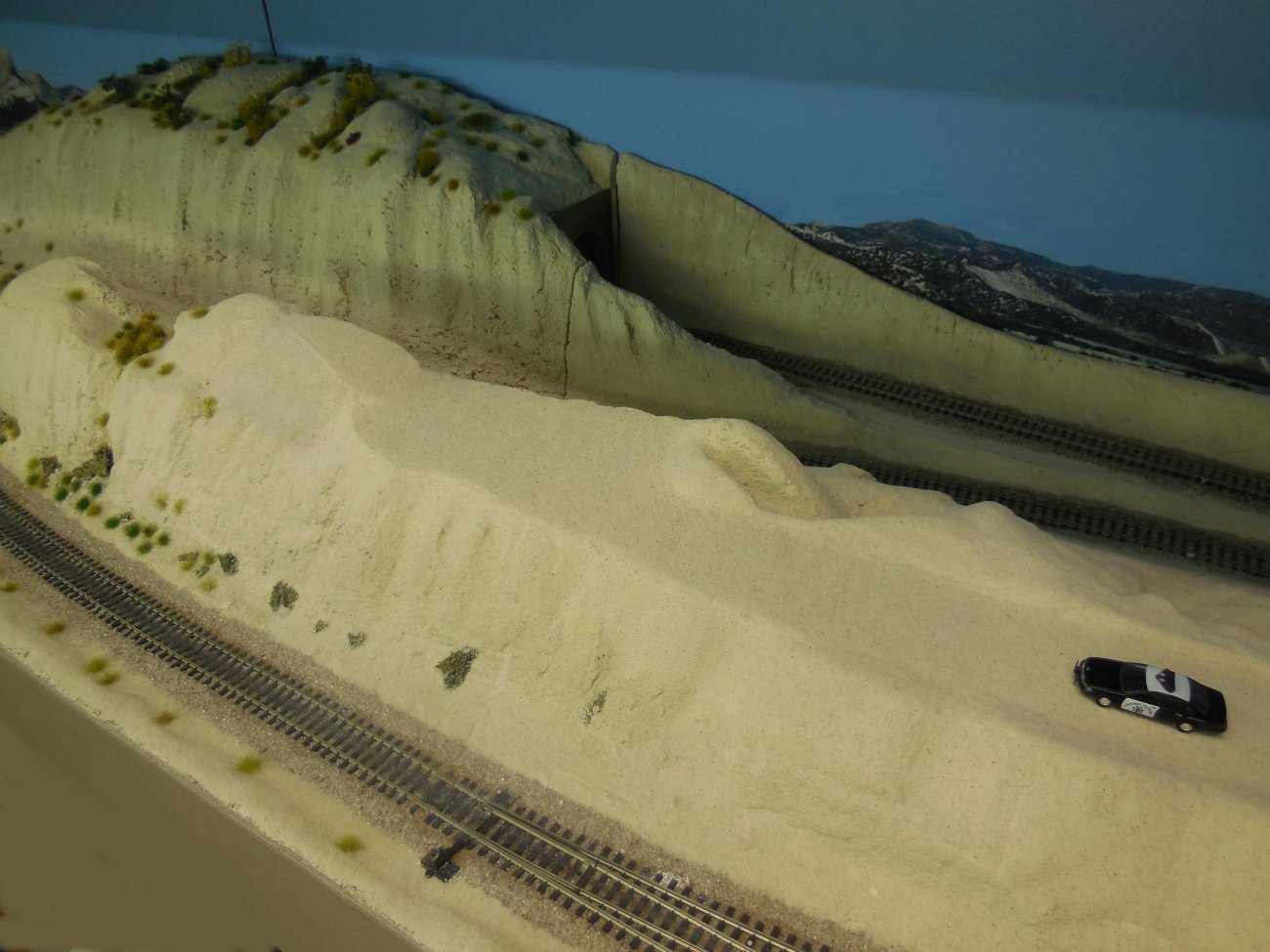

suddenly, the digital camera decided to . . . - 271 . . . change the white balance value w/o asking me - 270

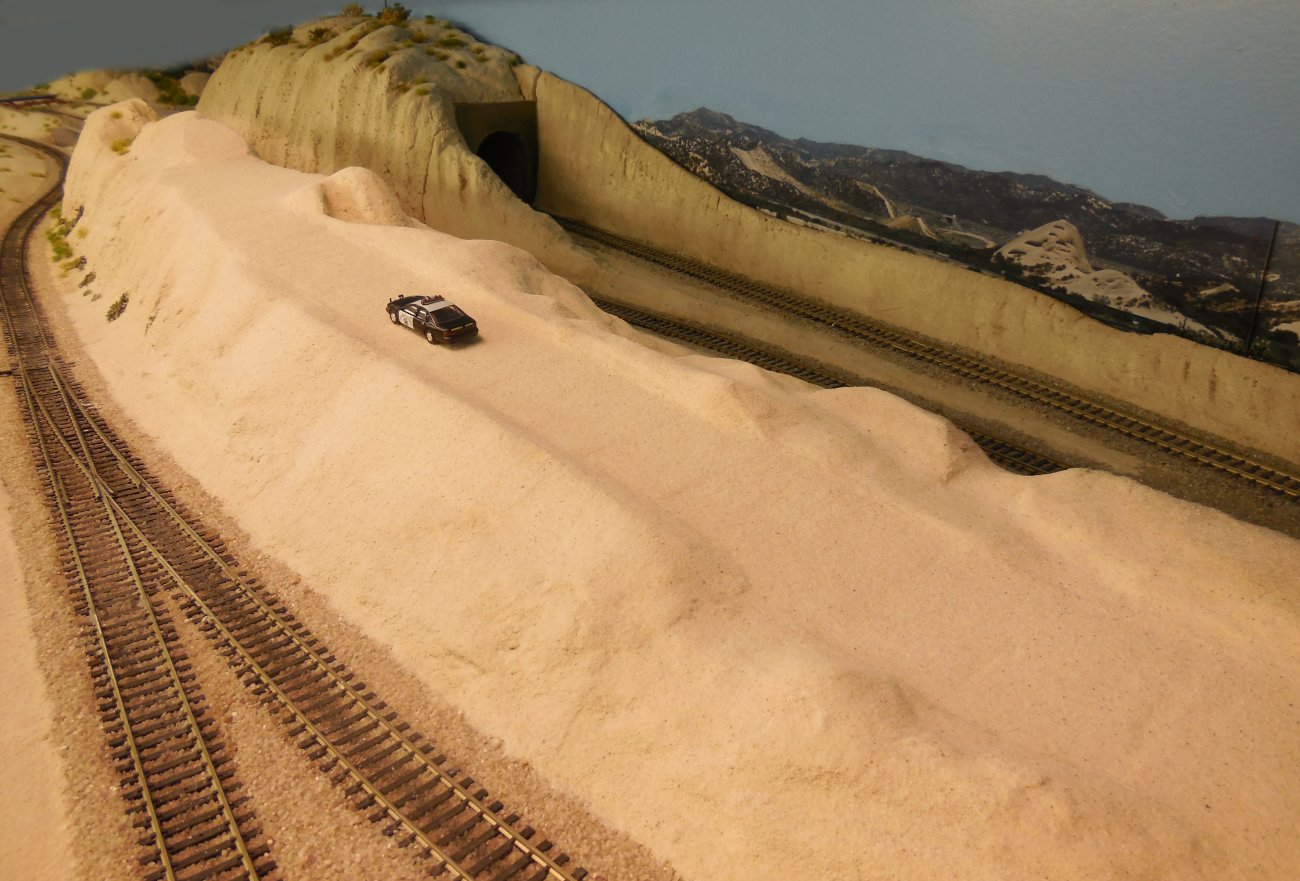

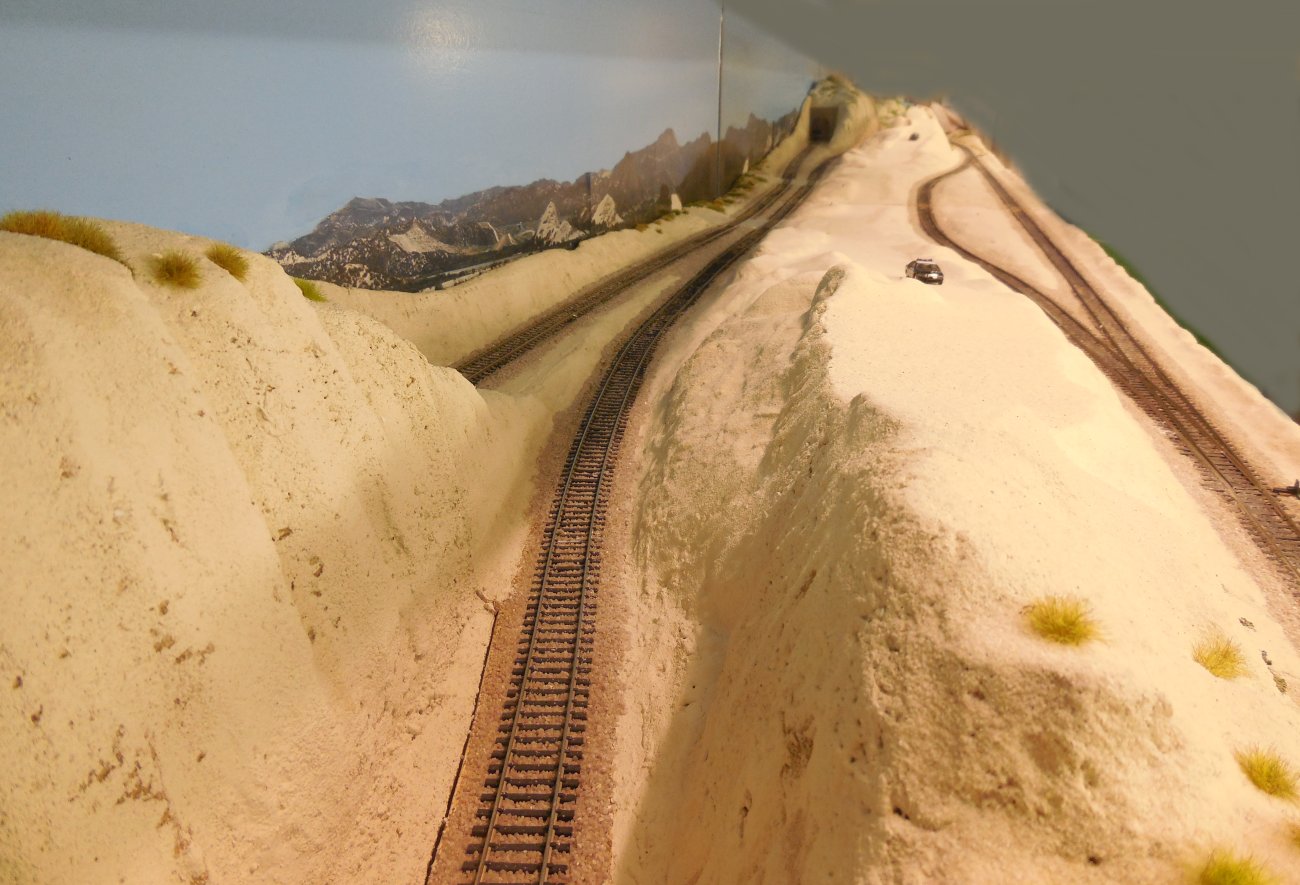

279 no, there is no other tunnel in the distance, but a mirror - 273

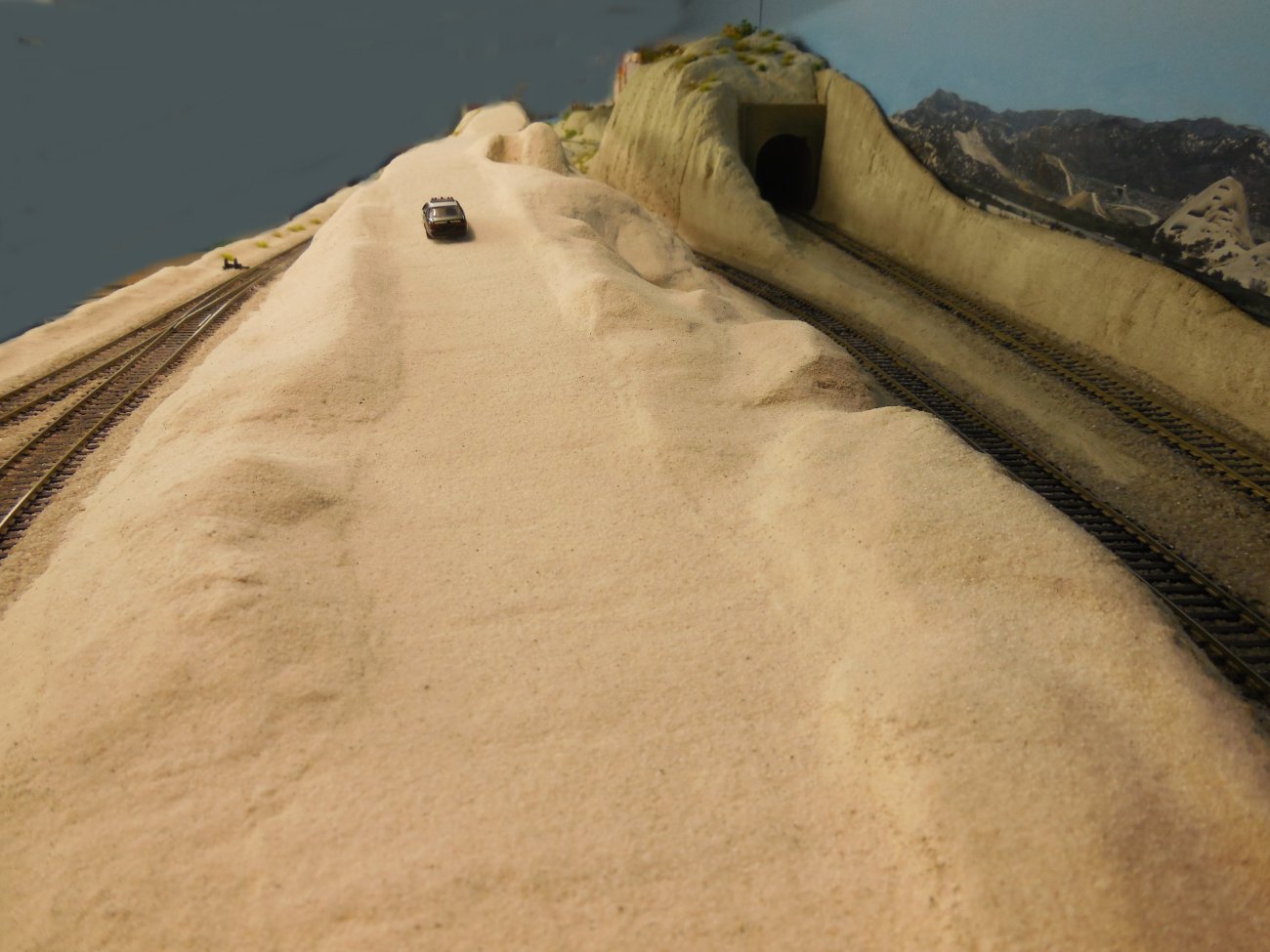

280 286

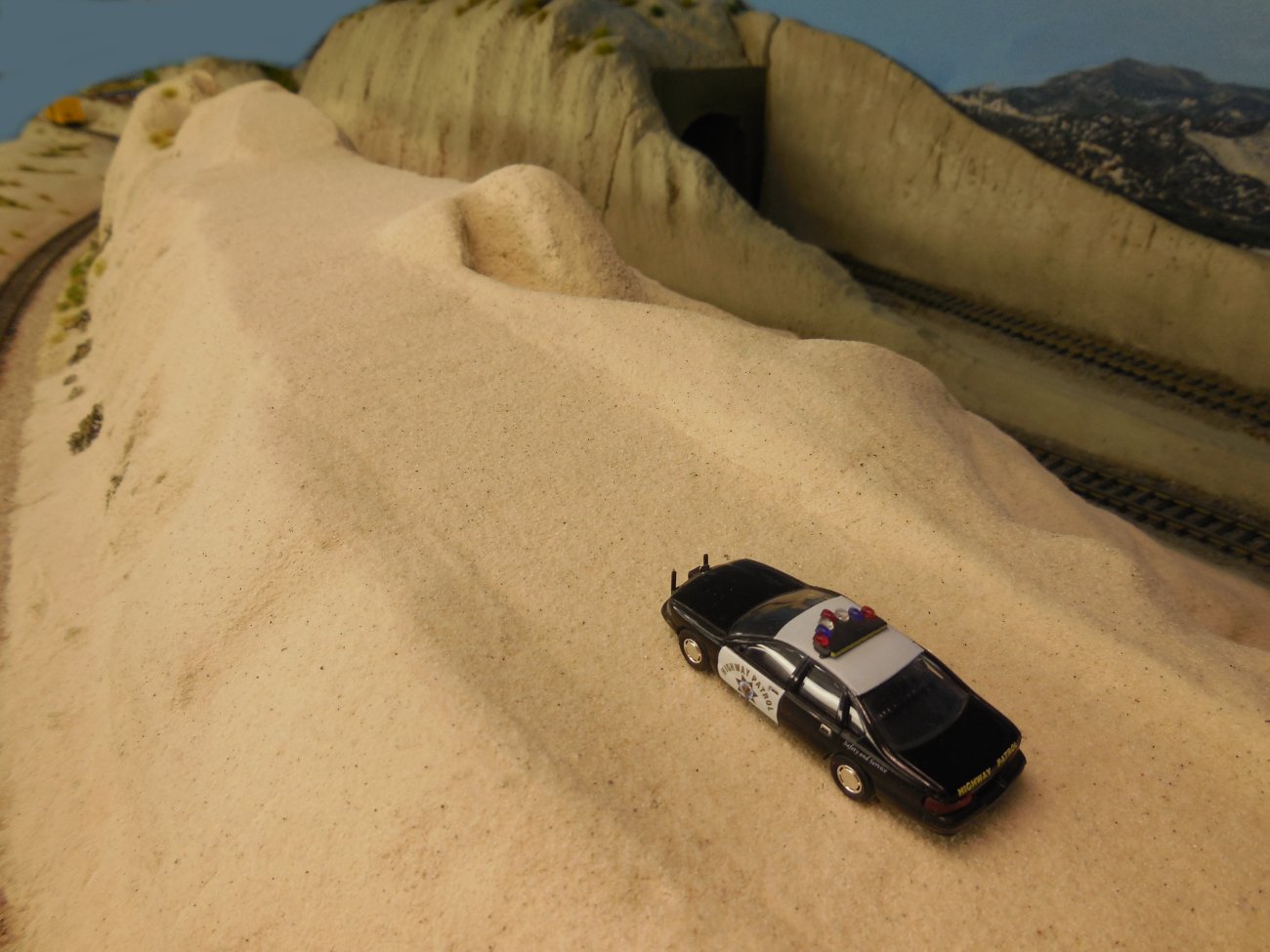

there are no railings around the platform, yet - 278 276

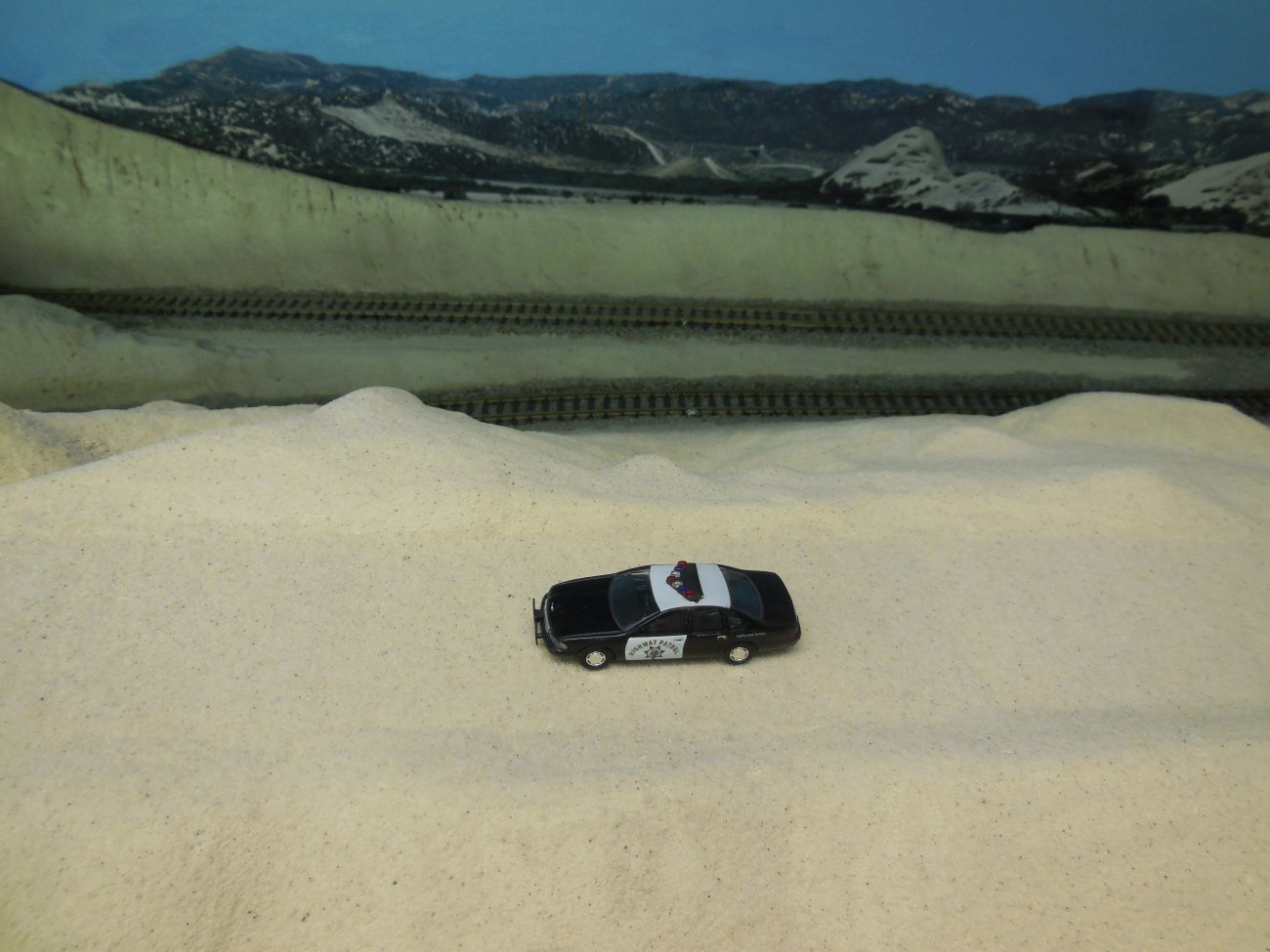

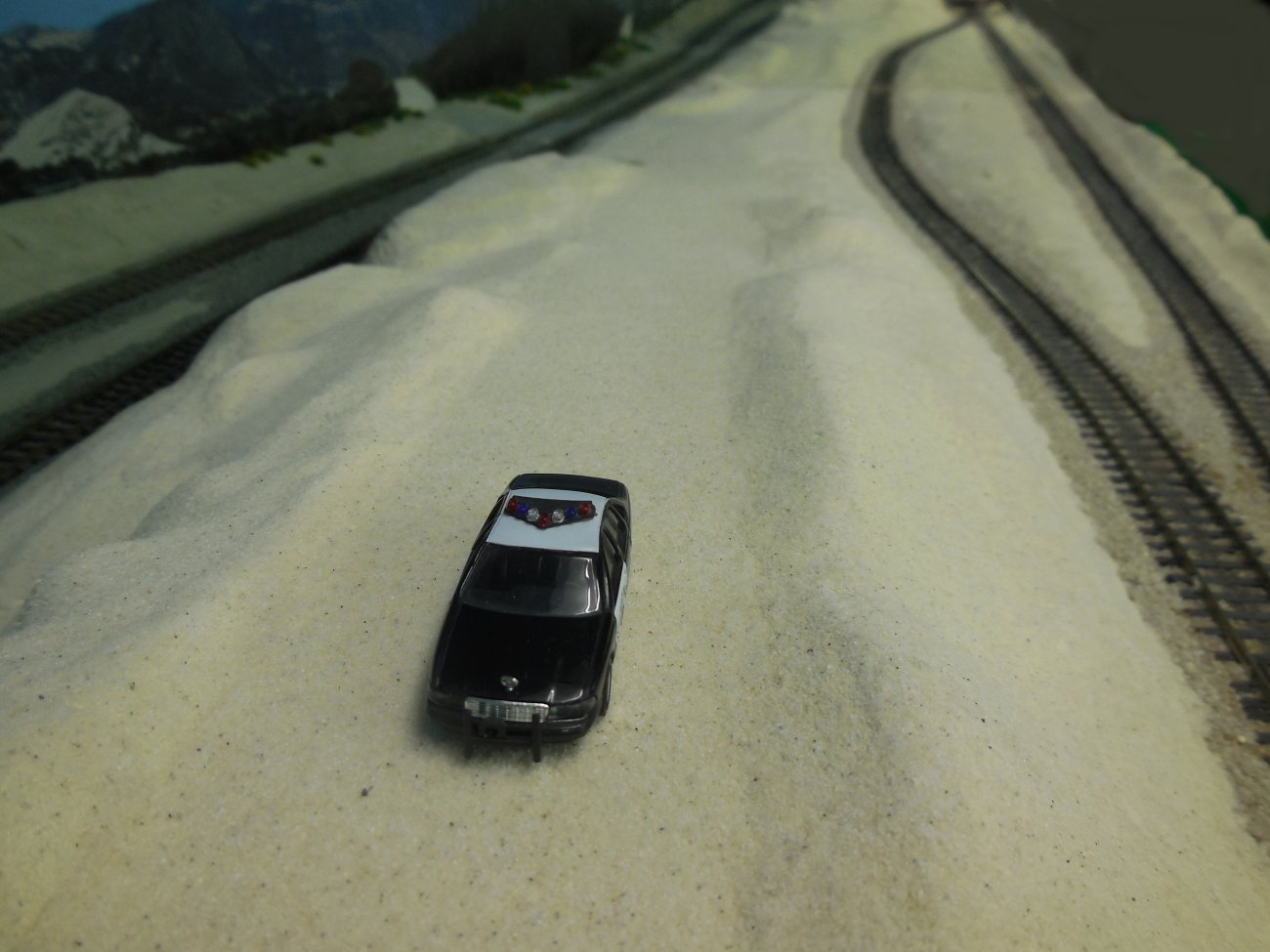

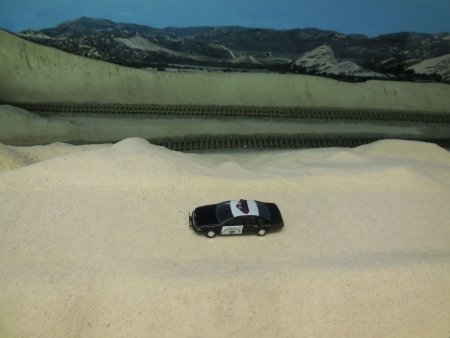

well, once again the camera was going crazy - 285 277

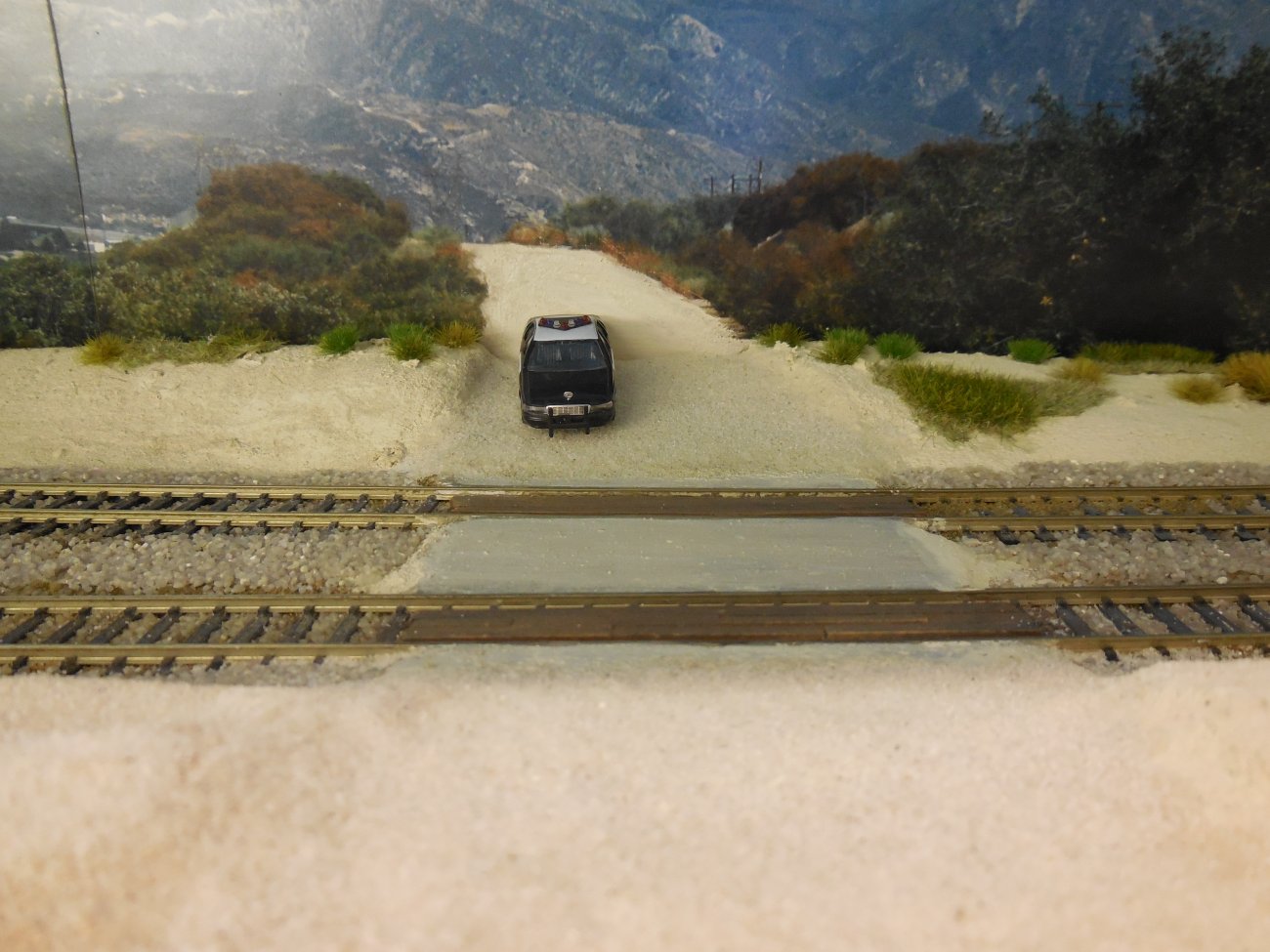

288 it looks like the road continues - 289

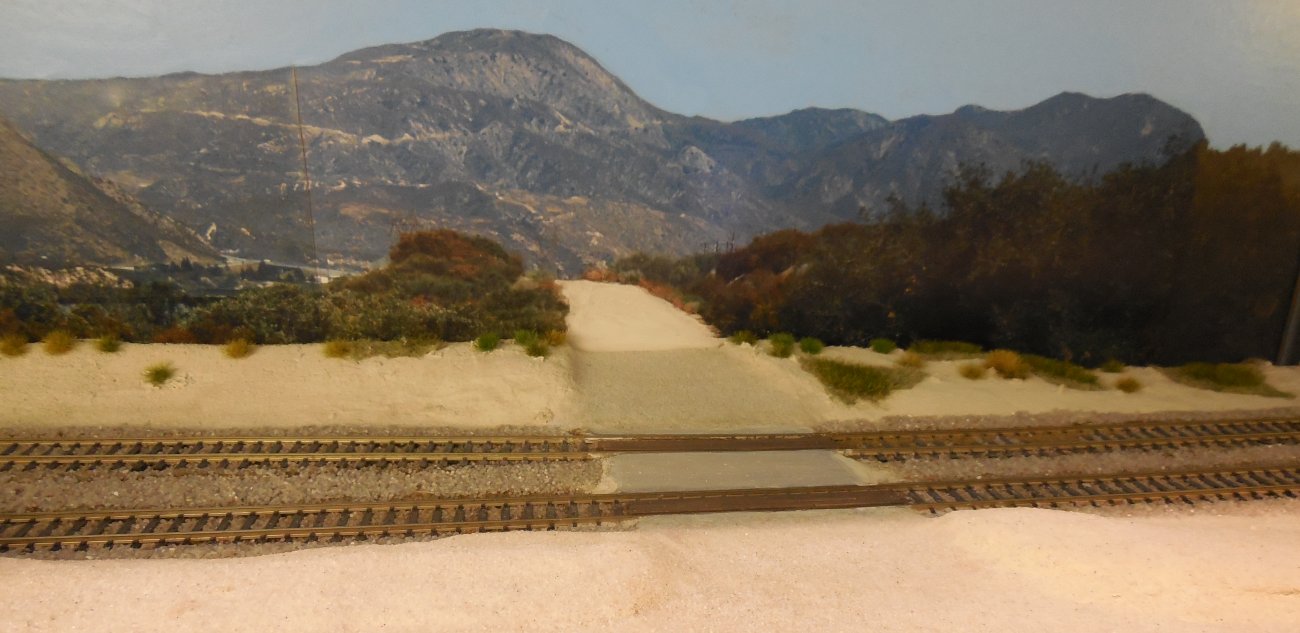

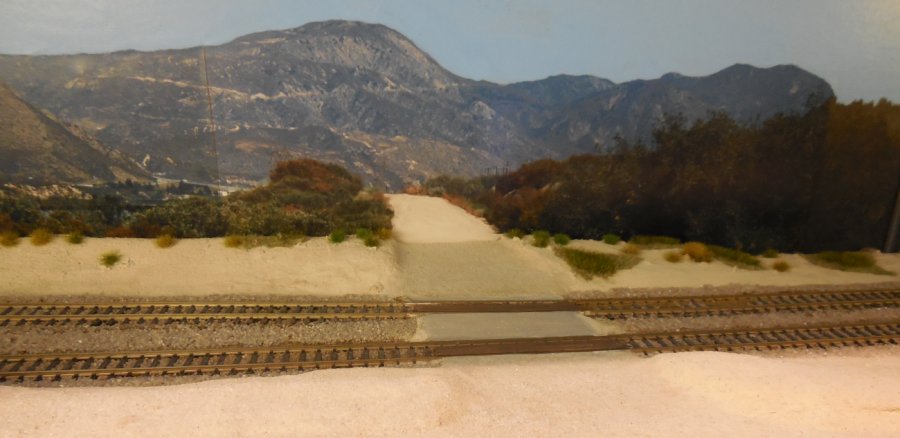

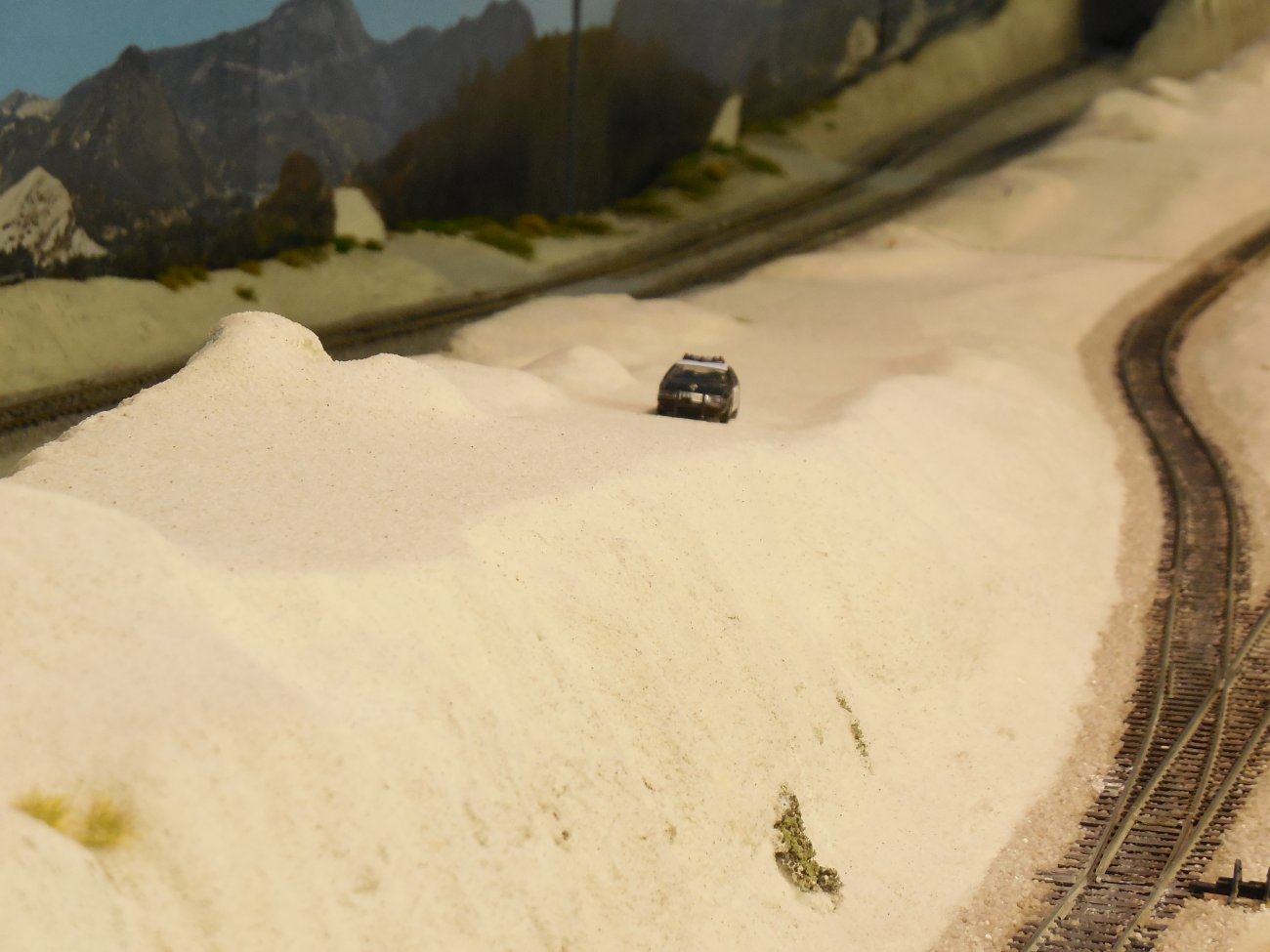

In real life, this dirt road is USFS 2N89 coming from Lone Pine Canyon Road and going to Sullivans Curve - 282

 Part 4

Part 4:  Landscaping with vegetation is finished
Lots of grass tufts have been "planted" and Melinda made all the little bushes with a lot of patience. On top, a few blooming Yuccas and some Joshua Trees completed the Mojave Desert Scene. At the end I can tell, I am very pleased with the result and it came to a new level.

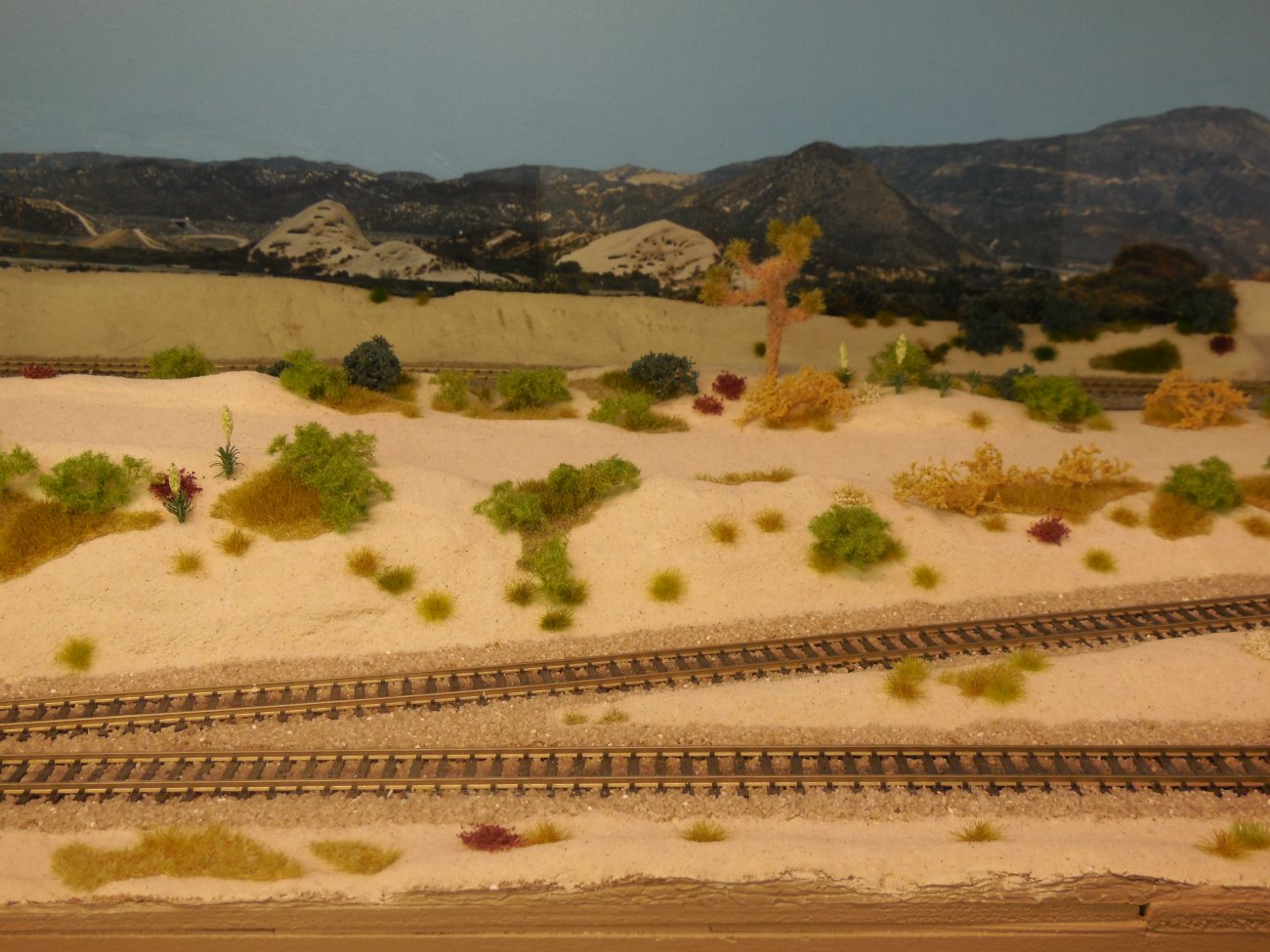

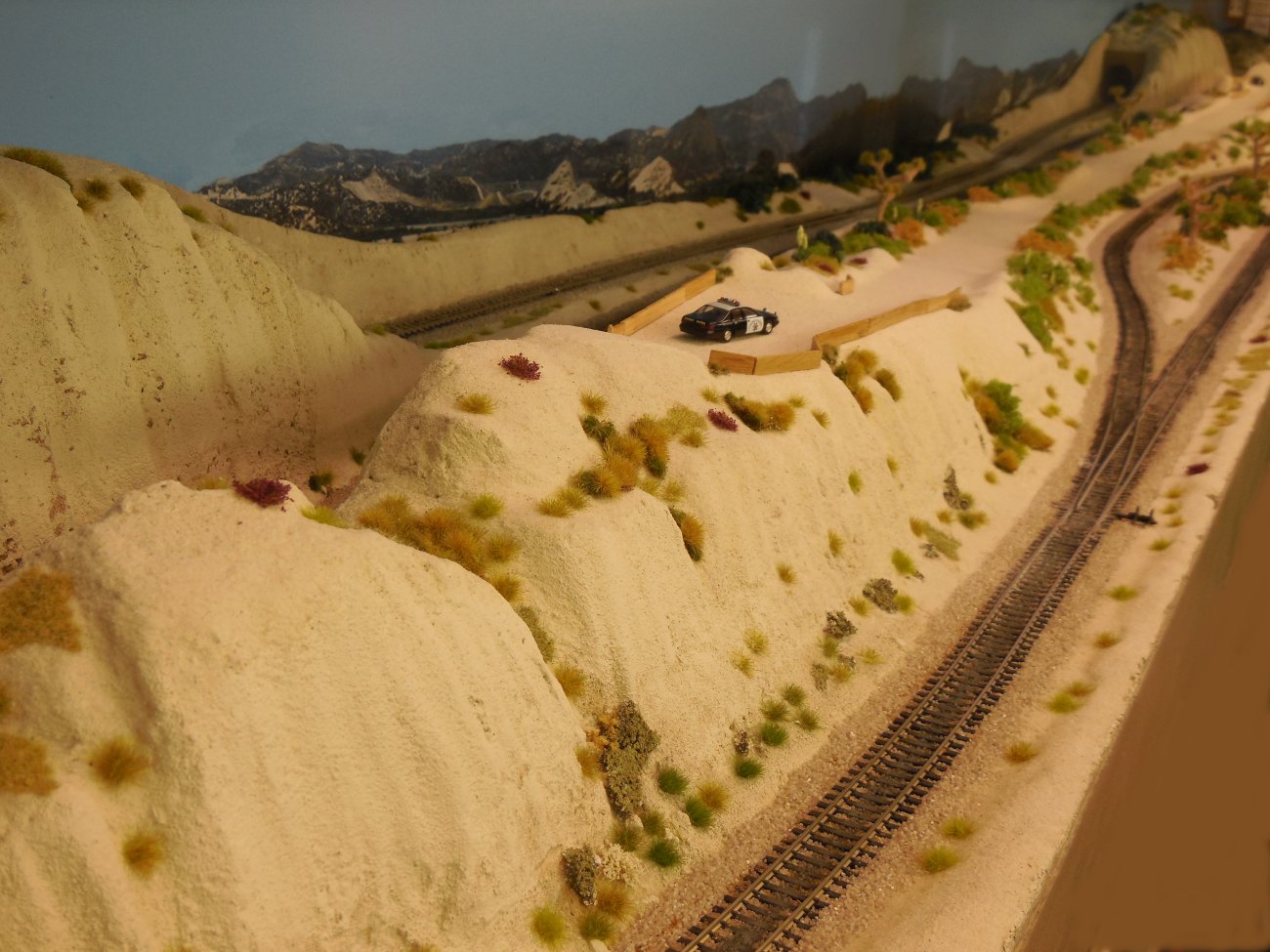

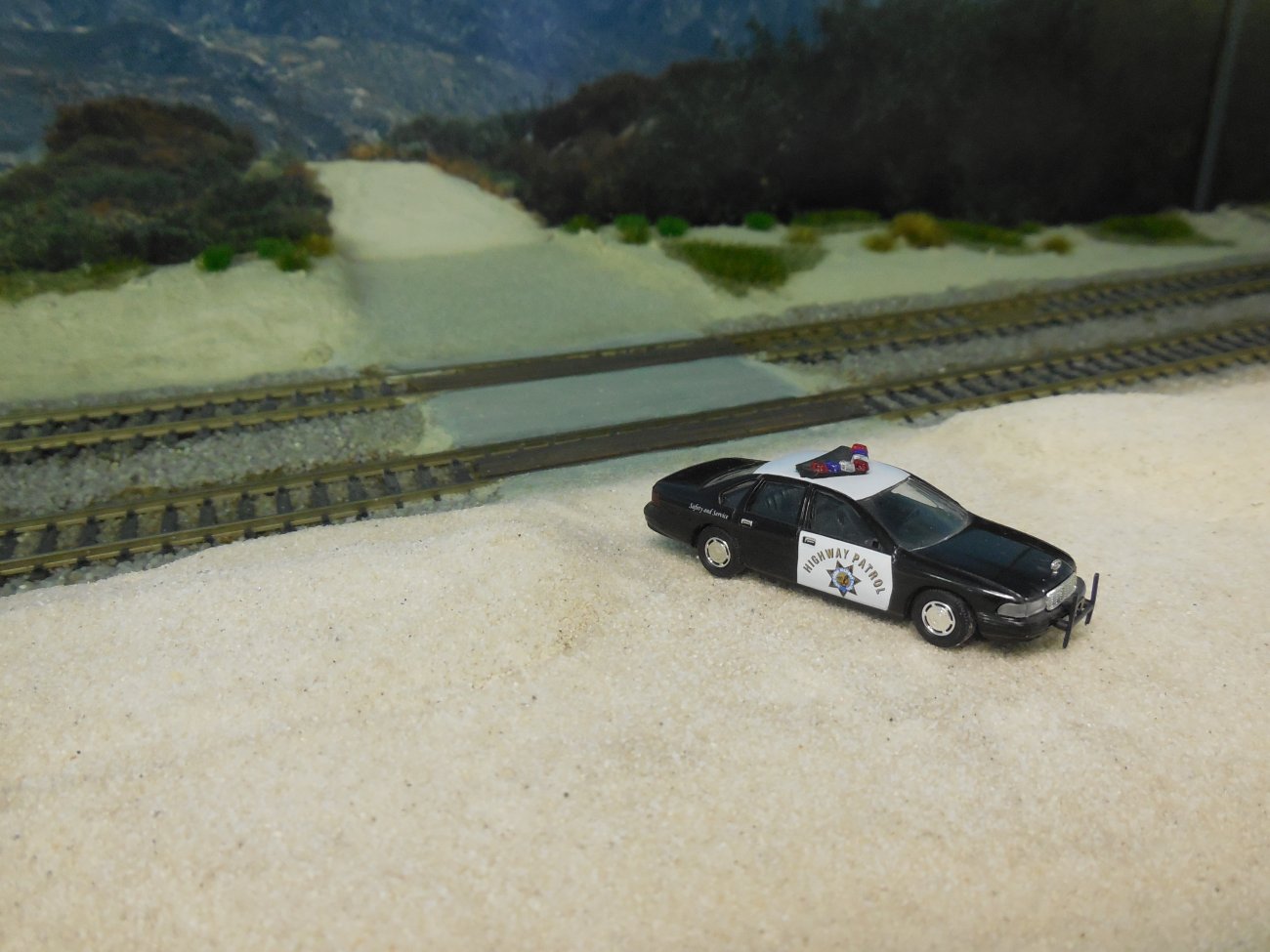

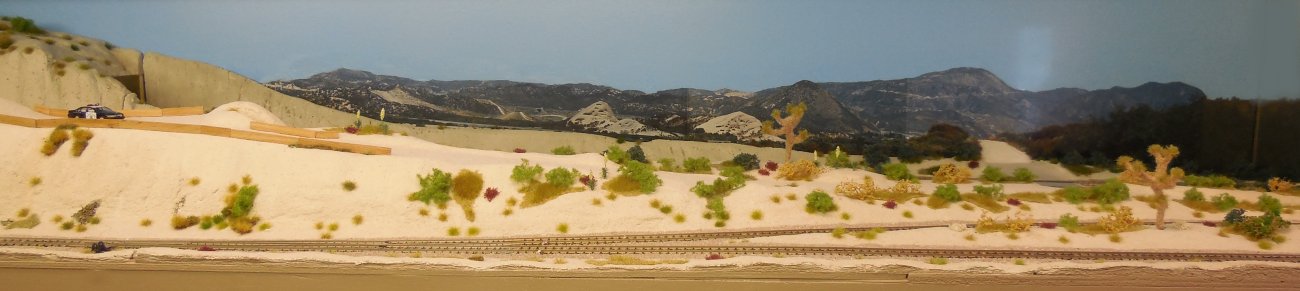

3/03/17: Right side with new access road to the overlook - 290

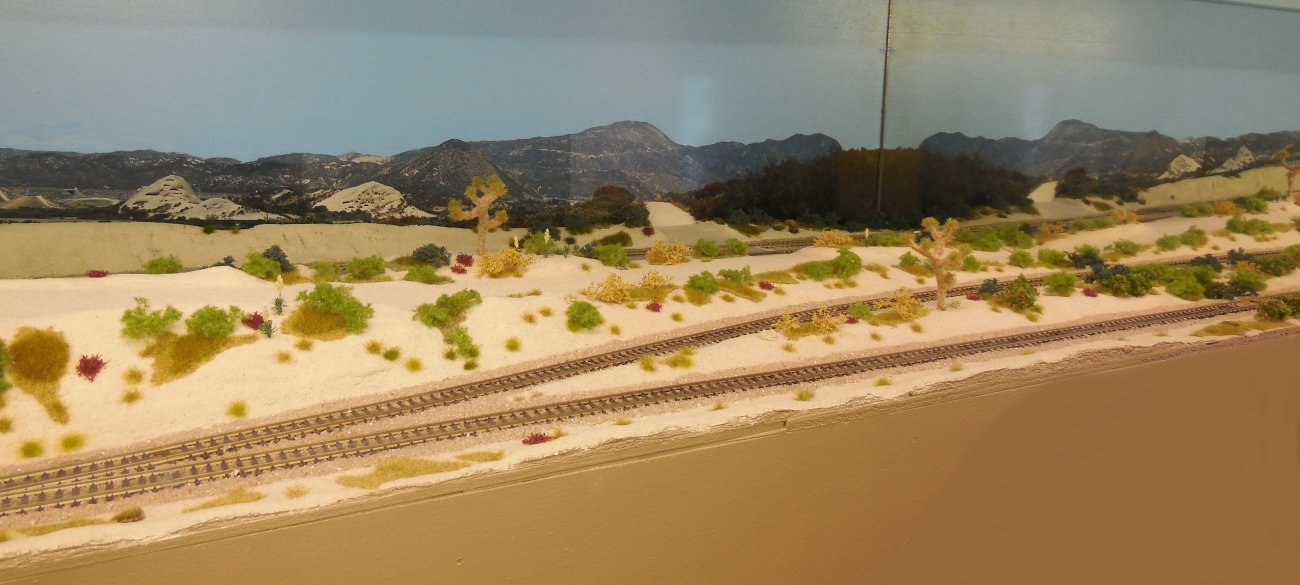

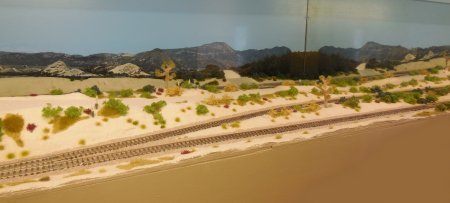

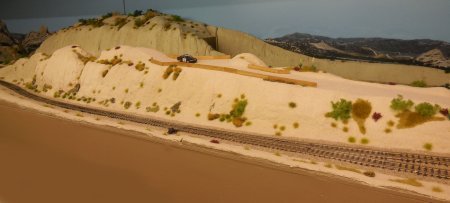

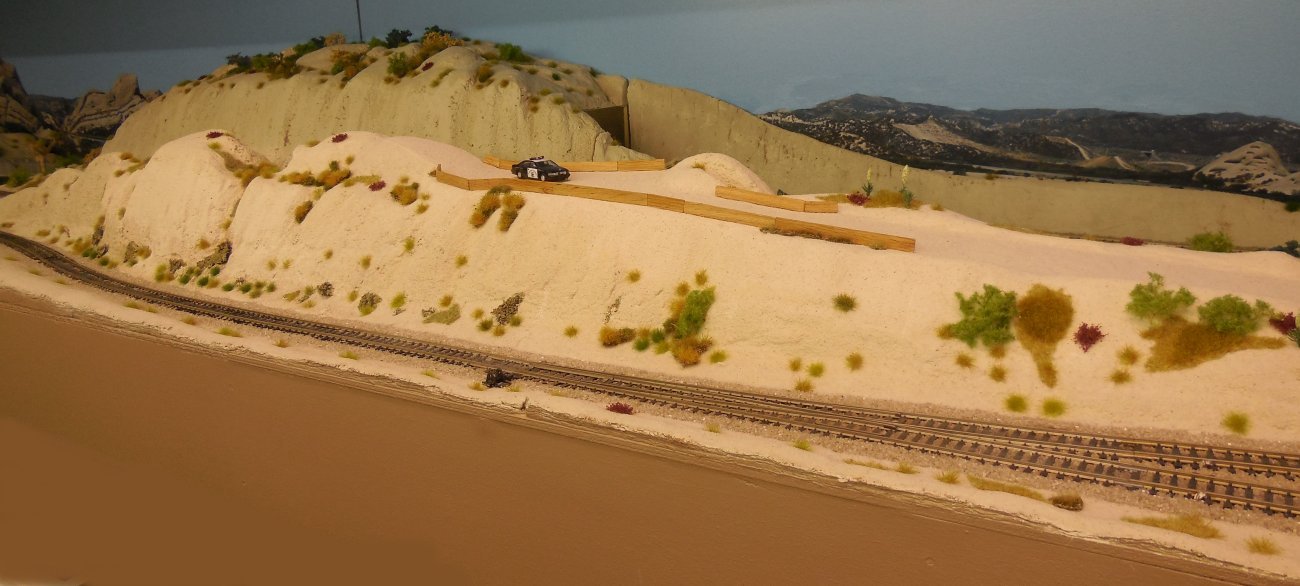

292 again, the mirror makes the scene endless (at right) - 291

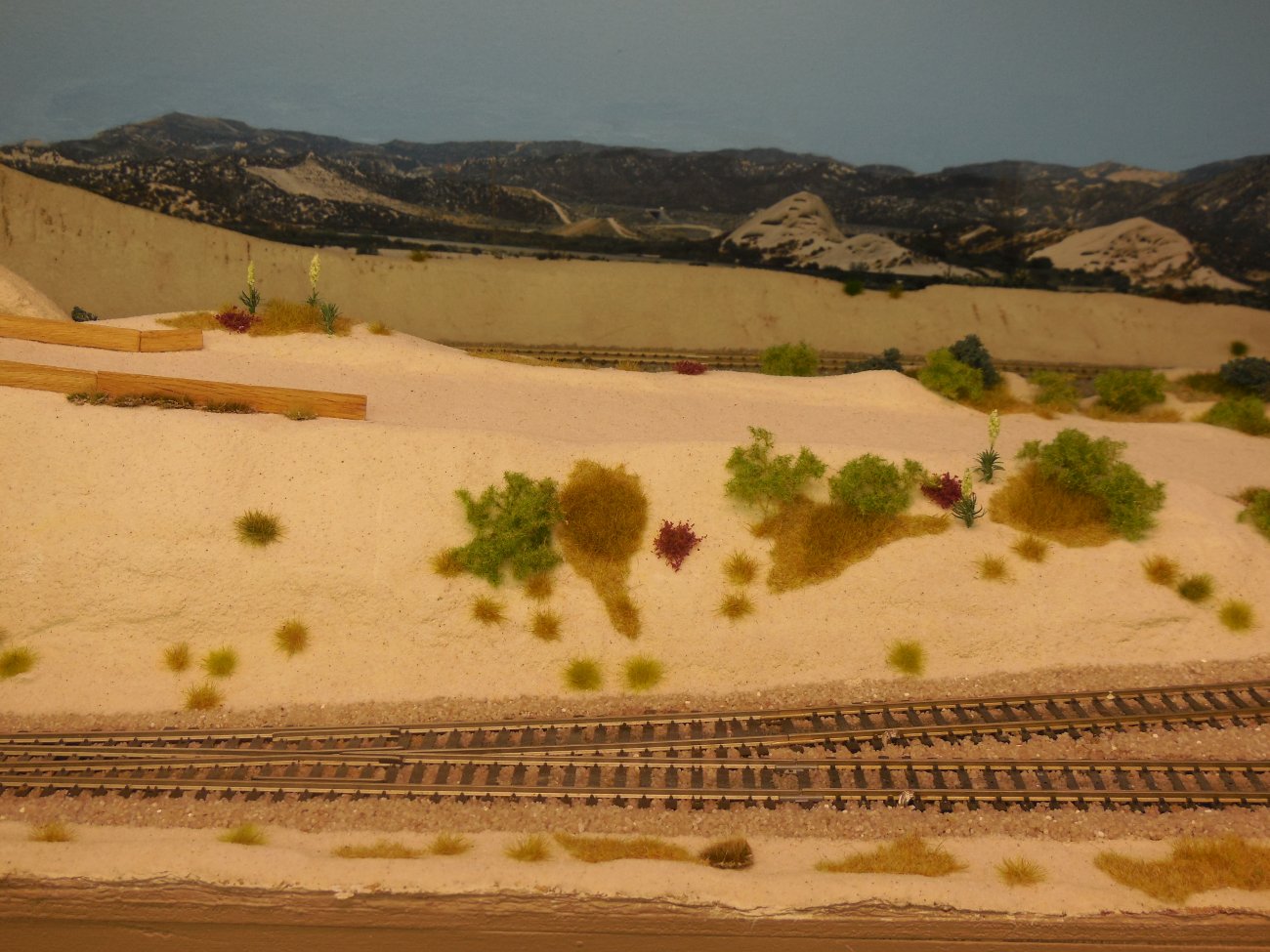

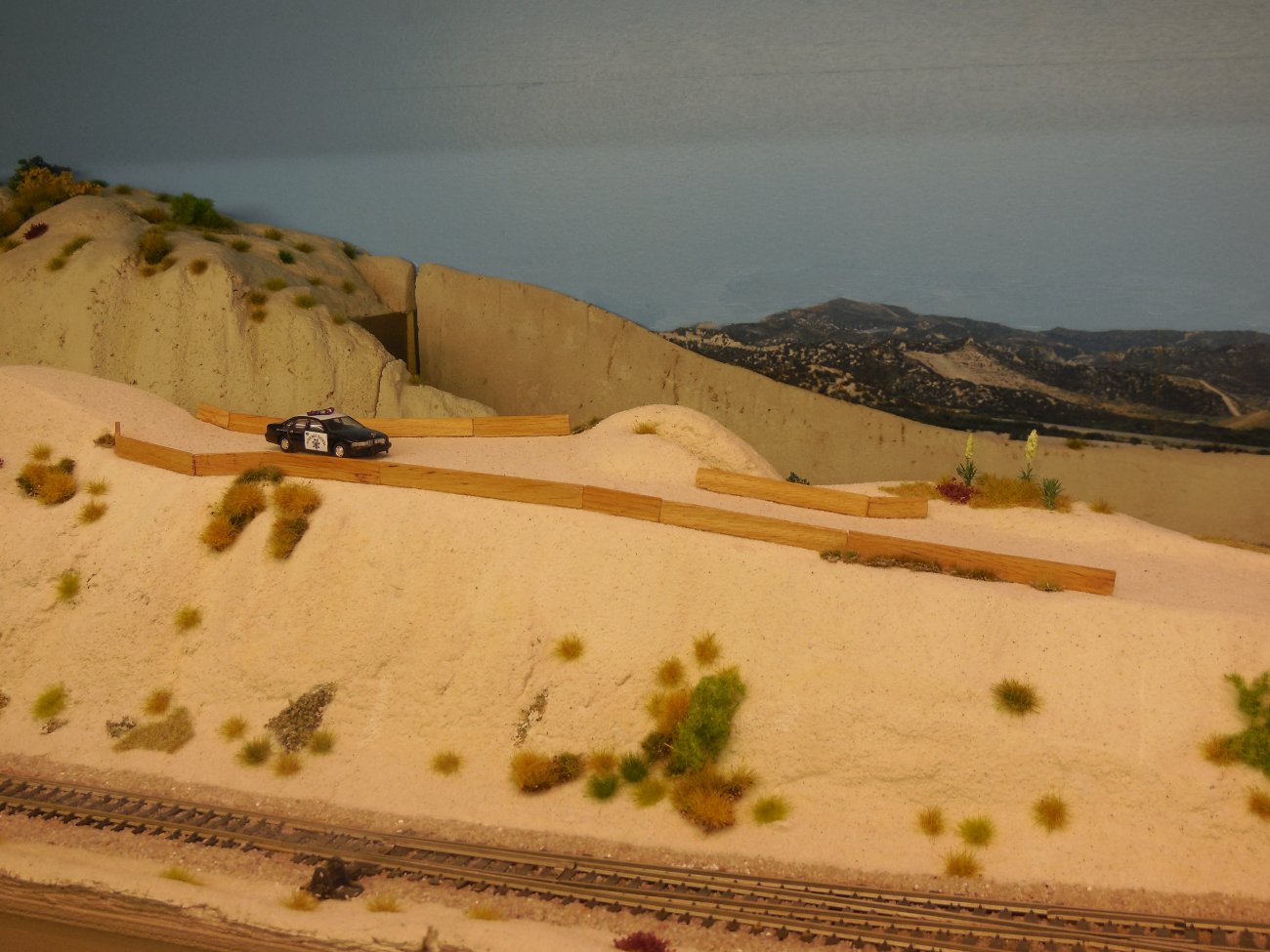

the observation platform got some railings . .  - 293 . . . and all railfans are secured, now - 294

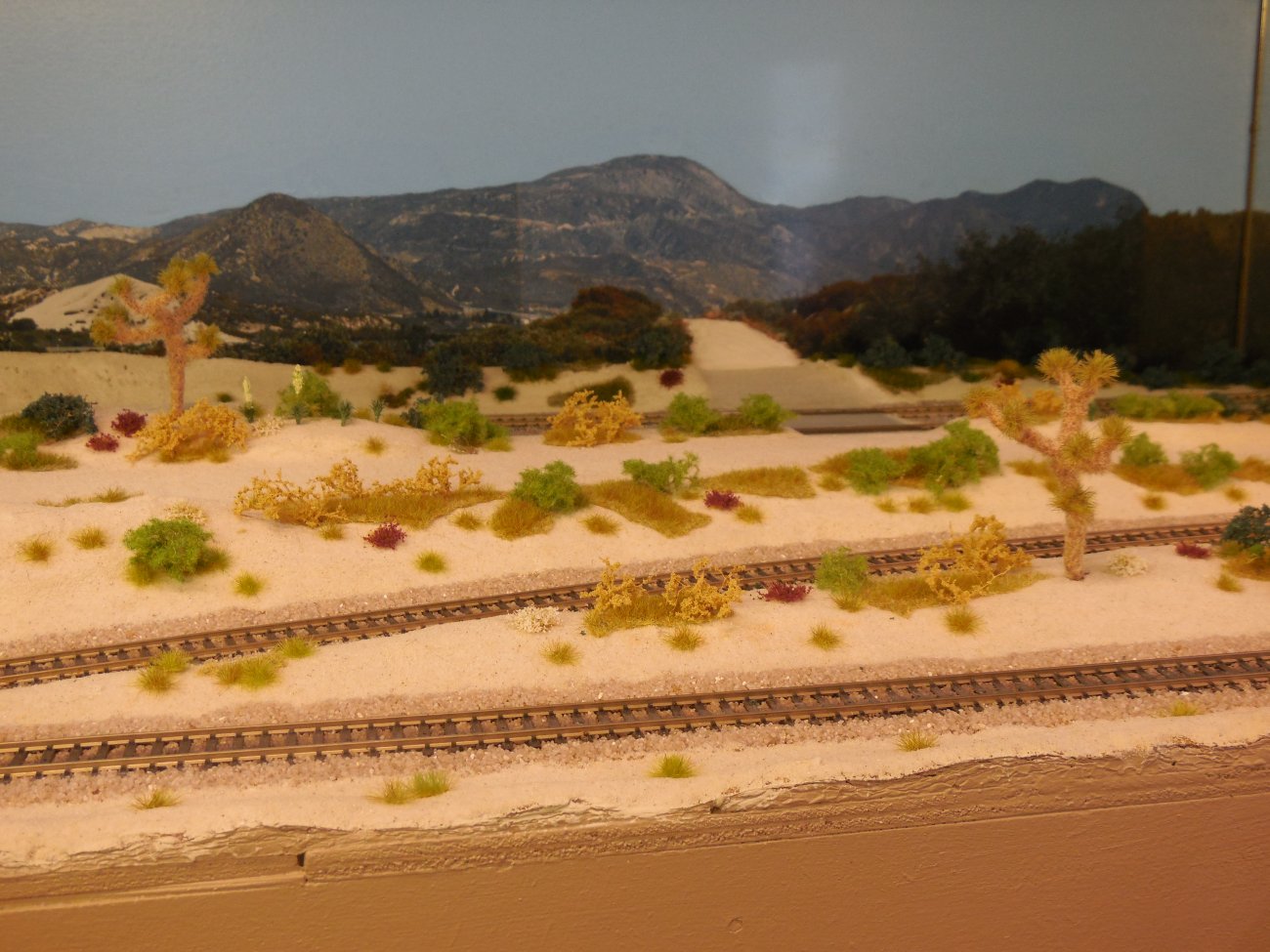

295 These 2 Joshua Trees made by Denis Herm (Germany) - 296

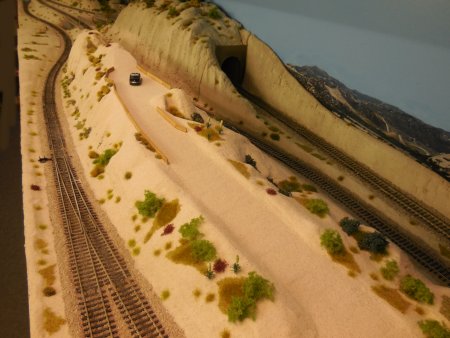

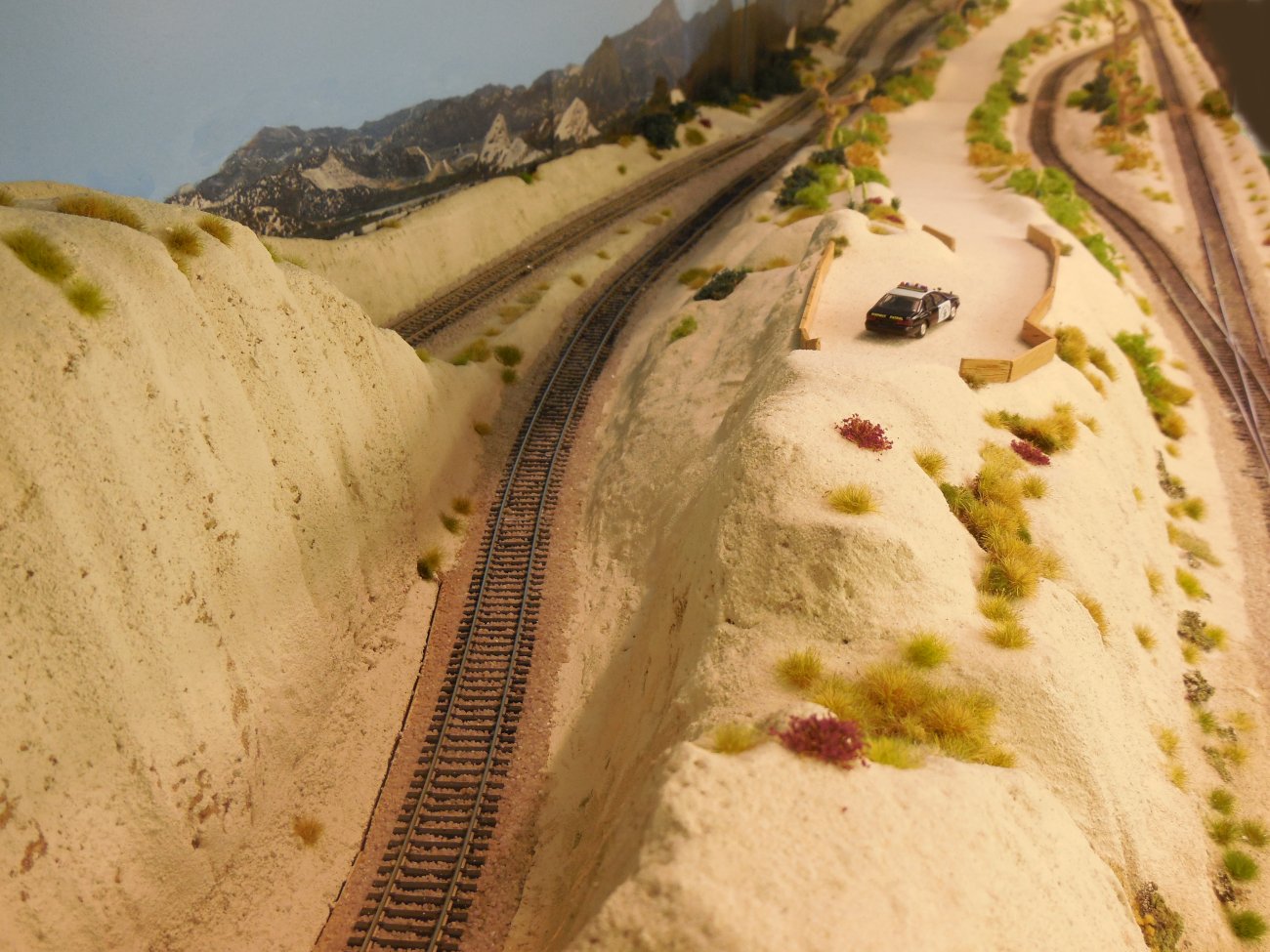

297 nice overview on both sides from the platform - 298

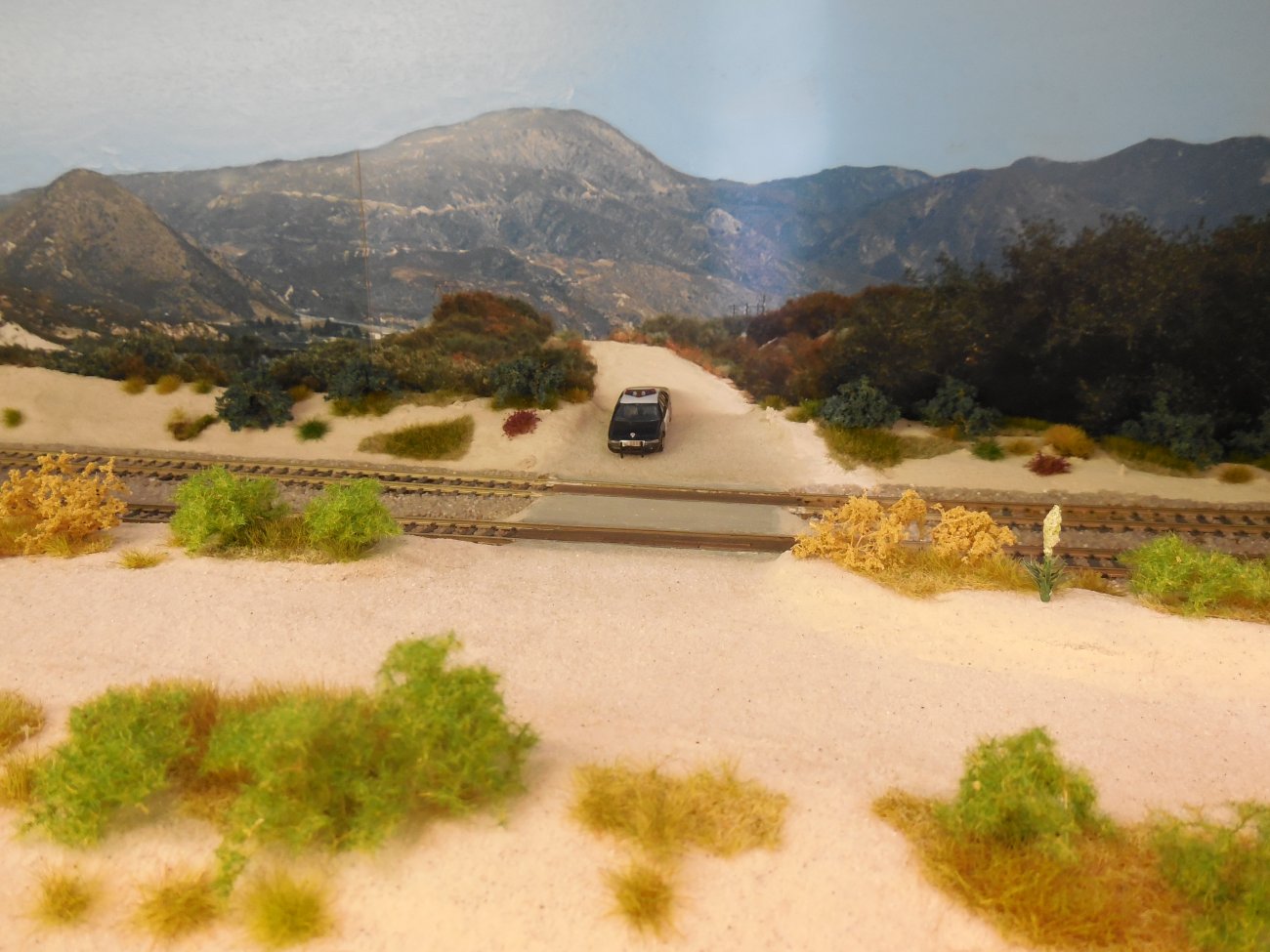

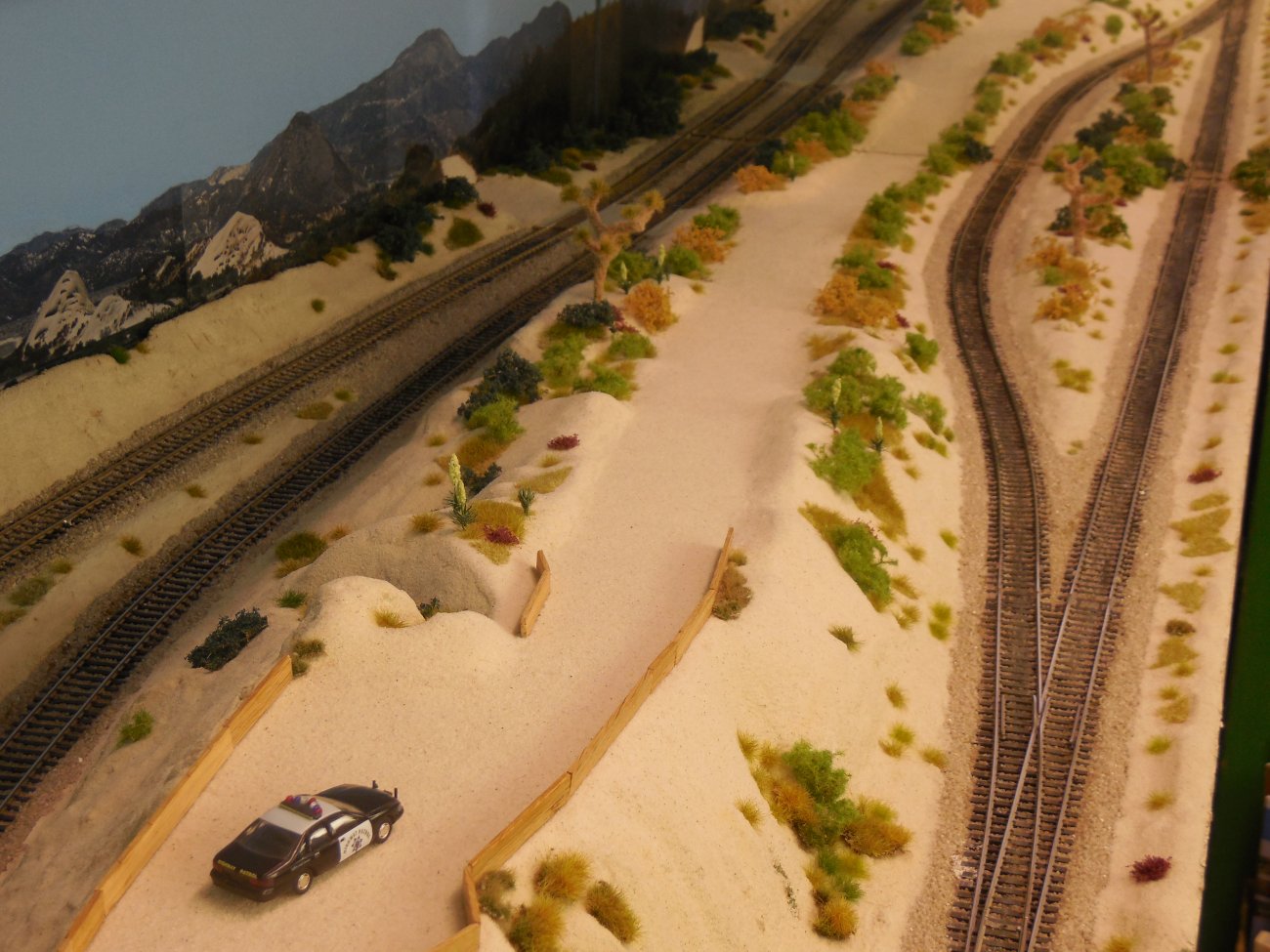

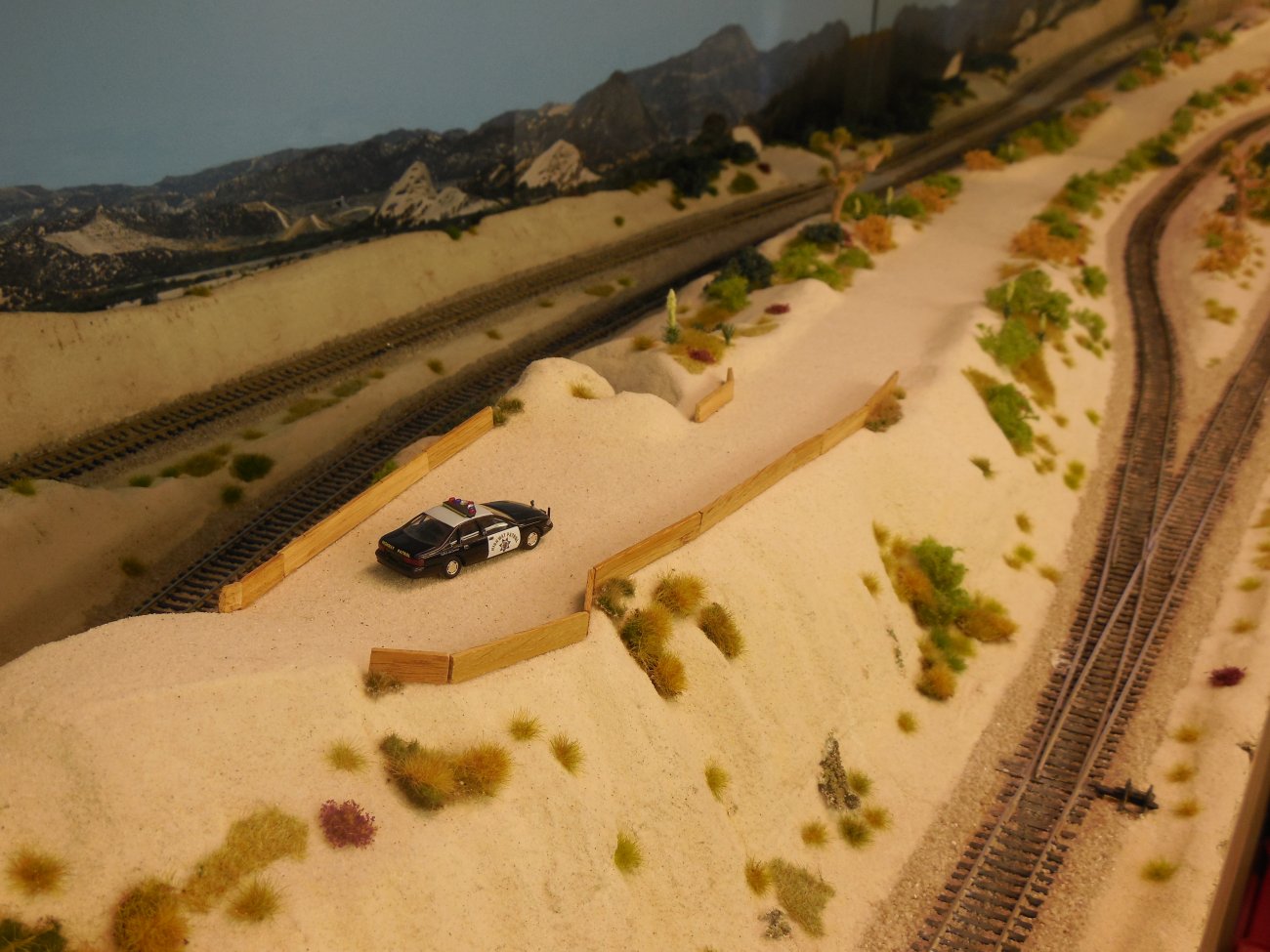

California Highway Patrol is always using this overlook - 299 300

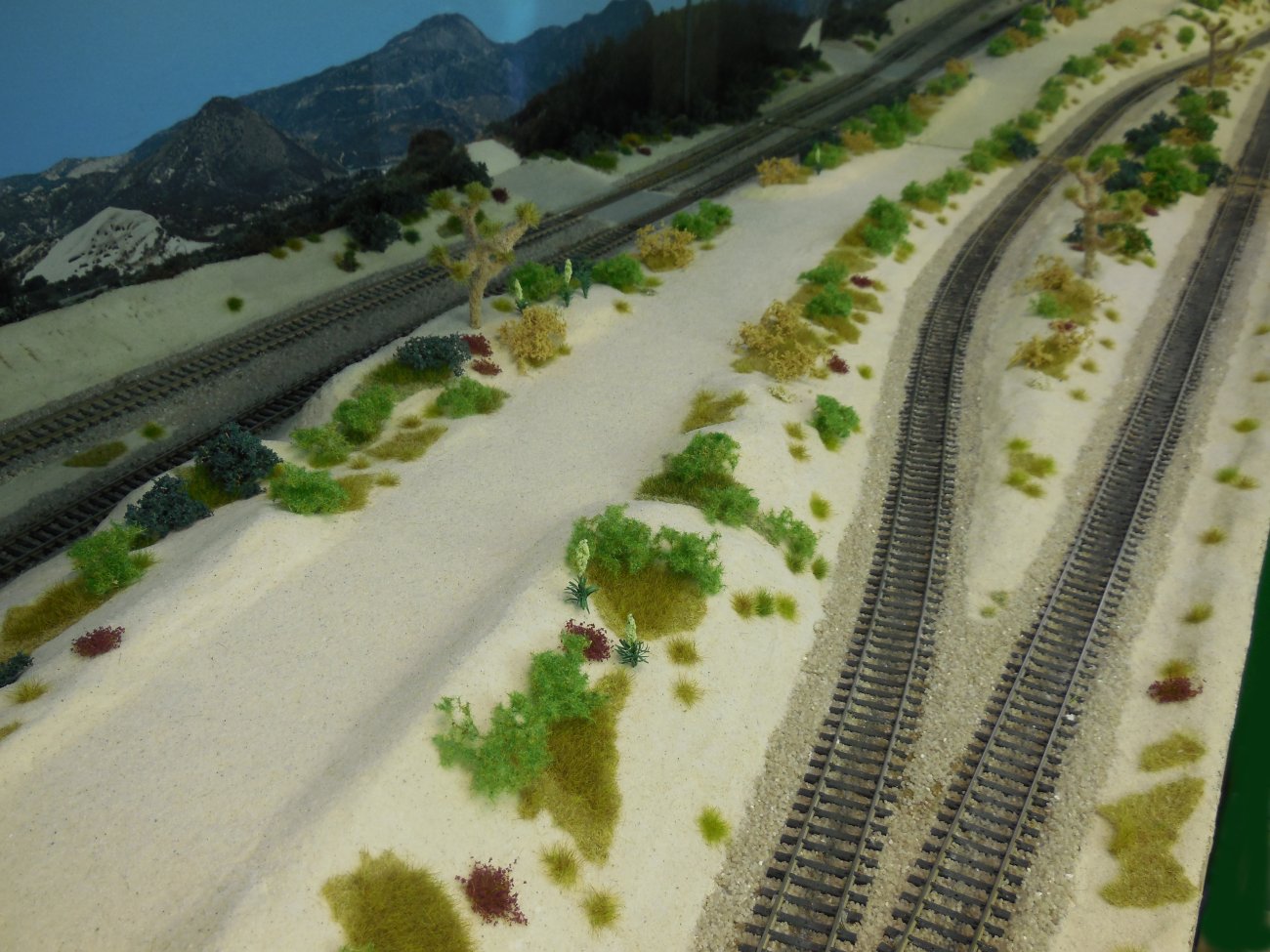

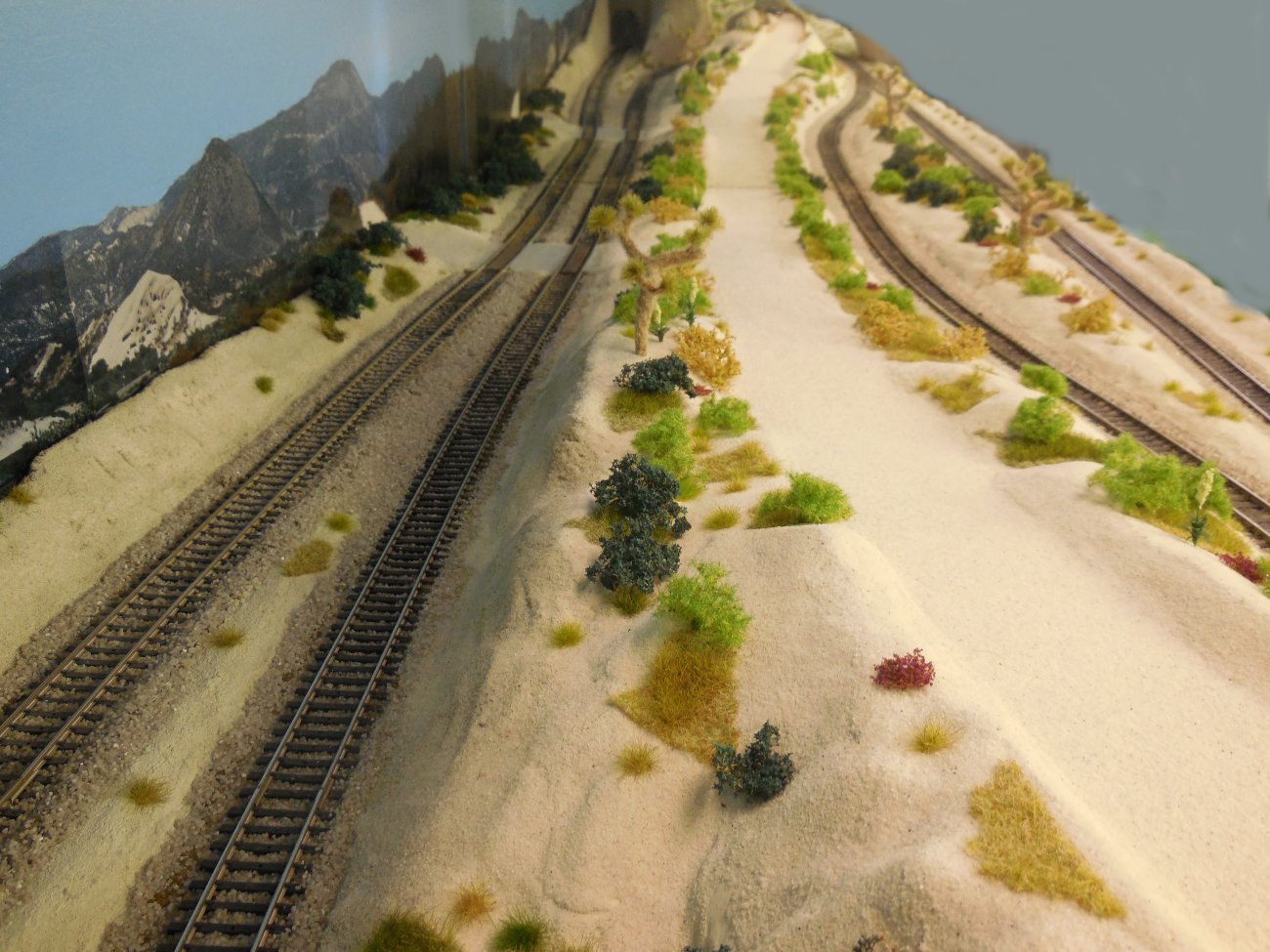

302 here is again the illusion with the mirror - 303

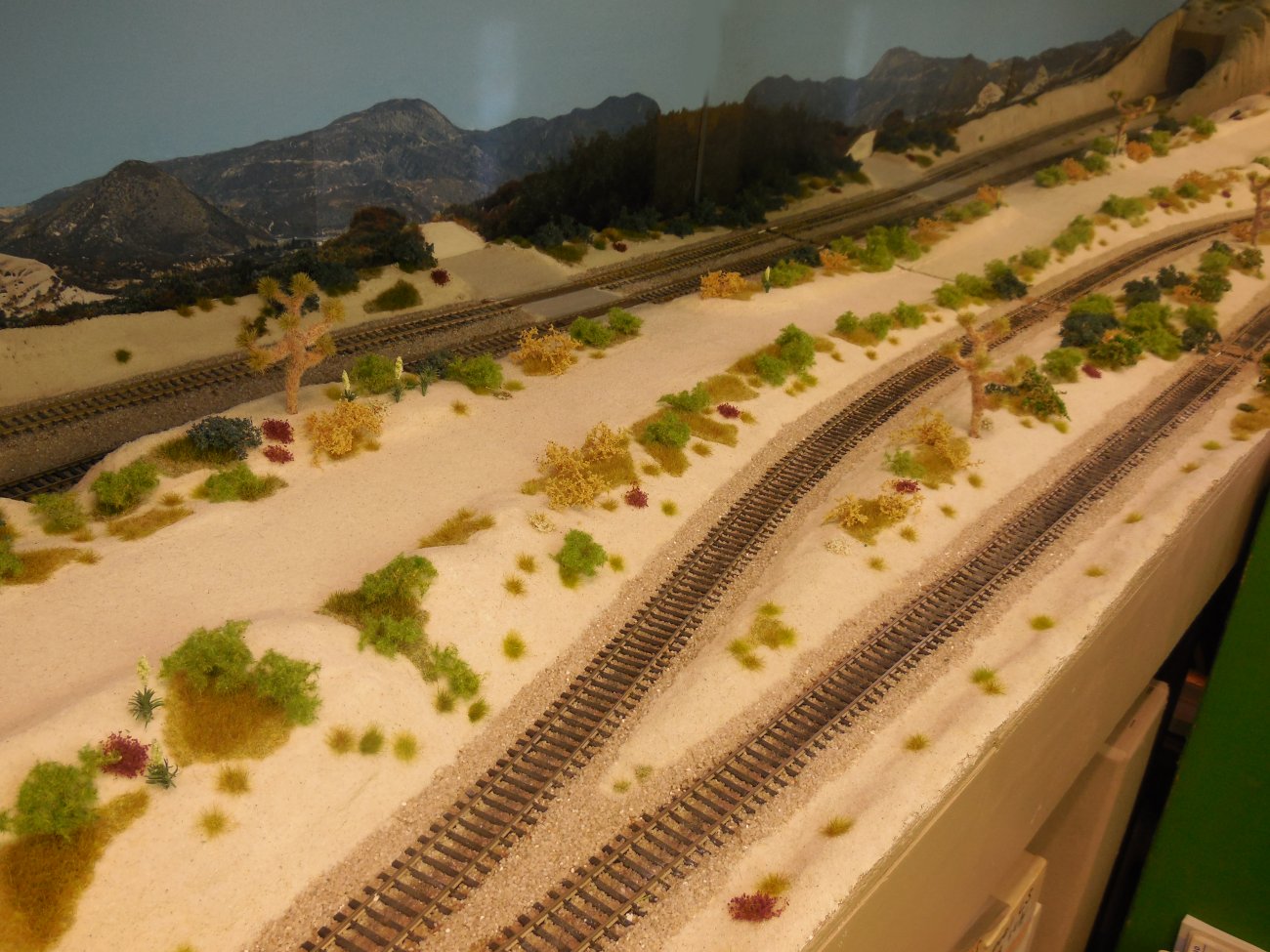

304 305

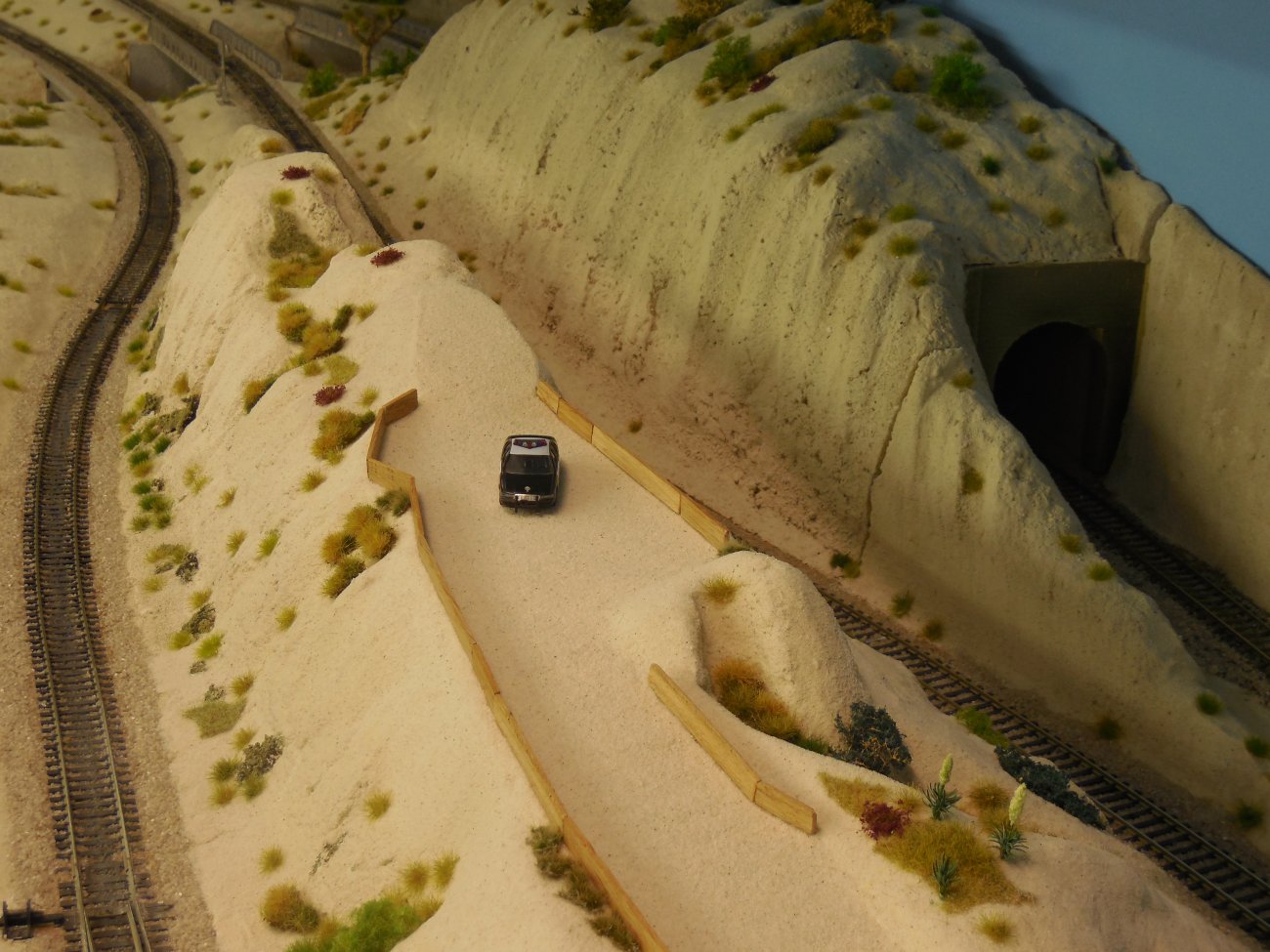

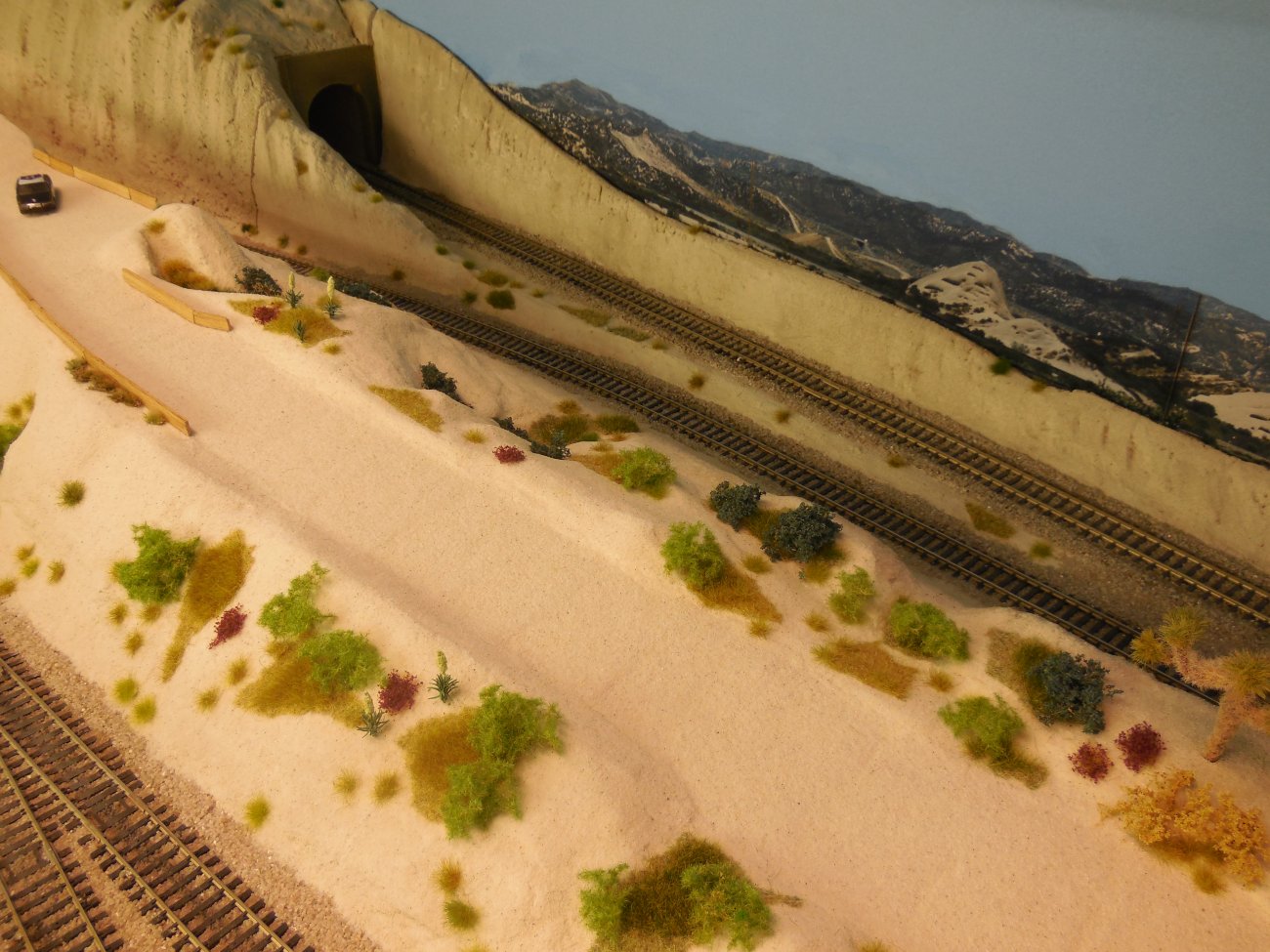

307 308

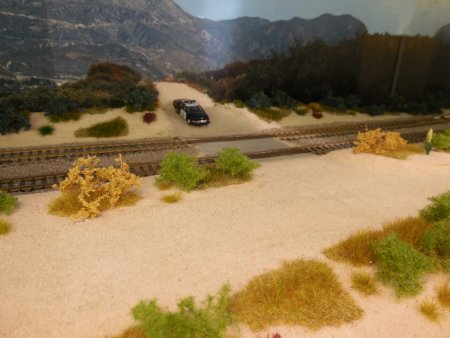

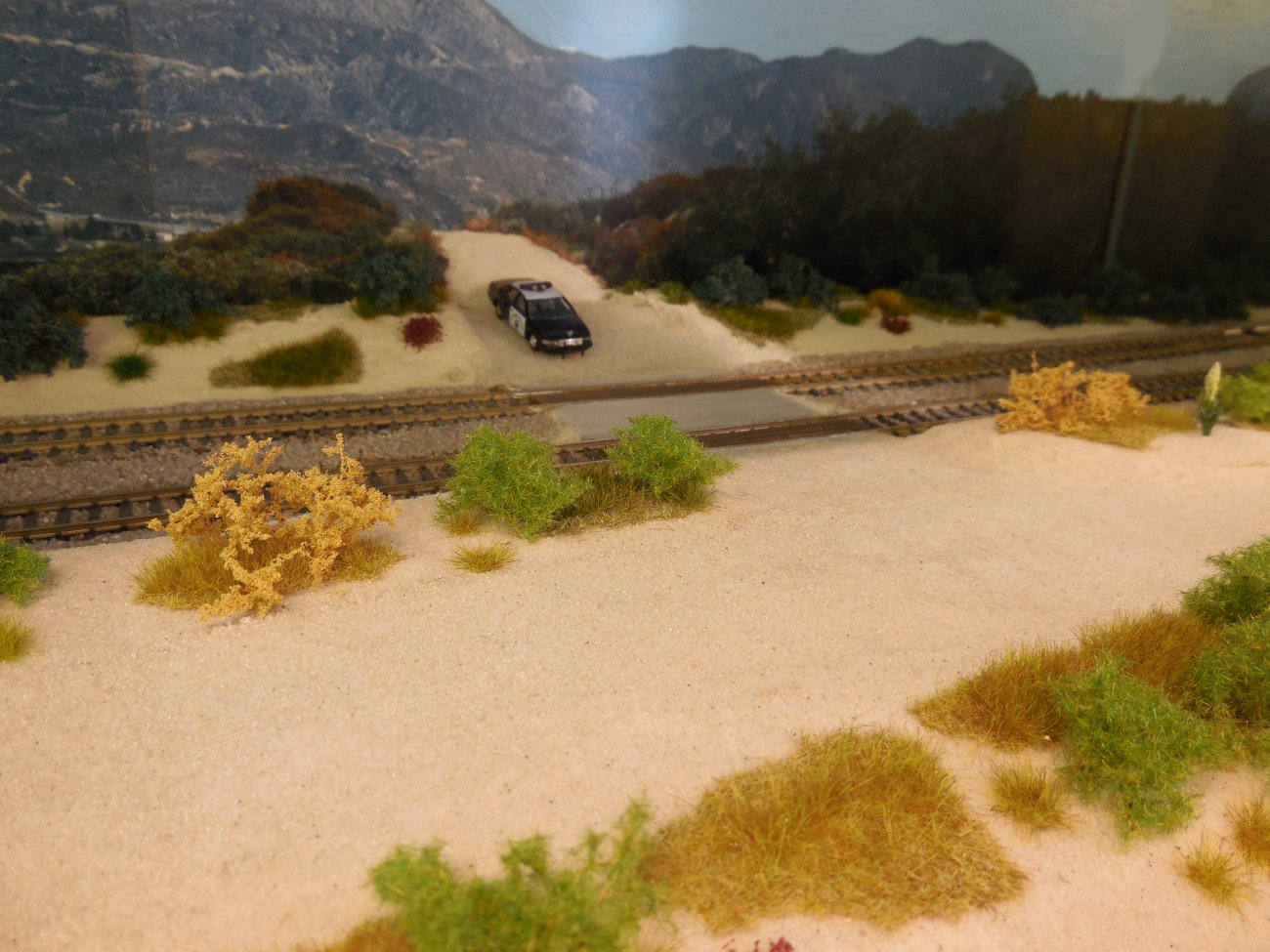

309 310

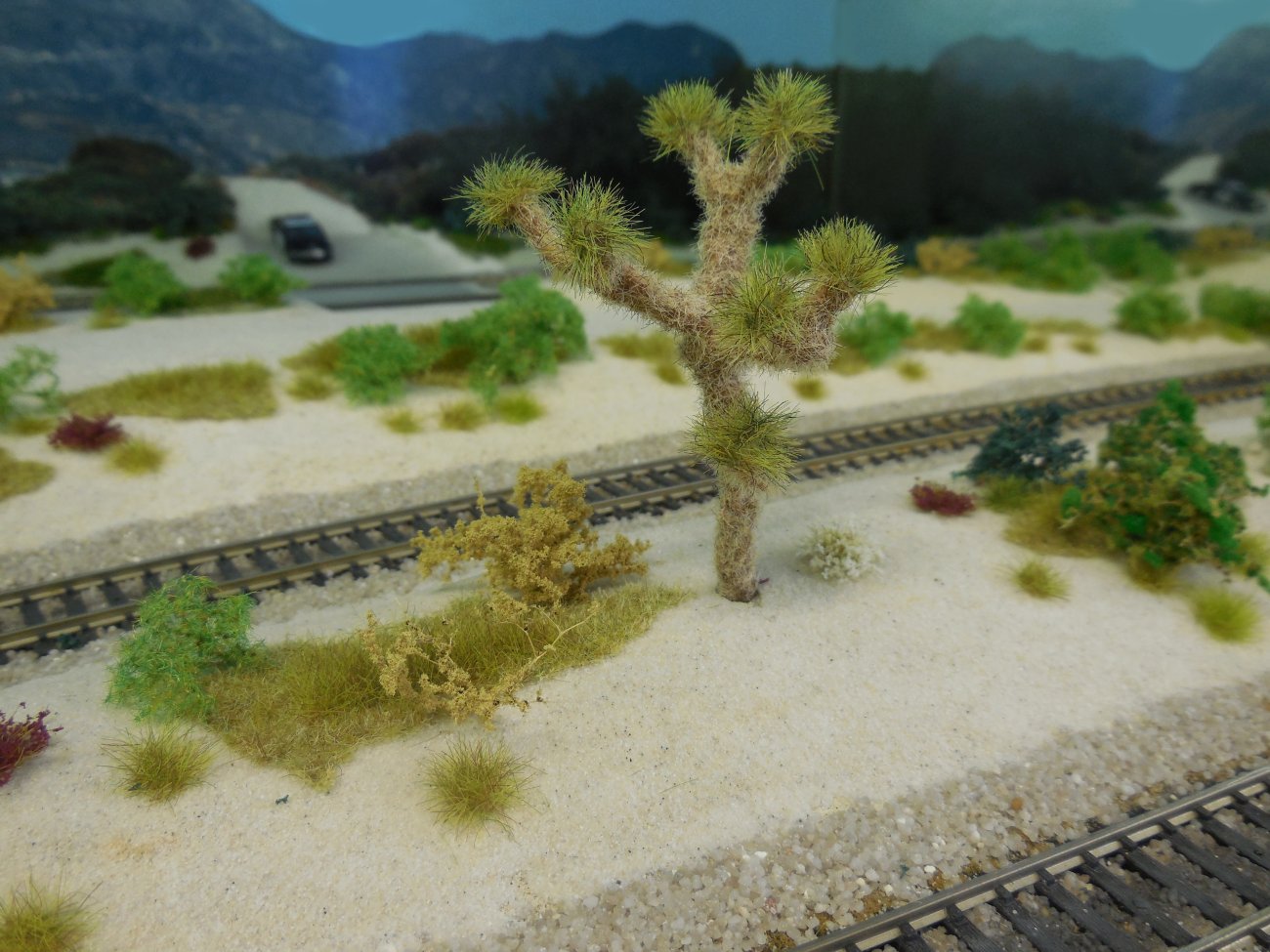

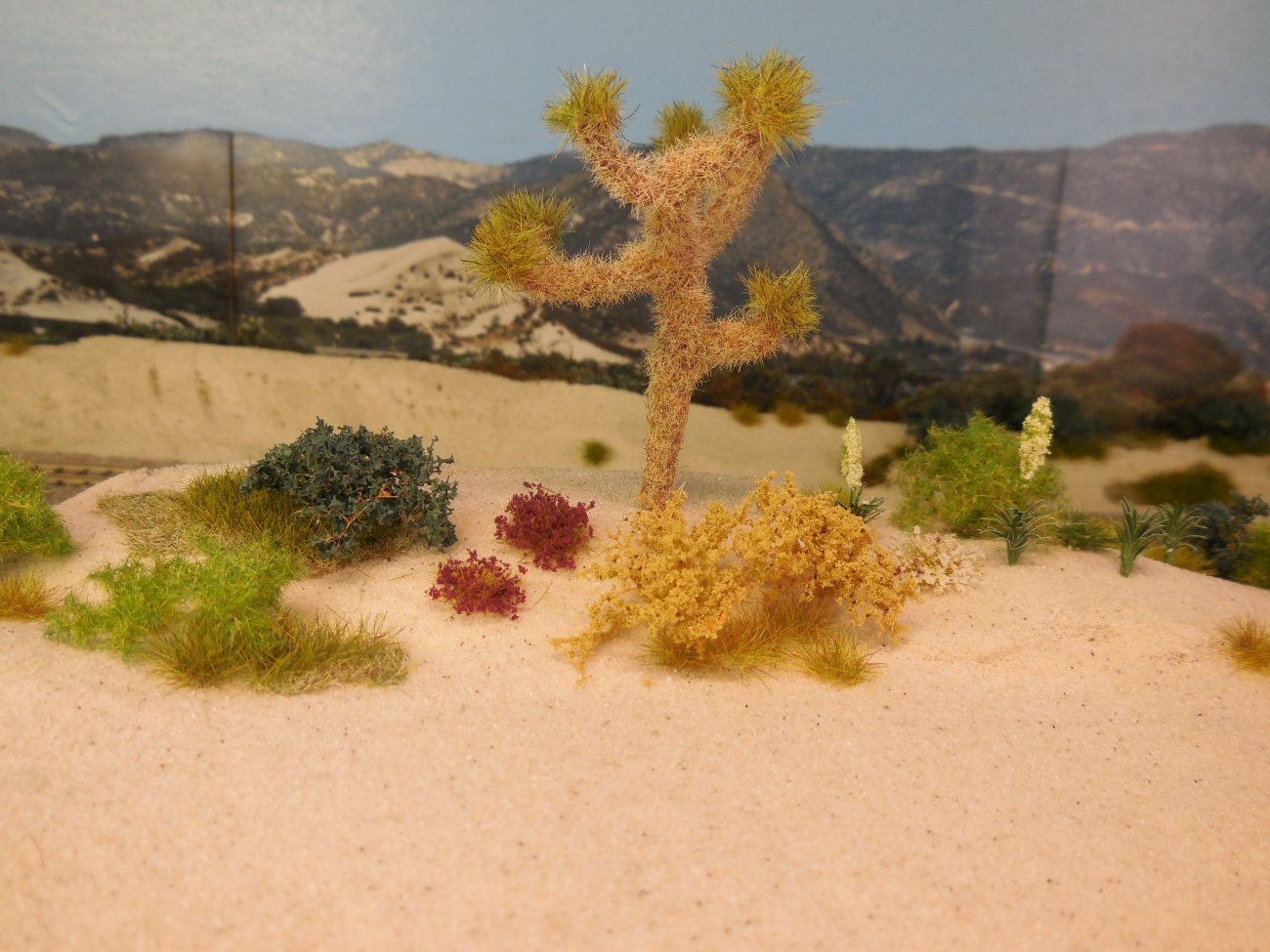

a Joshua Tree and blooming Yuccas - 311 the digital camera changed the white balance w/o asking - 312

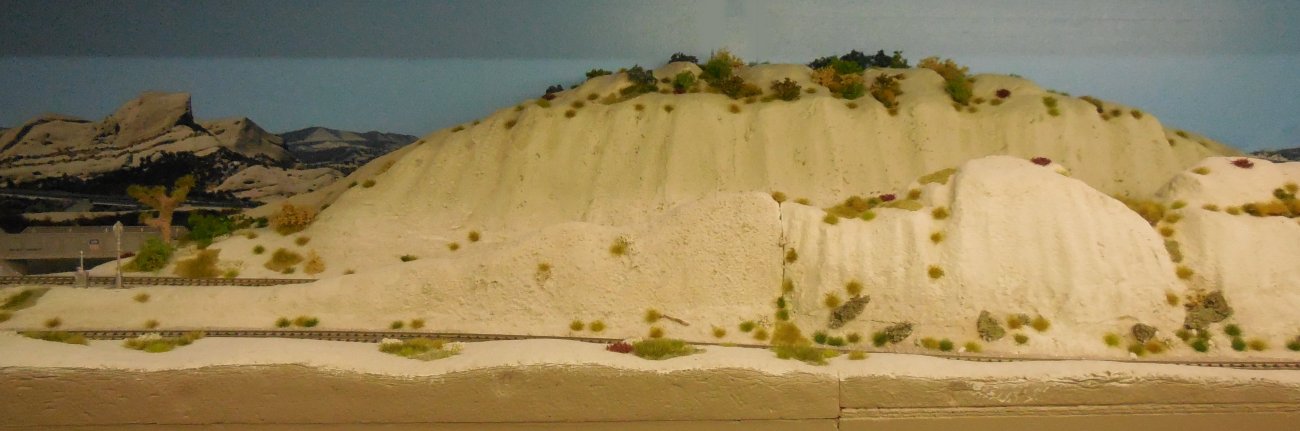

314 313

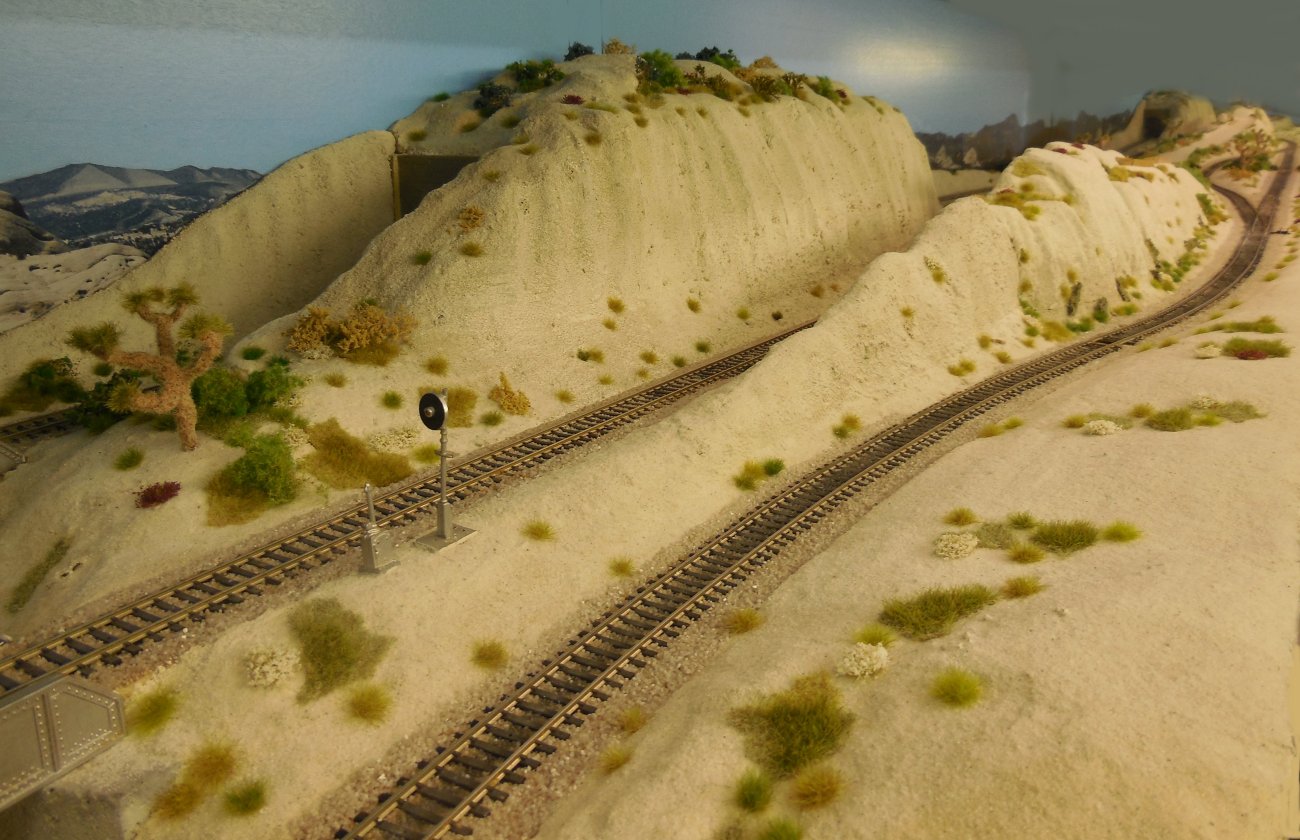

316 315

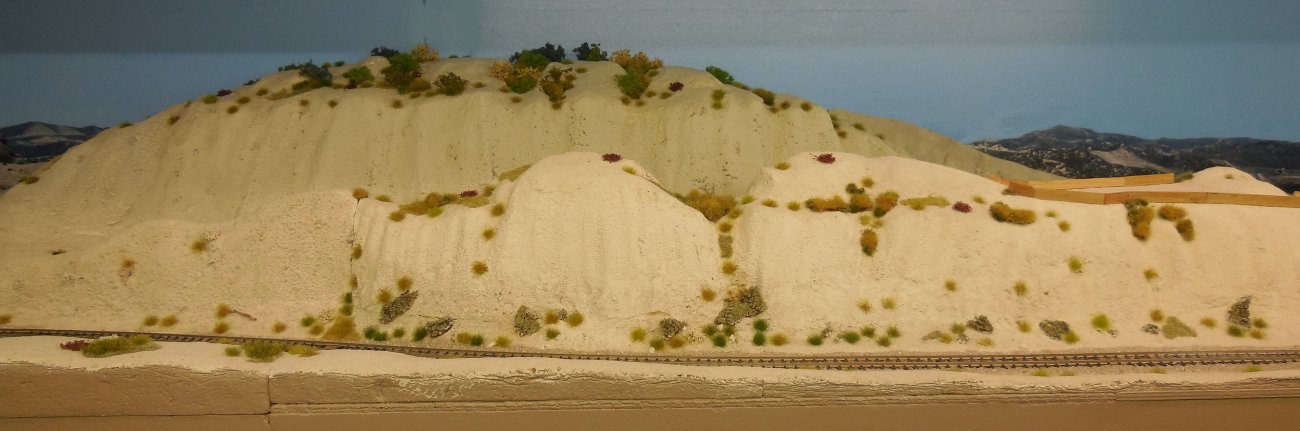

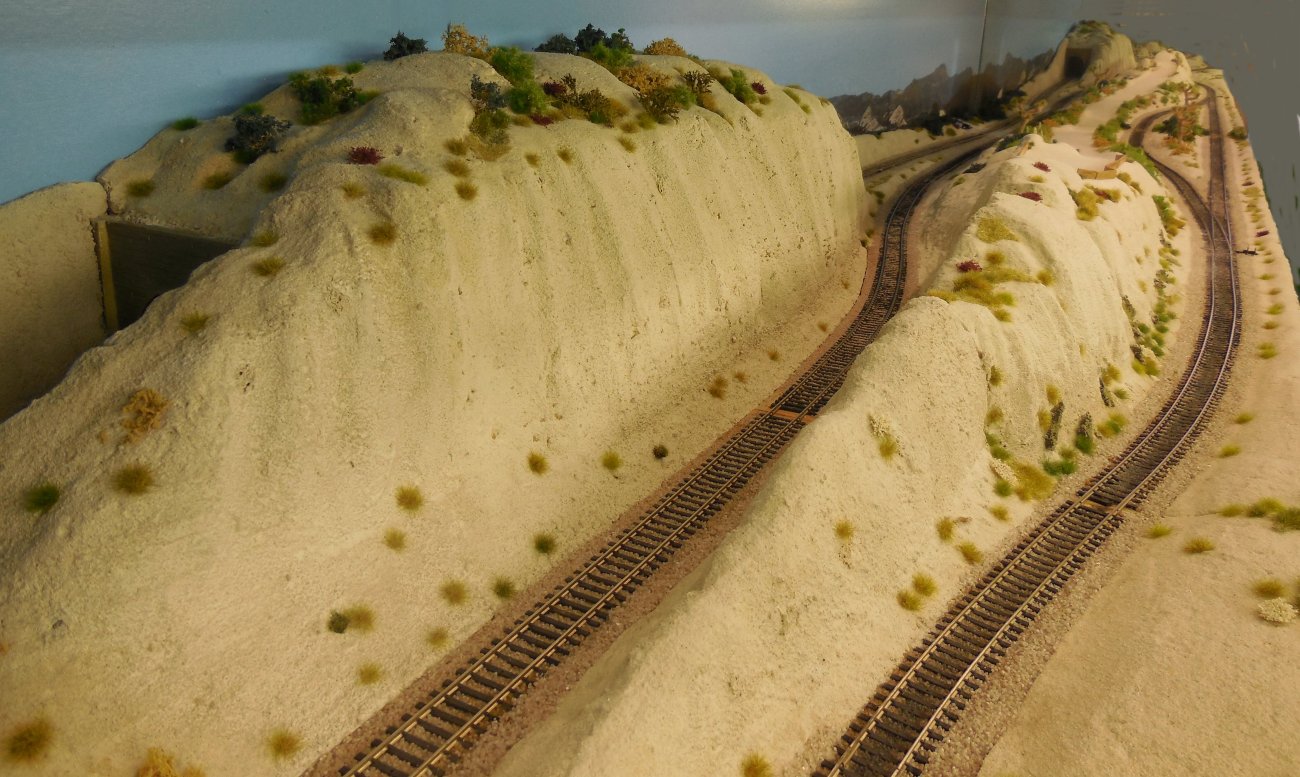

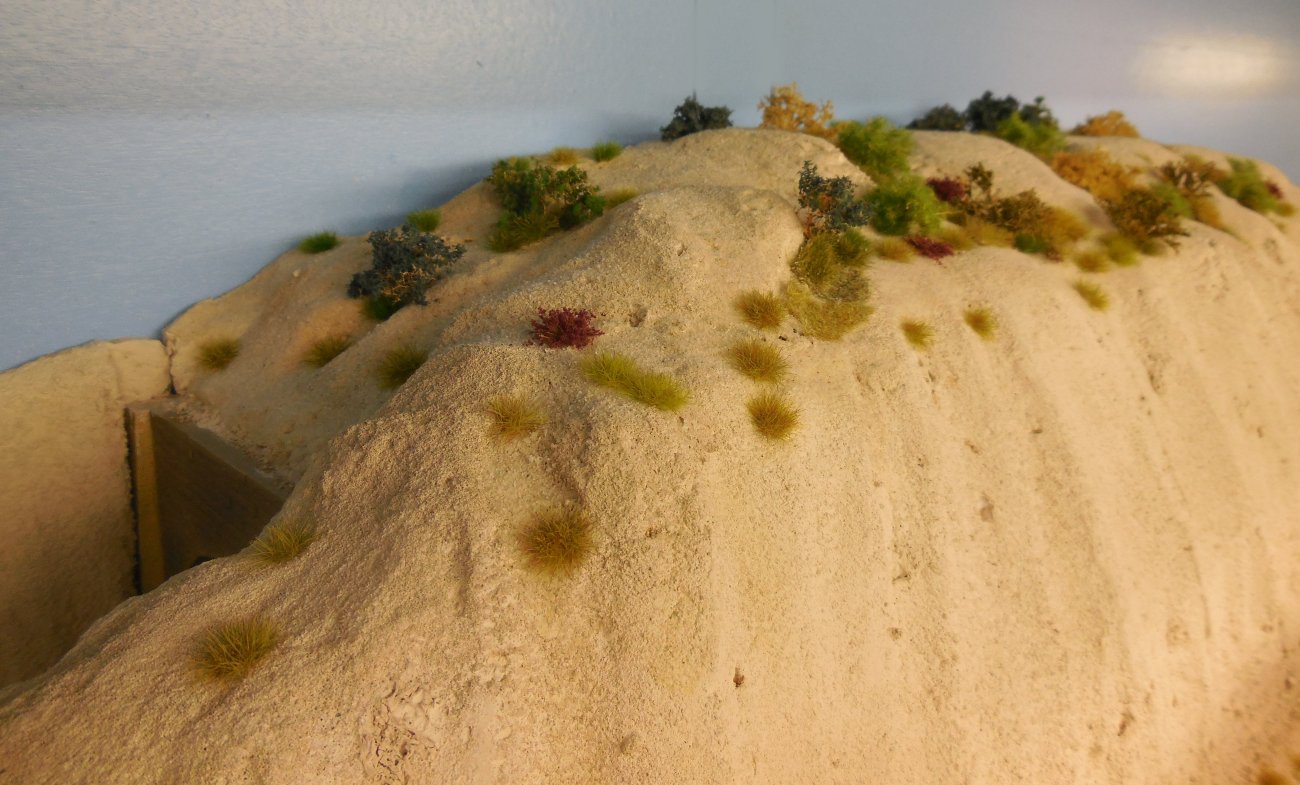

317 on top of the tunnel - 319

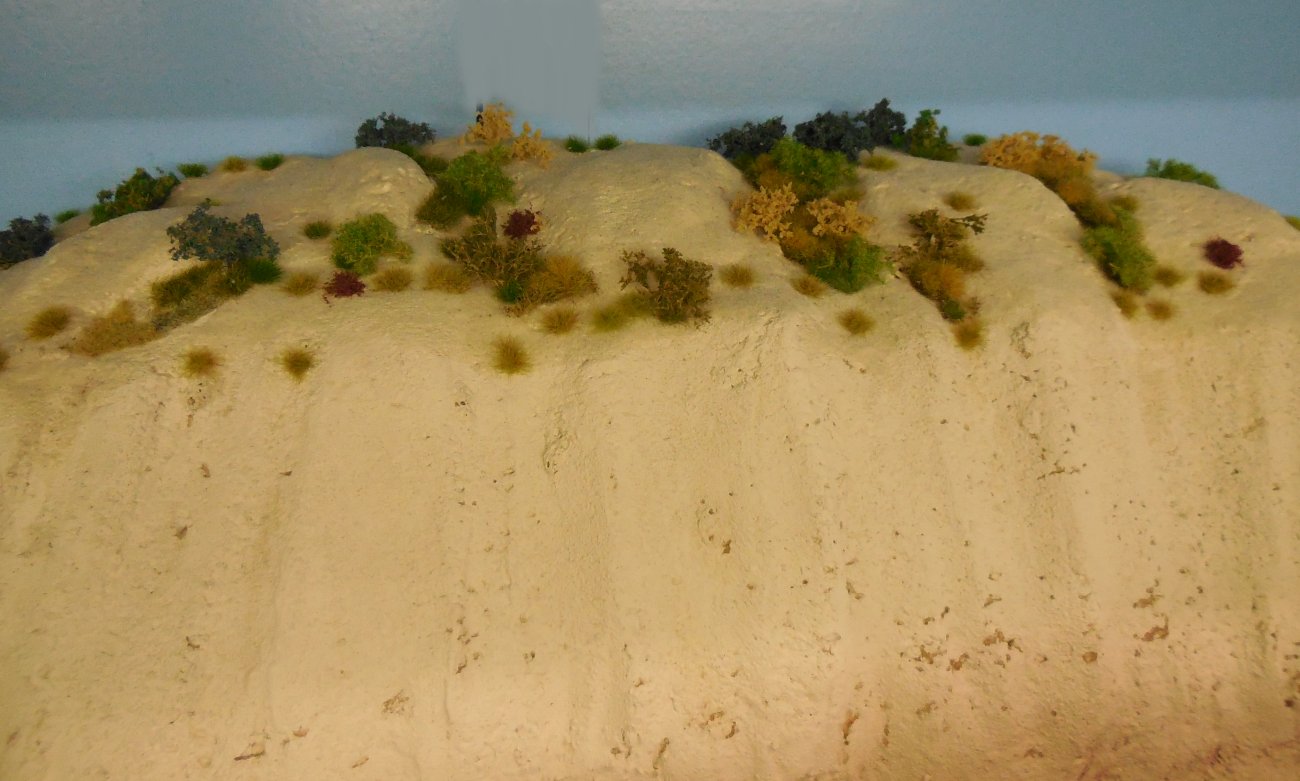

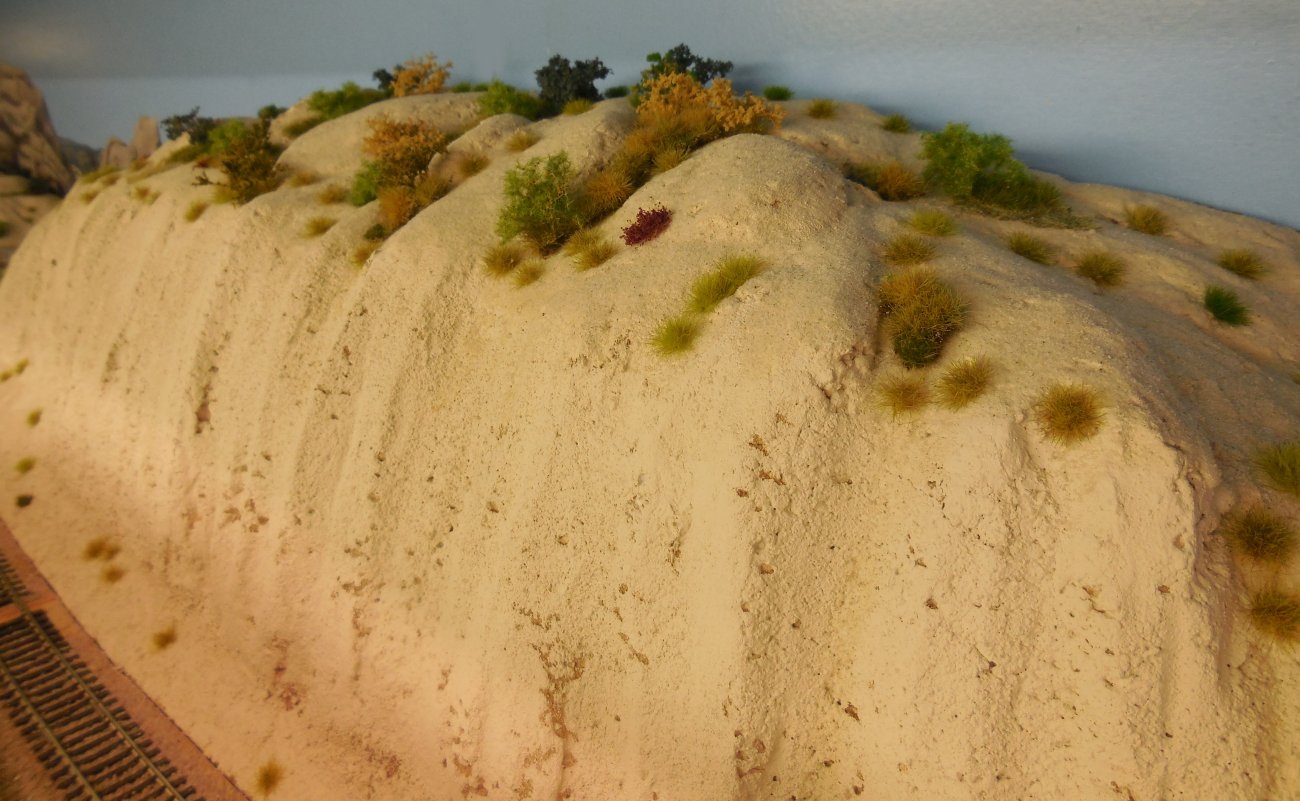

318 320

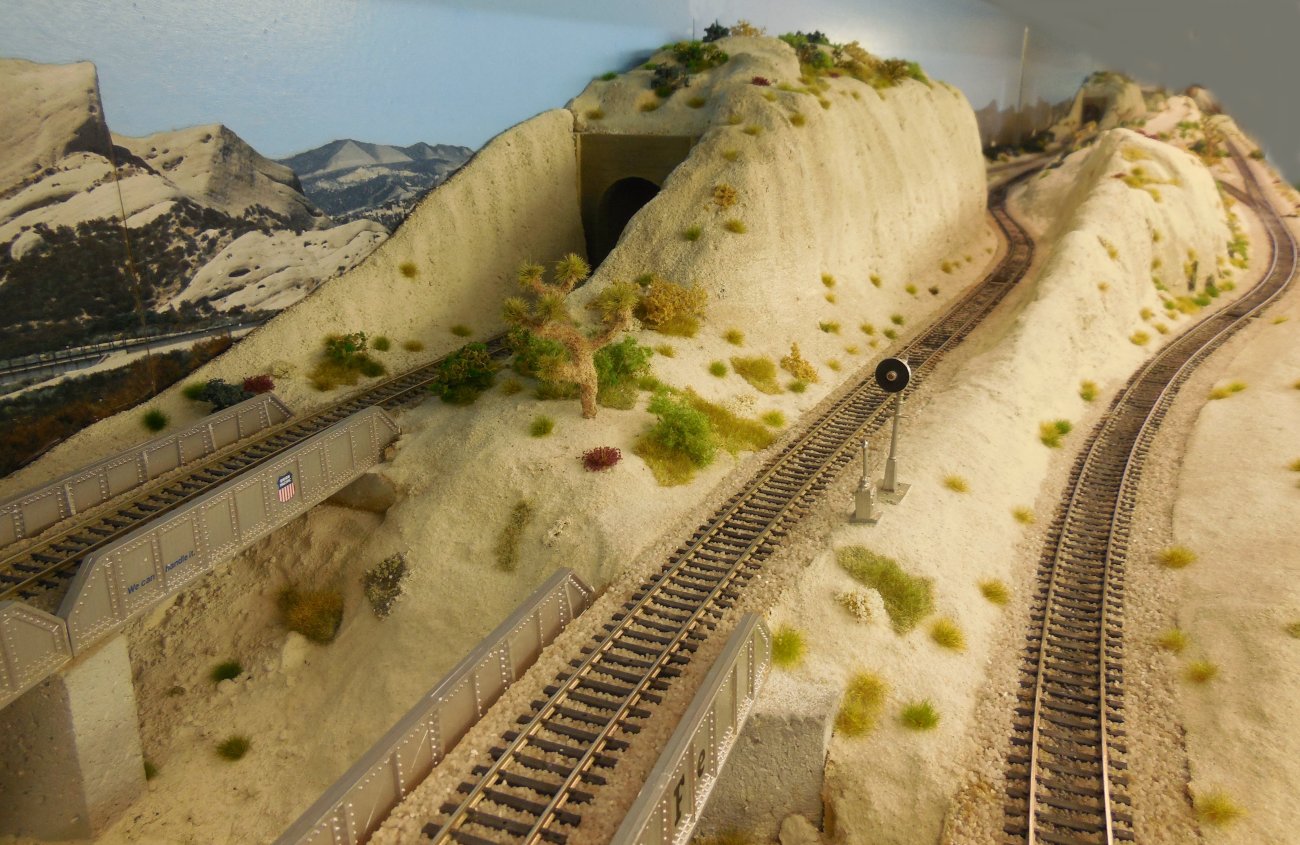

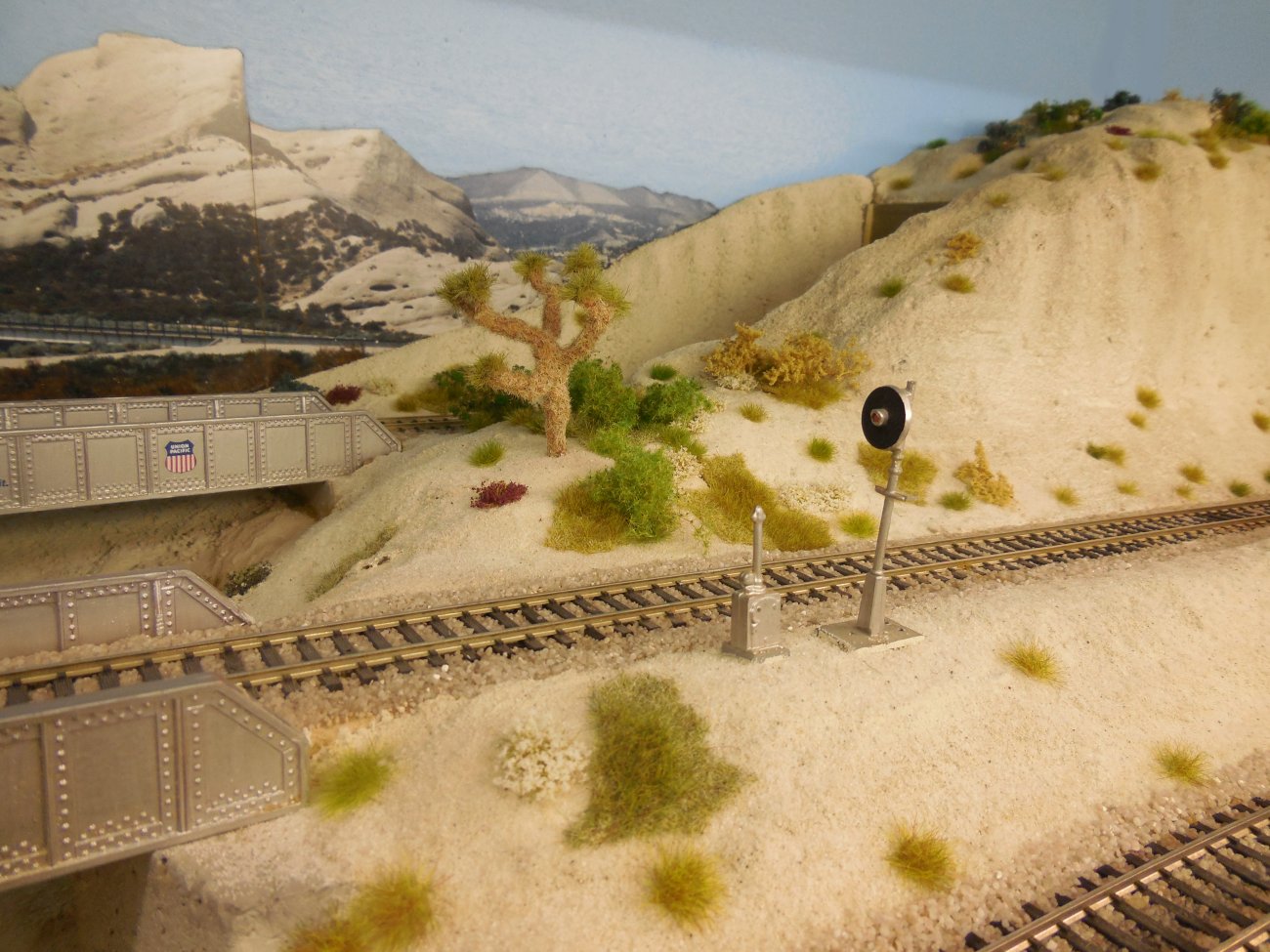

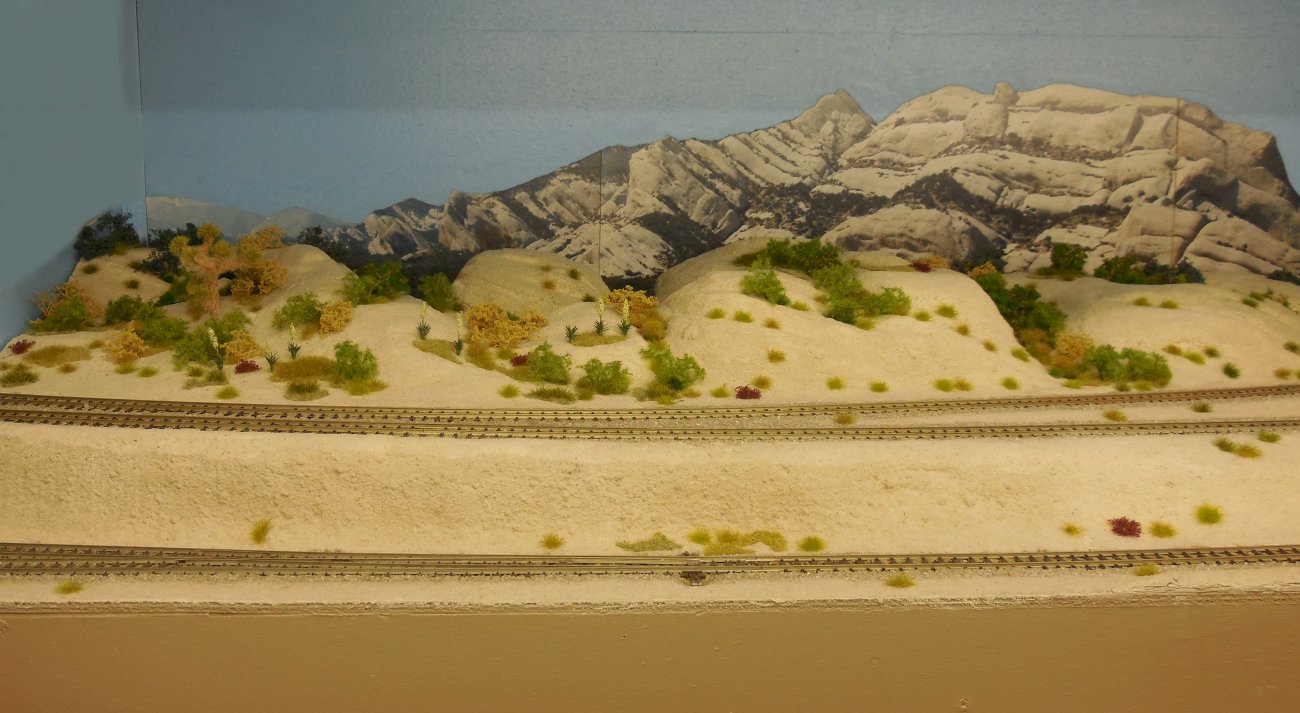

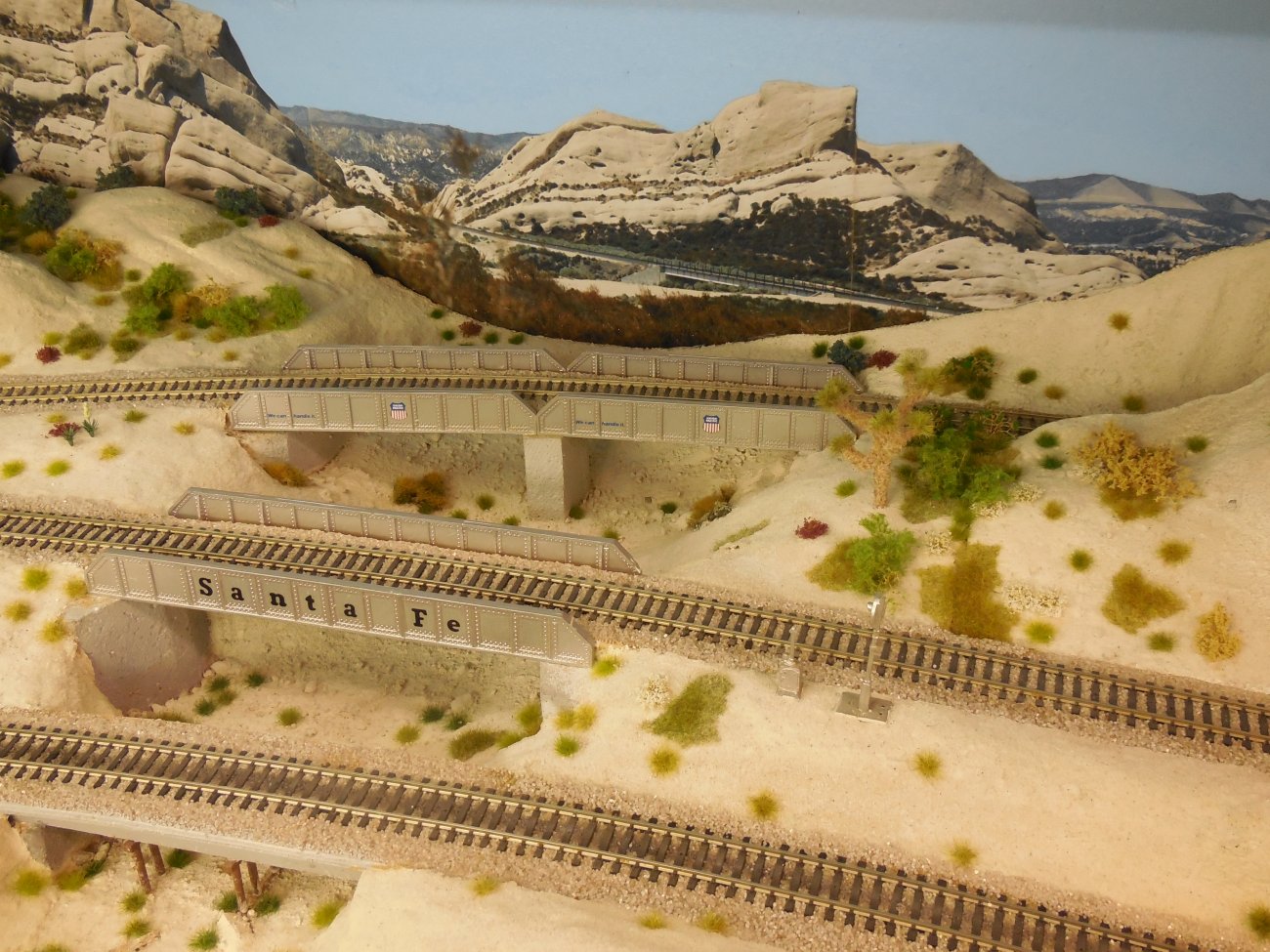

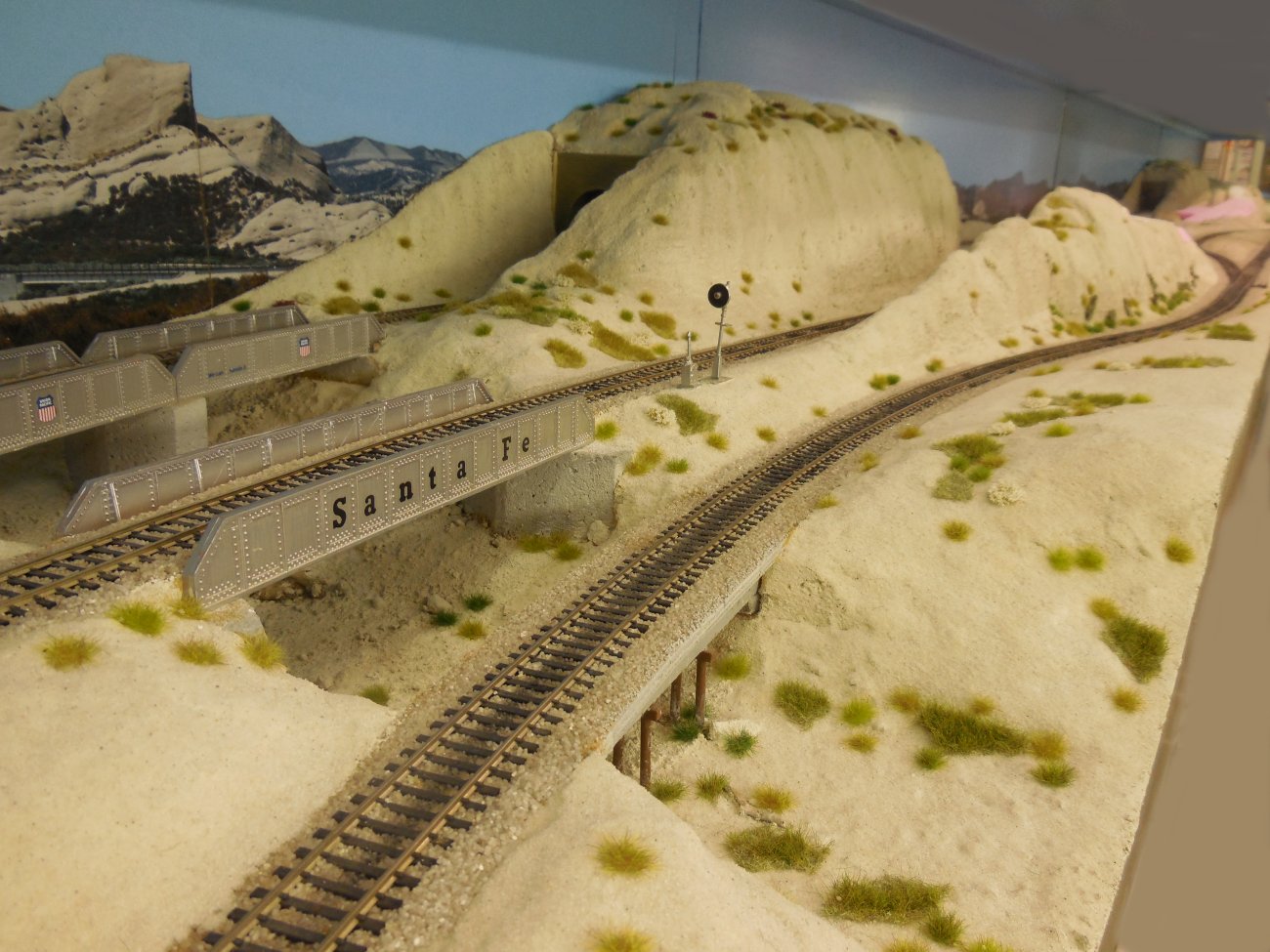

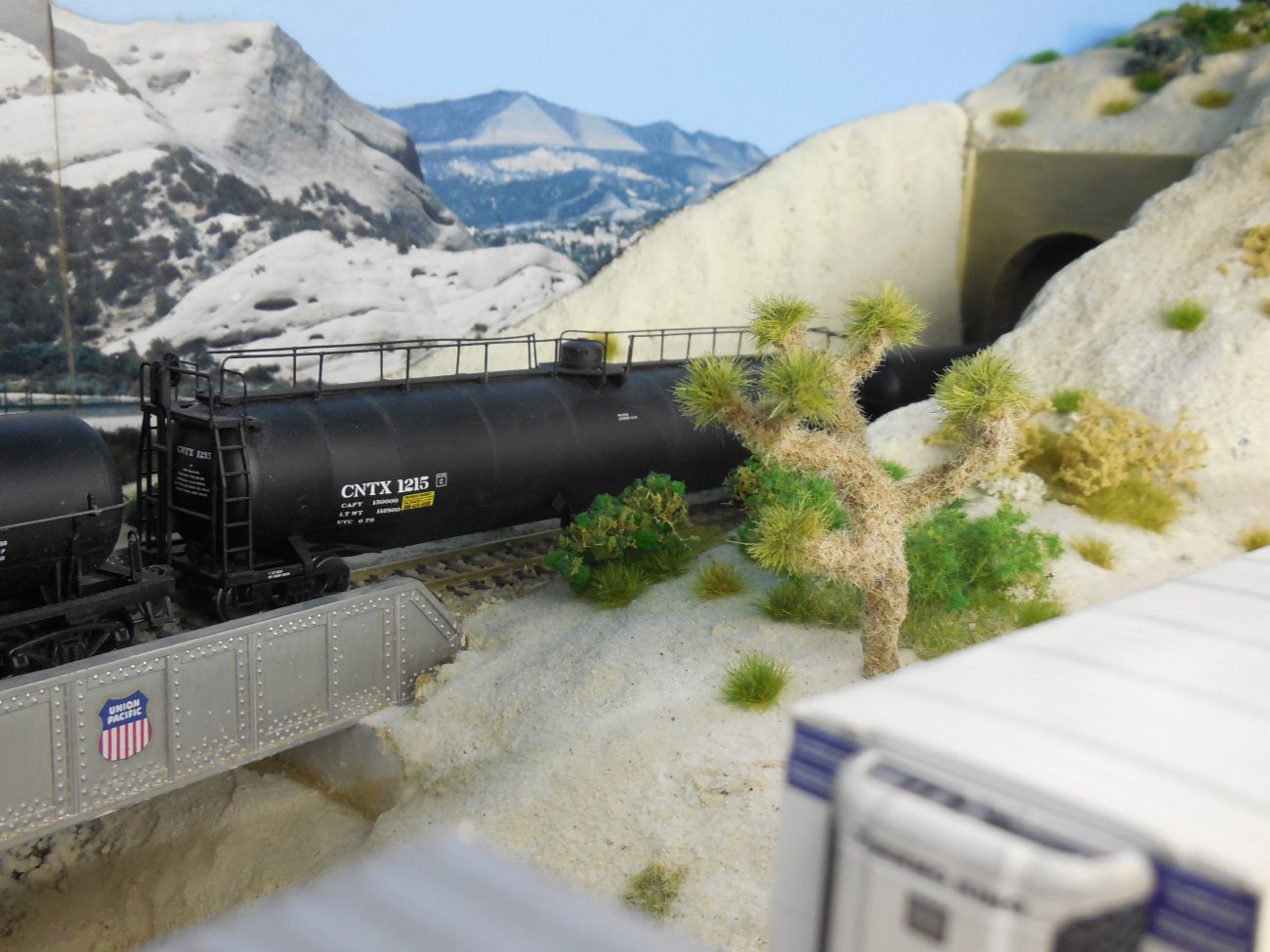

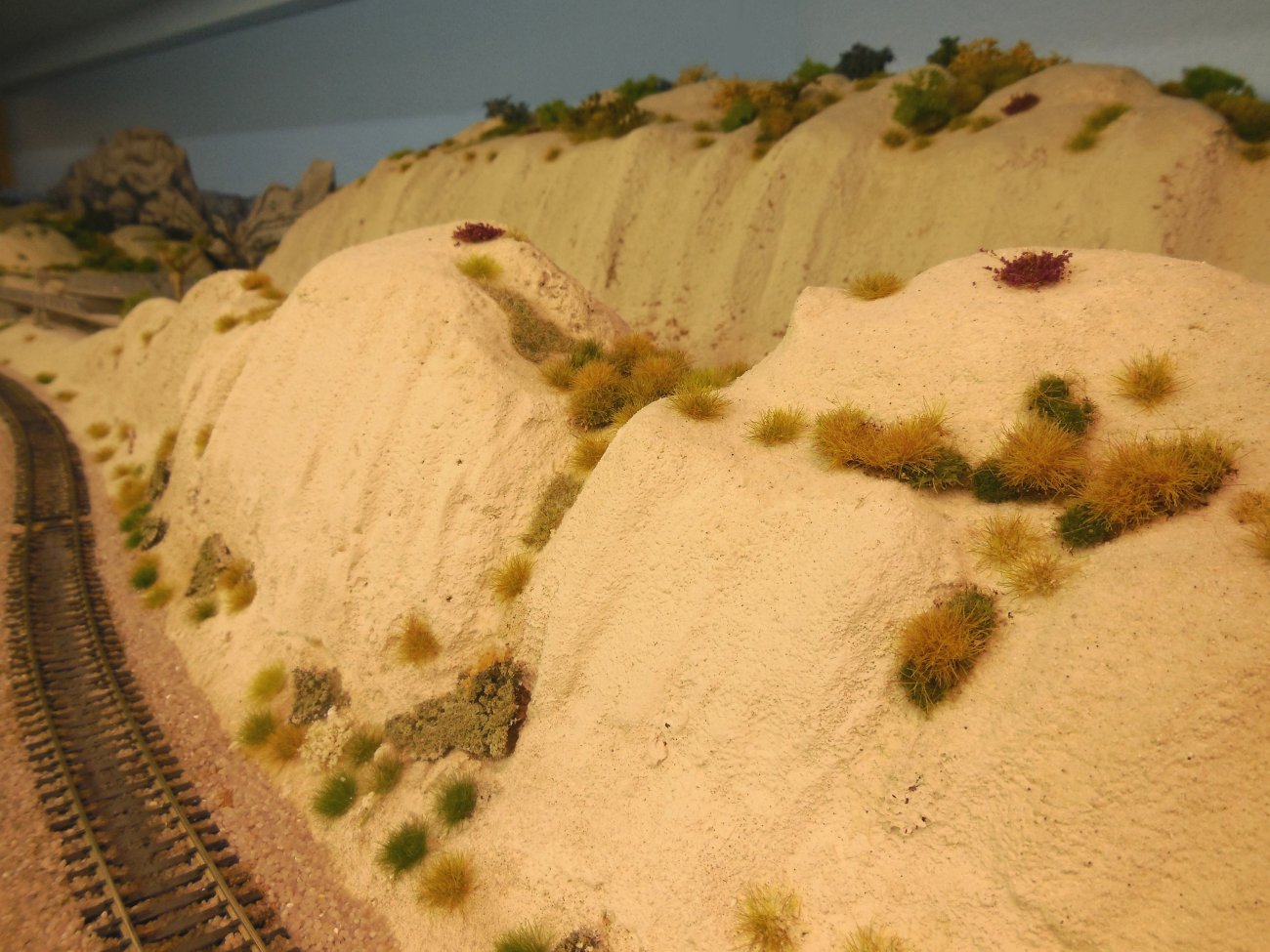

signal and Johsua Tree near the bridges - 322 321

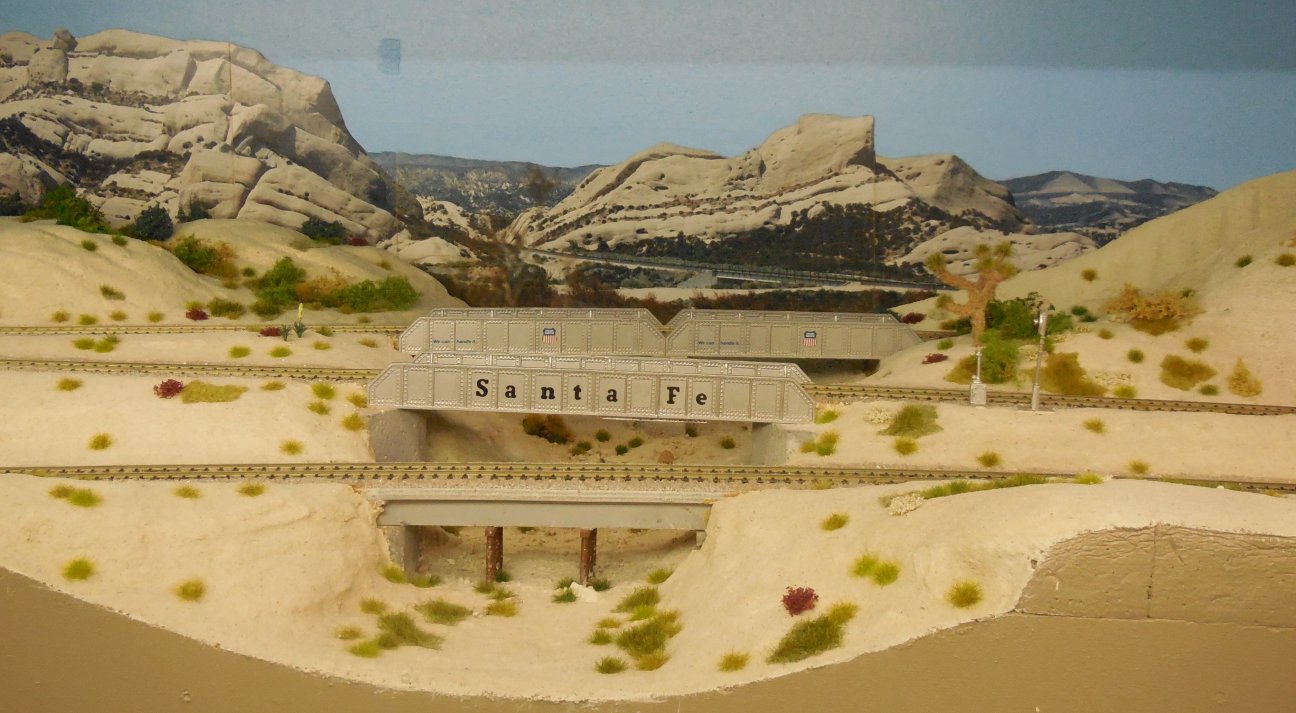

323 325

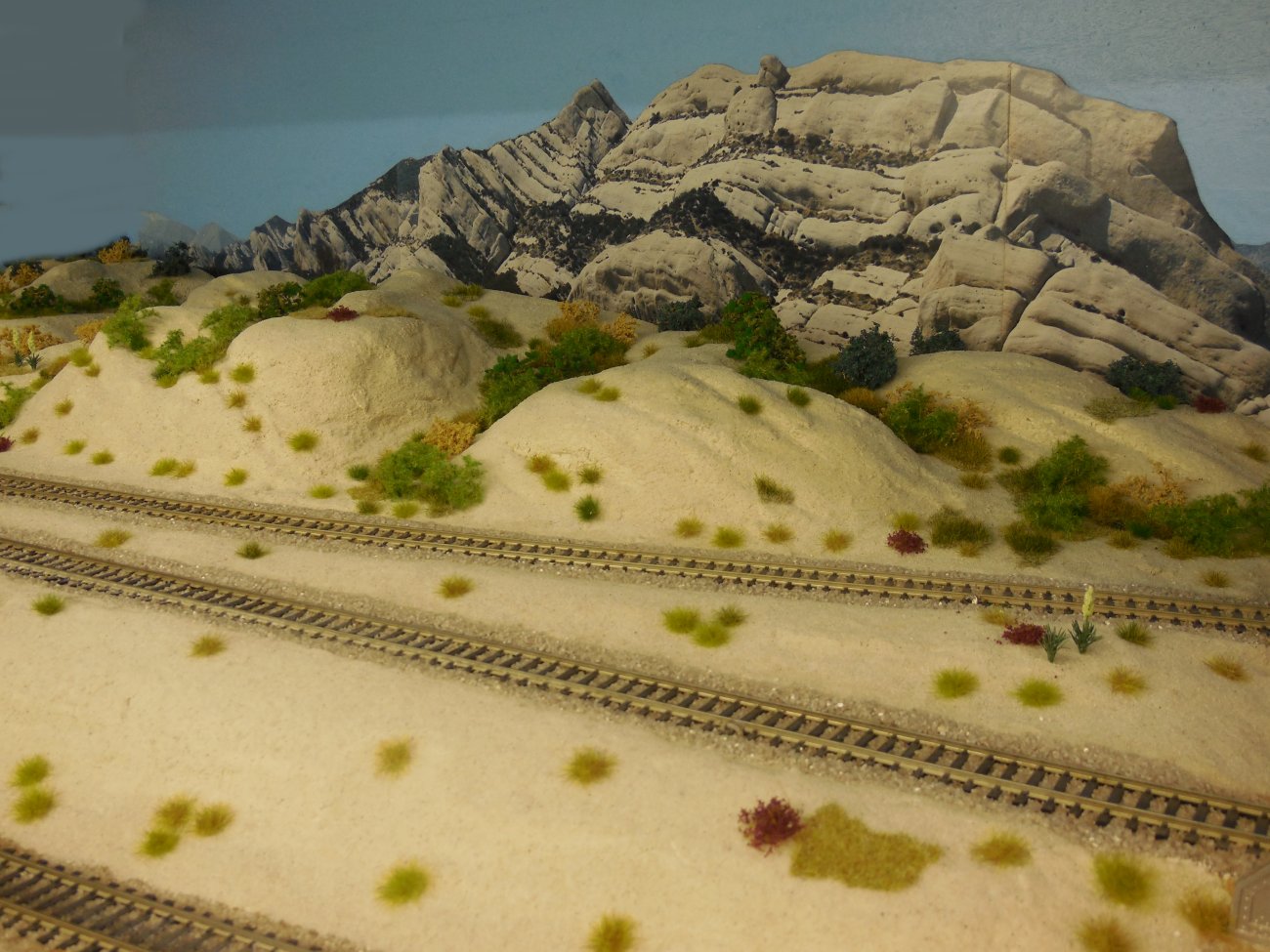

327 there is also a Joshua Tree near the bridges - 326

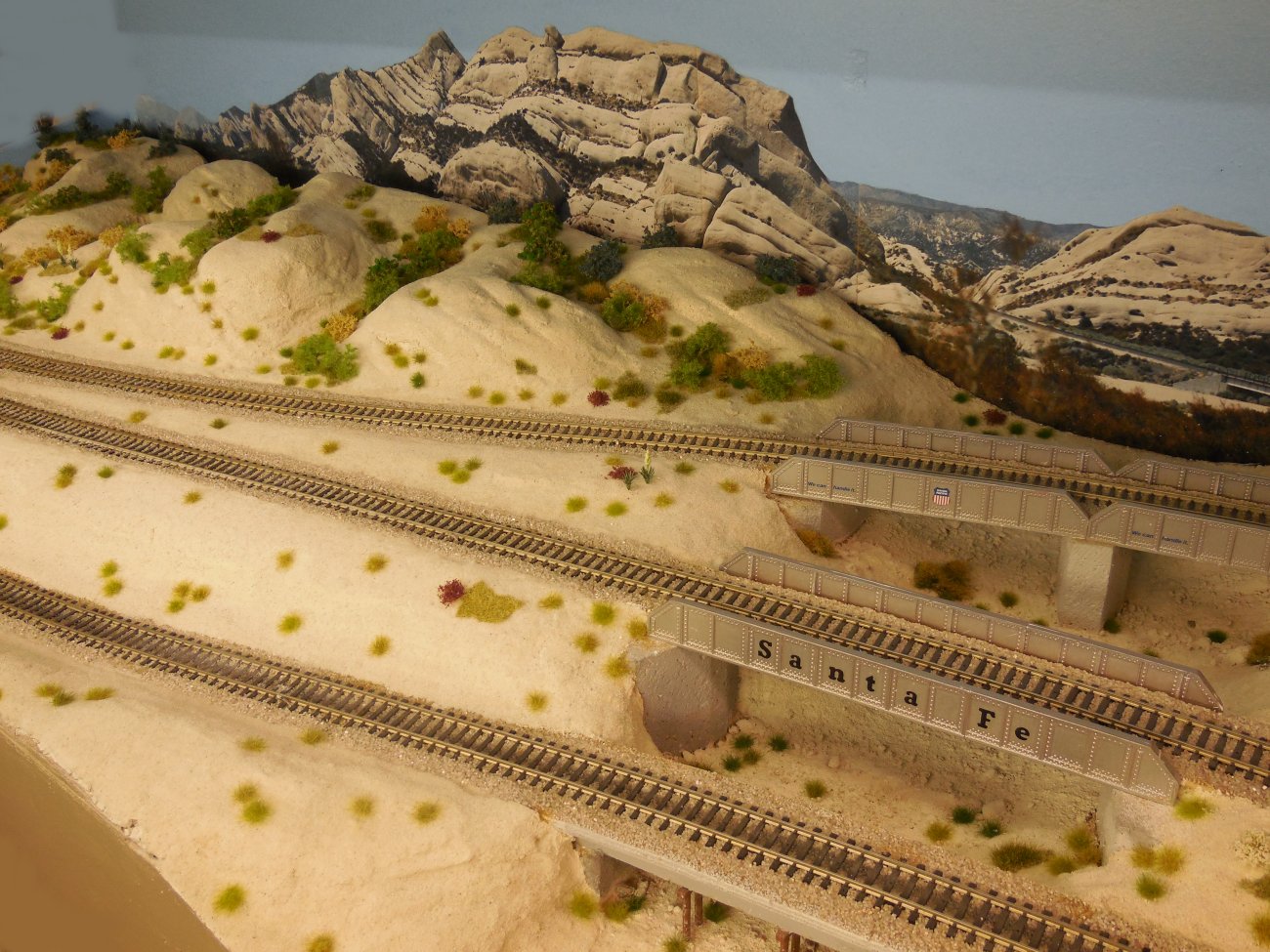

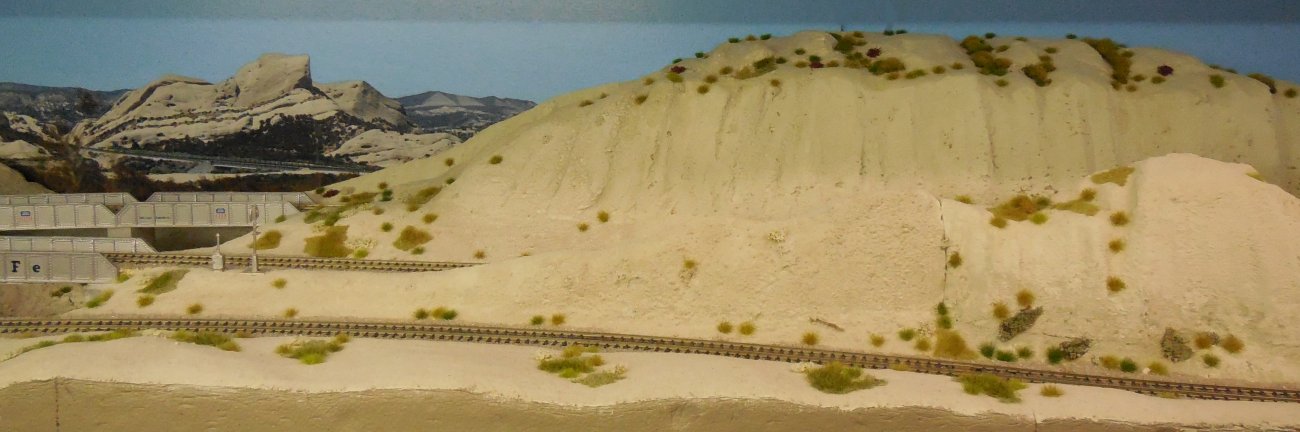

foreground and background fit together - 337 336

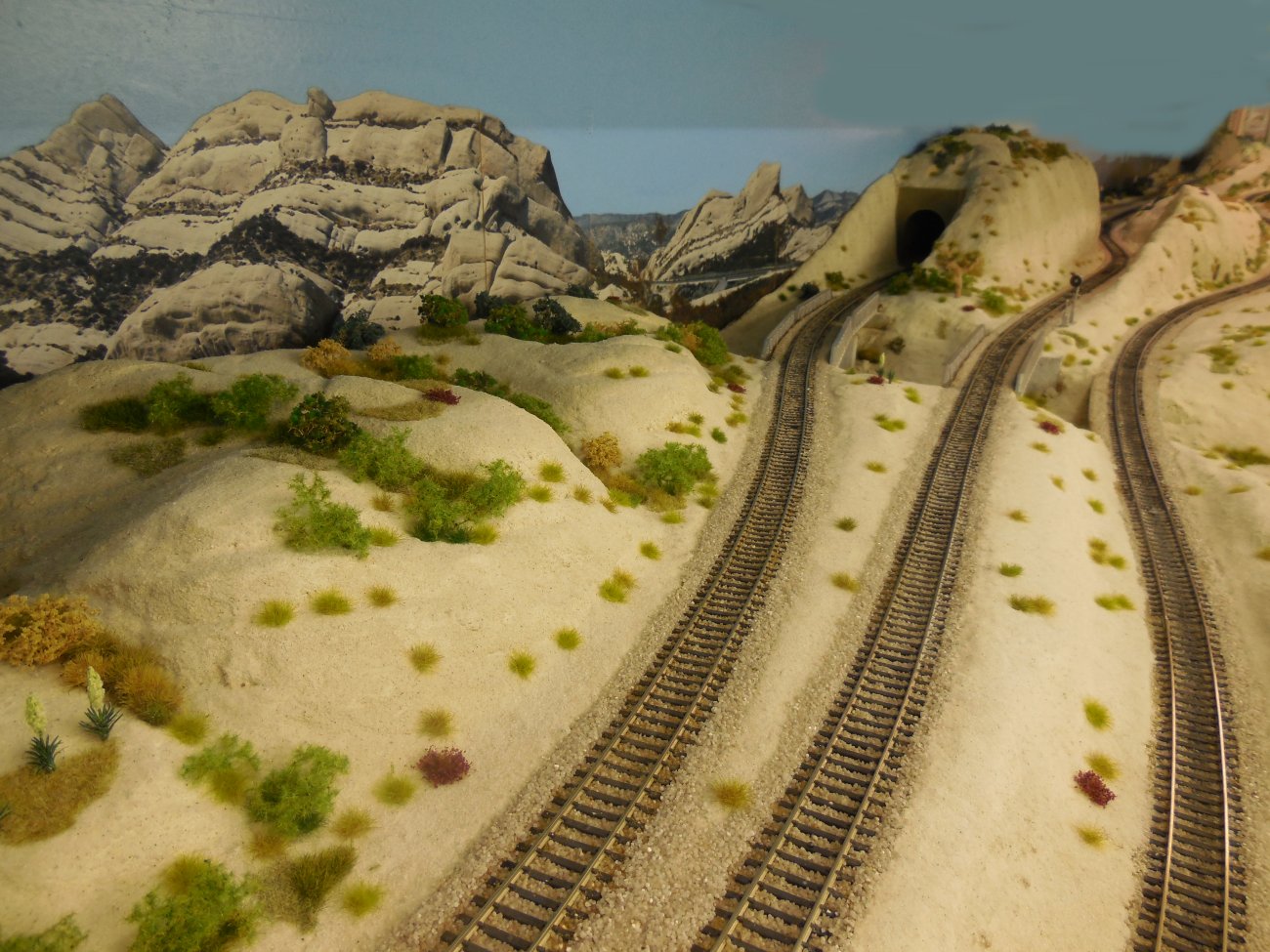

339 341

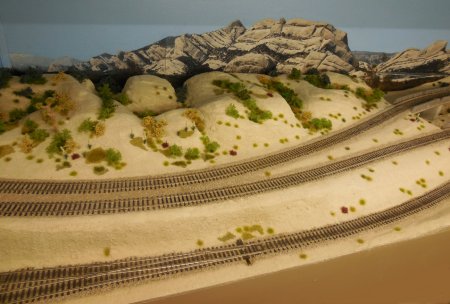

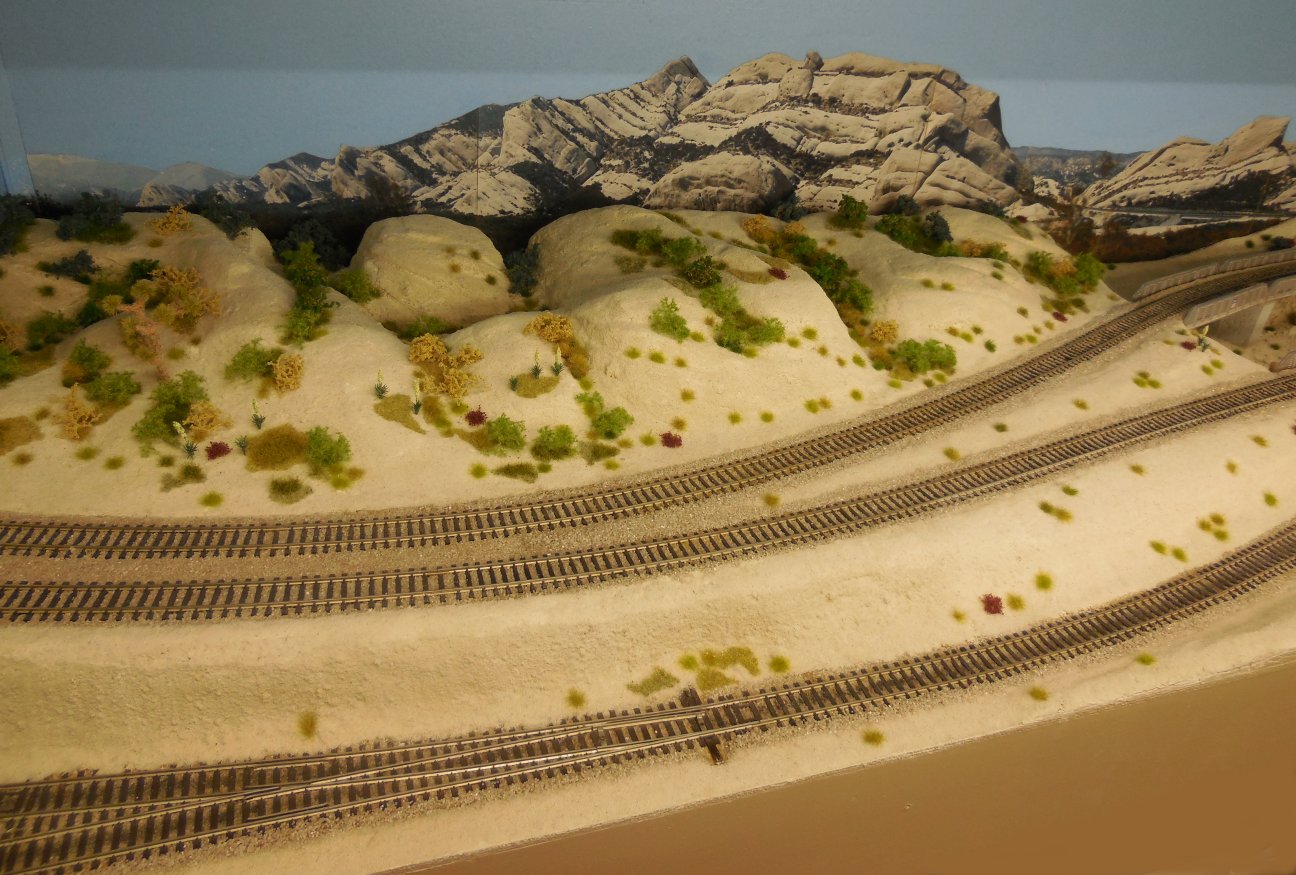

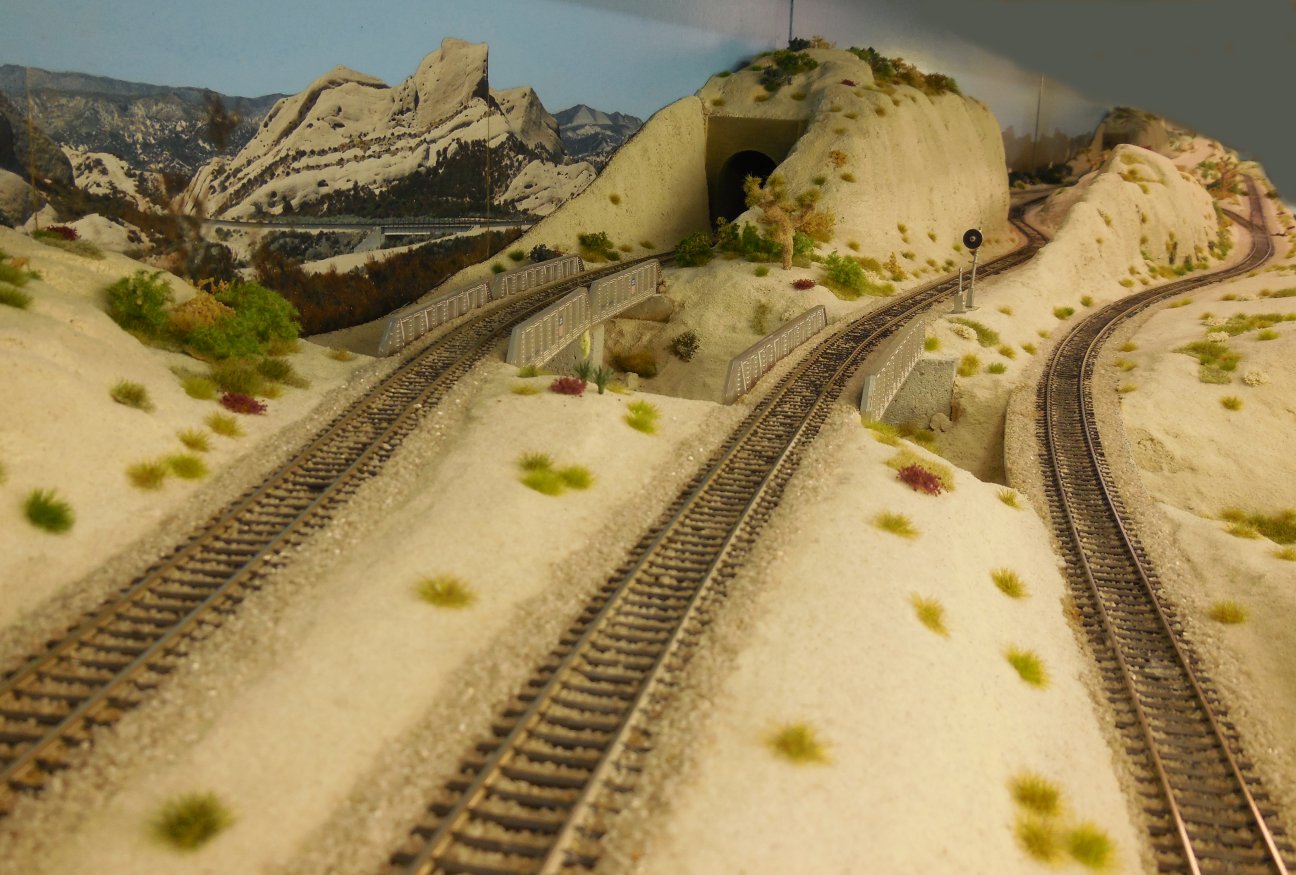

342 333

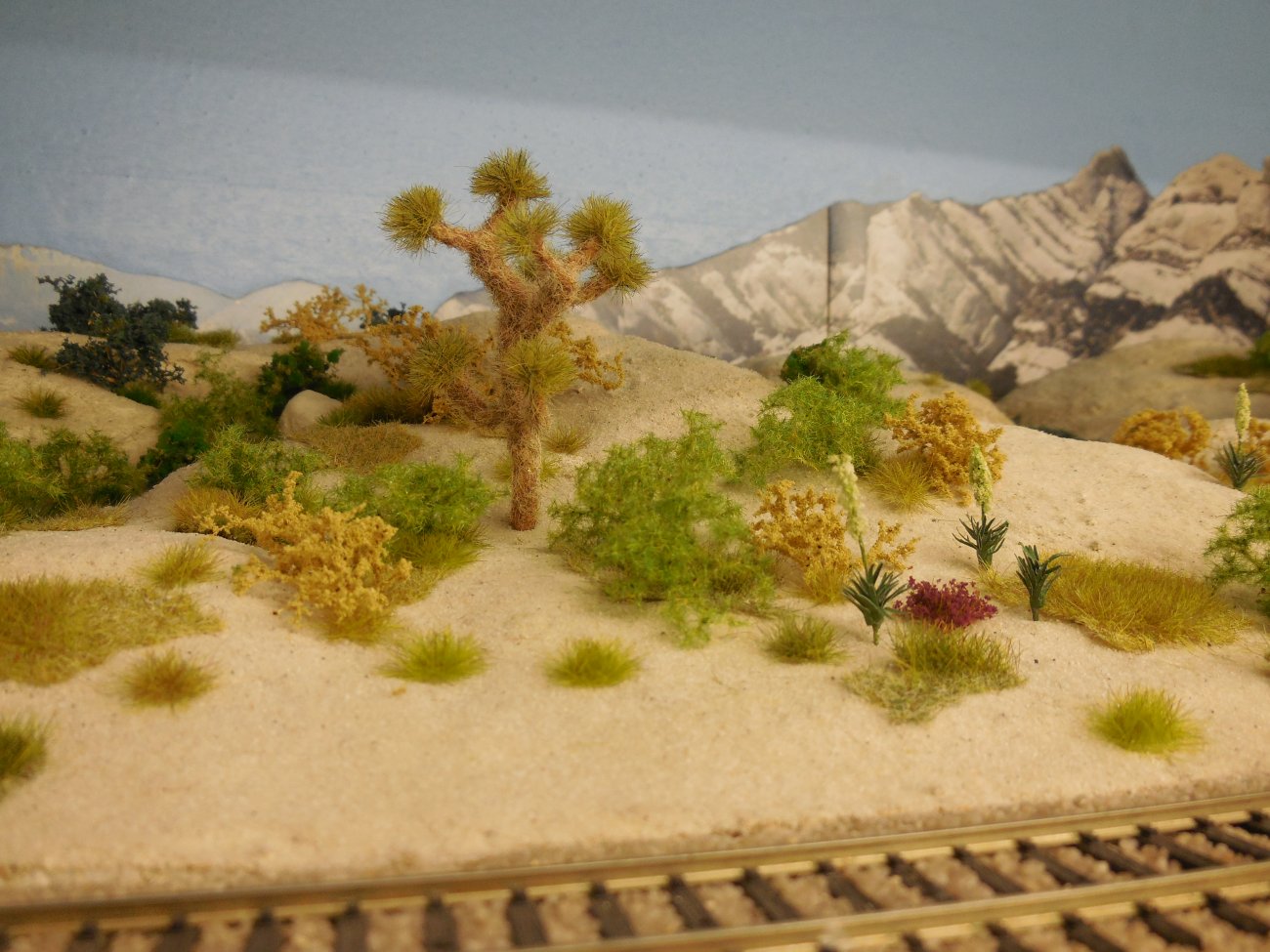

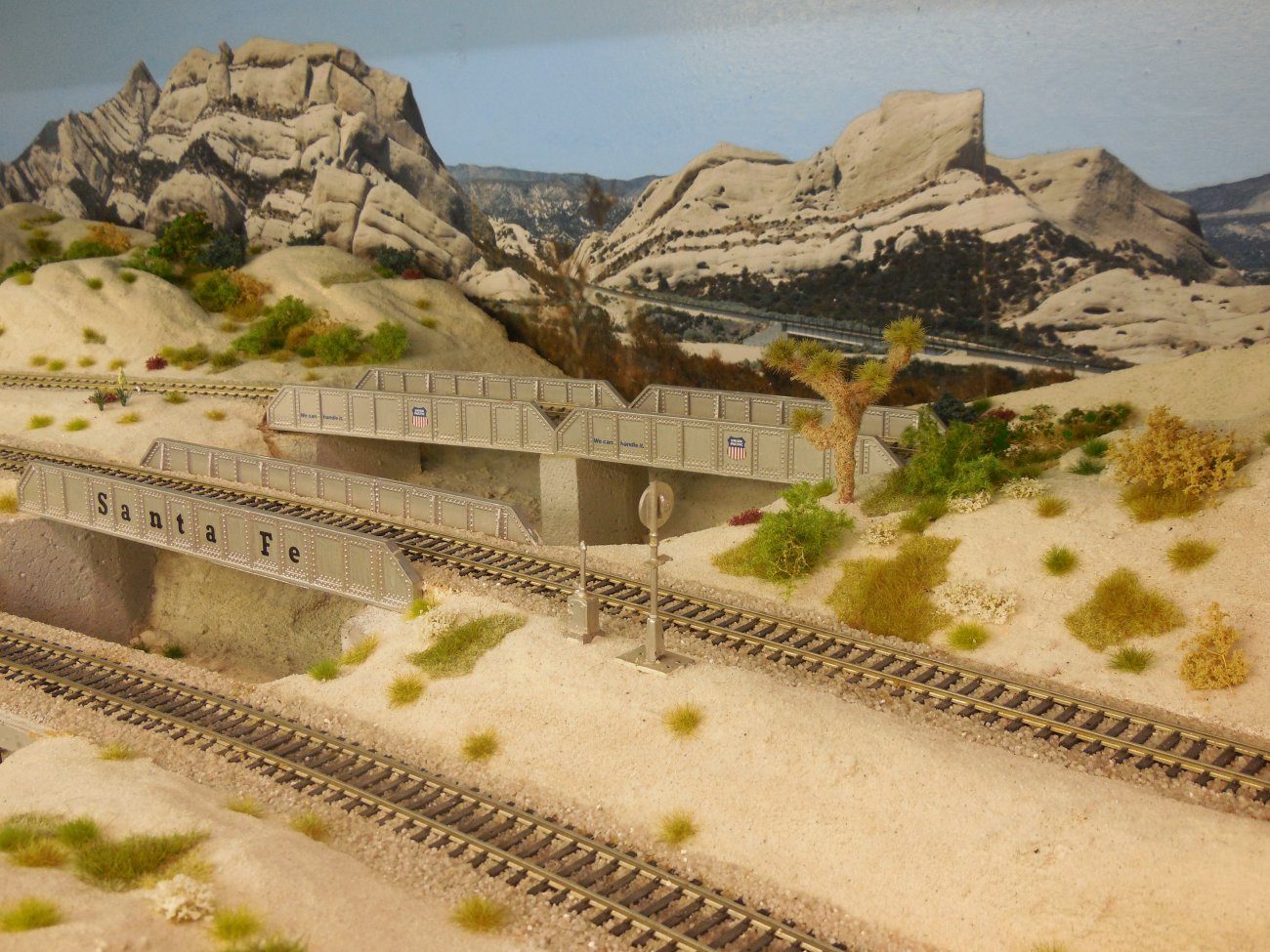

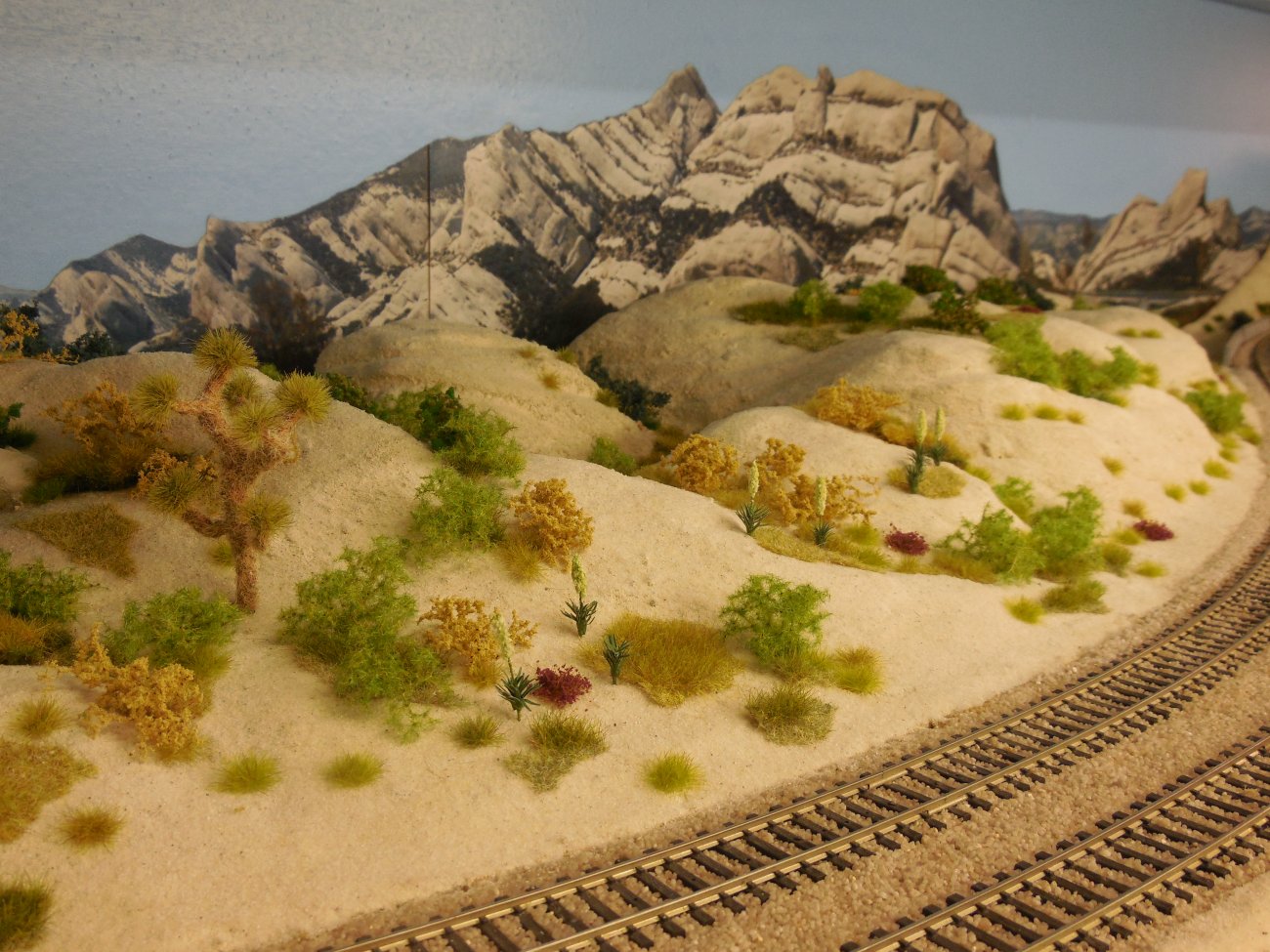

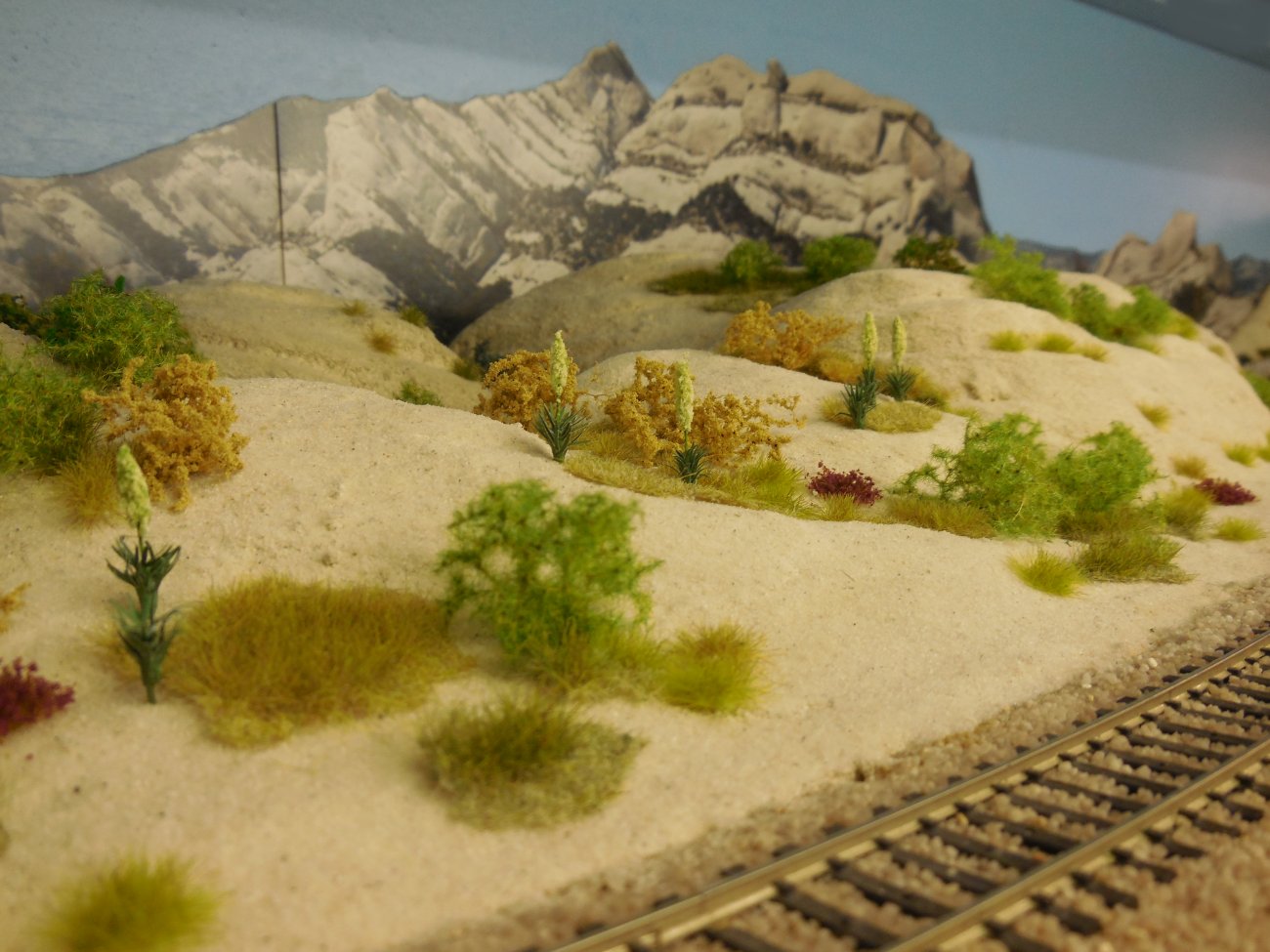

328 several blooming Yuccas ary typical for Cajon Pass - 331

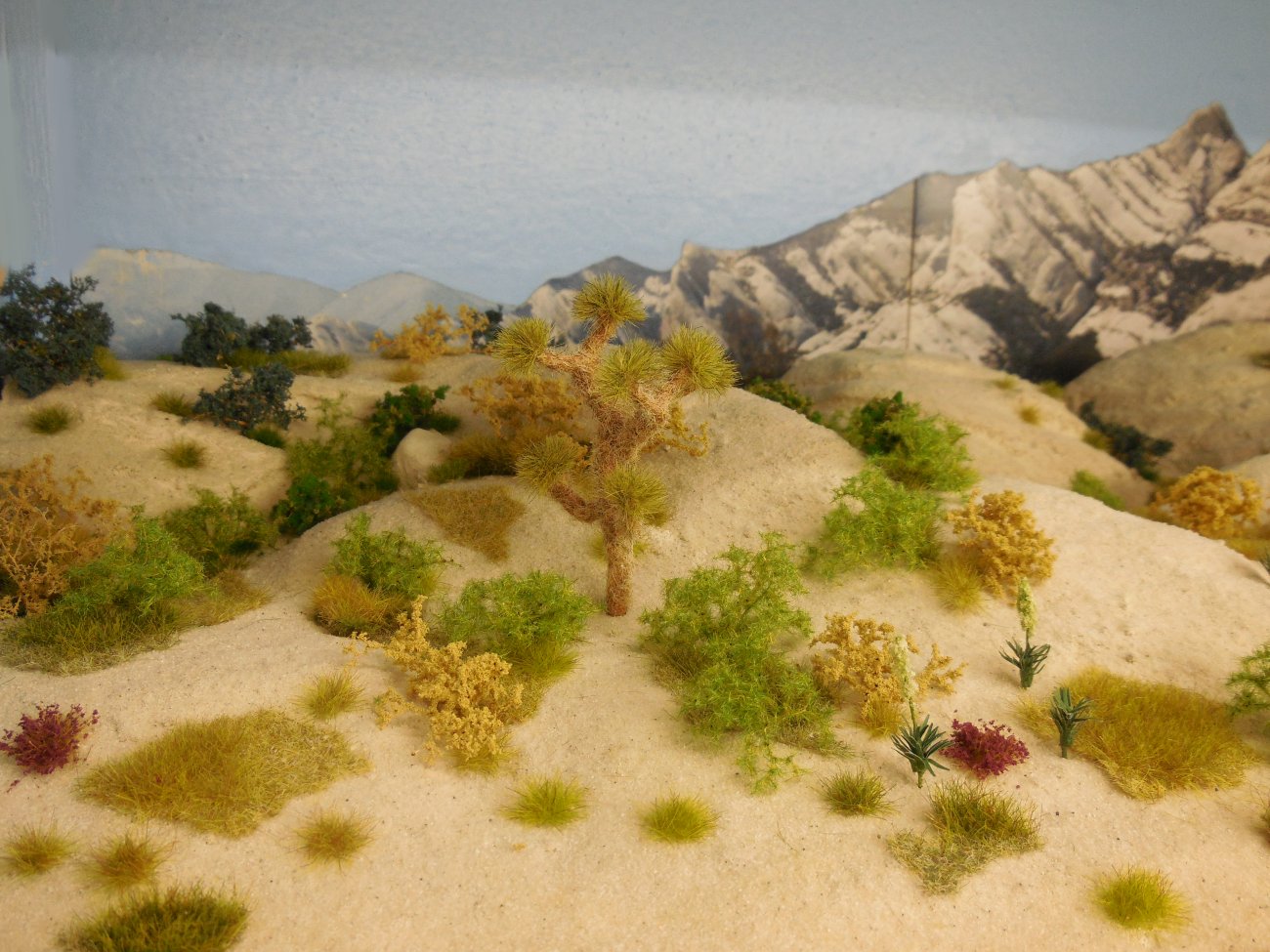

there are some Joshuas on both sides of Hwy 138 in reality - 330 329

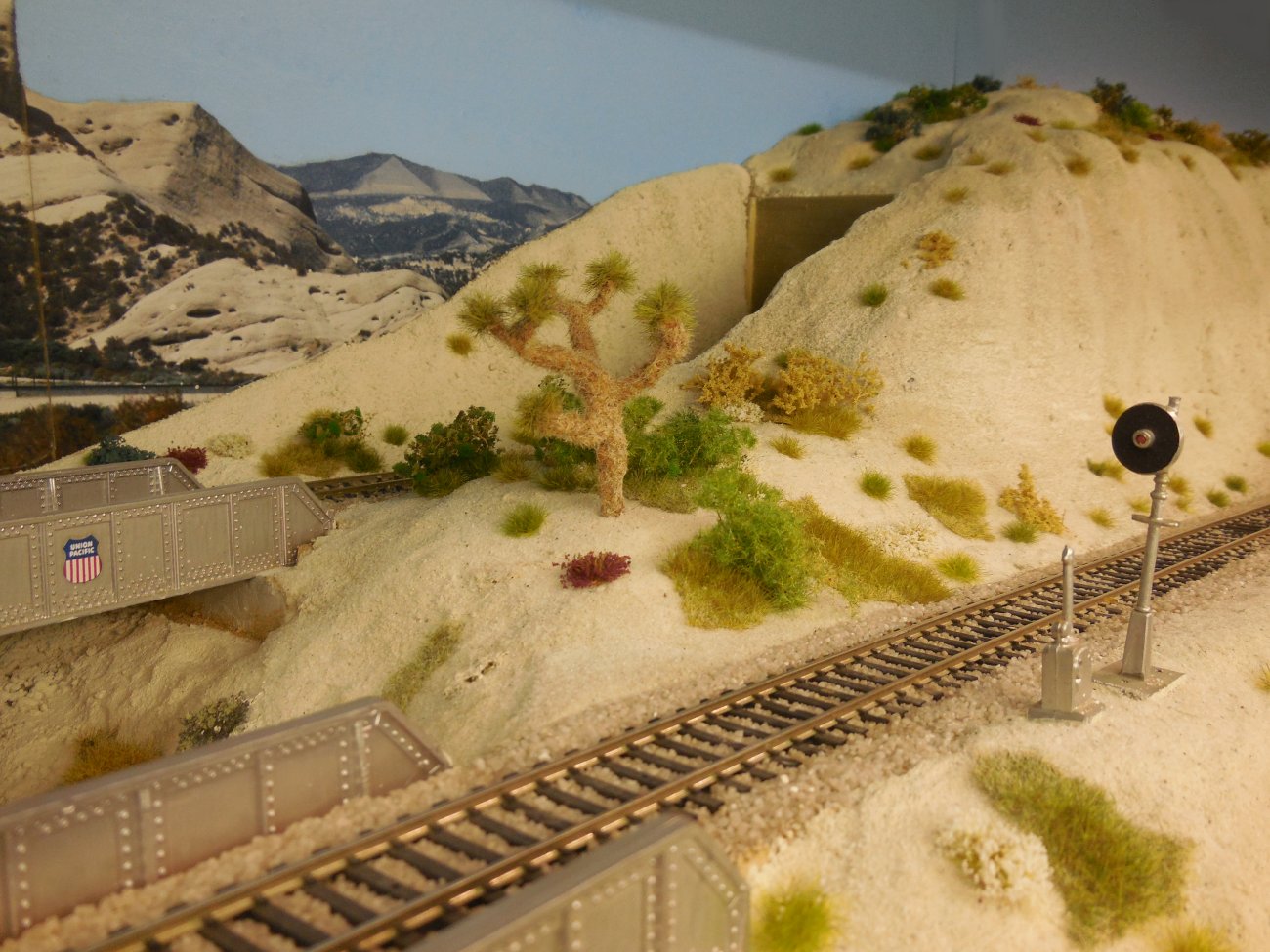

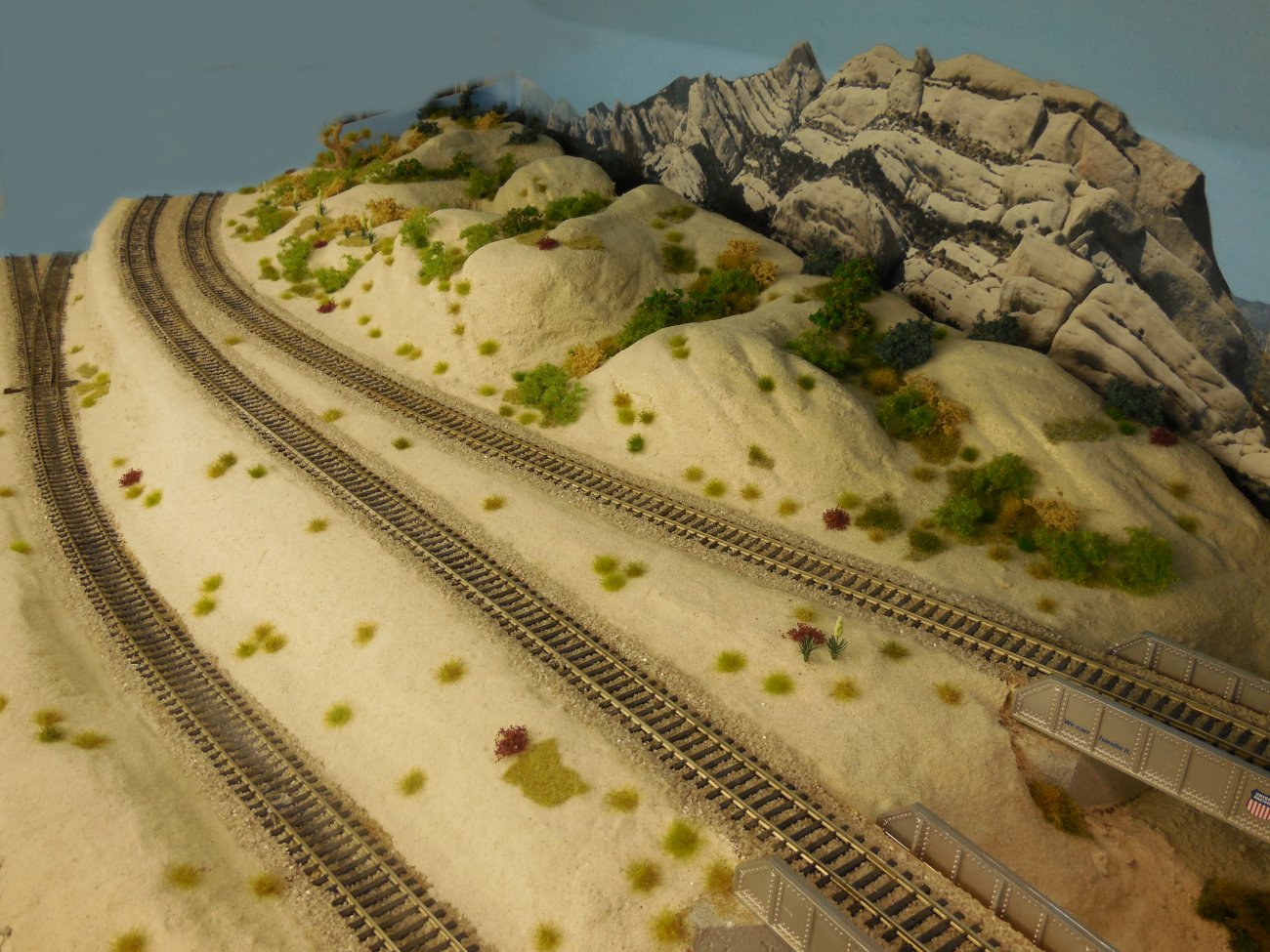

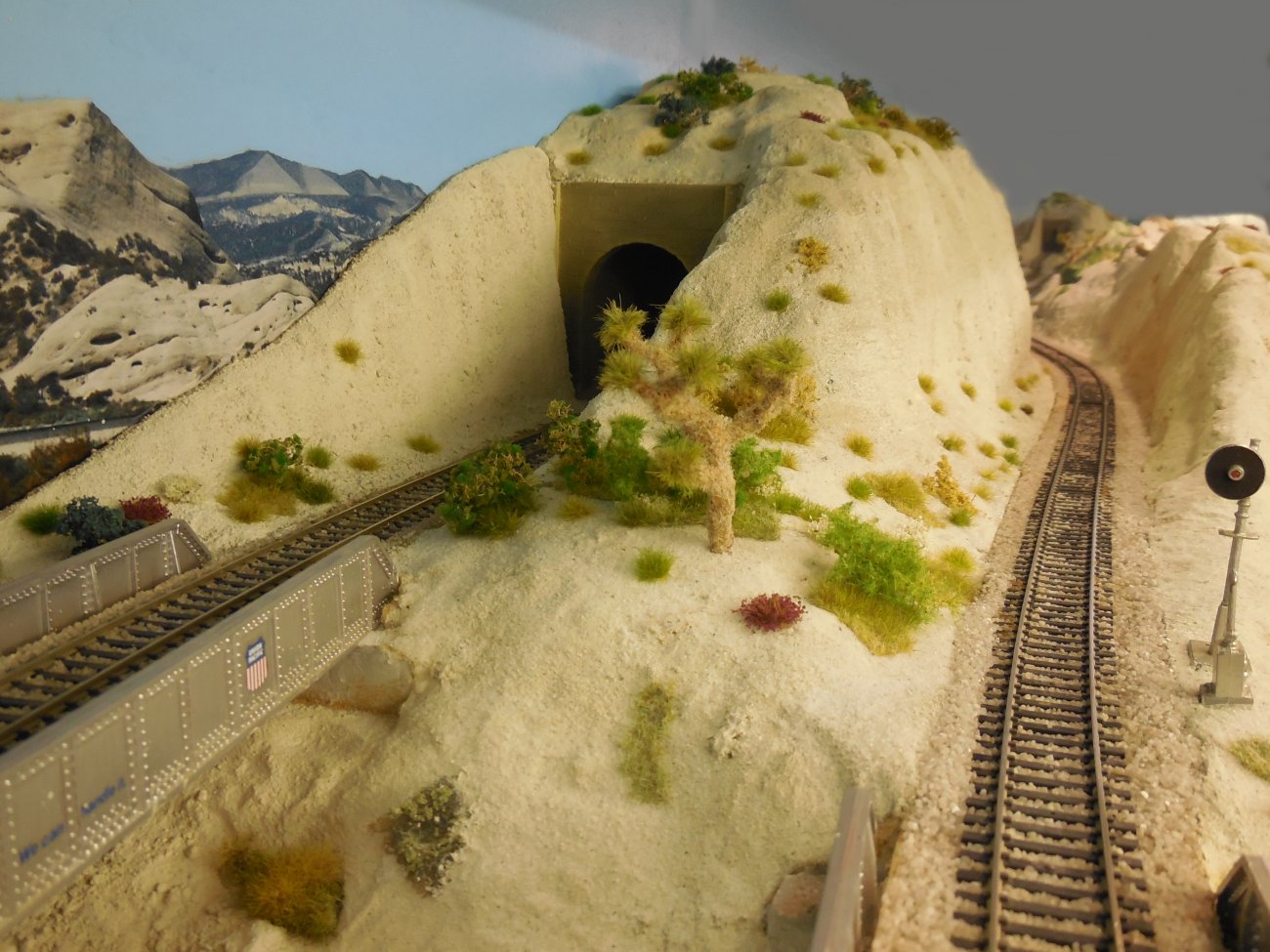

With some bushes, tufts and a Joshua, the tunnel area looks much more realistic. - 335 The color of the rocks are a perfect match to the Mormon Rocks on the backdrop - 334

 Part 5

Part 5: All the Way - Santa Fe Streamliner rolling over Cajon Pass passing the Mormon Rocks.
The backdrop are photos of the real Mormon Rocks (along Hwy 138) which I took back in the early 80's

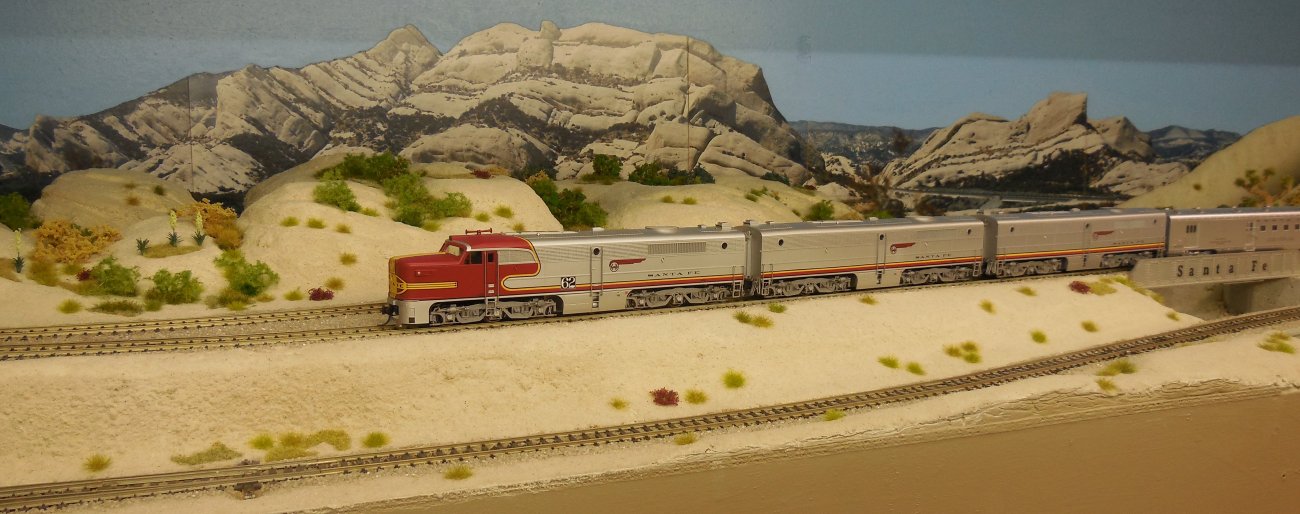

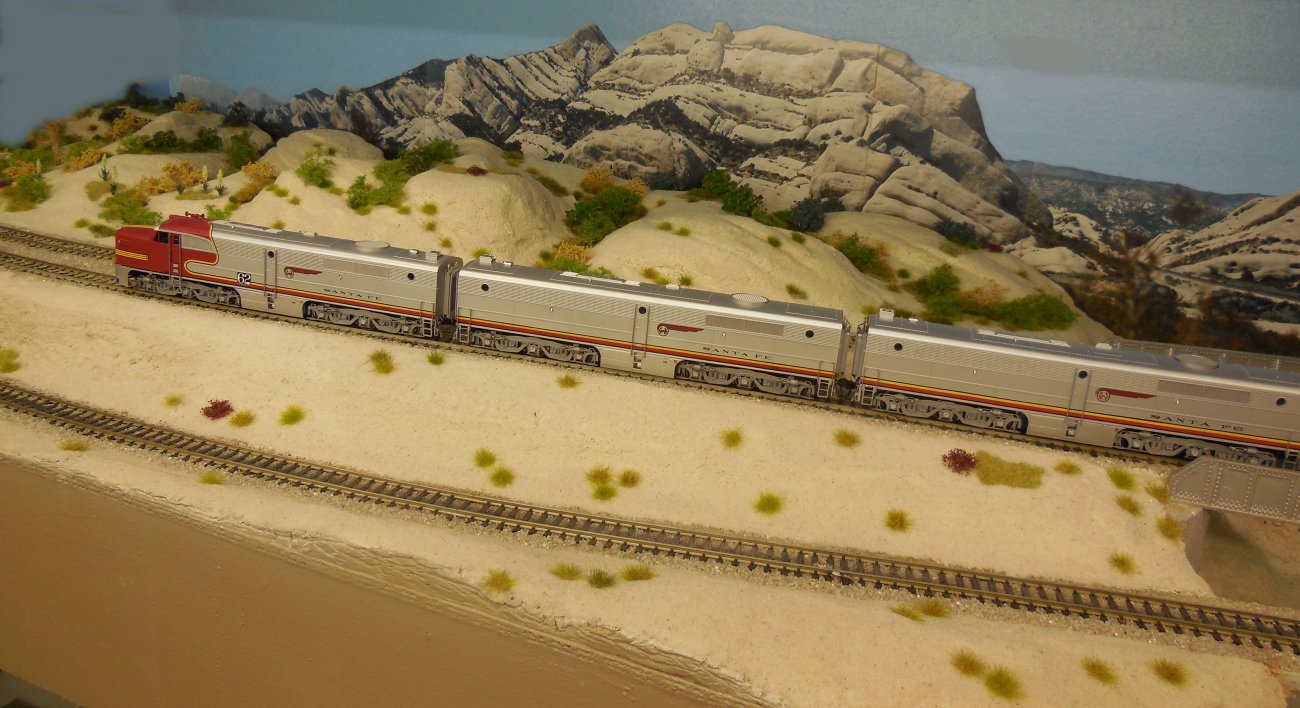

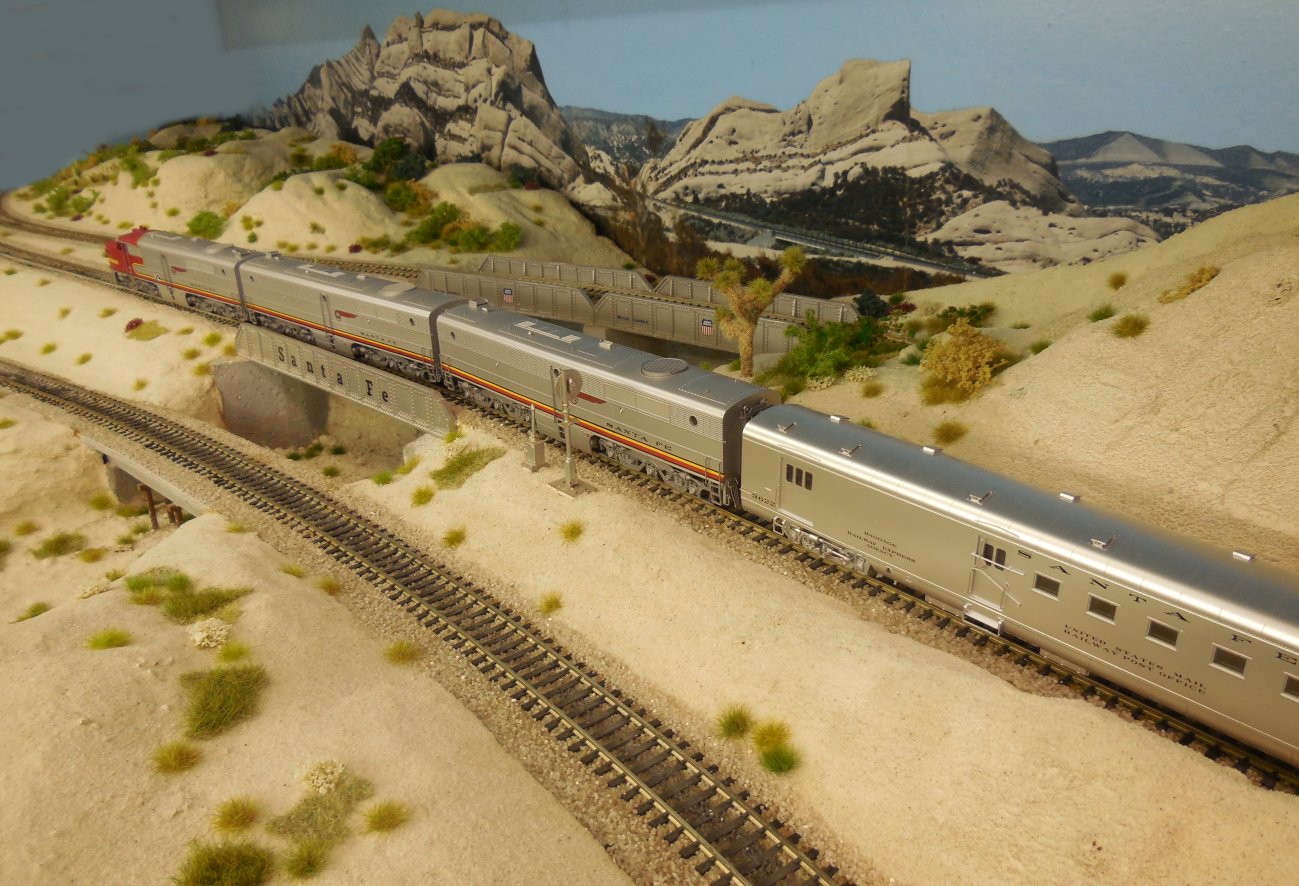

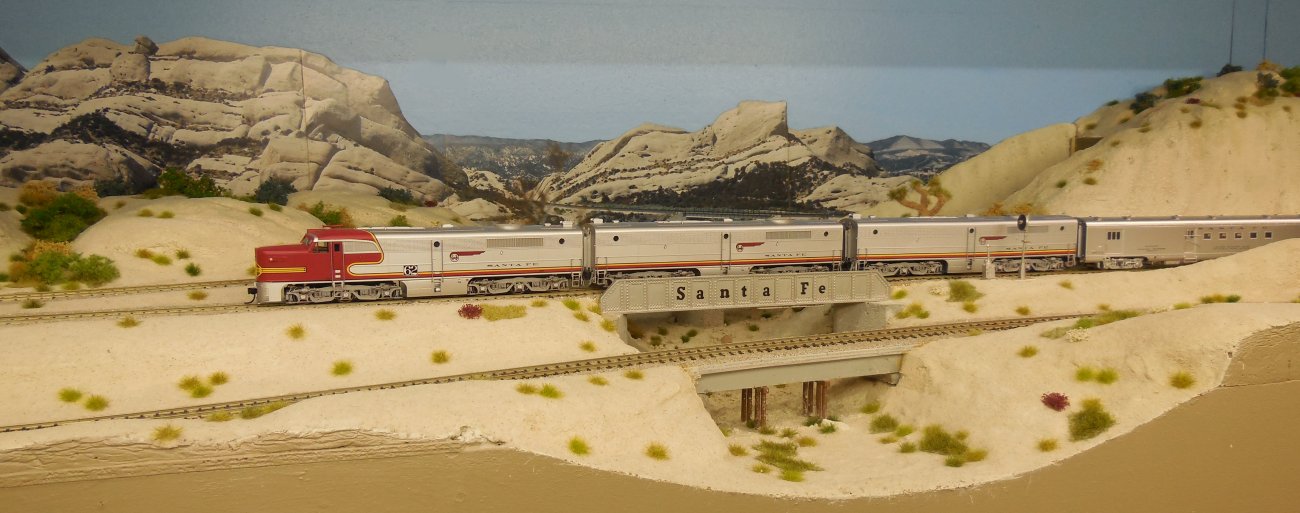

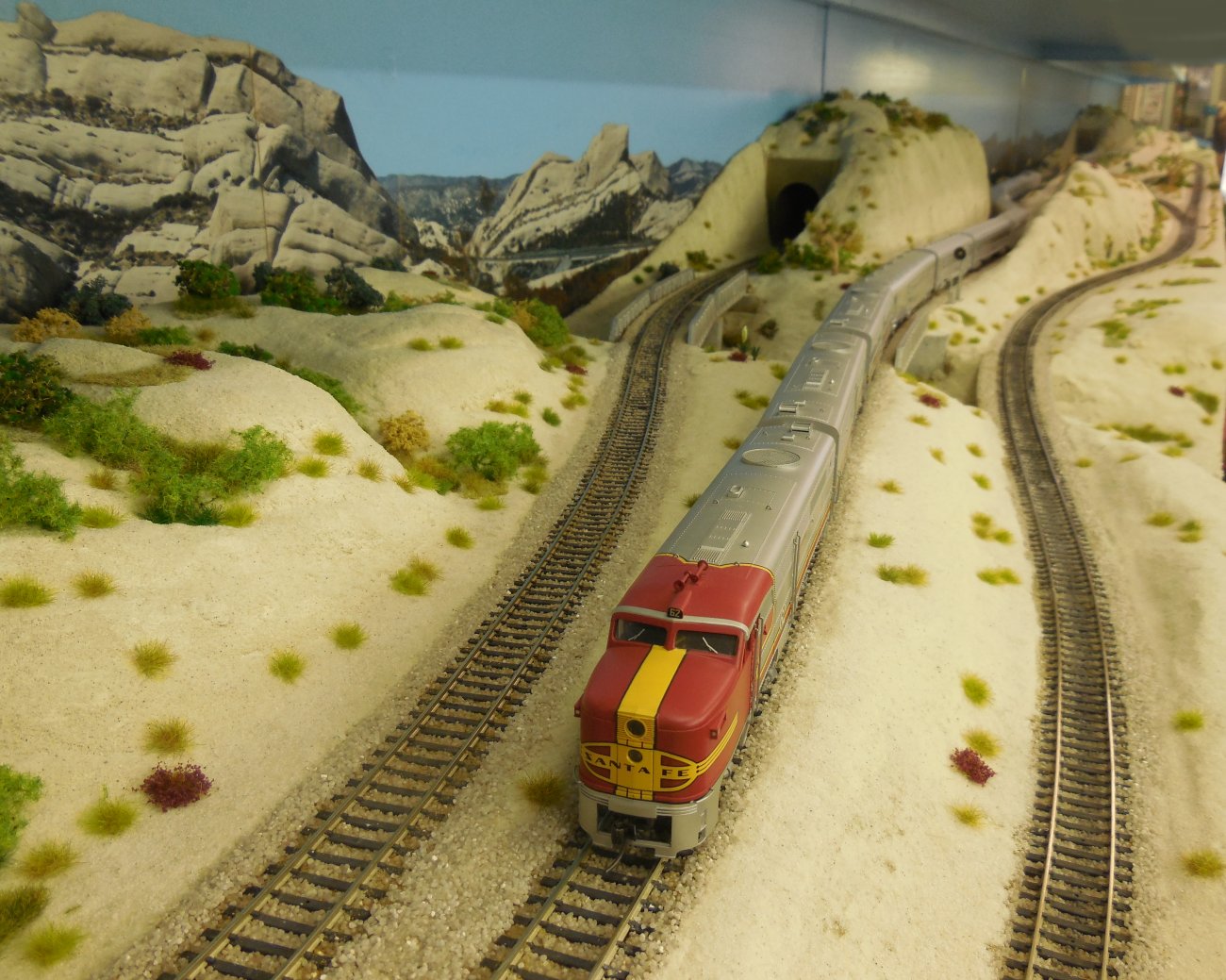

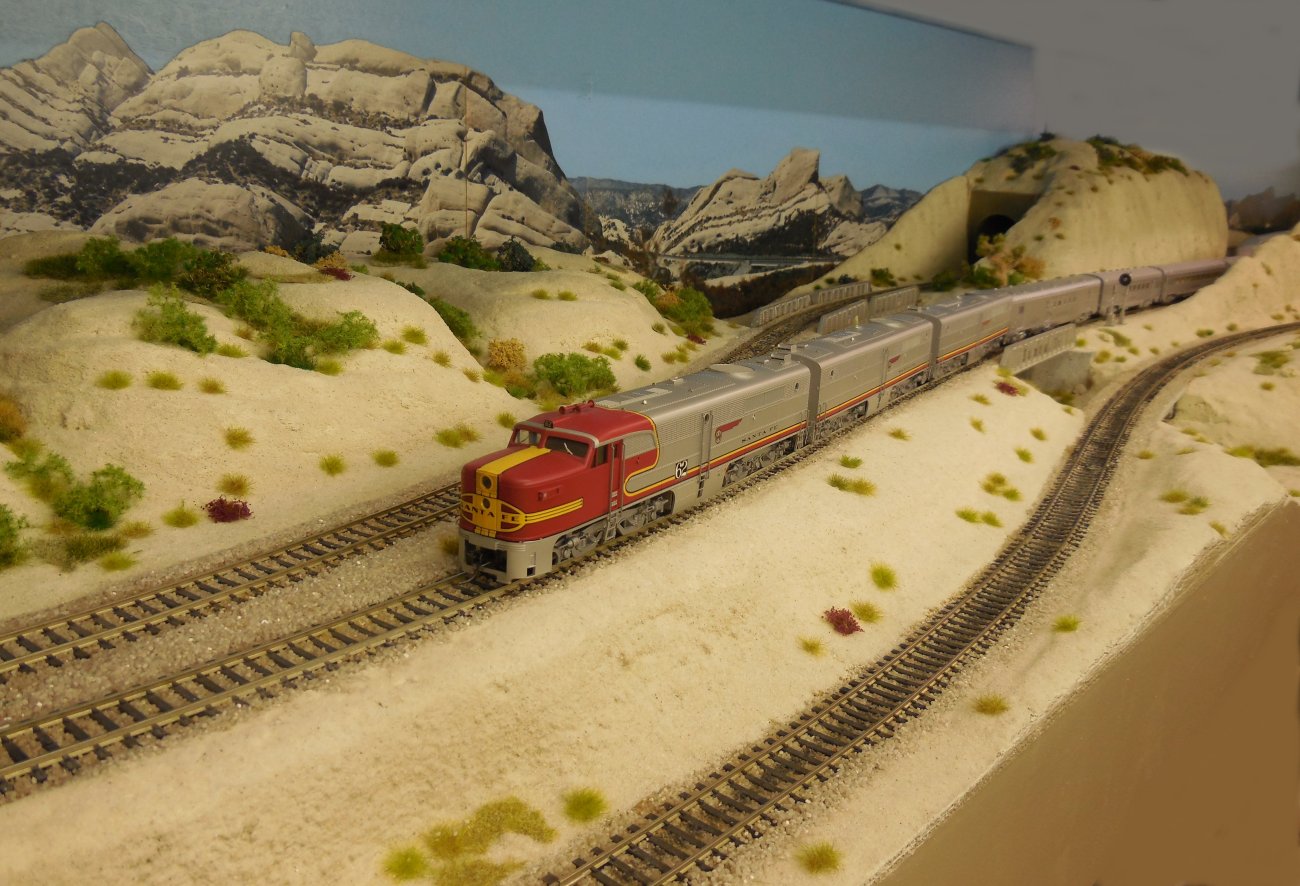

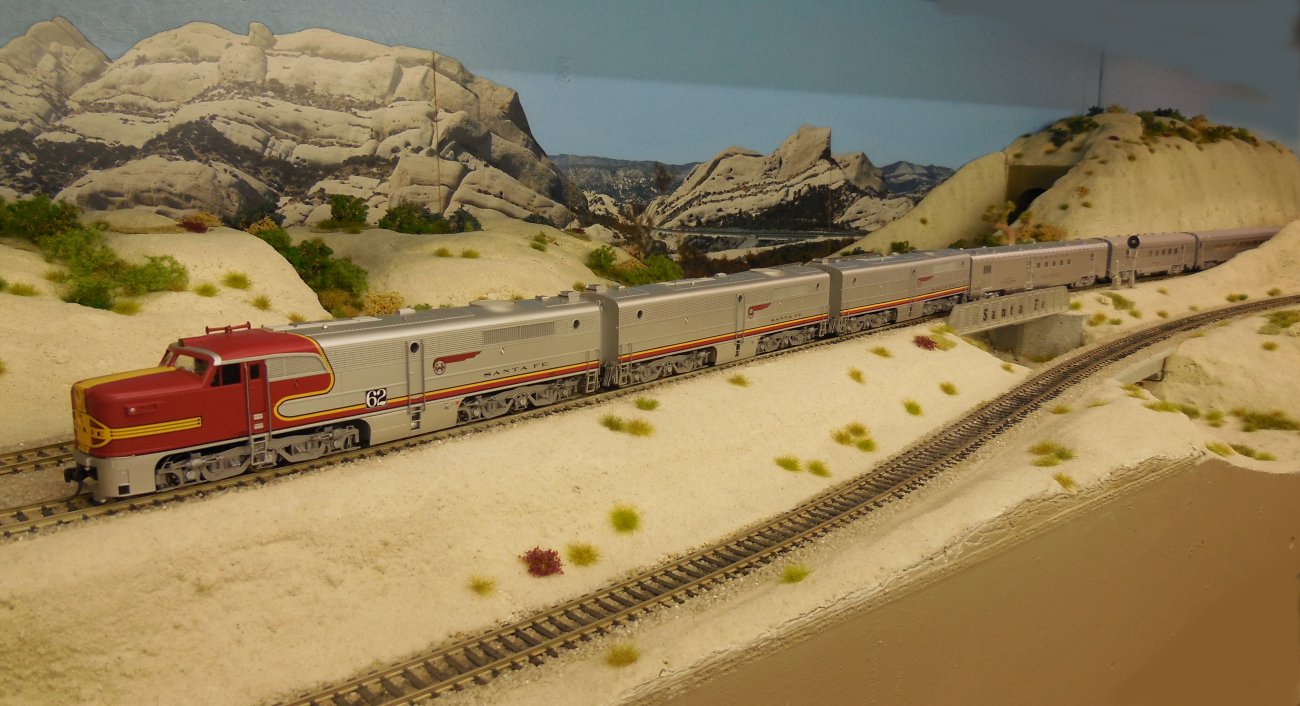

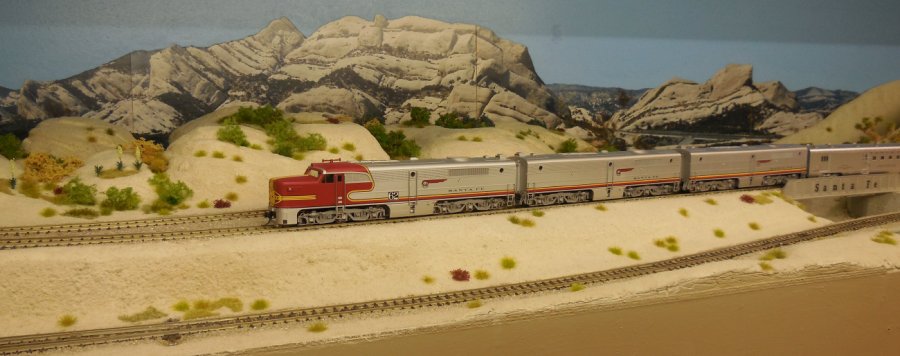

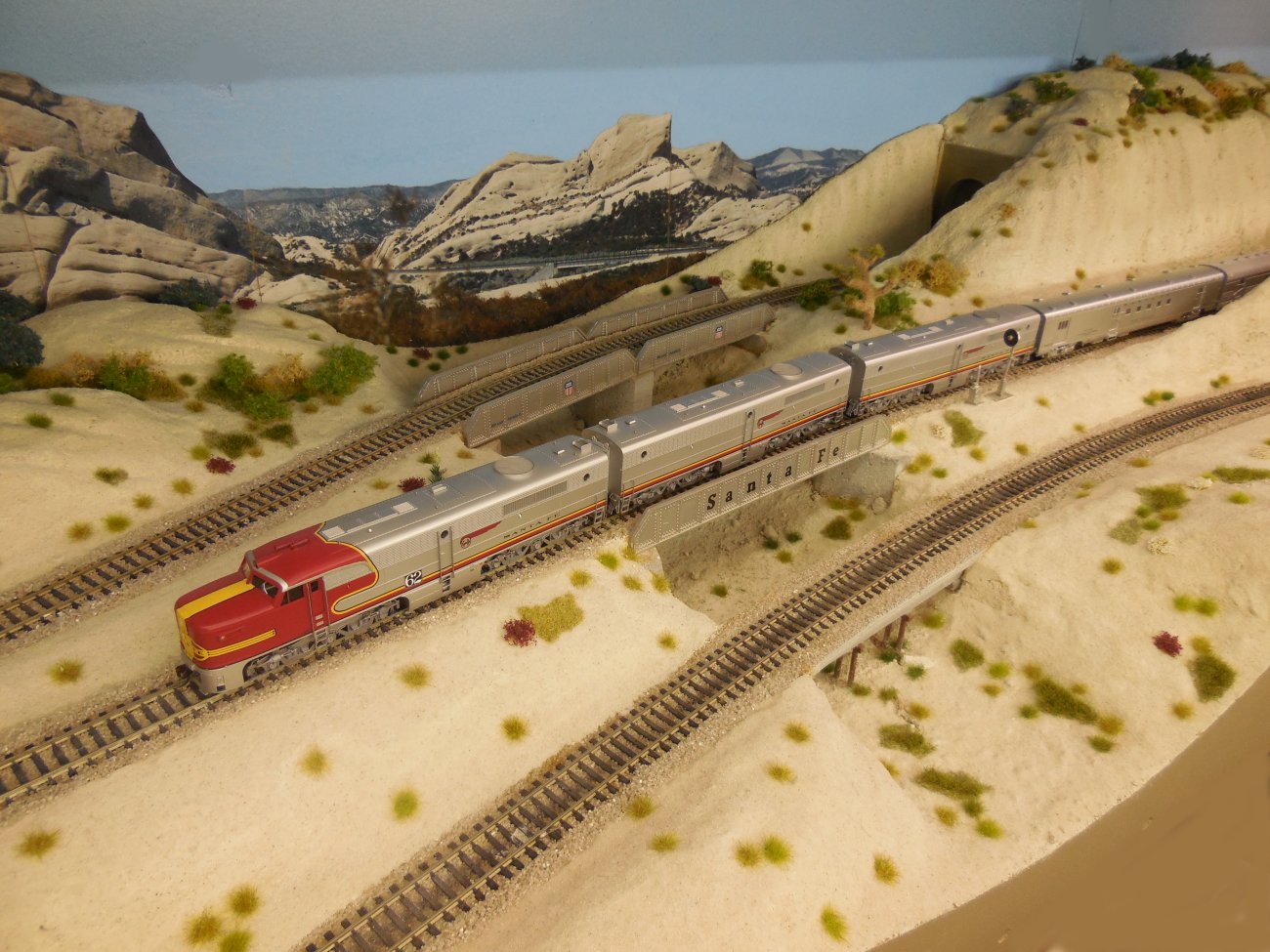

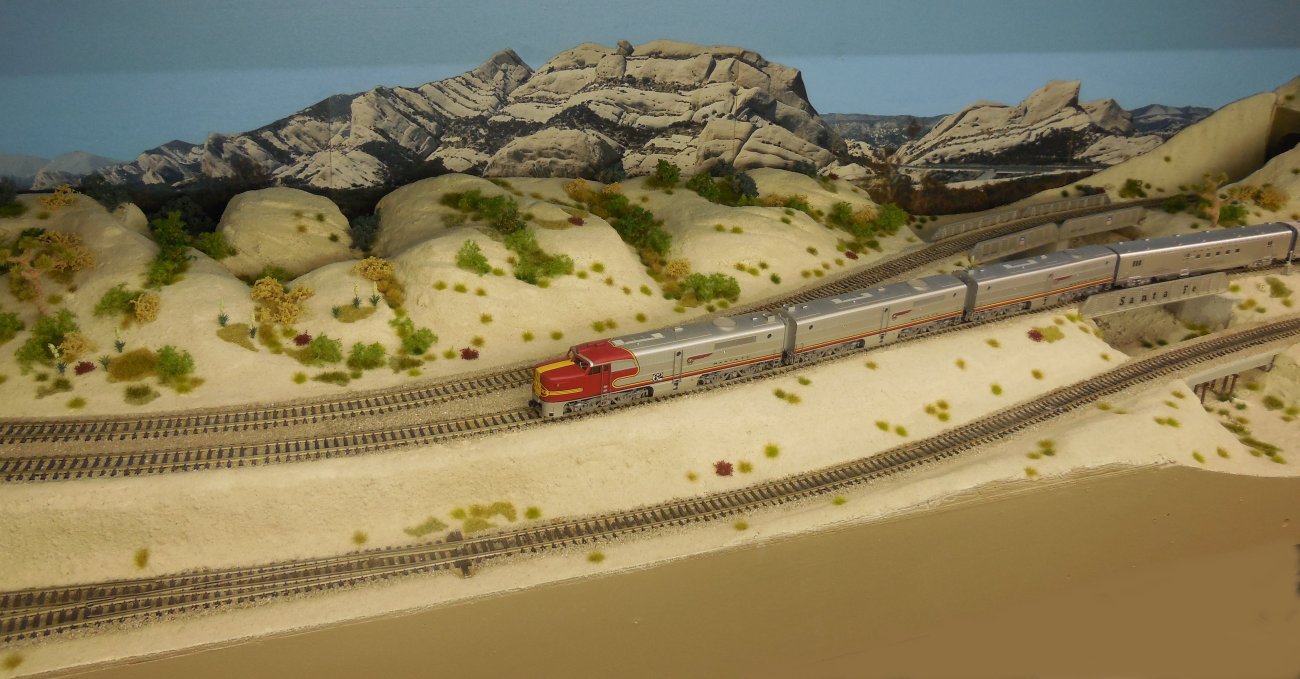

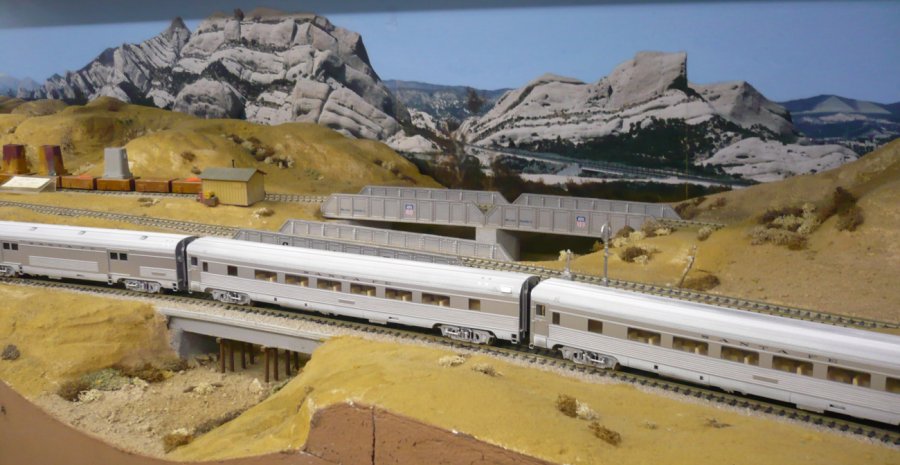

3/03/17: ALCO PA1 A/B/B made by Life Like Proto 2000 and Passenger Cars made by Walthers - 344
361

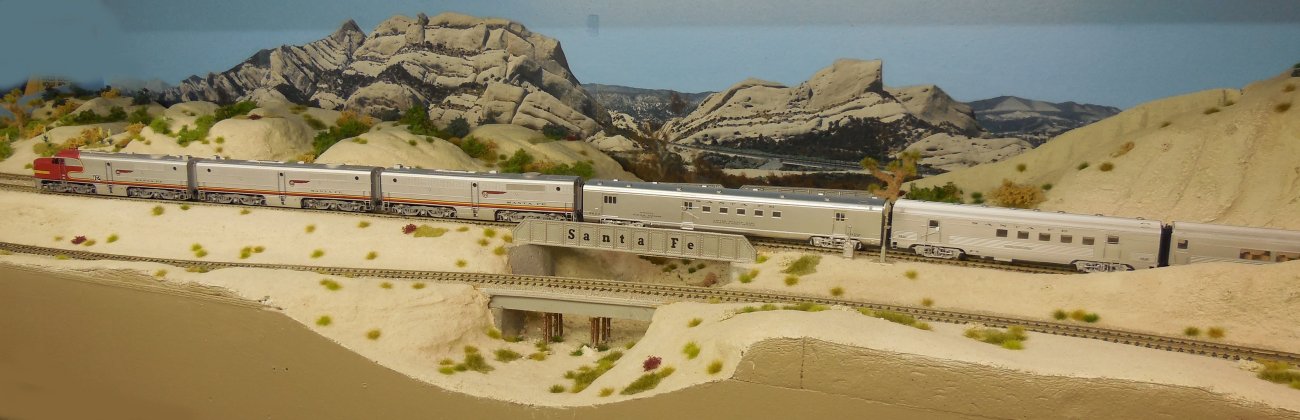

354

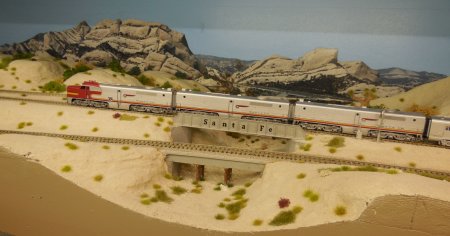

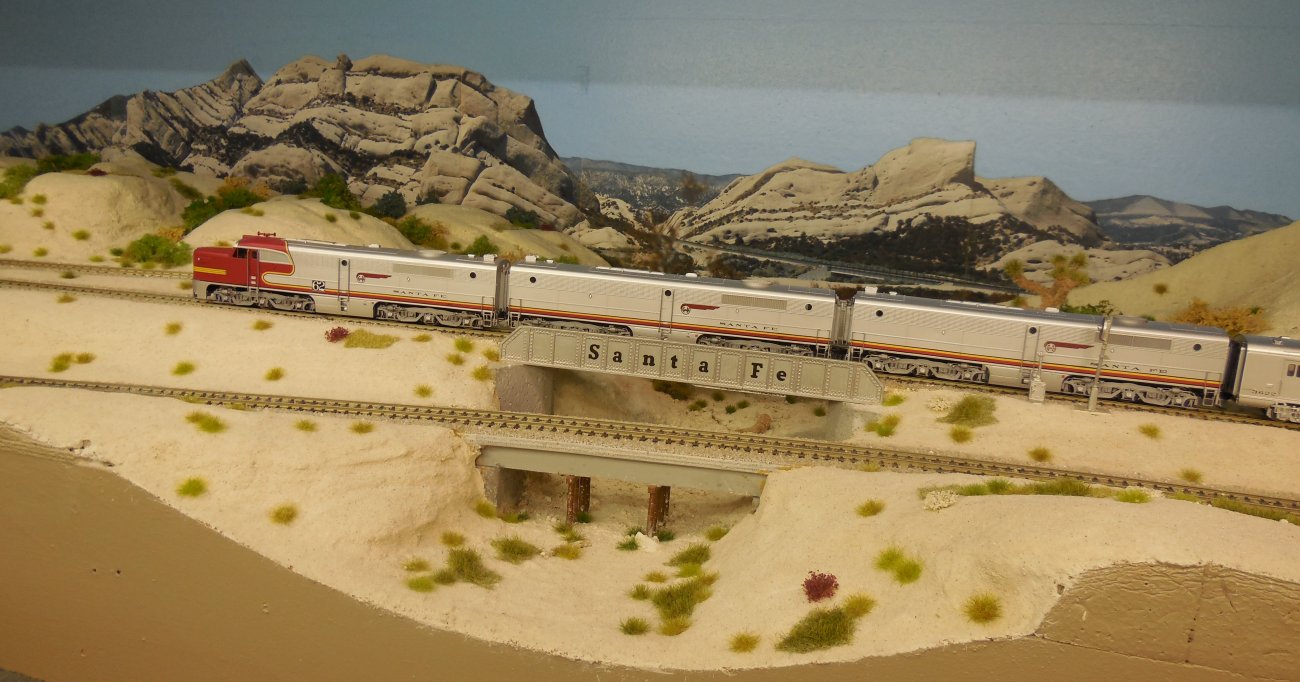

346 365
351 353

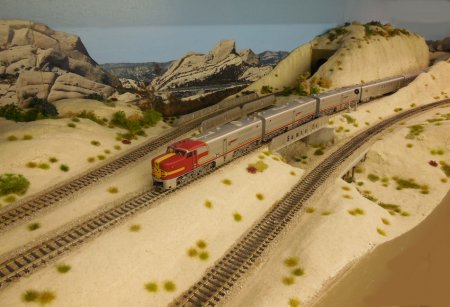

345 362

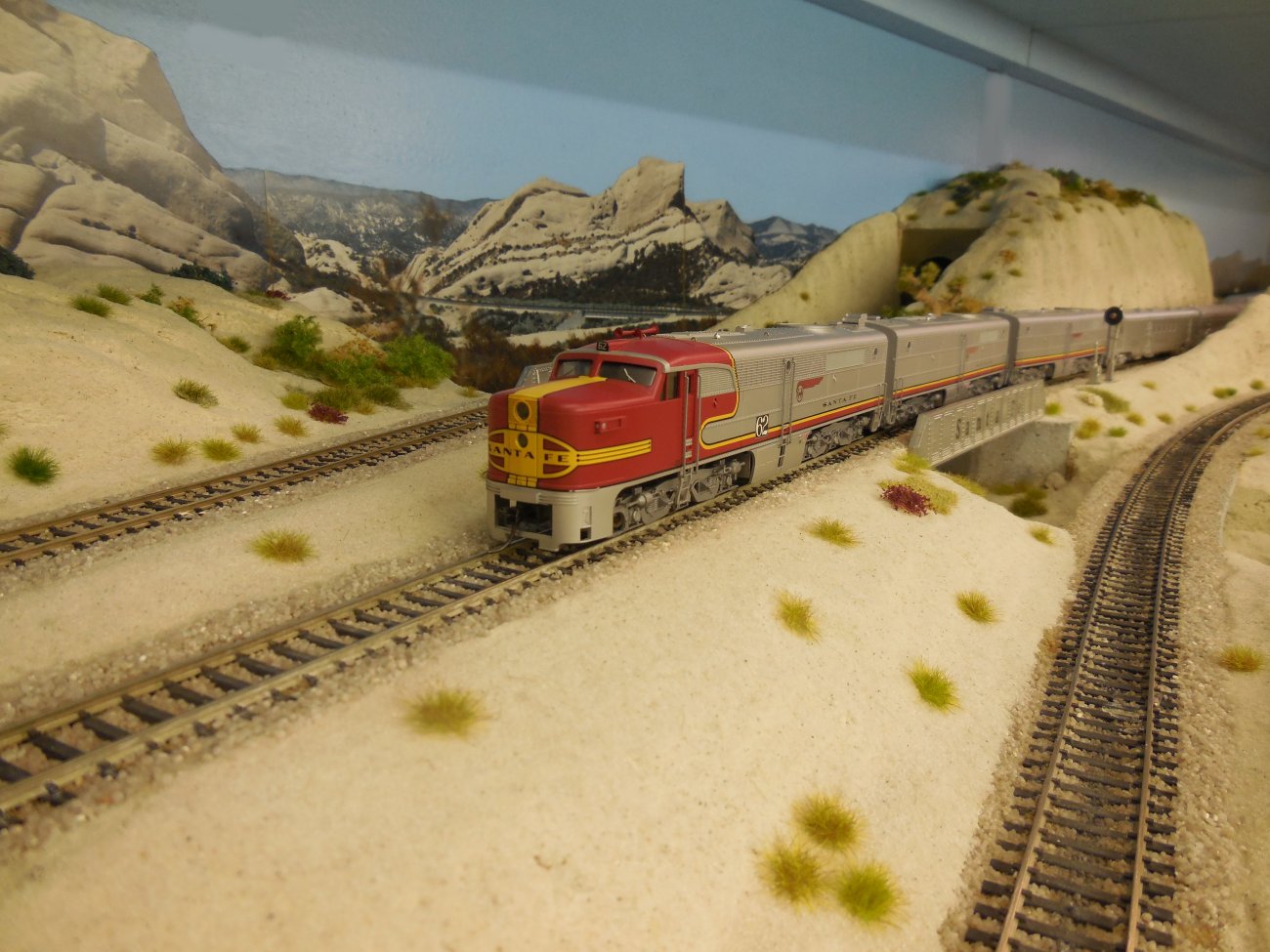

360 364

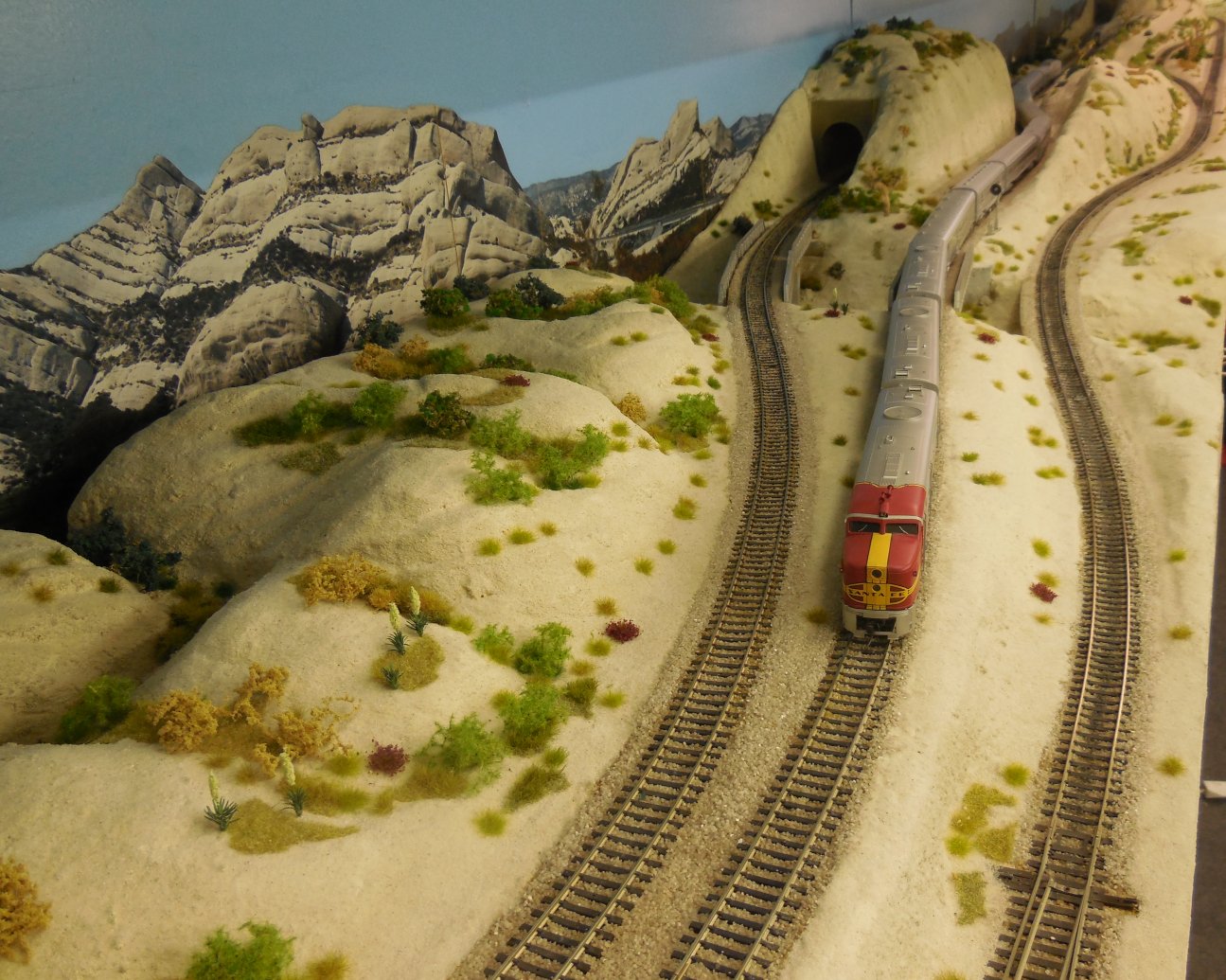

349 350

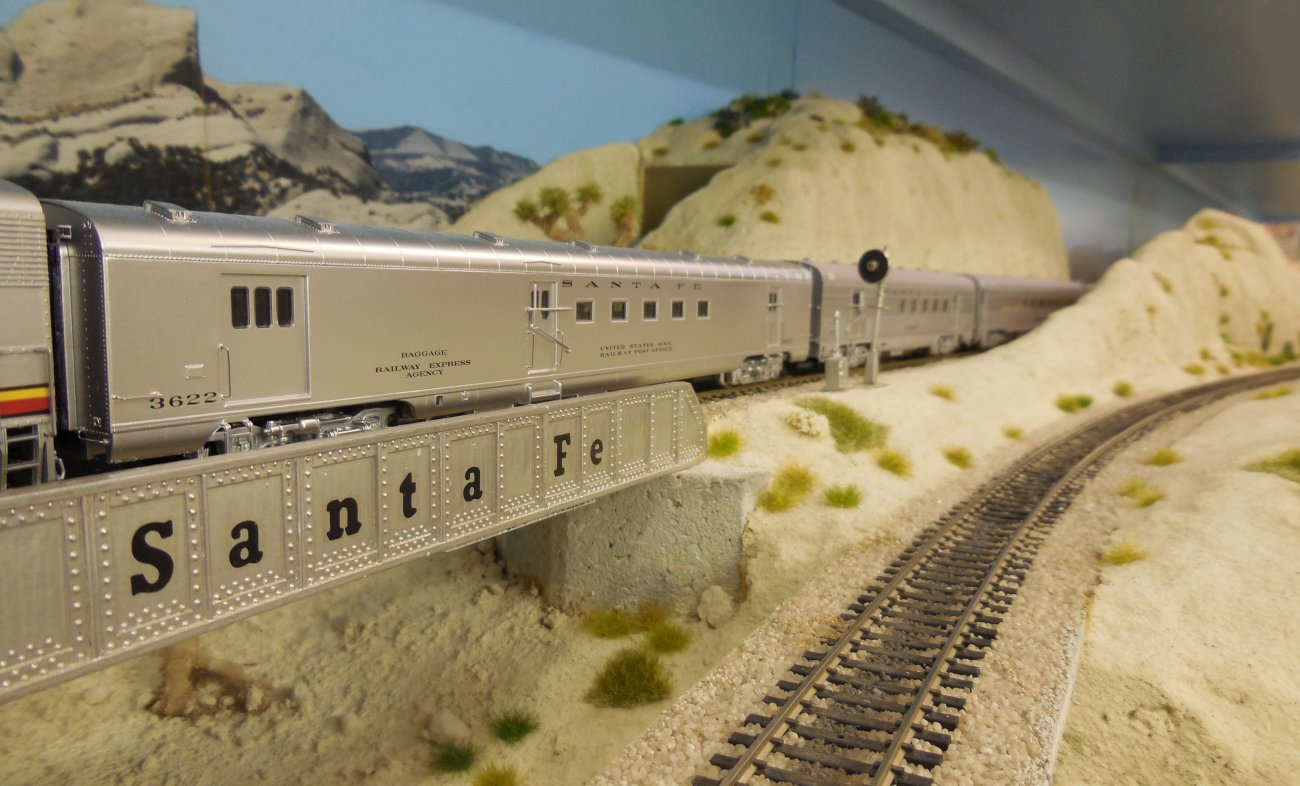

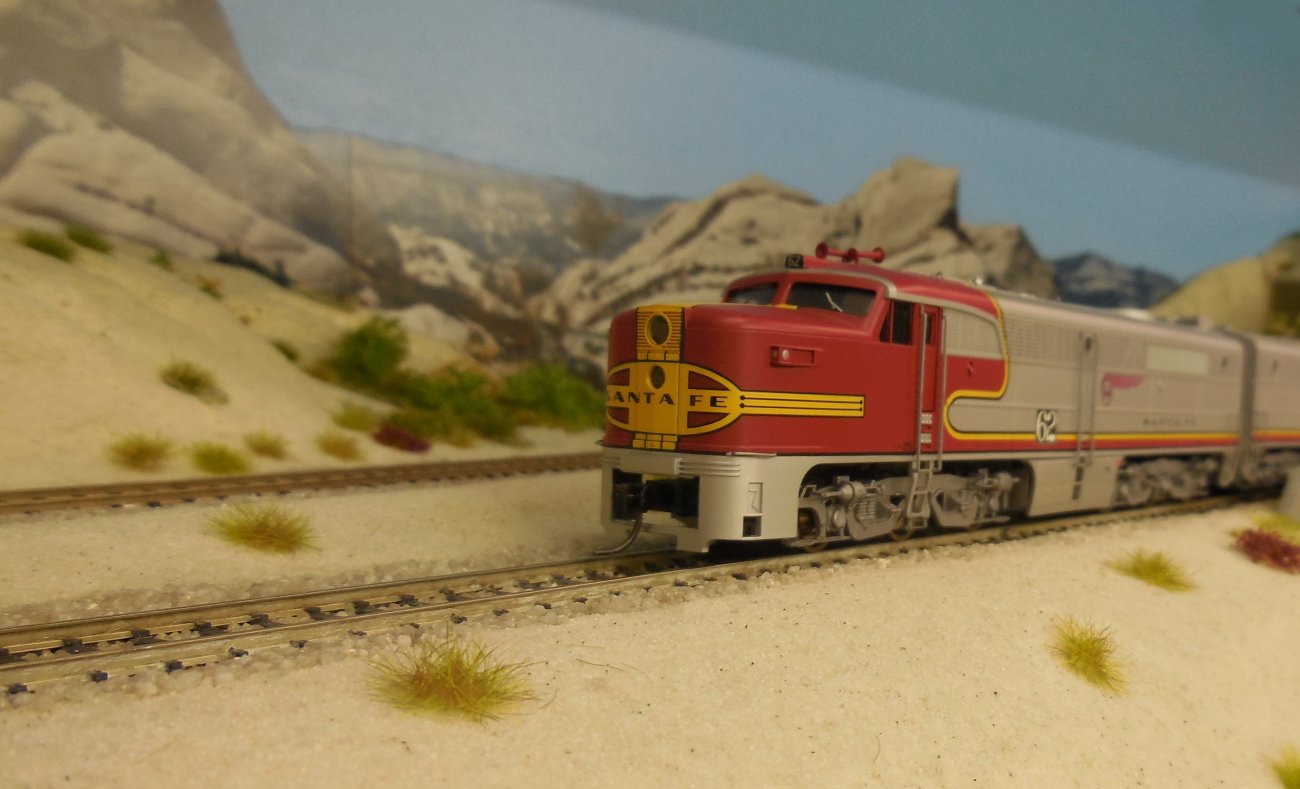

363 352

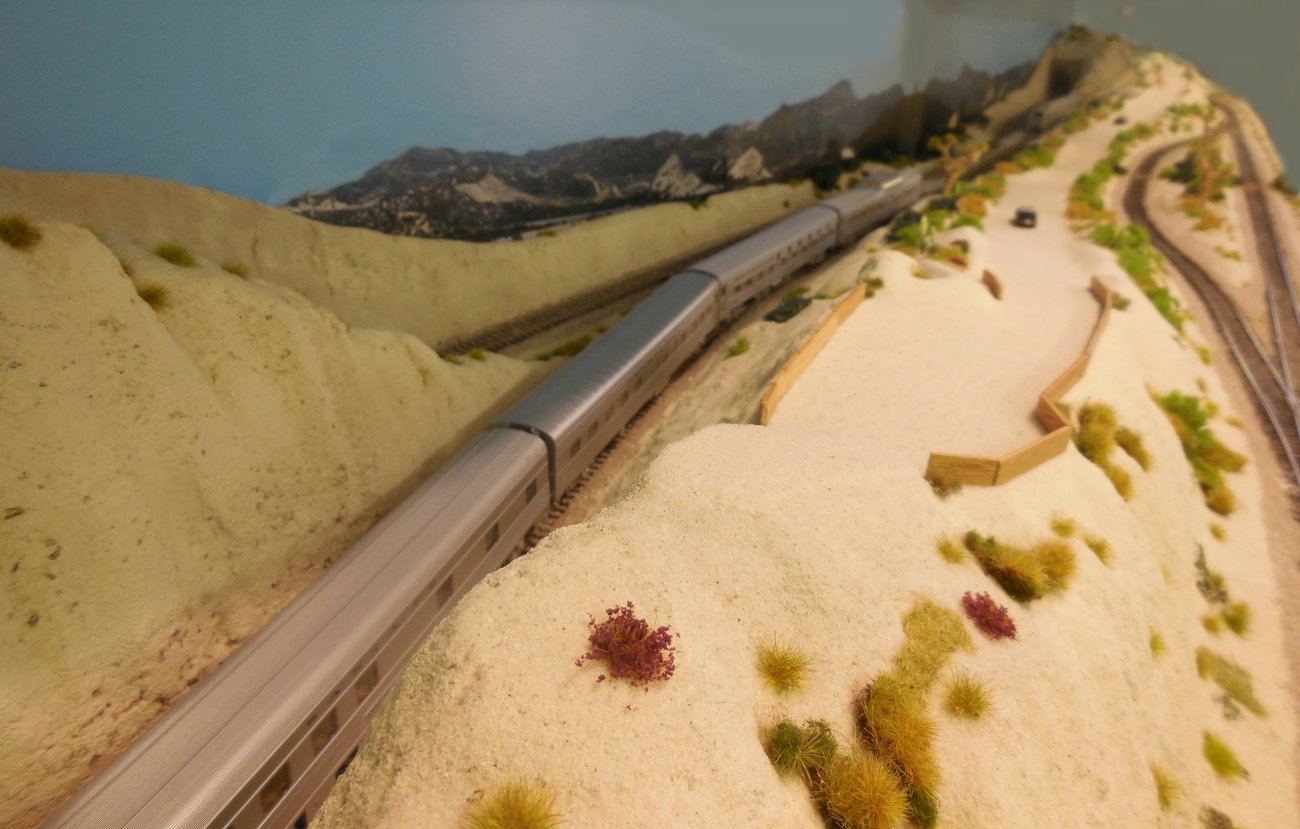

367 359

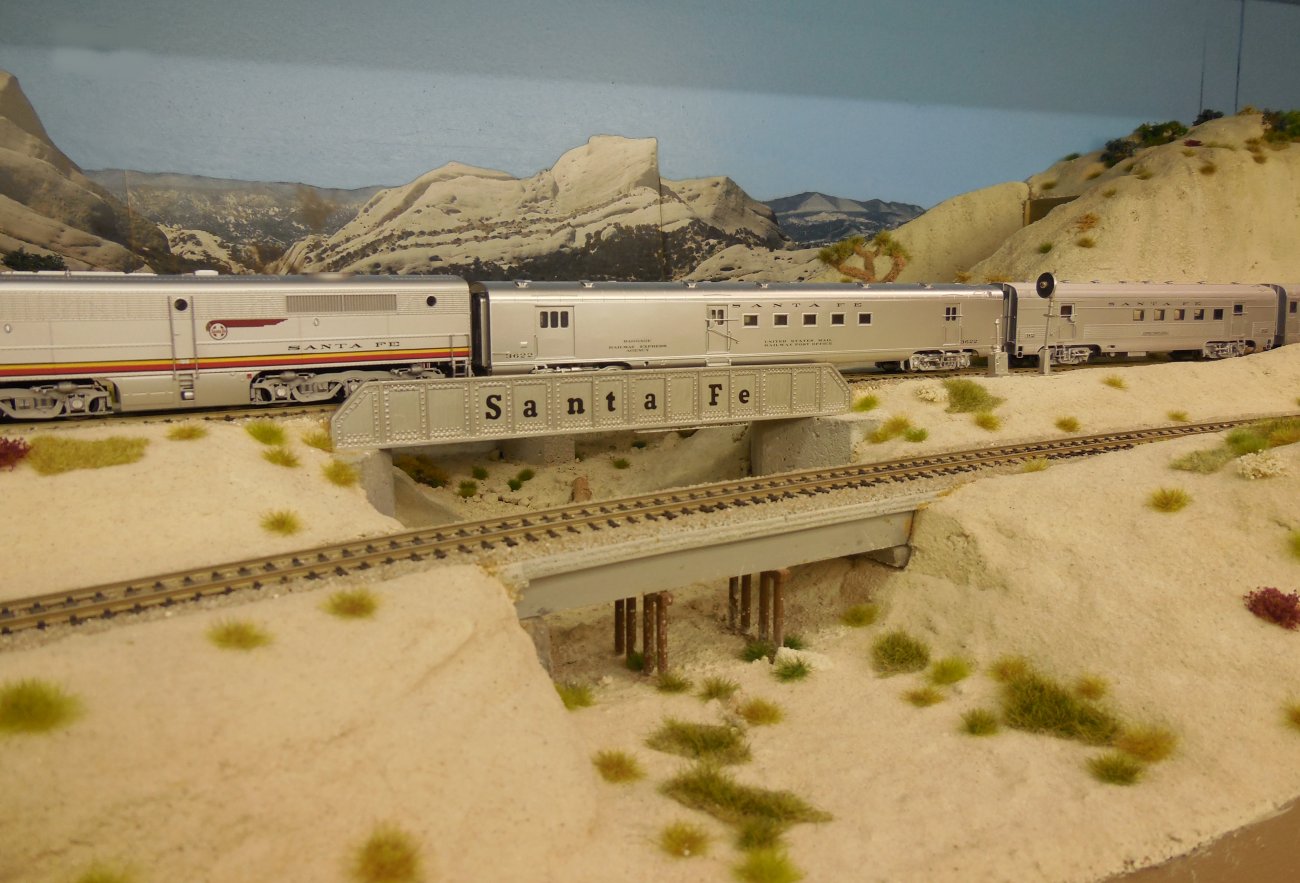

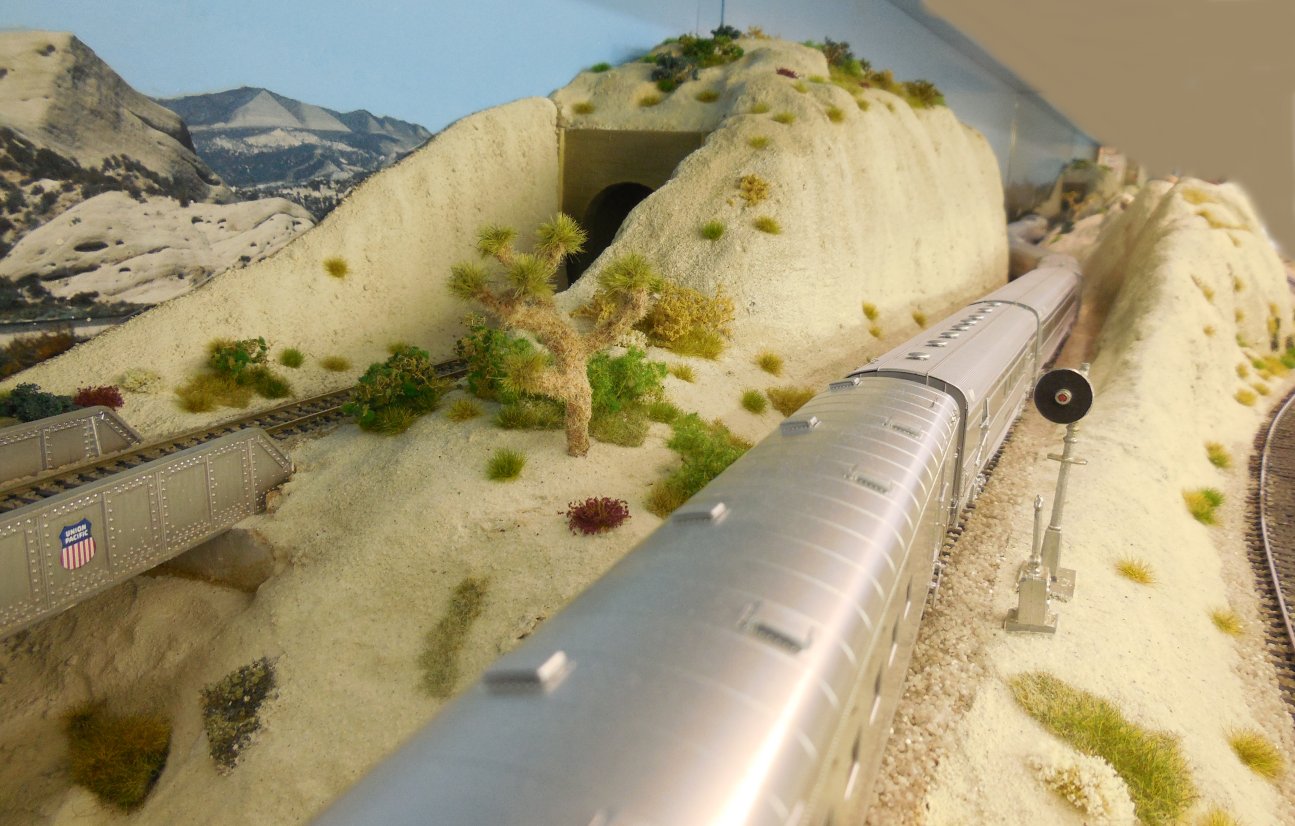

358 357

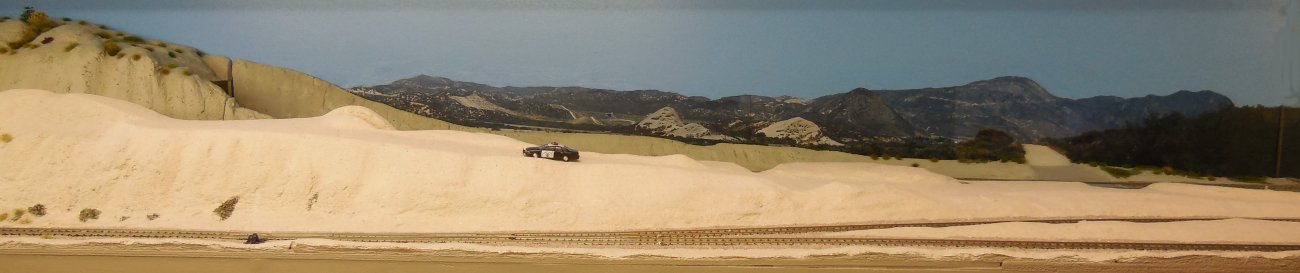

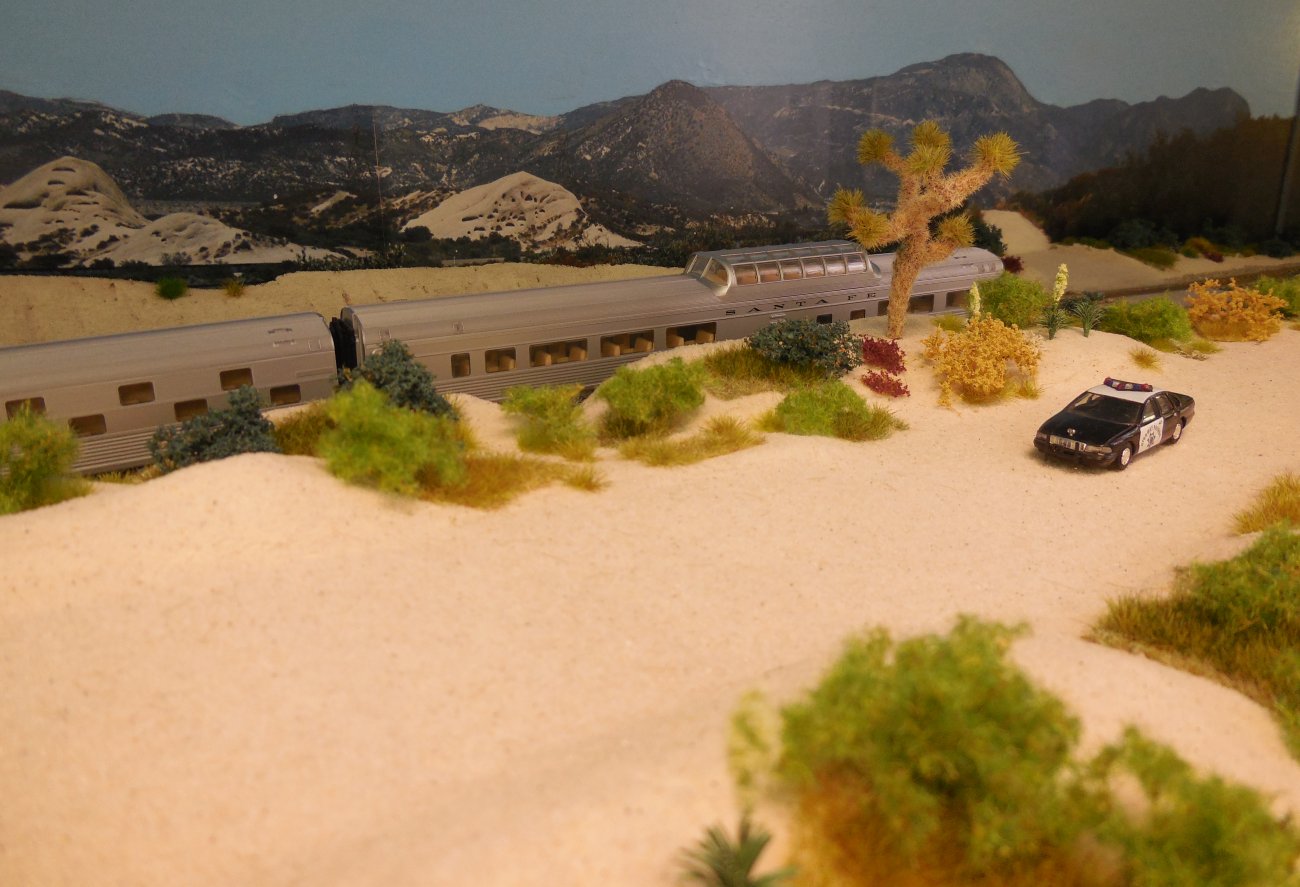

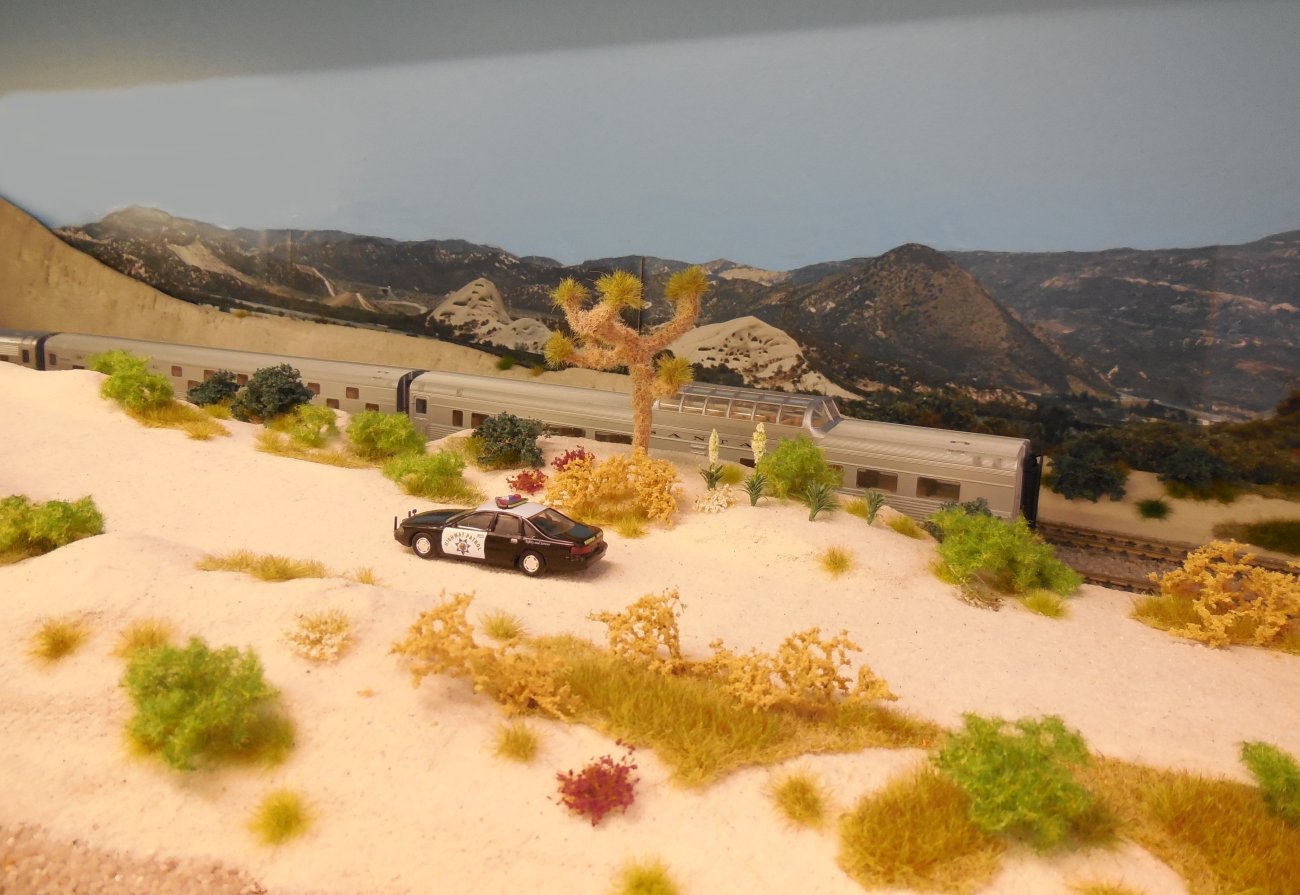

CA Hwy Patrol is always having an eye on what is going on - 356 End of Santa Fe Train - 355

 Part 6

Part 6: Modern Times - Union Pacifc and Werner Enterprises in Action
Modern Times - Union Pacifc with 64' Reefers and Werner Enterprises with Trailers and Containers (Werner Global Logistics)
First, we are making a Tour along the diorama from left to right (4 m or 13 feet), following the Werner Enterprises Train.

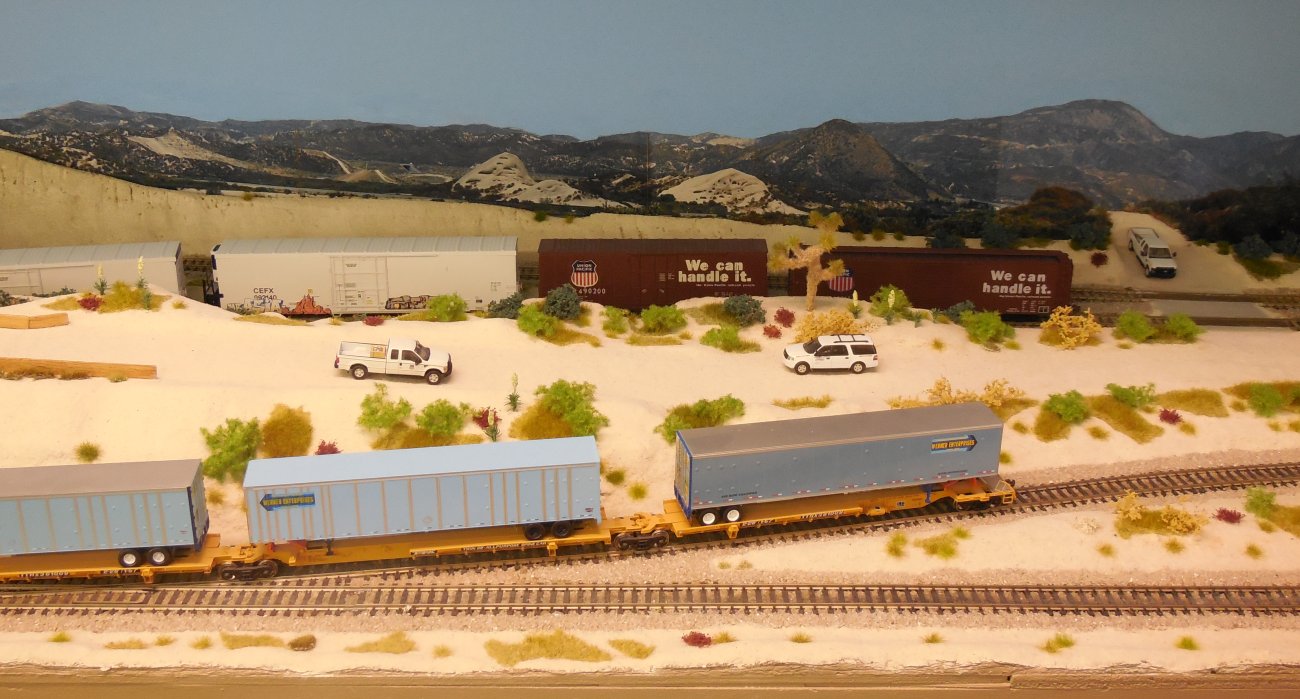

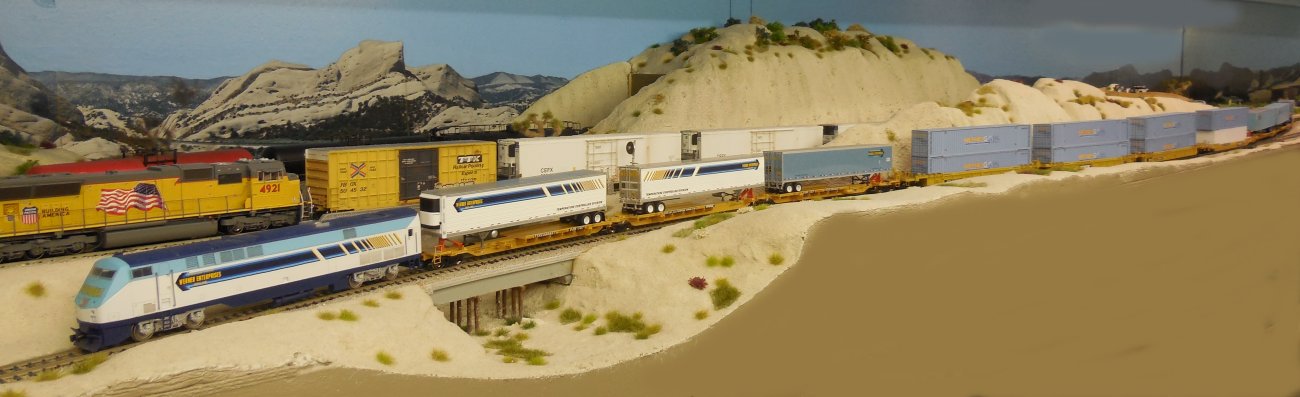

3/03/17: All Werner Enterprises Equipment (Diesel Loco, Trailers and Containers) on MT 3 - 421

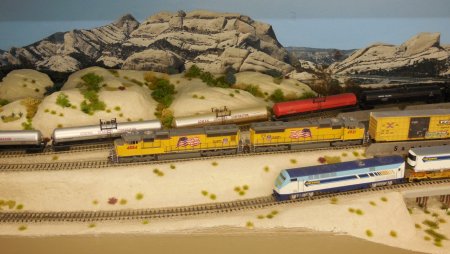

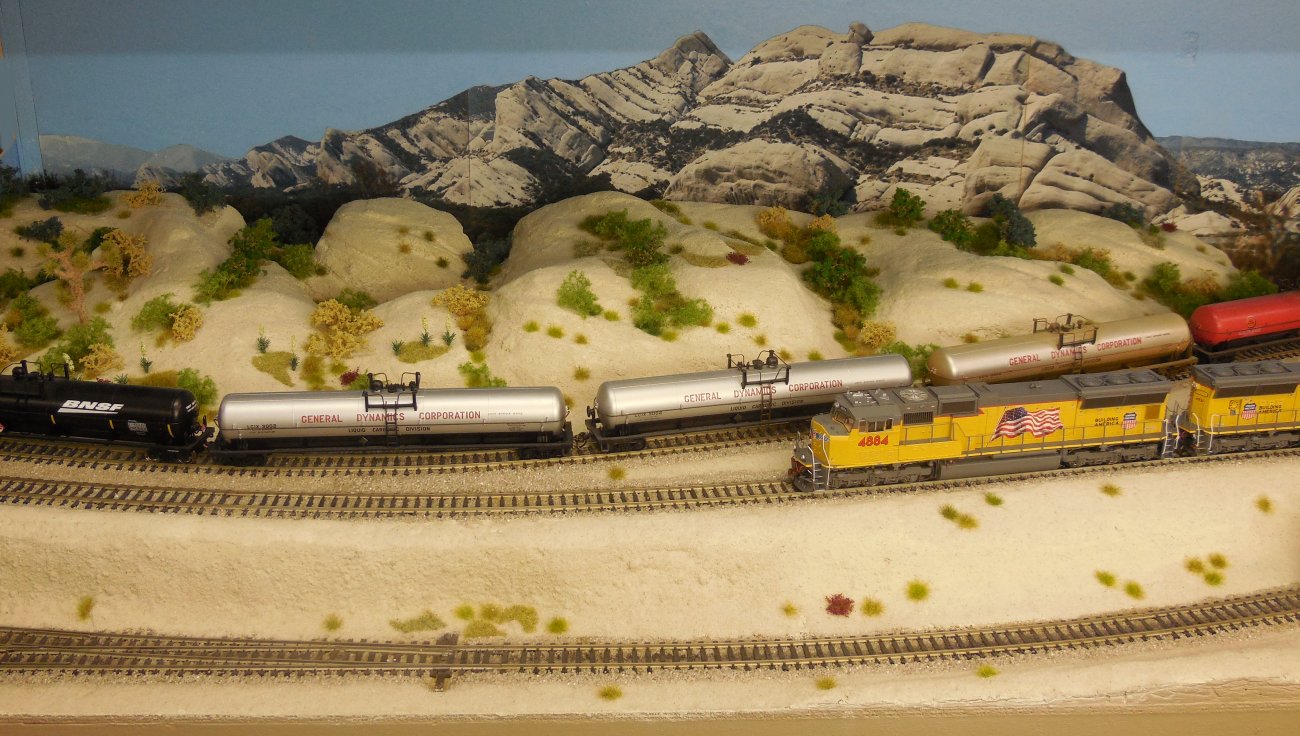

385 386

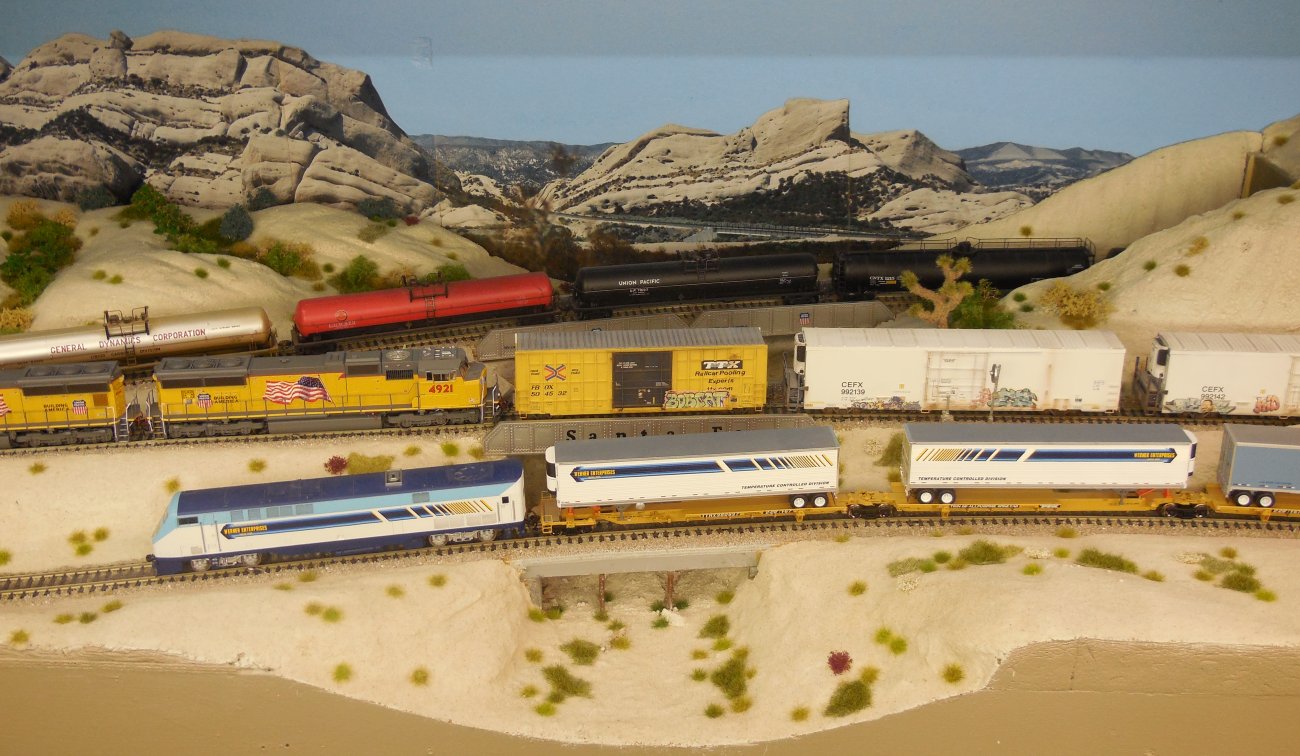

387 388

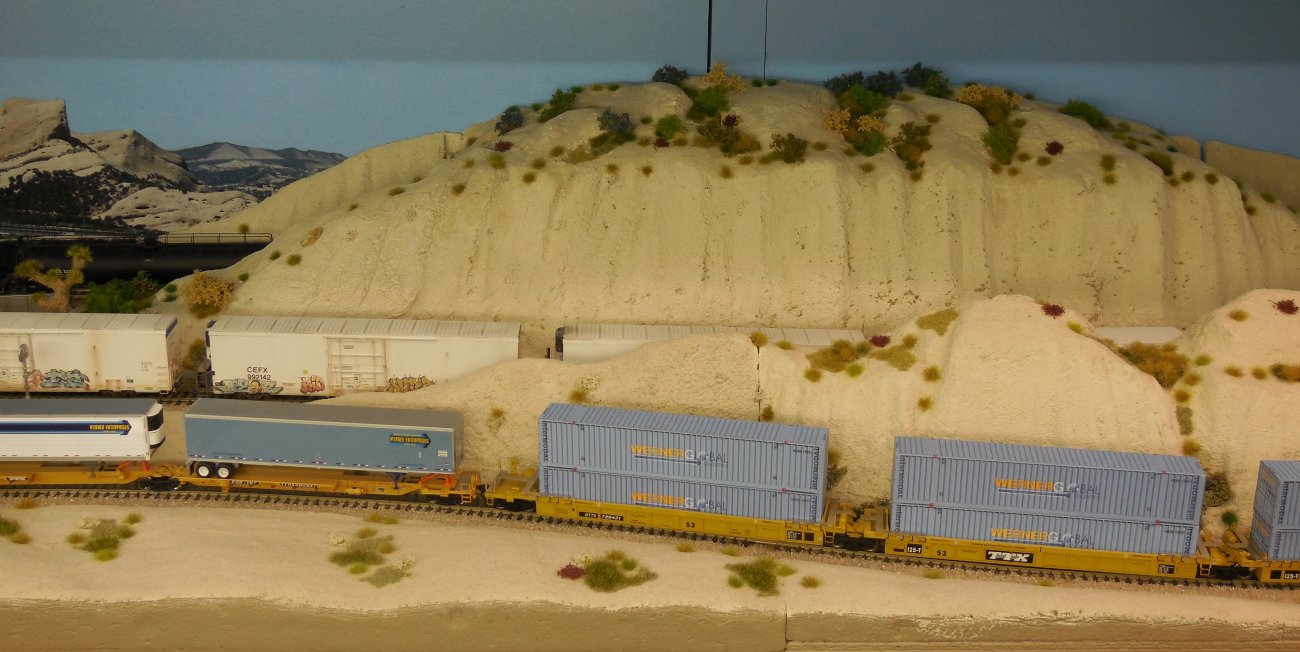

389 390

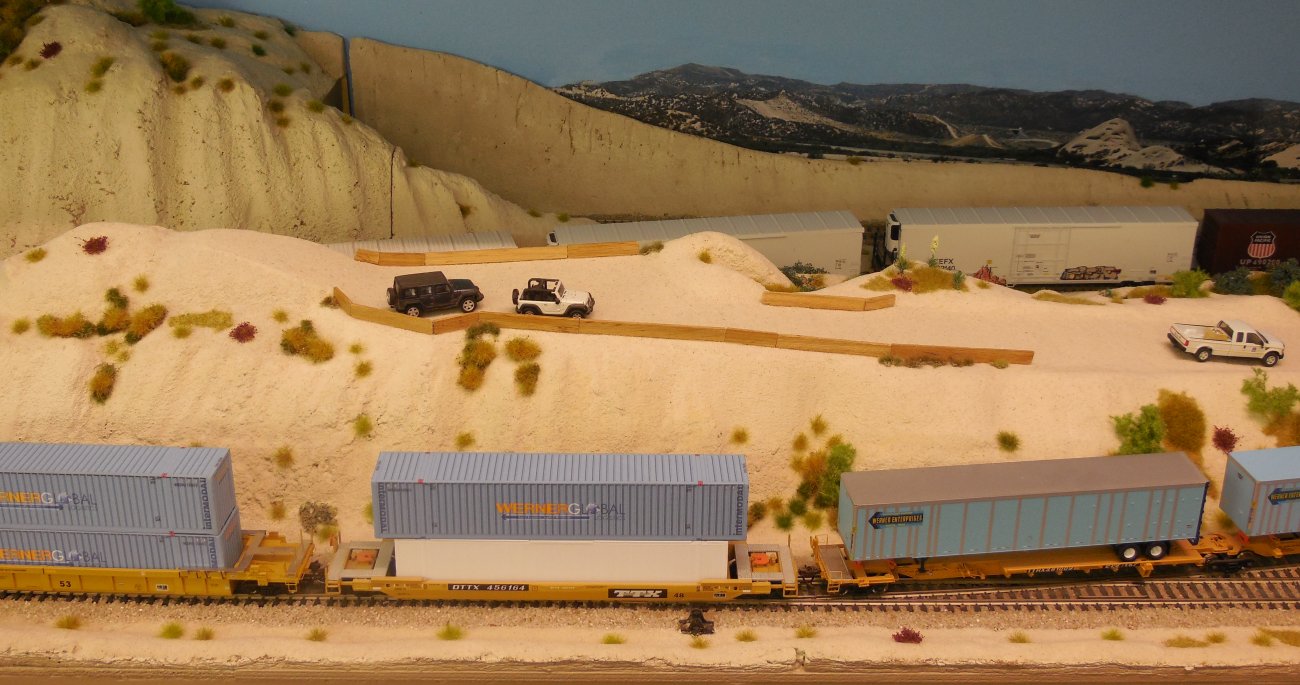

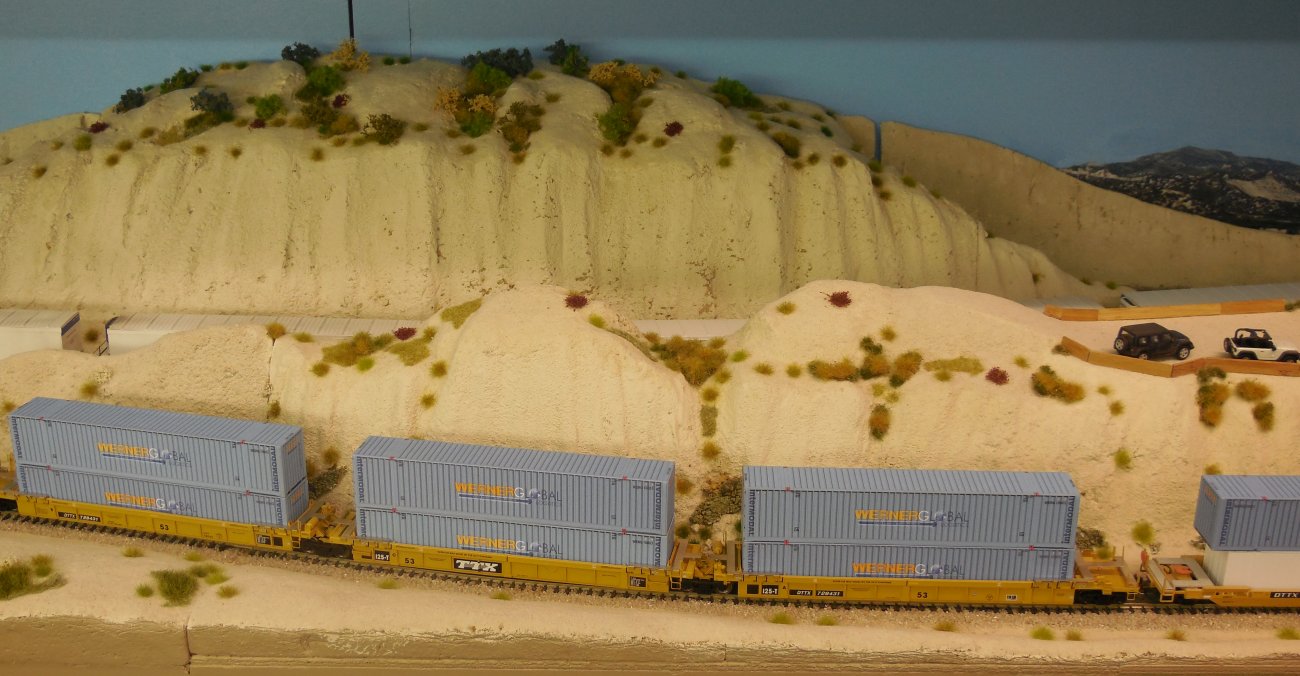

391 392

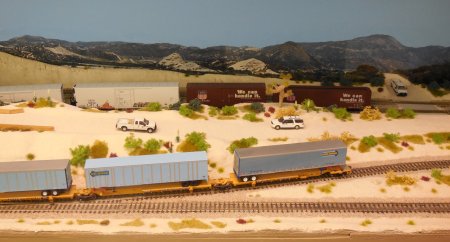

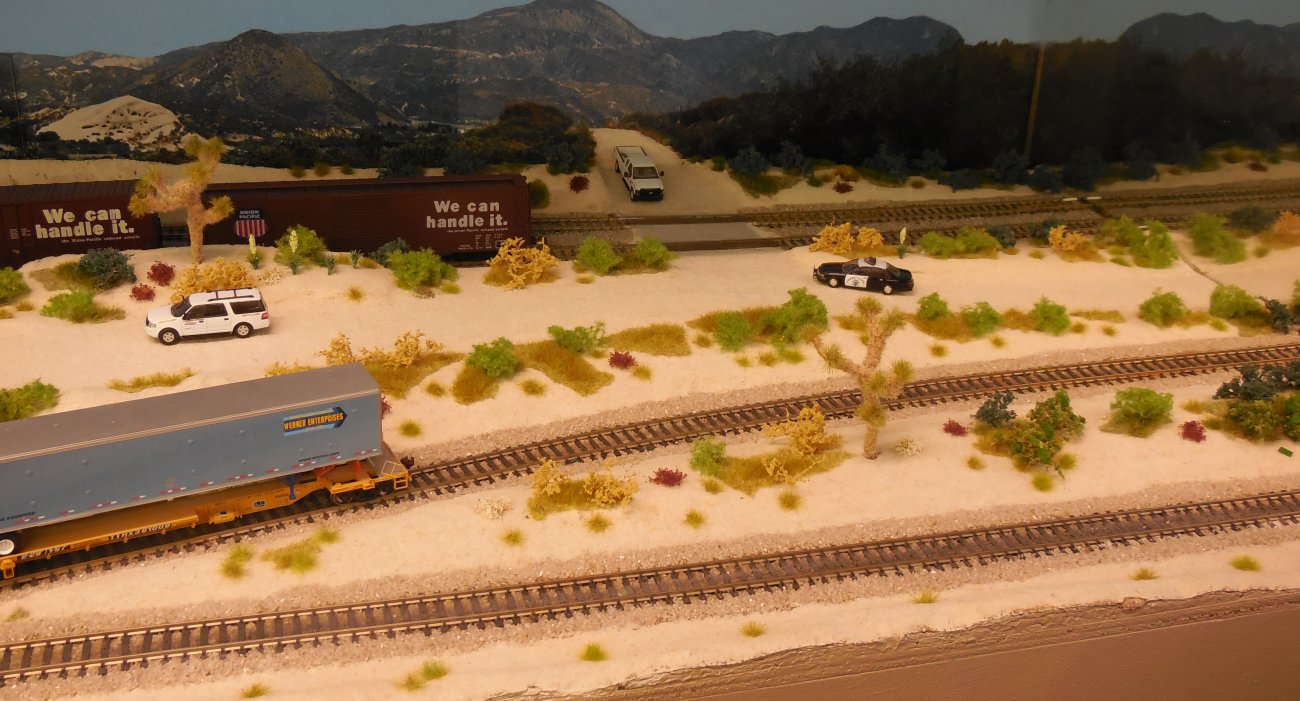

393 394

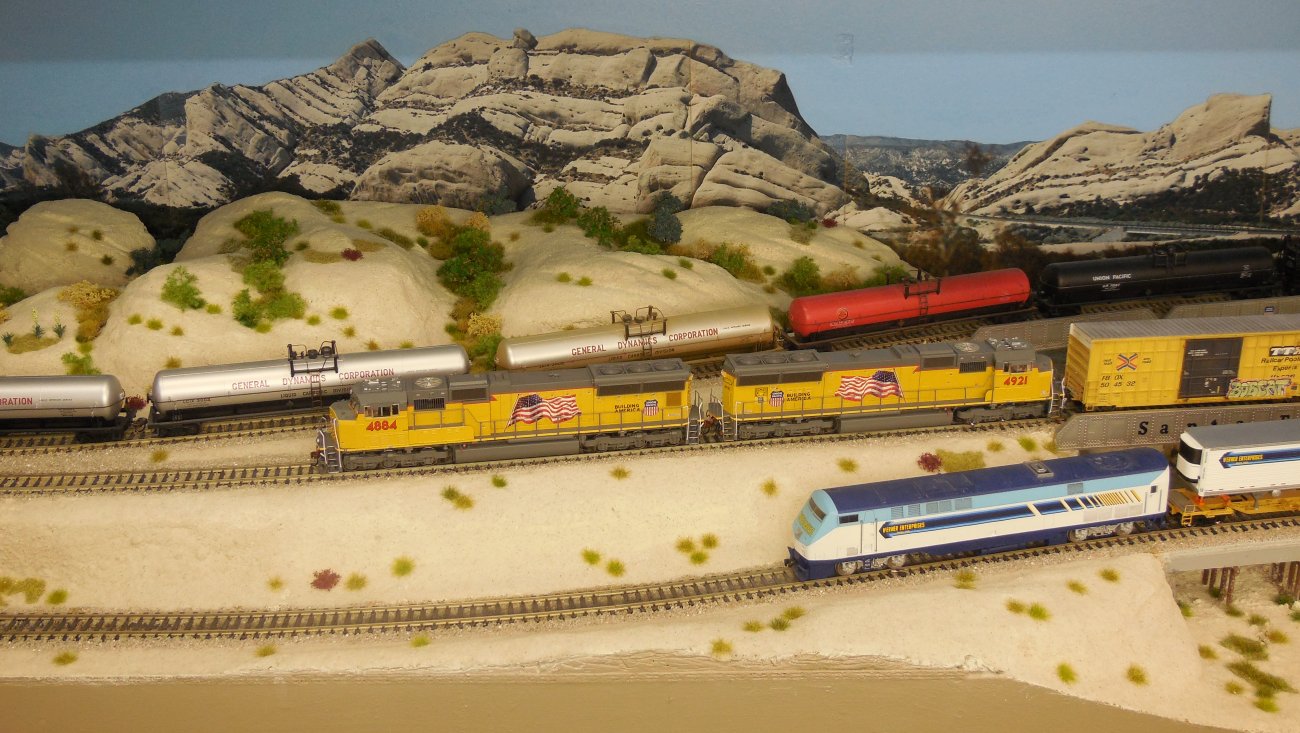

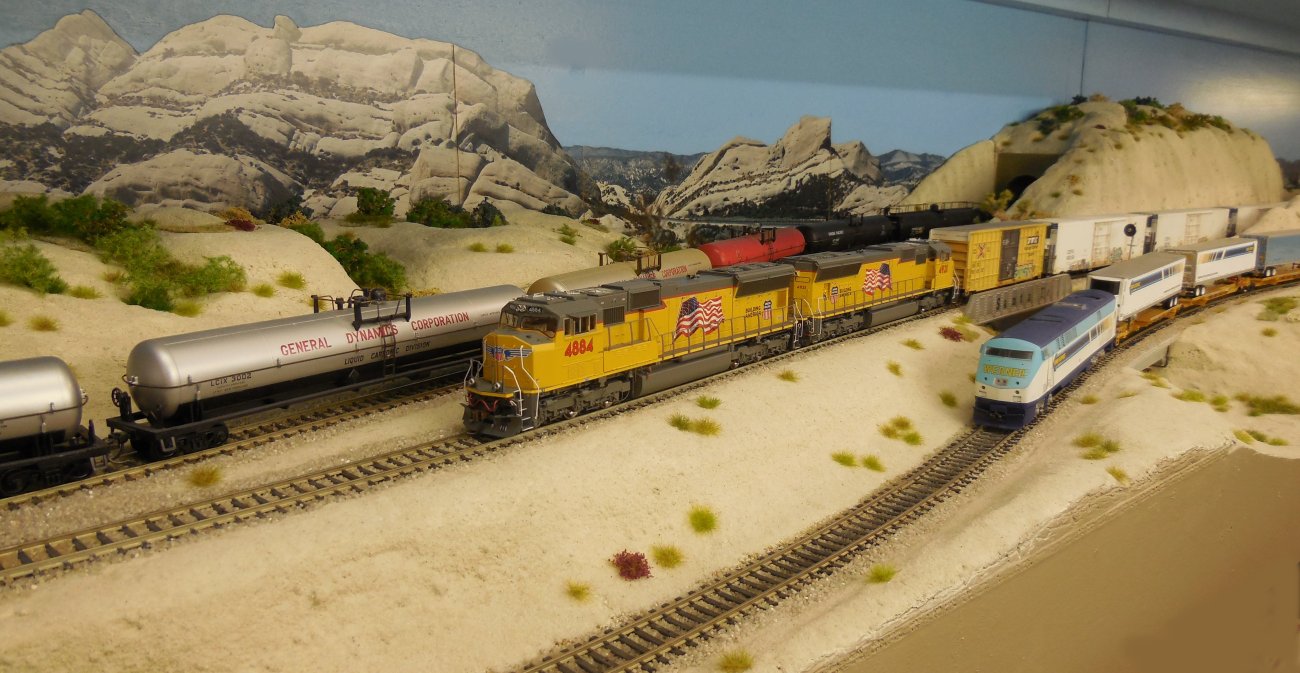

Now, making the second Tour showing the UP train on MT-2 from every angle (incl. the Werner Train on MT-3 and the Tank Train on MT-1).

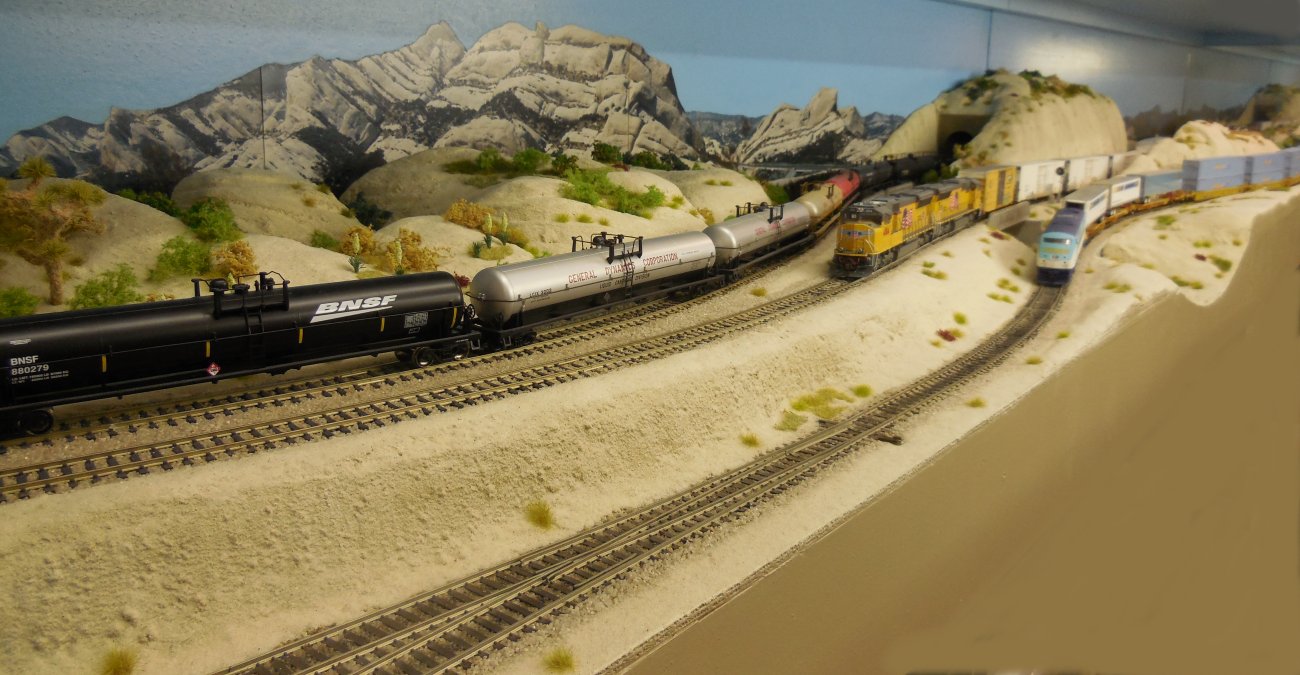

371 370

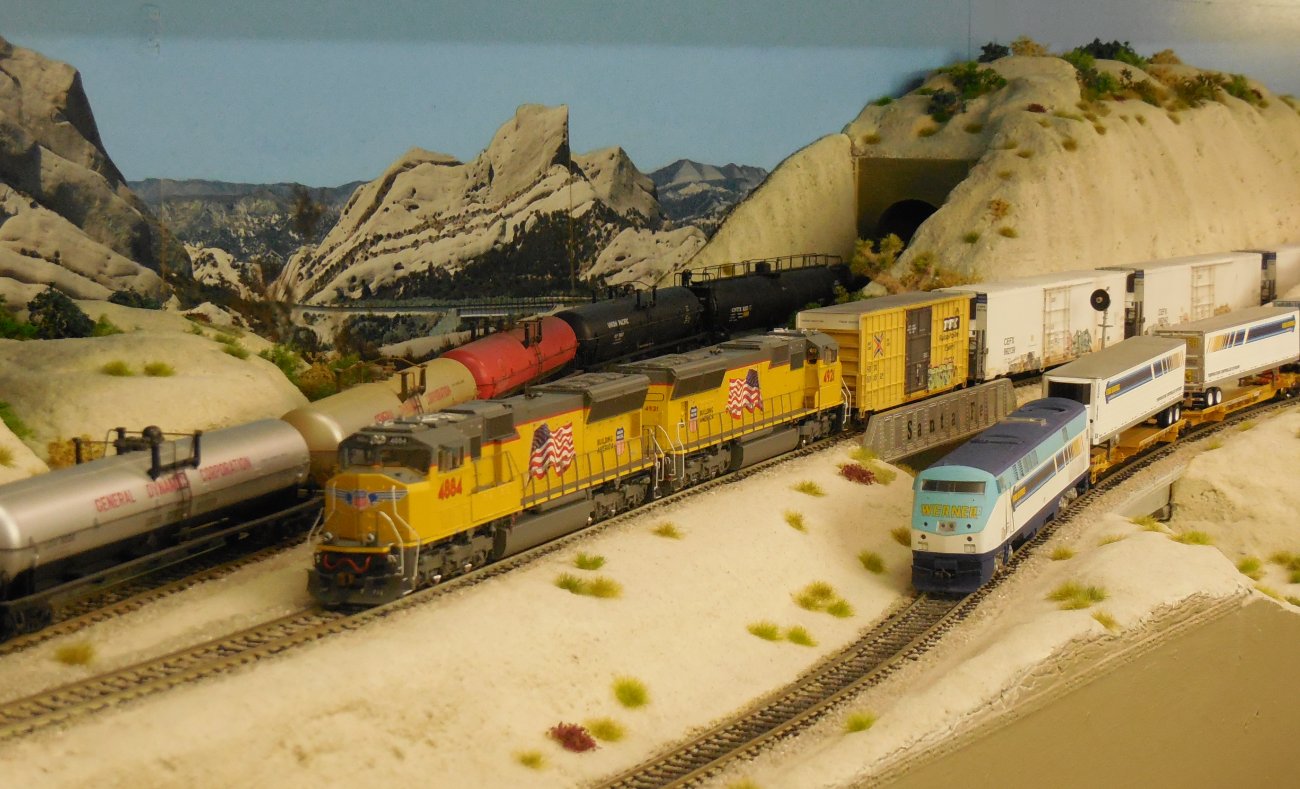

372 373

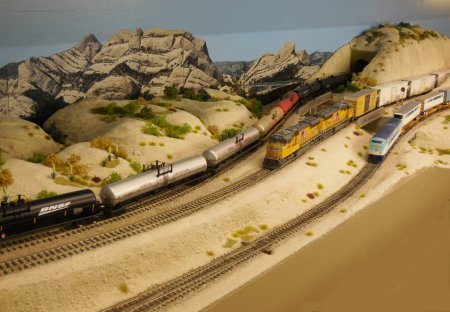

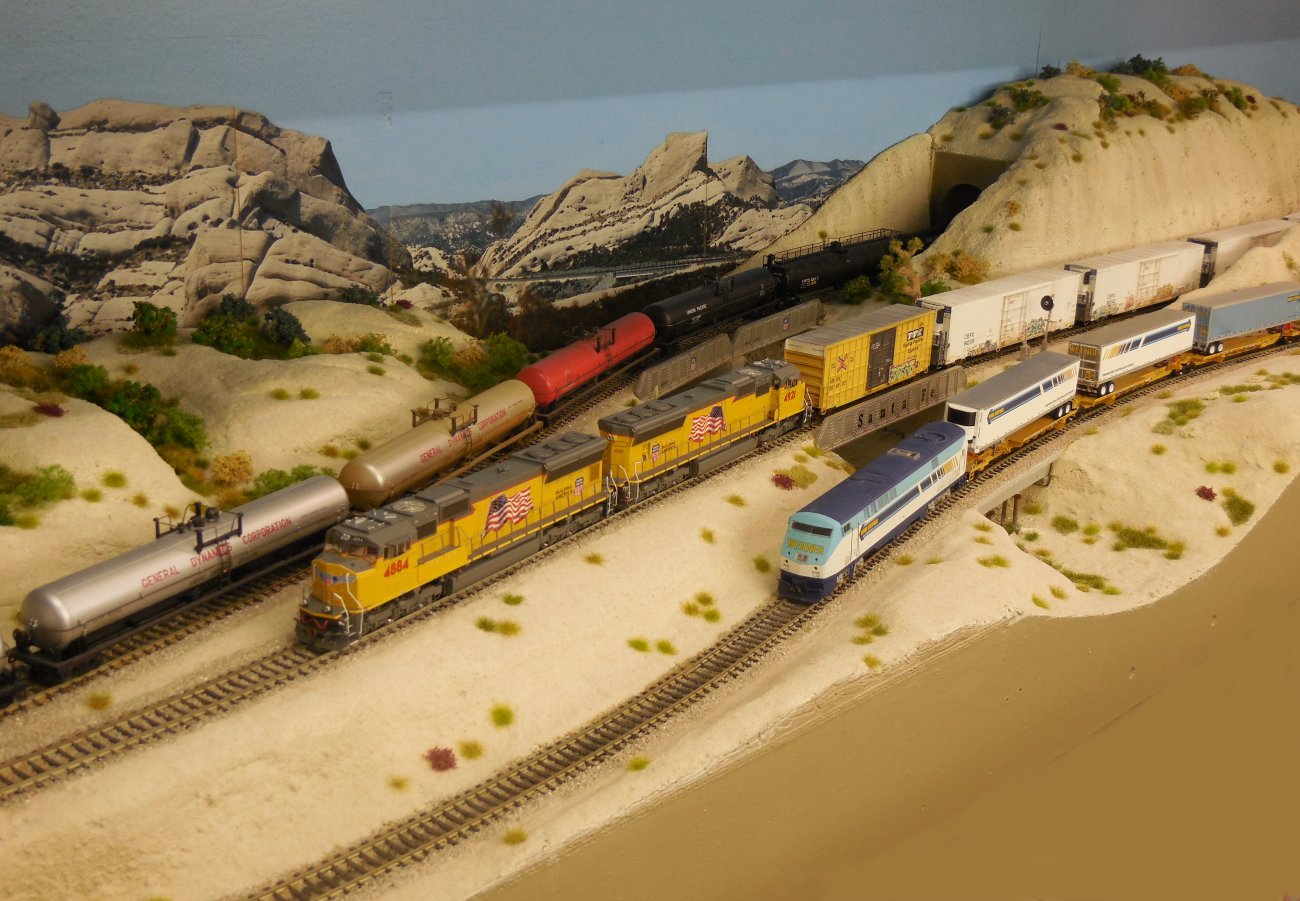

376 375

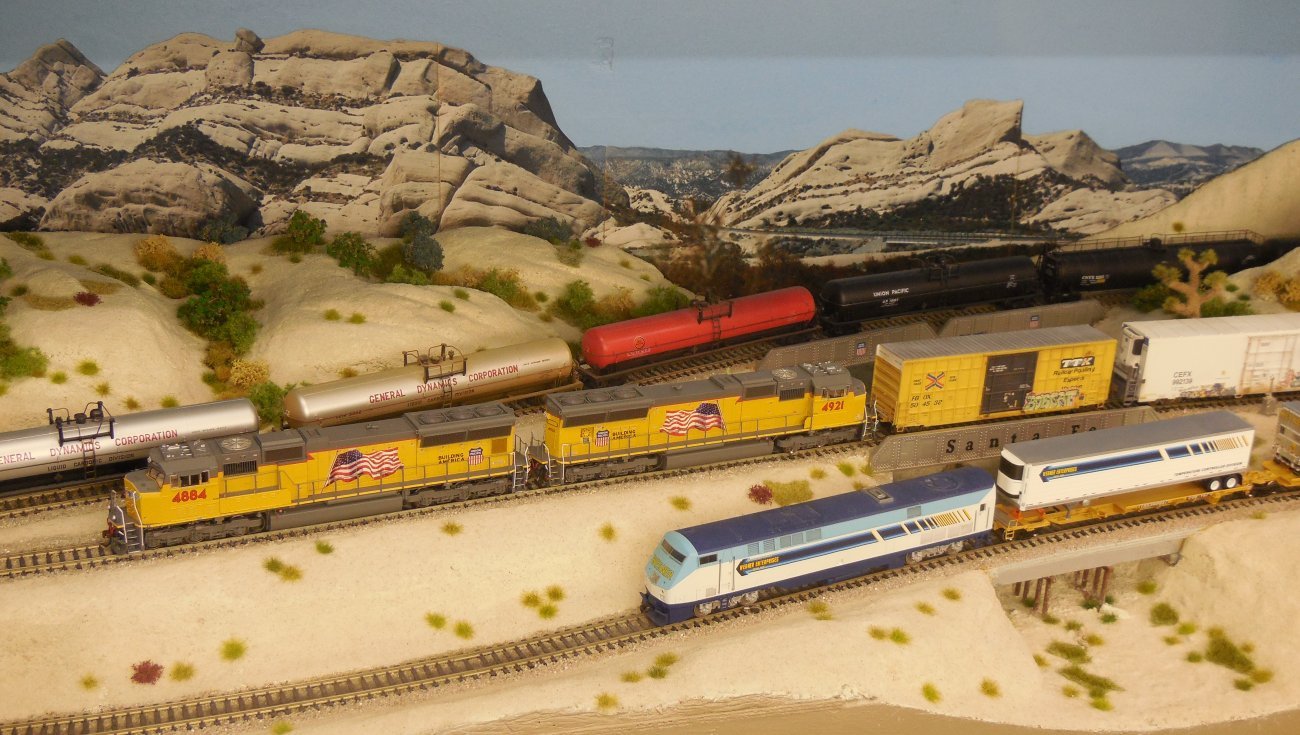

384 382

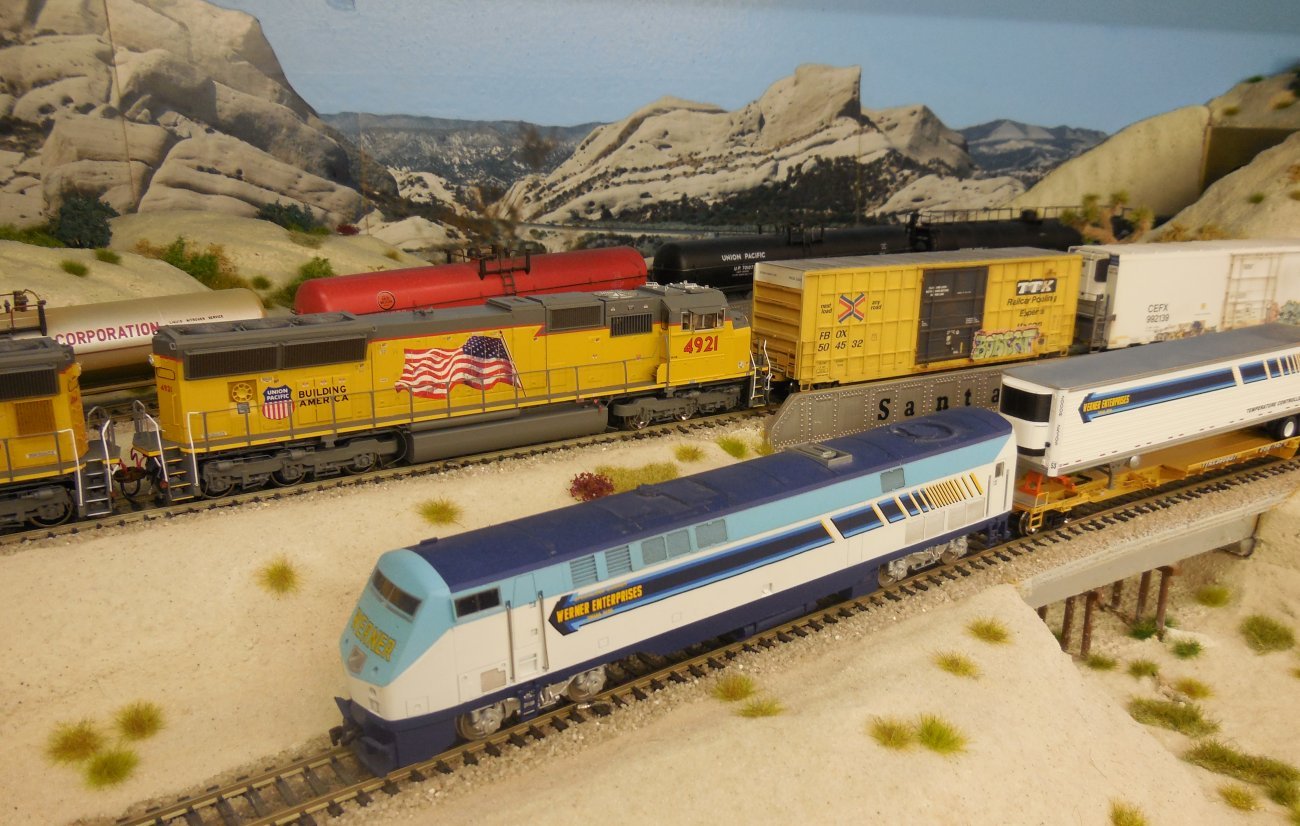

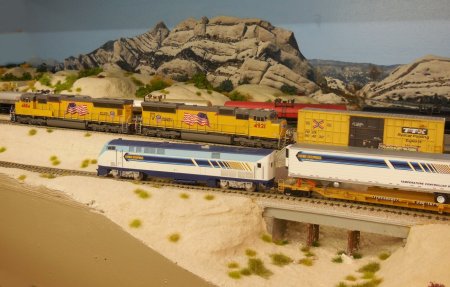

396 410
381 415

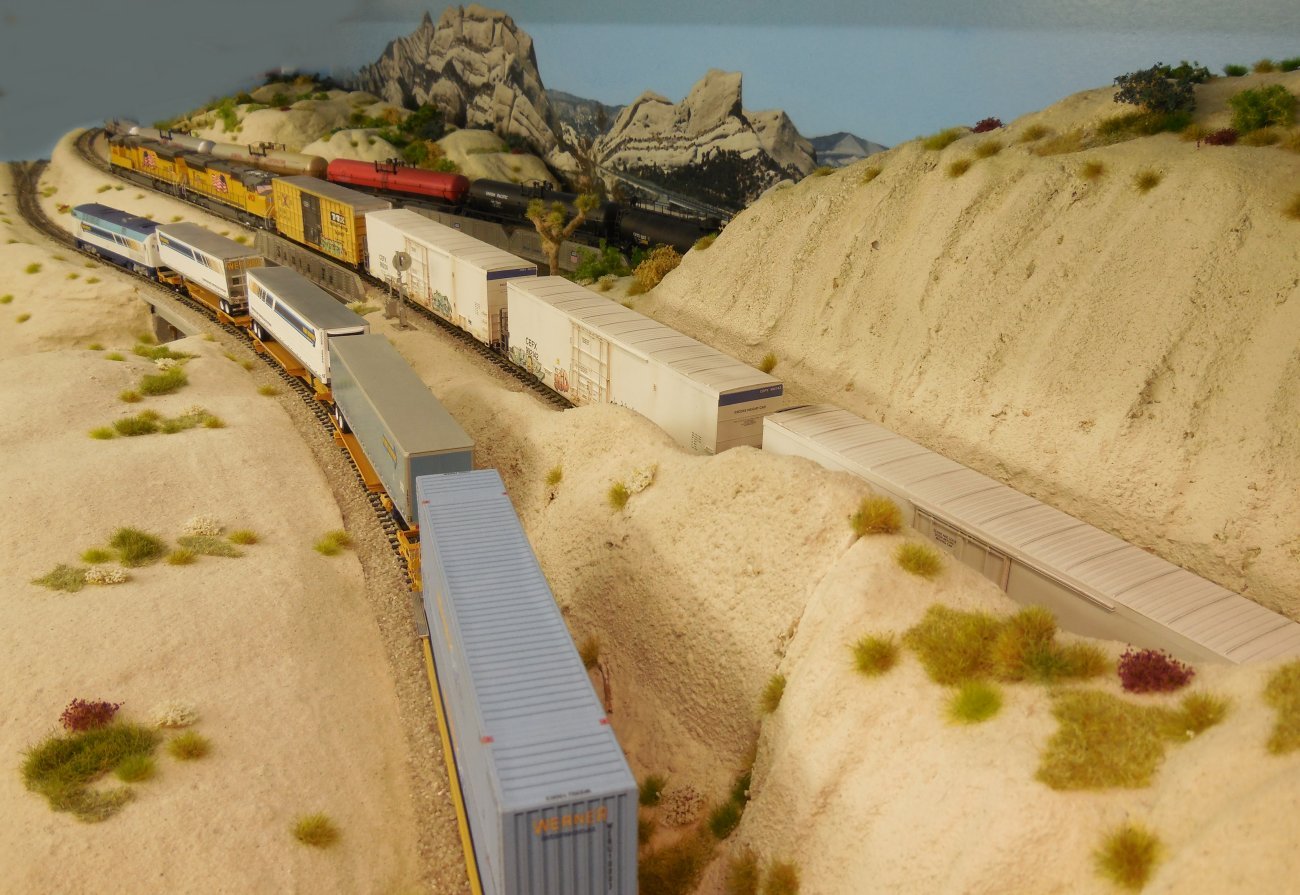

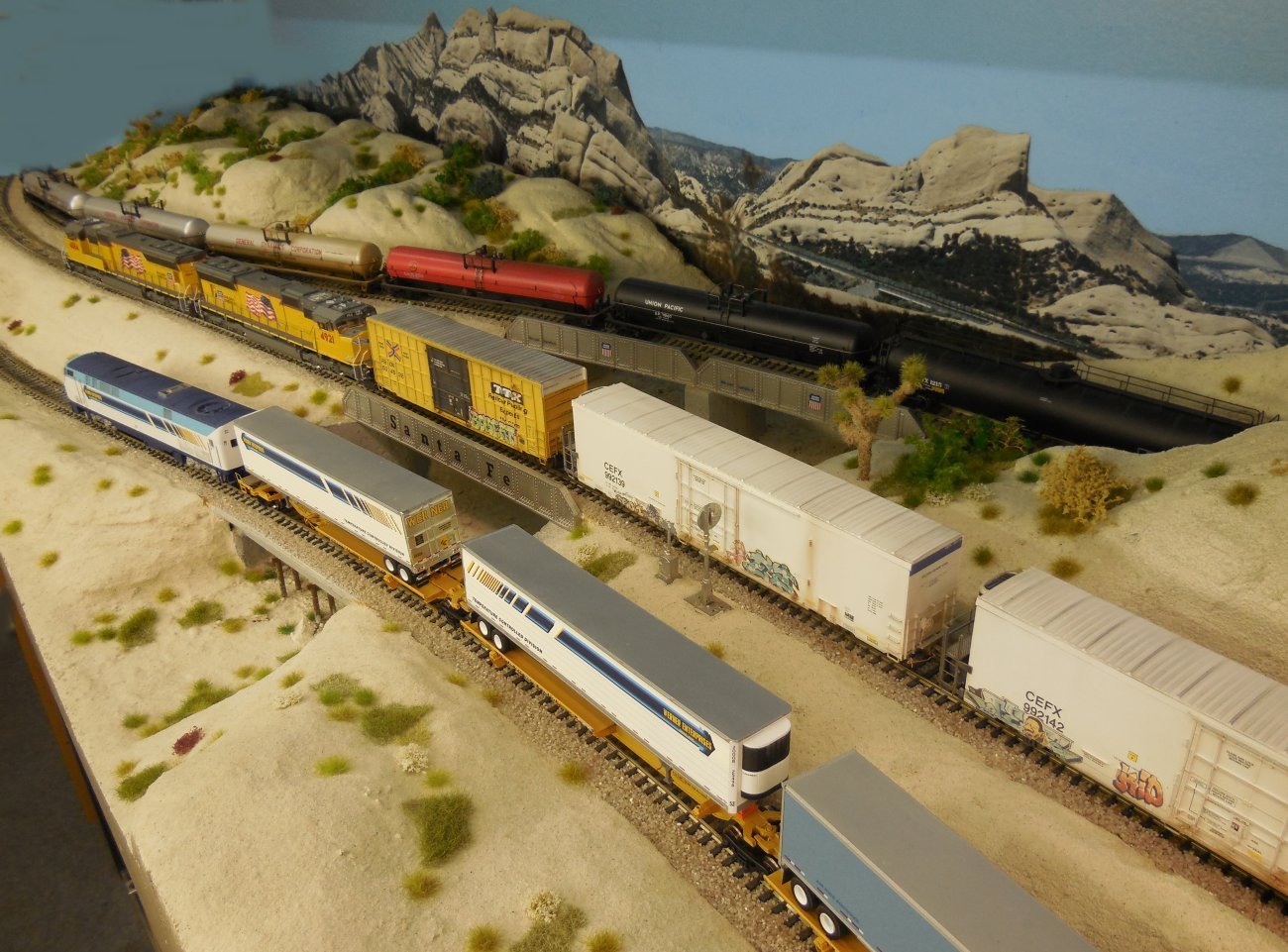

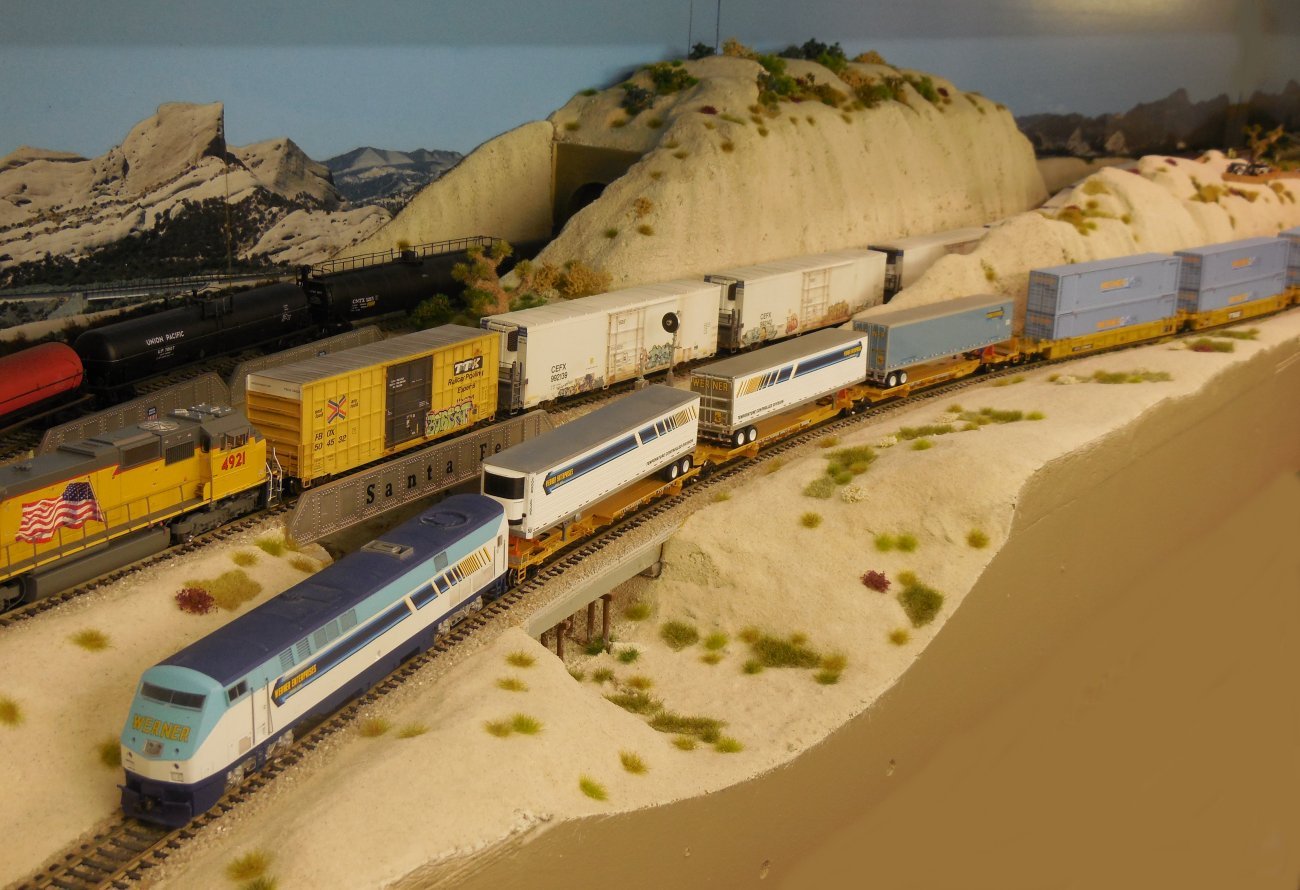

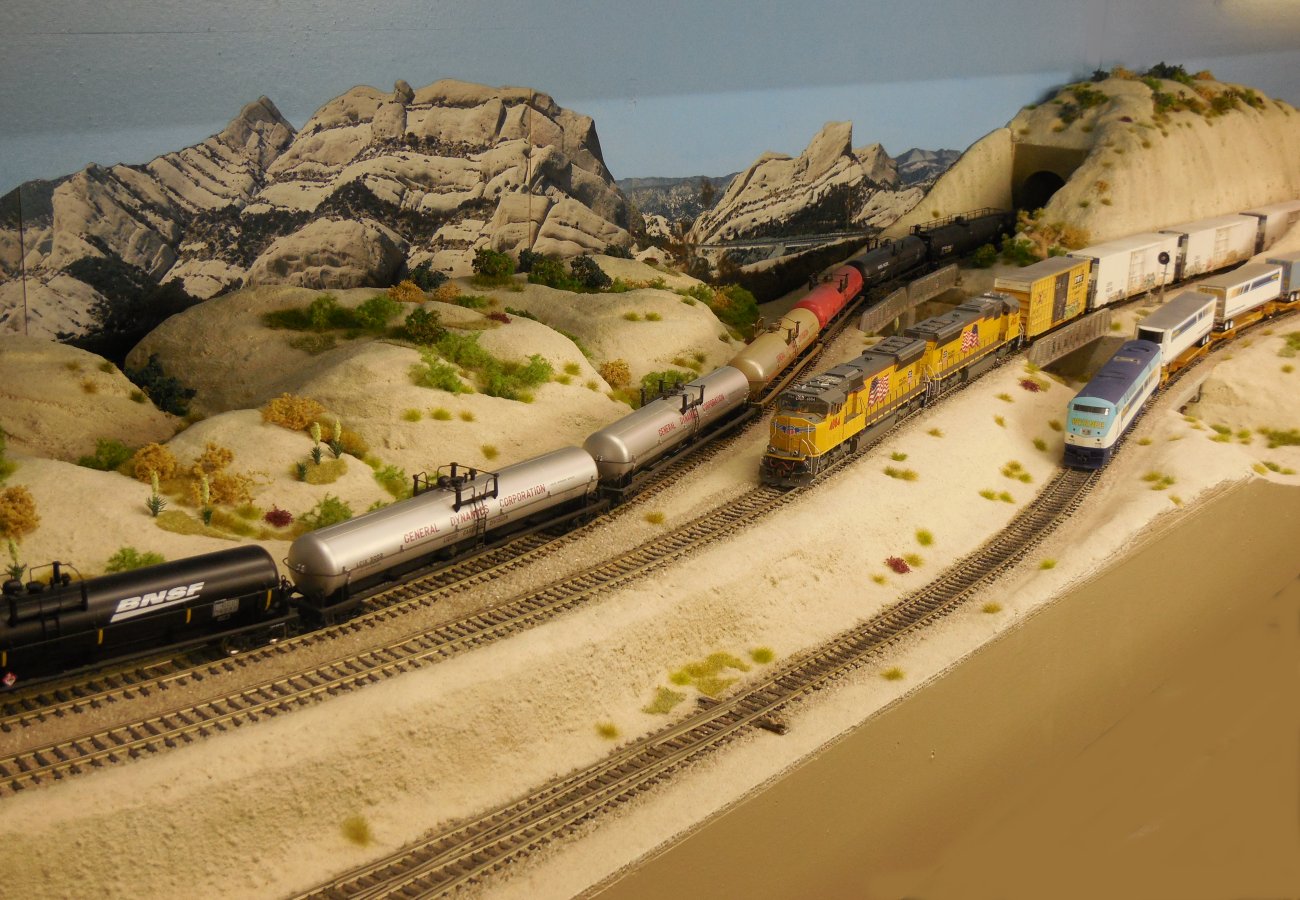

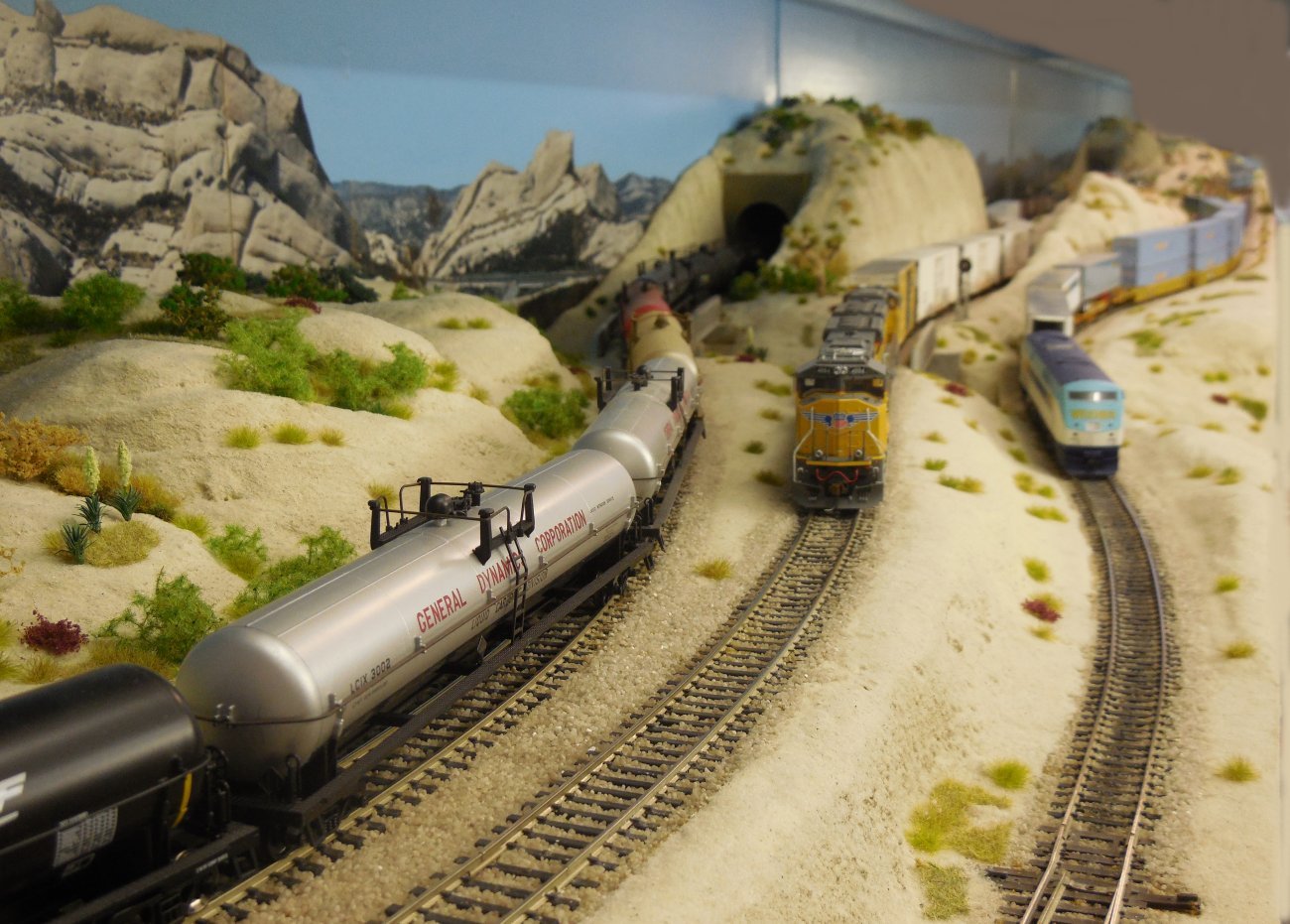

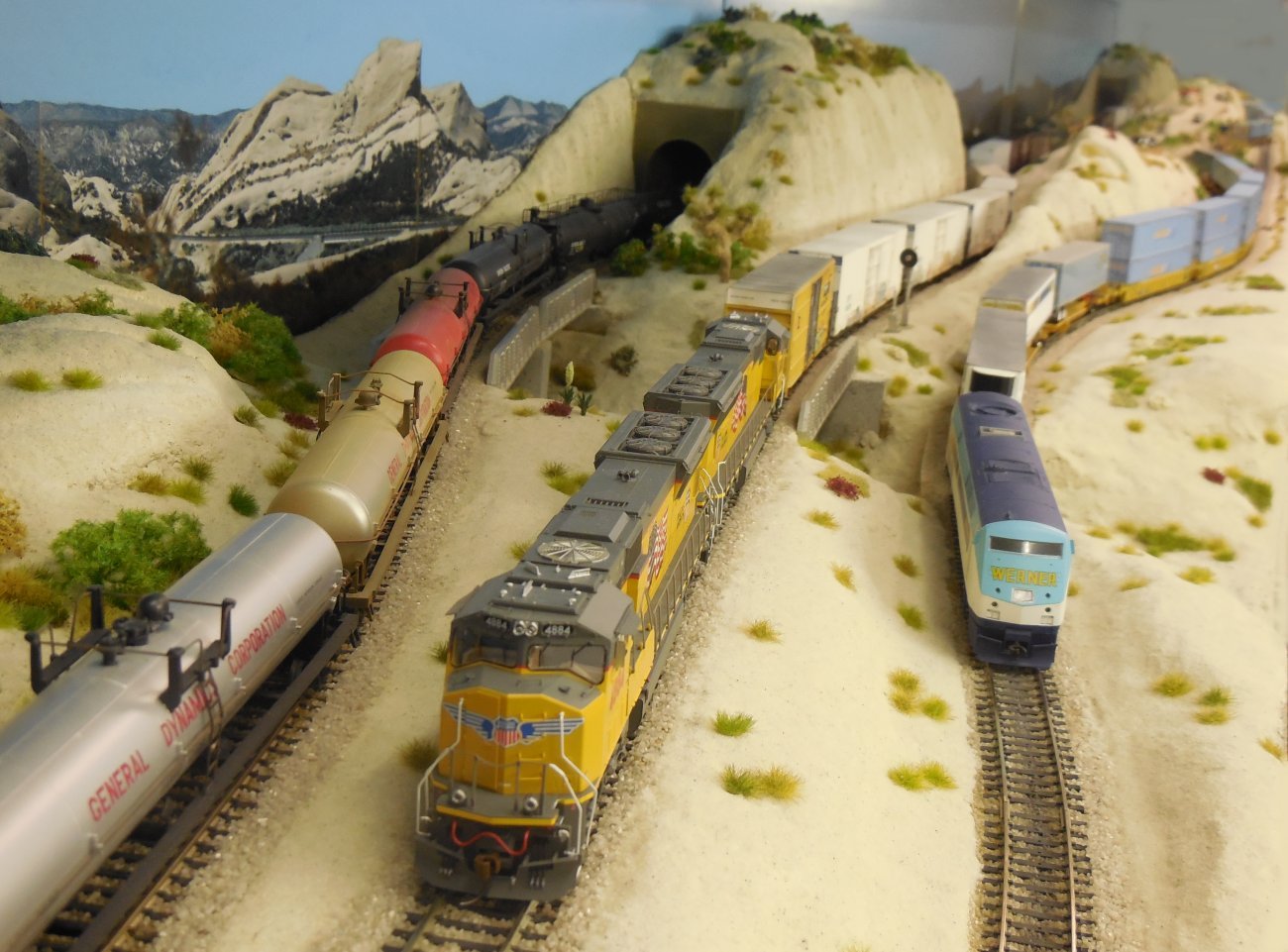

379 Trinity 64' Reefers by BLMA - 406

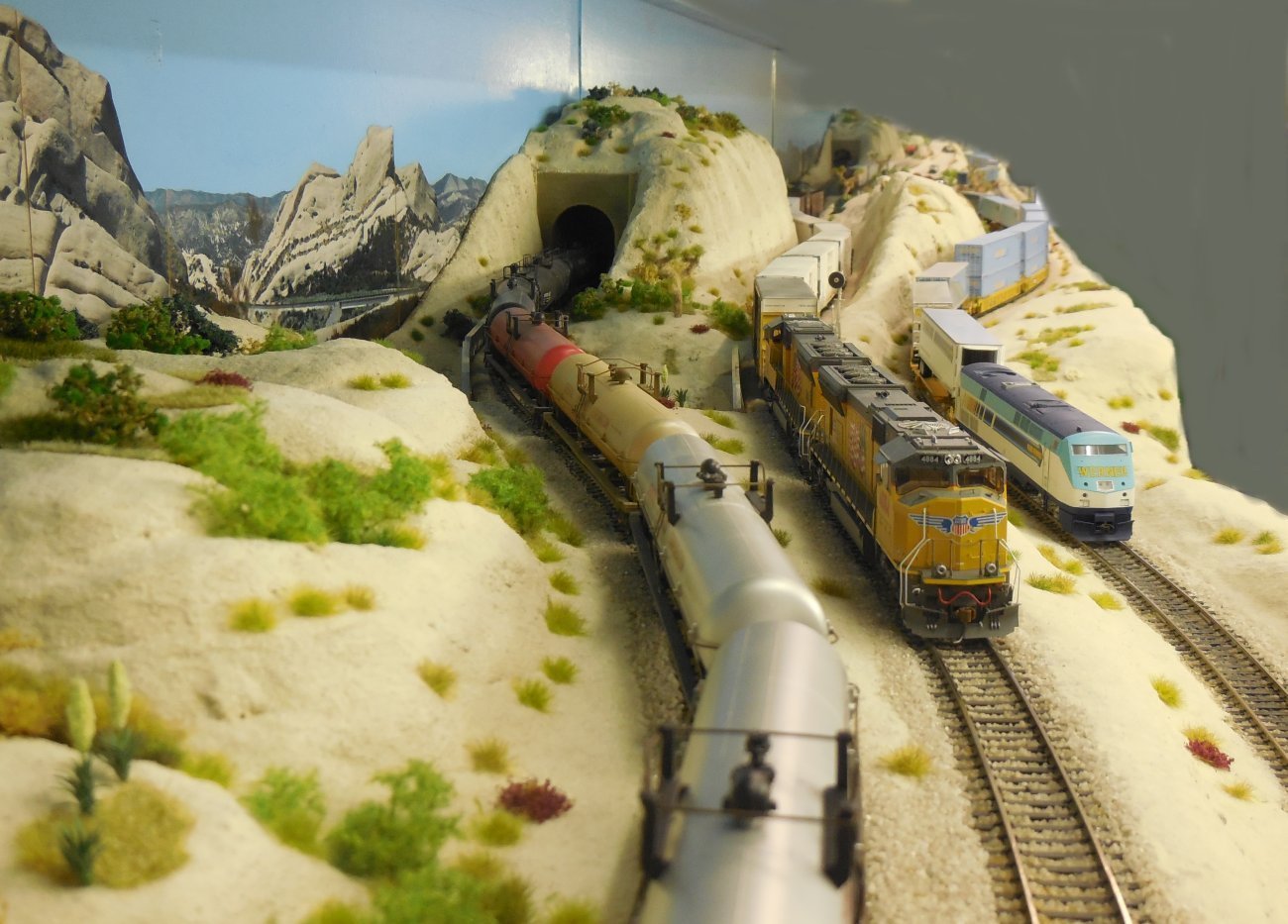

377 378

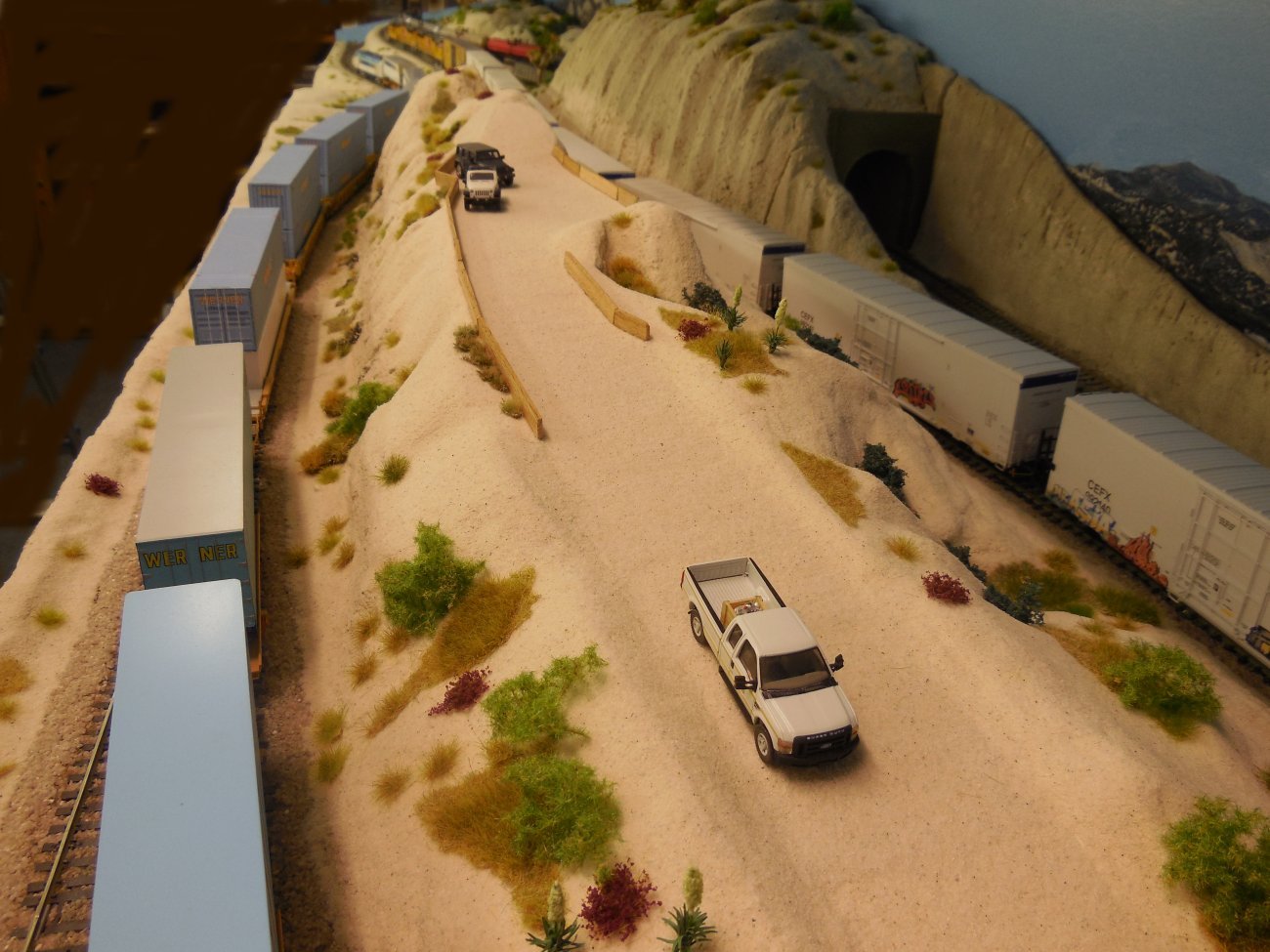

401 419

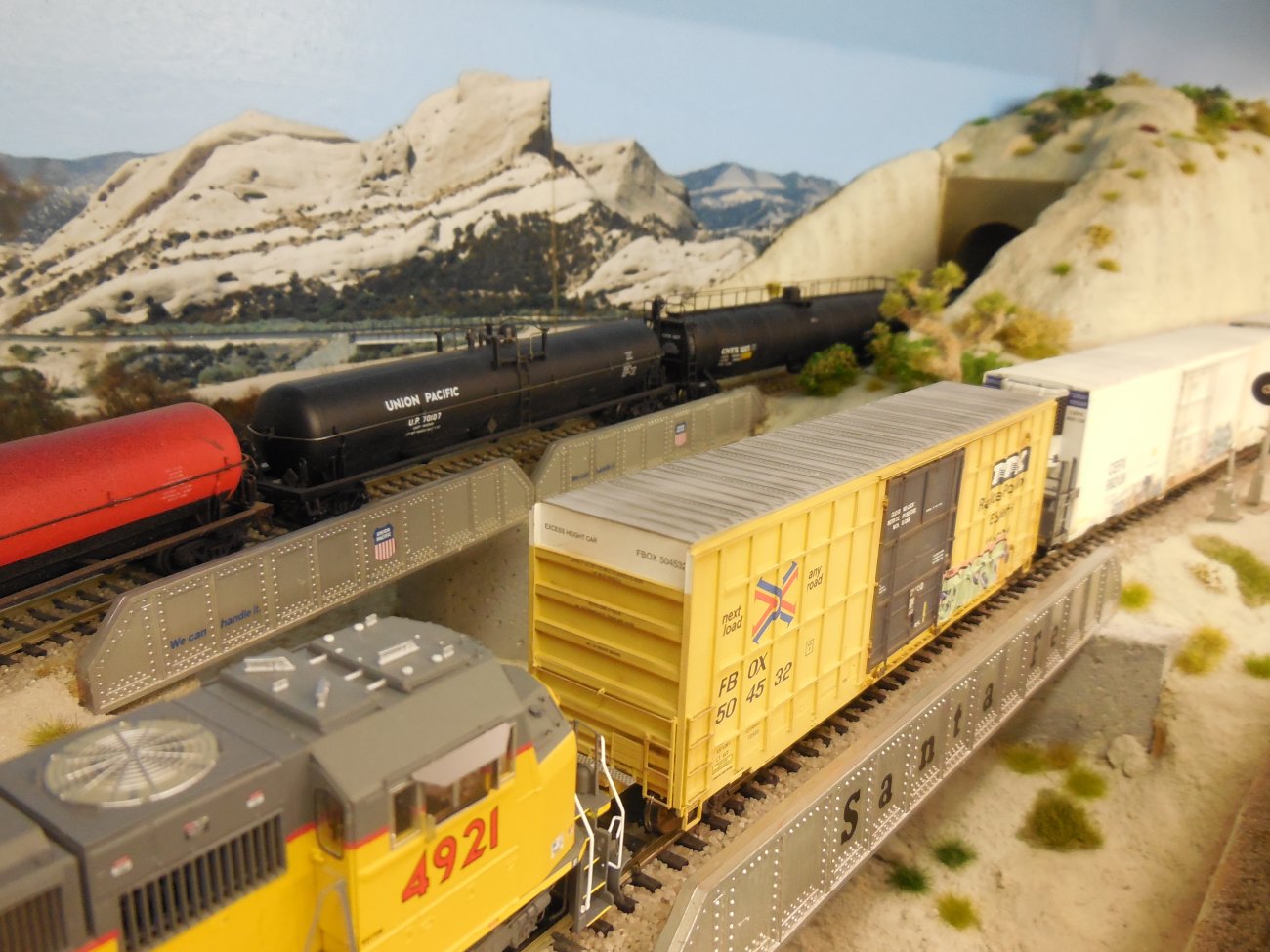

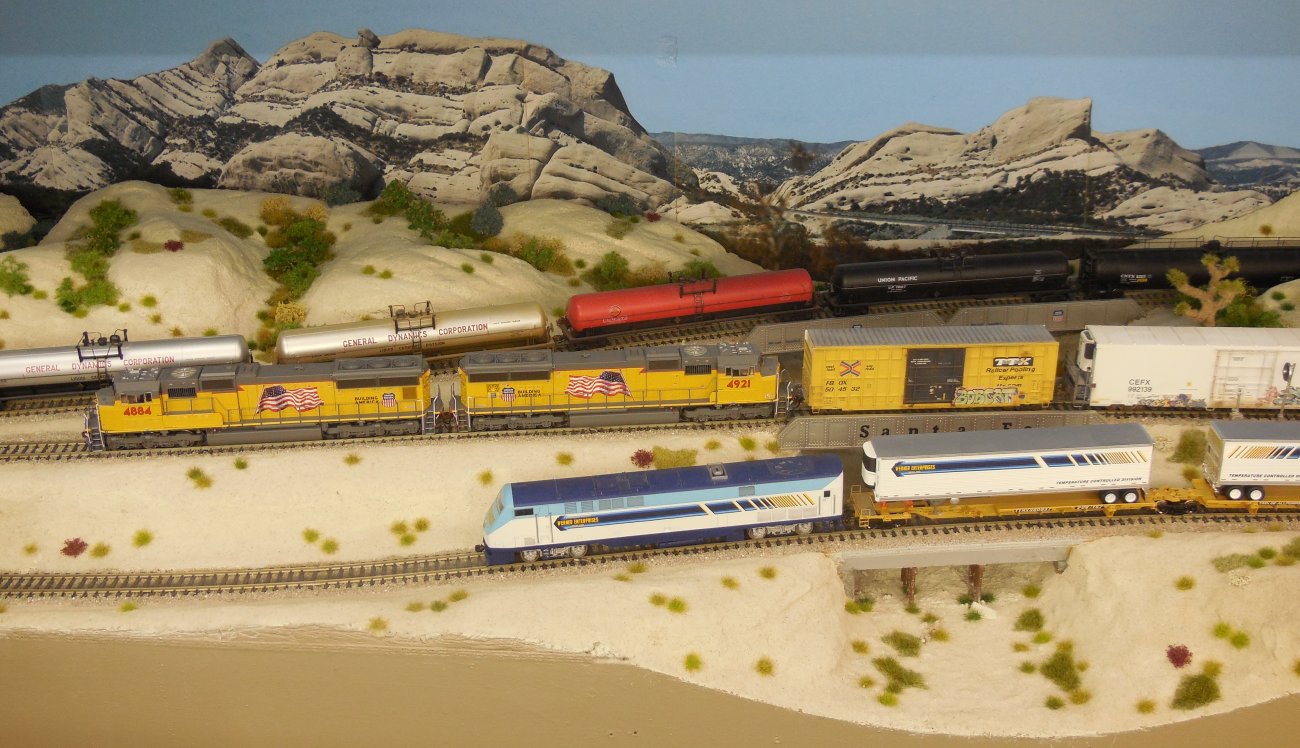

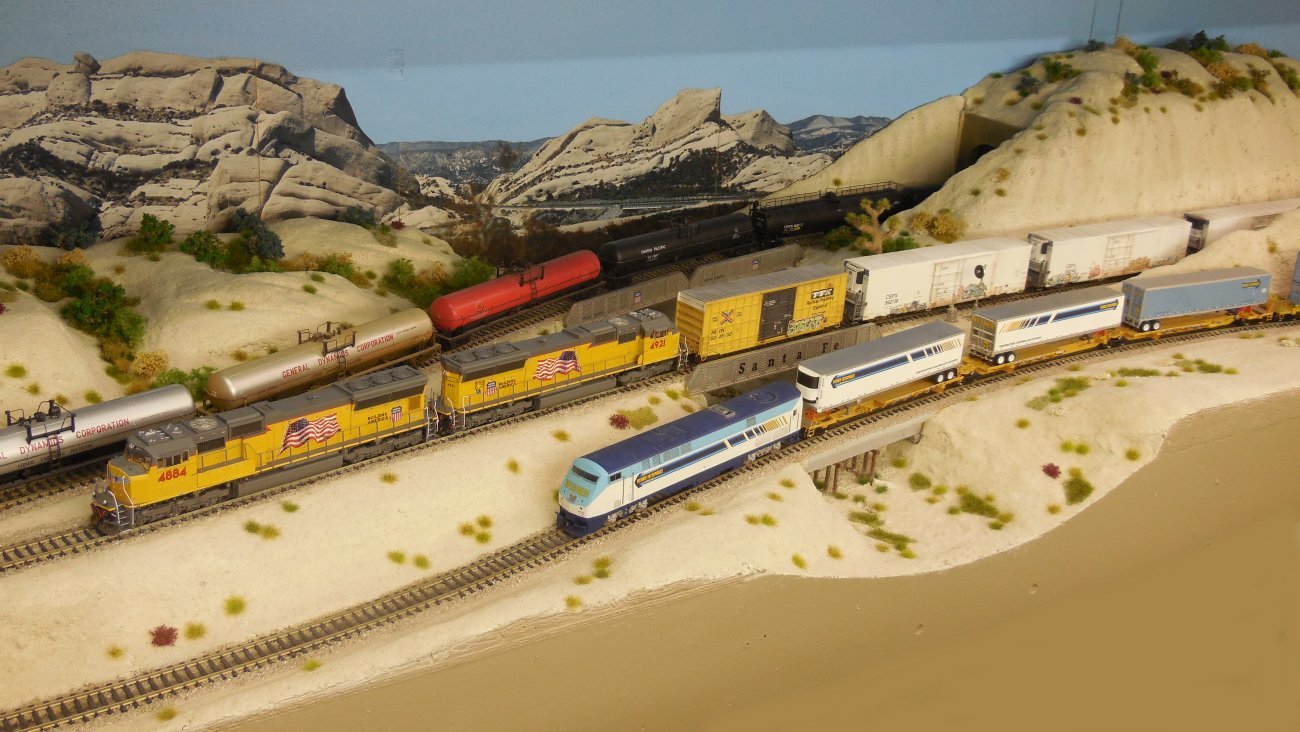

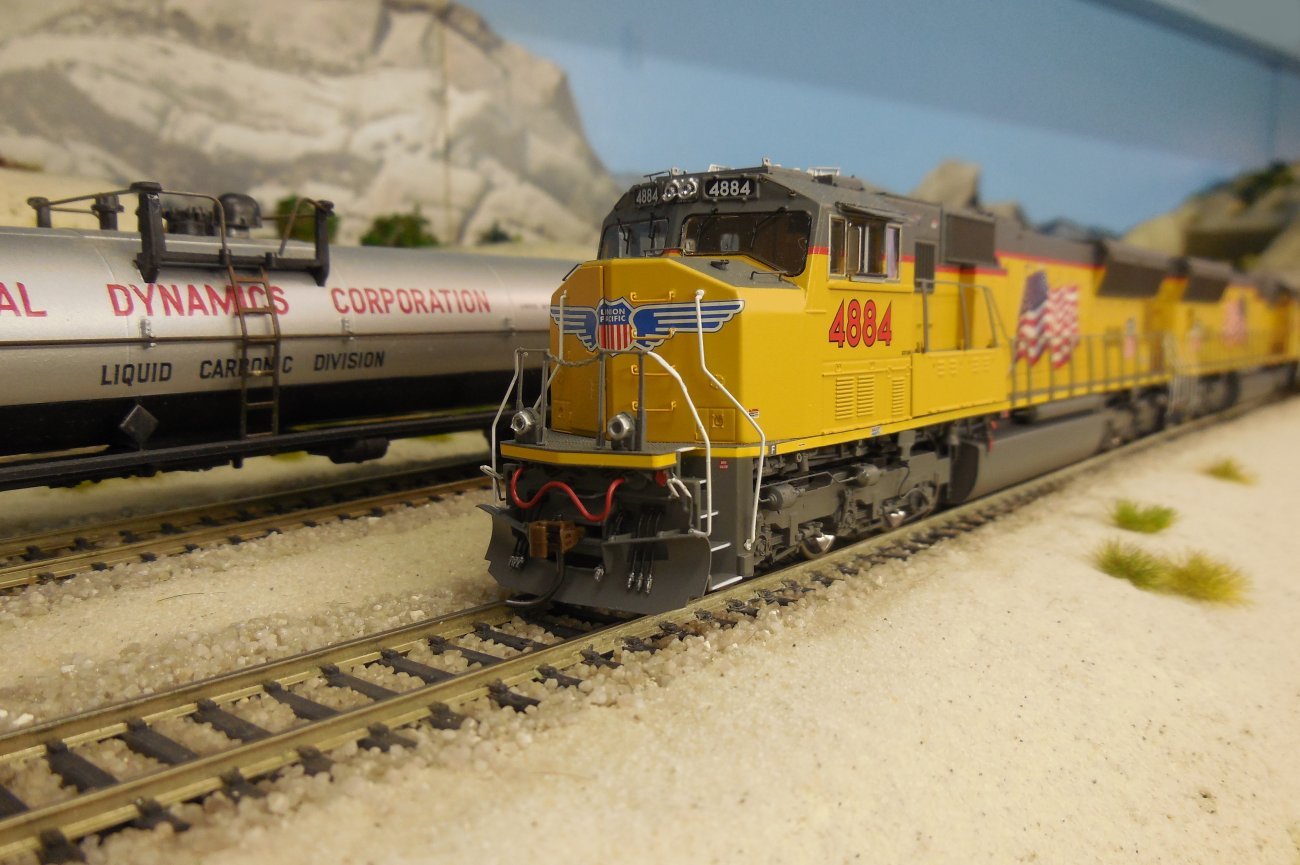

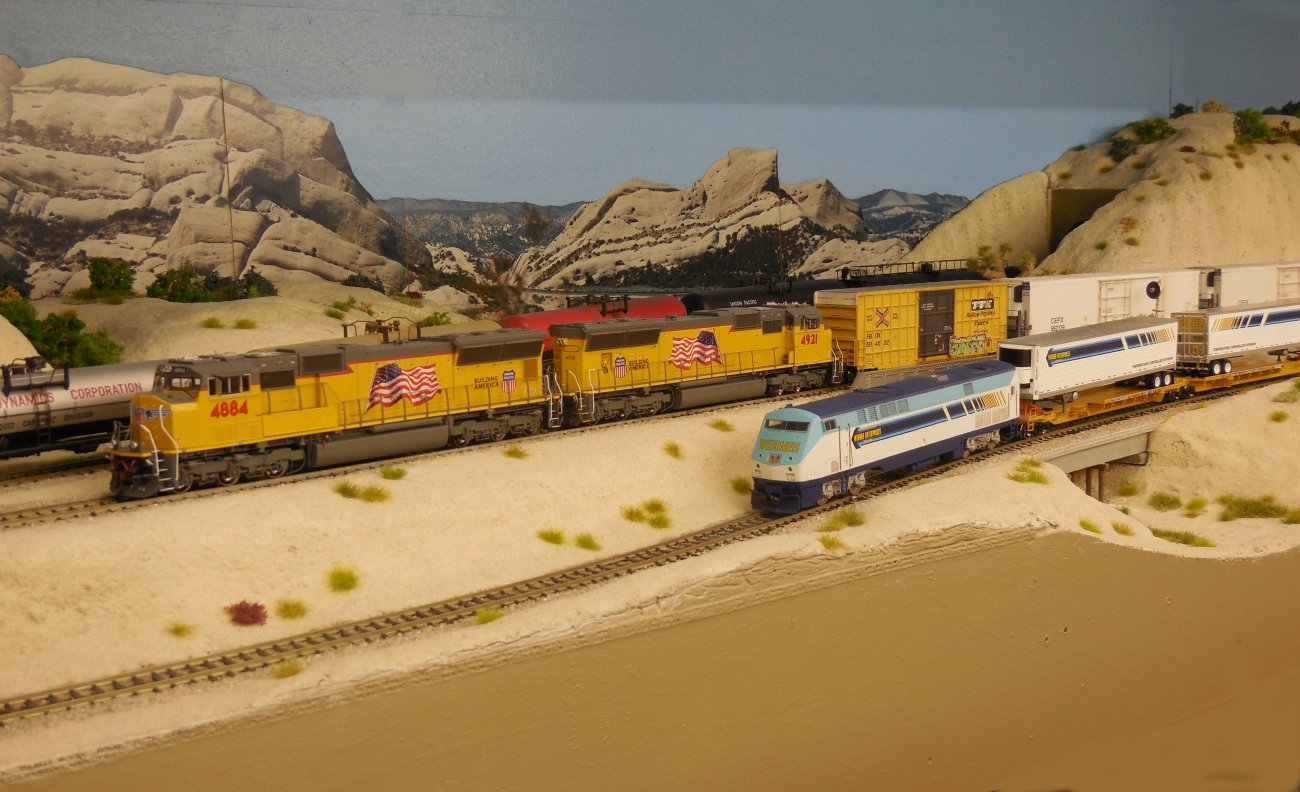

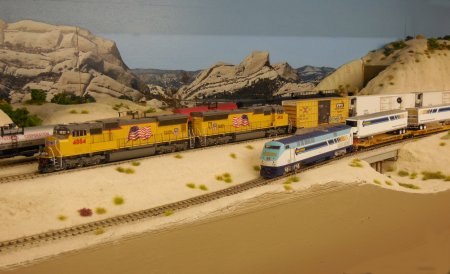

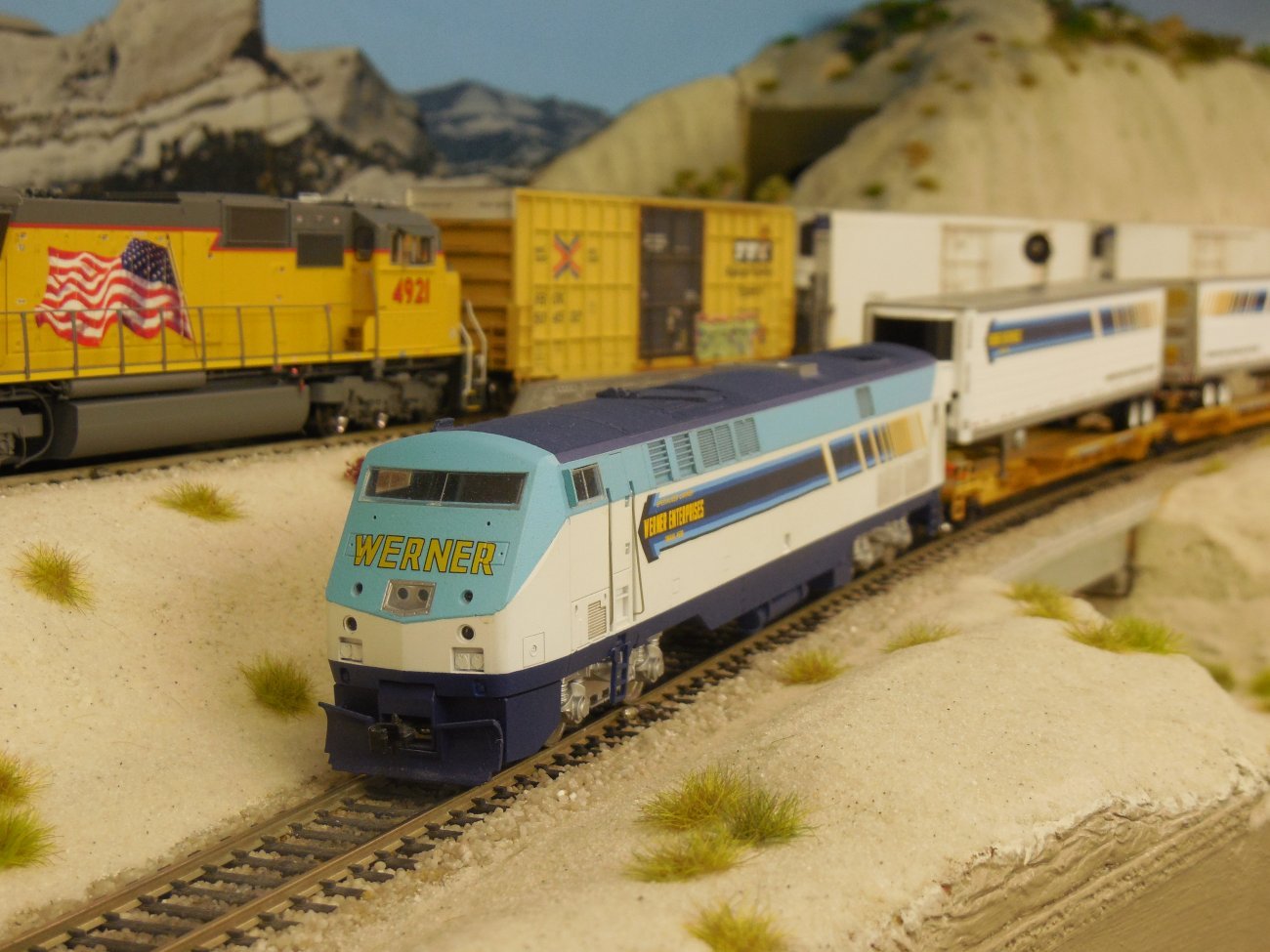

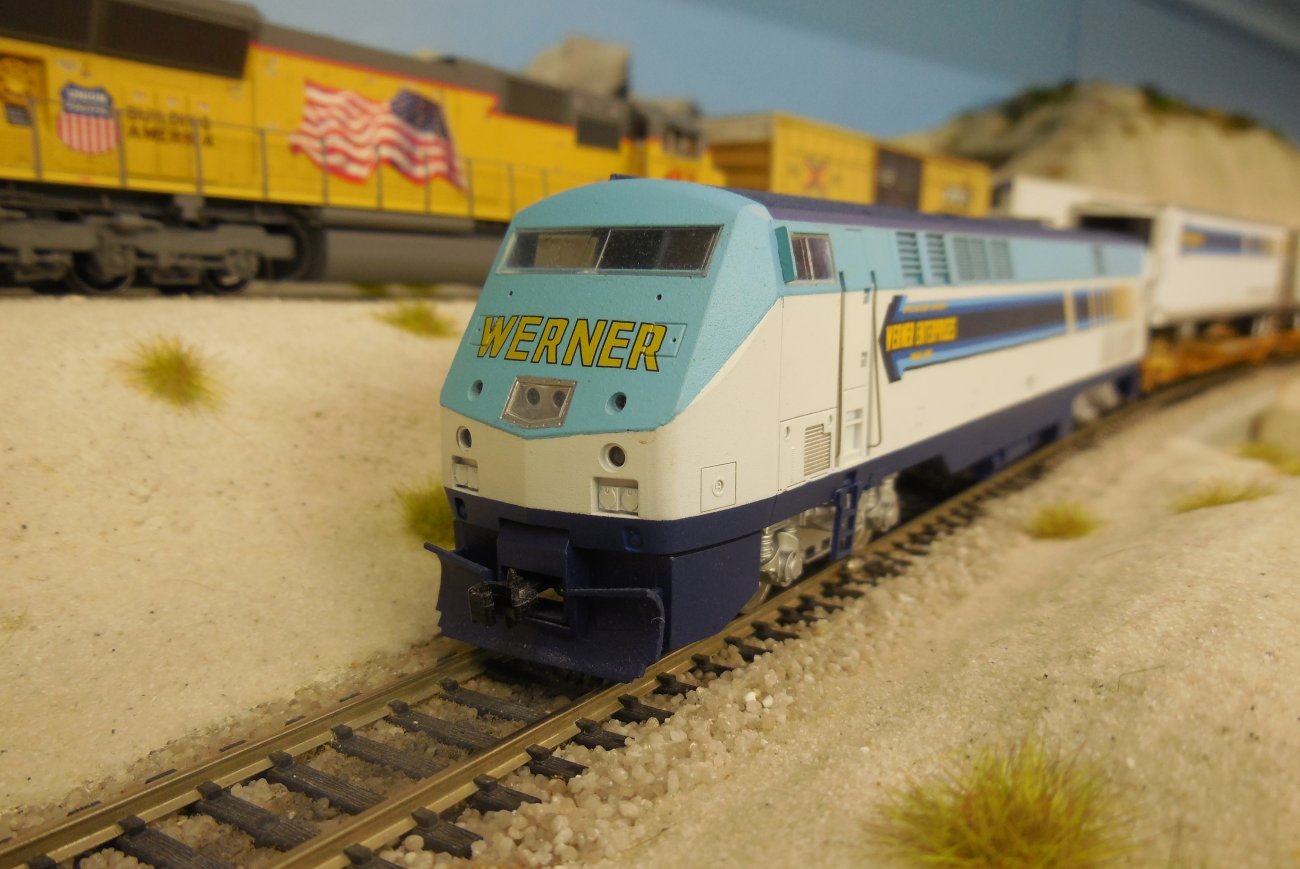

UP EMD SD70M (w/flared radiators) by Athearn Genesis - 408 Werner Diesel = GE AMD103 made by Athearn (blue Box) - 409

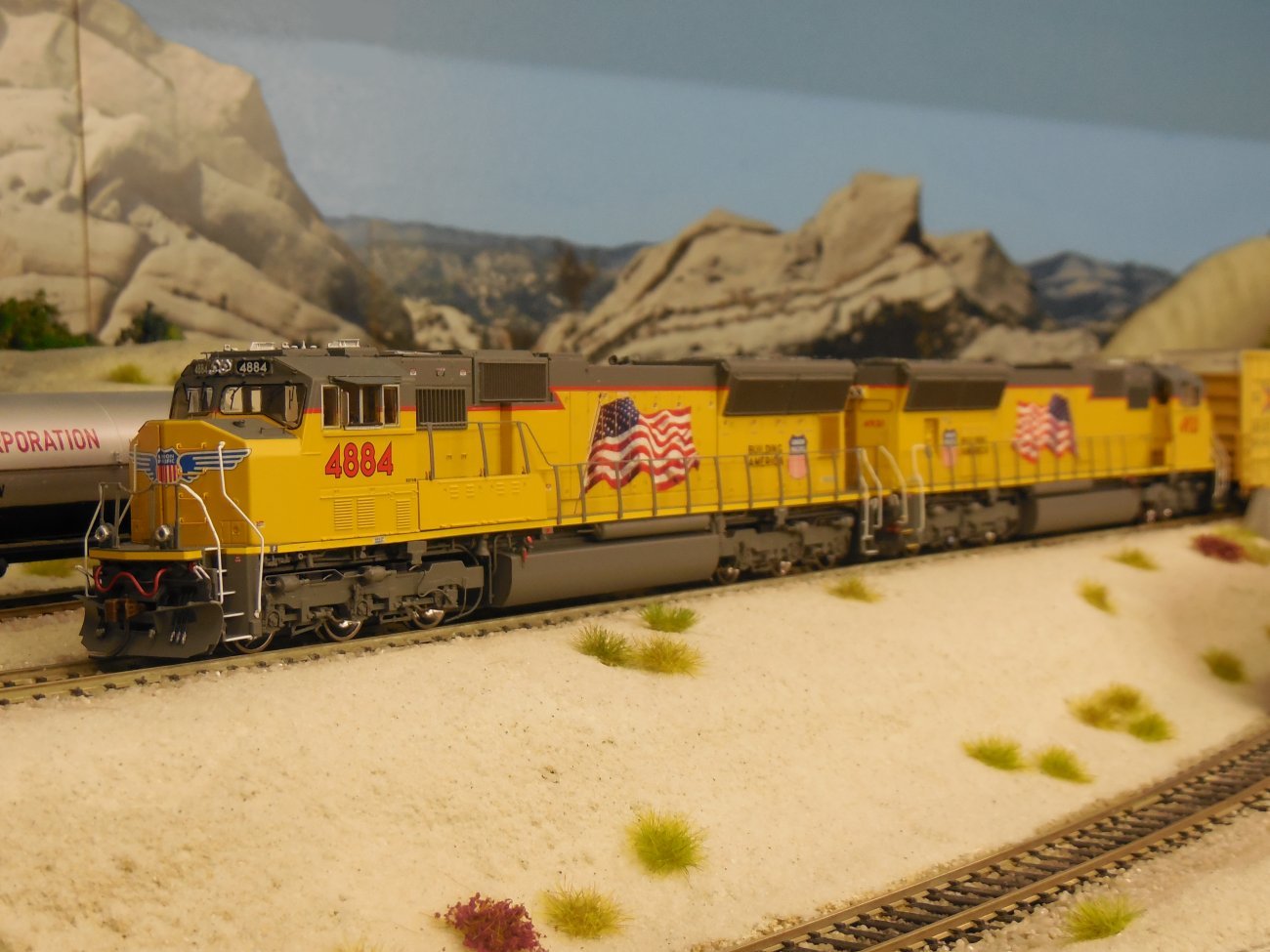

430 431

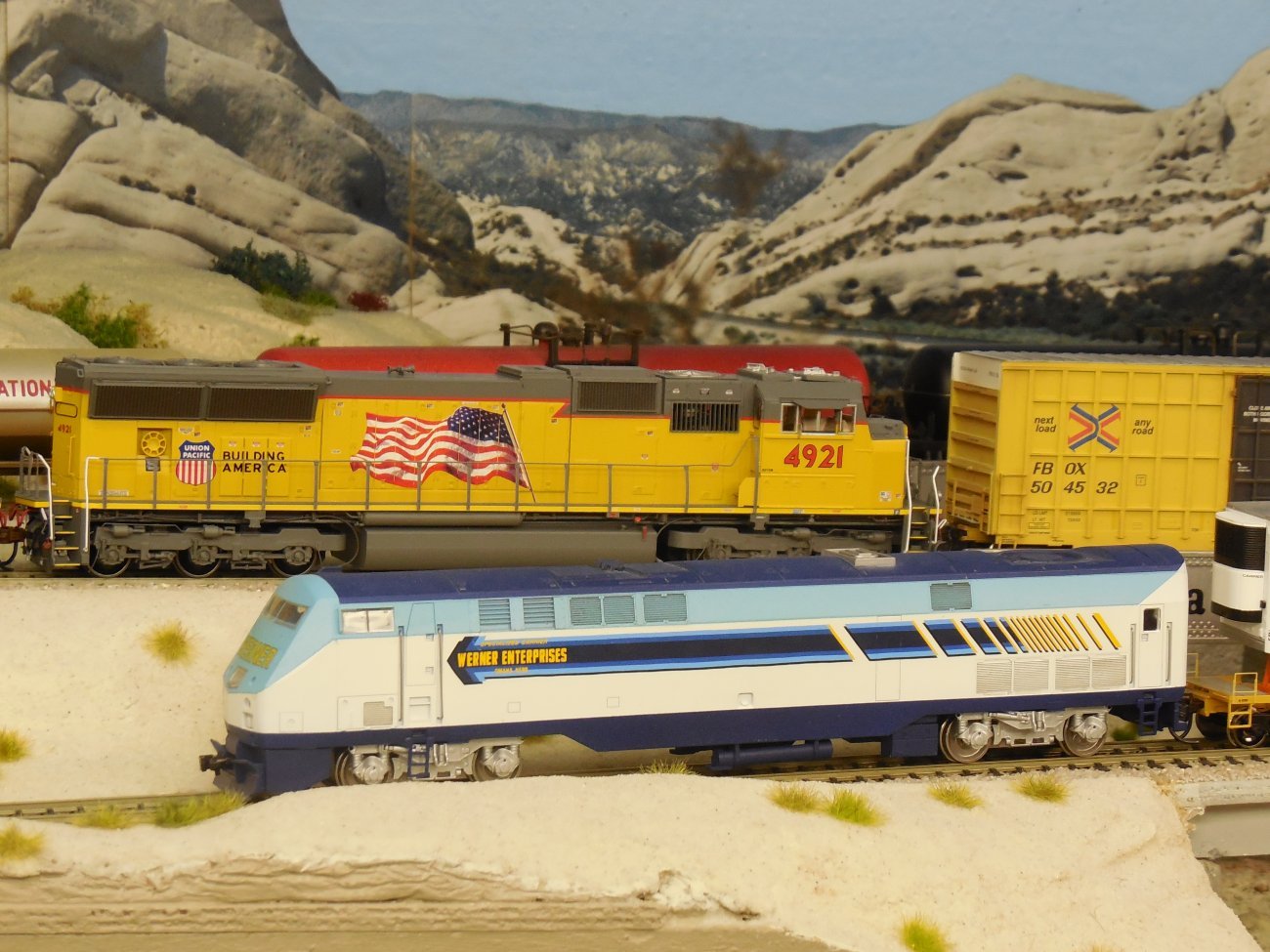

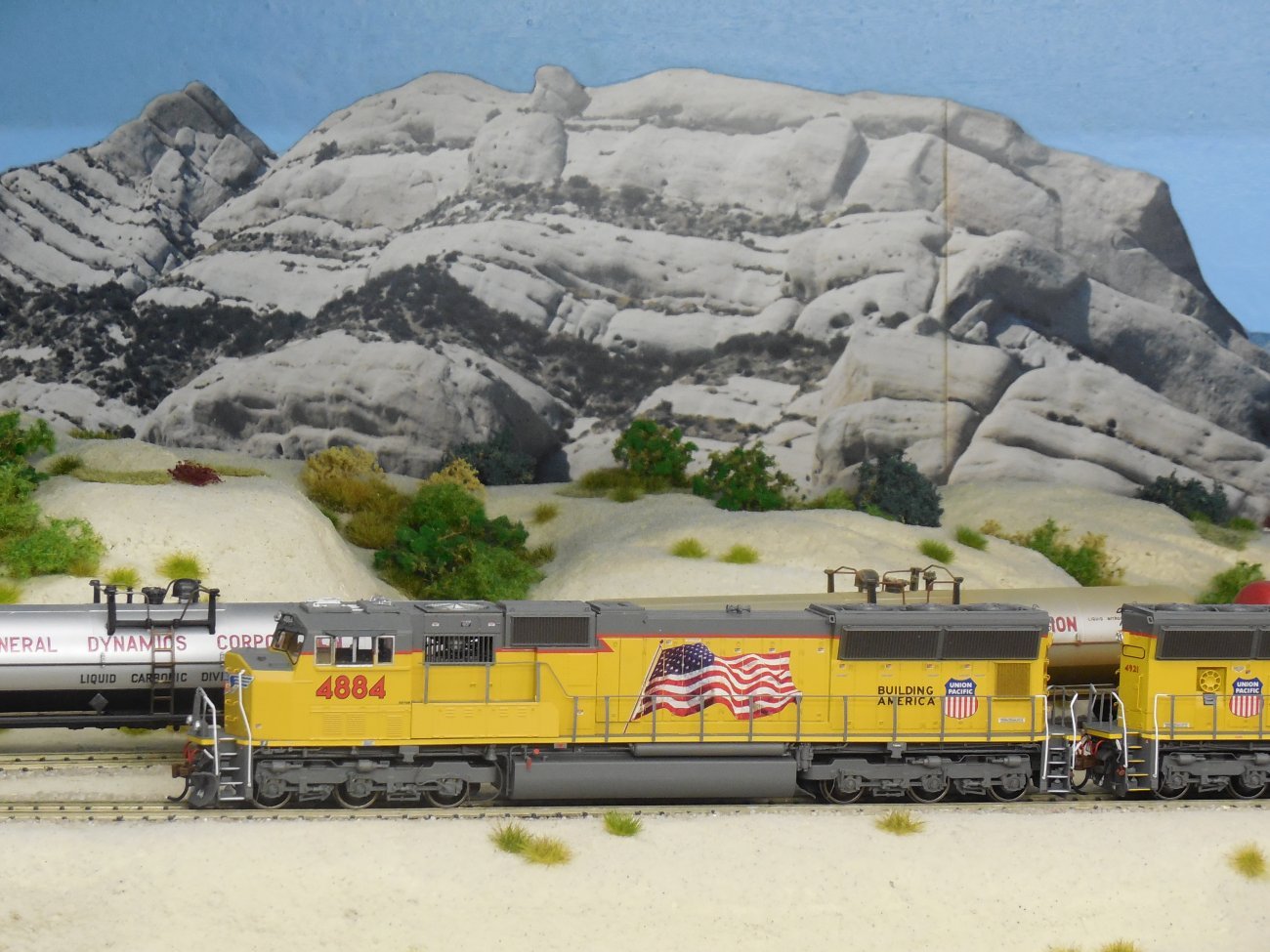

428 This loco was custom painted by Ferdinand Rat - 427

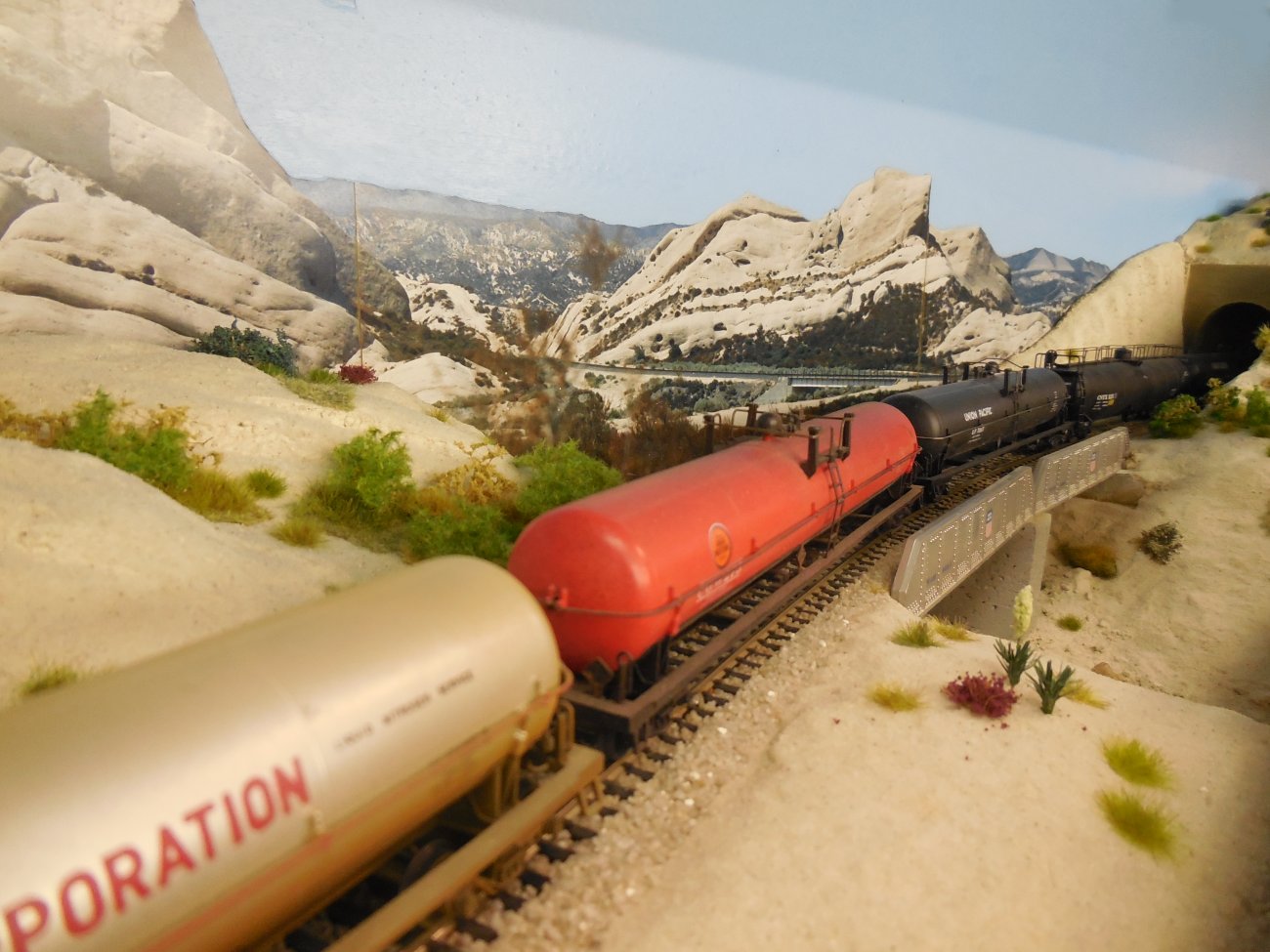

407 On MT-1 is a Tank Train - 420

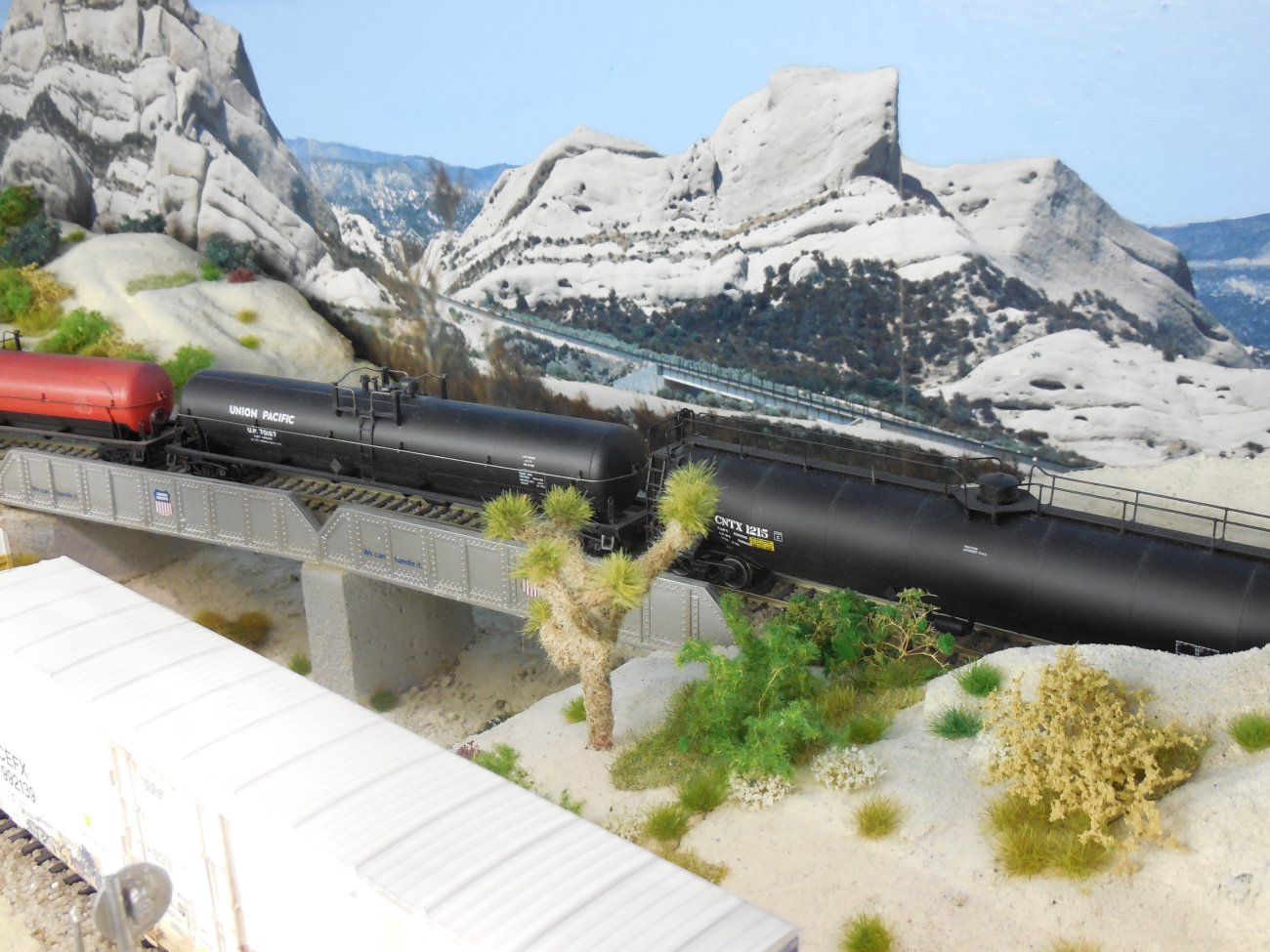

434 439

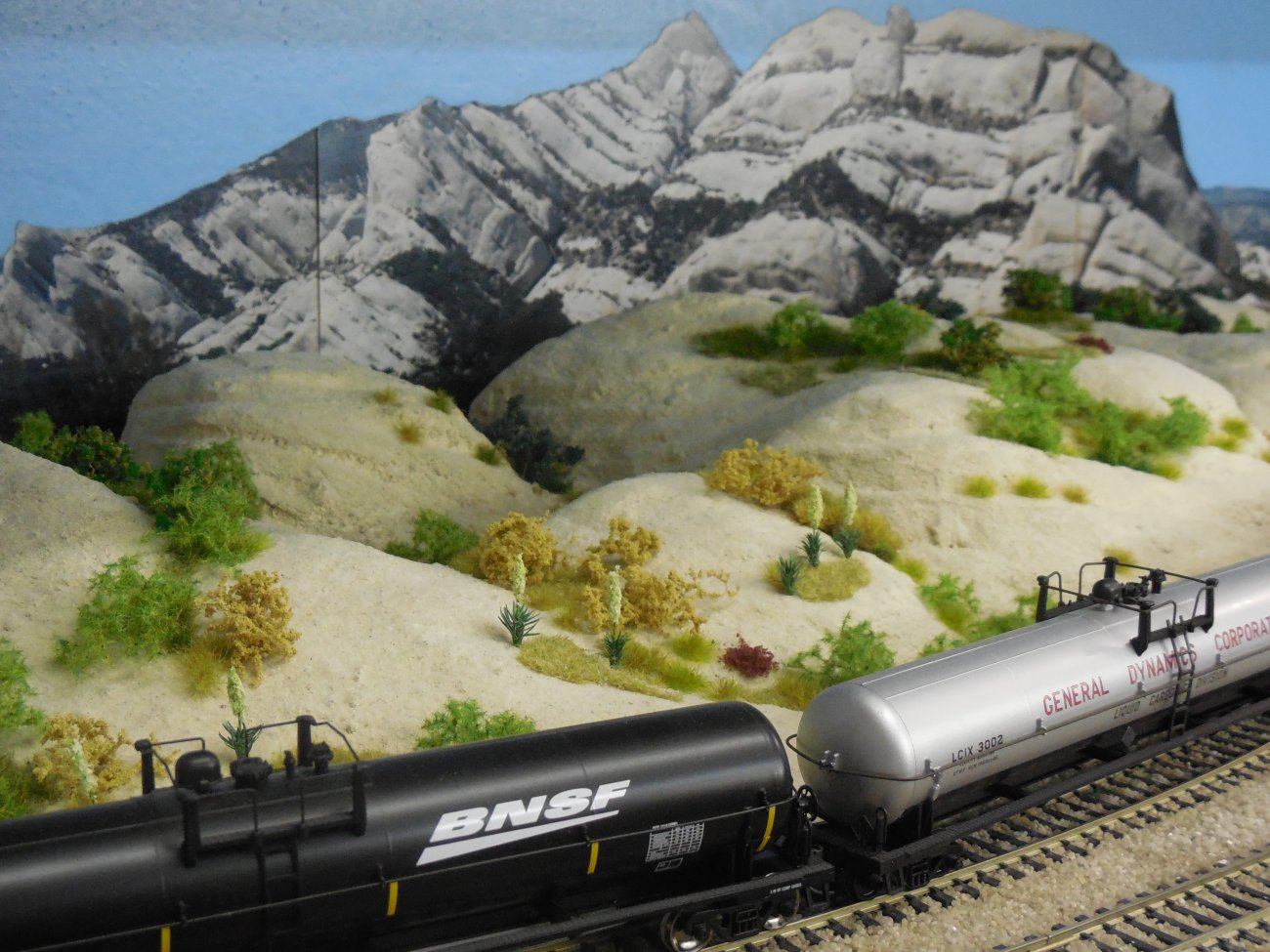

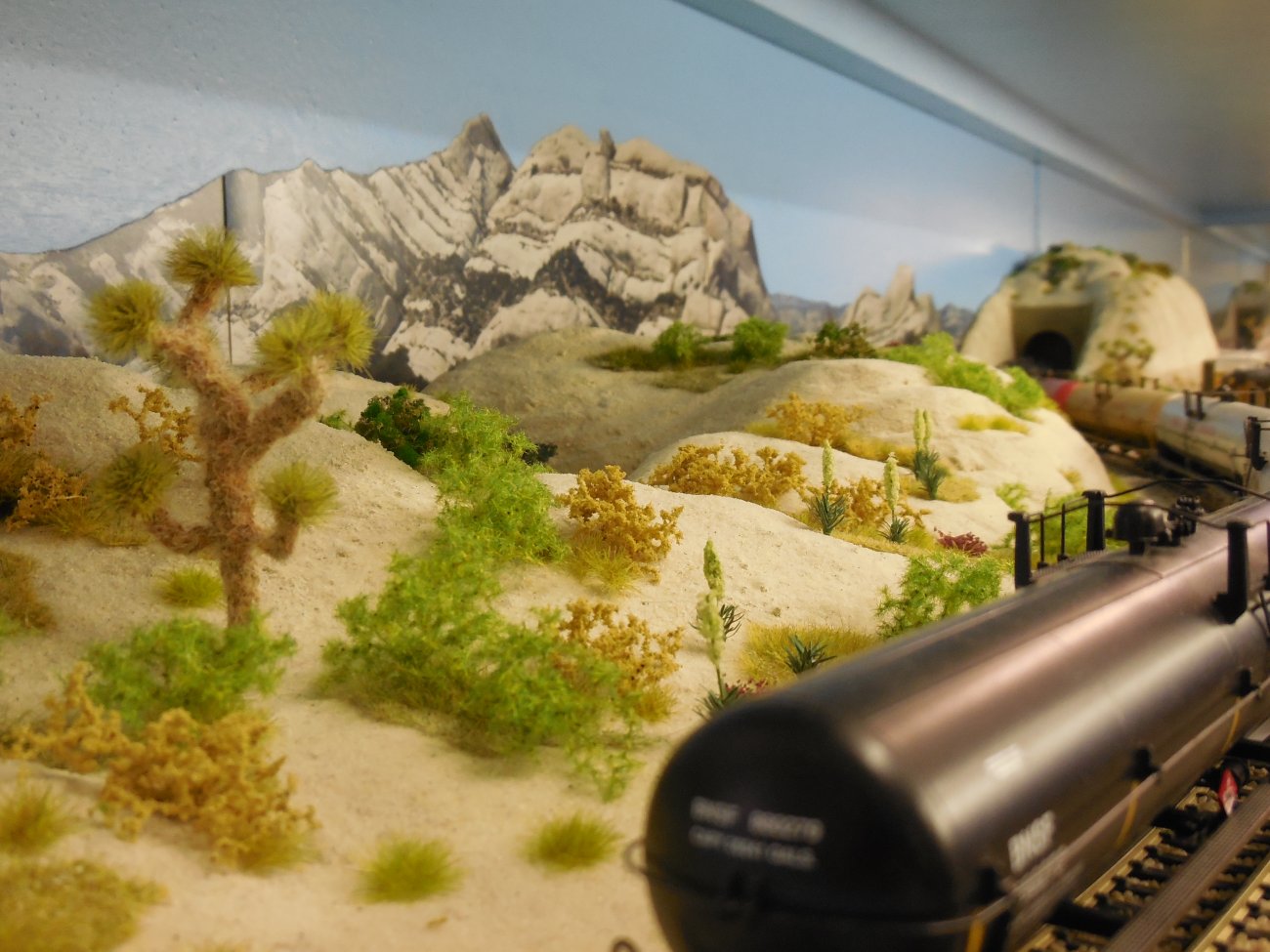

432 433

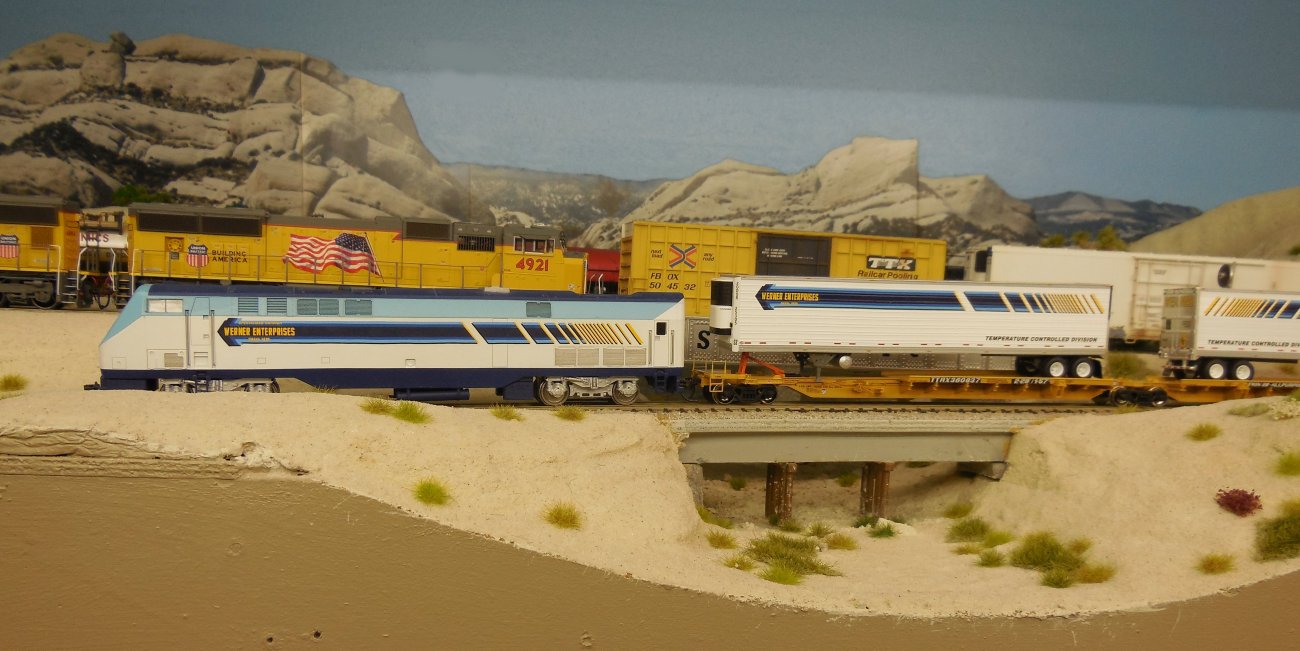

416 395

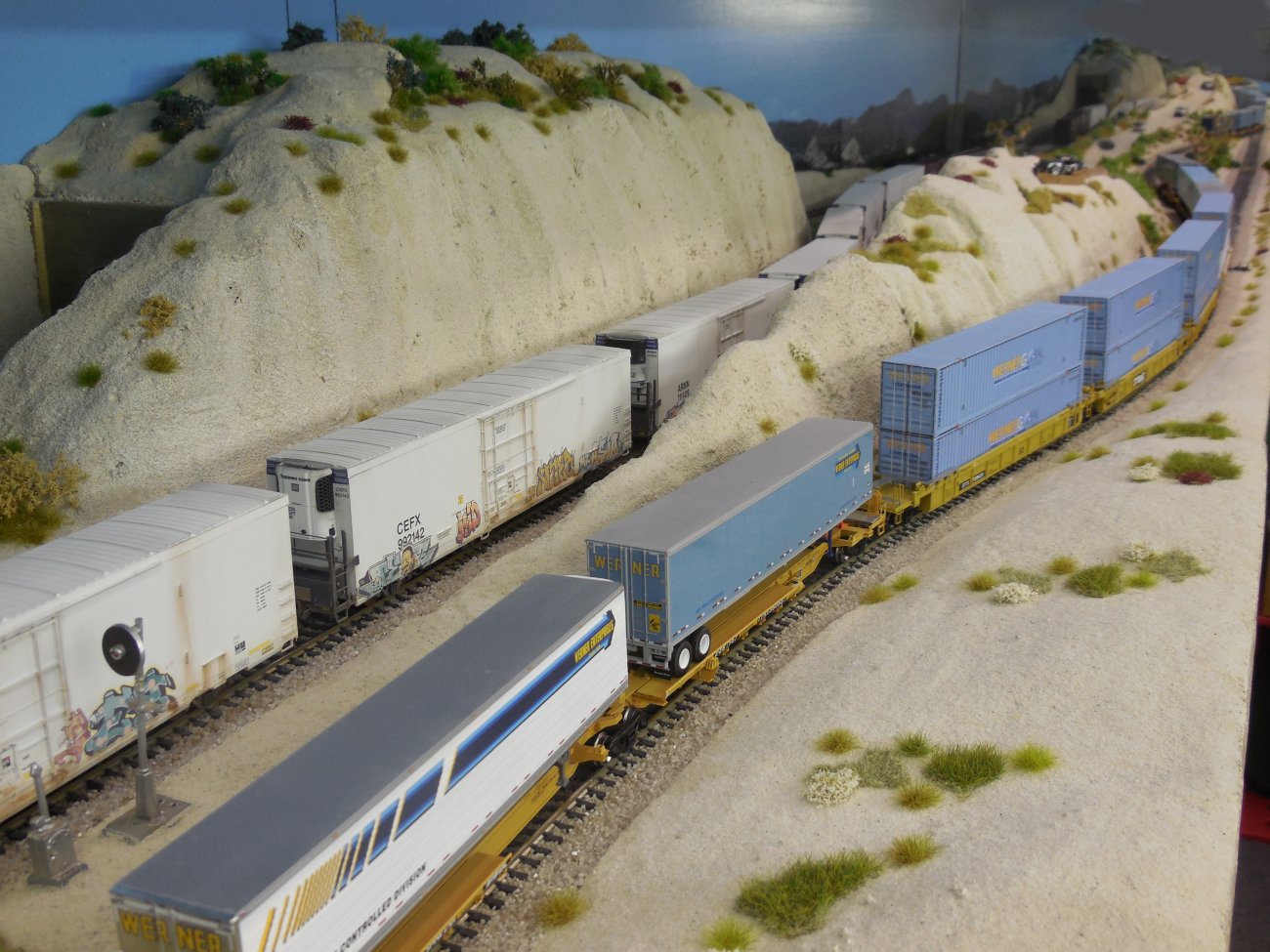

435 436
426 398

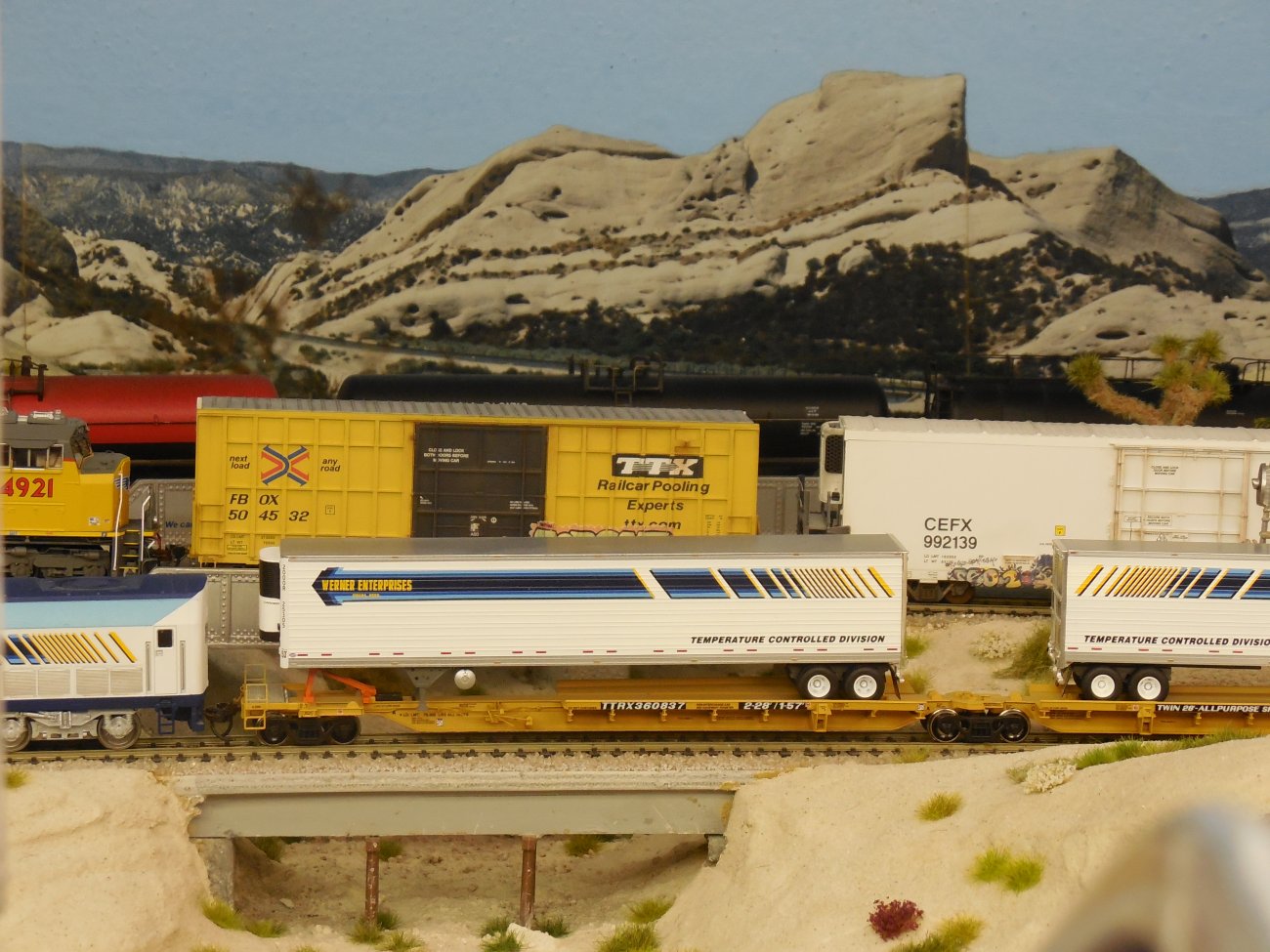

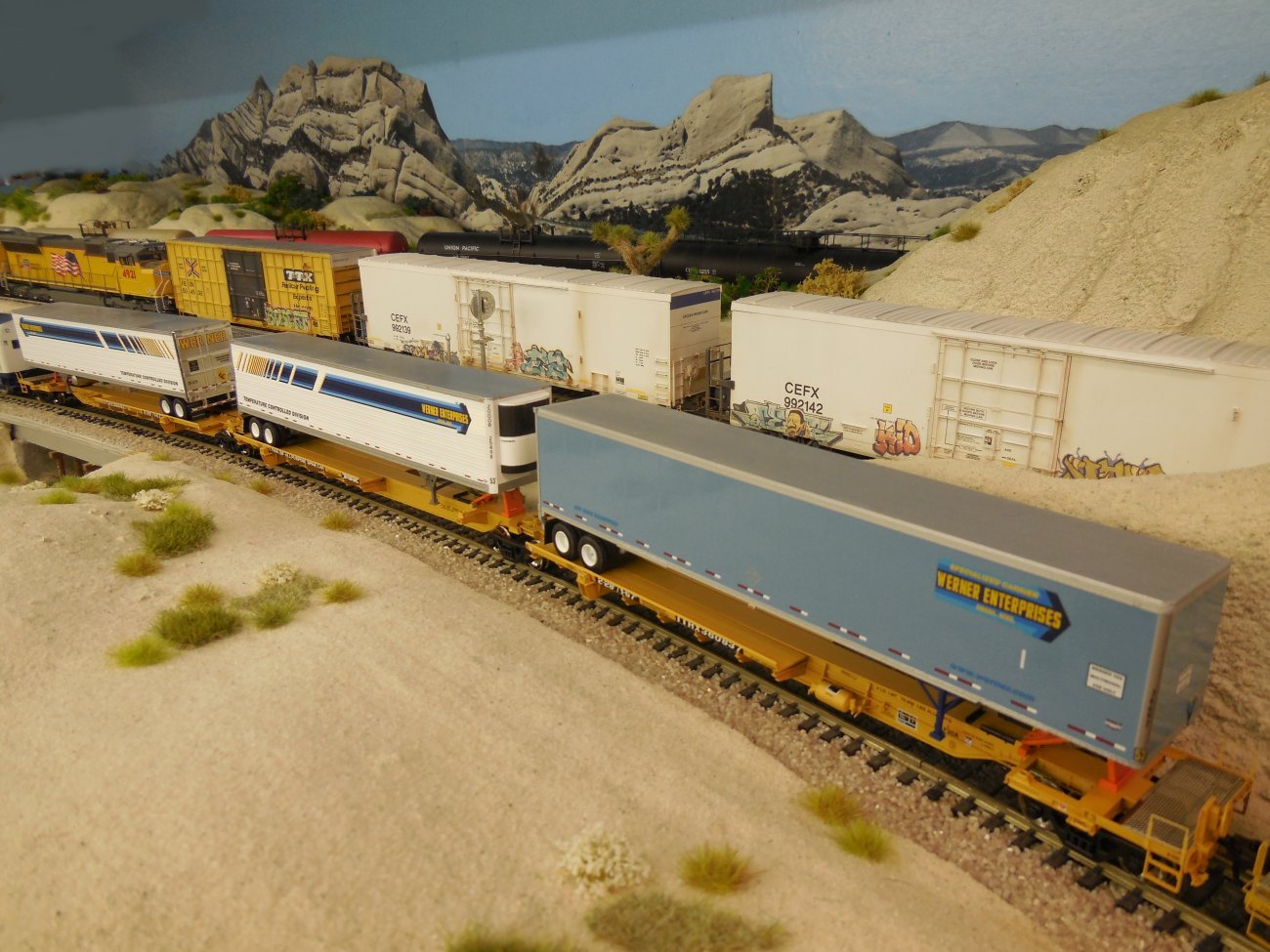

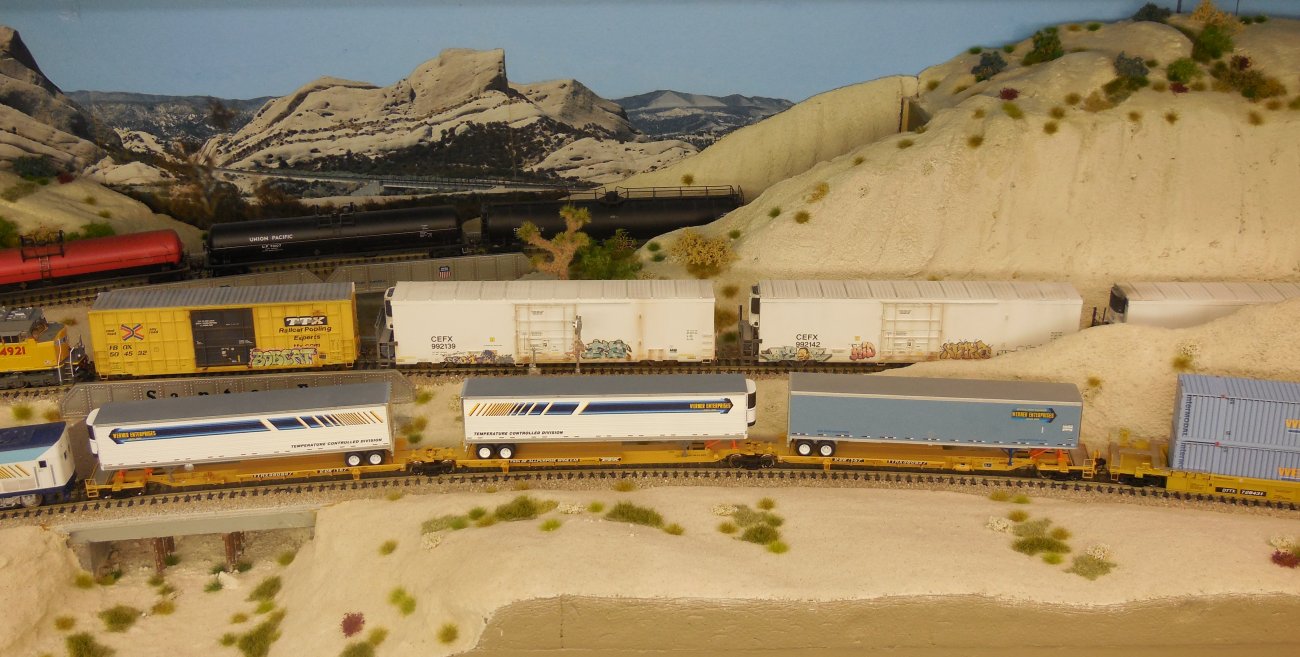

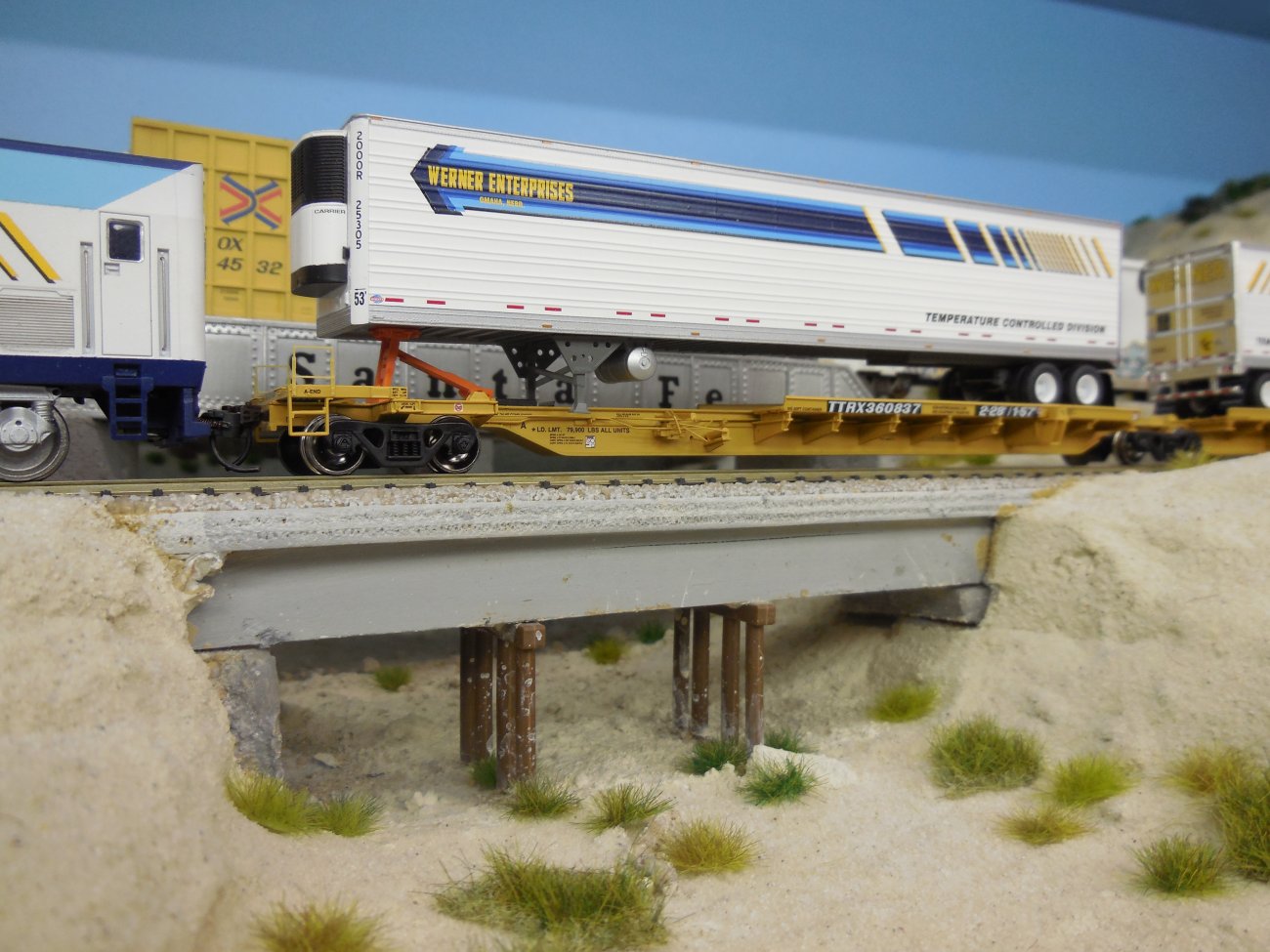

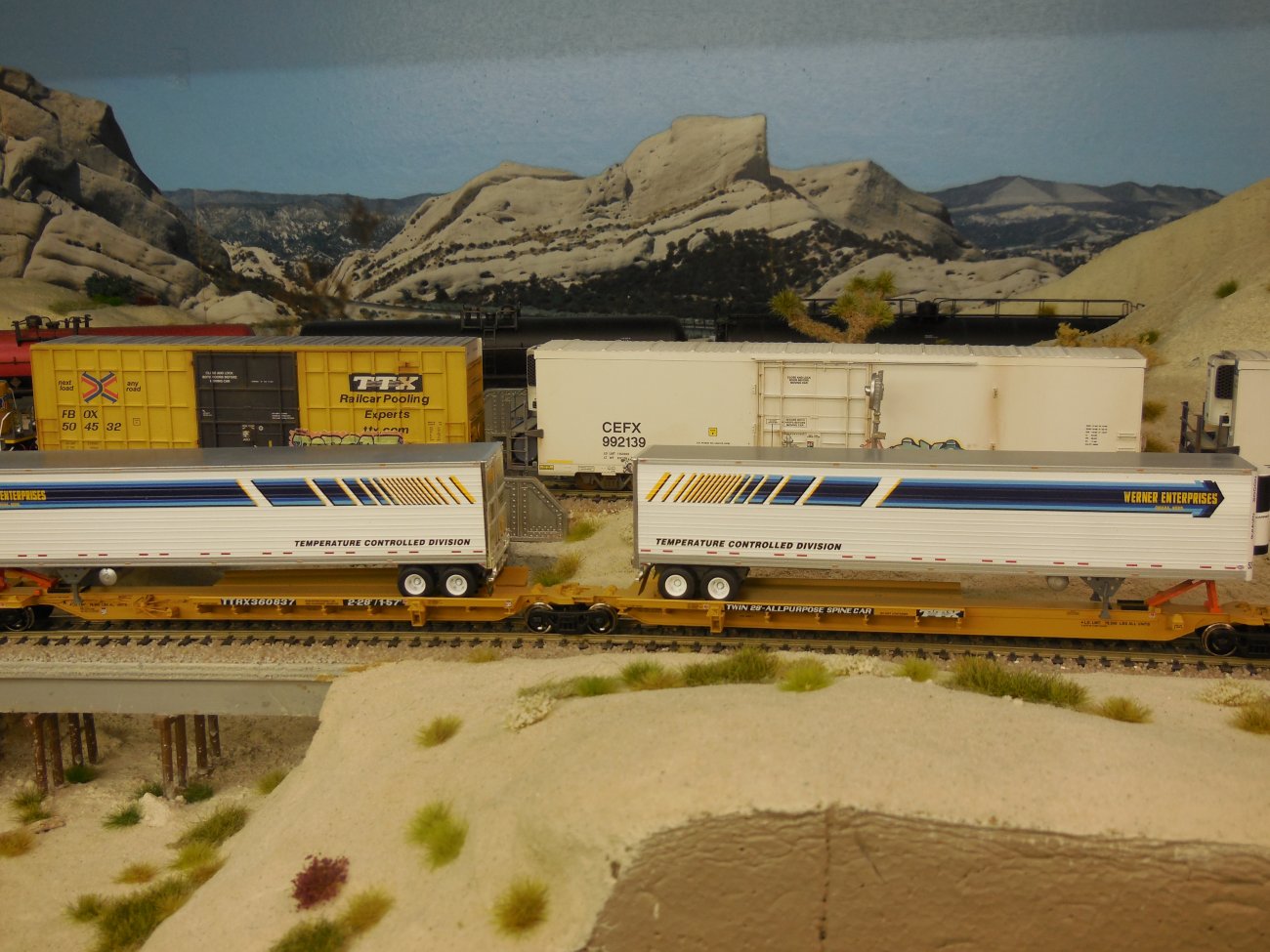

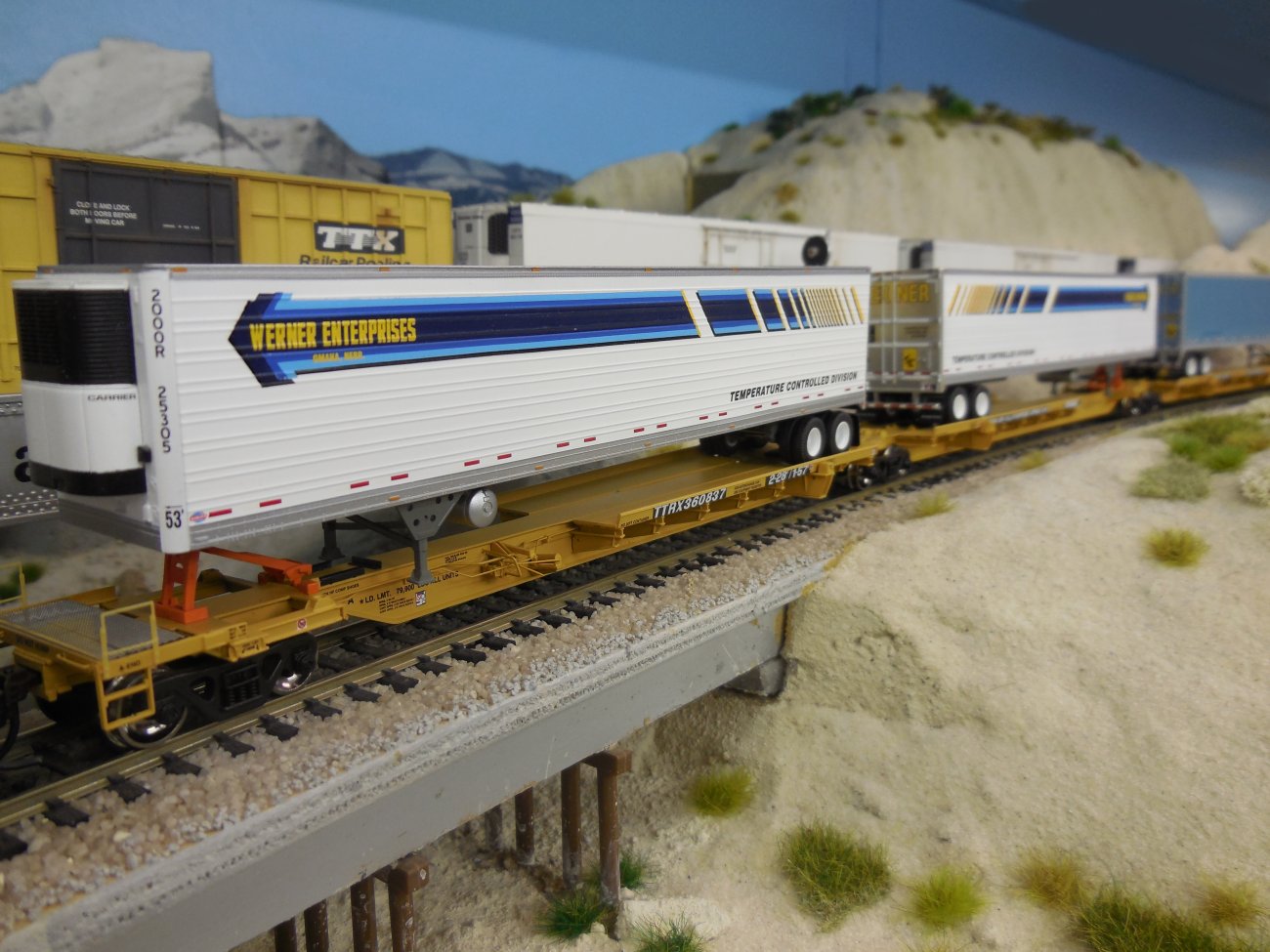

Werner 53' Reefer Trailer by Athearn - 417 TTX 57' All Purpose Spine Cars (3-unit) by Athearn -  411

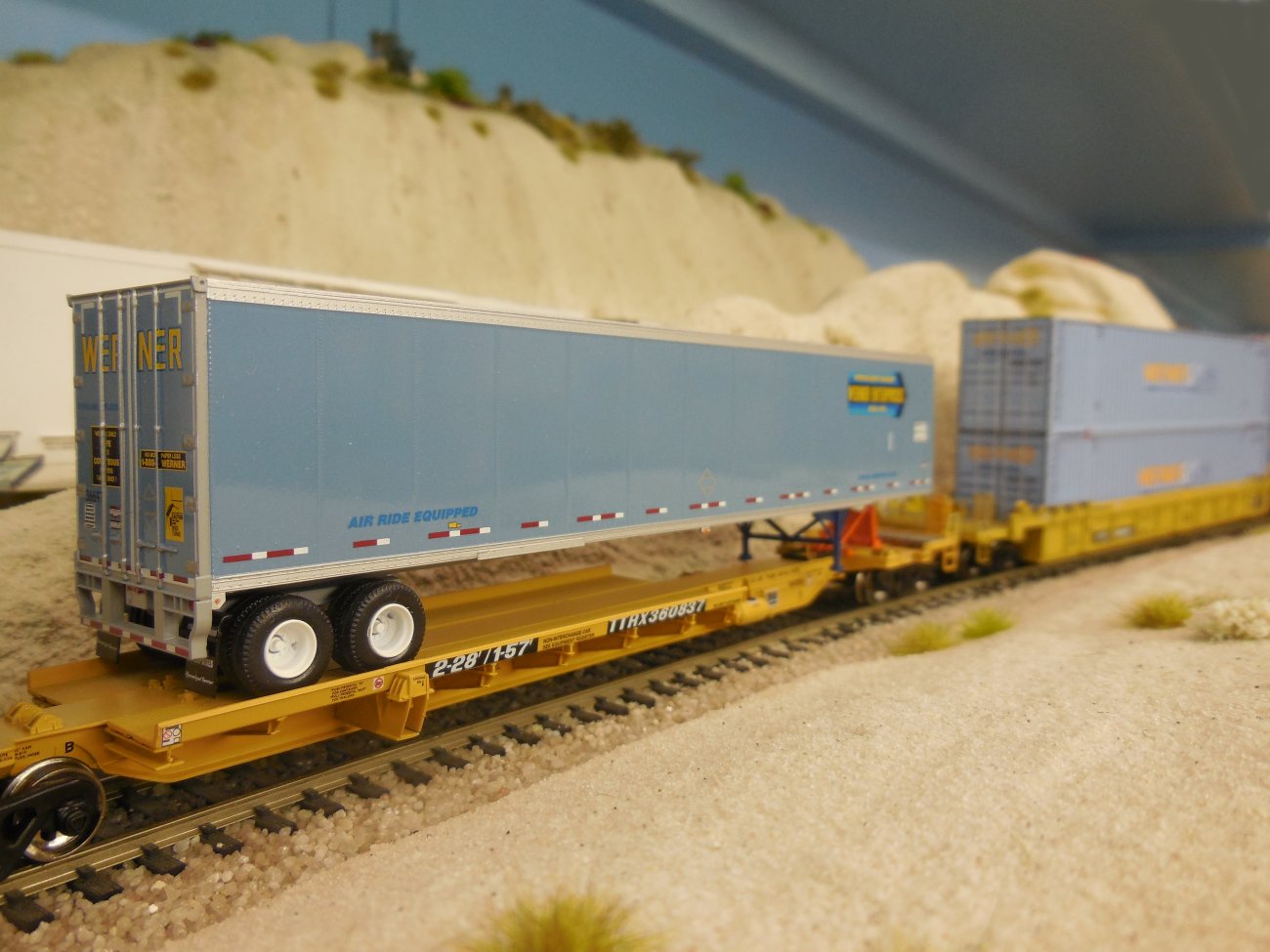

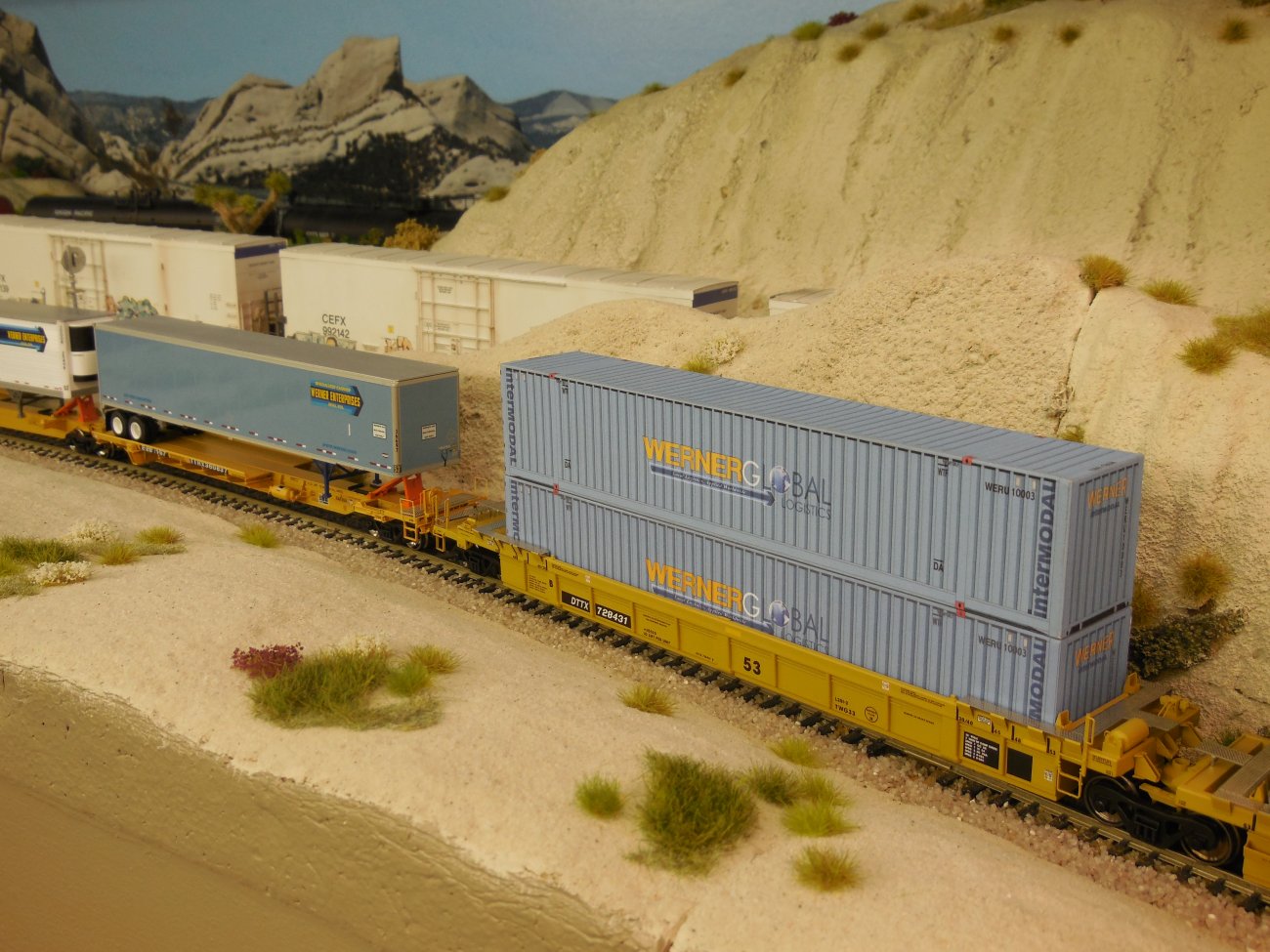

Werner 53' Standard Trailer by Athearn - 412 399

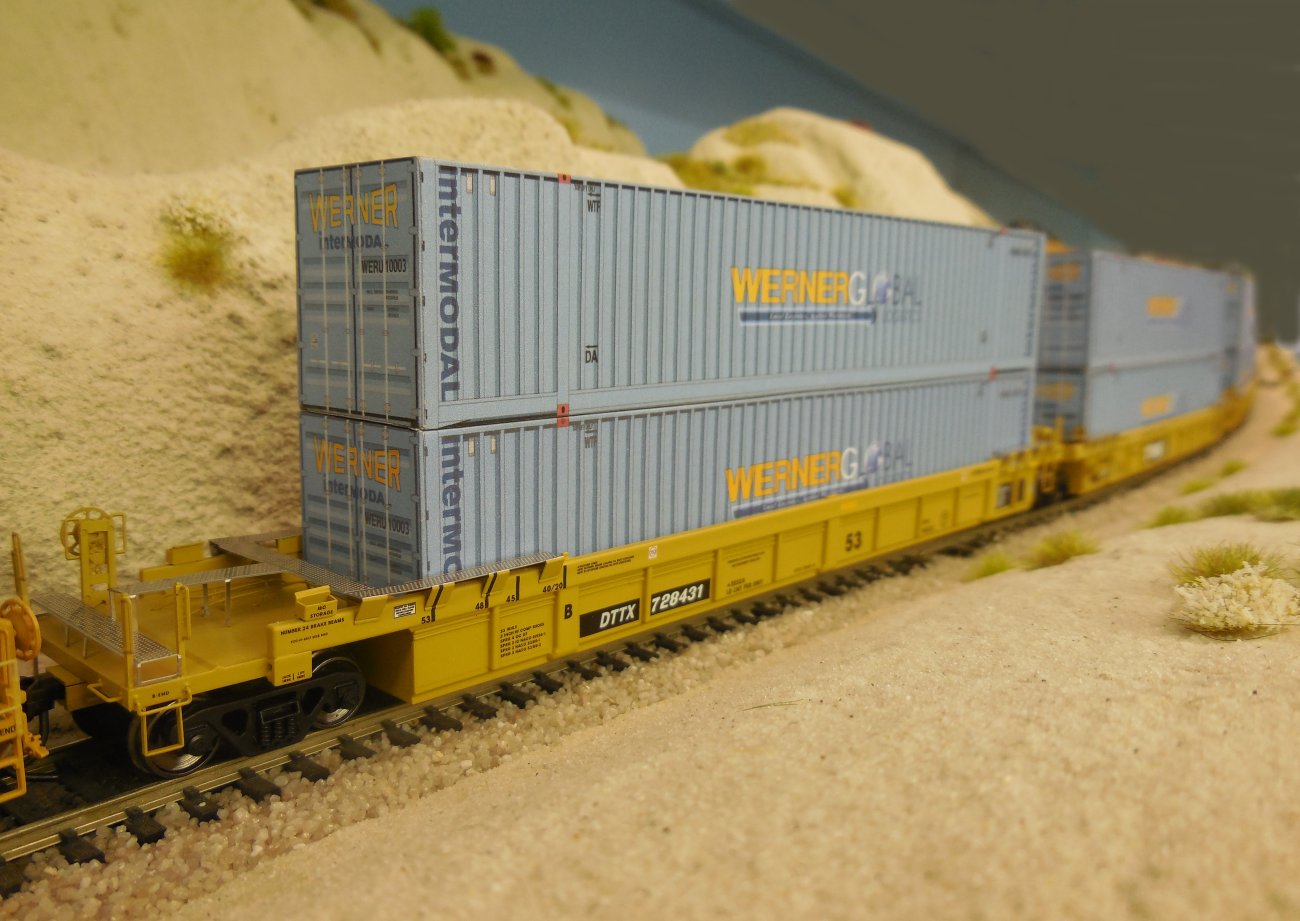

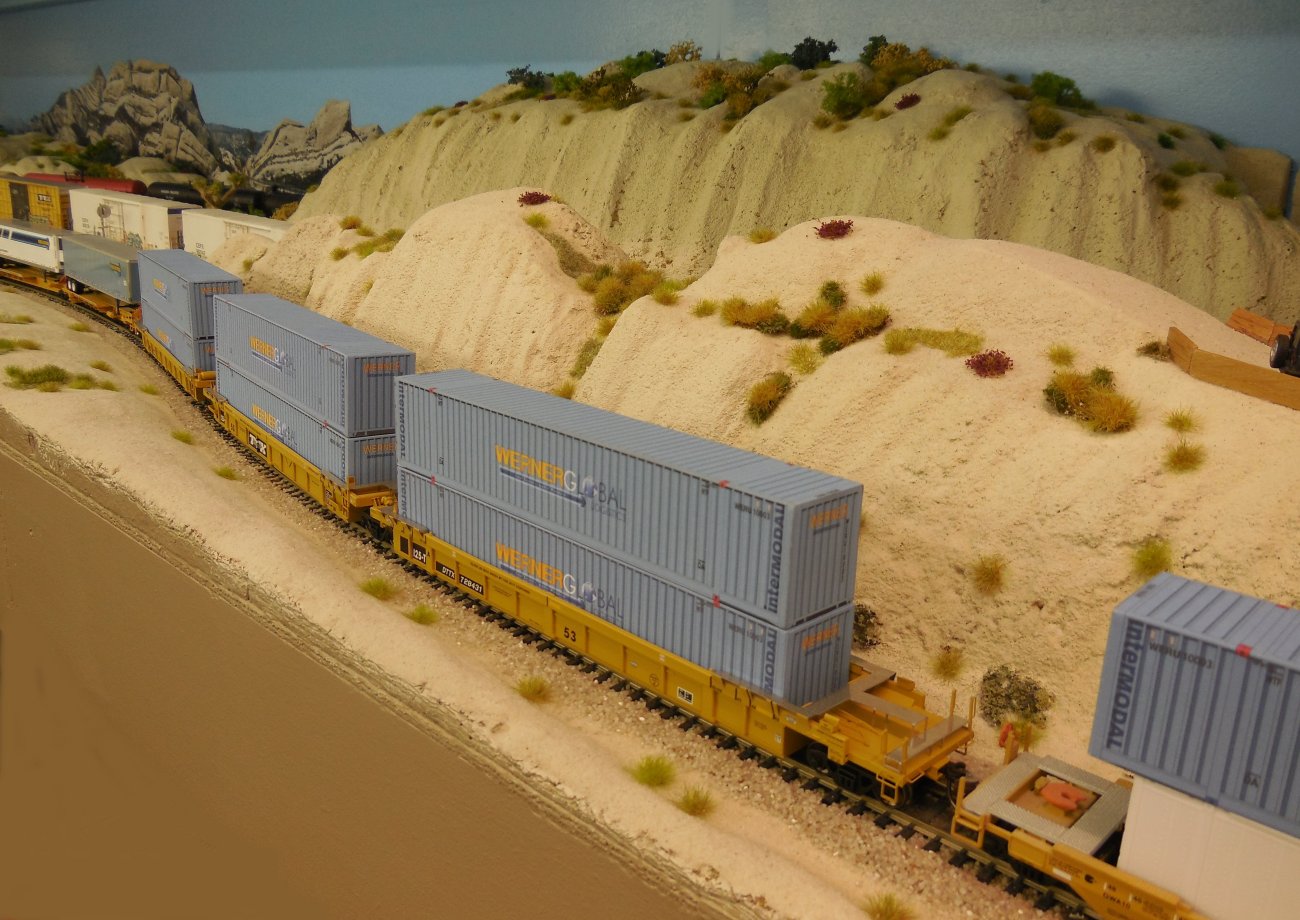

Werner Global 53' Containers custom made . . - 413 . . . by Pitsch Allneider - 404

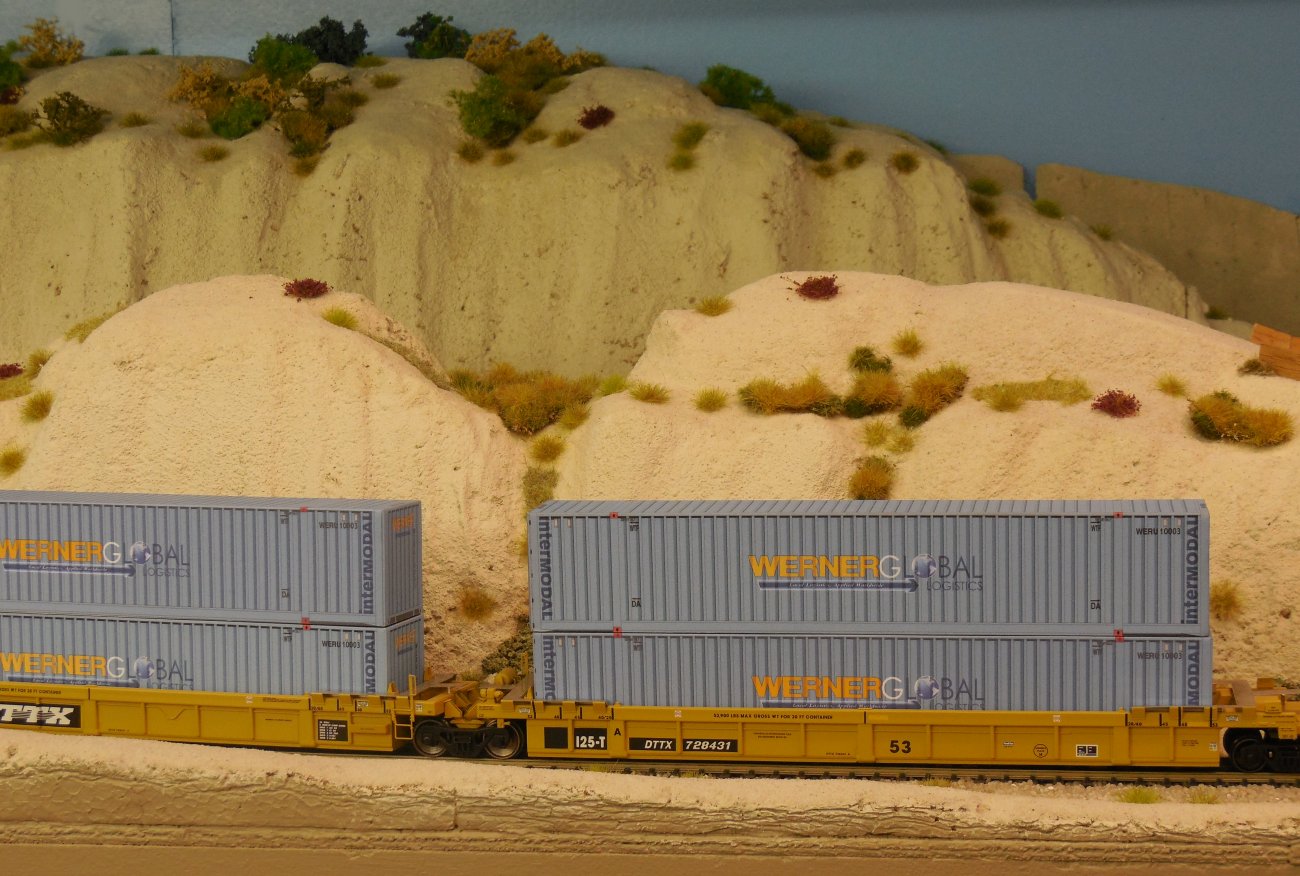

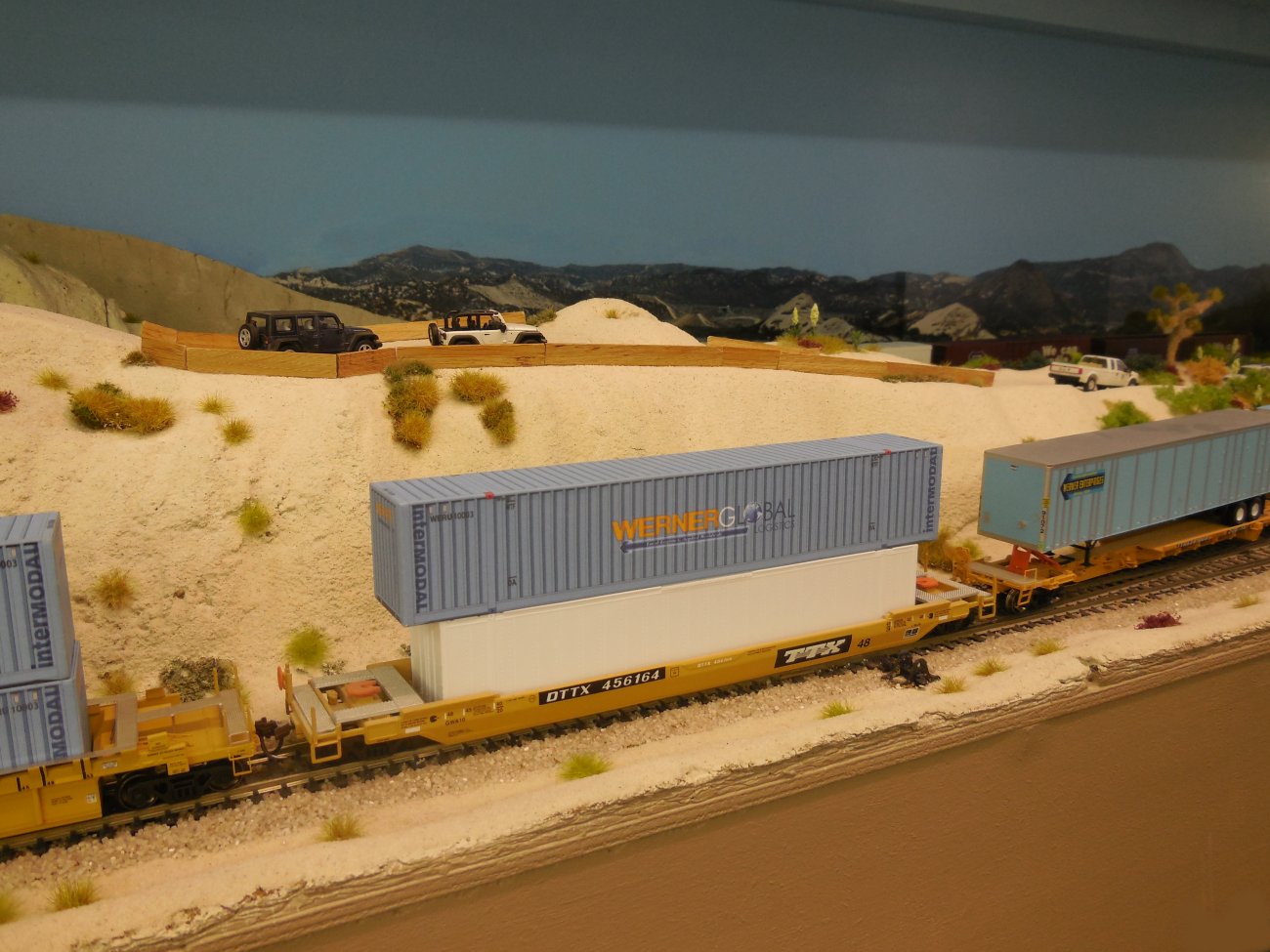

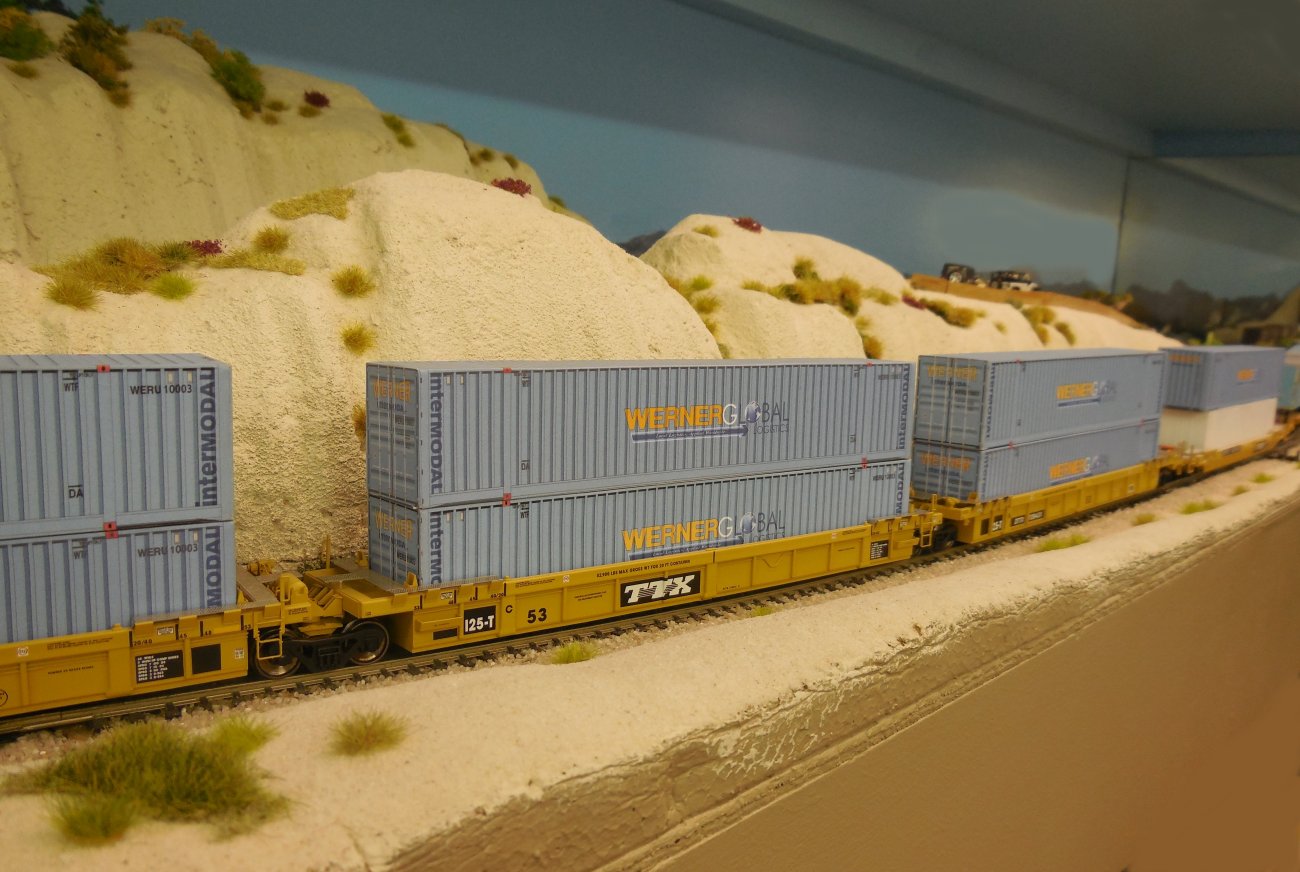

TTX 53' NSC Well Cars (3-unit) by Walthers Mainline - 414 425

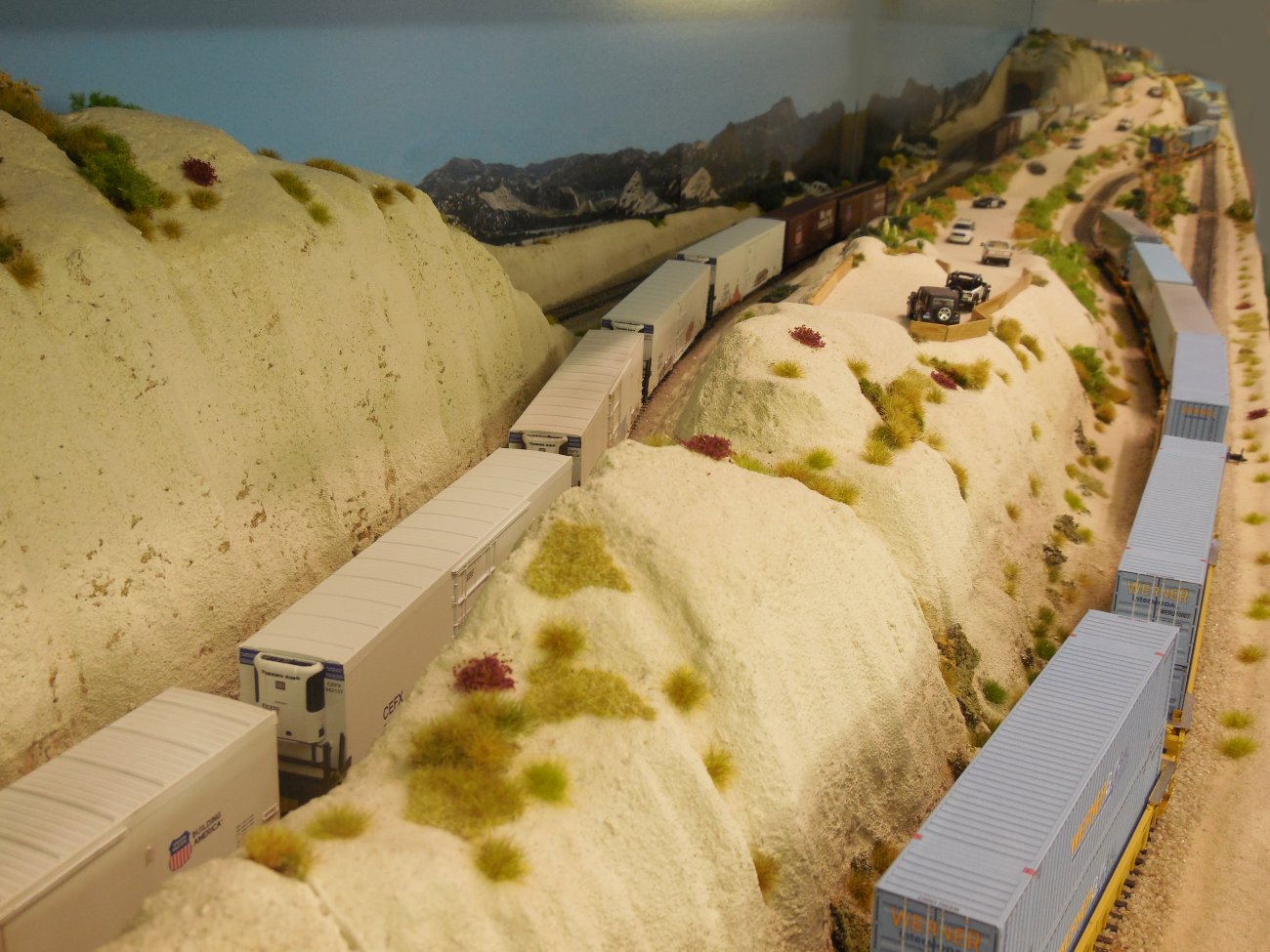

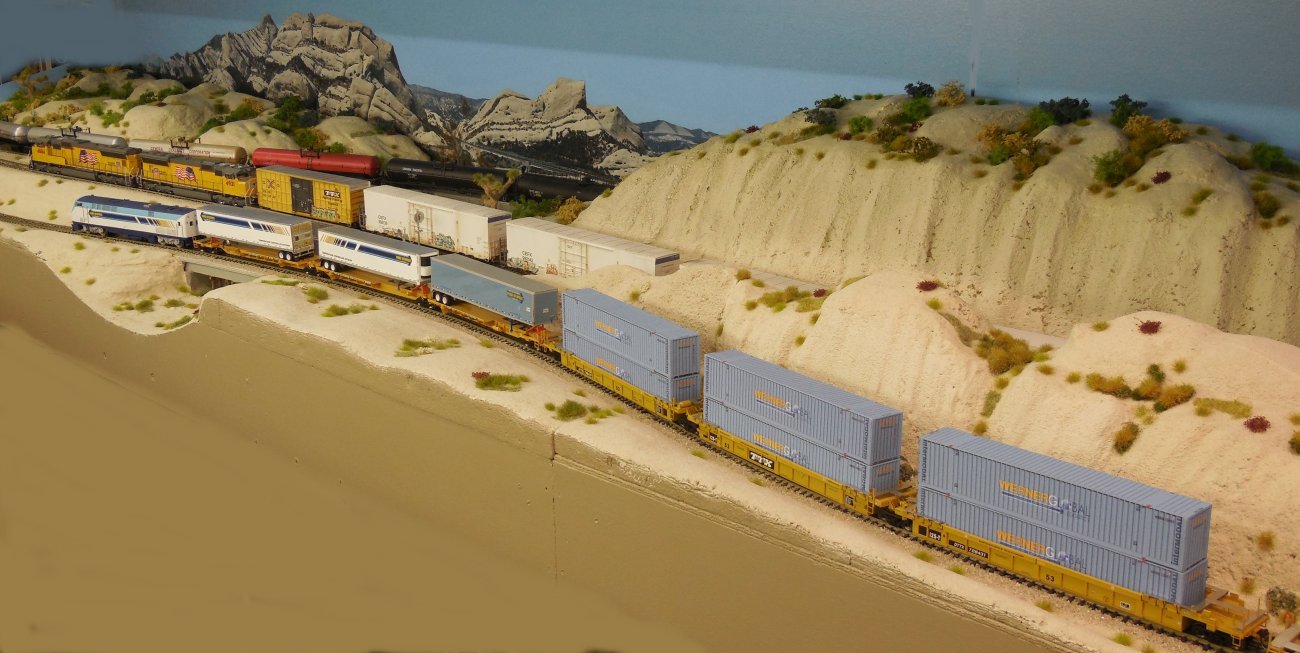

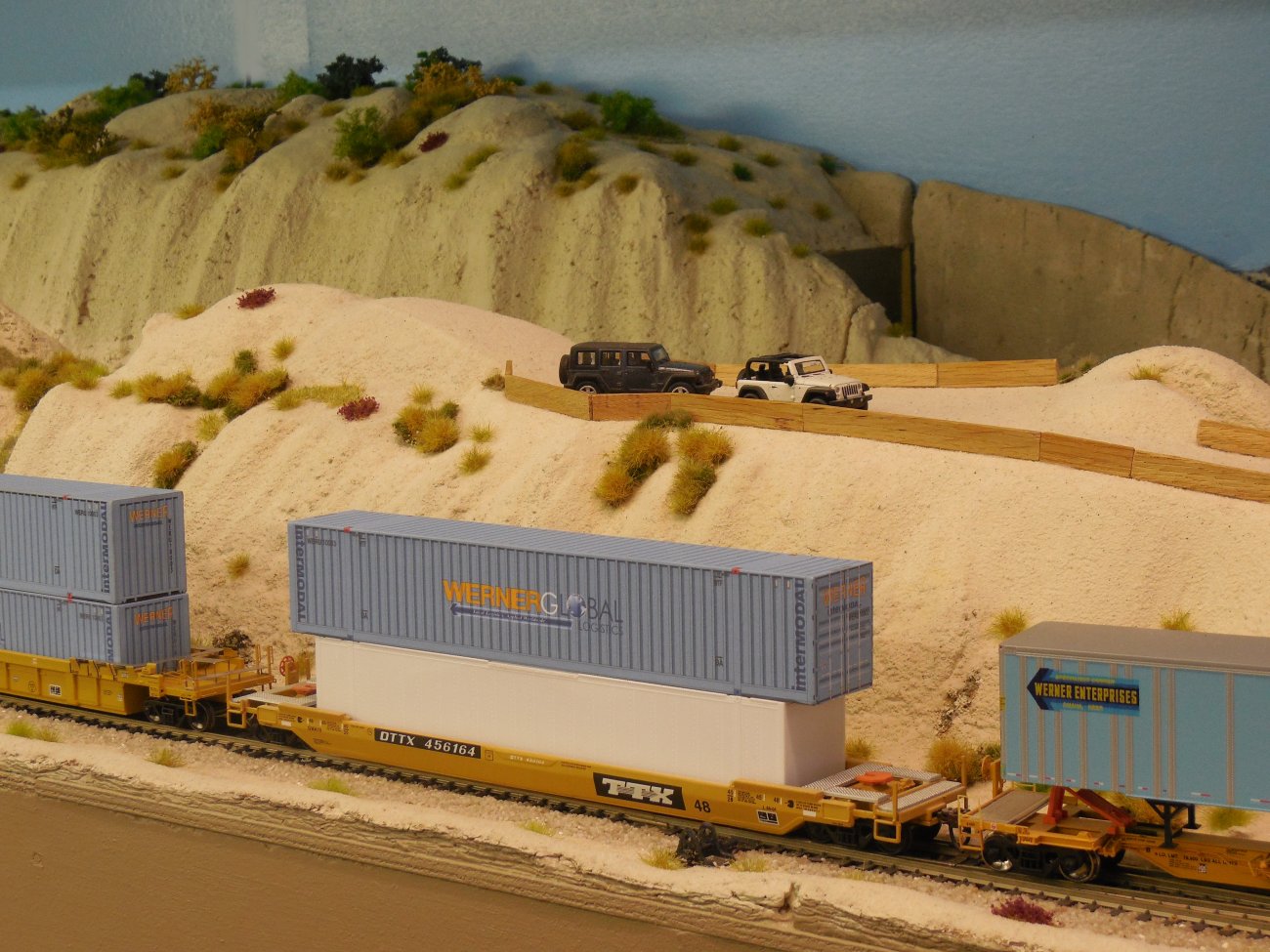

TTX 48' Well Car by Walthers - 405 The railfans are using the new overlook above - 424

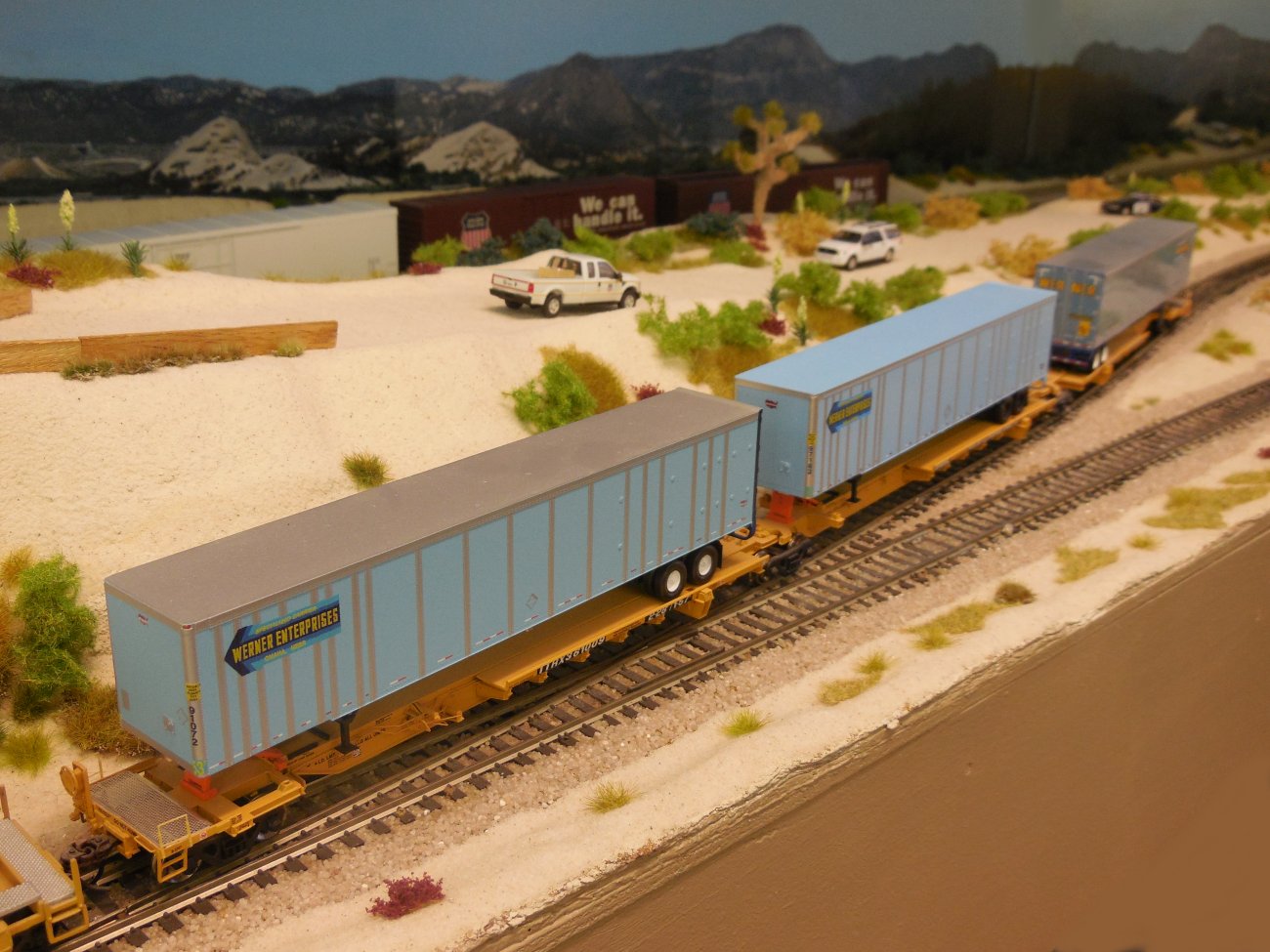

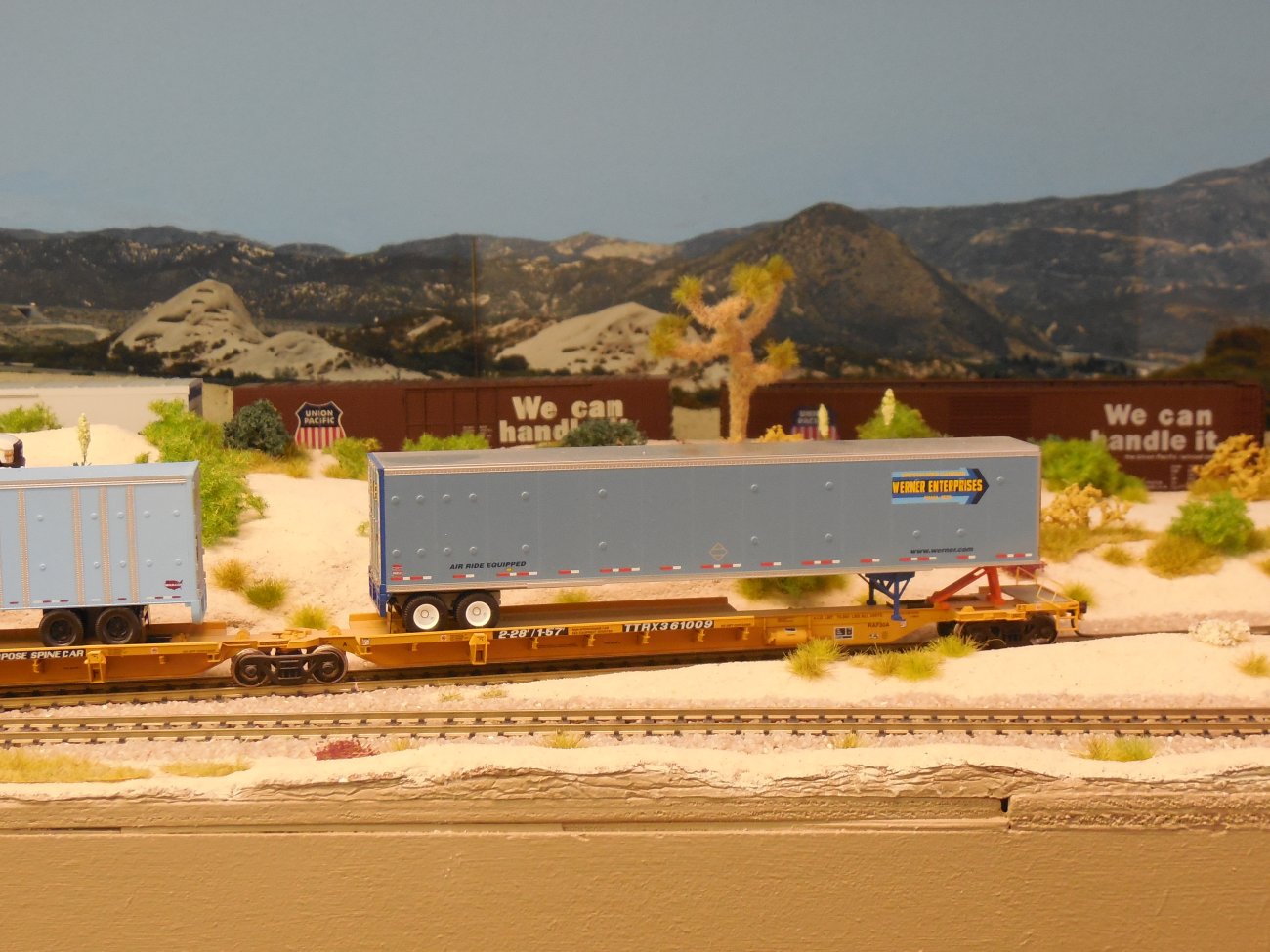

Werner 53' Trailers made by Bowser - 400 Werner '53 Standard Trailer by Athearn - 423

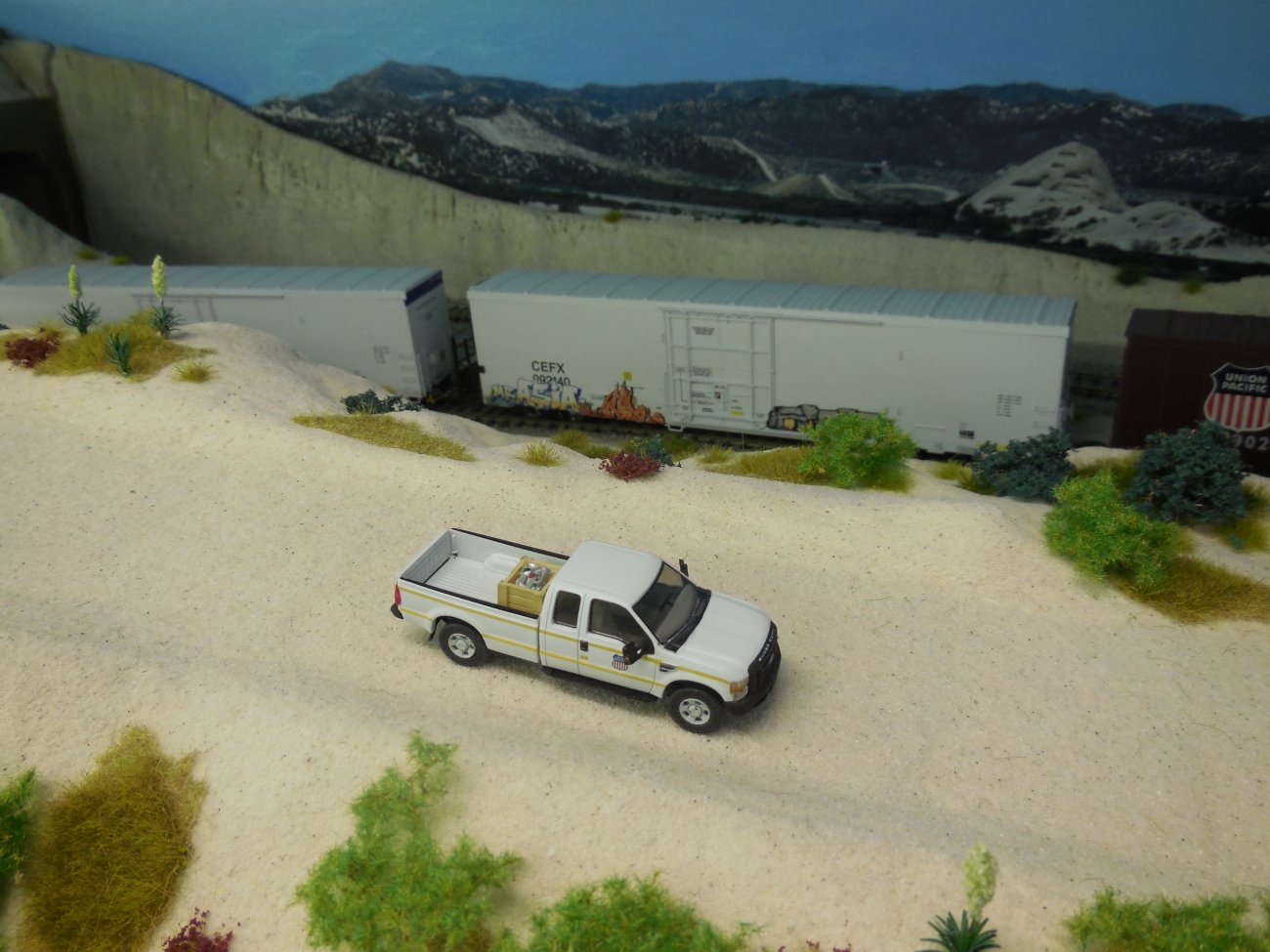

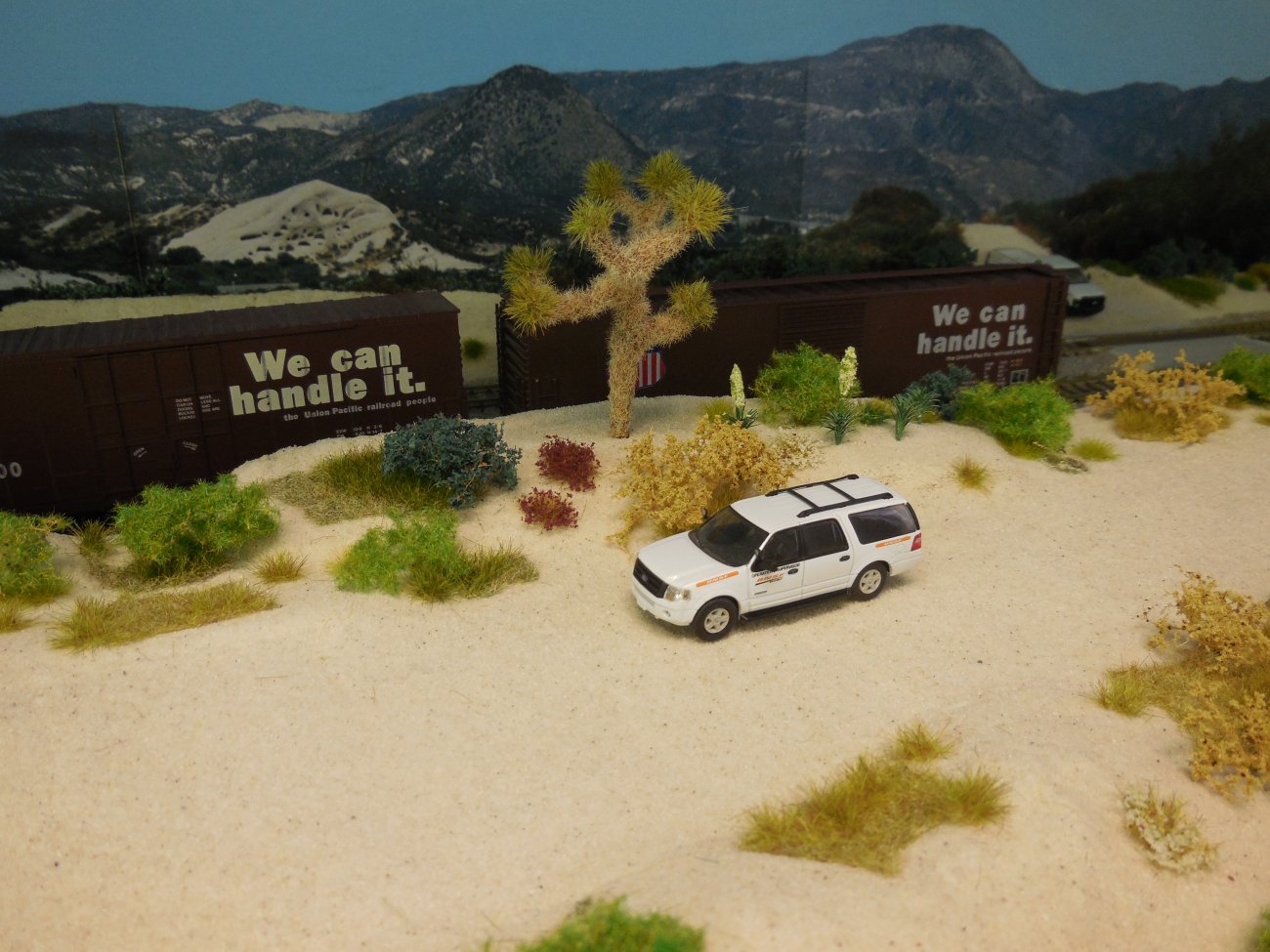

UP Ford Pickup Truck by River Point Minis - 402 BNSF Ford Expedition by River Point Minis - 403
